IVSEC 12MP Turret IP Camera with 3.6mm Fixed Lens, 15FPS, PoE, IP66 Weatherproofing, 30m IR Night Vision and Advanced Detection
IVSEC IVNC340ADXB: a 12MP PoE turret camera with a 3.6 mm 87° lens, red and blue plus white deterrent lights and a built-in microphone and speaker.
- ✓12MP 4512 × 2512, up to 15 fps
- ✓3.6 mm fixed lens, 87° view
- ✓IR to 30 m, white and red and blue lights
- ✓Microphone and speaker, audible warnings
- ✓Human and vehicle detection, intrusion, line crossing
- ✓IP66, IK10, PoE+ 802.3at or 12 V DC, 3 year warranty
Description

12MP detail in a turret.
With lights, a siren and a voice.
The IVSEC IVNC340ADXB is a 12MP wired turret camera with a 3.6 mm lens, IR, white and red and blue lights, a built-in microphone and speaker for warnings and talk-back, and an IP66, IK10 housing.
In one sentence: the IVSEC IVNC340ADXB is a 12MP PoE turret camera (4512 × 2512) with a 3.6 mm 87° lens, night vision to 30 m, red and blue plus white deterrent lights, two-way audio and an IP66, IK10 housing.
Camera only. Recorder, cable and a PoE+ port are separate.
This listing is one camera. It needs a Cat5e or Cat6 cable to a PoE+ (IEEE 802.3at) port on a recorder or switch, or a 12 V DC supply.
- IVNC340ADXB turret camera
- Printed quick user guide
- Installation template
- Mounting screws and plugs
- An IVSEC NVR or another ONVIF (Profile S, G or T) recorder that takes 12MP
- Cat5e or Cat6 cable
- A PoE+ (802.3at) port, or a 12 V DC supply
- IV2477X junction box or IV2457X wall mount if the site needs one
More pixels to zoom into after the event.
With 4512 × 2512 pixels across an 87° view, there is room to zoom into a face or a number plate in the recording. When someone crosses a line, it can light the scene, flash red and blue and give an audible warning through its speaker.

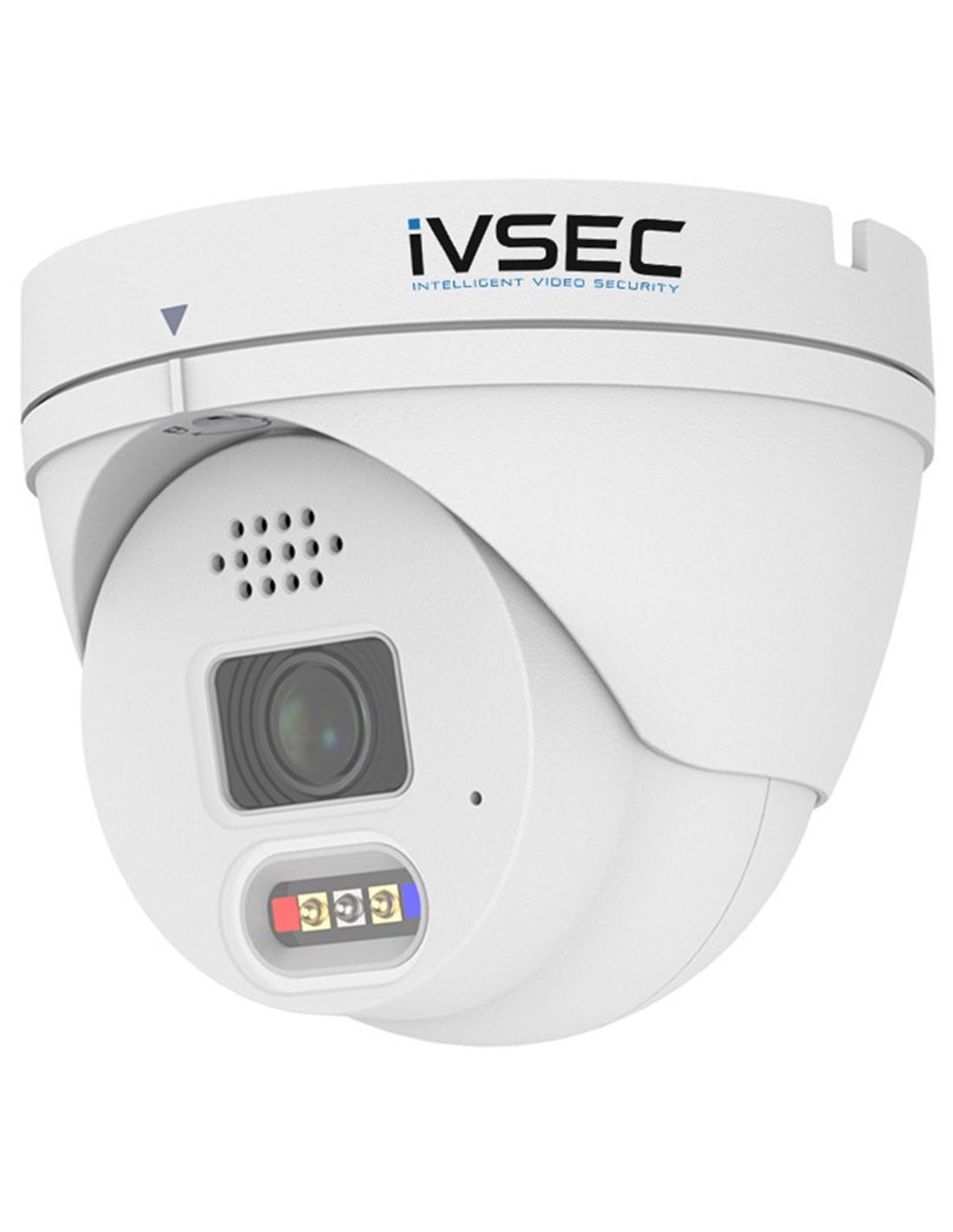

Front
Lens, lights and speaker.
A 1/2.3" progressive CMOS sensor records 12MP at up to 15 fps through a 3.6 mm fixed lens with an 87° view. The grille above the lens is for the built-in speaker, and the window below carries the red and blue lights.

One cable
Power and video on one run.
The tail carries a network connector for PoE+ (IEEE 802.3at) plus a 12 V DC input if you power the camera separately. It draws under 14 W.
How it goes in
From box to first alert.
01
Run the cable
Run Cat5e or Cat6 from the camera position to a PoE+ (802.3at) port on the recorder or a switch, up to 100 m.
02
Mount the camera
Mark the holes with the installation template and fix the base with the supplied screws and plugs, or fit it to an IV2477X junction box or IV2457X wall mount.
03
Add it to the recorder
Find the camera with IVSEC's Device Search/Config Tool or add it on an IVSEC NVR or any ONVIF Profile S, G or T recorder, then set a password.
04
Aim and set the alarms
Turn the turret to frame the area, then draw line crossing or intrusion zones and choose the lights and audible warning for each rule.
At a glance
IVNC340ADXB
Show specs
Camera type
Turret, fixed lens
Resolution
12MP, 4512 × 2512, up to 15 fps
Image sensor
1/2.3" progressive CMOS
Lens
3.6 mm fixed, 87° horizontal
Night vision
IR up to 30 m, Smart IR, automatic day/night
Lights
IR, white, red and blue
Audio
Built-in microphone and speaker
Video analytics
Perimeter intrusion, line crossing, stationary object, human and vehicle detection, face detection, cross counting, crowd density, queue length, heat map
Compression
H.265+, H.265, H.264+, H.264, MJPEG; 3 streams
Image settings
Smart IR, corridor mode, back light, white balance, shutter, exposure time, defog, 3D noise reduction, mirror and flip
Storage
microSD / SDHC card slot; Dropbox cloud option
Network
RJ45 10/100; ONVIF Profile S, G and T
Power
PoE IEEE 802.3at or 12 V DC; under 14 W
Connectors
RJ45, DC power input
Protection
IP66 weatherproof, IK10 vandal resistant
Size and weight
100 × 100 × 100 mm, 0.5 kg
Operating range
−30 °C to 55 °C, 95% humidity or less
Software
Device Search/Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app (QR code)
Warranty
3 years
Pair it with
What this camera does not include
Power
A PoE+ (802.3at) port
The camera asks for 802.3at PoE. Check the recorder or switch port can supply it, or use a 12 V DC supply.
Recorder
An IVSEC NVR that takes 12MP
Records the full 12MP stream around the clock. Any ONVIF Profile S, G or T recorder that supports 12MP can also be used.
Mounting
IV2477X junction box or IV2457X wall mount
Both are on IVSEC's accessory list for this camera, to hide the cable tail or mount the turret on a wall.
Storage
A microSD card
Optional, for recording in the camera or as a backup when the network drops.
Where it is used
Where a 12MP deterrence turret fits.
Shopfronts
Doors and counters in fine detail, with lights and a warning after hours.
Front entries
Talk to visitors through the speaker and record faces at the door.
Warehouses
Wide 87° coverage of docks and aisles with line crossing alerts.
Car parks
Enough resolution to zoom into a number plate in the recording.
Offices and schools
Lobbies and corridors, with corridor mode for tall, narrow views.
Homes
Driveways and yards, with red and blue lights to warn off intruders.
IVNC340ADXB or IVNC340XB
| IVNC340ADXB (this camera) | IVNC340XB | |
|---|---|---|
| Resolution and lens | 12MP, 3.6 mm, 87° | 12MP, 3.6 mm, 87° |
| Night vision | IR up to 30 m | IR up to 30 m |
| Deterrent lights | White, red and blue | None (IR only) |
| Audio | Microphone and speaker | Microphone only |
| PoE standard | 802.3at (PoE+); under 14 W | 802.3af; under 7 W |
| Protection | IP66, IK10 | IP67 (spec table), vandal resistant |
| Size and weight | 100 × 100 × 100 mm, 0.5 kg | 100 × 100 × 100 mm, 0.5 kg |
Figures from IVSEC's IVNC340ADXB datasheet (October 2026) and IVNC340XB datasheet (October 2025).
Common questions
What resolution is it?
12MP at 4512 × 2512, up to 15 fps, from a 1/2.3" progressive CMOS sensor, in H.265+ or H.264 with three streams.
Is a recorder included?
No. This listing is the camera only. It records to an IVSEC NVR, an ONVIF Profile S, G or T recorder that supports 12MP, or a microSD card in the camera.
How is it powered?
From a PoE+ (IEEE 802.3at) port or a 12 V DC supply. It draws under 14 W, so check your recorder's PoE ports support 802.3at.
What does active deterrence do?
When an alarm rule triggers it can switch on the white light, flash its red and blue lights and give an audible warning through the built-in speaker.
Can I talk through it?
Yes. IVSEC lists a microphone and speaker, so you can listen in and speak through the camera. Check your state's surveillance laws before recording audio.
How far does it see at night?
IVSEC rates the IR to 30 m, with Smart IR to stop faces washing out up close. Day and night switching is automatic.
What detection does it have?
Human and vehicle detection, face detection, perimeter intrusion, line crossing, stationary object, cross counting, crowd density, queue length and heat map.
Can it go outside?
Yes. It is rated IP66 against weather and IK10 against impact, and runs from −30 °C to 55 °C.
What lens does it have?
A 3.6 mm fixed lens with an 87° horizontal view. It is not a zoom lens.
What is in the box?
The camera, a printed quick user guide, an installation template and mounting screws and plugs. The network cable is not included.
What is the difference from the IVNC340XB?
The IVNC340ADXB adds white and red and blue lights and a speaker, and needs PoE+ (802.3at). The IVNC340XB has IR only, a microphone only and runs on standard 802.3af PoE.
What warranty does it have?
IVSEC lists a 3 year warranty. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.
Supported by InFront Technologies.
Help matching the camera to a 12MP recorder, PoE+ switch or mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. Runs on PoE+ (802.3at) or 12 V DC, under 14 W. There is no mains wiring; a new power point needs a licensed electrician.
Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio and privacy. Recording people and conversations is covered by state and territory surveillance laws. Point the camera at your own property, use signage and check the rules before switching on audio.
What it does not do. No zoom lens, no Wi-Fi, no battery and no gigabit port (10/100). It does not record on its own without a recorder unless you fit a microSD card.
Figures. From IVSEC's IVNC340ADXB datasheet, updated 12 October 2026.
