IVSEC 12MP Turret IP Camera with 3.6mm Fixed Lens, 15FPS, PoE, IP66 Rating, 30m IR Night Vision, Built-in Mic and IVS

Name: IVSEC 12MP Turret IP Camera with 3.6mm Fixed Lens, 15FPS, PoE, IP66 Rating, 30m IR Night Vision, Built-in Mic and IVS
Brand: IVSEC
SKU: IVNC340XB
Price: 310 AUD
Availability: InStock

SKU IVNC340XB In stock

$310.00 inc GST

IVSEC IVNC340XB: a 12MP PoE turret camera with a 3.6 mm 87° lens, IR night vision to 30 m, a built-in microphone and human and vehicle detection.

✓12MP 4512 × 2512, up to 15 fps
✓3.6 mm fixed lens, 87° view
✓IR night vision up to 30 m, Smart IR
✓Built-in microphone
✓Human and vehicle detection, intrusion, line crossing
✓Standard PoE 802.3af or 12 V DC, 3 year warranty

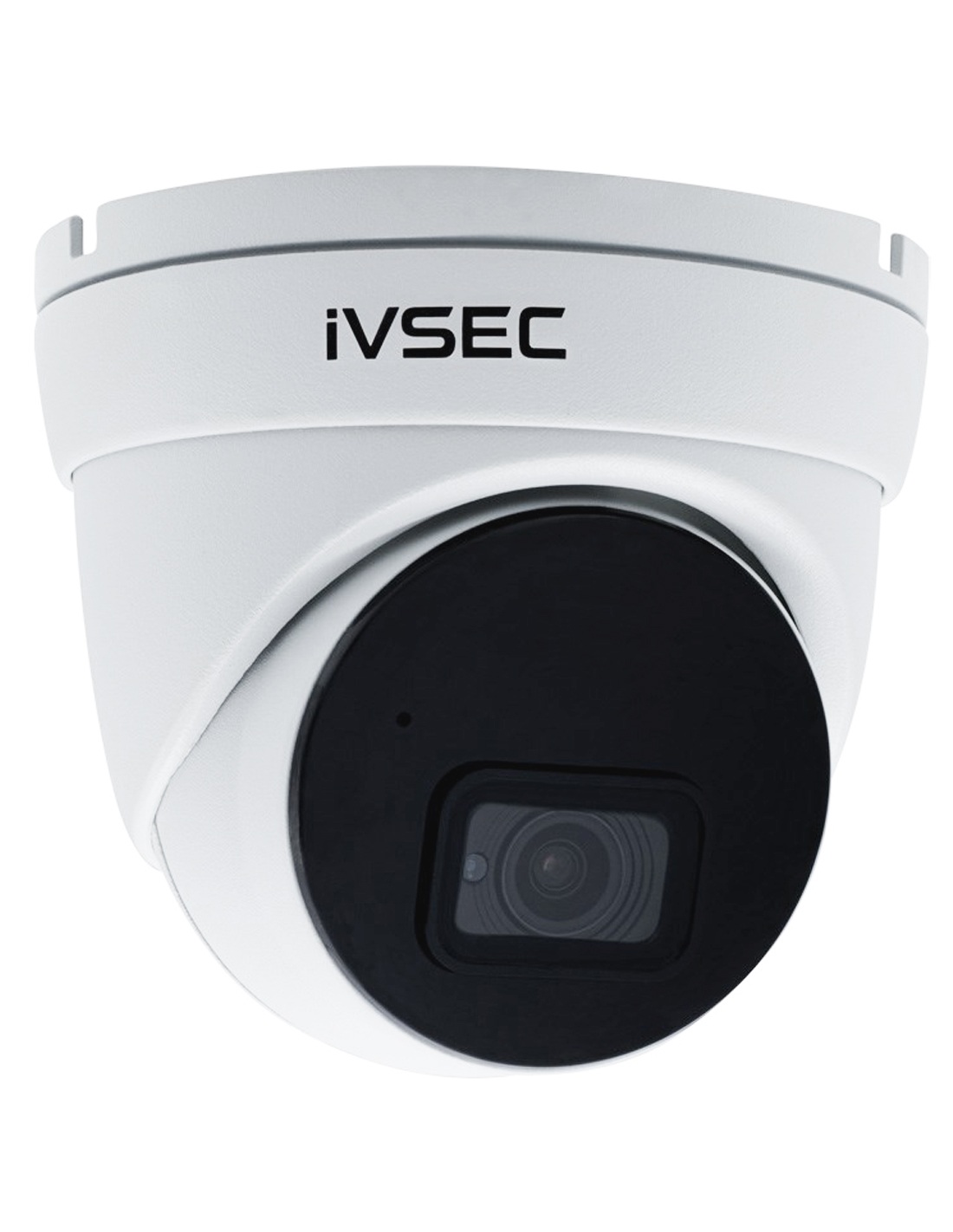

IVSEC NC340XB 12MP turret camera, white housing with black lens surround (IVSEC's product photo, shared with the NC340XA)

IVSEC · 12MP Turret · Smart IP

12MP detail, simple to run.
Standard PoE, IR to 30 m.

The IVSEC IVNC340XB is a 12MP wired turret camera with a 3.6 mm lens, infrared night vision to 30 m, a built-in microphone and human and vehicle detection, powered from a standard PoE port.

In one sentence: the IVSEC IVNC340XB is a 12MP PoE turret camera (4512 × 2512) with a 3.6 mm 87° lens, IR night vision to 30 m, a built-in microphone, human and vehicle detection and a vandal-resistant outdoor housing.

Camera only. Recorder and network cable are separate.

This listing is one camera. It needs one Cat5e or Cat6 cable back to a PoE recorder or PoE switch, which carries both power and video.

In the box

IVNC340XB turret camera
Printed quick user guide
Installation template
Mounting screws and plugs

You also need

An IVSEC NVR or another ONVIF (Profile S, G or T) recorder that takes 12MP
Cat5e or Cat6 cable
A PoE (802.3af) port, or a 12 V DC supply
IV2477X junction box or IV2457X wall mount if the site needs one

High resolution without PoE+.

With 4512 × 2512 pixels across an 87° view, there is room to zoom into a face or a number plate in the recording. It draws under 7 W, so it runs from the standard 802.3af PoE ports on most recorders and switches.

Lens

3.6 mm, 87°, 12MP.

A 1/2.3" progressive CMOS sensor records 4512 × 2512 at up to 15 fps. Infrared reaches up to 30 m, with Smart IR to stop faces washing out up close, and day and night switching is automatic.

IVSEC wired camera cable tail with network connector and 12 V DC socket

One cable

Power and video on one run.

The tail carries a network connector for PoE (IEEE 802.3af) plus a 12 V DC input if you power the camera separately. It draws under 7 W.

How it goes in

From box to recording.

Run the cable

Run Cat5e or Cat6 from the camera position to a PoE port on the recorder or a PoE switch, up to 100 m.

Mount the camera

Mark the holes with the installation template and fix the base with the supplied screws and plugs, or fit it to an IV2477X junction box or IV2457X wall mount.

Add it to the recorder

Find the camera with IVSEC's Device Search/Config Tool or add it on an IVSEC NVR or any ONVIF Profile S, G or T recorder, then set a password.

Aim and set detection

Turn the turret to frame the area, then set human and vehicle detection, line crossing or intrusion zones in the recorder or app.

At a glance

IVNC340XB

Show specs

Camera type

Turret, fixed lens

Resolution

12MP, 4512 × 2512, up to 15 fps

Image sensor

1/2.3" progressive CMOS

Lens

3.6 mm fixed, 87° horizontal

Night vision

IR up to 30 m, Smart IR, automatic day/night

Audio

Built-in microphone (no speaker)

Video analytics

Perimeter intrusion, line crossing, stationary object, human and vehicle detection, face detection, cross counting, crowd density, queue length, heat map

Compression

H.265+, H.265, H.264+, H.264, MJPEG; 3 streams

Image settings

Smart IR, corridor mode, back light, white balance, shutter, exposure time, defog, 3D noise reduction, mirror and flip

Storage

microSD / SDHC card slot; Dropbox cloud option

Network

RJ45 10/100; ONVIF Profile S, G and T (firmware 21.12 or later), HTTP API

Power

PoE IEEE 802.3af or 12 V DC; under 7 W

Connectors

RJ45, DC power input, reset button

Protection

IP67 in the spec table (IP66 in IVSEC's overview), vandal resistant

Size and weight

100 × 100 × 100 mm, 0.5 kg

Operating range

−30 °C to 55 °C, 95% humidity or less

Software

Device Search/Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app (QR code)

Warranty

3 years

Pair it with

What this camera does not include

Recorder

An IVSEC NVR that takes 12MP

Powers the camera over the network cable and records the full 12MP stream. Any ONVIF Profile S, G or T recorder that supports 12MP can also be used.

Mounting

IV2477X junction box or IV2457X wall mount

Both are on IVSEC's accessory list for this camera, to hide the cable tail or mount the turret on a wall.

Cable

Cat5e or Cat6

One run per camera, up to 100 m from the PoE port.

Storage

A microSD card

Optional, for recording in the camera or as a backup when the network drops.

Where it is used

Where a 12MP turret fits.

Shops

Counters, aisles and doors in fine detail from one ceiling or eave.

Front entries

Faces at the door, with the microphone recording what is said.

Warehouses

A wide 87° view of docks and racking with line crossing alerts.

Car parks

Enough resolution to zoom into a number plate in the recording.

Offices and schools

Lobbies and corridors, with corridor mode for tall, narrow views.

Homes

Driveways and yards, with human and vehicle alerts instead of every moving leaf.

IVNC340XB or IVNC340ADXB

	IVNC340XB (this camera)	IVNC340ADXB
Resolution and lens	12MP, 3.6 mm, 87°	12MP, 3.6 mm, 87°
Night vision	IR up to 30 m	IR up to 30 m
Deterrent lights	None (IR only)	White, red and blue
Audio	Microphone only	Microphone and speaker
PoE standard	802.3af; under 7 W	802.3at (PoE+); under 14 W
Protection	IP67 (spec table), vandal resistant	IP66, IK10
Size and weight	100 × 100 × 100 mm, 0.5 kg	100 × 100 × 100 mm, 0.5 kg

Figures from IVSEC's IVNC340XB datasheet (October 2025) and IVNC340ADXB datasheet (October 2026).

Common questions

What resolution is it?

12MP at 4512 × 2512, up to 15 fps, from a 1/2.3" progressive CMOS sensor, in H.265+ or H.264 with three streams.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, an ONVIF Profile S, G or T recorder that supports 12MP, or a microSD card in the camera.

How is it powered?

Over the network cable from a standard PoE (IEEE 802.3af) port on the recorder or a PoE switch, or from a 12 V DC supply. It draws under 7 W.

How far does it see at night?

IVSEC rates the IR to 30 m, with Smart IR to stop faces washing out up close. Night footage is black and white, and switching is automatic.

Does it record sound?

Yes. It has a built-in microphone. There is no speaker, so you can't talk back through it. Check your state's surveillance laws before recording audio.

What detection does it have?

Human and vehicle detection, face detection, perimeter intrusion, line crossing, stationary object, cross counting, crowd density, queue length and heat map.

Is it IP66 or IP67?

IVSEC's spec table says IP67 and its overview text says IP66, so plan on IP66: fine for outdoor walls and eaves, not for being submerged.

What lens does it have?

A 3.6 mm fixed lens with an 87° horizontal view. It is not a zoom lens.

Will it work with my recorder?

It works with IVSEC NVRs and with recorders that support ONVIF Profile S, G or T and 12MP, with camera firmware 21.12 or later.

What is in the box?

The camera, a printed quick user guide, an installation template and mounting screws and plugs. The network cable is not included.

What is the difference from the IVNC340ADXB?

The IVNC340ADXB adds white and red and blue deterrent lights and a speaker, and needs PoE+ (802.3at). The IVNC340XB has IR only and a microphone, and runs on standard 802.3af PoE.

What warranty does it have?

IVSEC lists a 3 year warranty. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help matching the camera to a 12MP recorder, cable or mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. Runs on PoE or 12 V DC, under 7 W. There is no mains wiring; a new power point needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording people and conversations is covered by state and territory surveillance laws. Point the camera at your own property, use signage and check the rules before switching on audio.

What it does not do. No speaker or siren, no deterrent lights, no zoom lens, no Wi-Fi, no battery and no gigabit port (10/100).

Figures. From IVSEC's IVNC340XB datasheet, updated 12 October 2025. Photos are IVSEC's product photo used on its NC340XB page, which shares the NC340XA housing image.

NC340XB DatasheetOfficial IVSEC NC340XB datasheet, supplied by InFront Technologies. Download 317.39KB
