• 2 × NC531ADX camera
• Printed quick user guide (one set per camera)
• Installation template (one set per camera)
• Mounting screws and plugs (one set per camera)

• An IVSEC NVR, or another ONVIF Profile S, G or T recorder
• Cat5e or Cat6 cable for each camera
• Two PoE (802.3af) ports or a switch, or a 12 V DC supply
• IV2422X or IV2477X junction box if you want the cable tail hidden

01

Run the cable

Run Cat5e or Cat6 from the camera position to a PoE (802.3af) port on the recorder or a switch. A 12 V DC supply also works.

02

Mount the camera

Mark the holes with the installation template and fix the bracket with the supplied screws and plugs. Add an IV2422X or IV2477X junction box to hide the tail.

03

Add it to the recorder

Find it with IVSEC's Device Search / Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF recorder.

04

Zoom and set the rules

Zoom the lens to frame the area, draw line crossing or intrusion zones, and choose when the lights, strobe and siren respond.

Recorder

An IVSEC NVR

Records around the clock and powers the camera from its PoE ports. Any ONVIF Profile S, G or T recorder can also be used.

Cable

Cat5e or Cat6

One run per camera back to the PoE port, which carries power and video together.

Mounting

IV2422X or IV2477X junction box

IVSEC's listed junction boxes for this camera, to house the cable tail behind the bracket.

Storage

A microSD card

Optional, for recording in the camera or as a backup if the network drops.

Shopfronts and counters

IVSEC suggests it for cash and point-of-sale areas, with colour video of faces and clothing.

Entryways

Front doors and gates, with a voice warning through the speaker.

Driveways

Zoom to the gate or the car, in colour after dark.

Yards and sheds

Strobe and siren to warn off anyone on site after hours.

Car parks

Line crossing and intrusion alerts for people and vehicles.

Side paths

Narrow the zoom down a laneway or along a fence.

Does it show colour at night?

Yes. The warm white light keeps the picture in colour, and IVSEC rates the night range at 25 m.

What does the deterrence do?

When a rule triggers, the camera can flash its red and blue lights and sound its siren. You can also talk to the person through the IVSEC mobile app.

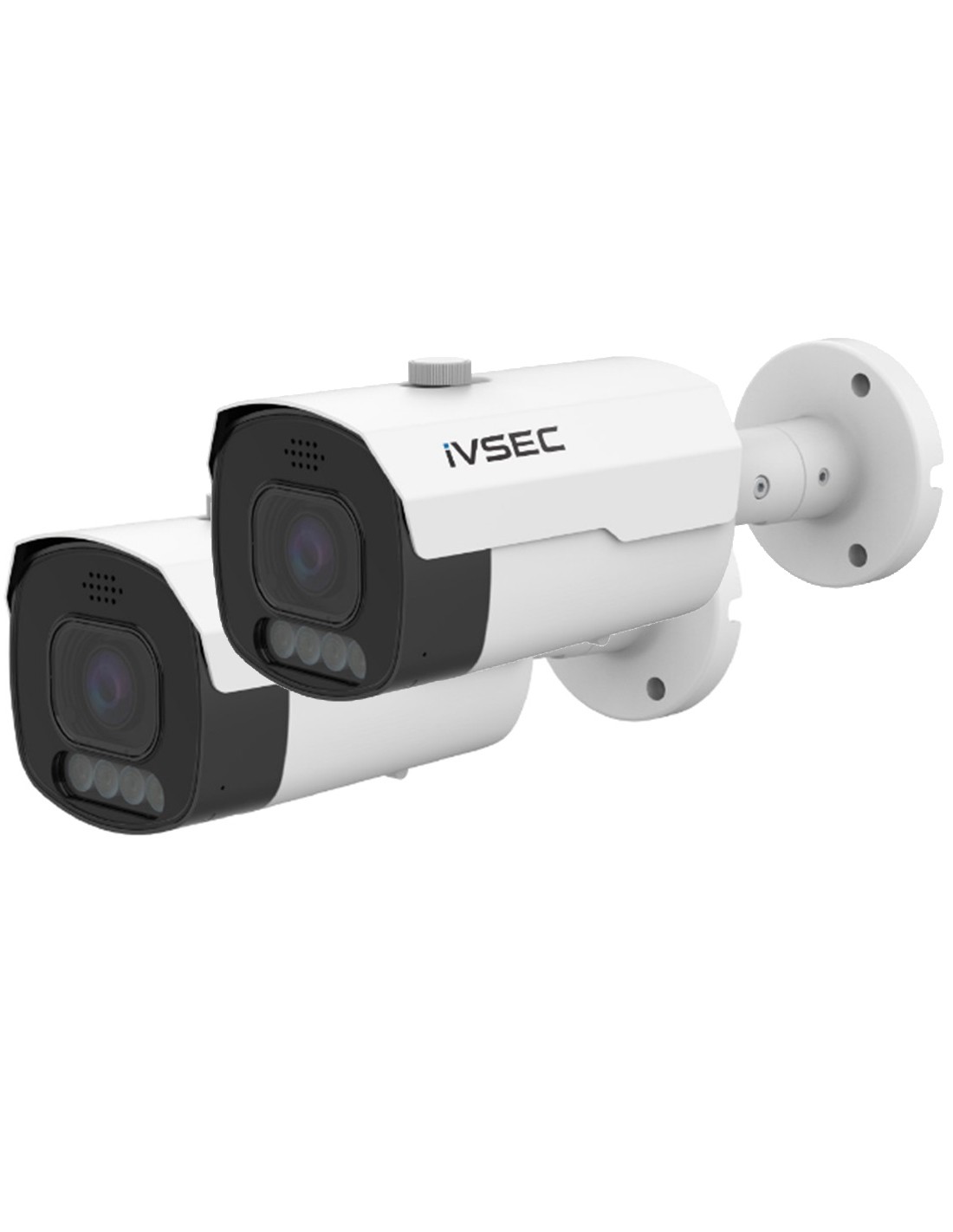

What is in the pack?

Two NC531ADX cameras, each with a printed quick user guide, installation template and mounting screws and plugs. Cables and a recorder are not included.

How is it powered?

Over the network cable from an 802.3af PoE port or switch, or from a 12 V DC supply. It draws under 14 W.

Can I zoom remotely?

Yes. The motorised 2.8–12 mm lens zooms from 107° down to 34° from the recorder or app, without touching the camera.

What frame rate does it record?

The spec table lists up to 30 fps at 3840 × 2160. IVSEC's overview text says 25 fps, so plan on 25 fps if smooth motion matters.

Does it record sound?

Yes. It has a built-in microphone and speaker. Check your state's surveillance laws before recording audio.

Which analytics does it have?

Face recognition, human and vehicle detection, line crossing, perimeter intrusion, licence plate detection, cross counting, crowd density, queue length, heat map, stationary object and rare sound detection.

Is it weatherproof?

Yes. It is rated IP67 for weather and IK10 for impact, and runs from −35 °C to 60 °C.

How do I hide the cable?

Add IVSEC's IV2422X or IV2477X junction box behind the bracket; both are listed for this camera.

Should I choose the NC531ADX or the NC531XB?

The NC531ADX gives colour at night to 25 m, strobes, a siren and two-way audio. The NC531XB is infrared only but reaches 45 m.

How is the 2-pack different from the single camera?

Only the quantity. Each camera in the pack is the same NC531ADX with the same specifications, mounting parts and 3-year warranty.
