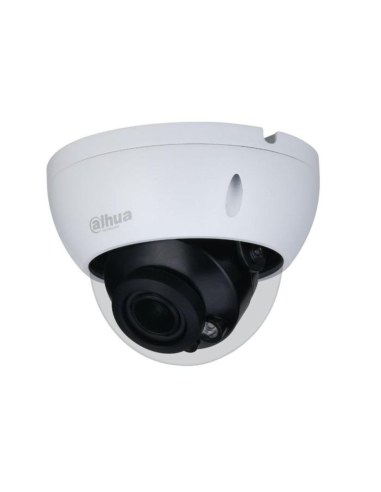

Dahua 5MP Starlight Pro HDCVI Motorised Dome 2.7~13.5mm IR 30m - HAC-HDBW2501RP-Z-27135

Dahua 5MP Starlight Pro HDCVI Motorised Dome 2.7~13.5mm IR 30m



HAC-HDBW2501RP-Z-27135



Experience a 5-megapixel video with the simplicity of reusing existing coaxial infrastructure. The 5MP starlight HDCVI camera presents a high-quality image with rich details even under extreme low-light conditions. The camera also features broadcast-quality audio to provide enhanced supplementary evidence collection. It offers various motorized/fixed lens models with 120dB true WDR and HD/SD switchable output.

The higher resolution and starlight feature makes the 5MP HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are needed.



Features:

Starlight, 120dB true WDR, 3DNR

Max. 20fps@5MP

HD/SD output switchable

Audio in interface

3.6mm fixed lens (2.8mm optional)

Max. IR length 30m, Smart IR

IP67, IK10, DC12V±30%

3 Years Back-to-Base Manufacturer Warranty!



Functions:

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending a control signal or triggering an alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

* Audio input is available for some models of HDCVI cameras.



Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distances without any loss. It supports up to 700 m for 5MP HD video via coaxial cable and up to 300 m via UTP cable.*

*Actual results verified by real-scene testing in Dahua's test laboratory.



Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance systems, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug-and-play approach enables full HD video surveillance without the hassle of configuring a network.



Starlight

With the adoption of large-sized high-performance sensors, the camera is able to provide incomparable performance even under extreme lowlight environments. The starlight feature allows more details to be captured and accurate colour to be recognized at night or in scenes with limited illumination.



Smart IR

The camera is designed with IR LED illumination for the best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W images under low illumination. Dahua's unique Smart IR adjusts to the intensity of the camera's infrared LEDs to compensate for the distance of an object and prevents IR LEDs from overexposing images as the object comes closer to the camera.



Wide Dynamic Range

Embedded with industry-leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.



Advanced 3D NR

3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3D NR technology allows remarkable noise reduction with little impact on sharpness, especially under limited lighting conditions. Besides, the advanced 3D NR effectively decreases the bandwidth and saves storage space.



Protection

The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with an IP67 ranking, making it suitable for indoor or outdoor environments. The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in).

Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.



Tech Specs:

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6; 30IRE; 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355°

Lens

Lens Type

Motorized varifocal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.6

Field of View

Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138°

Iris Type

Fixed iris

Close Focus Distance

0.8 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7mm

64.0 m

25.6 m

12.8 m

6.4 m

13.5mm

210.0 m

84.0 m

42.0 m

21.0 m

Video

Frame Rate

CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/HLC-Pro/WDR

WDR

120 dB

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Illumination

Yes

Digital Zoom

4x

Defog

Electronic defog

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN623681:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12V DC ±30%

Power Consumption

Max. 6.6W (12V DC, IR on)

Environmental

Operating Temperature

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Protection Grade

IP67; IK10

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ122 mm × 88.9 mm (φ4.8" × 3.5")

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.64 kg (1.40 lb)
