Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x TIOC DH-SDT3E410-8P-MB-APV1

1 / 4

Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x TIOC PTZ Camera – AI, Full-Colour, Smart Tracking

Name: Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x TIOC PTZ Camera – AI, Full-Colour, Smart Tracking
Brand: Dahua Australia
SKU: DH-SDT3E410-8P-MB-APV1
Price: 640 AUD
Availability: InStock

SKU DH-SDT3E410-8P-MB-APV1 In Stock - Ready to Ship

$640.00 inc GST

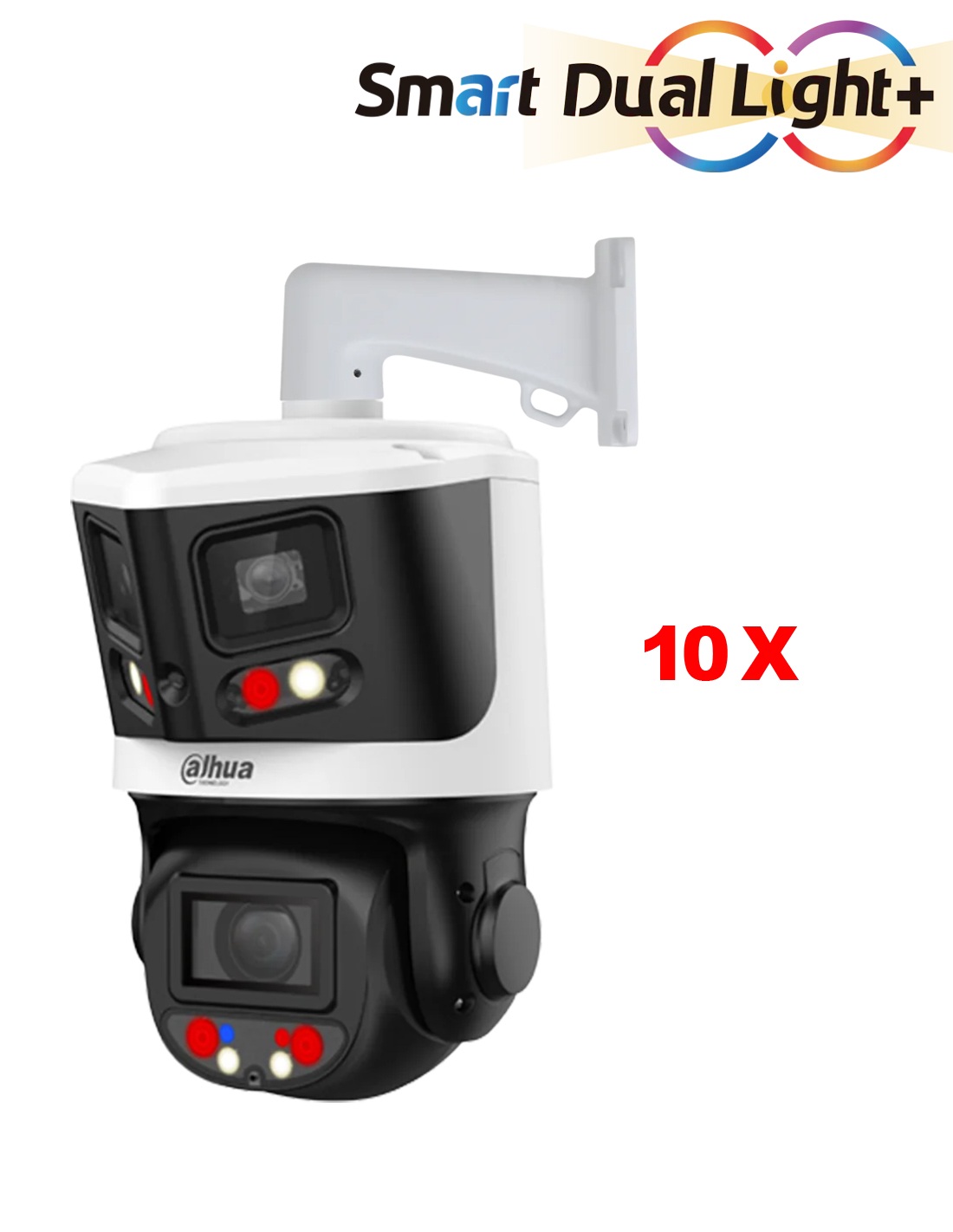

Dahua DH-SDT3E410-8P-MB-A-PV1: a 180° 8 MP panoramic camera and a 4 MP 10x zoom PTZ in one outdoor housing, with linked people tracking and active deterrence.

✓8 MP 180° panorama plus 4 MP 10x optical zoom PTZ
✓Panorama links to the PTZ to track people
✓70 m IR and 30 m warm light, smart dual light
✓Red and blue lights, siren and built-in speaker
✓PoE+ or 12 VDC, IP66, wall bracket included

Dahua DH-SDT3E410-8P-MB-A-PV1 8MP plus 4MP dual lens TiOC PTZ camera on its wall bracket

Dahua · 8MP + 4MP TiOC PTZ · 10x

See the whole yard.
Zoom in on what moves.

A 180° 8 MP panoramic camera and a 4 MP 10x zoom PTZ in one housing. The panorama watches everything, the PTZ swings to follow people, and the lights and siren tell them they have been seen.

In one sentence: The Dahua DH-SDT3E410-8P-MB-A-PV1 is an outdoor TiOC camera that pairs a 180° 8 MP panoramic lens with a 4 MP 10x optical zoom PTZ, with linked people tracking, smart dual light, red and blue warning lights, a built-in speaker and PoE+ power.

Needs PoE+ (802.3at) or a 12 V 3 A supply.

The camera draws up to 25 W, more than a standard PoE port gives. Use a PoE+ switch or NVR port, or a 12 VDC 3 A power supply. The wall bracket is included.

In the box

DH-SDT3E410-8P-MB-A-PV1 dual lens PTZ camera
PFB5310W wall mount bracket
Mounting hardware and quick start guide

You also need

A PoE+ (802.3at) switch or NVR port, or a 12 VDC 3 A power supply
Cat5e or Cat6 cable to the camera
A compatible Dahua NVR, or a microSD card of up to 512 GB for local recording
A pole or corner mount adaptor if it is not going on a flat wall (ask us)

Two cameras, one cable.

The panoramic lens gives a 180° view at 8 MP, day and night. When a person walks into a guarded area, the 4 MP zoom camera turns to them and follows, so the recording shows both the whole scene and a close, clear face or body.

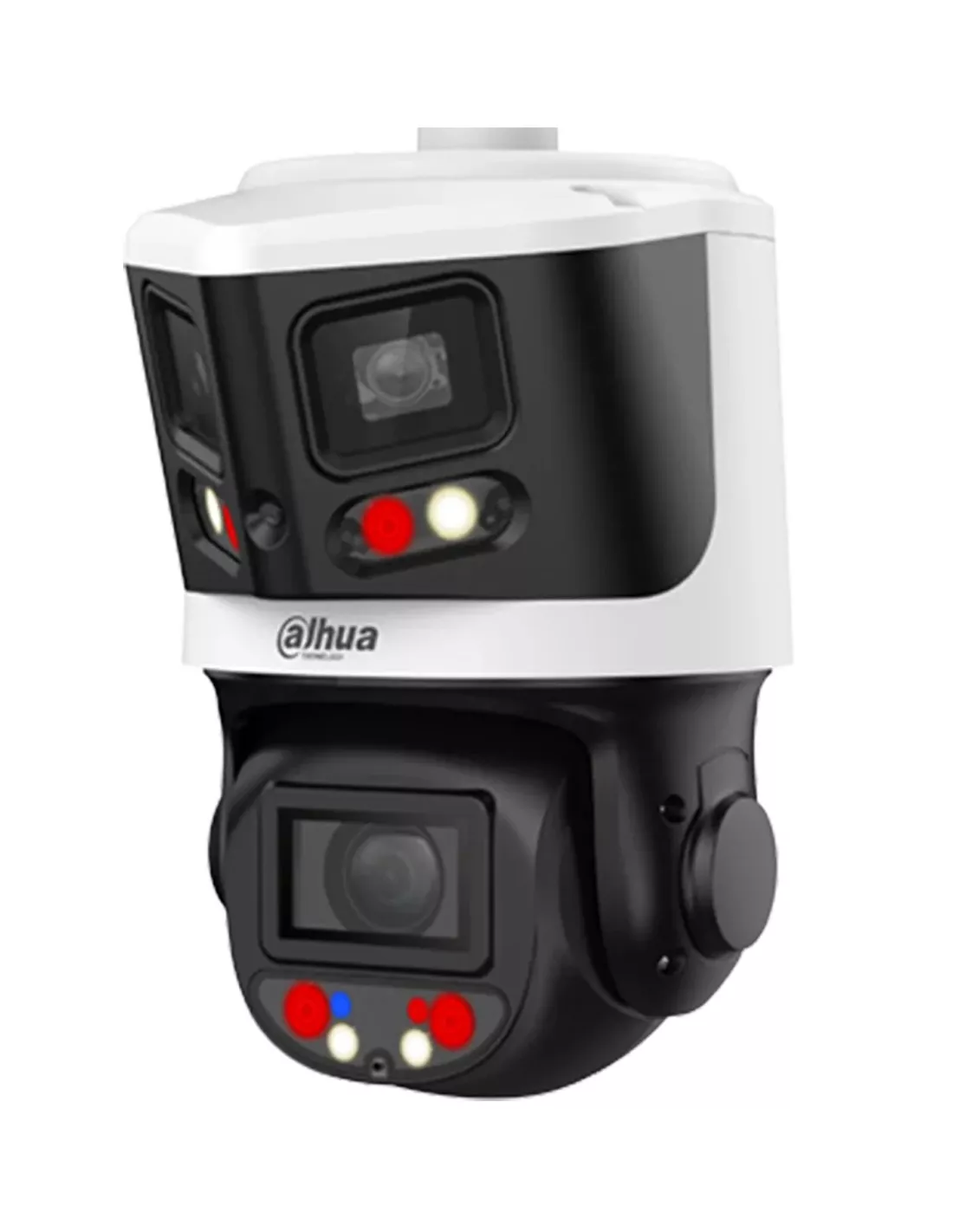

Front of the Dahua SDT3E410 dual lens PTZ showing the panoramic lens, the zoom camera and the illuminators

Two lenses

180° panorama above, 10x zoom below.

The overview camera is 8 MP (5376 × 1520) with a 2.8 mm F1.6 lens covering 180° by 47°. The detail camera is a 4 MP STARVIS sensor behind a 4 to 40 mm lens, with 10x optical zoom, 120 dB WDR and electronic image stabilisation.

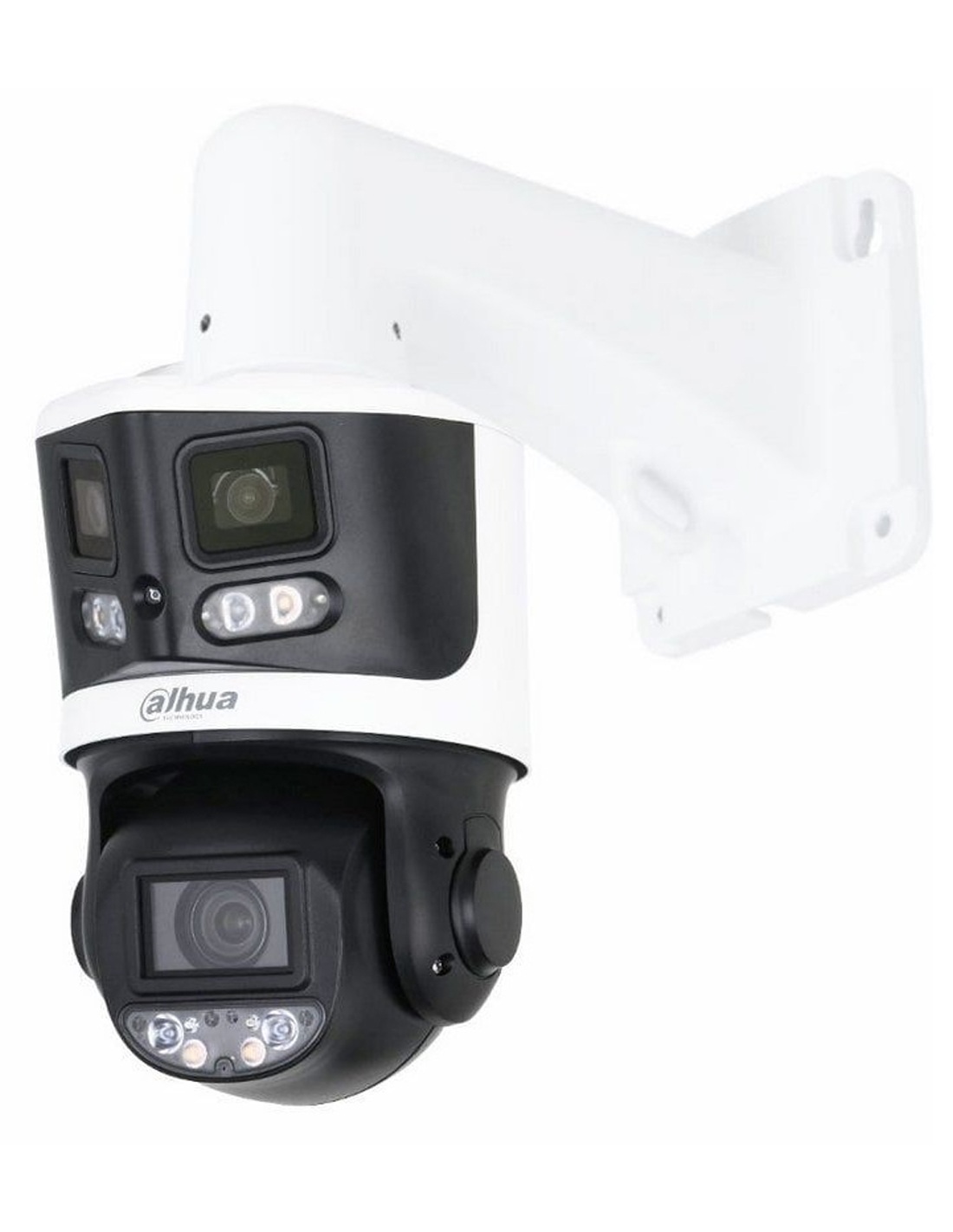

Dahua SDT3E410 dual lens PTZ camera hanging from the included PFB5310W wall bracket

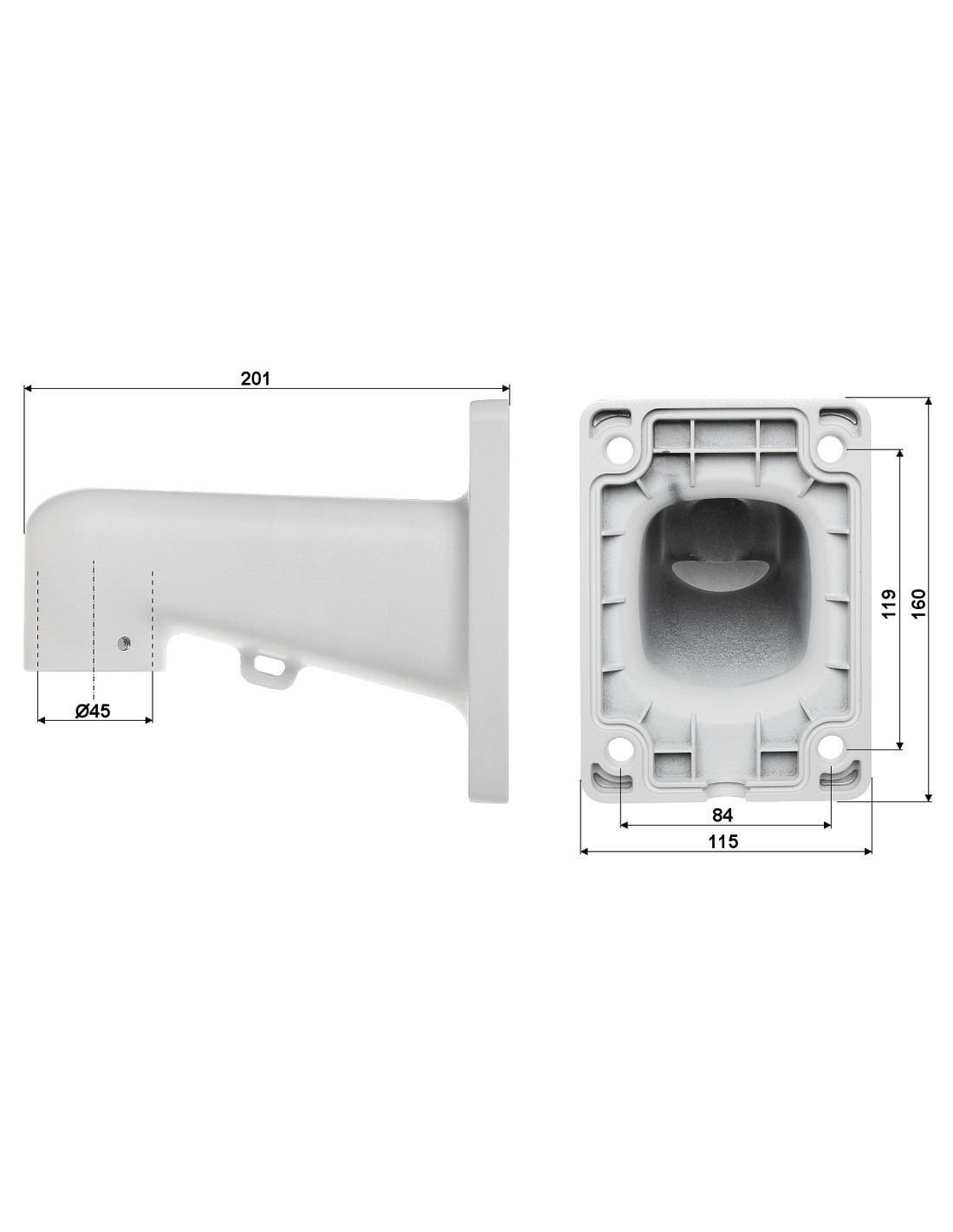

Wall bracket included

Up on the wall, out of reach.

The PFB5310W wall bracket comes in the box. The camera weighs 2.17 kg, is IP66 rated with 6000 V surge protection, and runs from −30 °C to +60 °C, so it suits exposed sheds, poles and building corners (pole and corner adaptors are extra).

How it goes in

From wall to tracking.

Run the cable

Cat5e or Cat6 from a PoE+ switch or NVR port to the camera spot. Use a 12 VDC 3 A supply instead if there is no PoE+.

Fix the bracket

Screw the included PFB5310W bracket to a solid wall, high enough to see over the area, and seal the cable entry.

Hang and connect

Connect the network cable and any alarm or audio wires, mount the camera on the bracket and tighten it.

Set the rules

In the web page, NVR or DSS, draw tripwire or intrusion zones on the panorama and turn on linked tracking, lights and sounds.

At a glance

DH-SDT3E410-8P-MB-A-PV1

Show specs

Overview camera

1/2.8" 8 MP CMOS, 5376 × 1520, 2.8 mm F1.6, 180° × 47°

Detail camera

1/2.8" 4 MP STARVIS CMOS, 2560 × 1440, 4 to 40 mm, F1.6 to F3.6

Zoom

10x optical, 16x digital; H 58° to 11.3°

Illumination

Overview: 30 m IR, 30 m white light. Detail: 70 m IR, 30 m warm light

DORI (detail camera)

Detect 500 m, observe 197.5 m, recognise 100 m, identify 50 m

Pan and tilt

Pan 0 to 345°, tilt −10° to +90°; manual up to 80°/s pan, 50°/s tilt

Presets

300

Frame rate

Up to 25/30 fps at 8 MP

Video compression

H.265, Smart H.265+, H.264, Smart H.264+

AI functions

Tripwire, intrusion, fence crossing, loitering, abandoned and missing object, fast moving, parking, people gathering; face detection; SMD 4.0; Auto Tracking Lite

Active deterrence

Red and blue warning light (5 to 30 s), 11 built-in sounds plus 10 custom, built-in speaker

Audio

1 in (line in or built-in mic), 1 out (line out or built-in speaker)

Alarm

1 in, 1 out

Network

RJ-45 100 Base-T, ONVIF Profile S, G and T, up to 20 users

Storage

microSD up to 512 GB, FTP/SFTP, NAS

Power

12 VDC 3 A or PoE+ (802.3at); 12 W basic, 25 W max

Environment

−30 °C to +60 °C, IP66, TVS 6000 V surge protection

Size and weight

140.3 × 181.7 × 238.8 mm, 2.17 kg

Software

DMSS app, DSS Pro, web browser

Pair it with

What else you may need

Power

A PoE+ port

802.3at, up to 25 W. A standard 802.3af port is not enough.

Recording

A Dahua NVR

Records both channels around the clock and keeps the AI events searchable. Ask us which NVR suits.

Storage

A microSD card

Optional, up to 512 GB, for recording in the camera itself.

Mounting

Pole or corner adaptor

The wall bracket is in the box. For a pole or an outside corner, ask us for the matching Dahua adaptor.

Where it is used

Where one camera can do the work of several.

Farm sheds and yards

One mount covers the whole yard, and zooms in on anyone near the gate or machinery.

Car parks

The 180° panorama watches every bay, and parking and loitering rules flag what needs a look.

Factory and warehouse fronts

Watch loading docks and fences after hours, with lights and sounds to warn people off.

Construction sites

Wide view of the site and a zoom camera to follow anyone inside the fence at night.

Large homes and acreage

Driveway, front yard and gate from a single camera on the corner of the house.

Schools and community sites

Ovals, playgrounds and car parks after hours, with tracking of anyone on site.

This camera or the bigger 25x model

	DH-SDT3E410-8P-MB-A-PV1 (this camera)	DH-SDT4E425-8P-GB-APV1
Panoramic camera	8 MP, 180° × 47°	8 MP, 180° × 86°
Zoom camera	4 MP, 10x (4 to 40 mm)	4 MP, 25x (5 to 125 mm)
IR on the zoom camera	70 m	100 m
Pan	0 to 345°	360° endless
Tracking	Auto Tracking Lite, people	WizTracking, people and vehicles
Network port	100	100/1000
Operating range	−30 °C to +60 °C	−40 °C to +65 °C
Weight	2.17 kg	3.1 kg
Power	PoE+ or 12 VDC, 25 W max	PoE+ or 12 VDC, 25 W max

Pick this camera for yards, car parks and building fronts up to about 100 m. Pick the 25x model for longer distances, full 360° pan and vehicle tracking.

Common questions

Does it need an NVR?

No. It can record to a microSD card of up to 512 GB and be viewed in the DMSS app. A Dahua NVR is better for 24/7 recording of both channels and searching events.

Will a normal PoE switch power it?

Only if the port is PoE+ (802.3at). The camera uses up to 25 W. It can also run from a 12 VDC 3 A supply.

What does TiOC mean?

Three-in-One Camera: 24/7 recording, AI alarms and active deterrence (warning lights and sounds) in one unit.

How does the tracking work?

When a person enters a zone on the 180° panoramic view, the zoom camera turns to them and follows. Linked tracking on this model is for people.

How far can it see at night?

The zoom camera has up to 70 m of IR and 30 m of warm light. The panoramic camera has 30 m of IR and 30 m of white light.

Will I get colour video at night?

Yes, within light range. Smart dual light keeps the camera on IR and switches to the white or warm light when it detects a person or vehicle, so you get colour footage of the event.

Can it talk to people?

It has a built-in speaker and microphone, 11 warning sounds plus 10 custom ones, and red and blue flashing lights. Confirm with us if you need two-way talk through your app or NVR.

Does it turn all the way around?

It pans from 0 to 345°, so not a full circle, and tilts from −10° to +90°. The 180° panorama covers the main view at all times.

Is it weatherproof?

Yes. It is IP66 rated, has 6000 V surge protection and runs from −30 °C to +60 °C.

Does it work with my existing NVR?

It supports ONVIF Profile S, G and T, so most NVRs will record it. Tracking setup and the AI events work best with a Dahua NVR. Confirm with us for your model.

What bracket comes with it?

The PFB5310W wall bracket is included. Pole and corner adaptors are extra.

Who should install it?

Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Mains wiring for a power supply needs a licensed electrician.

Supported by InFront Technologies.

Help choosing an NVR, PoE+ switch or bracket: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Power. Runs on PoE+ (802.3at) or 12 VDC 3 A. A new power point or mains wiring needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Working at height. PTZ cameras usually go high on walls or poles. Use proper access equipment and fix the bracket to solid structure; the camera weighs 2.17 kg.

Privacy. The camera records video and can record audio. Check your state or territory surveillance laws, and keep it off neighbours' yards and windows using privacy masks.

Figures. From Dahua's DH-SDT3E410-8P-MB-A-PV1 datasheet.
