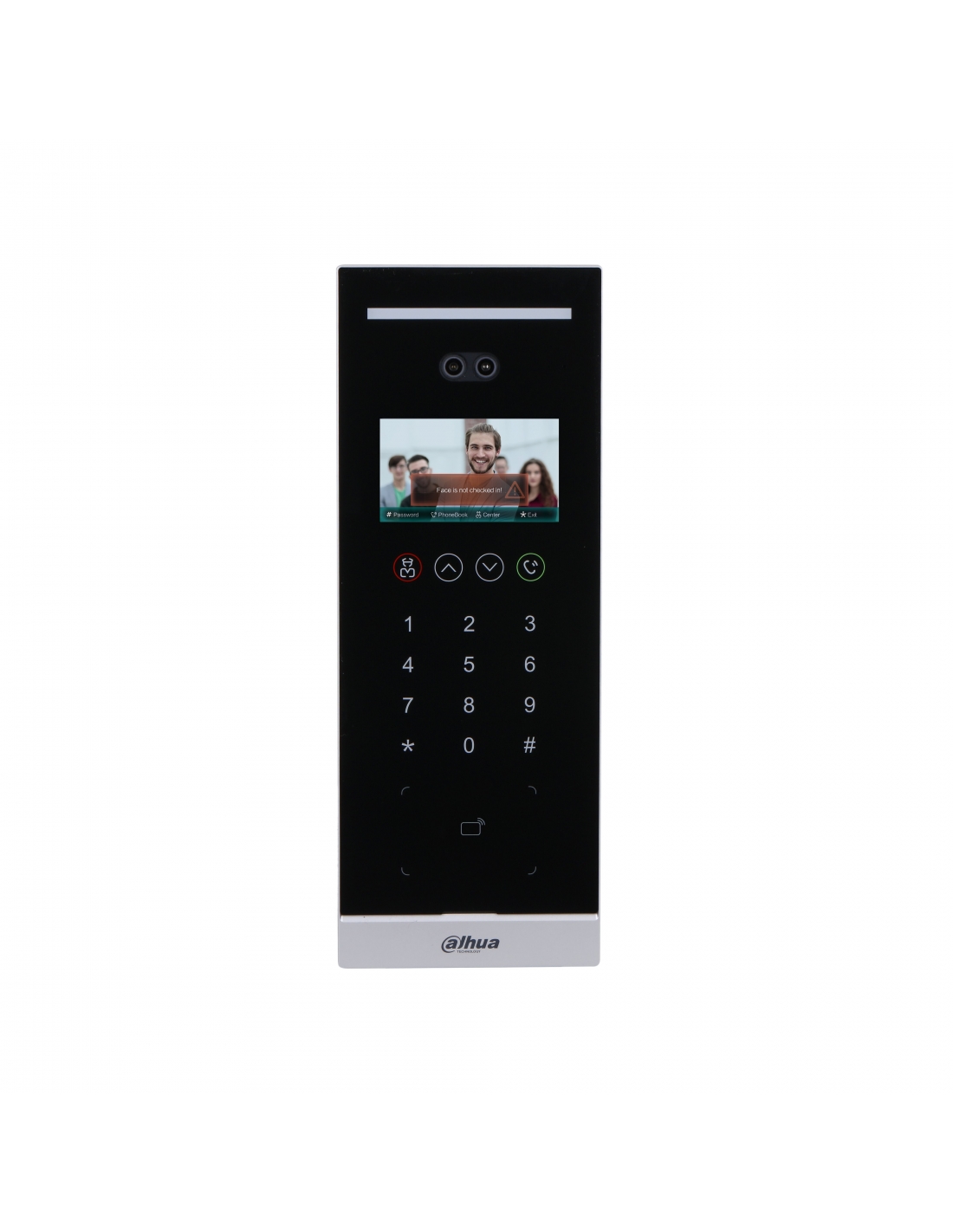

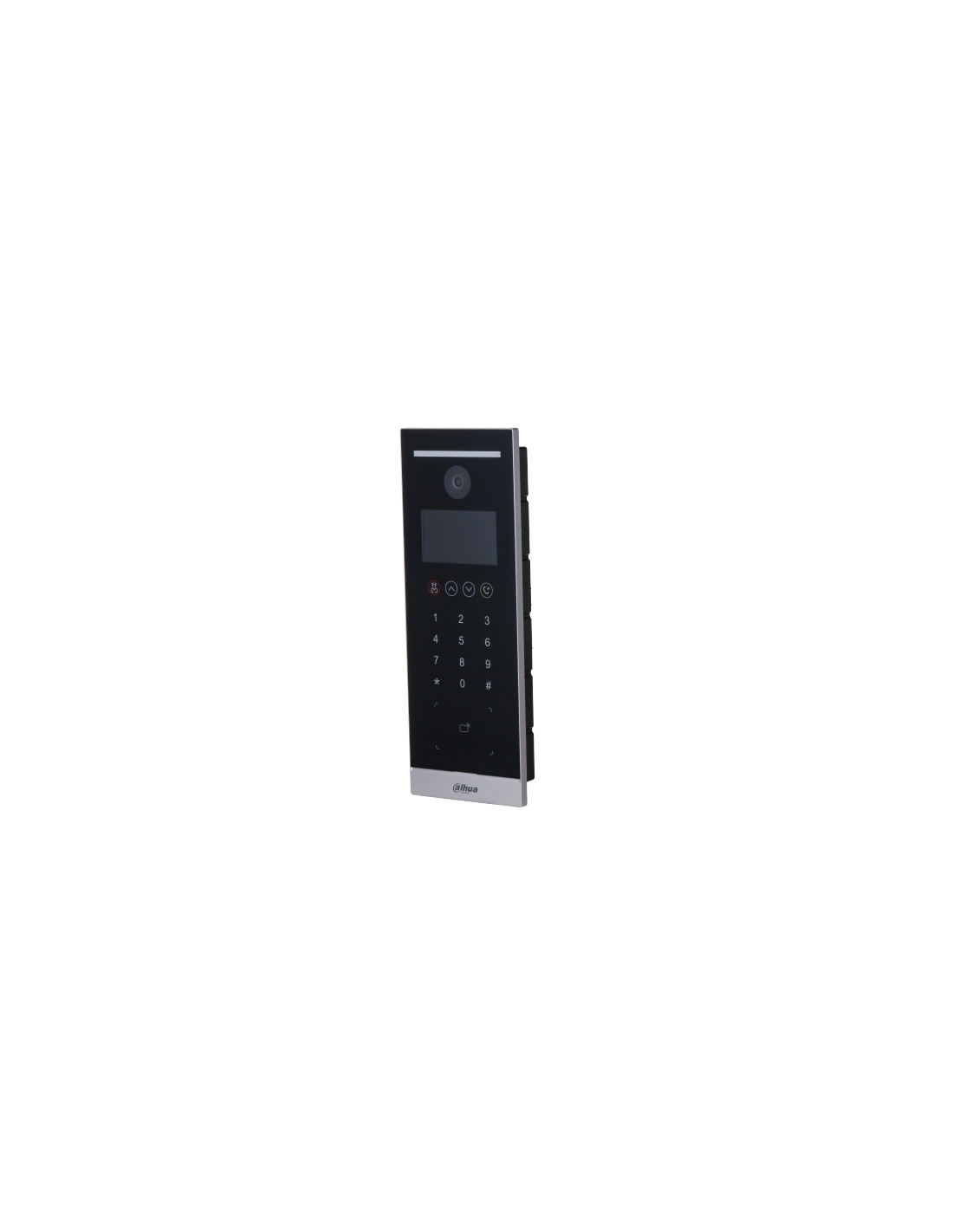

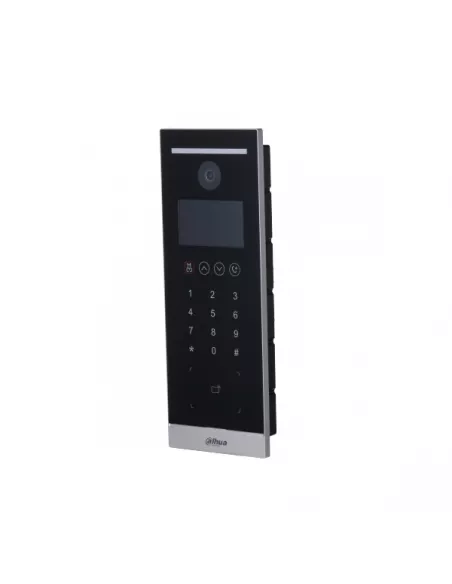

Dahua Face Recognition and Mifare Reader Intercom Door Station - DHI-VTO6531H
- 4.3 inch IPS display; screen resolution 800×480
- 2MP CMOS; true WDR
- Face-camera distance: 0.3 m–2 m; human height: 1.1 m–2.4 m
- Touch button; IP65
- Operating temperature: -30°C to +60°C
- Auto light illumination reduces light pollution
- Multiple unlock modes: Password unlock, IC card unlock, remote unlock and face unlock
- Support 20, 000 users, 10,000 face images, and 10, 000 cards
- Face recognition speed: 0.2 seconds40 per person
- Support liveness detection
- Support full-duplex; management platform, and voice call through APP
- Support SIP server, and can manage 200 indoor monitors at most
- Support duress alarm, tamper alarm, and door sensor timeout alarm
- Various unlock status display modes protect user privacy
Dahua Face Recognition and Mifare Reader Intercom Door Station
DHI-VTO6531H
Dahua Face Recognition solutions offer high accuracy of detection rate and recognition rate with its advanced AI technology, and door station with a 2-megapixel camera.
Door Station Features:
4.3 inch IPS display; screen resolution 800x480
2MP CMOS; true WDR
Face-camera distance: 0.3 m-2 m; human height: 1.1 m-2.4 m (lens ground distance: 1.4 m)
Touch button; IP65
Operating temperature: -30C to 60C
Auto light illumination reduces light pollution
Multiple unlock modes: Password unlock, IC card unlock, remote unlock and face unlock
Support 20, 000 users, 10,000 face images, and 10, 000 cards
Face recognition speed: 0.2 seconds per person
Support liveness detection
Support full-duplex; management platform, and voice call through APP
Support SIP server, and can manage 200 indoor monitors at most
Support duress alarm, tamper alarm, and door sensor timeout alarm
Various unlock status display modes protect user privacy
Tech Specs:
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux operating system |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type |
Touch button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
4GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Screen |
4.3 inch IPS screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
800×480 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: 87.42°; vertical: 46.48 °; diagonal: 104.13° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
4.0 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
Main Stream: 720p, sub-stream: 1080P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main Stream (720P@25fps), sub-stream (1080P@25fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
256Kbps–2048Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation |
Auto white light Auto IR light |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
ICR auto switch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711u |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode |
Full duplex communication |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement |
Echo suppression and cancellation/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
16KHz, 16Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Mode |
Card/Remote/Password/Face unlock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Video motion detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Snapshot |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos or Text Messages |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Distance |
1cm–5cm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Issue Card Locally |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Height Range |
1.1m–2.4m is recommended |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Distance |
0.3m–2cm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Configuration |
Recognition threshold Facial profile angle |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Verification Accuracy |
99.5% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Time |
0.2s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC+ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card |
10,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Image |
10,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiegand |
1 input port, 1 output port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electric lock |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
2 (Digital quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
2 (Digital quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
1 12V/100mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control |
1, normally open by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 RJ-45 10Mbps/100Mbps self-adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Password Mode |
User password/public password/duress password |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode |
DC 12V2A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Surface mount and flush mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
CE/FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
388.5mm×145.5mm×43.5mm (15.30"×5.73"×1.71") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP65 (silicone sealant is needed, see the quick start guide) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10RH%–90RH% (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
86kPa–106kPa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
≤5W (standby), ≤18W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
1.0 kg (2.20 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.29 kg (2.84 lb) |
