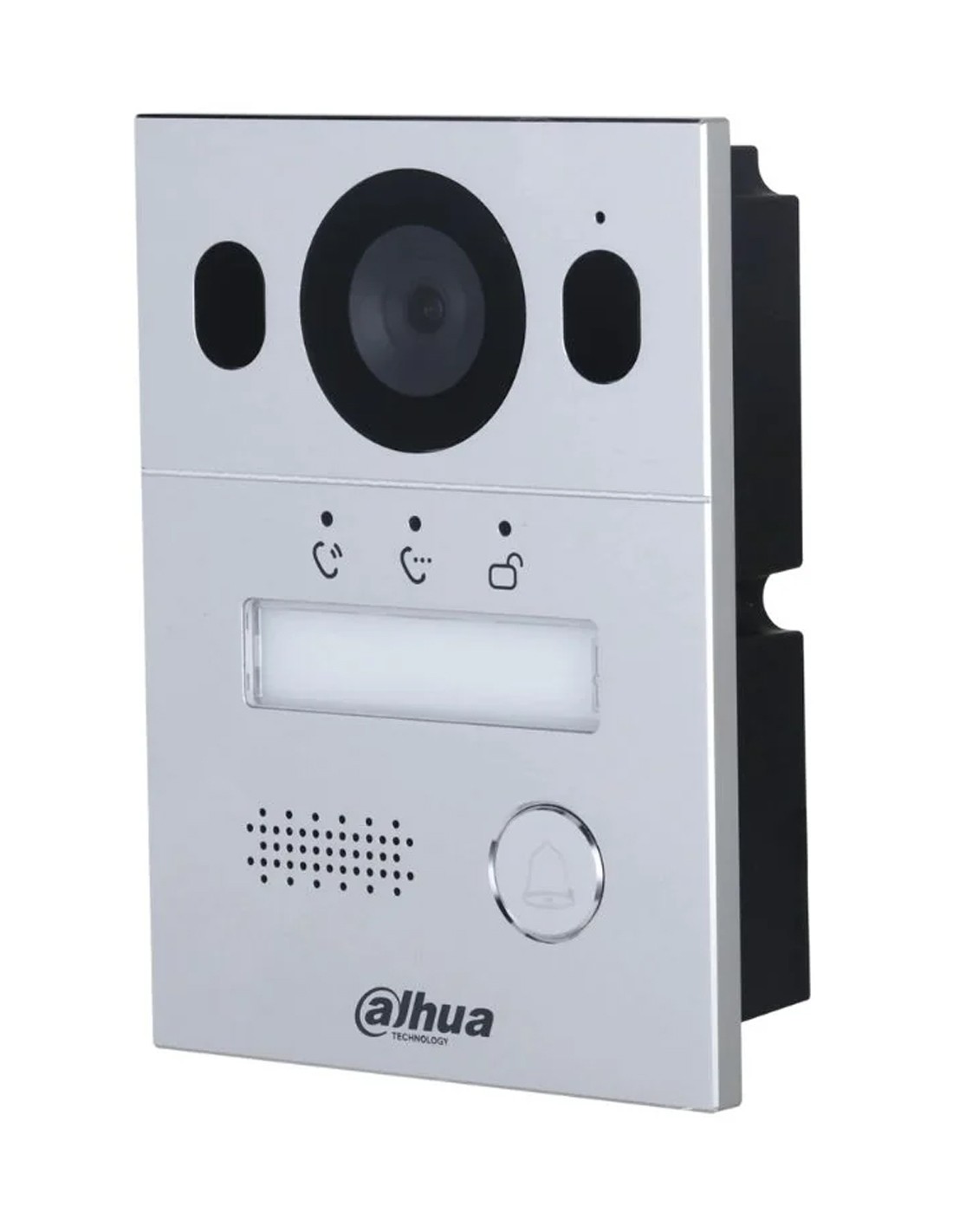

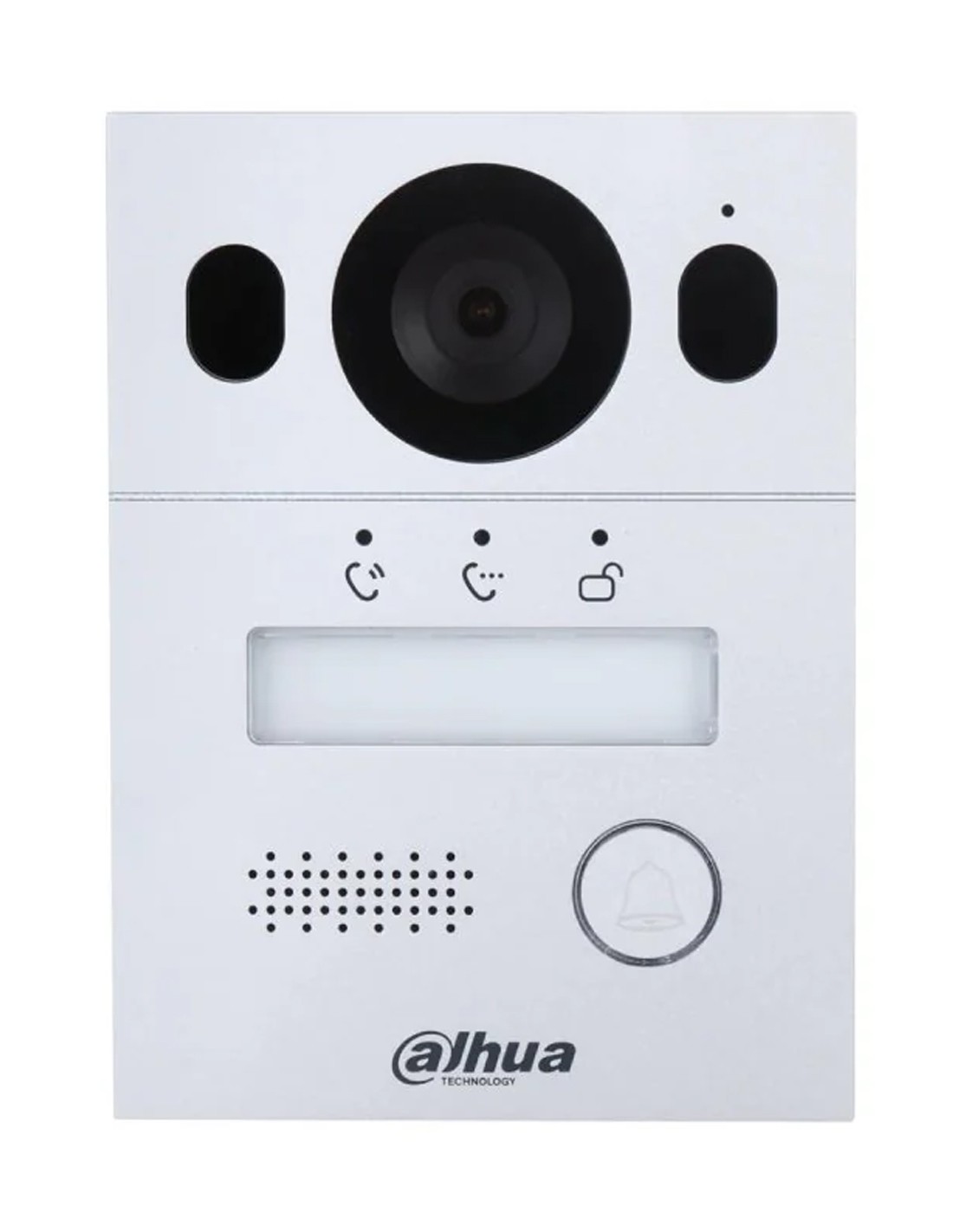

Dahua 2-Wire Hybrid VIlla Door Station - DHI-VTO2003F

Dahua 2-Wire IP Villa Outdoor Station



DHI-VTO2003F







Basic Features

Camera

• 1/2.8" 2 MP CMOS HDR Camera
• Field of View: H: 110°; V: 60°
• WDR: DWDR
• Noise Reduction: 3D NR

Video Resolution

• P: 960 (H) × 576 (V)
• N: 960 (H) × 480 (V)

Video Frame Rate

• P: 25 fps
• N: 30 fps

Light Compensation

• Auto IR

Day/Night

• Auto (ICR) / Color / B/W

Audio

• Input: 1
• Output: Built-in speaker
• Mode: Two-way audio (half–duplex)

Functionality

Unlock Mode

• Remote unlock

Leave Videos

• Yes (SD card required in VTH)

Performance

Casing Material

• Aluminum Alloy

Ports

RS-485

• 1

Alarm Output

• 1

Power Output

• 1 (12 V/200 mA)

Exit Button

• 1

Door Status Detection

• 1

Lock Control

• 1

Alarm

Tamper Alarm

• Yes

General Specifications

Appearance Color

• Silver

Power Supply

• 2-wire controller

Power Adapter

• Optional

Installation

• Flush Mount; Surface Mount

Certifications

• CE; FCC

Accessory

• Sold separately: surface box, rain cover, flush box, 2-wire controller

Product Dimensions

• 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

• IP65
• IK07

Operating Conditions

• Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Humidity: 10%–90% (RH), non-condensing
• Altitude: 0 m–3000 m (0 ft – 9842.52 ft)

Power Consumption

• ≤ 1.5 W (standby), ≤ 10 W (working)

Weight

• Gross Weight: 0.326 kg (0.72 lb)

Storage Conditions

• Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
• Humidity: 95% (RH), non-condensing
