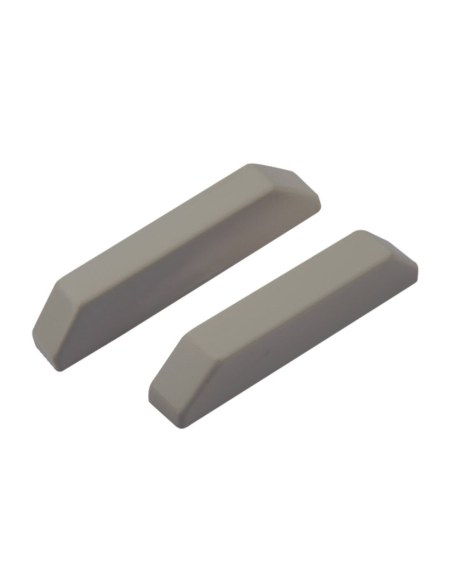

Watchguard Indoor Hardwired Reed Switch (Grey) - RSW-P1G

SKU RSW-P1G In Stock - Ready to Ship
$15.00 inc GST
  • Grey indoor magnetic contact switch
  • Magnet sensor gap, up to 19mm
  • Normally closed (NC) reed switch output
  • 3W maximum contact rating (up to 30V, 0.2A)
  • Wide range 20~AWG, Ø0.81~0.51mm
  • Surface Mounted, plastic construction
  • Dimensions 65.5 x 13.6 x 11.1mm



Watchguard Indoor Hardwired Reed Switch (Grey)



RSW-P1G



The RSW-P1G is an indoor hard wired reed switch, designed for window and door applications.






Product Features:



• Grey indoor magnetic contact switch

• Magnet sensor gap, up to 19mm

• Normally closed (NC) reed switch output

• 3W maximum contact rating (up to 30V, 0.2A)

• Wide range 20~AWG, Ø0.81~0.51mm

• Surface Mounted, plastic construction

• Dimensions 65.5 x 13.6 x 11.1mm



Dimensions
65.5mm x 13.6mm x 11.1mm
Type
Reed Switch
Material
Plastic
Mount
Surface
Contact Rating - Maximum
3W 30VDC 0.2A
Magnet Away
Closed Circuit
Magnet Near
Open Circuit
Magnet-Sensor Gap - Maximum
19mm
Switch Type
Normally Closed (N.C)
