Rapid LED R3117-REFLECTOR-AL ORBIT Aluminium Reflector 353mm for R3117 Hi Bay
R3117-REFLECTOR-AL
In stock $ 49.95
inc-GST
or 4 interest-free payments of $12.49 with

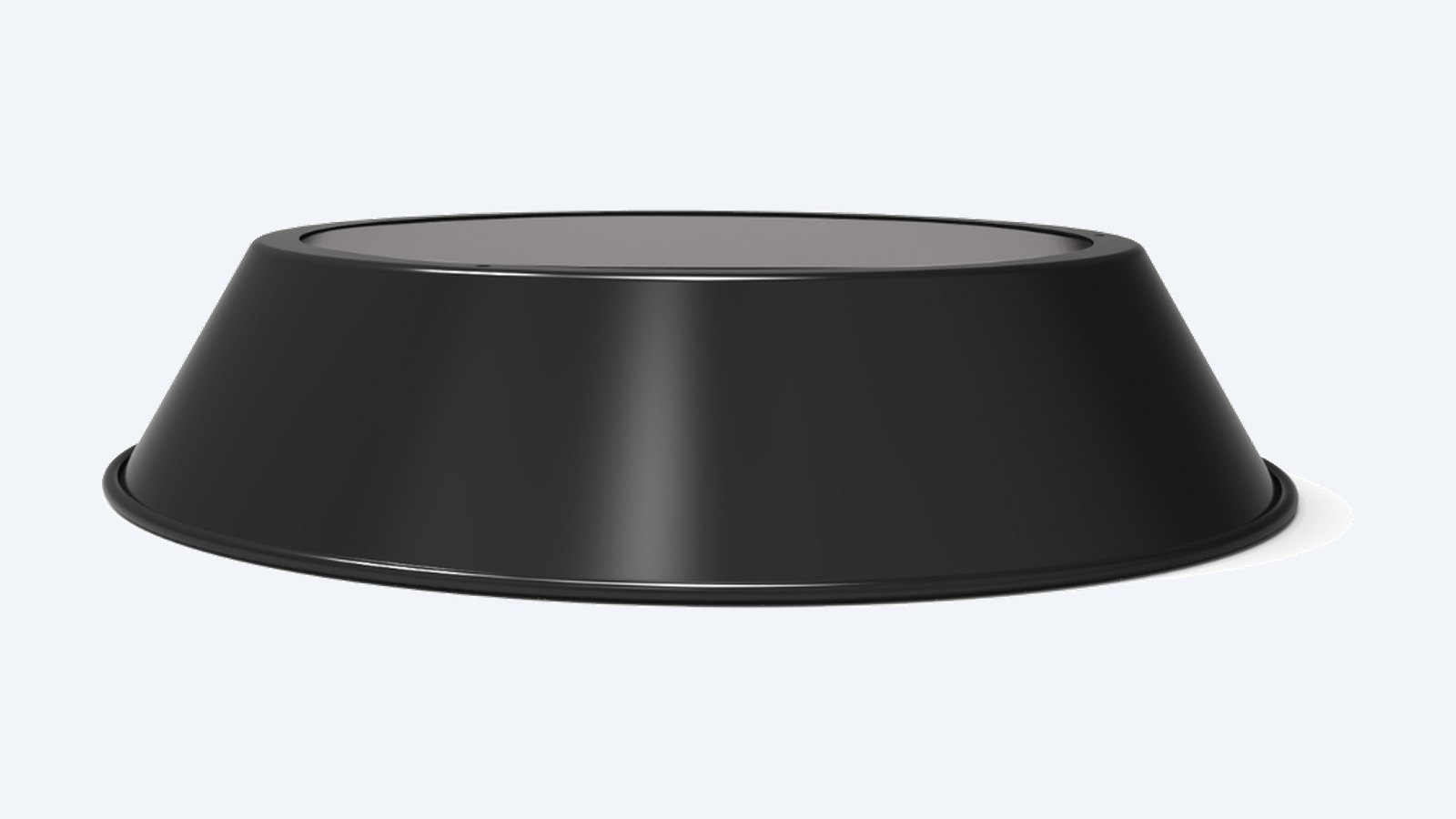

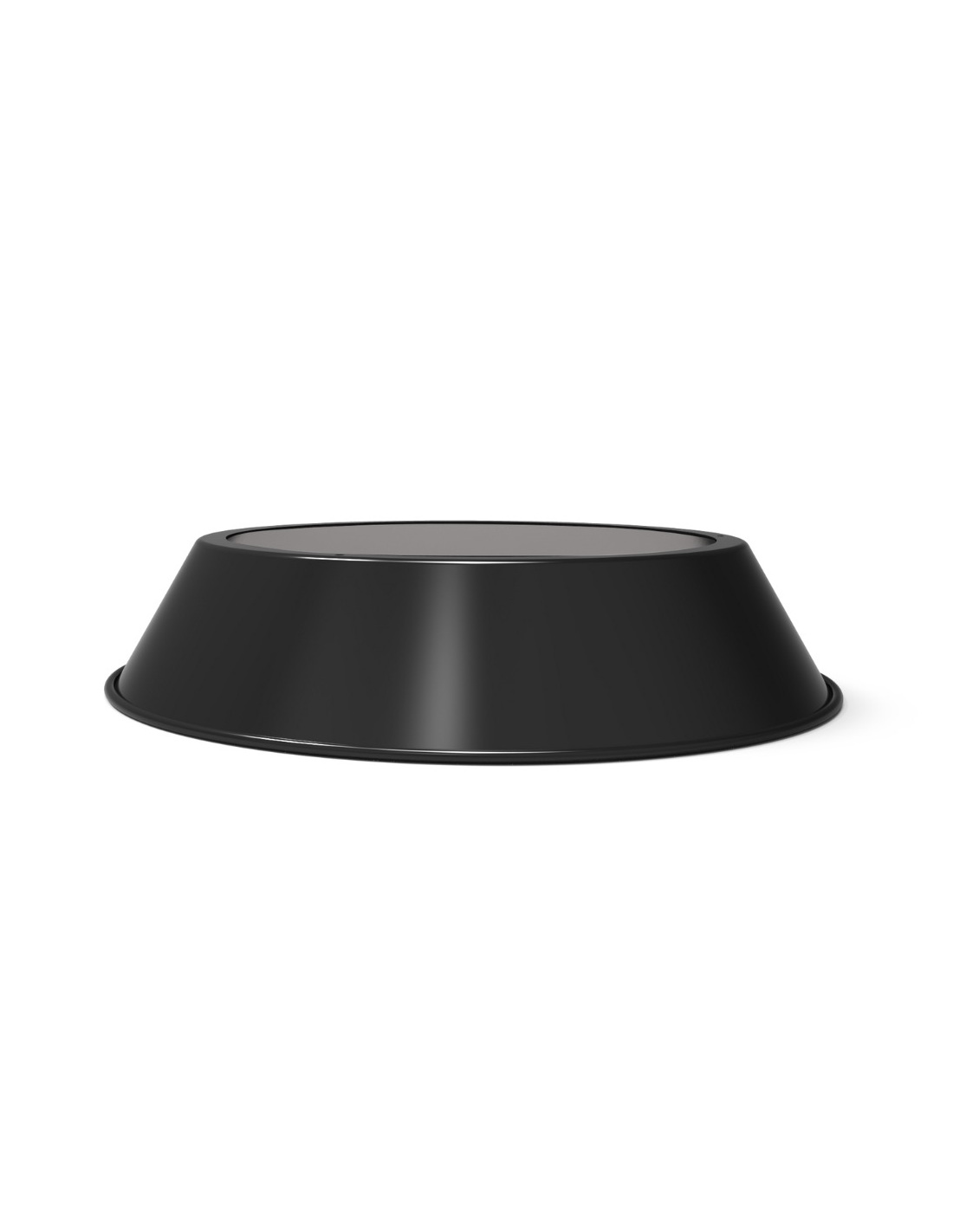

Aluminium reflector for the Rapid LED R3117 ORBIT hi bay. Narrows the beam and cuts side glare for high racking and tall ceilings.
- ✓Suits the R3117 ORBIT hi bay
- ✓Ø353 × 80 mm
- ✓Black outside, matt silver inside
- ✓Fixes with 4 × M4 screws
- ✓5-year warranty
Rapid LED · ORBIT · Aluminium reflector
Narrow the beam.
Put the light on the floor.
This is the R3117-REFLECTOR-AL. An aluminium reflector that screws onto the R3117 hi bay to pull the light down into a tighter pool for high racking and tall ceilings.
In one sentence: the R3117-REFLECTOR-AL is a Rapid LED aluminium reflector, Ø353 × 80 mm, that fixes to the R3117 (120 / 96 / 72W) ORBIT hi bay with four M4 screws.
Reflector only. The hi bay is separate.
It fits the R3117 ORBIT hi bay only. Use the R3118-REFLECTOR-AL for the R3118.
In the box
- R3117-REFLECTOR-AL aluminium reflector
You also need
- A Rapid LED R3117 (120 / 96 / 72W) hi bay
- A screwdriver for the M4 screws (2 N·m)
Same hi bay, tighter light.
A bare ORBIT hi bay spreads its light wide. The reflector cuts glare to the side and pushes more of it down the aisle, which suits high racking and tall ceilings.

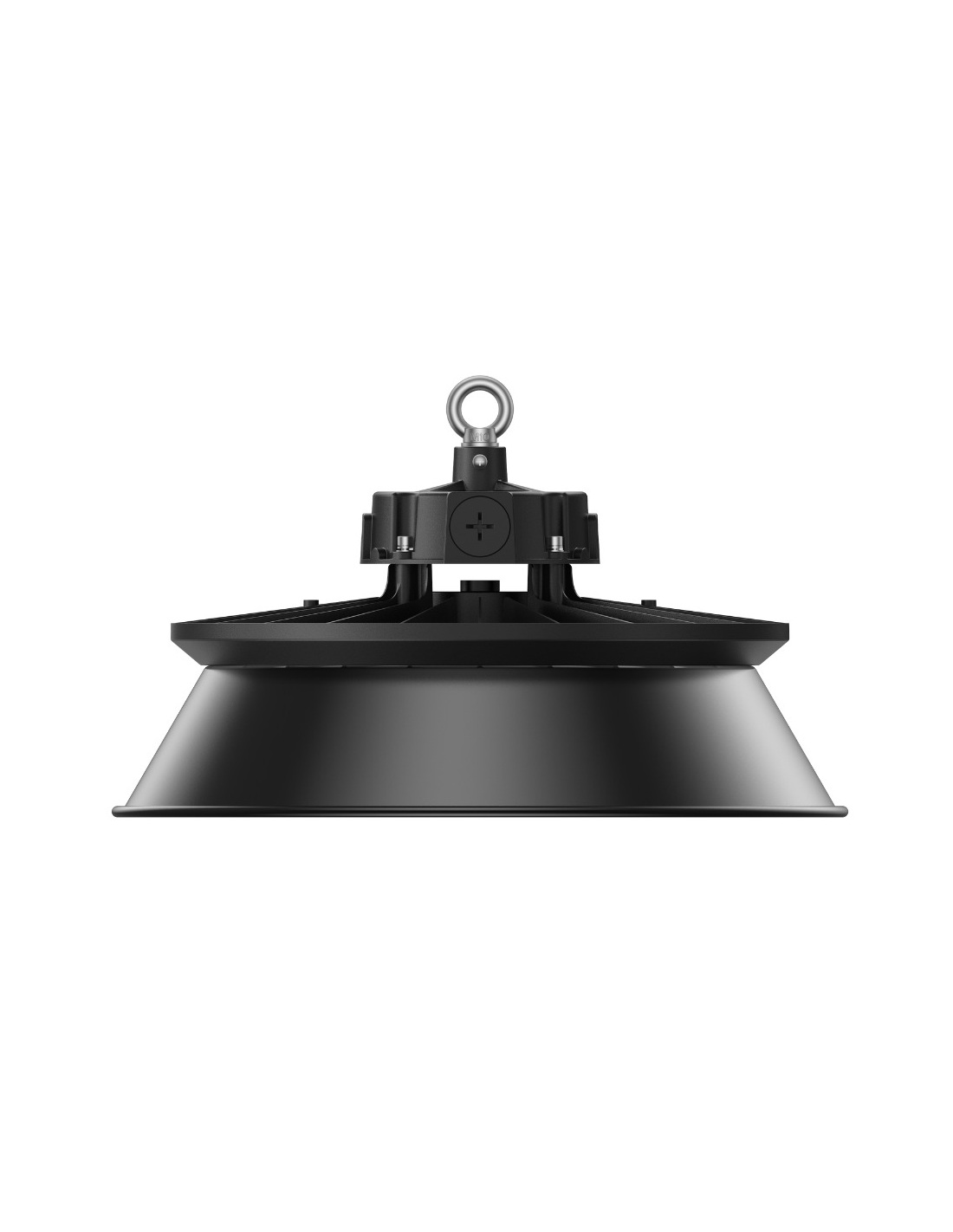

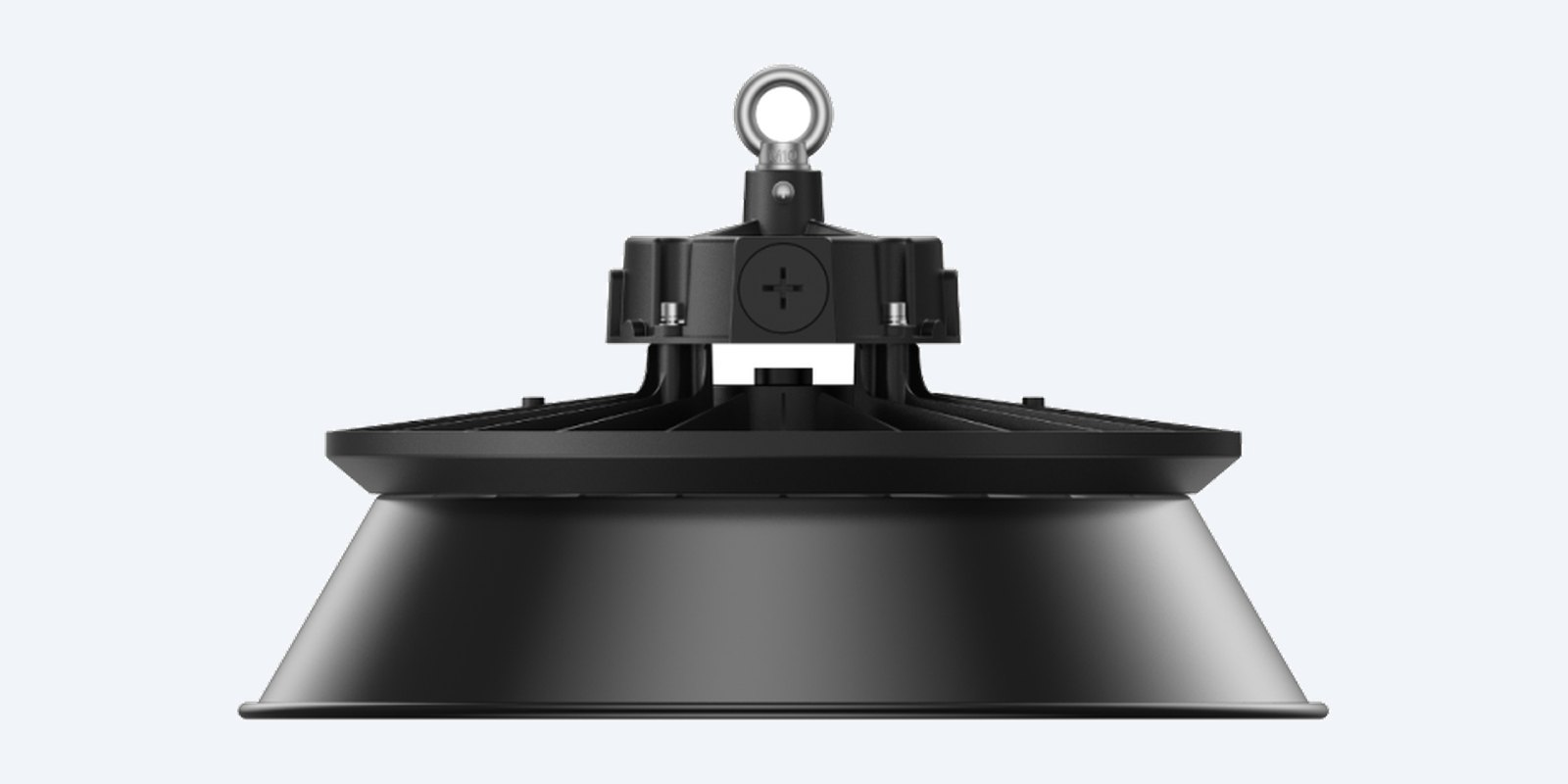

Fitted
Sits under the heat sink.
Powder-coated aluminium, black outside and matt silver inside, sized to the R3117 body. Ø353 × 80 mm.
How it goes in
Fits in a few minutes.
01
Power off
Isolate the hi bay, or fit the reflector on the bench before it goes up.
02
Offer it up
Line the reflector up with the fixing points on the hi bay.
03
Fix it
Four M4 screws, tightened to 2 N·m.
04
Hang and test
Hang the hi bay and check the light falls where it is needed.
At a glance
R3117-REFLECTOR-AL
Show specs
Model
R3117-REFLECTOR-AL
Suits
Rapid LED R3117 ORBIT hi bay
Material
Powder-coated aluminium
Finish
Black outside, matt silver inside
Dimensions
Ø353 × 80 mm
Fixing
4 × M4 screws, 2 N·m
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
Pair it with
Hi bay
R3117 ORBIT
The light this reflector is made for.
Lens
R3117-REFLECTOR-PC
Polycarbonate reflector with a clip-on lens, for dusty or food areas.
Hanging
R3144 suspension kit
1 m or 2 m wire kit, 40 kg safe working load.
Control
R3148-MS sensor
Plug-in microwave sensor for aisle and warehouse dimming.
Where it is used
Where a reflector helps.
High-rack warehouses
More light down the aisle, less on the top shelves.
Tall ceilings
Keeps the light on the floor when the hi bay hangs high.
Glare control
The shade hides the LEDs from side-on views.
Aluminium or polycarbonate?
| R3117-REFLECTOR-AL | R3117-REFLECTOR-PC | |
|---|---|---|
| Material | Aluminium, powder coated | Polycarbonate with clip-on lens |
| Size | Ø353 × 80 mm | Ø421 × 165 mm |
| Front | Open | Closed by a lens |
| Fixing | 4 × M4 screws | 3 × M4 screws, lens clips on with 1 × M3 |
Both fit the R3117 ORBIT hi bay. Figures from the Rapid LED installation guides.
Common questions
What does the reflector do?
It narrows the hi bay’s spread, sending more light straight down and cutting glare to the sides.
How does it fix on?
Four M4 screws, tightened to 2 N·m.
How big is it?
Ø353 × 80 mm.
Will it fit the R3118?
No. Use the R3118-REFLECTOR-AL for the R3118 hi bay.
Can I use it with the R3148-MS sensor?
Yes. The sensor plugs into the centre of the hi bay, inside the reflector.
Which hi bays does the R3117-REFLECTOR-AL fit?
Rapid LED R3117 ORBIT hi bay. Rapid lists it for these ORBIT hi bays only.
What is the warranty?
5 years (2 years replacement and labour, 3 years replacement only), with proof of purchase.
Who sells the R3117-REFLECTOR-AL in Australia?
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Supported by Infront Technologies.
Installation guide attached. Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Installation and safety
Power off. Isolate the hi bay before fitting. Work at height with suitable access equipment.
Figures. From the Rapid LED R3117-REFLECTOR-AL installation guide and the rapidled.com.au specification.
- Dimensions
- Dia 353 x 80 mm
- Material
- Powder-coated aluminium
- Colour
- Black / matt silver
- Brand
- Rapid LED
- Warranty
- 5 years (2 years replacement and labour, 3 years replacement only)
- Model
- R3117-REFLECTOR-AL
- Compatibility
- Rapid LED R3117 ORBIT hi bay
