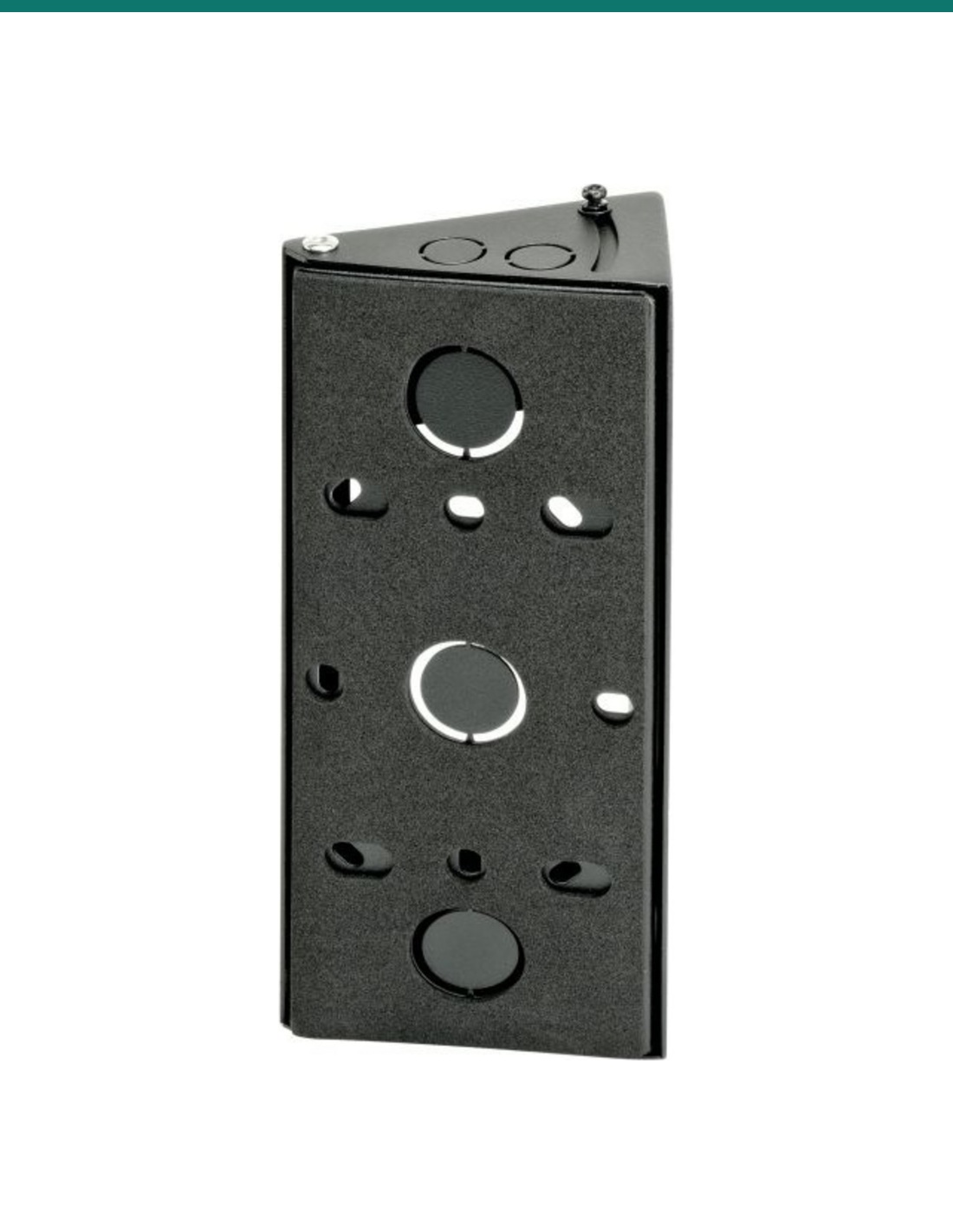

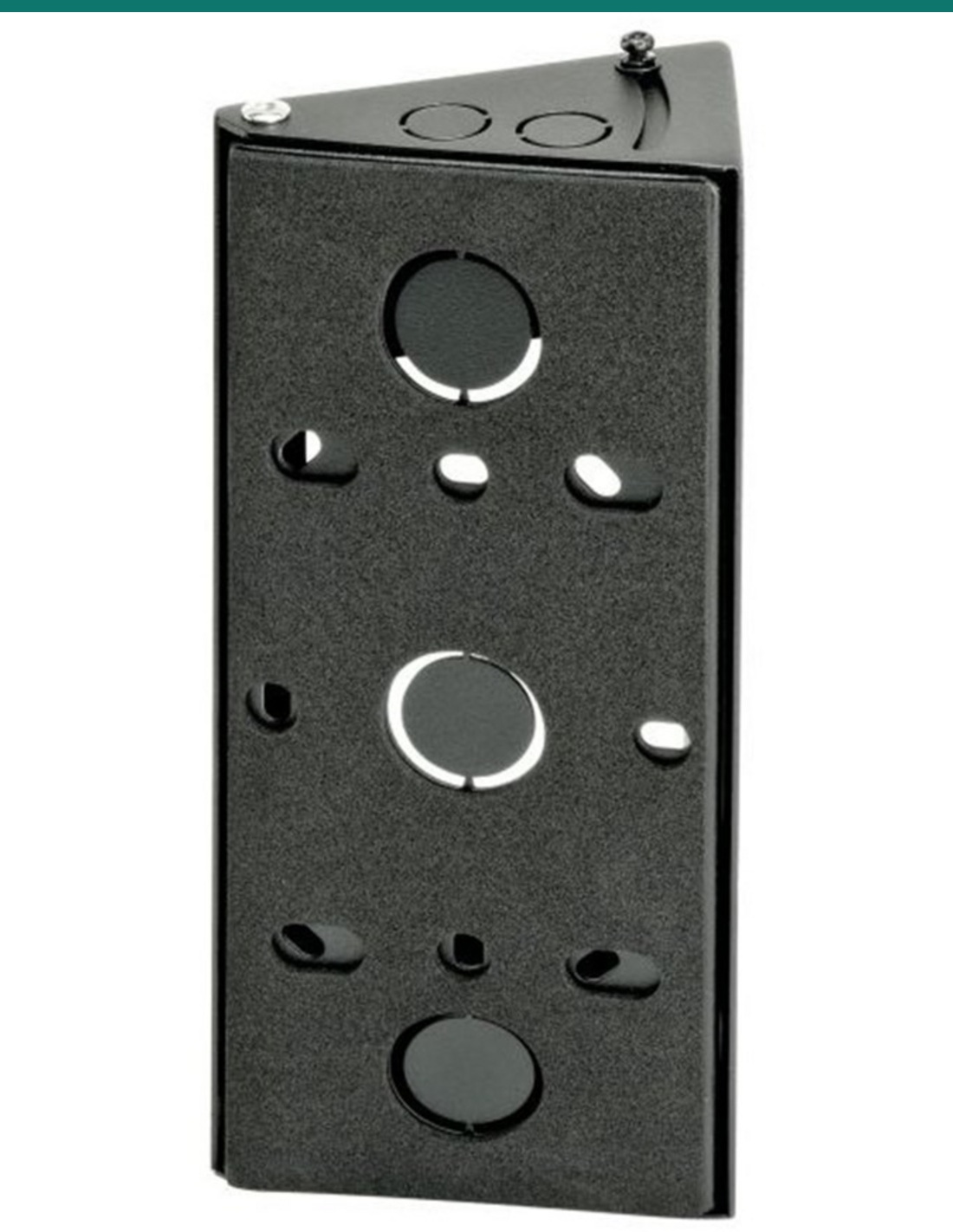

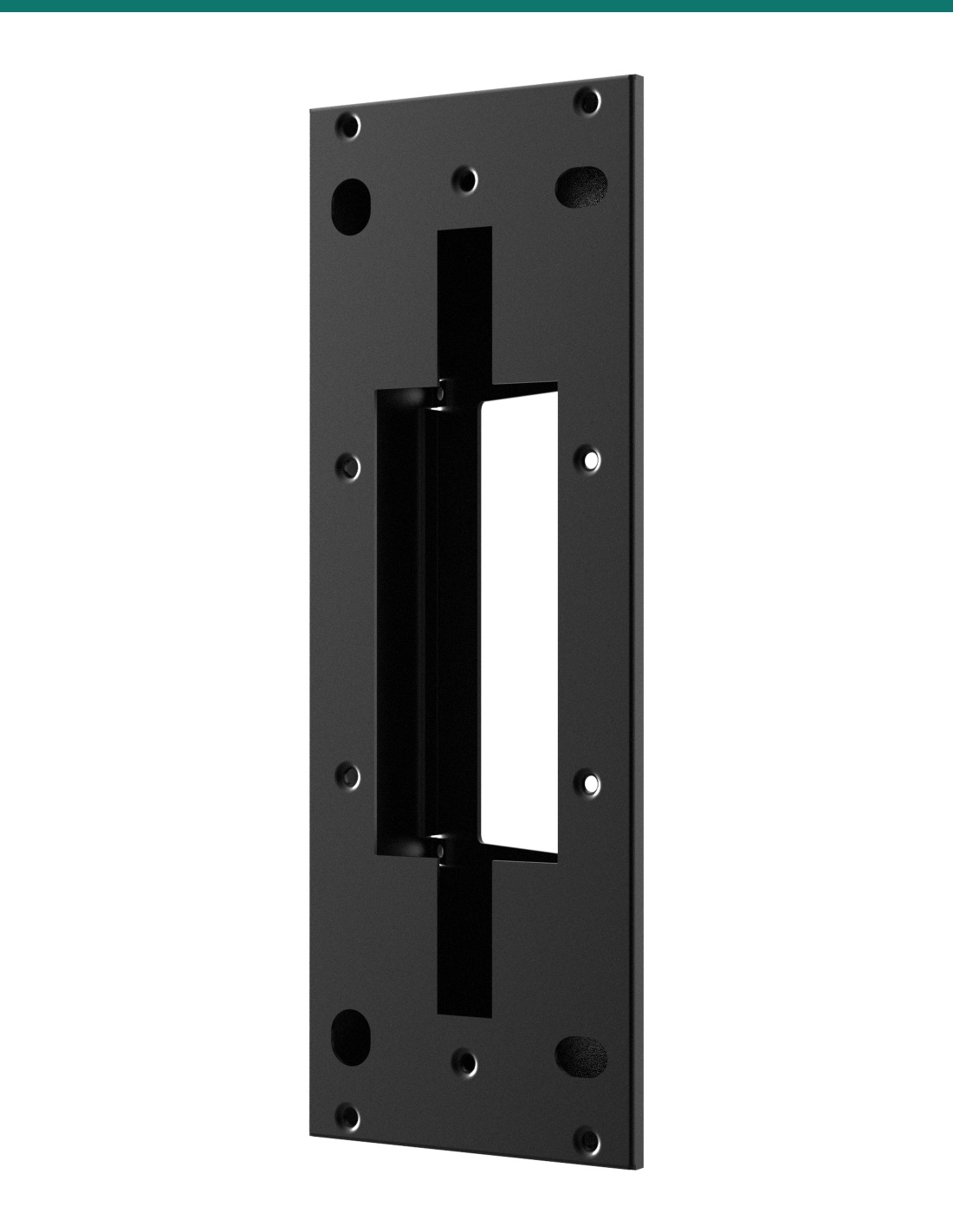

Akuvox X912 Black 30° Angle Bracket for X912K and X912S Door Phones — AK-X912ANGLE

SKU AK-X912ANGLE In Stock - Ready to Ship
$75.90 inc GST

Akuvox AK-X912ANGLE is the angle (rotary) bracket for the X912 door phone. Fixed to the wall one way round or the other, it turns the station 30° to the left or right, so an X912K or X912S on a side wall or gate pier faces the visitor instead of the far wall. The X912’s own wall bracket screws onto it.

  • ✓Turns the X912 30° left or right — fit it either way round

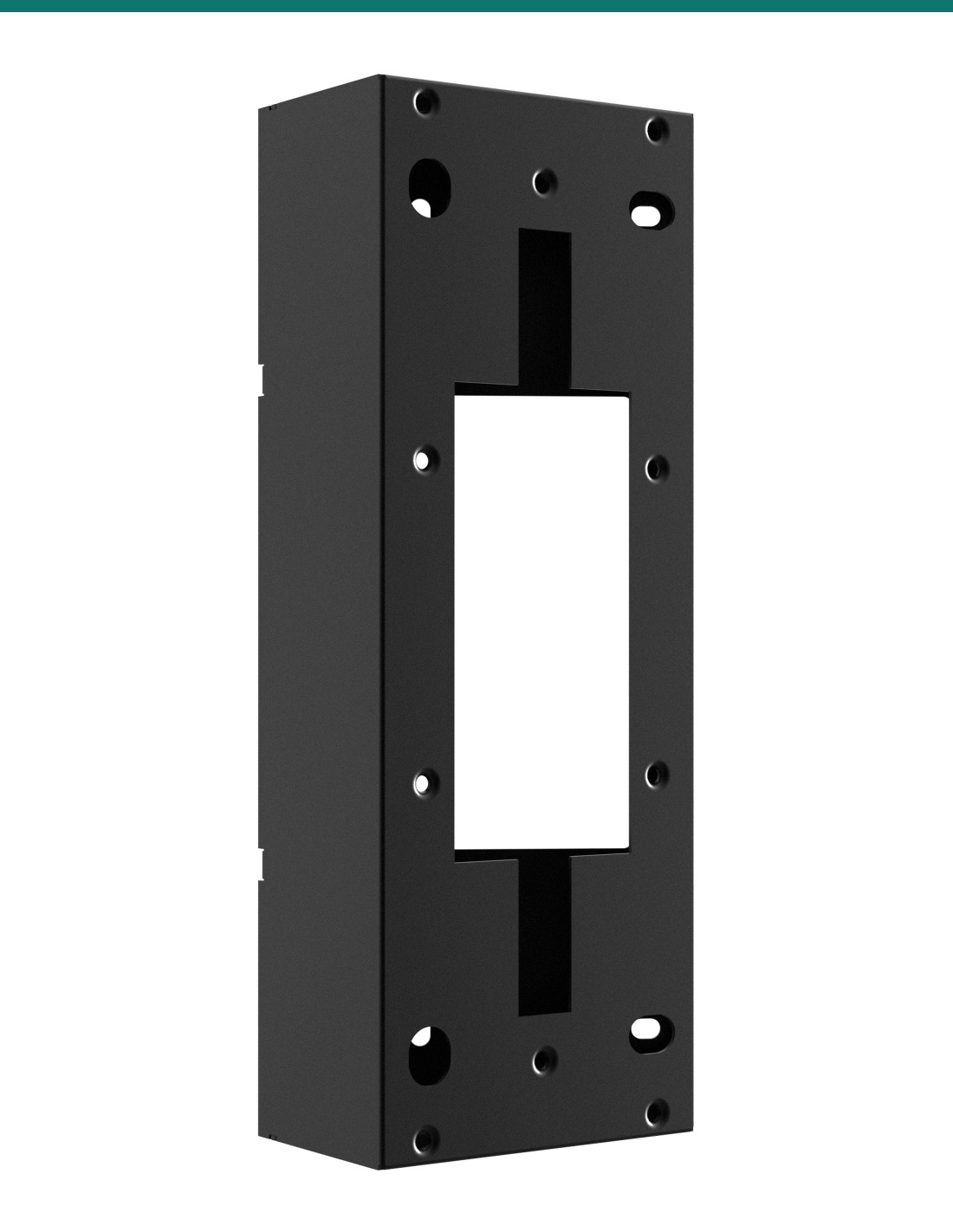

  • ✓232.9 × 107.6 × 48.1 mm black wedge with a 21.3 mm cable hole
  • ✓The X912’s own wall bracket fixes on with the five M4 × 10 screws included
  • ✓Fits the X912 series: X912K and X912S

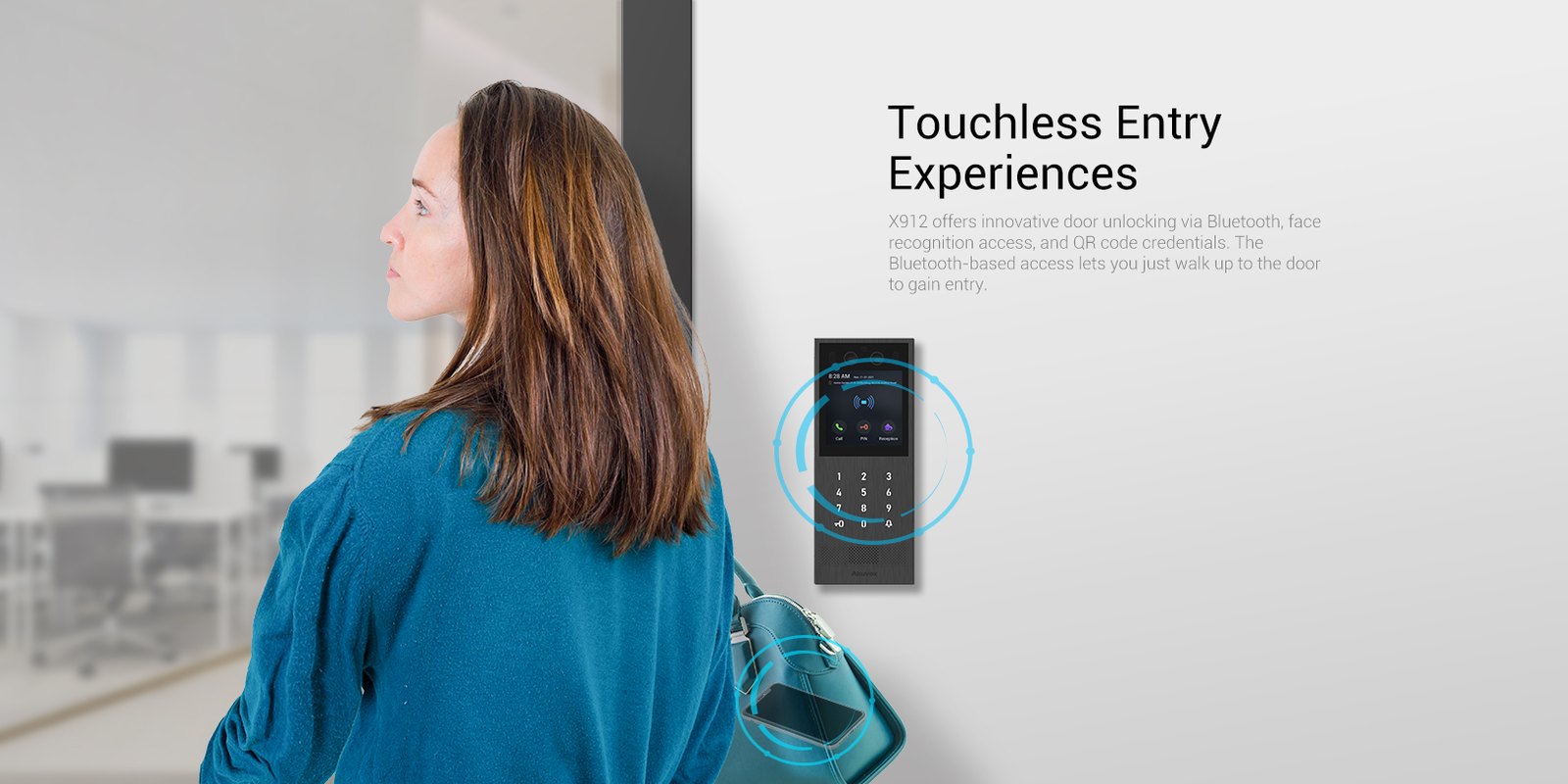

Akuvox X912 door phone mounted beside an office entrance
Akuvox · X912 · Angle bracket

Turn the X912 to face the path.
30° left or right.

The AK-X912ANGLE is the bracket Akuvox’s installation guide calls the X912 rotary bracket. It sits between the wall and the X912’s standard wall-mounting bracket and angles the 233.5 × 94 mm door station 30° towards the approach.

This SKU is the angle bracket only.

You receive the black X912 angle bracket and five M4 × 10 crosshead screws. The X912 door phone, which comes with its own wall-mounting bracket, wall anchors and ST4 × 20 screws, is sold separately.

In the box
  • Akuvox X912 angle (rotary) bracket
  • 5 × M4 × 10 crosshead screws
What you also need (sold separately)
  • Akuvox X912K or X912S door phone (includes the wall-mounting bracket)
  • Four wall anchors and ST4 × 20 screws — supplied in the X912 box
  • 6 mm drill bit

A face-on view from a side wall.

When the door phone has to go on a wall that runs alongside the path — a gate pier, a porch return or a lobby wall — a flat mount leaves the camera looking across the path. Angled 30°, the camera and face-recognition sensors look at the person walking up.

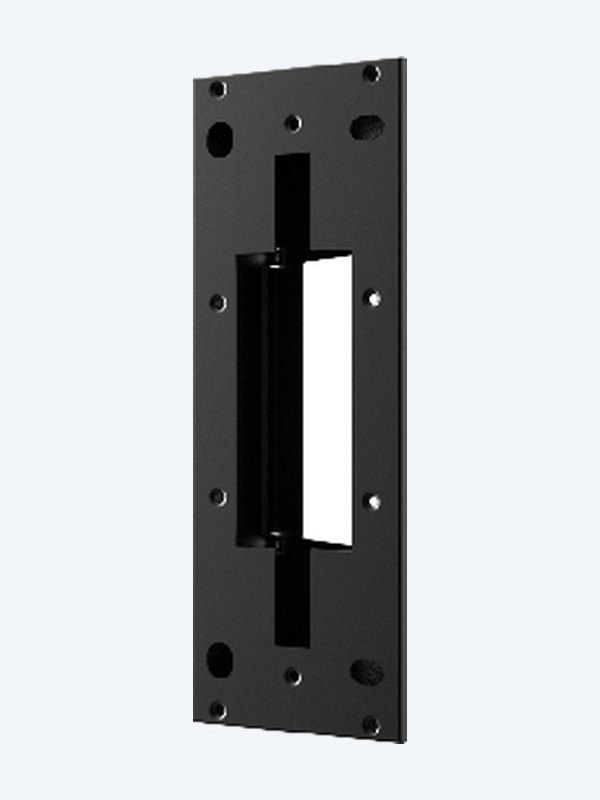

Akuvox X912 black angle bracket

Fit

Left or right, one bracket.

Fix the bracket one way round to turn the X912 30° to the right, or the other way to turn it 30° to the left. Akuvox’s guide shows both.

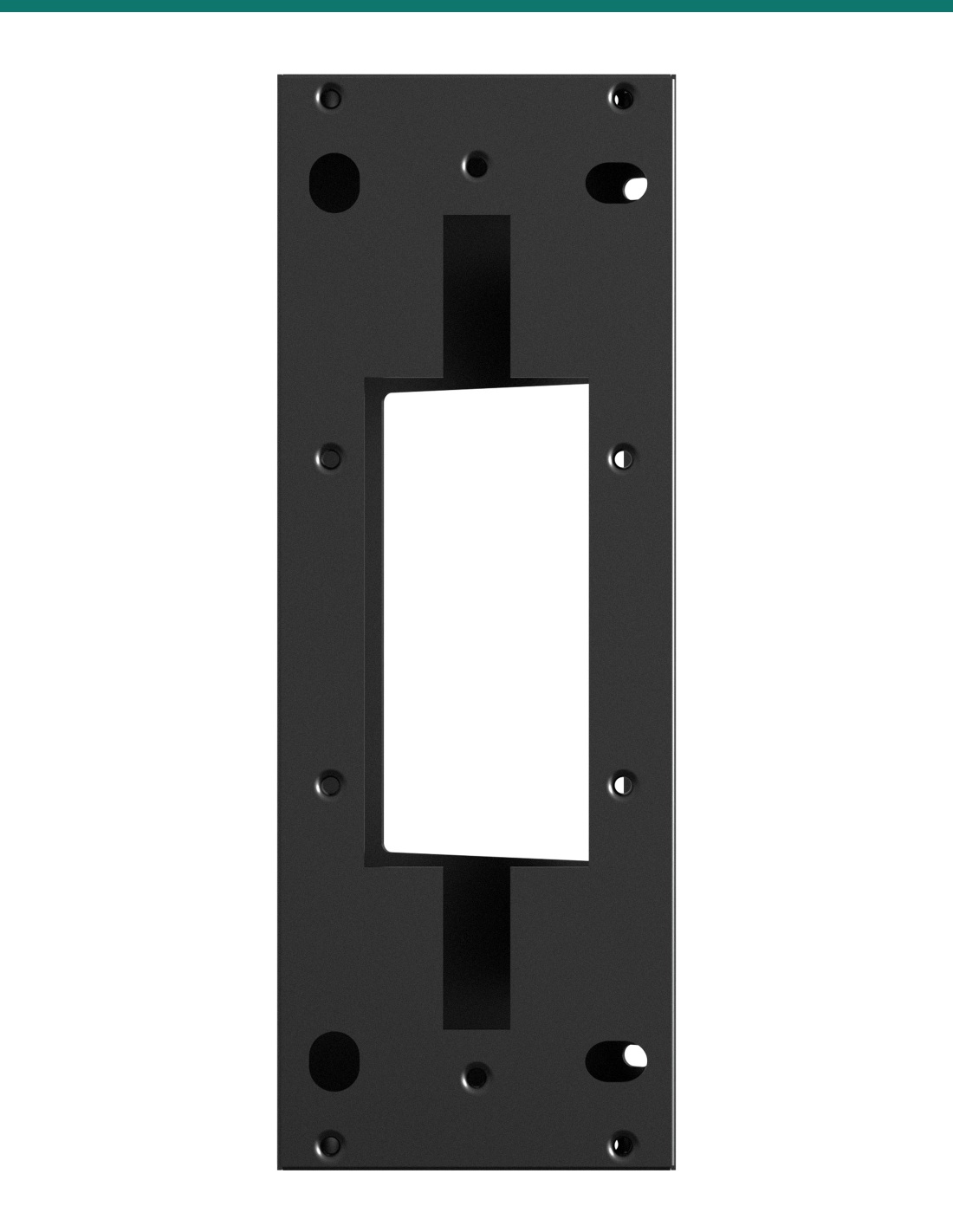

It fixes to the wall on four holes drilled 6 mm and 20 mm deep for plastic wall anchors and ST4 × 20 screws, and cables come through the 60 × 100 mm opening in the back or the 21.3 mm side hole.

Install

The X912 bracket screws on top.

With the angle bracket on the wall, the wall-mounting bracket that comes with every X912 fixes to it with the five M4 × 10 screws supplied. The door station then hangs on that bracket and clicks into place as normal.

On a wall that already faces the path, the standard bracket alone is all you need.

Pair it with

Fits the Akuvox X912 door phones

Door phone

Akuvox X912K / X912S

Face-recognition SIP door phones with keypad; both share the same housing.

Flush instead

X912 in-wall installation kit

Recesses the station into the wall where a surface mount isn’t wanted.

Watch

See it in action

Akuvox X912 door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

The Akuvox X912 series — X912K and X912S. Both use the same 233.5 × 94 mm housing and wall-mounting bracket.

How far does it turn the door phone?

30°, to the left or to the right depending on which way round the bracket is fixed to the wall.

What’s in the box?

The angle bracket and five M4 × 10 screws. The wall-mounting bracket, wall anchors and ST4 × 20 screws come with the X912 itself.

How big is it?

232.9 mm high, 107.6 mm wide and 48.1 mm deep at its thick side.

Where do the cables come in?

Through the 60 × 100 mm opening in the back, or through the 21.3 mm hole in the side for surface conduit.

Do I need it?

Only when the station can’t face visitors directly — on a gate pier or a wall running alongside the path. On a wall facing the approach, the bracket supplied with the X912 is enough.

Point your X912 at visitors.

Add the angle bracket wherever the X912 can’t face the approach directly.

Colour
Black
Brand
Akuvox
Mounting
Surface, on-wall
Size
232.9 × 107.6 × 48.1 mm (H × W × D)
Warranty
Australian warranty
Product Type
Angle mounting bracket
Included
5 × M4 × 10 crosshead screws
Model
X912 angle bracket
Angle
30° left or right
Cable Entry
Ø21.3 mm hole plus 60 × 100 mm rear opening
Compatible with
Akuvox X912K and X912S
