Securview 11W 90M 30° NIght Vision Infrared Illuminator Night Vision Extender - 1AMP

Name: Securview 11W 90M 30° NIght Vision Infrared Illuminator Night Vision Extender - 1AMP
Brand: Securview
SKU: VSIR11W30D
Price: 94.3 AUD
Availability: InStock

SKU VSIR11W30D In Stock - Ready to Ship

$94.30 inc GST

Securview VSIR11W30D: a 11 W infrared illuminator that adds up to 90 m of IR in a 30° beam for day/night CCTV cameras, in an IP66 die-cast housing.

✓11 W, 6 high-power IR LEDs
✓IR to 90 m, 30° narrow beam
✓Switches on automatically at night
✓IP66 die-cast aluminium, tempered glass front
✓12 VDC, about 0.9 A; supply sold separately

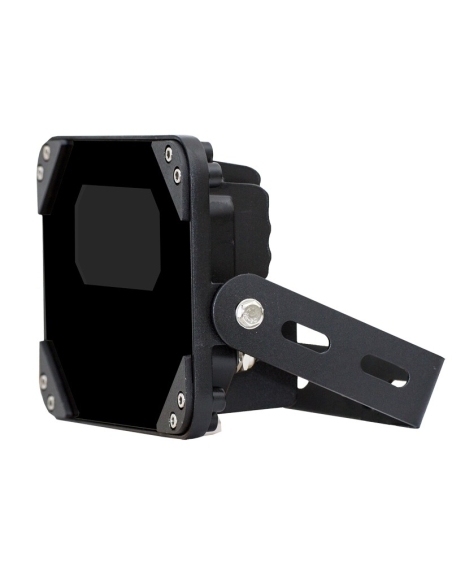

Securview VSIR11W30D 11 W infrared illuminator, black die-cast housing with tempered glass front, on its tilt bracket

Securview · IR illuminator · 11 W

90 m of infrared in a 30° beam.
Long reach from a compact 11 W lamp.

The Securview VSIR11W30D is a 11 W infrared floodlight for CCTV: 6 high-power IR LEDs, a 30° beam that reaches 90 m, automatic day and night switching and an IP66 die-cast housing.

In one sentence: the Securview VSIR11W30D is a 11 W, 12 VDC infrared illuminator with 6 high-power IR LEDs, a 90 m IR distance and a 30° beam, in an IP66 die-cast aluminium housing with a tempered glass front and tilt bracket.

Illuminator only. Camera and 12 V power supply are separate.

This listing is one 11 W IR illuminator. It needs a 12 VDC supply and a camera that uses infrared at night.

In the box

VSIR11W30D IR illuminator on its tilt bracket (as pictured)

You also need

A 12 VDC power supply rated 1.5 A or more
Low-voltage power cable from the supply to the illuminator
A day/night camera that uses infrared at night
Fixings to suit the wall, eave or post

When the camera's own IR runs out.

A camera's built-in IR is a handful of small LEDs. The VSIR11W30D adds 6 high-power IR LEDs and floods the scene with infrared the camera can use, so night pictures stay brighter and clearer further out, up to 90 m across a 30° narrow beam. It switches itself on after dark.

Tilt bracket

Aim it, then lock it.

The U-bracket pivots on one bolt so the beam can be tilted onto the area the camera watches. Securview's drawing shows the bracket base with a centre 8 mm hole and two 24 mm slots, 54 mm either side, for fixing.

Securview VSIR11W30D close-up of the tempered glass front, corner screws and finned die-cast body

Housing

IP66, die-cast aluminium and tempered glass.

A die-cast aluminium body with cooling fins behind a tempered glass front. Rated IP66 for indoor or outdoor use, from −30 °C to 50 °C. 181 × 72 × 131 mm and 1.2 kg.

How it goes in

From bracket to brighter nights.

Pick the spot

Mount it near the camera, beside or a little away from the lens rather than in front of it, with a clear view of the area. The beam reaches 90 m across 30°.

Fix the bracket

Screw the tilt bracket to the wall, eave or post through its centre hole and slots, with fixings to suit the surface.

Run 12 V power

Use a 12 VDC supply rated 1.5 A or more. It draws 11 W (about 0.9 A), so keep the low-voltage run short and use heavy enough cable.

Aim and test after dark

Loosen the pivot bolt, tilt the beam onto the scene, then check the camera picture at night and tighten the bolt.

At a glance

VSIR11W30D

Show specs

IR distance

90 m

Beam angle

30°

LEDs

6 high-power IR LEDs

Day / night

Automatic switching

Power input

12 VDC

Power consumption

11 W (about 0.9 A at 12 V)

Power connection

2.1 mm DC (confirm the lead with us)

Housing

Die-cast aluminium, tempered glass front

Protection

IP66, indoor or outdoor

Dimensions (W × D × H)

181 × 72 × 131 mm

Weight

1.2 kg

Operating temperature

−30 °C to 50 °C

Mounting

Tilt bracket: centre 8 mm hole, two 24 mm slots 54 mm either side

IR wavelength

Not stated on the datasheet, confirm with us

Listed camera ranges

VIP Vision, Securview, Securview Victory Series, Watchguard

Securview VSIR11W30D dimension drawing: front, side and bracket views in millimetres

Dimensions in mm, from Securview's VSIR11W30D datasheet.

Pair it with

What goes with it

Power

A 12 V 1.5 A or 2 A supply (SR-PSU-12V1500mA or SR-PSU-12v2A)

11 W at 12 V is about 0.9 A, so a 12 V 1.5 A or 2 A supply runs it with room to spare. Sold separately.

Camera

A day/night IR camera

Securview lists the VIP Vision, Securview, Securview Victory Series and Watchguard camera ranges. Other cameras that switch to black-and-white IR night mode can use it too; tell us the model.

More reach

VSIR28W30D: 170 m, 30°

The 28 W model with the same 30° beam reaches 170 m, for the longest runs.

Where it is used

Where a narrow 30° beam works.

Long driveways

Push infrared down a long driveway to the gate.

Fence lines

Light a straight boundary fence for a camera looking along it.

Rural gates and tracks

Reach a distant gate or farm track from the house or shed.

Laneways

A narrow beam for a long lane or right of way.

Car park rows

Reach the far end of a long row of bays.

Depot perimeters

Light a long stretch of yard fence for a zoom or long-lens camera.

VSIR11W30D or VSIR28W30D

	VSIR11W30D (this one)	VSIR28W30D
IR distance	90 m	170 m
Beam angle	30°	30°
LEDs	6 high-power IR	12 high-power IR
Power	12 VDC, 11 W	12 VDC, 28 W
Size (W × D × H)	181 × 72 × 131 mm	221 × 90 × 232 mm
Weight	1.2 kg	1.7 kg
Protection	IP66	IP66
Best for	Long, narrow areas	Long, narrow areas

Figures from Securview's VSIR11W30D and VSIR28W30D datasheets.

Common questions

How far does it reach?

Up to 90 m, in a 30° beam. That is Securview's IR distance; what your camera shows at that range also depends on its lens and sensor.

Will it work with my camera?

It works with day/night cameras that switch to black-and-white night mode and use infrared. Securview lists the VIP Vision, Securview, Securview Victory Series and Watchguard ranges. The IR wavelength is not on the datasheet, so tell us your camera model and we will confirm.

What power supply does it need?

A 12 VDC supply rated 1.5 A or more. It uses 11 W, which is about 0.9 A at 12 V.

Is a power supply included?

No. The supply and the cable to it are sold separately.

Does it turn on by itself at night?

Yes. Day and night switching is automatic, so it comes on after dark and goes off in daylight while power stays connected.

Can it be mounted outside?

Yes. It is rated IP66, with a die-cast aluminium body and a tempered glass front, and works from −30 °C to 50 °C.

Will people see the light?

Infrared is largely invisible to the eye, so the area does not look lit. Depending on the wavelength, the LEDs can show a faint red glow up close; confirm with us if that matters.

Should I choose 30° or another beam?

Choose a 30° beam to reach a long way down a narrow area. For a wide, close area pick a 120° model instead.

Where should it go relative to the camera?

Beside the camera or a little away from it, aimed at the same area. Keeping it off the lens axis cuts glare from rain and insects close to the camera.

How far can the supply be from the illuminator?

As close as practical. At about 0.9 A a long, thin 12 V cable loses voltage and the light gets weaker. Use heavier cable on longer runs, or call us to work it out.
