IVSEC Network Video Recorder
IVSEC 16CH 12MP PoE NVR (2-Bay)
Model IVNR316XD for 16-camera IP deployments
The IVSEC IVNR316XD is a 16-channel IP recorder designed for integrated surveillance jobs where switching, recording and high-resolution output need to live in one chassis. With 16 onboard PoE ports, support for cameras up to 12MP, H.265 compression, 4K HDMI output and dual hard drive bays, it suits small-to-medium commercial systems, larger residential installs and multi-camera retrofits where neat rack or cabinet integration matters.

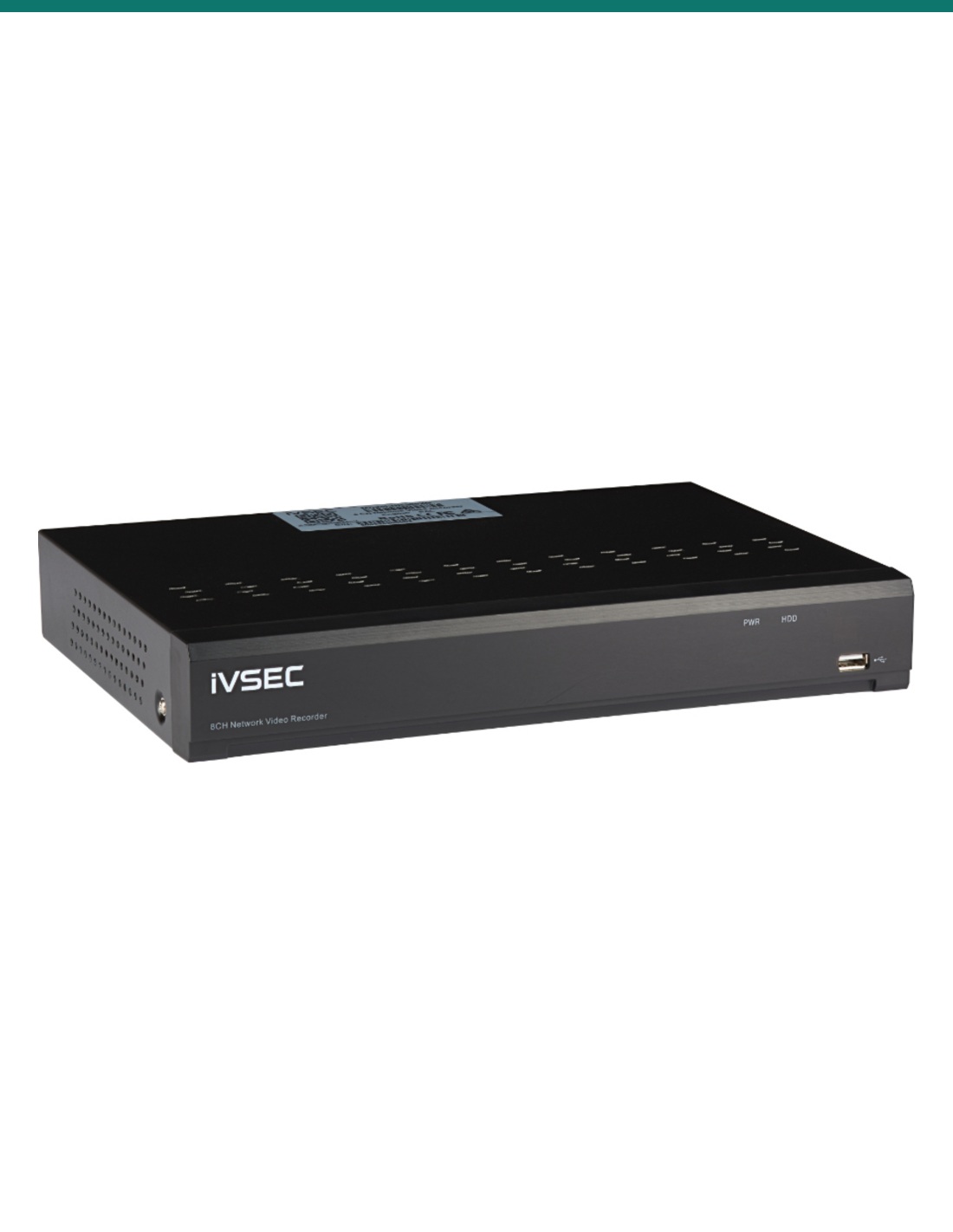

Product shot may differ from supplied firmware revision or regional packaging.
Centralised recording with built-in PoE for cleaner installs
For installers, the key advantage of the IVNR316XD is consolidation. Instead of adding a separate PoE switch for a 16-camera layout, this recorder provides 16 PoE ports directly on the NVR, simplifying first-fix cabling, reducing cabinet clutter and making power distribution straightforward. Support for up to 12MP recording gives headroom for modern high-resolution IP cameras, while H.265 compression helps keep storage demand under control across longer retention periods.
Infront Technologies Australia can supply the IVSEC recorder as part of a complete surveillance solution, including compatible cameras, hard drives, network accessories and practical pre-sales advice for system sizing, storage planning and deployment across Australian homes, retail, office and light commercial sites.
12MP
Maximum supported camera resolution
4K
HDMI local display output
2-Bay
Internal HDD storage expansion
Clarity · 01
High-resolution recording for modern IP camera channels
The IVNR316XD is specified as a 16-channel network video recorder with support for cameras up to 12MP, making it suitable for mixed-resolution systems that may combine standard overview cameras with higher-detail views at entries, counters, driveways or warehouse aisles. That extra resolution margin is valuable when installers need more digital zoom latitude during playback without stepping immediately into enterprise recorder pricing.
For local monitoring, the recorder includes a 4K HDMI output, allowing direct connection to high-resolution displays in control rooms, reception areas or back offices. This is especially useful where the client expects a crisp multi-camera grid view on a single screen, with enough output resolution to present multiple streams clearly during live view and playback review.
Power & Cabling · 02
Sixteen onboard PoE ports streamline edge power and switching
A major practical benefit of this model is the inclusion of 16 PoE ports on the recorder itself. For many jobs, that means each camera can be home-run back to the NVR without the added cost and setup overhead of a separate PoE switch. The result is a cleaner topology, fewer devices to mount and label, and simpler fault tracing when a channel loses link or power.
This all-in-one layout is well suited to SMB and residential projects where recorder and terminations are housed in a comms cabinet, plant room, study cupboard or secure service area. It also reduces the number of power supplies and patch leads required, which can make a noticeable difference in tighter enclosures where airflow, cable bend radius and service access all need to be preserved.
StorageDual HDD bays
CodecH.265
DisplayHDMI up to 4K
DeploymentSMB / residential / retail
Retention · 03
Compression and dual-bay storage for practical retention planning
H.265 compression is an important inclusion on a 16-channel recorder because storage demand rises quickly as camera count and resolution increase. Compared with older codec generations, H.265 can reduce bitrate requirements substantially in many scenes, helping installers balance image quality, frame rate and retention days more efficiently across a multi-camera system.
The dual HDD bay design provides room for surveillance-grade drive expansion inside the recorder chassis. That gives flexibility when quoting for different retention targets, from short local review windows through to longer archive periods for offices, medical reception, retail or light industrial environments. As always, final retention depends on camera resolution, scene complexity, frame rate, recording schedule and target bitrate.
How it works in a typical 16-camera IP installation
The IVNR316XD combines switching, power delivery, recording and local display output in a single recorder, reducing extra hardware for many surveillance jobs.
01
Home-run camera cabling
Run Cat5e/Cat6 from each IP camera back to the recorder location. Each cable terminates directly into one of the 16 PoE ports.
02
Power and network link
The recorder provides PoE to connected cameras while handling network communication for discovery, live view and recording.
03
Encode and store
Video streams are compressed using supported H.265 workflows and written to installed hard drives across the two internal storage bays.
04
View locally or remotely
Connect a local monitor via 4K HDMI for on-site viewing, then configure network access and user permissions for remote monitoring and playback as required.
At a glance
Verified specifications compiled from the provided product information.
BrandIVSEC
ModelIVNR316XD
Recorder typeNetwork Video Recorder (NVR)
Channel count16-channel IP
Max supported resolutionUp to 12MP
PoE ports16 x PoE
Storage bays2 bays
Video compressionH.265
Display output4K HDMI
Use caseMulti-camera IP surveillance
Jargon, decoded
Useful surveillance terms installers and end users regularly encounter when specifying an NVR-based IP CCTV system.
PoE
Power over Ethernet. Carries data and low-voltage power on one cable to a compatible camera.
NVR
Network Video Recorder. Records digital streams from IP cameras across an Ethernet network.
12MP
Twelve megapixel image support. Higher pixel count can improve detail capture and digital zoom flexibility.
H.265
Modern video compression codec used to reduce bitrate and storage consumption compared with older standards.
4K HDMI
A display output capable of driving an Ultra HD monitor, useful for dense multi-camera live views.
Bitrate
The amount of data used per second for a stream. Higher bitrate usually means better image quality but more storage use.
Frame Rate
How many video frames are recorded each second. Higher frame rates improve motion smoothness.
Retention
How many days or weeks footage remains available before old recordings are overwritten.
ONVIF
A common interoperability standard in IP video. Compatibility depends on device firmware and supported profiles.
Surveillance HDD
A hard drive rated for continuous video workloads and multi-stream write conditions inside recorders.
Dimensions
Exact chassis dimensions were not verified in the supplied source material. For cabinet planning, allow space not only for the recorder footprint but also rear cable bend radius, ventilation and service access to the hard drive bays and power connections.
If you need rack shelf sizing or cabinet-fit confirmation before ordering, contact Infront Technologies Australia with the intended enclosure details.
Pairings
Common add-ons and matching categories to complete an IVSEC NVR deployment.
Record
Surveillance hard drives
Populate both drive bays with surveillance-rated HDDs sized for the required camera count, bitrate and retention target.
Capture
IVSEC IP cameras
Pair with compatible IVSEC network cameras up to 12MP depending on the channel design and monitoring objectives.
Network
Cat5e/Cat6 cabling and patching
Use structured cabling, keystones, patch panels and labelled terminations for orderly serviceability and clean fault isolation.
Power
UPS backup
A properly sized UPS helps maintain recorder uptime, reduces corruption risk during outages and supports cleaner shutdown behaviour.
FAQ
Does the IVNR316XD power cameras directly?
Yes. The recorder includes 16 PoE ports, so compatible IP cameras can receive both network connectivity and power through the connected Ethernet runs.
How many cameras can it record?
It is specified as a 16-channel NVR, intended for up to 16 IP camera channels.
What resolution cameras can be used?
The supplied product information states support for up to 12MP cameras. Actual performance depends on the recorder firmware, stream settings and camera compatibility.
Does it have local monitor output?
Yes. It includes a 4K HDMI output for local viewing and playback on a directly connected monitor or display panel.
How much storage should I install?
That depends on channel count, camera resolution, frame rate, bitrate, scene motion and desired retention days. Because this unit has dual HDD bays, installers can size storage to suit the project rather than relying on a fixed internal capacity.
Is this suitable for small business and residential systems?
Yes. The mix of 16 channels, built-in PoE, H.265 compression and dual-bay expansion makes it practical for larger homes, retail shops, offices and other SMB surveillance deployments.
Use surveillance-rated hard drives, install in a ventilated secure location, and ensure all cabling, power protection and network configuration are completed to applicable Australian standards and site requirements.
