Eight channels with enough resolution overhead for detail-critical scenes

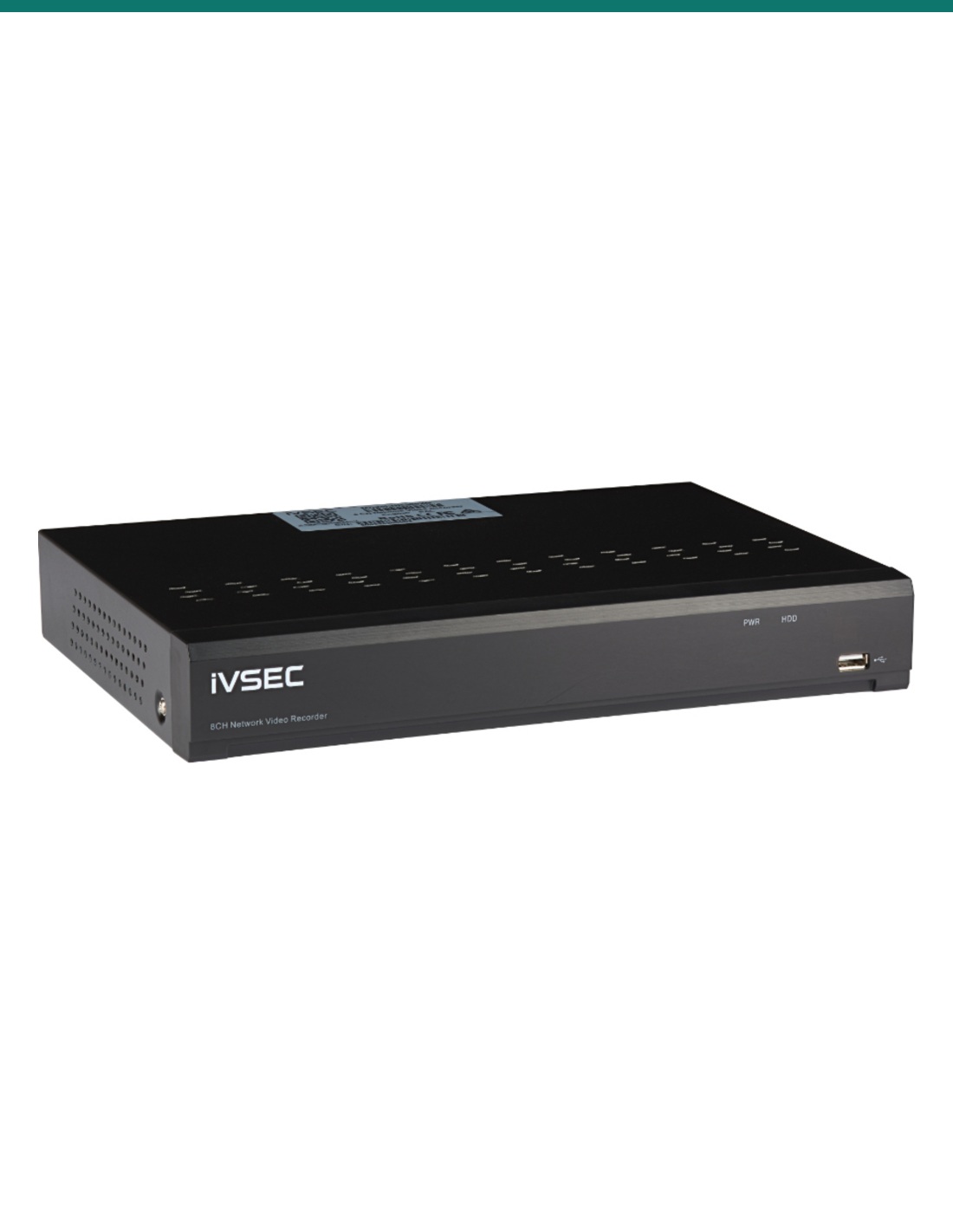

The IVNR308XD is specified as an 8-channel NVR with support for cameras up to 12MP. That matters in applications where identification detail is important at entrances, counters, vehicle approaches or stock areas, because the recorder is not limited to lower-resolution edge devices. Installers can mix channel priorities across the system and reserve higher megapixel streams for the scenes that need forensic value.

Because the platform records IP cameras rather than analogue inputs, the recorder becomes the central point for stream management, playback and monitor output. For compact systems, eight channels is a common fit for front-of-house coverage, small business footprints and residential perimeter layouts without introducing the cost and space requirements of a larger rack recorder.

Direct camera power and data from the recorder

With 8 x PoE ports onboard, the recorder can supply both power and network connectivity directly to connected cameras. In a smaller installation this reduces the need for a separate PoE switch, trims down patching complexity and can make fault isolation easier because camera terminations are centralised on the NVR. It is a practical architecture for comms cupboards, retail back rooms and home network cabinets where space is tight.

Integrated PoE also streamlines first-stage commissioning. The installer can cable each camera home-run back to the recorder, verify link status locally, then complete channel setup and display testing via the HDMI output. For service calls, this all-in-one topology often shortens diagnosis time compared with split switching and recording hardware in low-channel-count jobs.

H.265 compression, local storage and 4K monitor output in one unit

H.265 support is a key specification for current surveillance systems because it improves coding efficiency and can extend retention time from a given drive capacity when scene complexity, frame rate and recording profile are correctly configured. In practical terms, the recorder can help balance image quality targets with storage limits, especially when several channels are operating at high resolution.

The 1-bay HDD design makes the IVNR308XD a straightforward choice when a single local surveillance drive suits the job scope. A 4K HDMI output enables clean on-site viewing for commissioning desks, reception monitors or security stations, allowing installers and end users to review live and recorded footage directly from the recorder without relying solely on remote client access.

Home-run camera cabling

Each IP camera is terminated back to one of the eight PoE ports, providing data link and power over the same Ethernet cable.

Channel discovery and stream setup

The NVR identifies connected channels, applies recording parameters and receives the incoming video streams from supported IP cameras.

Compression and local recording

Using H.265, the recorder writes footage to the installed hard drive, helping conserve storage while maintaining targeted image settings.

Local viewing and playback

A connected HDMI display can show live views and review footage locally, while the broader system can be integrated into the site network as required.

Surveillance HDD

Add a compatible surveillance-grade hard drive to suit the required retention period, camera count, resolution and recording schedule.

iVSEC IP Cameras

Pair with compatible iVSEC PoE IP cameras, selecting resolution and lens format according to scene coverage and identification targets.

4K HDMI Monitor

Use a suitable HDMI monitor or local display for setup, live multi-view, incident review and maintenance diagnostics.

Structured Cabling & UPS

Complete the installation with Cat cabling, patching and a UPS to protect recorder uptime during short power disturbances.
