IVSEC LX Series Kit
IVSEC LX Series 8MP 4-Camera Kit with 4TB 4CH NVR
LVK-319B-4TB for compact IP CCTV deployments
The LVK-319B-4TB bundles four 8MP IP cameras with a 4-channel PoE NVR and pre-fitted 4TB storage, giving installers a matched surveillance package for small commercial sites, retail tenancies, offices and residential perimeter coverage. With integrated PoE on the recorder and 4K Basic IVS support, it simplifies deployment while maintaining high pixel density for overview and identification zones.

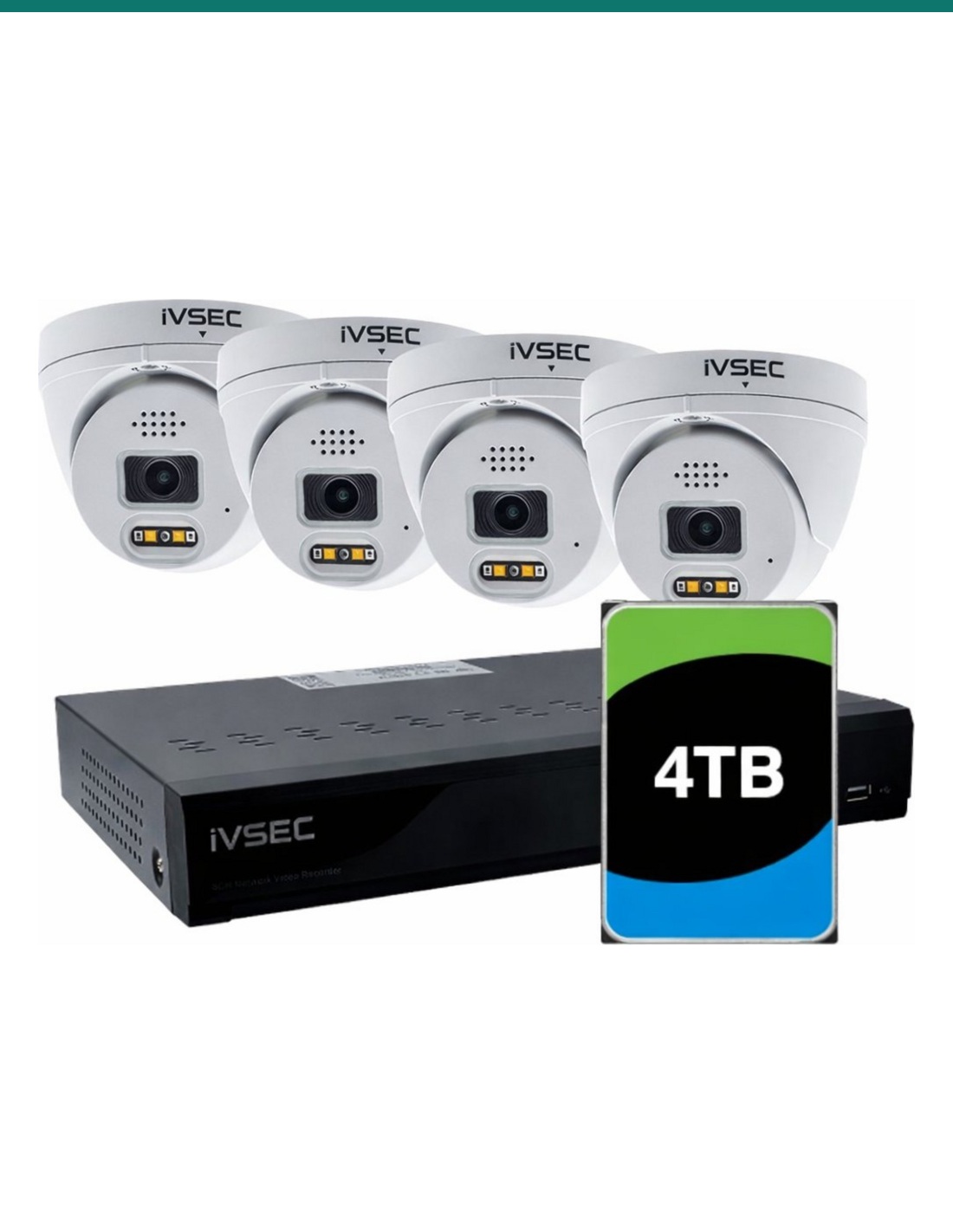

Product shot may differ from supplied camera housing or included accessories.
A matched 8MP surveillance package for straightforward four-camera installs
For jobs where the recorder, storage and camera count are already defined, a kit like this reduces compatibility questions and speeds up commissioning. The package includes four IVSEC NC319XB 8MP network cameras plus one IVSEC NR004XB 4-channel NVR with four onboard PoE ports and a 4TB hard drive already specified for continuous or motion-based recording workflows.
For Australian integrators and trade buyers, Infront Technologies Australia can help confirm fit for site layout, retention expectations, network topology and recorder capacity before purchase, particularly where 8MP streams, IVS events and future expansion need to be considered together.
8MP
per camera capture resolution
4×
NC319XB IP cameras included
4K
Basic IVS capable platform
PoE
direct camera powering from NVR
Clarity · 01
8MP capture gives the kit enough pixel density for serious overview work
Each included NC319XB camera is specified at 8MP resolution, placing this kit in the class commonly selected where installers need substantially more detail than 2MP or 4MP systems can provide. That extra pixel count is useful across entries, driveways, retail counters, warehouse aisles and external façades where one camera often has to cover both broad scene context and a practical level of subject detail.
In a four-camera layout, 8MP also gives more flexibility when balancing field of view against identification zones. Instead of over-populating a small site with lower-resolution devices, integrators can use the supplied four channels more efficiently, assigning each camera to a meaningful area while preserving cleaner digital zoom and post-event review quality on the recorder.
Power & Record · 02
Integrated PoE and 4TB storage keep the install compact and predictable
The supplied NR004XB NVR is a 4-channel recorder with four onboard PoE ports, allowing each included camera to be cabled back over a single Ethernet run for both data and power. For installers, that means fewer separate power considerations at camera position, less accessory sprawl in smaller jobs and a cleaner path to commissioning, especially in offices, homes, clinics or boutique retail sites where cabinet space is limited.
The included 4TB hard drive gives the package immediate recording capacity out of the box. Final retention depends on scene complexity, bit rate, frame rate, recording mode and whether streams are continuous, event-based or schedule-driven, but the key advantage is that storage is already part of the solution rather than an afterthought to be specified separately at deployment time.
4CH
network video recorder
4× PoE
direct camera ports
1 Kit
matched recorder and cameras
Deployment fit
Small business, residential perimeter, reception, point-of-sale, side access, garage, storeroom and remote gate coverage.
Analytics class
4K Basic IVS suited to event-driven rule sets where supported by recorder and camera configuration.
System logic
Four supplied cameras map directly to four NVR channels and four PoE ports for a no-surprise hardware count.
Analytics · 03
4K Basic IVS adds practical event handling for everyday perimeter and access points
The kit is specified with 4K Basic IVS, giving the recorder platform an extra level of usability beyond simple continuous recording. For installers, IVS functionality matters because it supports a more efficient review process and can help structure event recordings around gates, doorways, laneways and property boundaries rather than relying purely on timeline scrubbing after an incident.
On compact sites, that combination of 8MP imaging and basic intelligent video features is often the right balance: enough resolution for evidentiary review, enough event logic to reduce wasted retrieval time, and a recorder/camera package that does not require the complexity of a larger enterprise VMS deployment.
How it works on site
A standard deployment keeps cabling simple: one Cat cable per camera back to the NVR, recorder on the local network, monitor attached for setup, then recording profile and IVS rules tuned to the risk points that matter.
01
Mount cameras
Position the four NC319XB cameras to cover entries, perimeter approaches, cash handling or vehicle paths with deliberate overlap where handover between views is needed.
02
Home-run Ethernet
Run each camera back to one of the NVR's four PoE ports so power and network data are carried on the same link, minimising local power requirements.
03
Configure record profiles
Set time, network access, stream parameters and retention behaviour across the installed 4TB drive, balancing image quality against archive duration.
04
Enable IVS and hand over
Apply Basic IVS where useful, verify playback and export procedure, then hand over a system with matched camera count, matched channels and defined storage behaviour.
At a glance
Verified package details from the supplied source context and listing references.
BrandIVSEC
SeriesLX Series
ModelLVK-319B-4TB
Product typeIP CCTV surveillance kit
Camera resolution8MP
Included cameras4 × NC319XB
Recorder included1 × NR004XB NVR
NVR channels4-channel
PoE ports4 × PoE
Included storage4TB hard drive
Analytics4K Basic IVS
Deployment styleSmall-site IP CCTV with direct PoE homeruns
Jargon, decoded
Quick definitions for common surveillance terms relevant to this kit.
8MP
An image class around eight megapixels, typically used where higher detail is required across a wider field of view.
IP Camera
A network camera that sends digital video over Ethernet rather than analogue coax.
NVR
Network Video Recorder; stores and manages video streams from IP cameras.
PoE
Power over Ethernet; lets one cable carry both electrical power and data to the camera.
Channel
A single camera input on the recorder. A 4-channel NVR is intended to manage up to four cameras.
IVS
Intelligent Video System functions such as rule-based event detection for perimeter or access monitoring.
4K Basic IVS
An entry-level intelligent video feature set available on compatible 4K-capable surveillance platforms.
Bit Rate
The amount of data used to encode video. Higher settings can improve quality but consume more storage.
Frame Rate
How many images per second are recorded. Motion-heavy scenes may need more frames for smoother review.
Retention
The number of days video remains stored before being overwritten, based on drive size and recording settings.
Dimensions
No verified physical dimensions were supplied in the available source context for the kit carton, individual cameras or recorder chassis. If exact allowances are required for rack shelves, wall cabinets, soffit depth or conduit termination spacing, confirm the current IVSEC datasheet or installation manual prior to rough-in.
Pairings
Common add-ons and adjacent products that make sense around a four-camera IP kit.
Cabling
Cat5e/Cat6 solid-core cable
Use quality solid-core data cable for fixed PoE camera runs back to the NVR, especially where termination consistency matters.
Power Protection
UPS for recorder uptime
A line-interactive UPS helps protect the NVR and maintain short-term recording continuity through mains disturbances.
Display
Local HDMI monitor
Useful for first-time setup, live view verification, focus checks and client handover without relying only on remote access.
Mounting
Junction boxes and weatherproof terminations
Recommended where terminations need better mechanical protection, neater service loops or improved environmental sealing.
FAQ
Does the kit include everything needed for recording?
It includes the four IP cameras, one 4-channel PoE NVR and a 4TB hard drive. Installation cabling, display device, internet/network equipment and mounting accessories should be confirmed separately as needed for the job.
Can all four cameras be powered directly from the NVR?
Yes. The recorder is specified with four PoE ports, matching the four included cameras for direct one-cable connection per channel.
Is 4TB enough storage for 8MP cameras?
It depends on frame rate, compression, bit rate, motion levels and whether recording is continuous or event-based. 8MP streams are data-heavy, so retention should be estimated against the actual recording profile before installation sign-off.
What does 4K Basic IVS mean in practice?
It refers to a basic intelligent video feature set on the surveillance platform, typically used to create more useful event handling than simple nonstop recording alone. Exact rule options should be confirmed in the current IVSEC documentation.
Is this kit expandable beyond four cameras?
The included recorder is a 4-channel model, so the supplied platform is intended for up to four cameras. Expansion beyond that normally requires a higher-channel recorder.
Who is this kit best suited to?
It suits compact IP CCTV deployments where four fixed camera positions are enough and installers want a matched recorder/camera package with onboard PoE and included storage.
Final camera placement, retention time, analytics performance and any electrical or cabling compliance obligations should be assessed against the site conditions, current IVSEC documentation and applicable Australian standards before installation.
