Jaycar Concord 8 Channel NVR Replacement Power Supply 48V 1.5A 4Pin

SKU JC-PSU-NVR48-1.5 In Stock - Ready to Ship
$122.50 inc GST

Replacement 48V 1.5A power supply with a round 4-pin plug for Jaycar Concord 8-channel NVRs. It is a 72W supply with an Australian IEC mains lead in the box.

  • ✓48V DC, 1.5A, 72W output (model CS-4801500)
  • ✓Round 4-pin plug: two +48V pins and GND
  • ✓100–240V AC input, 50/60Hz
  • ✓Australian IEC mains lead included
  • ✓8-channel recorders. 16-channel NVRs need the 48V 3.75A supply
  • ✓12-month warranty, supported by Infront Technologies

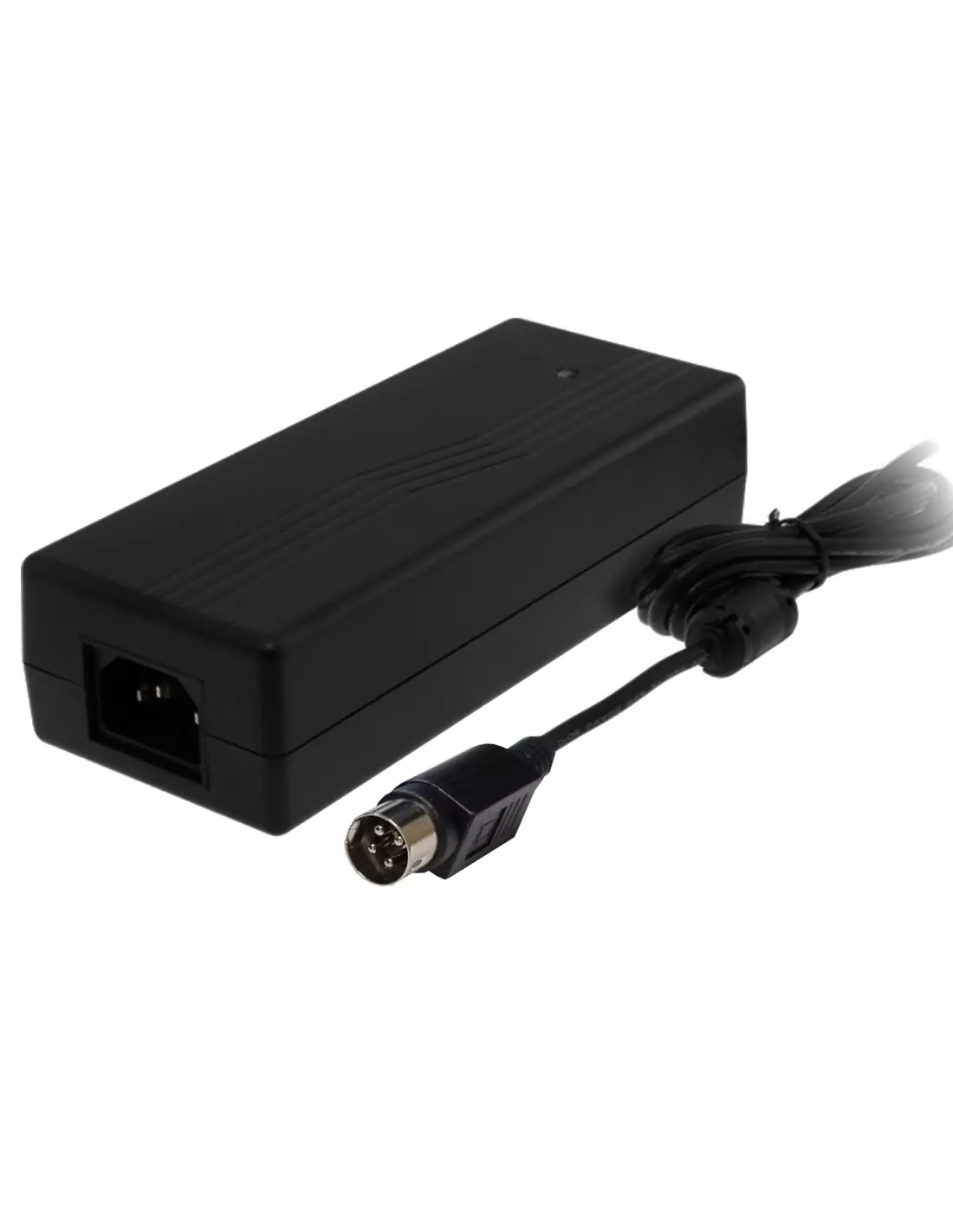

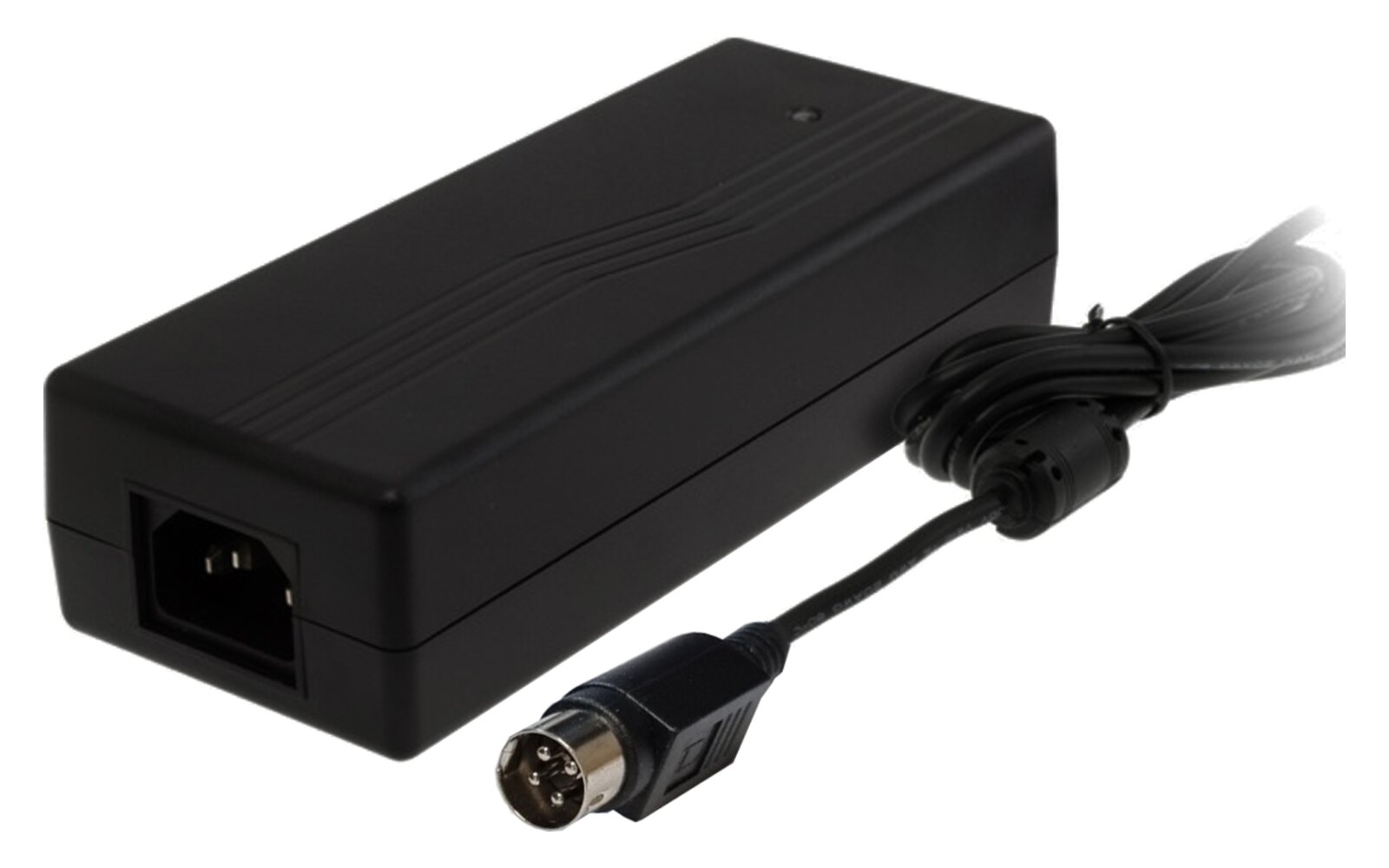

Jaycar Concord 8-channel NVR replacement power supply 48V 1.5A with round 4-pin plug
Jaycar Concord · 8-channel NVR · 48V 1.5A

Power for an 8-camera recorder.
48V. 1.5A. Round 4-pin.

This is the JC-PSU-NVR48-1.5, a 72W replacement supply for Jaycar Concord 8-channel NVRs. 16-channel recorders use the larger 3.75A supply.

In one sentence: the JC-PSU-NVR48-1.5 is a 48V DC, 1.5A, 72W desktop power supply with a round 4-pin plug and an Australian IEC mains lead, made to replace the adaptor on Jaycar Concord 8-channel NVRs.

Check your label before you order.

Your old adaptor should read 48V 1.5A and have a round 4-pin plug. If it reads 48V 3.75A, you need the 16-channel supply.

In the box
  • 48V 1.5A power supply with 4-pin DC lead
  • Australian IEC mains lead
You also need
  • Nothing else for a straight swap
  • A mains power point near the recorder

When an 8-channel recorder will not stay on.

An 8-channel NVR feeds its PoE cameras from this one adaptor. When the supply tires, the recorder restarts or the cameras drop out. A full 1.5A, 72W replacement brings the power budget back.

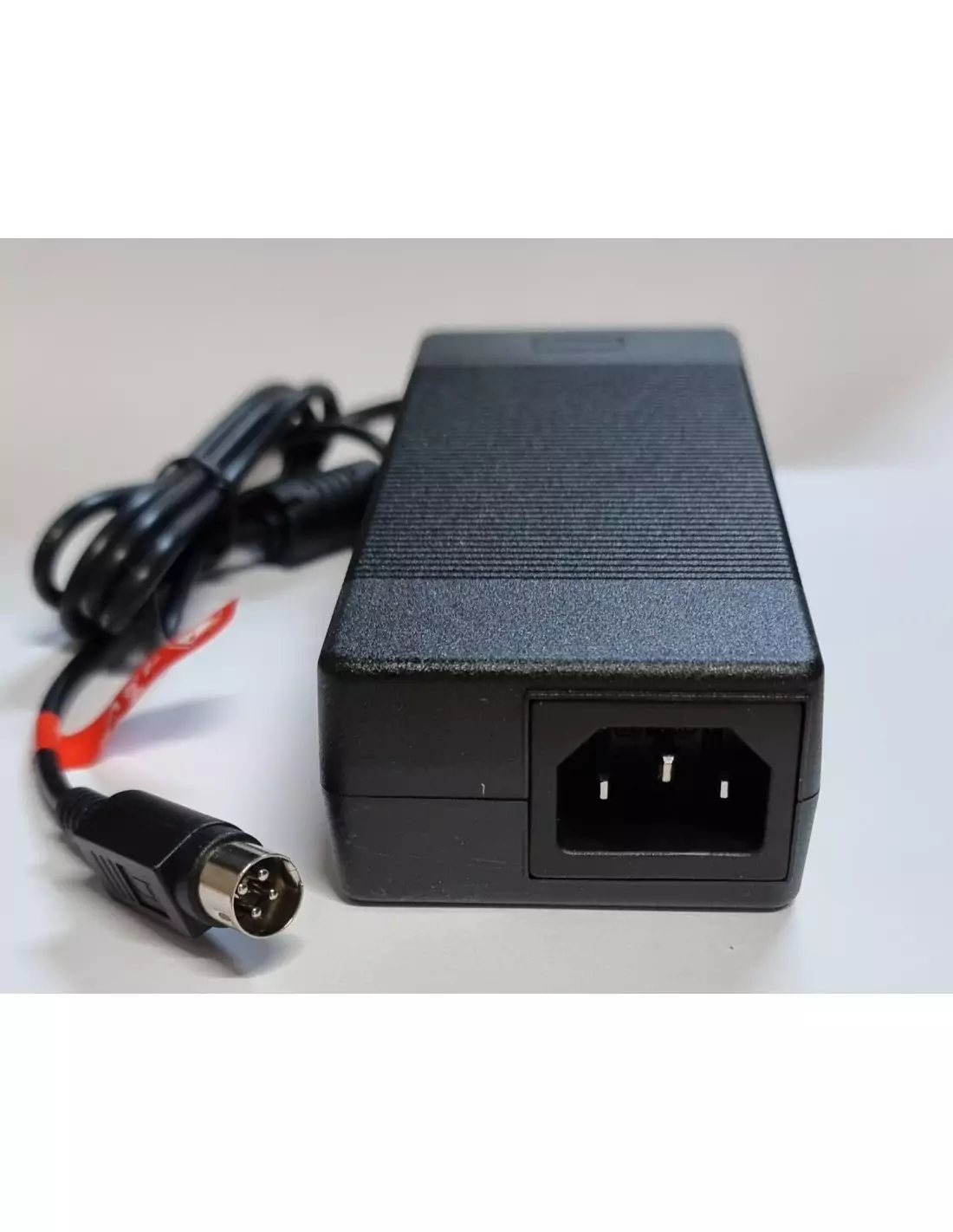

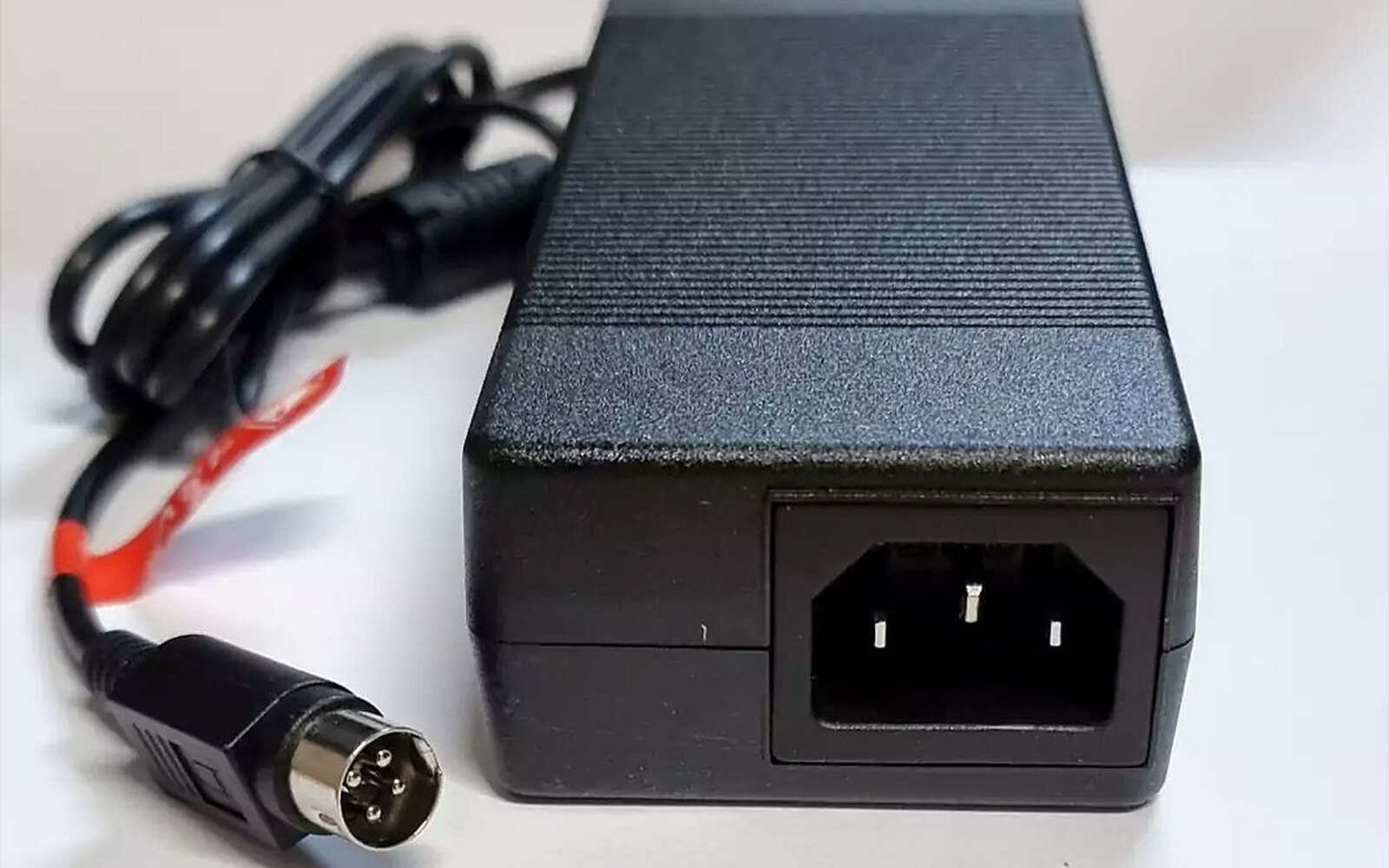

Power supply IEC mains inlet and 4-pin DC lead

Mains end

IEC inlet on one end, 4-pin lead on the other.

The Australian IEC mains lead plugs into this end. The 4-pin DC lead runs to the back of the recorder.

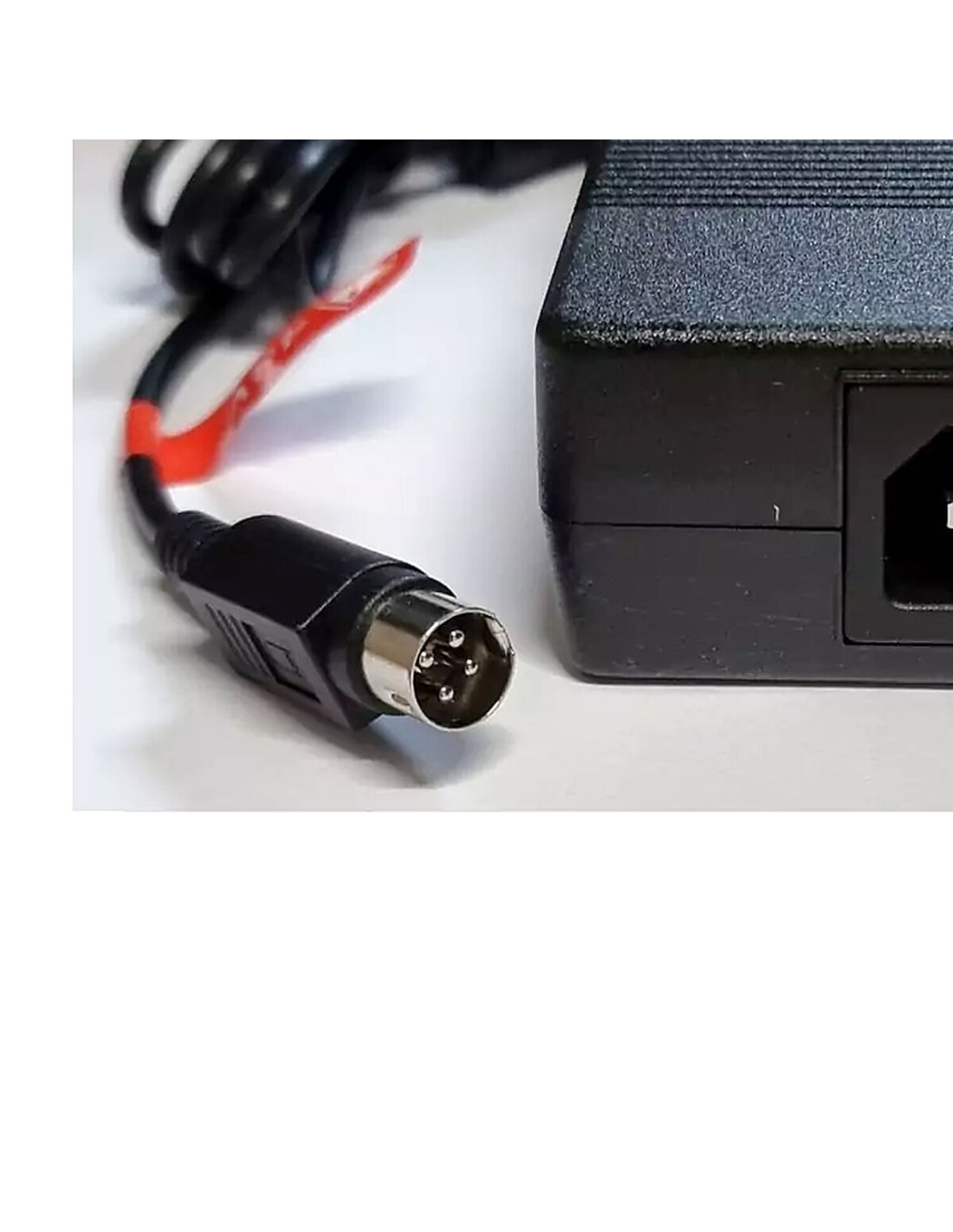

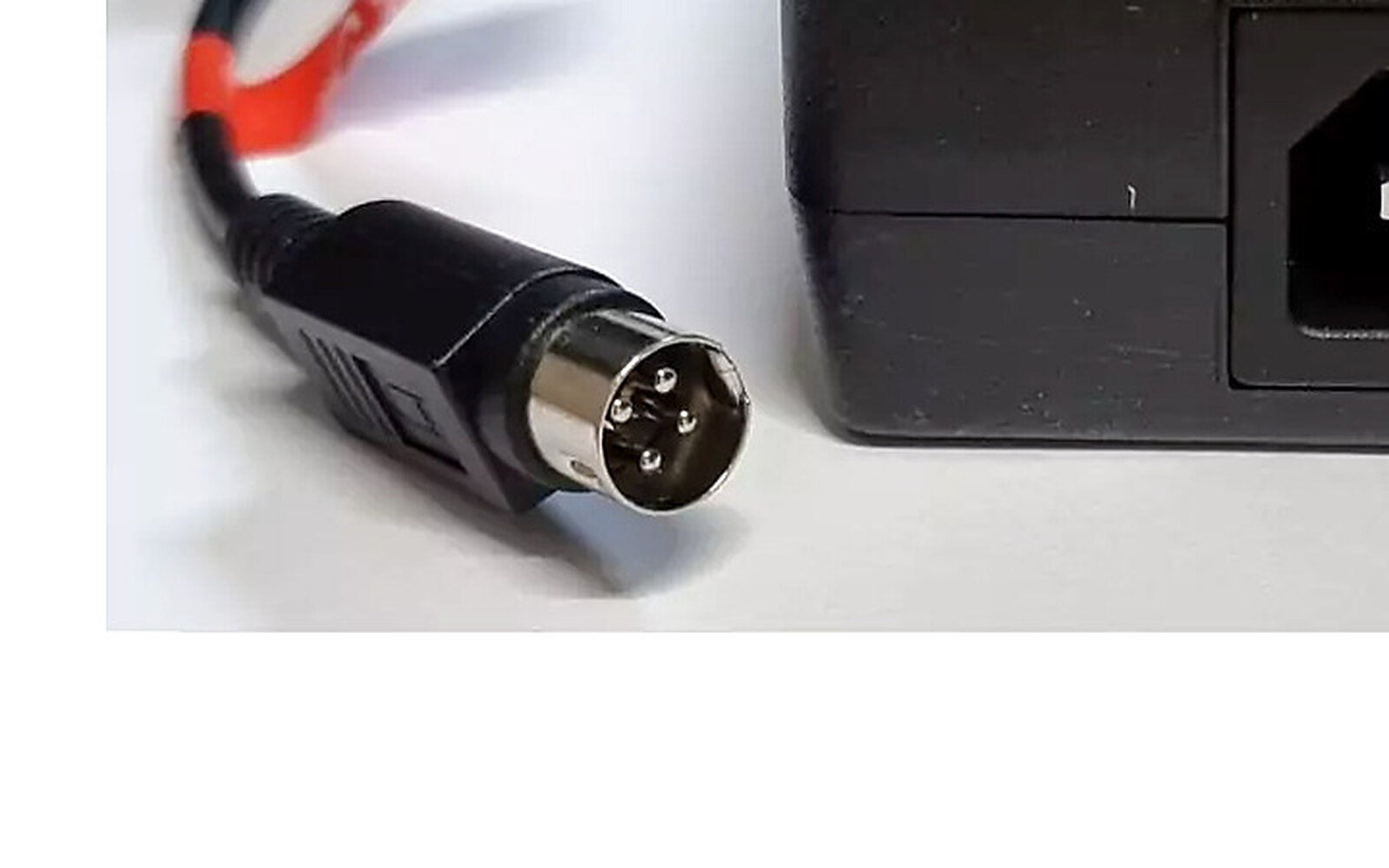

Round 4-pin 48V DC plug close-up

The plug

Round 4-pin, keyed.

Two pins carry +48V and one is ground. The plug is keyed, so it only fits one way. Line it up and do not force it.

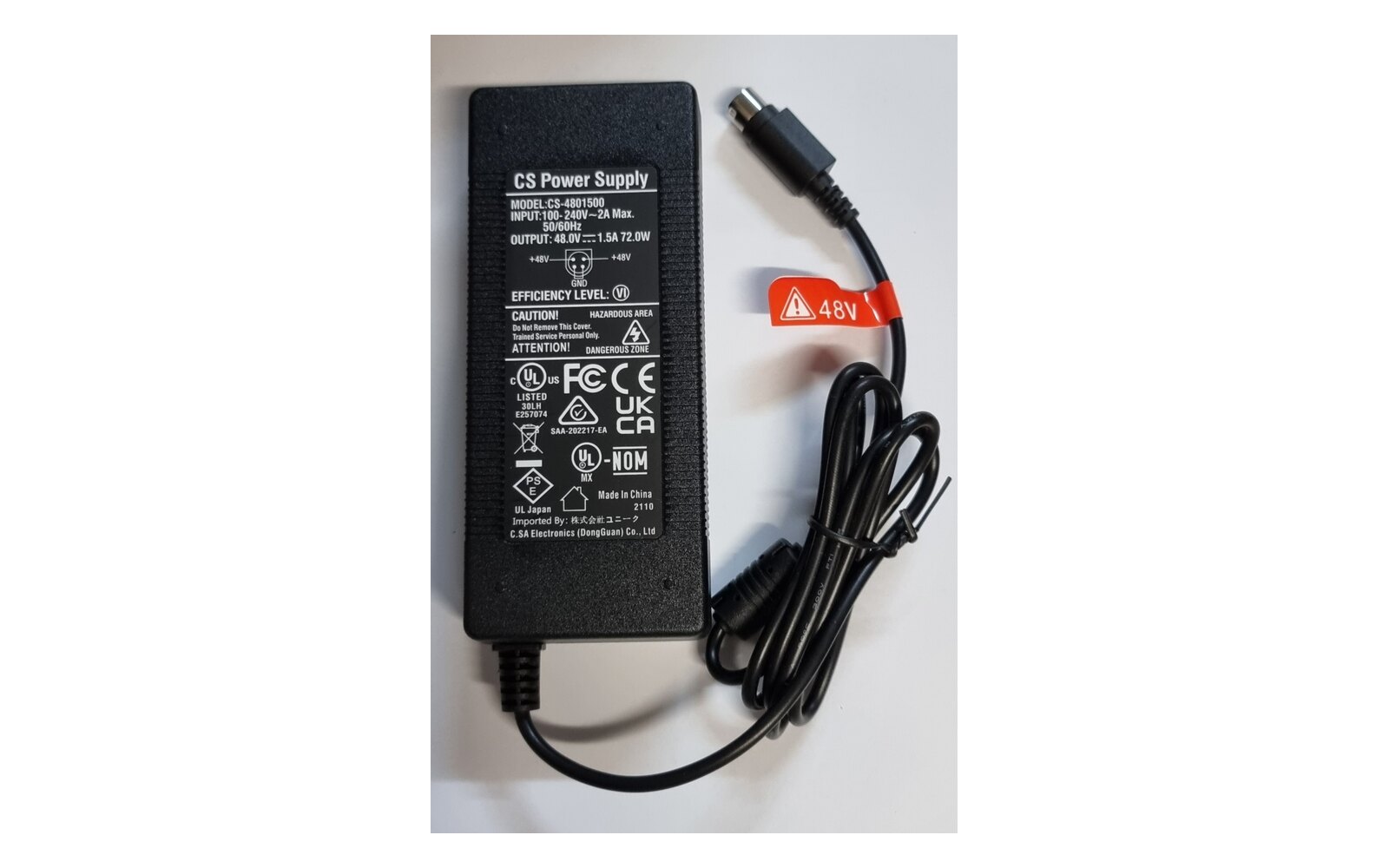

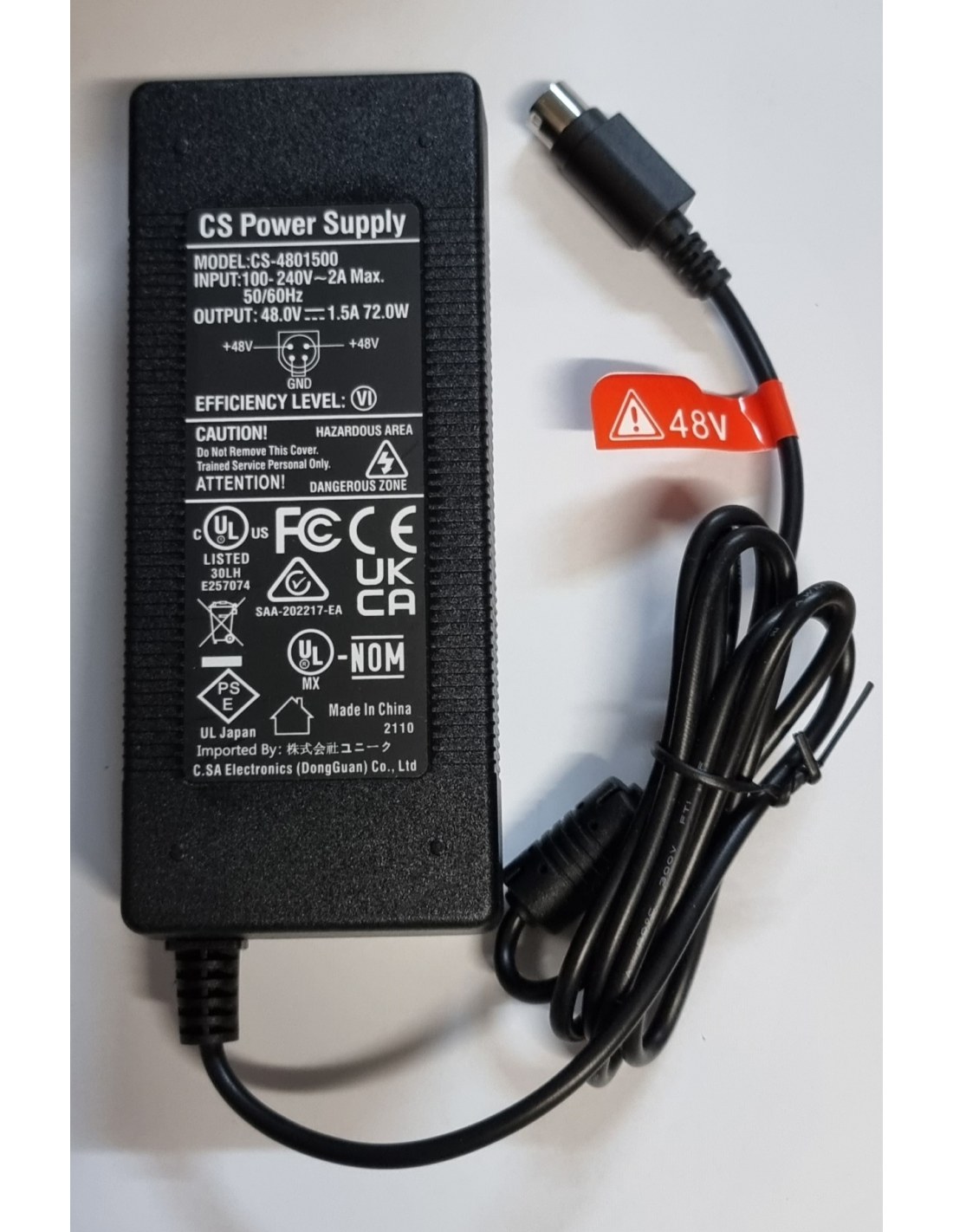

CS-4801500 label showing 48V 1.5A 72W output

The label

Read this before you buy.

Model CS-4801500. Input 100–240V AC, 2A max, 50/60Hz. Output 48.0V, 1.5A, 72.0W. Your old adaptor should show the same output and the same 4-pin drawing.

How it goes in

Swapped in a few minutes.

01

Check the label

Old adaptor reads 48V 1.5A with a round 4-pin plug.

02

Shut down and unplug

Turn the recorder off and remove the mains lead.

03

Swap the plugs

Fit the 4-pin plug, keyed side up, then the IEC lead.

04

Power up

Recorder boots and the PoE cameras reconnect.

Pair it with

Other recorders, other supplies

16-channel

Jaycar 16-channel NVR?

It needs the 48V 3.75A 4-pin supply, not this one.

Part check

Not sure which one?

Email a photo of your adaptor label to [email protected] and we will match it.

Where it is used

Anywhere an 8-channel NVR runs.

Homes

An 8-camera system that has started restarting or losing cameras.

Shops and cafes

Get the recorder back up the same day the old adaptor dies.

Farms and sheds

A spare supply on hand for a recorder a long way from town.

Small offices

Restores the full PoE budget across all 8 camera ports.

Strata and common areas

A like-for-like swap with no rewiring of the recorder.

Installers

A spare for service calls on Jaycar Concord 8-channel systems.

How the JC-PSU-NVR48-1.5 compares

JC-PSU-NVR48-1.5JC-PSU-48V-3.75
Recorder8-channel16-channel
Output48V DC, 1.5A48V DC, 3.75A
Power72W180W
PlugRound 4-pinRound 4-pin
Supply modelCS-4801500CS-4803750

Both have the same round 4-pin plug, so check the amps on your old label. An 8-channel recorder takes the 1.5A supply.

Common questions

Will this fit my Jaycar 8-channel NVR?

Yes, if the old adaptor or the label under the recorder reads 48V 1.5A and the plug is round with 4 pins. Match the volts, the amps and the plug before you order.

Can I use this 1.5A supply on a 16-channel recorder?

No. A 16-channel recorder powers up to 16 PoE cameras and needs the 48V 3.75A supply. On a 16-channel NVR this adaptor is under-rated and causes reboots and cameras dropping out.

I have a 16-channel Jaycar NVR. Which supply do I need?

The 48V 3.75A 4-pin supply. This 1.5A model is for 8-channel recorders.

Will any 48V supply do?

No. Match all three: 48V, at least 1.5A, and the round 4-pin plug. A supply with a different plug or a lower current rating will not run the recorder properly.

What is in the box?

The 48V 1.5A power supply with its 4-pin DC lead, and an Australian IEC mains lead.

What input voltage does it take?

100 to 240V AC at 50 or 60Hz, so it runs on Australian mains and most overseas mains with the right IEC lead.

What are the signs the old supply has failed?

No lights on the recorder, a recorder stuck at the start-up screen, random restarts, or cameras dropping off when the system is busy.

Where do I find my recorder rating?

On the label under the recorder and on the old adaptor. The adaptor label shows the volts, the amps and the plug.

Does this supply power the cameras?

Yes, through the recorder. The NVR passes power from this 72W supply to its PoE camera ports.

How do I fit it?

Shut down the recorder, unplug the mains, swap the 4-pin plug, connect the IEC mains lead and power up. It takes a few minutes and needs no tools.

What warranty does it have?

12 months, supported by Infront Technologies in Australia.

Who sells this supply in Australia?

Infront Technologies stocks it and ships Australia-wide. Send us a photo of your adaptor label if you want us to check it before you buy.

Supported by Infront Technologies.

Not sure it fits? Email a photo of your adaptor label to [email protected] or call 1300 736 970 and we will check it before you order.

Installation and safety

Mains plug-in supply. Plugging it into an existing power point is normal use. A new power point or any switchboard work needs a licensed electrician.

Do not open it. The label warns of hazardous voltage inside. Keep it ventilated and dry, and replace it if the case or leads are damaged.

What it does not do. It is not a UPS, so it does not keep the recorder running in a blackout. Figures are taken from the CS-4801500 label.

Frequency
50/60Hz
Colour
Black
Input Voltage
100-240V AC
Output Voltage
48V DC
Output Current
1.5A
Output Power
72W
Efficiency
Level VI
Application
CCTV NVR power replacement
Connector
Round 4-pin
Number of Channels
8
Package Contents
Power supply with 4-pin DC lead, AU IEC mains lead
Warranty
12 Months
Product Type
NVR Replacement Power Supply
Model
CS-4801500
Plug Type
AU IEC mains lead
Compatible with
Jaycar Concord 8-channel NVR (48V 1.5A 4-pin)
