Uniview Pole Mount Adapter for Bullet Junction Boxes, 67-127 mm Poles, Uniarch Bullets and PTZ - TR-UP06-C-IN
TR-UP06-C-IN
In stock $ 16.50
inc-GST
or 4 interest-free payments of $4.12 with
Uniview TR-UP06-C-IN aluminium pole adapter for bullet junction boxes (TR-JB07-D-IN, TR-JB05-B-IN). Straps to poles 67–127 mm across; also listed for the Uniarch B1E, B1P bullets and P1E5.
- ✓Carries a bullet junction box on a pole
- ✓Poles and rails 67–127 mm
- ✓Straps, no drilling
- ✓20 × M4 holes, 40 mm cable hole
- ✓Also fits Uniarch B1E/B1P bullets and P1E5
- ✓Aluminium alloy, 0.34 kg
Uniview · Pole adapter · 67–127 mm poles
Put the camera on a pole,
without drilling it.

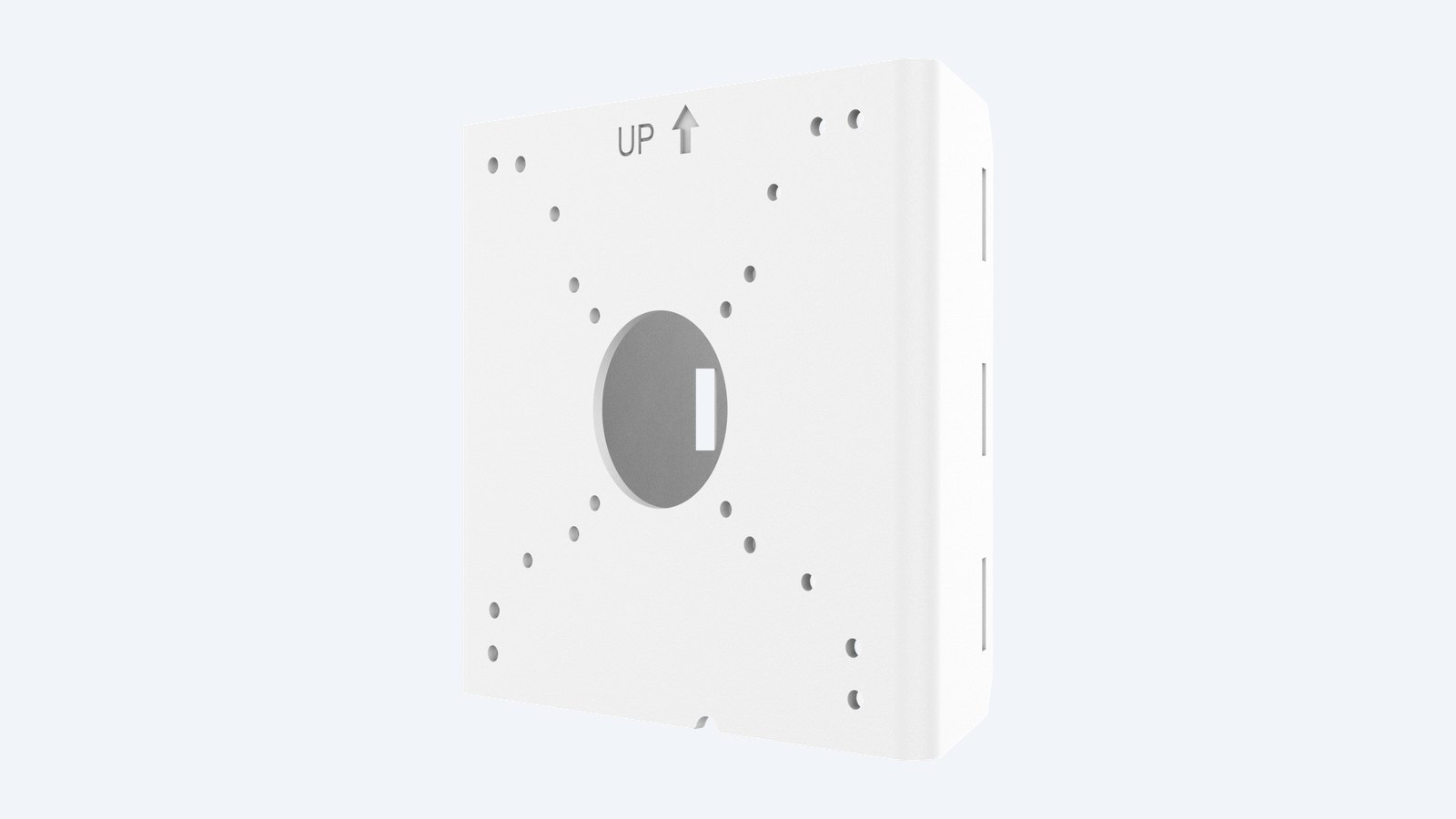

This is the Uniview TR-UP06-C-IN. An aluminium pole adapter with three adjustable straps. It clamps to a pole or rail 67–127 mm across and carries a bullet junction box, so the camera and its cable joint go up the pole together.
In one sentence: the TR-UP06-C-IN is a 136 × 127 × 63.6 mm aluminium alloy pole adapter for Uniview bullet junction boxes and the Uniarch B1E, B1P bullets and P1E5 mini PTZ, for poles from 67 to 127 mm, weighing 0.34 kg.
The adapter and its straps. The camera and junction box are separate.
Uniview calls it a pole bracket “for bullet junction box only”: fit the TR-JB07-D-IN (IPC23XX bullets, mini PTZs) or TR-JB05-B-IN (IPC21XX and Uniarch bullets) to it, then the camera.
In the box
- TR-UP06-C-IN pole adapter
- Pole straps
You also need
- A bullet junction box (TR-JB07-D-IN or TR-JB05-B-IN)
- A compatible camera
- A pole or rail 67–127 mm across
- A screwdriver or nut driver for the straps
For posts, poles and rails.
Car parks, gates, farm yards and fences often have a pole where the camera needs to be. The adapter clamps around it, so there is nothing to drill into the pole, and the junction box keeps the cable joint dry.

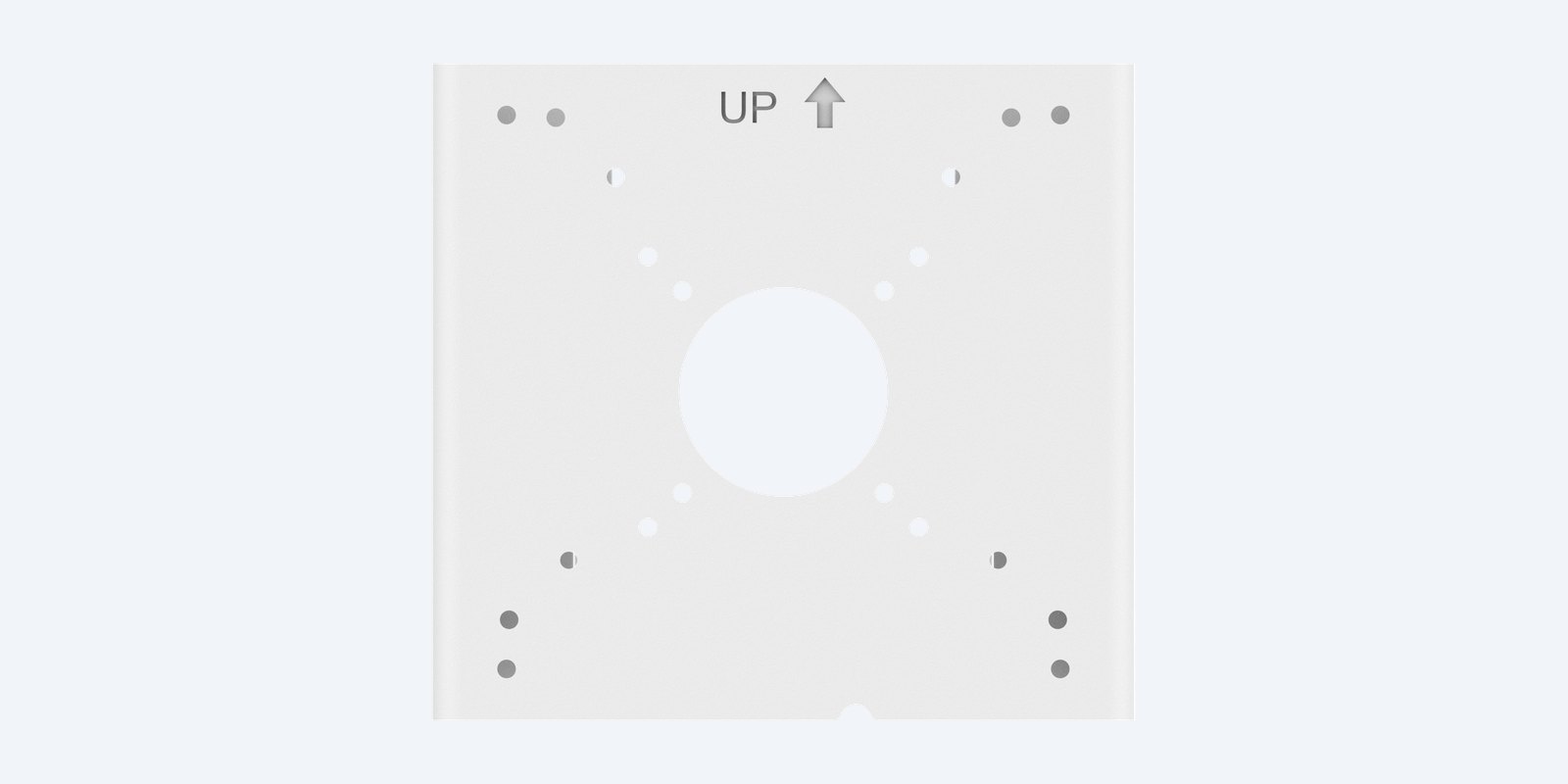

Front plate
Twenty M4 holes and a 40 mm cable hole.
The 136 × 127 mm plate has twenty M4 threaded holes in several patterns, including the 39 mm and 64 mm squares and 74 mm circle used by Uniview’s bullet junction boxes. The cable passes through the 40 mm hole in the middle.

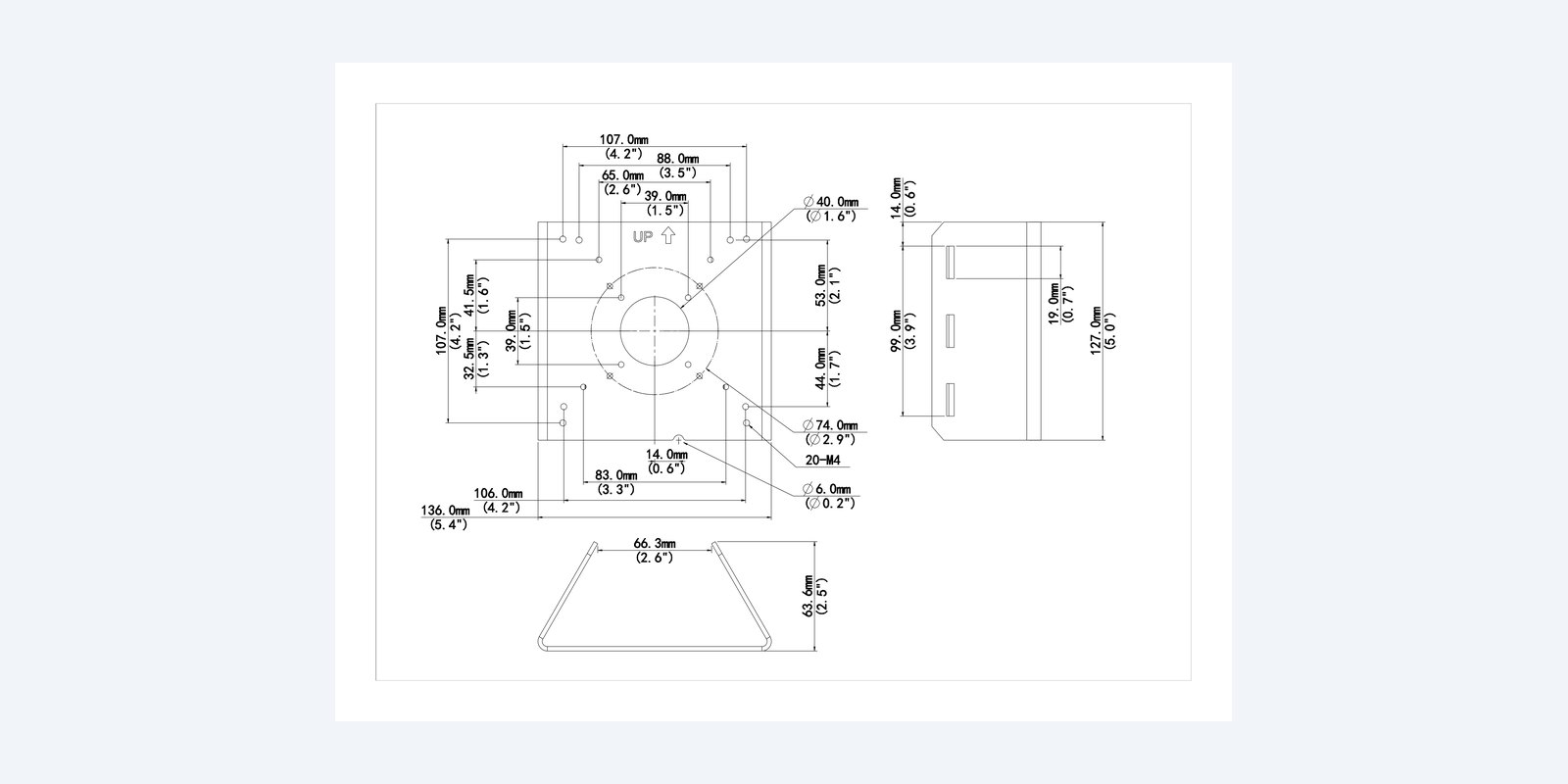

Size
136 × 127 mm, 63.6 mm deep.
The curved back sits against the pole and the straps pass through 19 mm slots at each side. An UP arrow on the plate shows which way it goes.
How it goes in
From the box to a mounted camera.
01
Thread the straps
Feed the straps through the adapter and loosely around the pole.
02
Set height and tighten
Slide it to height with the UP arrow pointing up, face it the right way and tighten the straps.
03
Fit the junction box
Screw the junction box to the plate with M4 screws, bringing the cable through the 40 mm hole.
04
Fit and aim
Connect the camera inside the box, close up and aim it.
At a glance
TR-UP06-C-IN
Show specs
Type
Pole mount adapter
Fits
Bullet junction boxes: TR-JB07-D-IN, TR-JB05-B-IN
Cameras
Uniview IPC23XX, IPC22X, IPC74X, IPC252/26X bullets; Uniarch B1E, B1P, P1E5
Pole size
67–127 mm diameter
Size
136 × 127 × 63.6 mm
Weight
0.34 kg
Material
Aluminium alloy
Front plate
20 × M4 threaded holes
Cable hole
Ø40 mm
Colour
White
Pair it with
What goes with it
Junction box
TR-JB07-D-IN
Square box for IPC23XX bullets and mini PTZs.
Junction box
TR-JB05-B-IN
Round IP66 box for IPC21XX and Uniarch bullets.
Uniarch
Uniarch IPC-B1E8 bullet
Listed for this adapter with the TR-JB05-B-IN.
Camera
Uniview IPC2328SB bullet
8MP motorised bullet, with the TR-JB07-D-IN.
Where it is used
Where it is used
Car parks
Light poles and bollards over the bays.
Gates and entries
Gate posts watching vehicles come and go.
Farms and yards
Steel posts beside sheds, yards and machinery.
Balconies and rails
Round handrails and balustrade posts.
Uniview bullet mounting parts side by side
| TR-JB07-D-IN | TR-JB05-B-IN | TR-UP06-C-IN | TR-UP06-B-IN | |
|---|---|---|---|---|
| Type | Junction box | Junction box | Pole adapter | Pole bracket |
| For | IPC23XX, 222X, 74X, 252/26X bullets | IPC21XX mini bullets | Bullet junction boxes | IPC22X, IPC24X bullets |
| Size | 125 × 125 × 57 mm | Ø104.4 × 57 mm | 136 × 127 × 63.6 mm | 100 × 90 × 38.2 mm |
| Weight | 0.75 kg | 0.36 kg | 0.34 kg | 0.2 kg |
| Pole size | — | — | 67–127 mm | 67–127 mm |
— means not applicable. Figures from the Uniview datasheets (TR-UP06-C-IN pole range from the Uniarch-branded datasheet of the same part).
Common questions
Which cameras does it fit?
Uniview lists it for its IPC23XX, IPC22X, IPC74X and IPC252/26X bullets, mounted on their junction box. From our range: IPC2328SB-DZK-I0 and IPC2328SB-ADZKM-DL-I1 with the TR-JB07-D-IN, and the PKC2641 number-plate cameras list it in their datasheet. The Uniarch IPC-B1E6, IPC-B1E8, IPC-B1P8 and IPC-P1E5 datasheets list it too.
Do I need a junction box?
Yes. Uniview describes it as a pole bracket for bullet junction boxes only. Fit the TR-JB07-D-IN or TR-JB05-B-IN to it, then the camera to the box.
What size pole does it fit?
Round poles and rails from 67 mm to 127 mm in diameter (from the datasheet of the same part sold under the Uniarch name).
Do I have to drill the pole?
No. The straps clamp the adapter around the pole. You only need a hole in the pole if you want the cable to run inside it.
How does the cable get to the camera?
Through the 40 mm hole in the middle of the plate, from inside a hollow pole or down the outside in conduit.
How big is it?
136 × 127 × 63.6 mm, weighing 0.34 kg.
How much weight will it hold?
Uniview does not publish a load rating. Tighten the straps firmly on a sound pole and re-check them after a few weeks.
Can I use it on a square post?
Uniview lists it for poles and rails. The straps can go around a square post of similar size, but the curved back sits best on a round pole. Send us a photo if you are unsure.
What is it made of?
Aluminium alloy, 0.34 kg. It will not rust like steel.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Check the pole is sound and tighten the straps firmly; re-check them after the first few weeks. Working at height needs a stable platform. Turn off power to the camera before connecting it.
Weather. Bring the cable into the camera or junction box from below, or seal the hole if it runs inside the pole, so water cannot follow the cable in.
Figures. From the Uniview TR-UP06-C-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 136 × 127 × 63.6 mm
- Weight
- 0.34 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Pole or rail, outdoor
- Brand
- Uniview
- Pole Diameter
- 67–127 mm
- Warranty
- 3 years
- Product Type
- Camera Pole Mount Adapter
- Model
- TR-UP06-C-IN
- Use
- Outdoor
- Mount type
- Pole adapter
- Junction Box
- TR-JB07-D-IN or TR-JB05-B-IN
- Compatible Cameras
- Uniview IPC2328SB-DZK-I0, IPC2328SB-ADZKM-DL-I1 (with TR-JB07-D-IN), PKC2641 LPR; Uniarch IPC-B1E6, IPC-B1E8, IPC-B1P8, IPC-P1E5
- Camera Series
- Uniview IPC23XX, IPC22X, IPC74X, IPC252/26X bullets; Uniarch B1E, B1P, P1E
- Front Plate Holes
- 20 × M4
- Cable Hole
- Ø40 mm
In stock
Uniarch Cameras
Uniarch Tri-guard 8MP 4K Bullet IP Camera with Warning Light & Speaker - IPC-B1P8-AF28KC
In stock
In stock
- New
In stock
Uniview Number Plate (LPR) Cameras

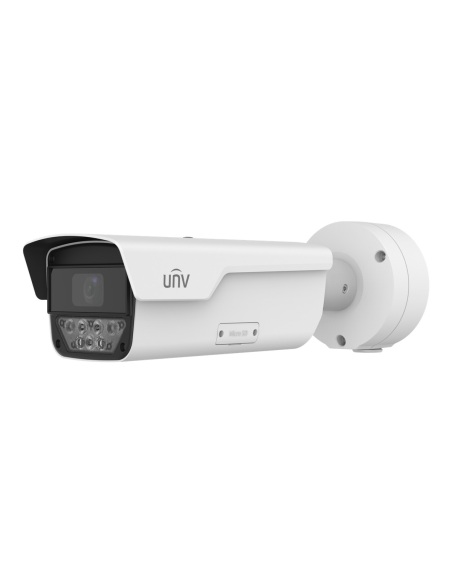

Uniview 4MP LPR Number Plate Camera, 2.8-12mm, 50m IR, Relays & Wiegand, PoE+ -...
