Uniview Mounts & Accessories
Uniview 4-Channel 4K PoE NVR, 4 PoE Ports, 16MP Recording, 1 HDD Bay, Ultra 265 - NVR501-04B-P4-IQ
NVR501-04B-P4-IQ-0T
In stock $ 270.00
inc-GST
or 4 interest-free payments of $67.50 with
Uniview NVR501-04B-P4-IQ 4-channel network video recorder with 4 built-in PoE ports. Records up to 16MP, outputs 4K on HDMI and takes one drive. No HDD, or 2–8TB fitted.
- ✓4 PoE ports, 50 W total
- ✓Up to 16MP recording, 4K HDMI
- ✓1 SATA bay, drive optional
- ✓Ultra 265 saves storage
- ✓AcuSearch with Uniview cameras
- ✓UNV-Link app for iOS and Android
Uniview · 4 channels · 4 PoE
Four cameras, one cable each.
Recording up to 16MP.

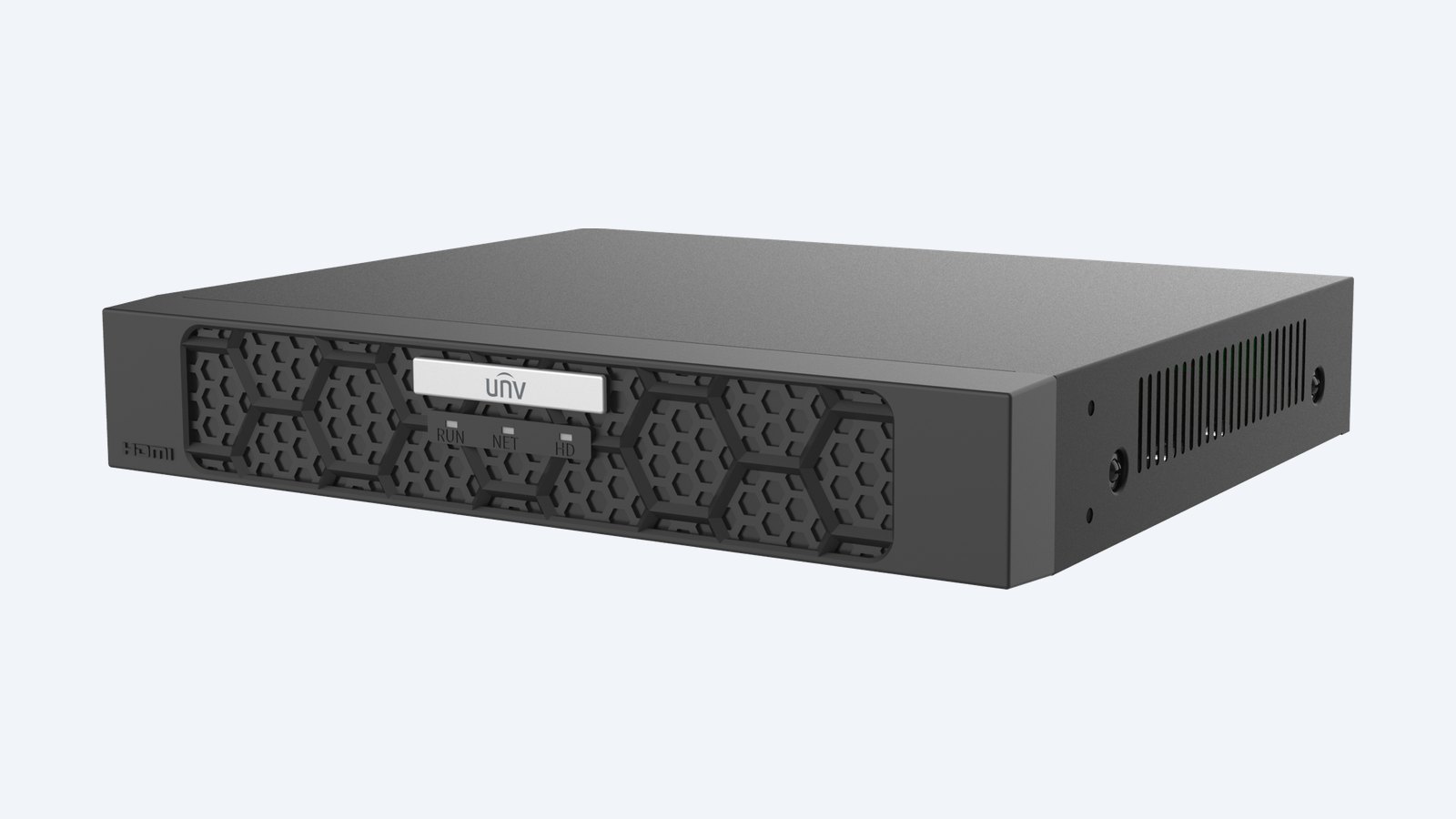

This is the Uniview NVR501-04B-P4-IQ. A compact 4-channel recorder with four PoE ports, so each camera needs one Cat6 cable and no power pack. It records up to 16MP, shows 4K on HDMI and takes one hard drive.
In one sentence: the NVR501-04B-P4-IQ is a 4-channel Uniview NVR with 4 PoE ports (50 W in total), one SATA bay up to 24TB, 80 Mbps incoming bandwidth and 4K HDMI output.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
The NVR501-04B-P4-IQ comes without cameras or a screen, and without a hard drive unless you choose one above. Add the cameras and a screen. The recorder powers the cameras itself through its four PoE ports.
In the box
- NVR501-04B-P4-IQ recorder
- 48 V DC power adapter
- Quick guide
You also need
- A hard drive, if you did not choose one fitted
- Up to 4 IP cameras
- Cat6 cable to each camera
- A monitor or TV with HDMI or VGA
- Your router, for the phone app
Small enough for a shelf, built for 24/7.
At 260 × 215 × 47 mm and 1 kg or less, it sits in a cupboard or comms shelf. Four independent PoE ports supply up to 30 W each, with 50 W across the four, which covers most turrets, bullets and domes.

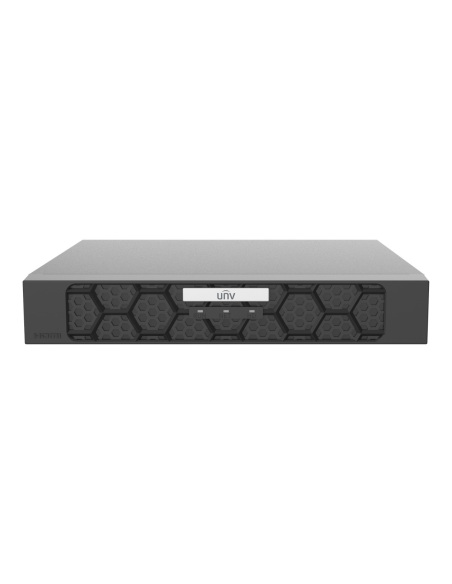

Front panel
A plain front for a cupboard or desk.
Status lights and a USB 2.0 port for a mouse or quick backups are on the front. The PoE ports, LAN, HDMI, VGA, RCA audio, USB 3.0 and the 48 V input are at the back.

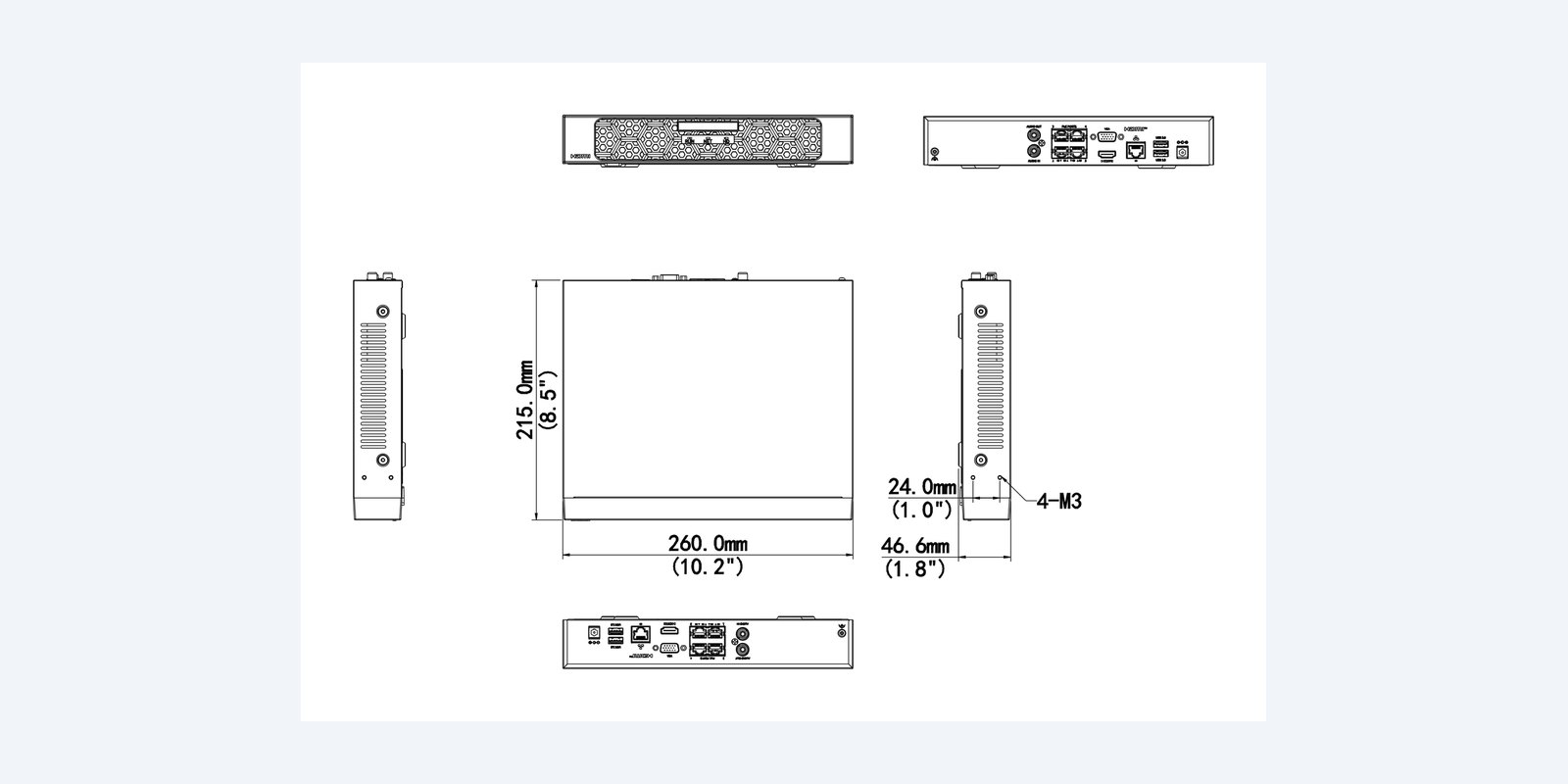

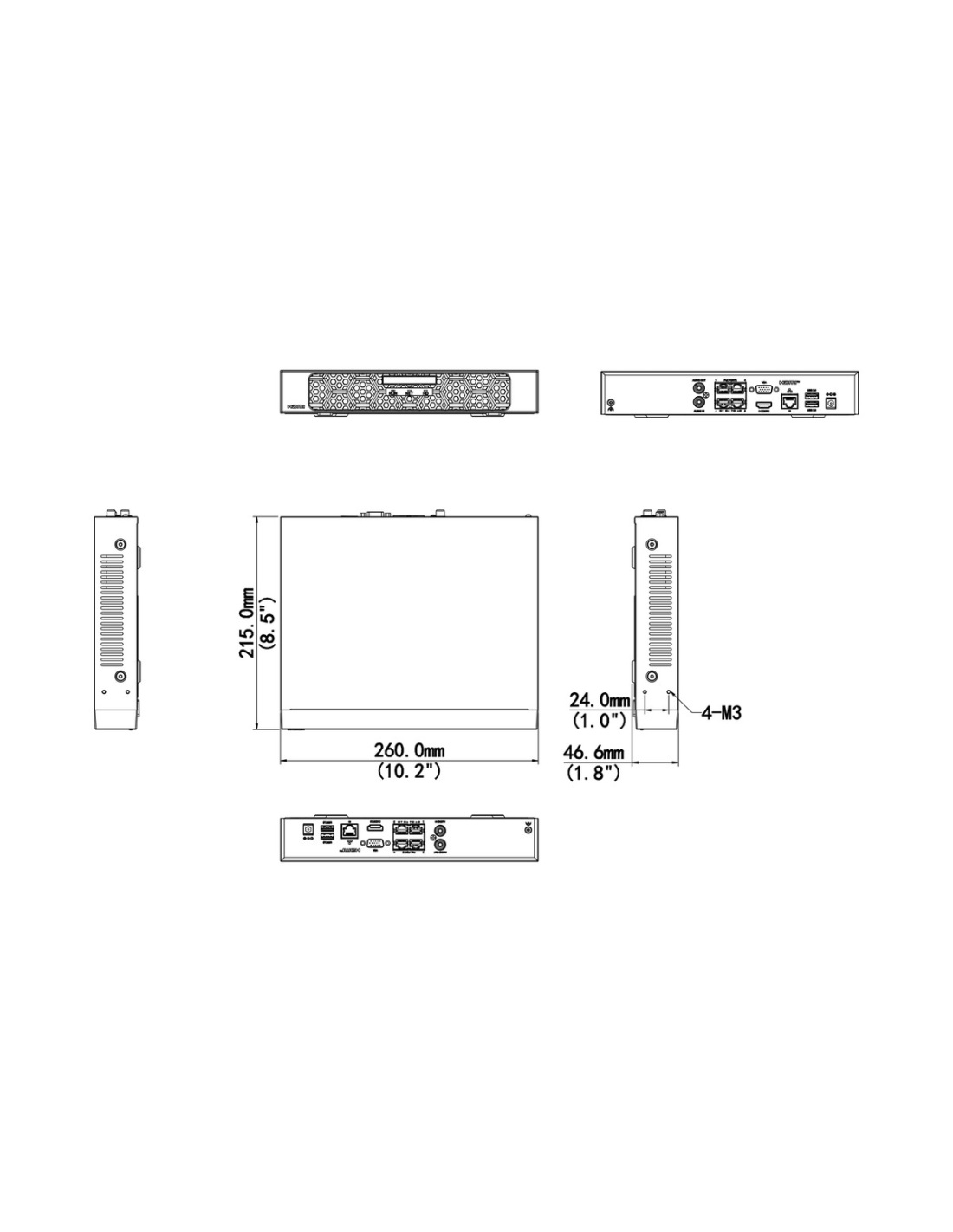

Size
260 × 215 × 47 mm.
It weighs 1 kg or less without a drive and draws 8 W or less before the drive and cameras. The optional Uniview RM-1U-260 bracket fits it in a 19-inch rack.
How it goes in
From the box to recording.
01
Fit the hard drive
If you did not order one fitted: with the power off, open the lid and fit a surveillance drive, then format it from the setup wizard.
02
Plug in the cameras
Run Cat6 from each camera to a PoE port on the back. The port powers the camera, and Uniview cameras are found automatically.
03
Connect screen and network
HDMI or VGA to the monitor, the network port to your router, then power on and follow the wizard.
04
Add it to the app
Scan the P2P QR code in the UNV-Link app for live view, playback and alerts on your phone.
At a glance
NVR501-04B-P4-IQ
Show specs
Channels
4 IP cameras
PoE
4 ports, 30 W max per port, 50 W total (802.3af/at)
Recording
Up to 16MP
Compression
Ultra 265, H.265, H.264
Bandwidth
80 Mbps in, 80 Mbps out
Decoding
2 × 16MP, 2 × 12MP or 4 × 4K @30 (smart off)
Outputs
HDMI up to 4K/30 Hz and VGA up to 1080p, same picture
Storage
1 SATA, up to 24TB
Network
1 × RJ45 10/100
USB
1 × USB 2.0 front, 1 × USB 3.0 rear
Audio
1 in, 1 out (RCA), two-way audio
Power
48 V DC 1.35 A, ≤8 W without HDD
Size and weight
260 × 215 × 46.6 mm, ≤1 kg
Operating
−10 °C to 50 °C, ≤90% RH
Pair it with
What goes with it
Storage
Seagate SkyHawk drive
Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. A 2TB drive suits four cameras on motion recording.
Cameras
Uniview IP cameras
Uniview turrets, bullets and domes add the smart events and fast searches this recorder is built around.
Cabling
Cat6 cable
Solid-copper Cat6 for PoE runs of up to 100 m from each port to each camera.
Audio
Uniview IP speaker
Up to 16 Uniview IP speakers can be linked for announcements and alarm messages.
Where it is used
Where a 4-channel recorder fits
Houses
Front door, driveway, side gate and backyard on one recorder.
Small shops
Counter, entry and stock room with footage kept on site.
Granny flats and units
A separate small system with its own app access.
Sheds and workshops
Watch tools and vehicles with one cable per camera.
Uniview PoE recorders side by side
| NVR501-04B-P4-IQ | NVR501-08B-P8-IQ | NVR502-16B-P16-IQ | NVR504-32B-P16-IQ | |
|---|---|---|---|---|
| Camera channels | 4 | 8 | 16 | 32 |
| PoE ports (budget) | 4 (50 W) | 8 (75 W) | 16 (240 W) | 16 (150 W) |
| Max recording | 16MP | 16MP | 16MP | 16MP |
| Hard drive bays | 1 × up to 24TB | 1 × up to 24TB | 2 × up to 24TB | 4 × up to 24TB |
| RAID | — | — | RAID 1 | RAID 1, 5 |
| Incoming bandwidth | 80 Mbps | 80 Mbps | 320 Mbps | 320 Mbps |
| Network port | 10/100 | 10/100 | Gigabit | Gigabit |
| HDMI and VGA | Same picture | Same picture | Independent | Independent |
| Alarm in / out | — | — | 8 / 2 | 16 / 4 |
| Case | 1U, 260 mm wide | 1U, 260 mm wide | 1U, 380 mm wide | 1.5U, 400 mm wide |
All four record Ultra 265/H.265/H.264, output up to 4K on HDMI plus VGA, and have built-in PoE (802.3af/at, up to 30 W per port). Incoming bandwidth with smart functions off. — means not fitted. Figures from the Uniview datasheets.
Common questions
How many cameras does the NVR501-04B-P4-IQ take?
Four IP cameras, each on its own PoE port. For more, the NVR501-08B-P8-IQ takes eight in the same size case.
Can the PoE ports power every camera at once?
Yes for typical cameras. Each port gives up to 30 W and the four share 50 W. Check the total before adding PTZ or heated cameras.
What smart features does it have?
With Uniview cameras that have SIP or UMD, AcuSearch finds people and vehicles across all channels in seconds. The recorder can also run face detection, intrusion and motion detection itself on a limited number of standard cameras.
Is a hard drive included?
Not as standard. The NVR501-04B-P4-IQ is sold without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted — choose the option above. Its single SATA bay takes a drive of up to 24TB (Uniview notes the maximum depends on the room staying under 40 °C).
Will it work with cameras that are not Uniview?
Uniview lists standard cameras of other brands for the recorder’s own motion and face detection on a limited number of channels, so most third-party IP cameras can be added. Fast searches such as AcuSearch need Uniview cameras. Send us the camera model and we will check it.
Can I watch the cameras on my phone?
Yes. P2P is built in: connect the network port to your router and add the recorder to Uniview’s UNV-Link app by scanning its QR code. Live view, playback and alerts then work on iPhone and Android, and up to 128 remote users can connect.
What screen can I plug in?
Any monitor or TV with HDMI or VGA. HDMI runs up to 4K (3840 × 2160) at 30 Hz and VGA up to 1920 × 1080; both show the same picture.
What is Ultra 265?
Uniview’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.
What does ANR do?
If the network drops, compatible Uniview cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.
How far can the cameras be from the recorder?
Up to 100 m of Cat6 per PoE port, which is the Ethernet limit. Beyond that, add a PoE switch or extender part way.
Can I mount it in a rack?
It is a desktop unit. The optional Uniview RM-1U-260 bracket fits it in a 1U space in a 19-inch rack — ask us if you need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.
Installation and safety
Power. Use only the supplied 48 V DC power adapter. Power off before fitting or removing the hard drive.
Placement. Use indoors between −10 °C and 50 °C, under 90% humidity, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.
Figures. From the Uniview NVR501-B-P-IQ series datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 260 × 215 × 46.6 mm
- Power Supply
- 48 V DC, 1.35 A
- Audio
- 1 in, 1 out (RCA)
- Operating Environment
- −10 °C and 50 °C, ≤90% RH
- Weight
- ≤1 kg without HDD
- Power Consumption
- ≤8 W without HDD
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 4 channels
- Brand
- Uniview
- USB
- 1 × USB 2.0, 1 × USB 3.0
- Incoming Bandwidth
- 80 Mbps
- Recording Resolution
- Up to 16MP
- Display Output
- HDMI up to 4K/30 Hz, VGA up to 1080p (simultaneous)
- Network Interface
- 1 × RJ45 10/100
- Smart Search
- AcuSearch, AcuTrack, face, vehicle and human body search
- Warranty
- 3 years
- Product Type
- PoE Network Video Recorder
- Model
- NVR501-04B-P4-IQ
- HDD Bays
- 1 SATA
- Outgoing Bandwidth
- 80 Mbps
- PoE Ports
- 4 × 10/100, IEEE 802.3af/at
- PoE Budget
- 30 W per port, 50 W total
- Max HDD Capacity
- 24TB
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Playback Decoding
- 2 × 16MP, 2 × 12MP or 4 × 4K @30
