Uniview 15W Ceiling IP Speaker, PoE, Two-Way Audio, 100dB, NVR Alarm Broadcast, SIP - IPS301015-S
IPS301015-S
In stock $ 410.00
inc-GST
or 4 interest-free payments of $102.50 with
Uniview IPS301015-S 15 W ceiling IP speaker: 100 dB, alarm broadcast with Uniview NVRs, two-way audio, 100 stored messages, SIP and ONVIF, PoE or 12 V.
- ✓15 W, up to 100 dB
- ✓Flush ceiling mount, metal body
- ✓Alarm broadcast with Uniview NVRs
- ✓Two-way audio, built-in mic
- ✓100 stored MP3/WAV messages
- ✓PoE (802.3af) or 12 V DC
Uniview · Ceiling IP speaker · 15 W
Announcements and alarms
from the ceiling, over one cable.

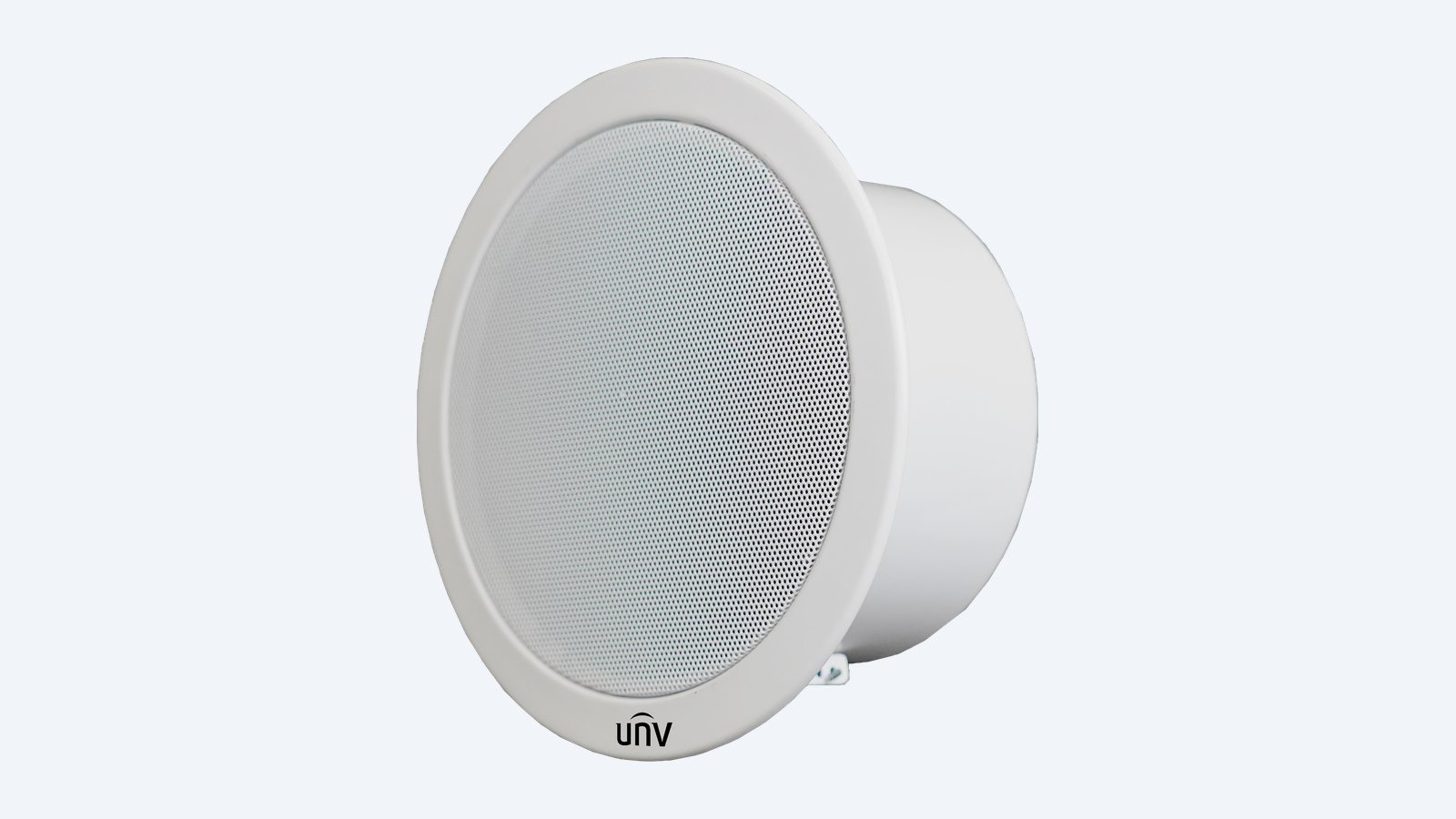

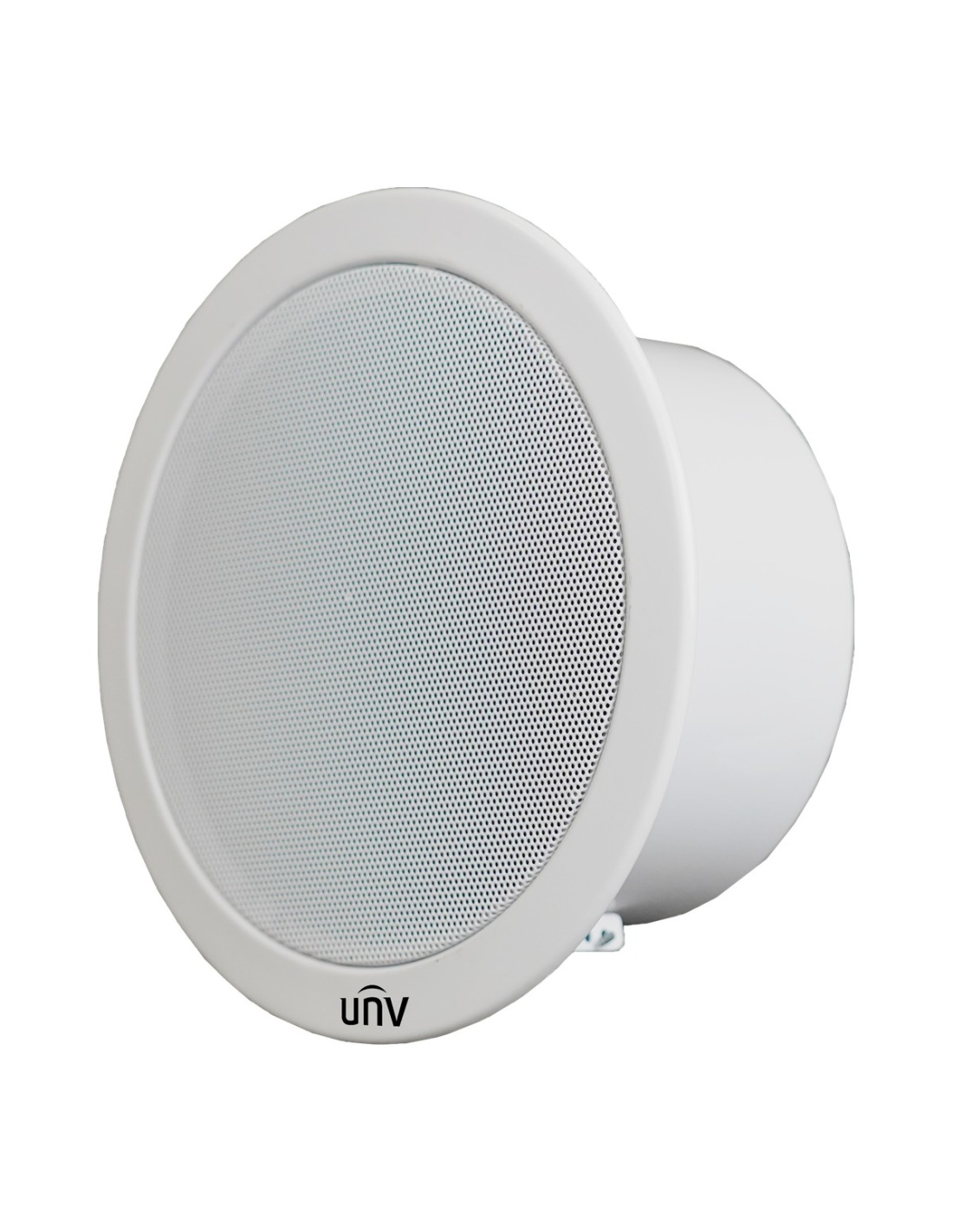

This is the Uniview IPS301015-S. A 15 W ceiling speaker on the network. It plays recorded messages when a Uniview NVR raises an alarm, handles live announcements and two-way talk, and runs from one PoE cable.
In one sentence: the IPS301015-S is a Uniview 15 W ceiling IP speaker with 100 dB maximum sound level, a built-in mic for two-way audio, 64 MB for 100 stored audio files, 2 alarm inputs, a metal housing and power by 802.3af PoE or 12 V.
One Cat6 cable for power and sound.
Power it from an 802.3af PoE port or a 12 V supply. It fits a 180 mm ceiling cut-out.
In the box
- IPS301015-S speaker
- Phoenix terminal block
- Quick guide
You also need
- An 802.3af PoE port, or a 12 V supply
- Cat6 cable to the speaker
- A Uniview NVR for alarm broadcast (optional)
- A 180 mm ceiling cut-out
Clear voice in shops and offices.
With a 100 Hz to 15 kHz range and up to 100 dB, it carries speech and background music in shops, offices and corridors. The metal body sits flush in the ceiling with a 180 mm cut-out.

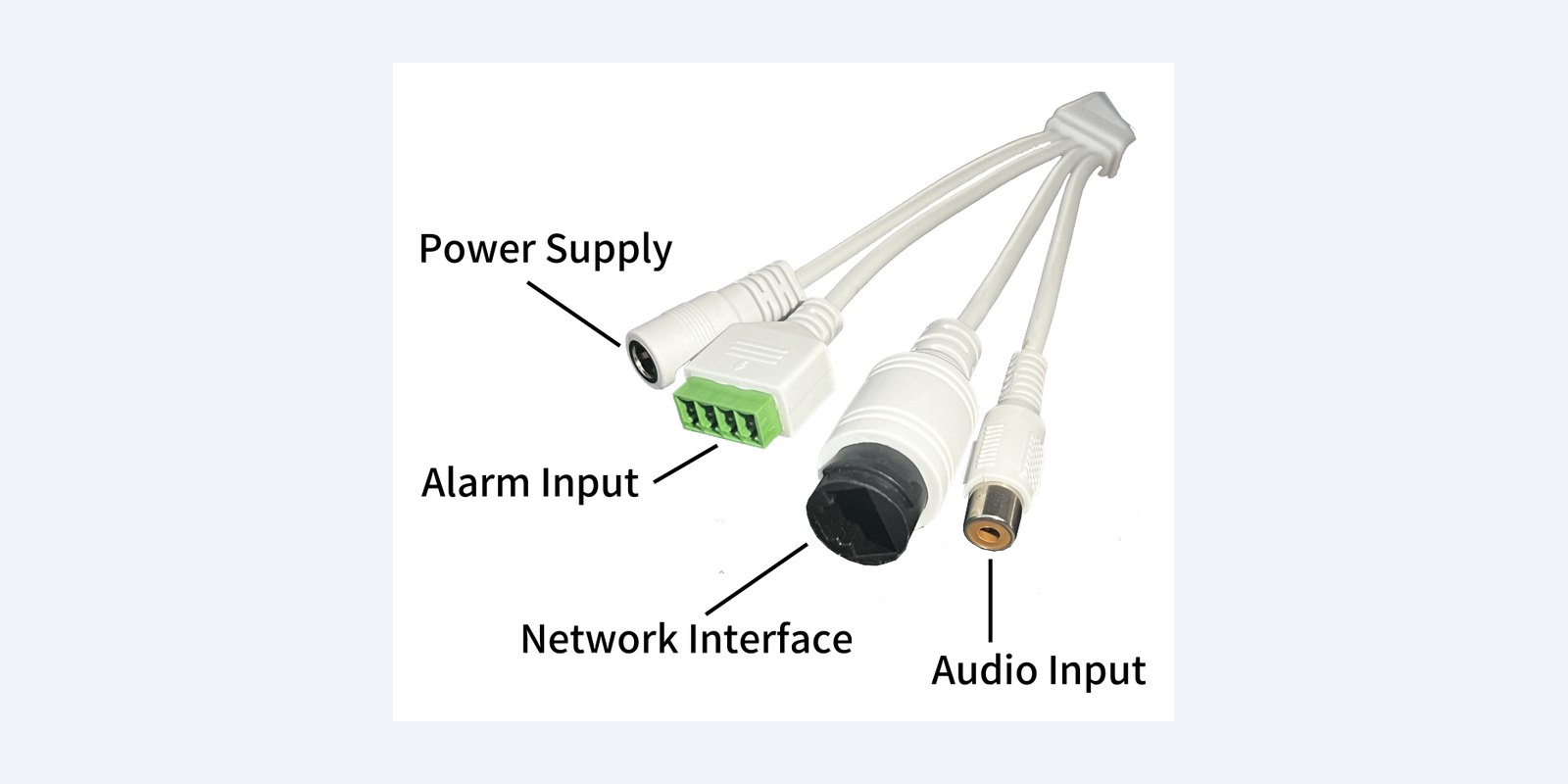

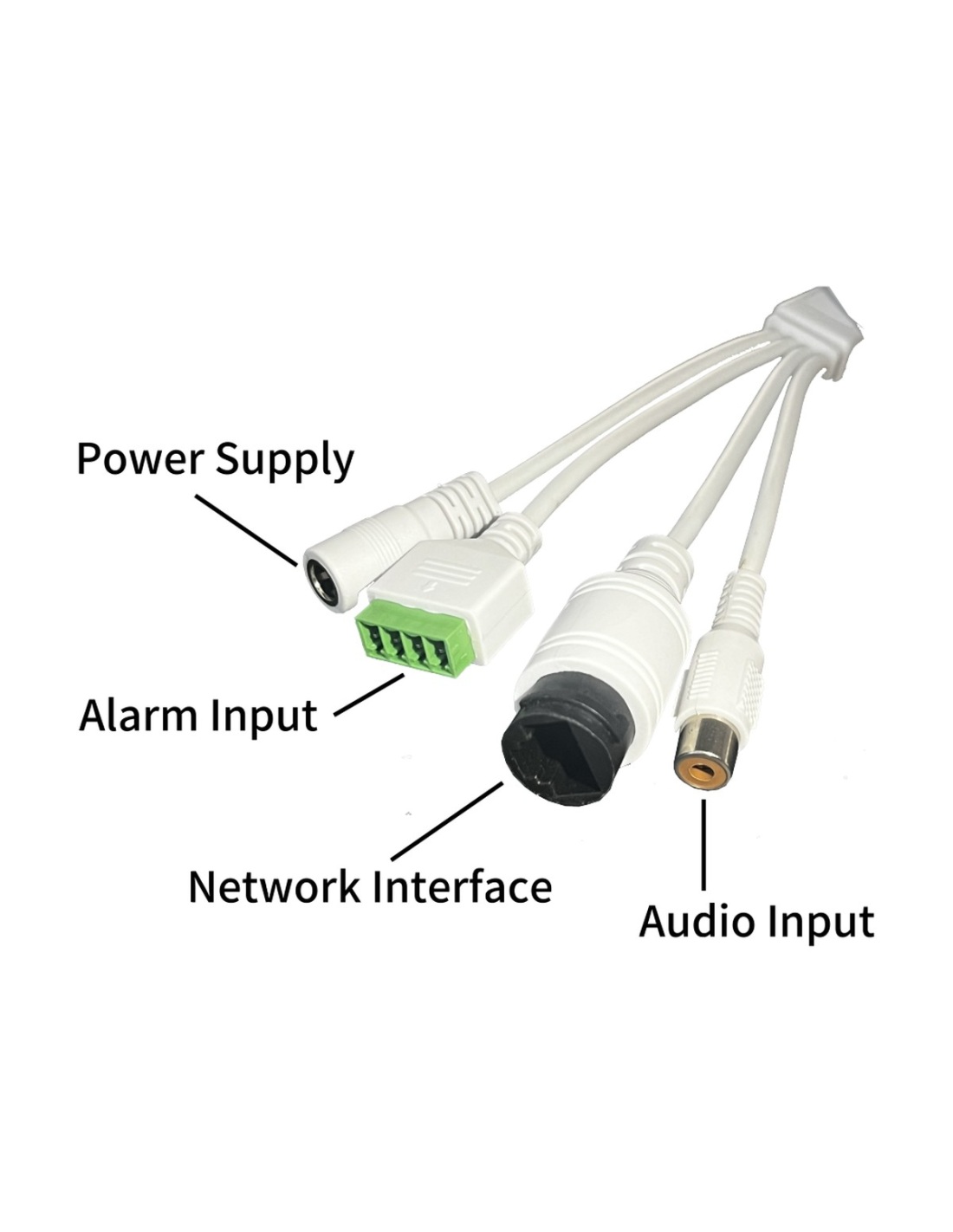

Connections
Network, power, audio and alarm in.
Connect the network cable, 12 V DC power if not using PoE, the RCA audio input and the 2 alarm inputs (on the supplied phoenix terminal).

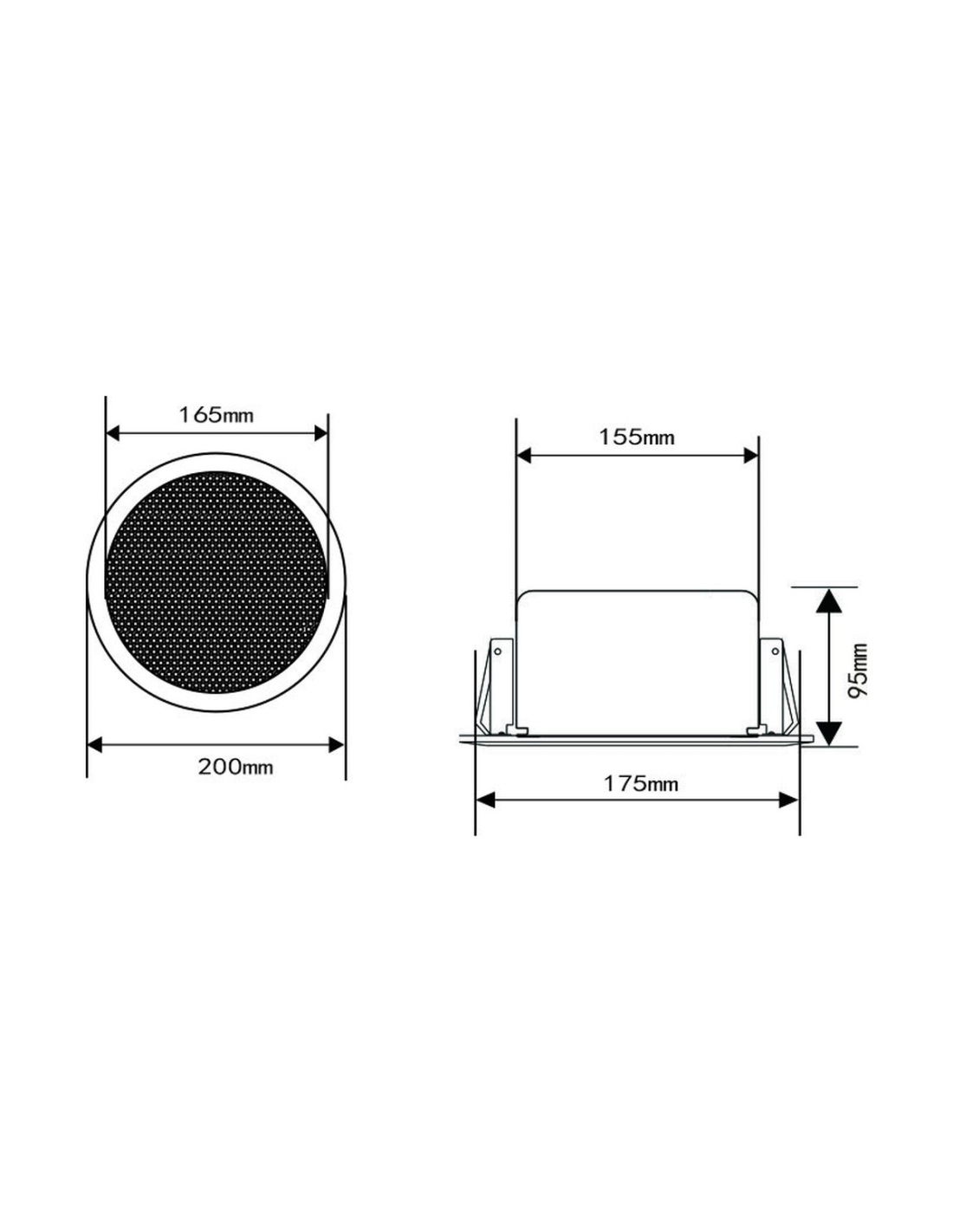

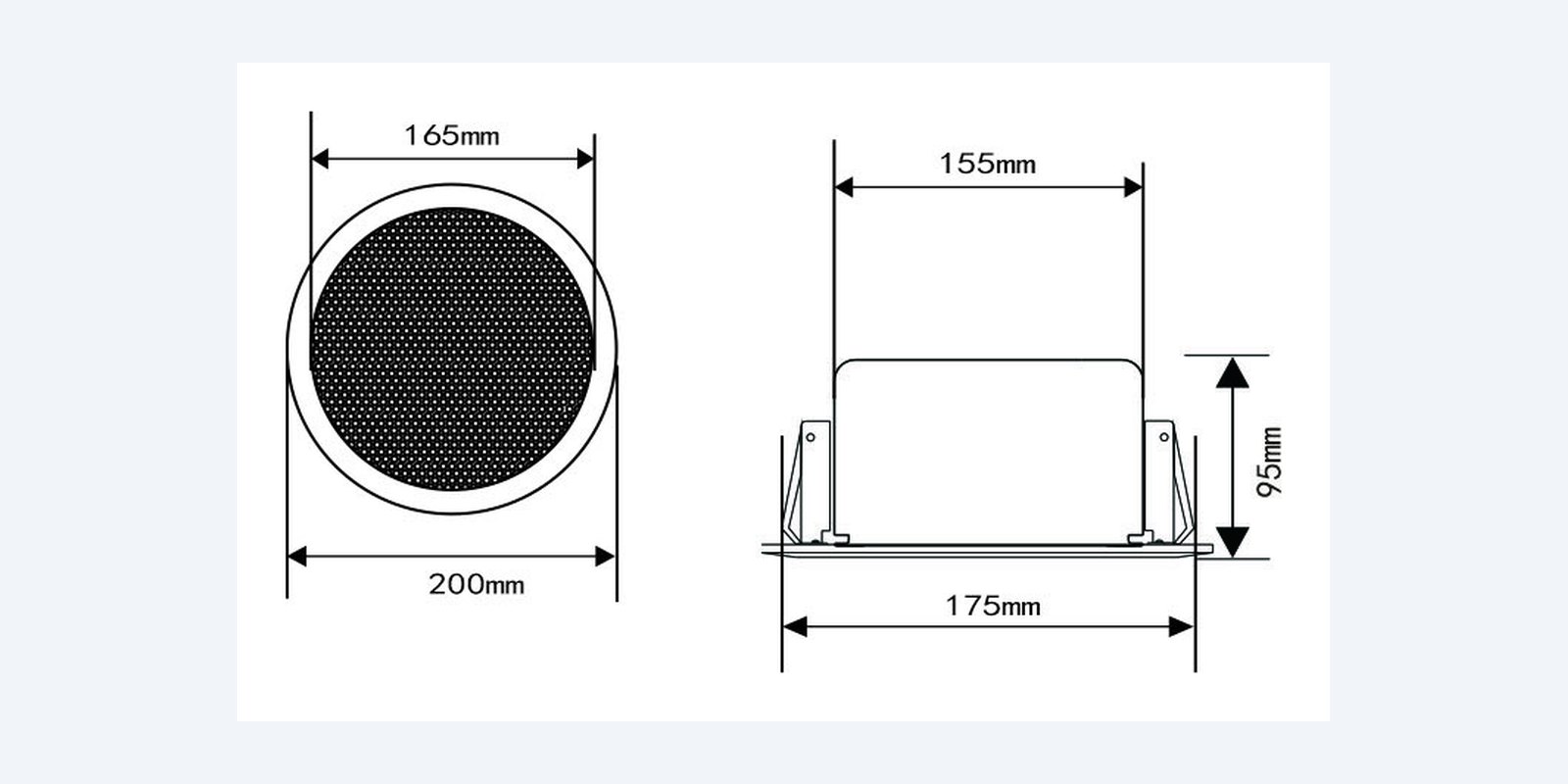

Size
Ø200 × 95 mm.
Ø200 mm across and 95 mm deep; it fits a 180 mm ceiling cut-out.
How it goes in
From the box to the first announcement.
01
Cut the ceiling
Cut a 180 mm hole and allow for the 95 mm depth of the speaker.
02
Run Cat6
Run Cat6 from an 802.3af PoE port; it powers the speaker and carries the audio.
03
Add it to the NVR
Add the speaker to a Uniview NVR or camera, then upload your messages (up to 100 MP3 or WAV files).
04
Link the alarms
Choose which events play which message, and test a live announcement from the app.
At a glance
IPS301015-S
Show specs
Output
15 W
Max sound level
100 dB
Frequency
100 Hz – 15 kHz
Audio
Built-in mic, two-way audio; RCA audio input
Messages
64 MB for 100 MP3/WAV files
Alarm
2 alarm inputs; alarm broadcast with Uniview NVRs
Protocols
ONVIF, SIP, RTSP
Power
802.3af PoE or 12 V 1.4 A
Housing
Metal
Size
Ø200 × 95 mm, 180 mm cut-out
Operating
−10 °C to 50 °C
Compliance
NDAA compliant
Pair it with
What goes with it
Recording
Uniview NVR
Uniview NVRs link IP speakers for alarm broadcast — up to 64 on the NVR804-64-IX-G.
Cameras
Uniview smart cameras
Line crossing or intrusion on a camera triggers the warning message.
Power
PoE switch
An 802.3af PoE port runs it over one cable.
Outdoors
Uniview IPS302030-S
The 30 W IP66 horn covers car parks and yards.
Where it is used
Where it fits
Shops
Announcements, background audio and theft deterrence.
Offices
Paging and after-hours warnings.
Schools
Classroom and corridor announcements over the network.
Warehouses
Alarm messages linked to camera events.
Uniview IP speakers side by side
| IPS301015-S ceiling | IPS302030-S horn | |
|---|---|---|
| Type | Ceiling, indoor | Horn, outdoor |
| Output | 15 W | 30 W |
| Max sound level | 100 dB | 130 dB |
| Frequency | 100 Hz – 15 kHz | 300 Hz – 12.5 kHz |
| Power | 802.3af PoE or 12 V 1.4 A | 802.3at PoE, 24 V 1.4 A or 12 V 2.5 A |
| Housing | Metal | ABS, IP66 |
| Operating | −10 °C to 50 °C | −30 °C to 55 °C |
| Size | Ø200 × 95 mm, 180 mm cut-out | 282 × 205 × 285 mm |
Both have a built-in mic for two-way audio, 64 MB for 100 MP3/WAV files, 2 alarm inputs, an RCA audio input, ONVIF/SIP/RTSP support and alarm broadcast with Uniview NVRs. Figures from the Uniview datasheets.
Common questions
How does it work with a Uniview NVR?
Add it to the NVR as an IP speaker. When a camera or the NVR raises an alarm, the speaker plays the message you chose. You can also talk through it live.
How many messages can it store?
Up to 100 MP3 or WAV files in 64 MB of built-in storage.
Can I talk to people through it?
Yes. It has a built-in mic, so you can speak and listen — two-way audio.
How is it powered?
From an 802.3af PoE port, or a 12 V 1.4 A DC supply.
Can it be used with a phone system?
It supports SIP, so it can work with SIP phone systems for paging. Ask us to check your system.
Does it work with other brands?
It supports ONVIF, SIP and RTSP. Alarm broadcast is designed around Uniview NVRs and cameras.
Can I play background music?
It has an RCA audio input for an external source, and plays stored files.
Can an alarm sensor trigger it?
Yes. It has 2 alarm inputs for sensors or buttons.
Can it go outside?
No, it is an indoor ceiling speaker (−10 °C to 50 °C). For outdoors, use the IPS302030-S horn.
How loud is it?
Up to 100 dB, with 15 W output.
Is it NDAA compliant?
Yes, Uniview lists it as NDAA compliant.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning voice warnings with your cameras? Call 1300 736 970 or email [email protected] with your NVR model and the areas to cover.
Installation and safety
Power. Use an 802.3af PoE port or a 12 V 1.4 A DC supply — one source only.
Placement. Indoors only, −10 °C to 50 °C. Allow for the 95 mm depth of the speaker above the ceiling.
Figures. From the Uniview IPS301015-S datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø200 × 95 mm (180 mm cut-out)
- Power Supply
- 802.3af PoE or 12 V 1.4 A
- Operating Environment
- −10 °C to 50 °C
- Material
- Metal
- Power
- 15 W
- Audio Input
- Built-in mic; RCA audio input
- Audio Output
- 100 dB max, 100 Hz – 15 kHz
- Brand
- Uniview
- Alarm Interface
- 2 alarm inputs
- Protocols
- ONVIF, SIP, RTSP
- Storage Capacity
- 64 MB, 100 MP3/WAV files
- Location
- Indoor ceiling
- Warranty
- 3 years
- Product Type
- Ceiling IP Speaker
- Model
- IPS301015-S
