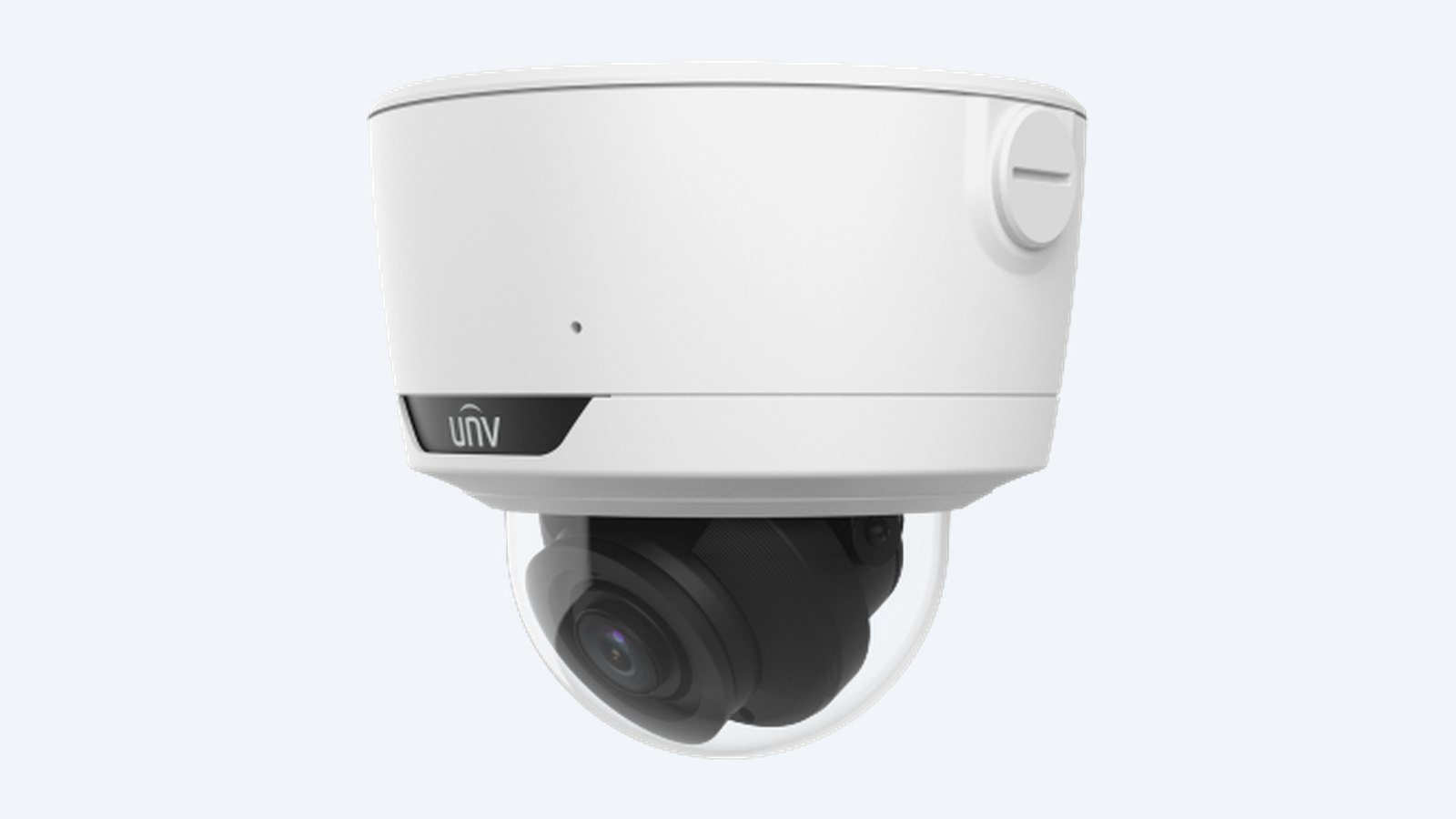

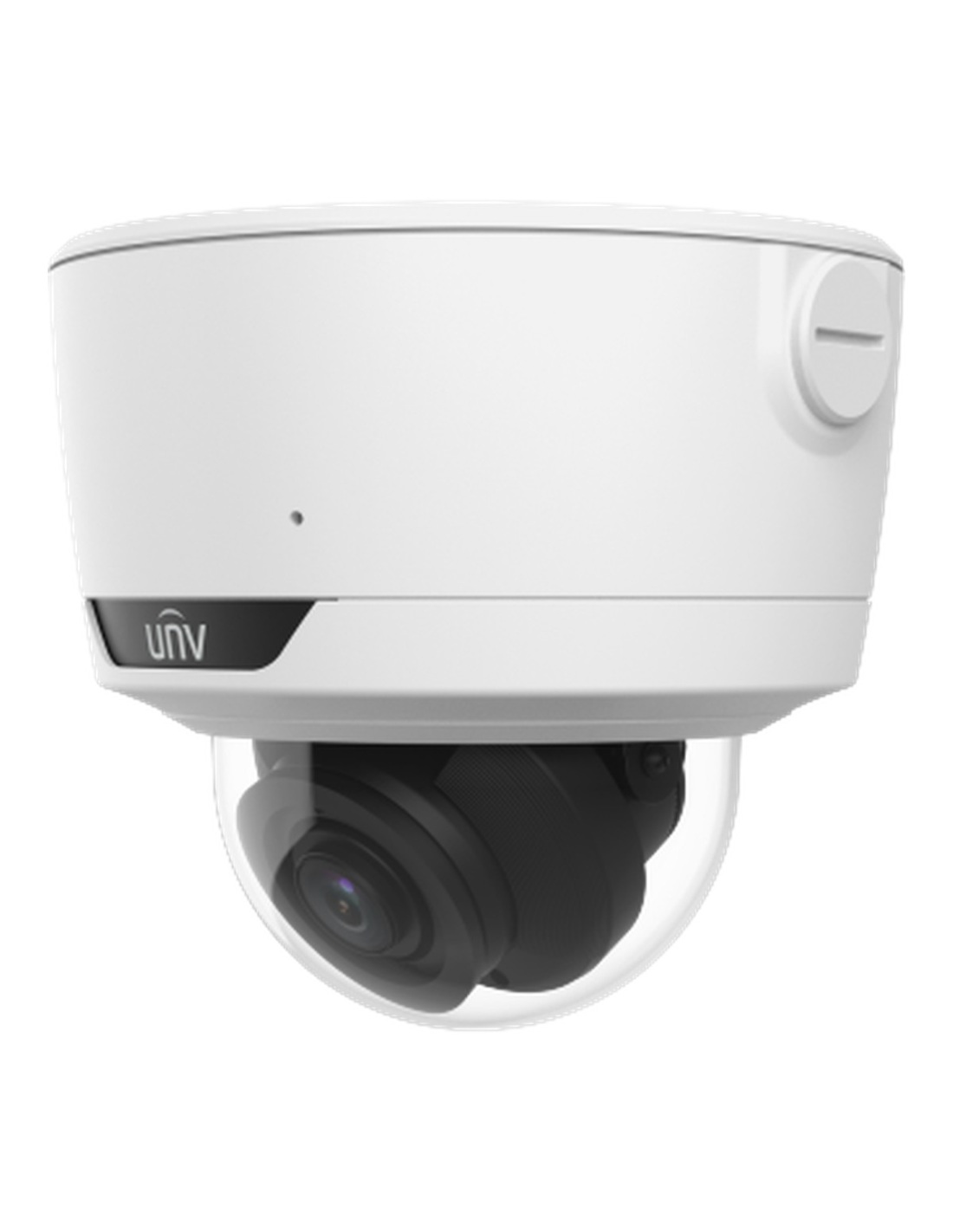

• IPC3735SS-ADZK-I1 camera
• Fixing screws and drill template
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 512GB, to record on the camera
• TR-WM04-IN wall mount or TR-CM24-IN pendant mount, if needed

01

Pick the spot

High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.

02

Fix the dome

Screw it to the ceiling, to a wall with the TR-WM04-IN mount, or hang it from the TR-CM24-IN pendant mount.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Open the cover, aim the lens on its three-axis gimbal and refit the cover, set the zoom from the camera’s web page or the NVR, then add it to the NVR or the Uniview EZView app.

Recorder

Uniview PoE NVR

Recorders that power the camera over one Cat6 cable and add it automatically.

Walls

TR-WM04-IN wall mount

Holds the dome out from the wall so it can look along the building.

Ceilings

TR-CM24-IN pendant mount

Hangs the dome from a ceiling. Add the TR-SE24-A-IN 500 mm pole for high ceilings.

Cabling

Cat6 cable

Solid copper Cat6 for PoE runs of up to 100 m from the recorder or switch.

Glass entries

130 dB WDR for bright doors.

Car parks

Zoom in on a gate or boom.

Warehouses

Alerts on objects left or taken.

Public areas

A solid IK10 dome for reachable spots.

What does motorised varifocal mean?

The lens zoom is driven by a motor, so you set the view from the camera’s web page or the NVR after the dome is up, from wide to tight, without opening it or climbing a ladder again.

What resolution and frame rate does it record?

5MP (2880 × 1620) at up to 30 fps. Corridor mode turns the picture to 9:16 for halls and walkways.

How far does it see at night?

Up to 40 m with infrared, in black and white. Smart IR turns the IR down on close objects so faces are not washed out.

Does it tell people from other movement?

Yes. Smart intrusion prevention covers line crossing, intrusion and entering or leaving an area, and sorts what it sees into people, vehicles and bikes, which filters out most false alarms from leaves, birds and changing light. It also counts people, and can alert on an object left behind or taken away.

Does it record sound?

Yes, through the built-in microphone. It also has an audio output, so an external speaker can be connected for two-way talk from the app or NVR.

Can I mount it on a wall?

Yes. It mounts on a ceiling, on a wall with the TR-WM04-IN wall mount, or hanging from the TR-CM24-IN pendant mount (with the TR-SE24-A-IN 500 mm pole for high ceilings). The TR-UP06-C-IN adapter takes the wall mount onto a pole.

Will it work with my recorder?

Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G, T, M can add it too, although the smart events may only come through on a Uniview recorder.

Can I watch it on my phone?

Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. The camera also has its own web page for live view and settings.

Can it record without an NVR?

Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With a Uniview NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 8.0 W at most.

What is Ultra 265?

Uniview’s own video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
