Uniview IP Video Intercom Kit, Metal Villa Door Station, 7" White Indoor Station, 4-Port PoE Switch - KIT/201S-Z/372S/NSW2020
KIT/201S-Z/372S/NSW2020
In stock $ 387.50
inc-GST
or 4 interest-free payments of $96.88 with

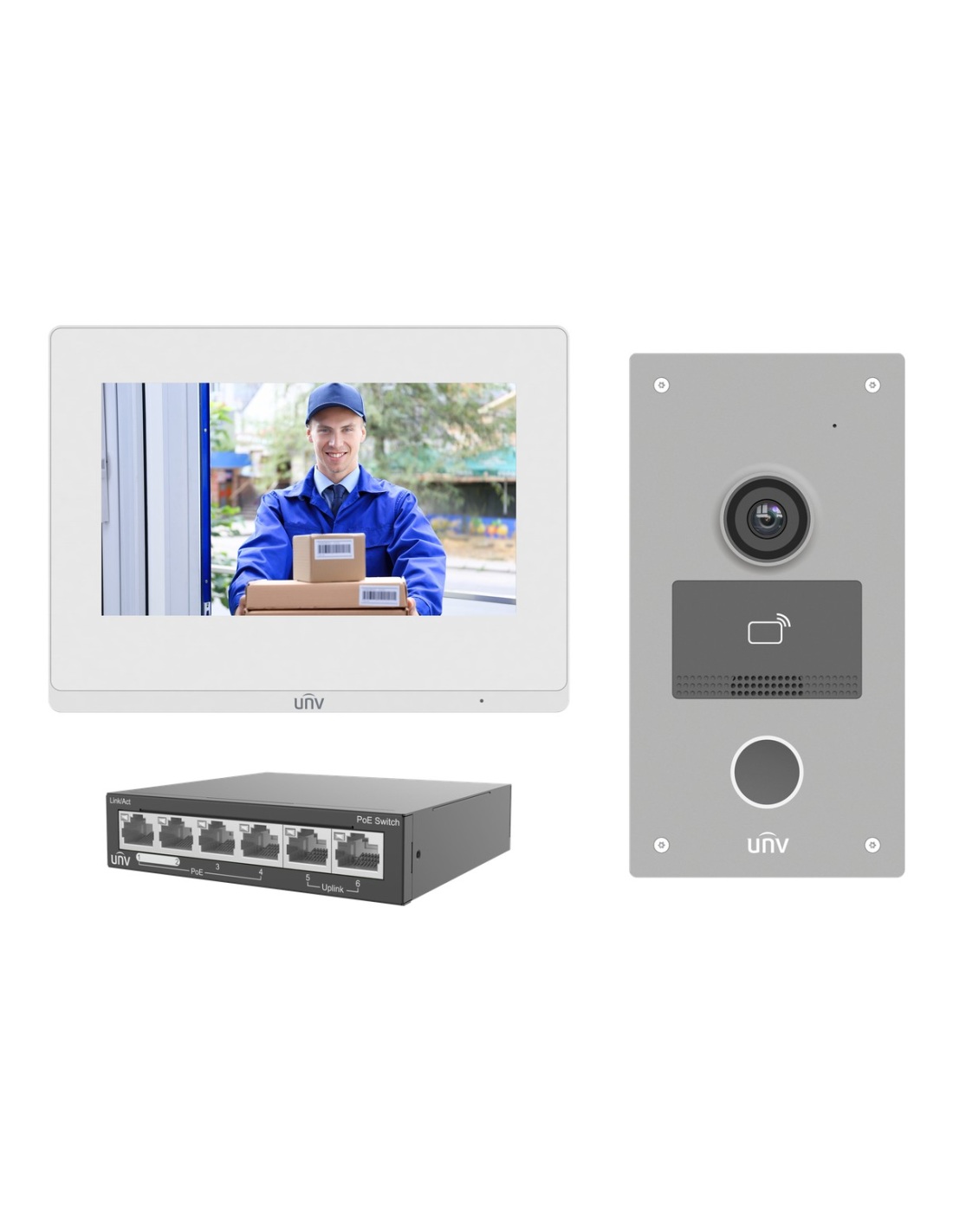

Uniview KIT/201S-Z/372S/NSW2020 IP video intercom kit: OEU-201S-HMK-Z villa door station with camera, card reader and two lock interfaces, white 7-inch OEI-372S-H-W indoor station, and a 4-port PoE switch.
- ✓Metal door station, tamper switch
- ✓Card reader for 10,000 cards
- ✓7" white touchscreen indoor station
- ✓Two lock interfaces
- ✓All powered by the 4-port PoE switch
- ✓Calls the indoor station and app
Uniview · IP intercom kit · Metal door station
A metal door station
and a 7-inch screen inside.

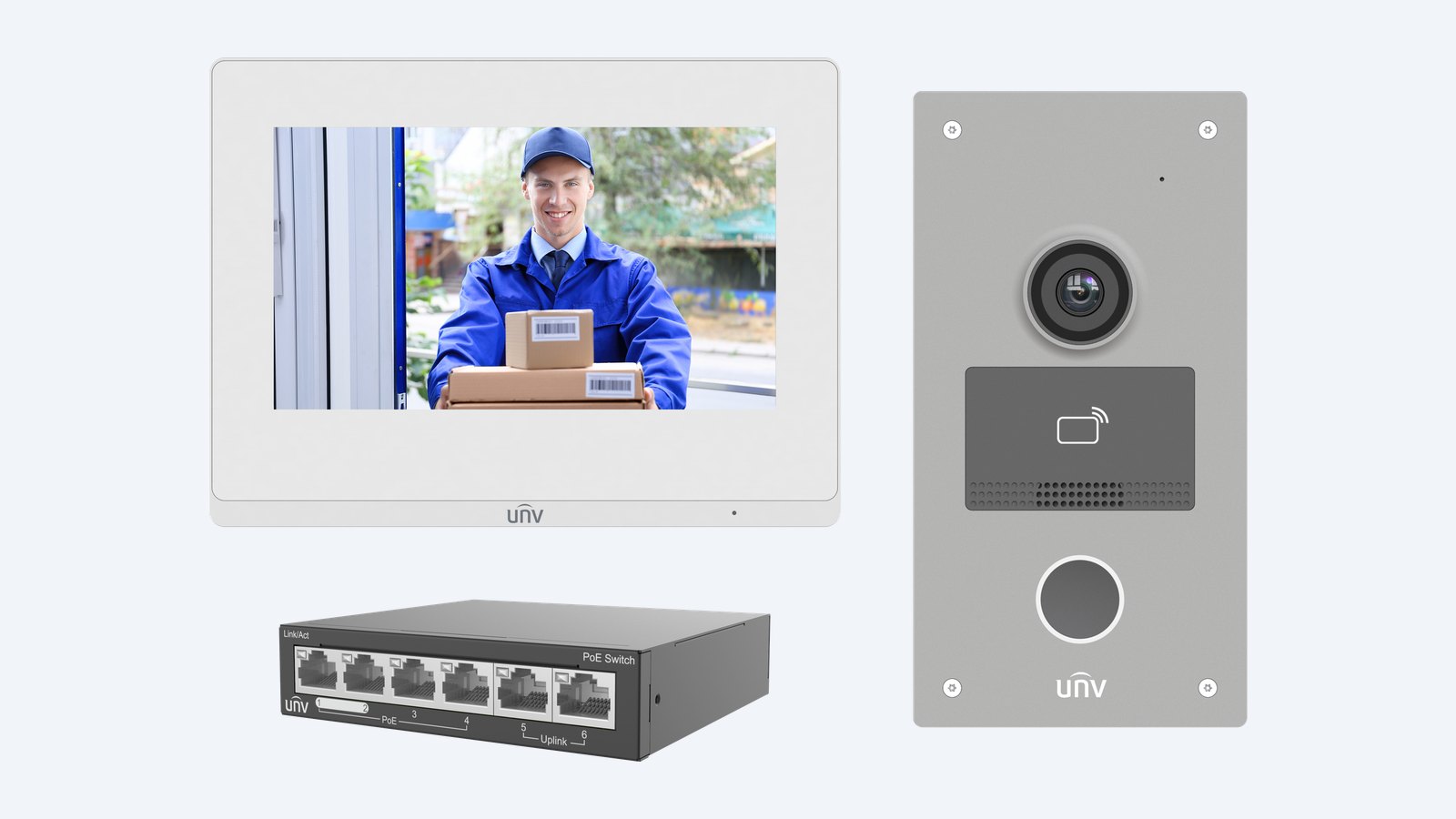

This is the Uniview KIT/201S-Z/372S/NSW2020. A complete Uniview IP video intercom in one box: the OEU-201S-HMK-Z villa door station with a camera and card reader, the white 7-inch OEI-372S-H-W indoor station, and a 4-port PoE switch that powers both over Cat6.
In one sentence: the KIT/201S-Z/372S/NSW2020 is a Uniview IP video intercom kit with the OEU-201S-HMK-Z villa door station (IR camera, 13.56 MHz card reader for 10,000 cards, two lock interfaces, IP65, IK08), the OEI-372S-H-W white 7-inch touchscreen indoor station and the NSW2020-6T-POE-IN 6-port switch with 4 PoE ports.
Three parts, all powered over Cat6.
The PoE switch powers the door station and indoor station over their Cat6 cables, so there are no power packs at the door or on the wall. Add the lock and its power supply to suit your door.
In the box
- OEU-201S-HMK-Z villa door station
- OEI-372S-H-W indoor station (white) with wall bracket, wiring cables and screws
- NSW2020-6T-POE-IN PoE switch with power adapter
- Quick guides
You also need
- Cat6 cable to the door and the indoor station
- An electric strike or magnetic lock, with its own lock power supply
- A wall box or recess at the door (as required)
- Your router, for app calls
Built for exposed gates and doors.
The OEU-201S-HMK-Z has a metal front, IP65 and IK08 ratings, a tamper switch and runs from −40 °C to 60 °C. It reads 13.56 MHz cards (10,000 cards), drives two door locks, and calls the indoor station and the app.

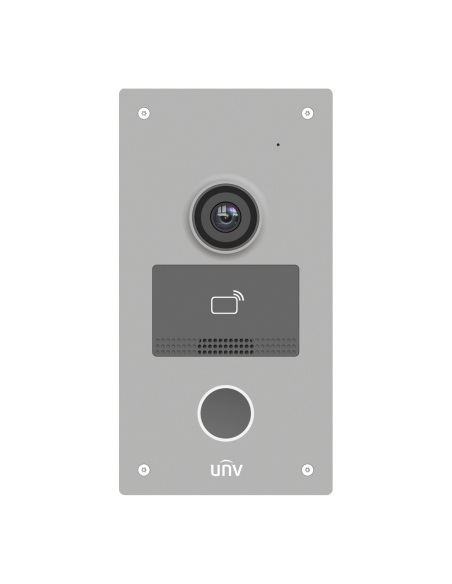

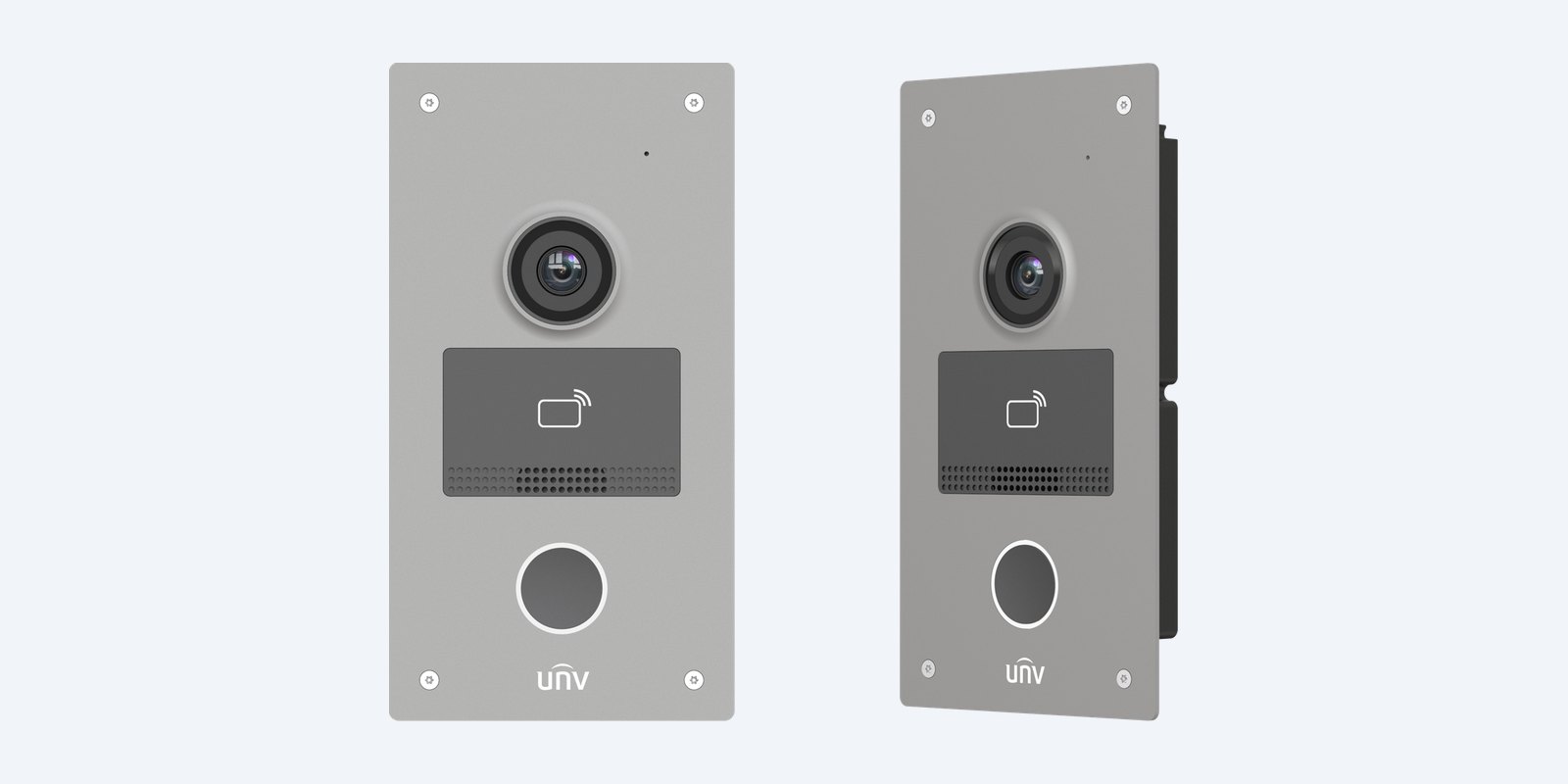

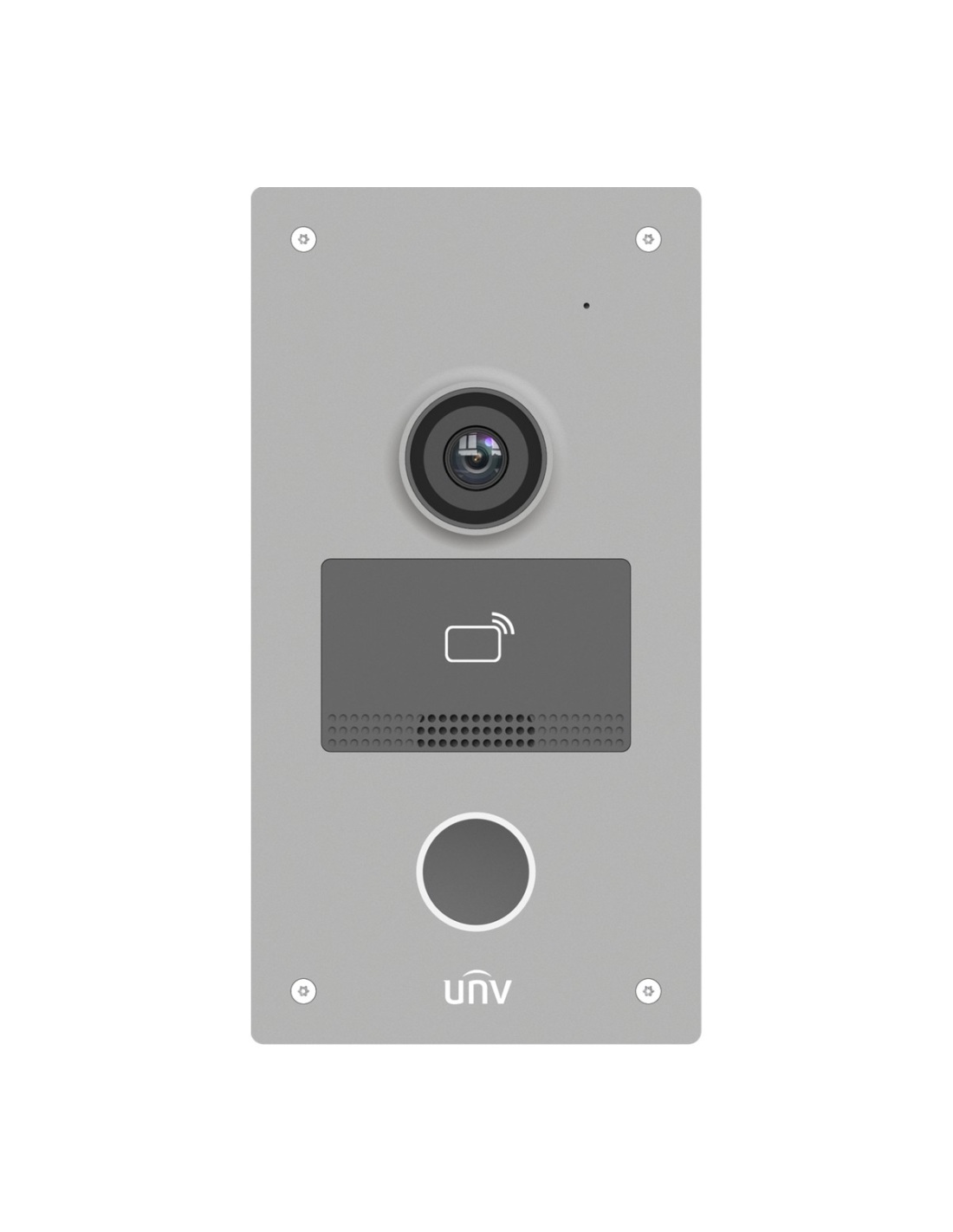

Door station
Metal, with a tamper switch.
One call button, a card reader area, infrared for night video and a tamper switch that alerts if the unit is pulled off the wall. Surface, junction box or recess mounting.

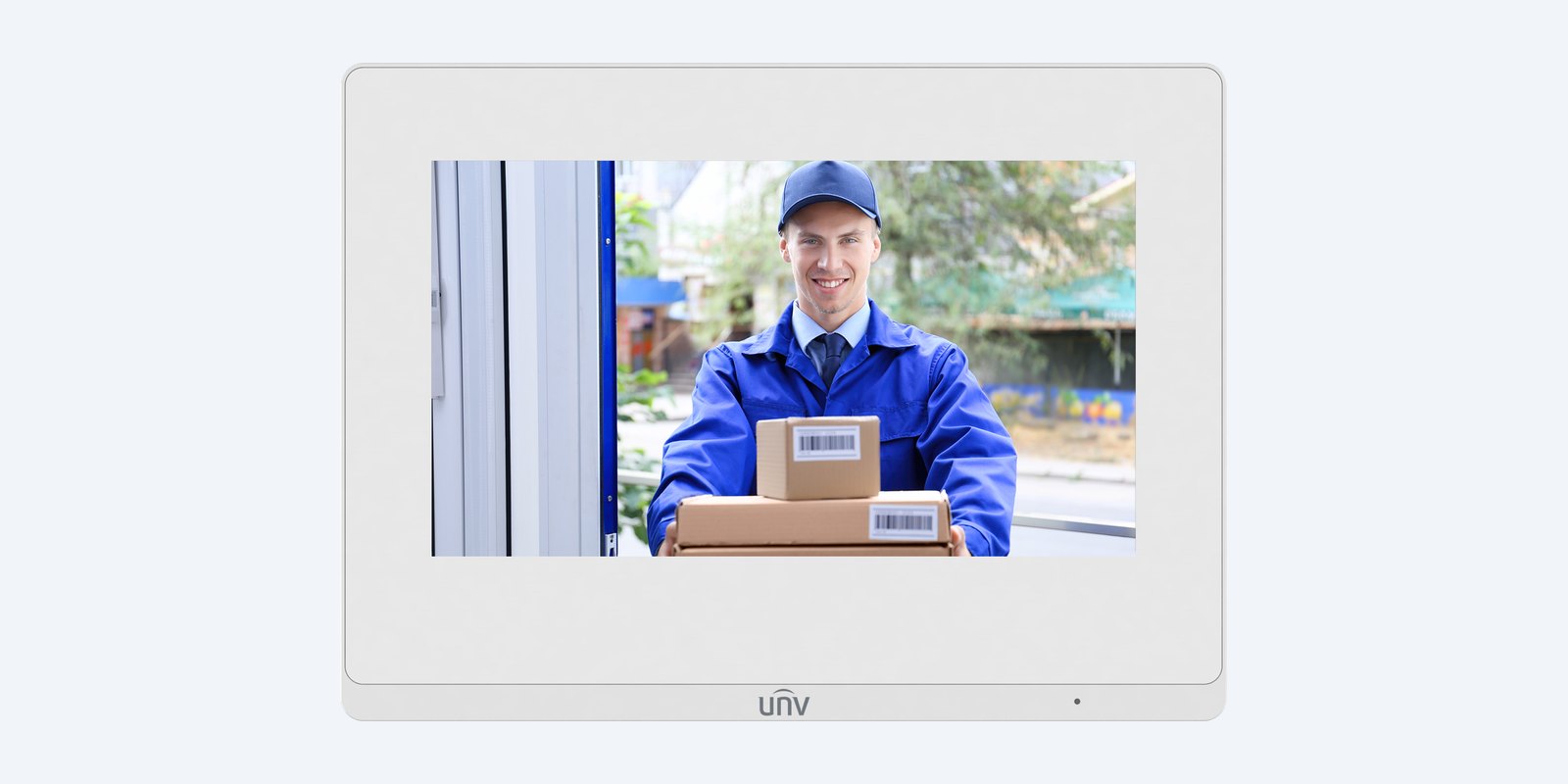

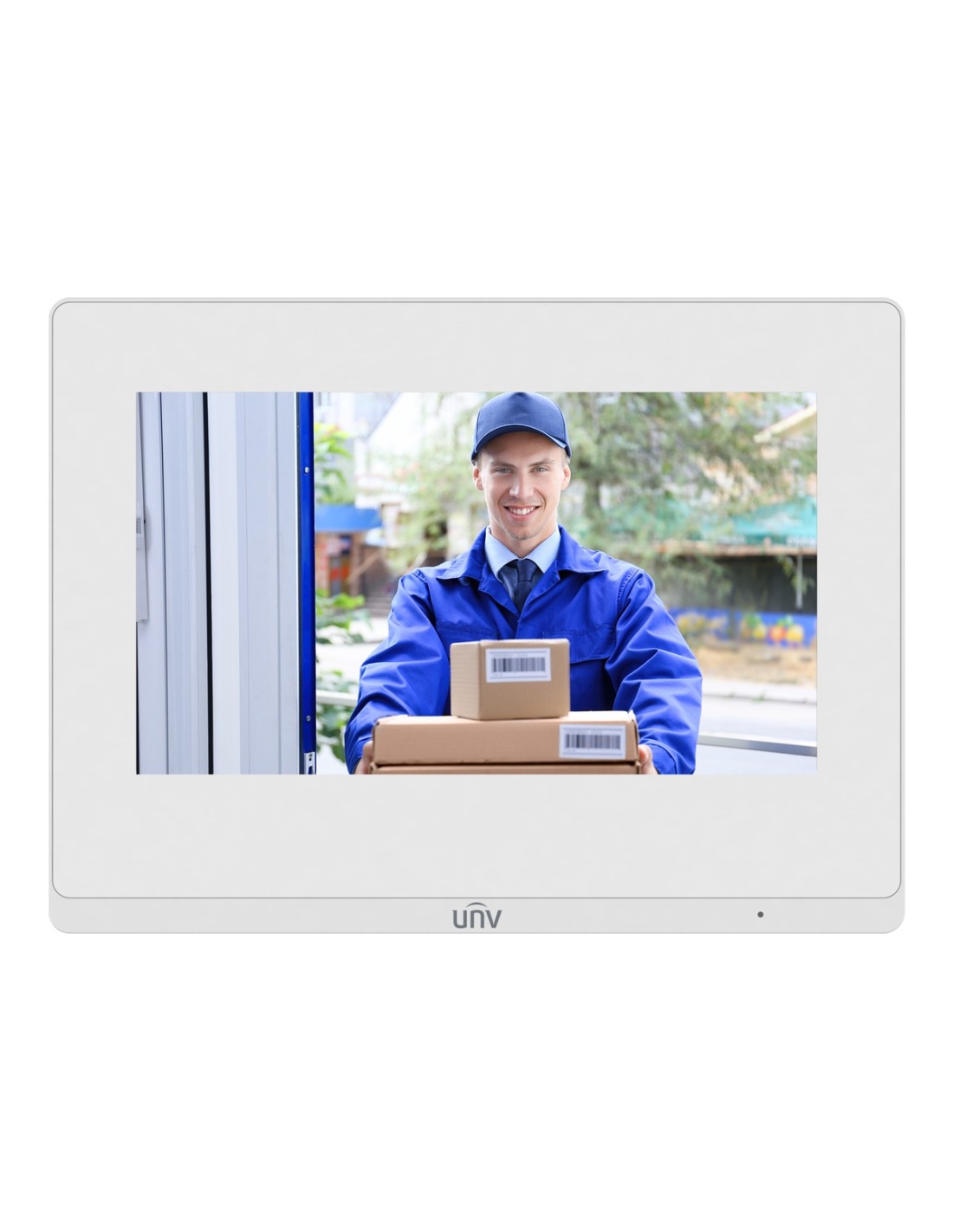

Indoor station
A 7-inch touchscreen inside.
Answer, talk and unlock with one touch. It also shows IP cameras, up to two NVRs and doorbells, and has 8 alarm inputs.

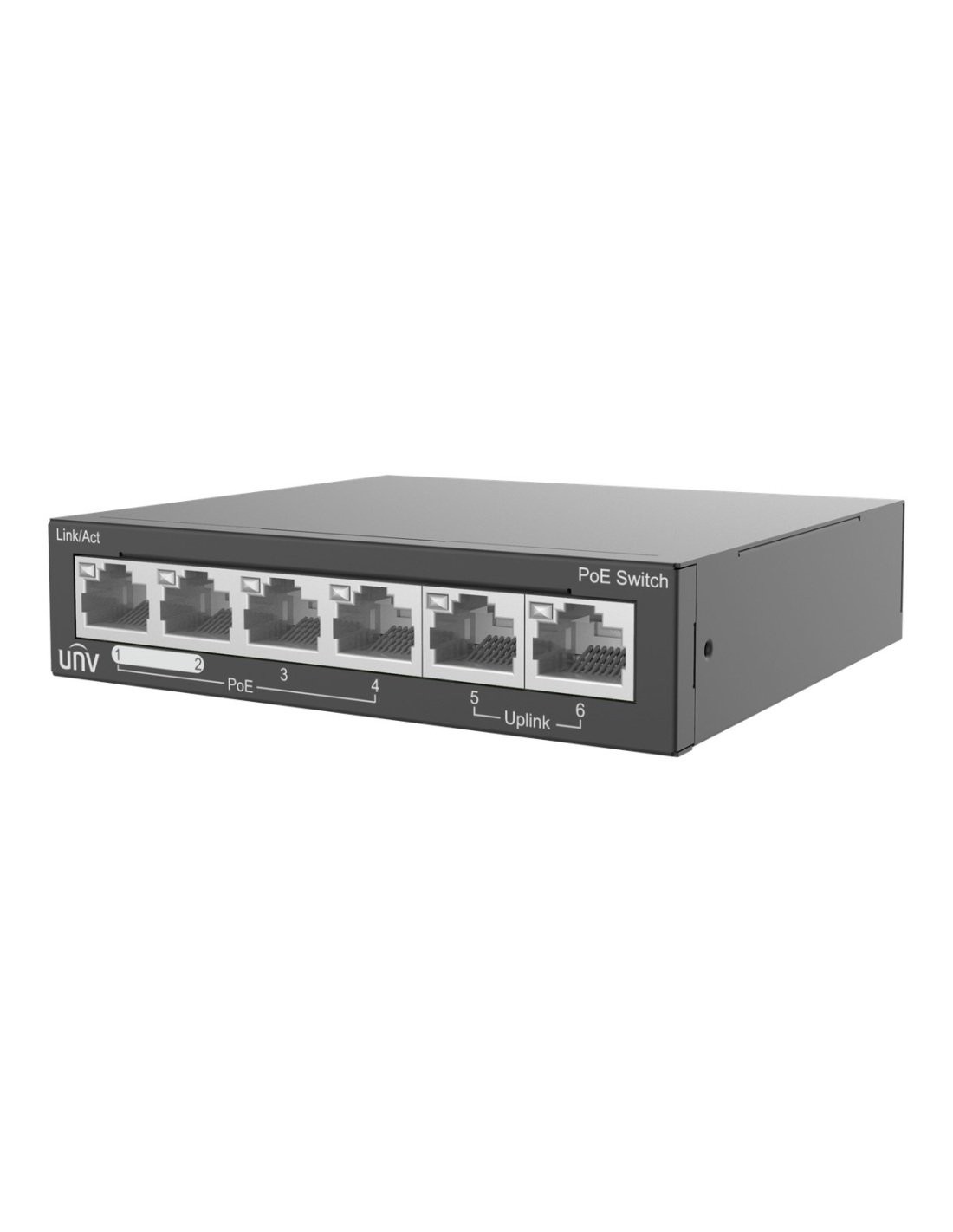

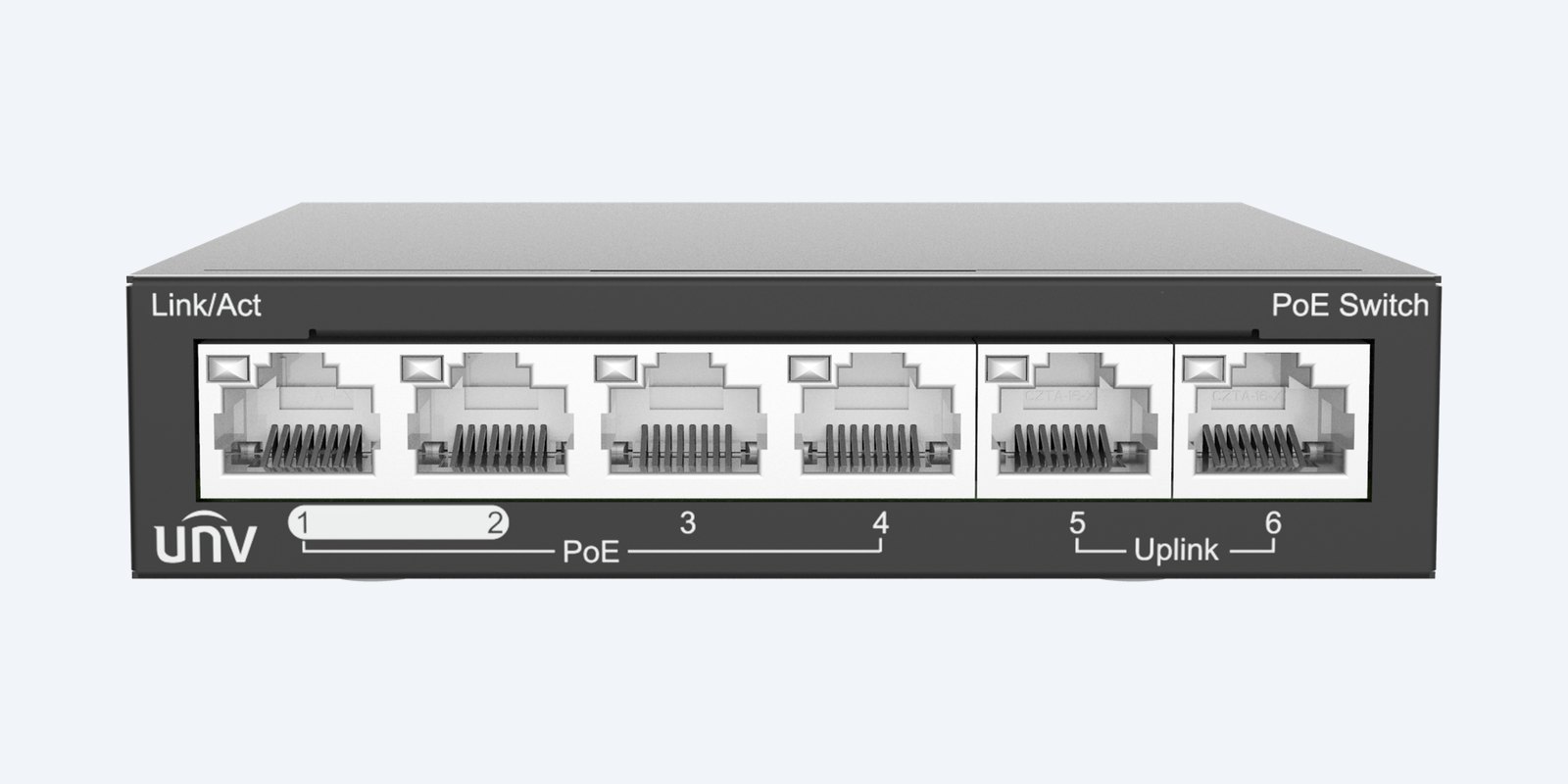

Switch
Four PoE ports, 60 W.
Two ports power the door station and indoor station, leaving two PoE ports for cameras or extension stations. Extend mode runs up to 250 m.
How it goes in
From the box to the first call.
01
Mount the door station
Fit the OEU-201S-HMK-Z beside the door or gate, run Cat6 to it and seal the gap to the wall as the quick guide shows.
02
Wire the lock
Connect the strike or magnetic lock to a lock interface. Use a dedicated access-control power supply for a magnetic lock.
03
Fit the indoor station
Fix the bracket inside at eye height and run Cat6 from the switch to the station.
04
Power up and link
Plug both into PoE ports on the switch, connect it to your router, and link the stations with batch configuration.
At a glance
KIT/201S-Z/372S/NSW2020
Show specs
Door station
OEU-201S-HMK-Z: metal front, IR camera 124.3° across, call button and tamper switch
Door mounting
Surface, junction box or recess
Door size
102 × 31.6 × 194 mm, 267 g
Door operating
−40 °C to 60 °C
Card reader
13.56 MHz, 10,000 cards
Door lock
2 lock interfaces, 4 IO inputs, RS485
Door rating
IP65, IK08
Indoor station
OEI-372S-H-W white, 7" 1024 × 600 touchscreen, Wi-Fi 4
Indoor links
20 devices: cameras, door stations, up to 2 NVRs, doorbells
Switch
NSW2020-6T-POE-IN: 6 × 100 Mbps, 4 PoE, 60 W total, 30 W per port
Power
All PoE (802.3af) from the switch
Calls
Door station to indoor station and app
Pair it with
What goes with it
Extra screen
OEI-372S-H-W indoor station
Add more white indoor stations as extensions — up to 19 per system.
Lock
Electric strike or mag lock
The door station has two lock interfaces; magnetic locks need their own access-control supply.
Cameras
Uniview IP cameras
Link cameras to view on the indoor station; the spare PoE ports can power two of them.
Doorbell
Uniview video doorbell
For a Wi-Fi front door alongside a gate intercom, add the ED-525B-WB.
Where it is used
Where it fits
Houses
Front door or gate with card entry for the family.
Villas and townhouses
A door station per entry with a screen inside.
Small offices
Let visitors in from reception; staff use cards.
Gates and side entries
The metal door station handles exposed spots down to −40 °C.
Uniview door options side by side
| ED-525B-WB doorbell | KIT/201S/372S/NSW2020 | KIT/201S-Z/372S/NSW2020 | |
|---|---|---|---|
| What it is | Wi-Fi video doorbell | Wired IP intercom kit | Wired IP intercom kit |
| Door unit | ED-525B-WB, 3MP + 2MP cameras | OEU-201S-HMK-W, 2MP camera | OEU-201S-HMK-Z, metal front |
| Answer on | Phone app (also viewable on Uniview NVRs) | 7" indoor station and app | 7" indoor station and app |
| Card reader | — | 13.56 MHz, 10,000 cards | 13.56 MHz, 10,000 cards |
| Door lock control | — | 2 lock interfaces | 2 lock interfaces |
| Connection | Wi-Fi 6, 2.4 and 5 GHz | Cat6 with PoE (Wi-Fi also listed) | Cat6 with PoE |
| Power | 12–24 V AC doorbell wiring | PoE from the kit switch | PoE from the kit switch |
| Weather rating | IP65 | IP65, IK08 | IP65, IK08 |
| Operating | −30 °C to 60 °C | −30 °C to 60 °C | −40 °C to 60 °C |
The kits include the OEI-372S-H-W white 7" indoor station and an NSW2020-6T-POE-IN 4-port PoE switch. The indoor station is also sold on its own. — means not fitted. Figures from the Uniview datasheets.
Common questions
What is in the kit?
One OEU-201S-HMK-Z villa door station, one white OEI-372S-H-W 7-inch indoor station and one NSW2020-6T-POE-IN PoE switch with 4 PoE ports.
Does it include a door lock?
No. The door station has two lock interfaces for an electric strike or magnetic lock. Uniview recommends a dedicated access-control power supply for magnetic locks.
How do cards work?
The door station has a built-in 13.56 MHz IC card reader that stores up to 10,000 cards. Present a registered card and it releases the lock.
Can I answer the door on my phone?
Yes. The door station calls the indoor station and the app, so you can talk to visitors when you are out.
How far can the door station be from the switch?
Up to 100 m of Cat6 normally. The switch’s Extend mode stretches its ports to 250 m for long driveways and gates.
Can I add more indoor stations?
Yes. The indoor station supports up to 19 extensions, and a door station can link up to 20 indoor stations. The switch has two spare PoE ports for more.
Can I see my CCTV on the indoor screen?
Yes. The indoor station links up to 20 devices including IP cameras, up to two NVRs and doorbells.
How is the door station mounted?
On the surface, on a junction box, or recessed. Seal the gap to the wall with waterproof glue as the quick guide shows to keep the IP65 rating.
Will it work with other intercom brands?
No. The stations use Uniview’s own protocol, so they work with Uniview door and indoor stations only.
Is it NDAA compliant?
Uniview lists both the door station and the indoor station as NDAA compliant.
What powers the switch?
Its own 48/51 V adapter, running from 100–240 V mains. The switch has a fanless metal housing and supplies 60 W of PoE in total.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Need a lock or a second screen? Call 1300 736 970 or email [email protected] with your door type and the rooms you want a screen in, and we will match the parts.
Installation and safety
Power. All units run from the supplied PoE switch (802.3af). Lock power is separate: use a dedicated access-control supply for magnetic locks, and have mains work done by a licensed electrician.
Placement. Door station: outdoors, IP65 and IK08, −40 °C to 60 °C; seal it to the wall. Indoor station and switch: indoors only (switch 0 °C to 45 °C).
Figures. From the Uniview OEU-201S-HMK-Z, OEI-372S-H-W and NSW2020-6T-POE-IN datasheets. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Ethernet
- NSW2020-6T-POE-IN: 6 × 100 Mbps, 4 PoE, 60 W
- Power Supply
- PoE (802.3af) from the included switch
- Ingress Protection
- IP65, IK08 (door station)
- Operating Environment
- Door station −40 °C to 60 °C; indoor station −10 °C to 55 °C
- Material
- Metal front (door station)
- Colour
- White indoor station
- Brand
- Uniview
- Screen Size
- 7" touchscreen, 1024 × 600 (indoor station)
- Alarm Interface
- Door station: 2 lock interfaces, 4 IO inputs; indoor station: 8 inputs, 2 outputs
- Field of View
- 124.3° across, 147.2° diagonal (door station)
- Features
- 13.56 MHz IC card reader, 10,000 cards
- Number of Cameras Included
- 1 door station camera
- Warranty
- 3 years
- Product Type
- IP Video Intercom Kit
- Model
- KIT/201S-Z/372S/NSW2020
- Night Vision
- Infrared (door station)
