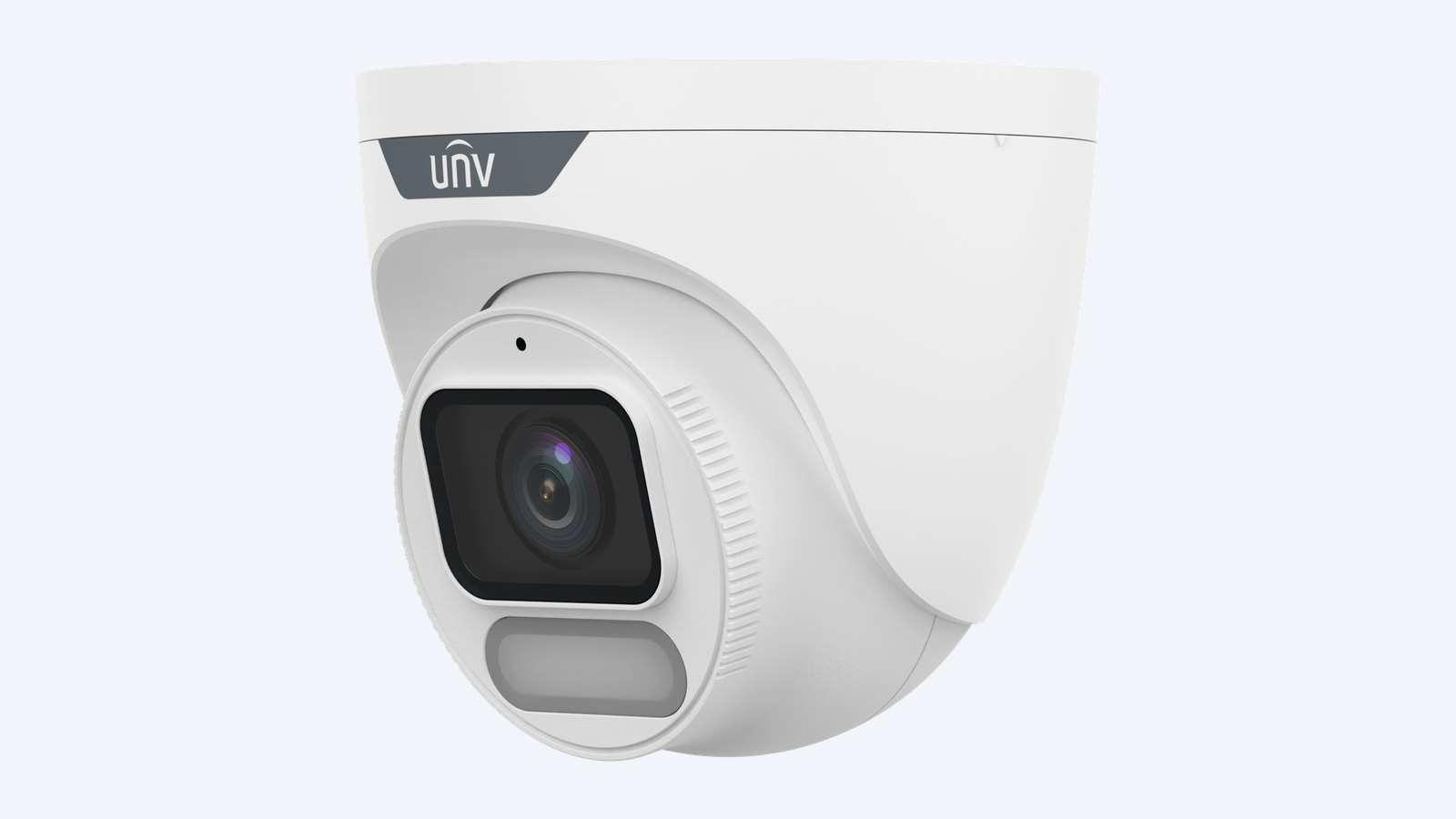

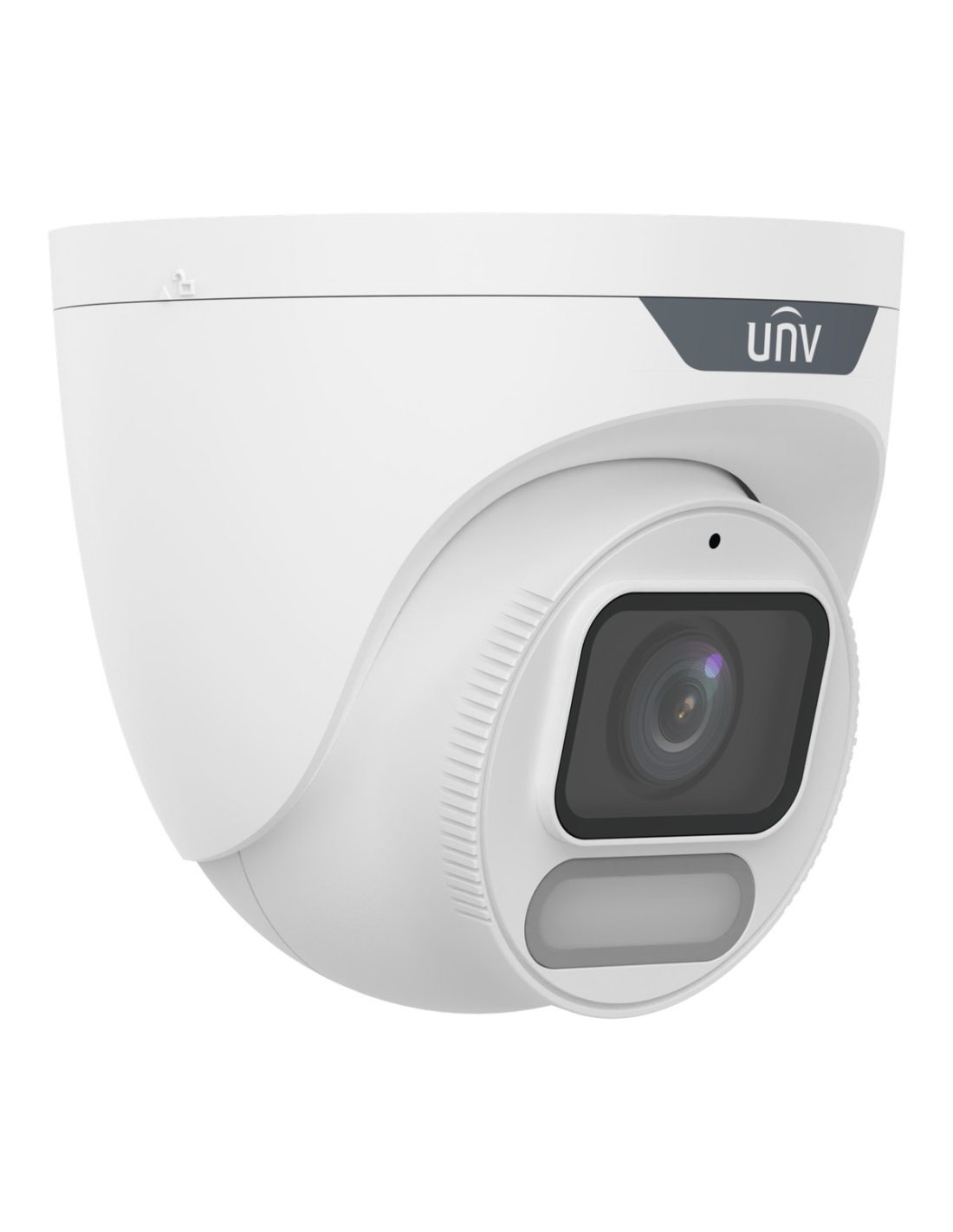

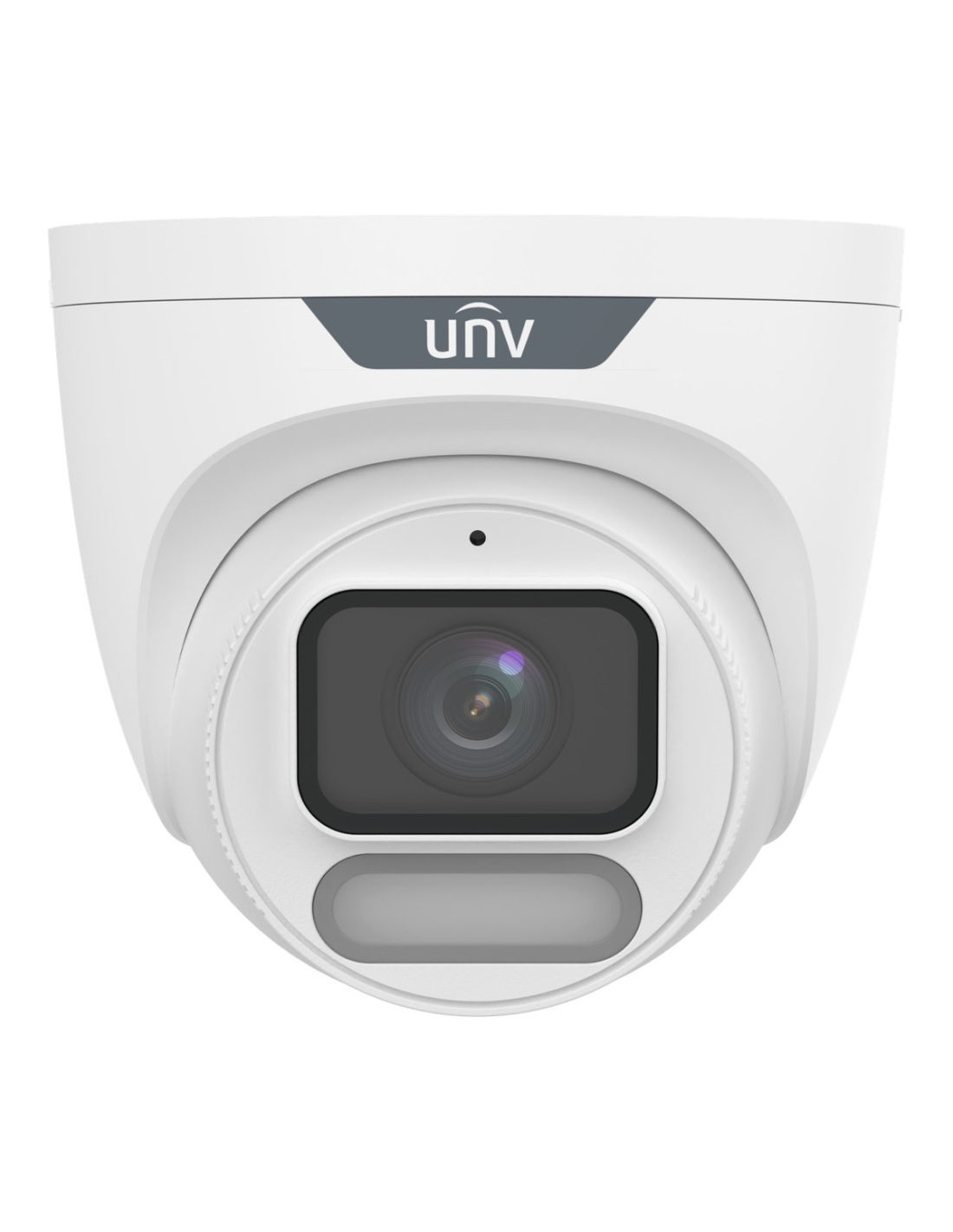

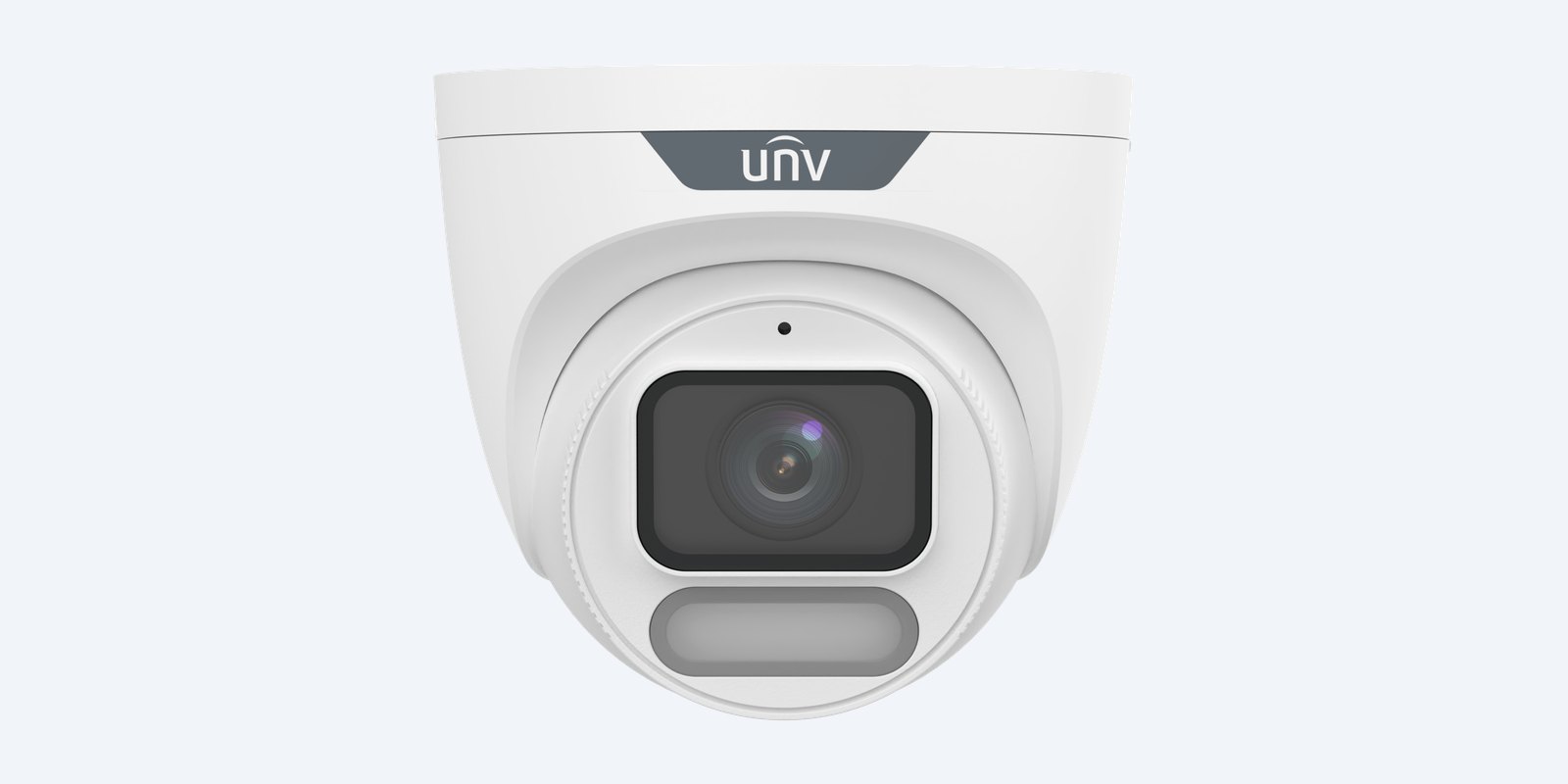

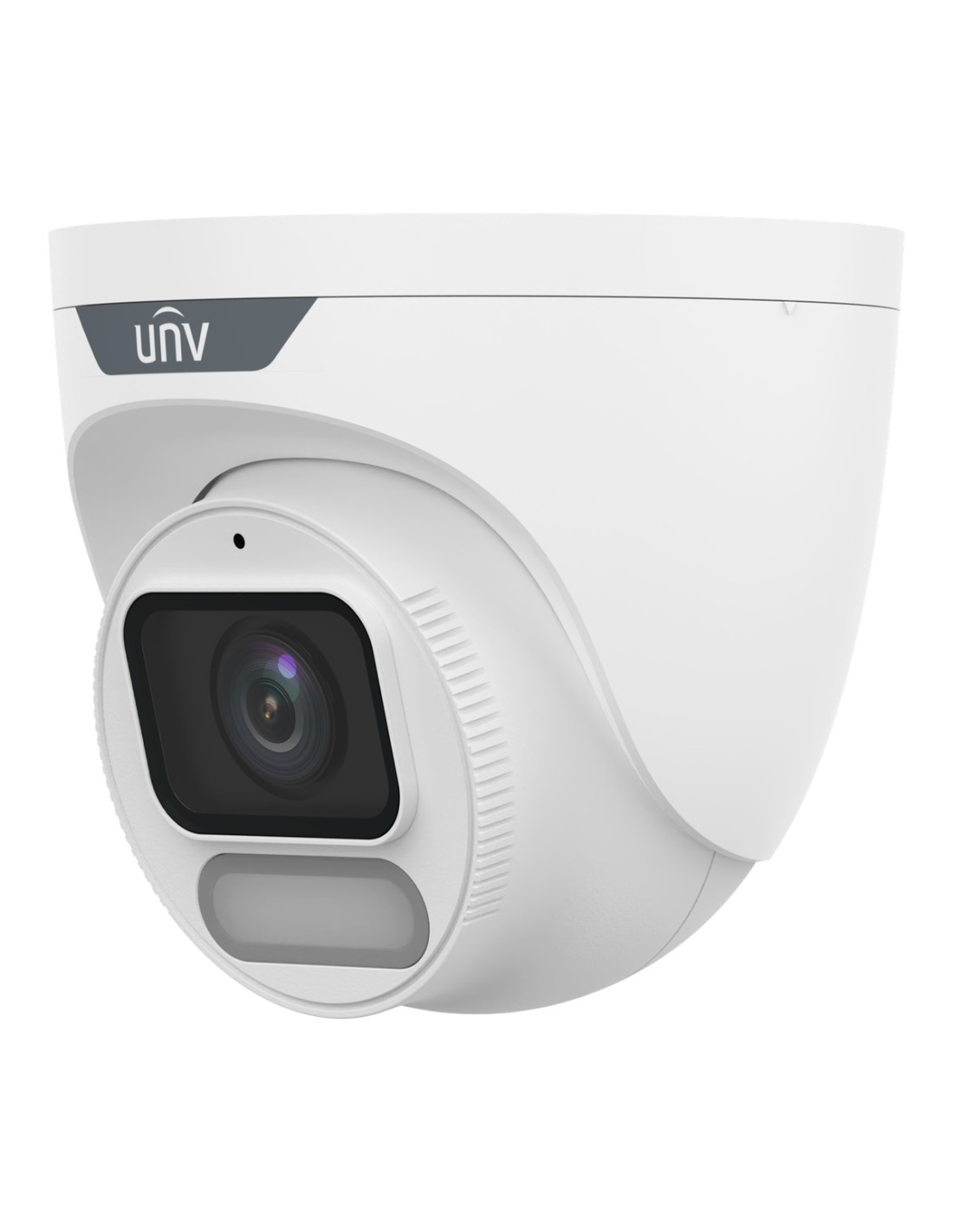

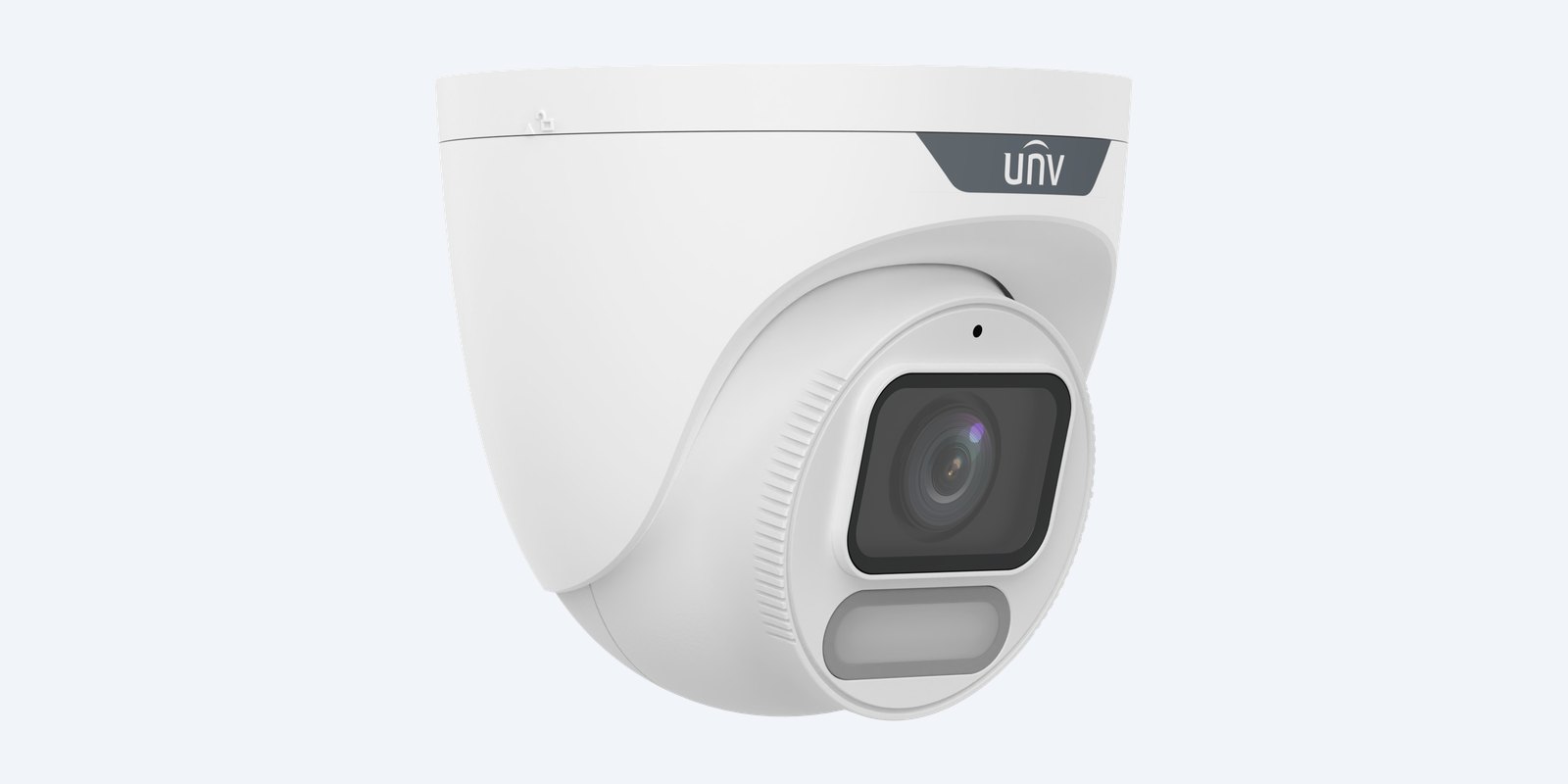

• IPC3628LE-ADF28K-WP-BK camera
• Fixing screws and drill template
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 512GB, to record on the camera
• TR-JB03-I-IN-BK junction box or TR-WM03-D-IN-BK wall mount, if needed

01

Pick the spot

High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.

02

Fix the base

Screw the base to the ceiling, eave or wall, or onto a TR-JB03-I-IN-BK junction box so the cable joint is enclosed.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Turn the eyeball to frame the view, then add it to the NVR or the Uniview app, then draw the lines and zones for alerts.

Recorder

Uniview PoE NVR

Powers the camera over one Cat6 cable, adds it automatically and records the smart events.

Mounting

TR-JB03-I-IN-BK junction box

Encloses the cable joint behind the camera in black on brick, render or a soffit with no cavity.

Walls

TR-WM03-D-IN-BK wall mount

Holds the camera out from the wall in black so it can look along the building.

Cabling

Cat6 cable

Solid copper Cat6 for PoE runs of up to 100 m from the switch or NVR.

Driveways

Car colour and clothing at night.

Front yards

Colour video under a porch or street light.

Shopfronts

Colour footage of after-hours visitors.

Side paths

People and vehicle alerts on the way in.

What resolution and frame rate does it record?

8MP 4K (3840 × 2160) at up to 20 fps.

Will trees and headlights set it off?

Less often than plain motion detection. Smart intrusion prevention watches for people and vehicles crossing a line or entering a zone, and ultra motion detection filters out most movement from leaves and changing light.

Will the warm light bother the neighbours?

You choose. The light can switch on automatically or be set manually, and with street or porch lighting nearby the camera often stays in colour without it. Aim it at your own property.

Does it record sound?

Yes. It has a built-in microphone. Check the privacy rules in your state before recording conversations.

Does it really record in colour at night?

Yes. ColorHunter with Wise-ISP gathers enough light for a colour picture down to 0.0003 lux, so with a street light or porch light nearby it stays in colour. In full darkness the built-in warm light (up to 30 m) fills in; it can switch on automatically or be set manually.

How wide does it see?

The 2.8 mm lens covers 111.0° across, 63.0° high. Uniview rates it to identify a person at 6.3 m and recognise someone known at 12.6 m, with detection out to 63 m.

Which mount do I need?

It screws straight to a ceiling or eave. Add the TR-JB03-I-IN-BK junction box where there is no cavity behind to hide the cable joint, or use the TR-WM03-D-IN-BK wall mount to hold it out from a wall. The TR-JB07/WM03-G-IN-V2-BK combines a wall mount with a junction box.

Can it go outside?

Yes. It is rated IP67 against dust and water, and works from −30 °C to 60 °C. Mount it under an eave where you can, to keep rain and direct sun off the lens.

Will it work with my recorder?

Uniview NVRs find it on their PoE ports and add it automatically, with the smart events. Other recorders that support ONVIF (Profile S, G or T) can add it too, although the smart events may only come through on a Uniview NVR.

Can I watch it on my phone?

Yes. Watch it through a Uniview NVR in the Uniview mobile app, or add the camera to the app on its own. Live view in a web browser works without a plug-in in current Chrome, Firefox and Edge.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE it runs on a 12 V DC supply. It draws 3.9 W at most.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
