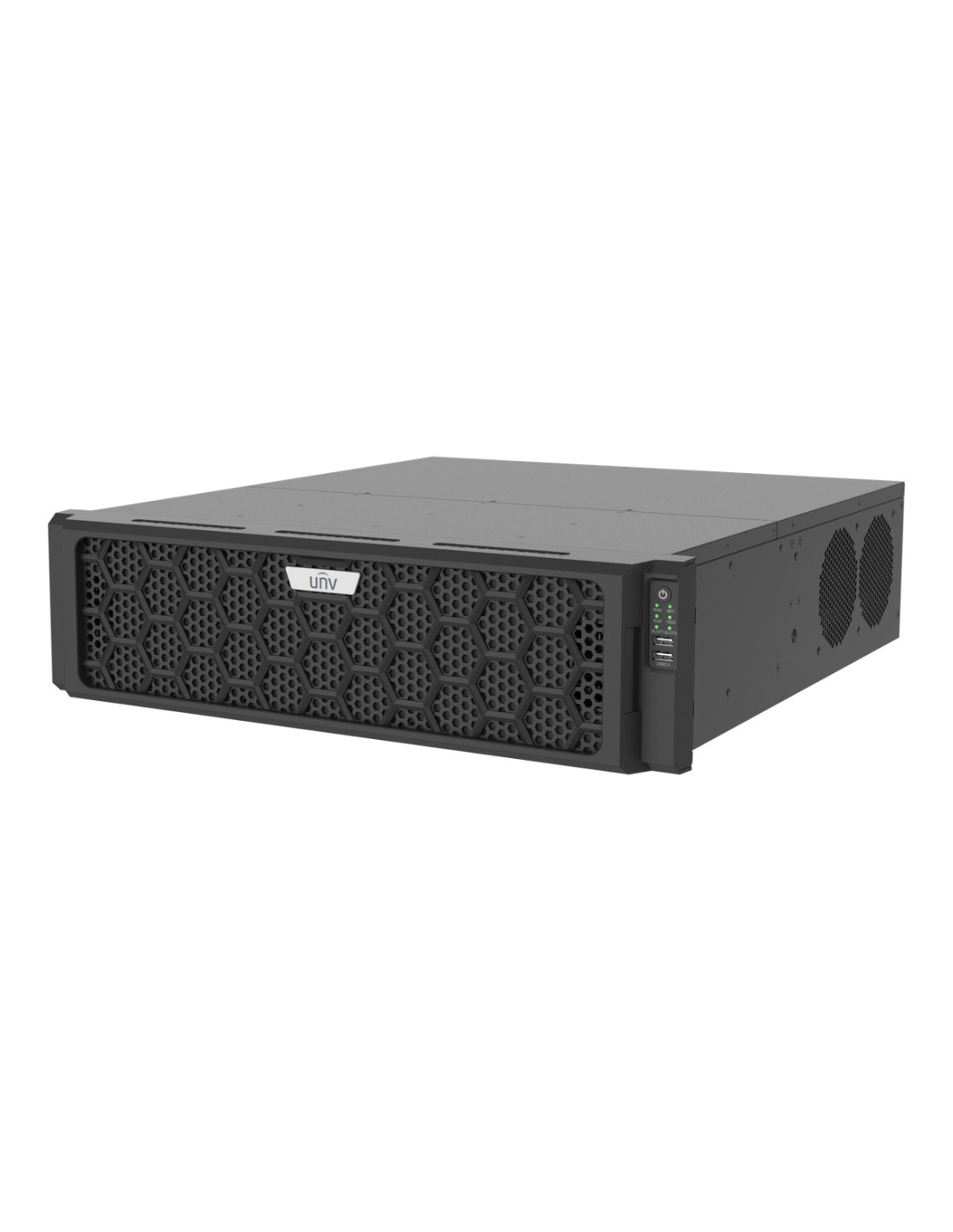

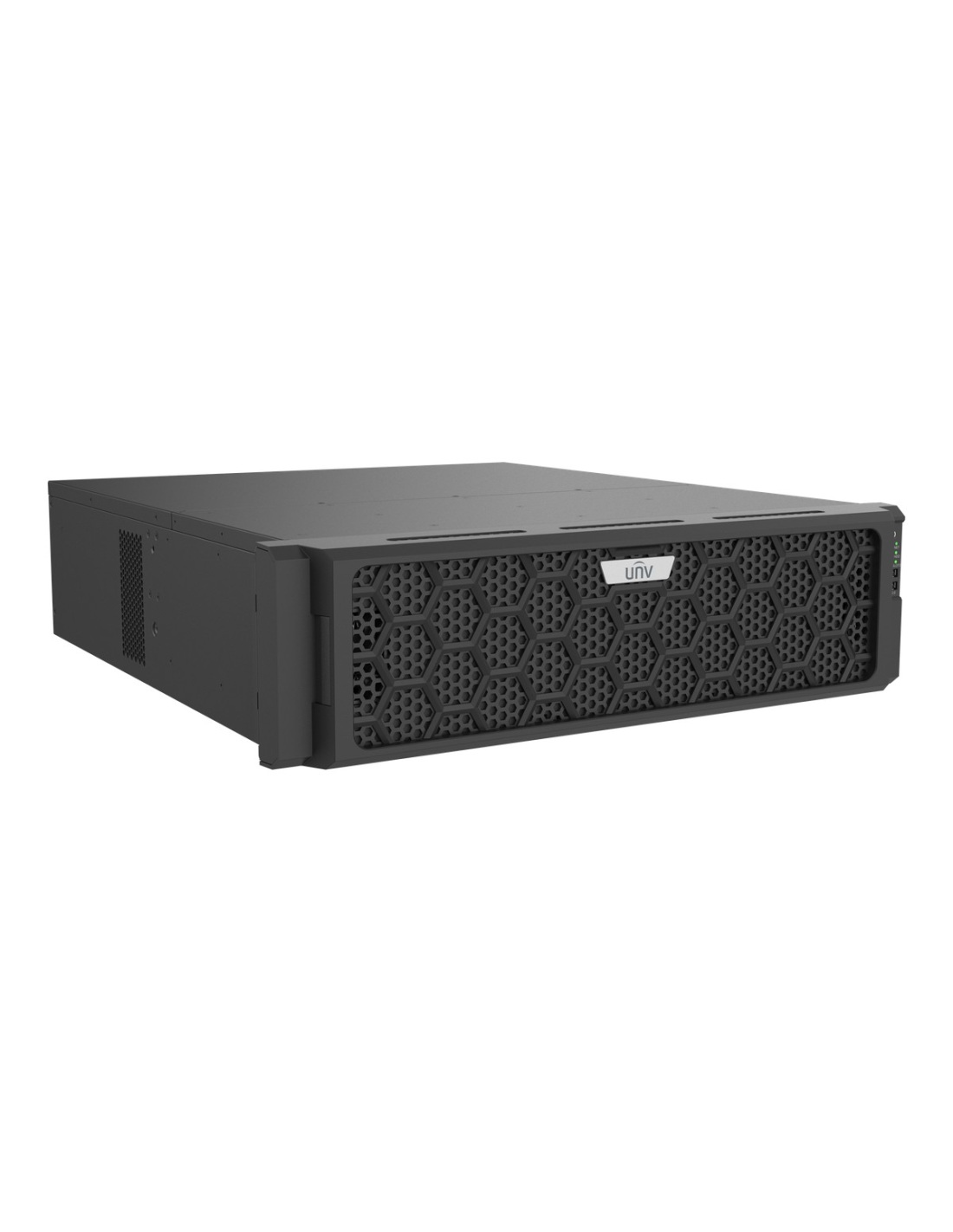

Uniview 128-Channel NVR, 32MP Recording, 8K HDMI, 16 Hot-Swap HDD Bays, RAID 0/1/5/6/10/50/60 - NVR516-128E-R
NVR516-128E-R-0T
In stock $ 4,070.00
inc-GST
or 4 interest-free payments of $1017.50 with
Uniview NVR516-128E-R 128-channel 3U network video recorder. Up to 32MP recording, 640 Mbps, HDMI up to 8K, sixteen hot-swap bays with RAID 0/1/5/6/10/50/60, N+1 hot spare and optional redundant power. No HDD, or 2–8TB fitted.
- ✓128 channels, up to 32MP each
- ✓640 Mbps incoming bandwidth
- ✓16 hot-swap bays, RAID up to 60
- ✓HDMI up to 8K plus 4K/60
- ✓N+1 hot spare, redundant PSU option
- ✓16 alarm in, 10 out
Uniview · 128 channels · 16 bays
128 cameras, sixteen drives,
and an 8K video wall output.

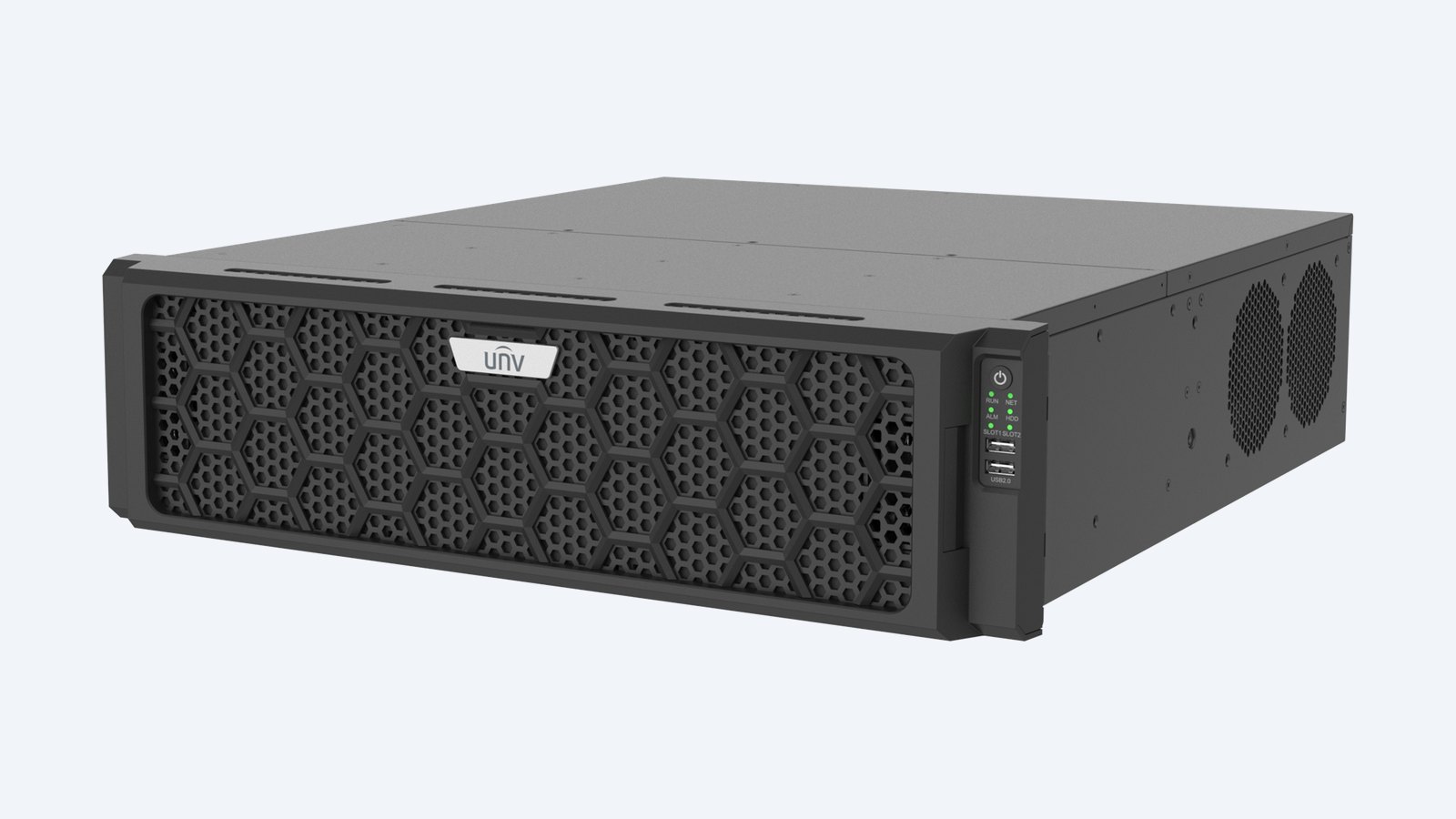

This is the Uniview NVR516-128E-R. Uniview’s 3U enterprise recorder: 128 channels at up to 32MP, 640 Mbps of incoming video, sixteen hot-swap drive bays with RAID up to 60, and an HDMI output that runs at 8K.
In one sentence: the NVR516-128E-R is a 128-channel Uniview NVR with up to 32MP recording, 640 Mbps incoming bandwidth, sixteen hot-swap SATA bays up to 16TB each with RAID 0/1/5/6/10/50/60 and N+1 hot spare, two Gigabit ports, HDMI up to 8K and an optional redundant power supply.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
The NVR516-128E-R comes without cameras or a screen, and without a hard drive unless you choose one above. Add PoE switches for the cameras and your screens. A second, redundant power supply module is available as an option.
In the box
- NVR516-128E-R recorder
- Mains power cord
You also need
- A hard drive, if you did not choose one fitted (up to 15 more are optional)
- Up to 128 IP cameras
- PoE switches for the cameras
- Monitors or a video wall
- A 19-inch rack
Swap a drive without stopping recording.
The sixteen bays are hot-swap from the front, so a failed drive comes out while the recorder keeps running. RAID 5, 6, 50 or 60 protects the array, and N+1 hot spare covers the recorder itself.

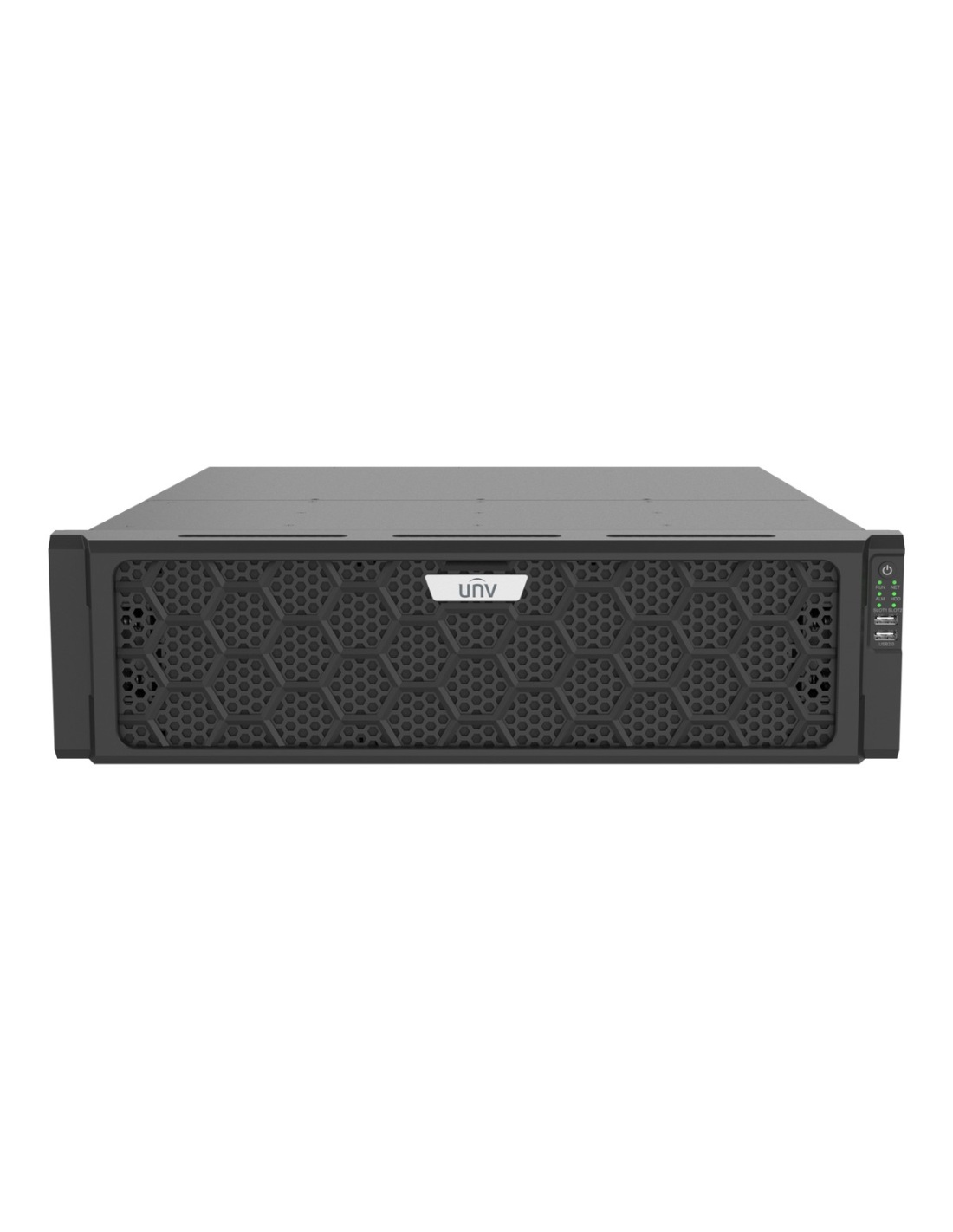

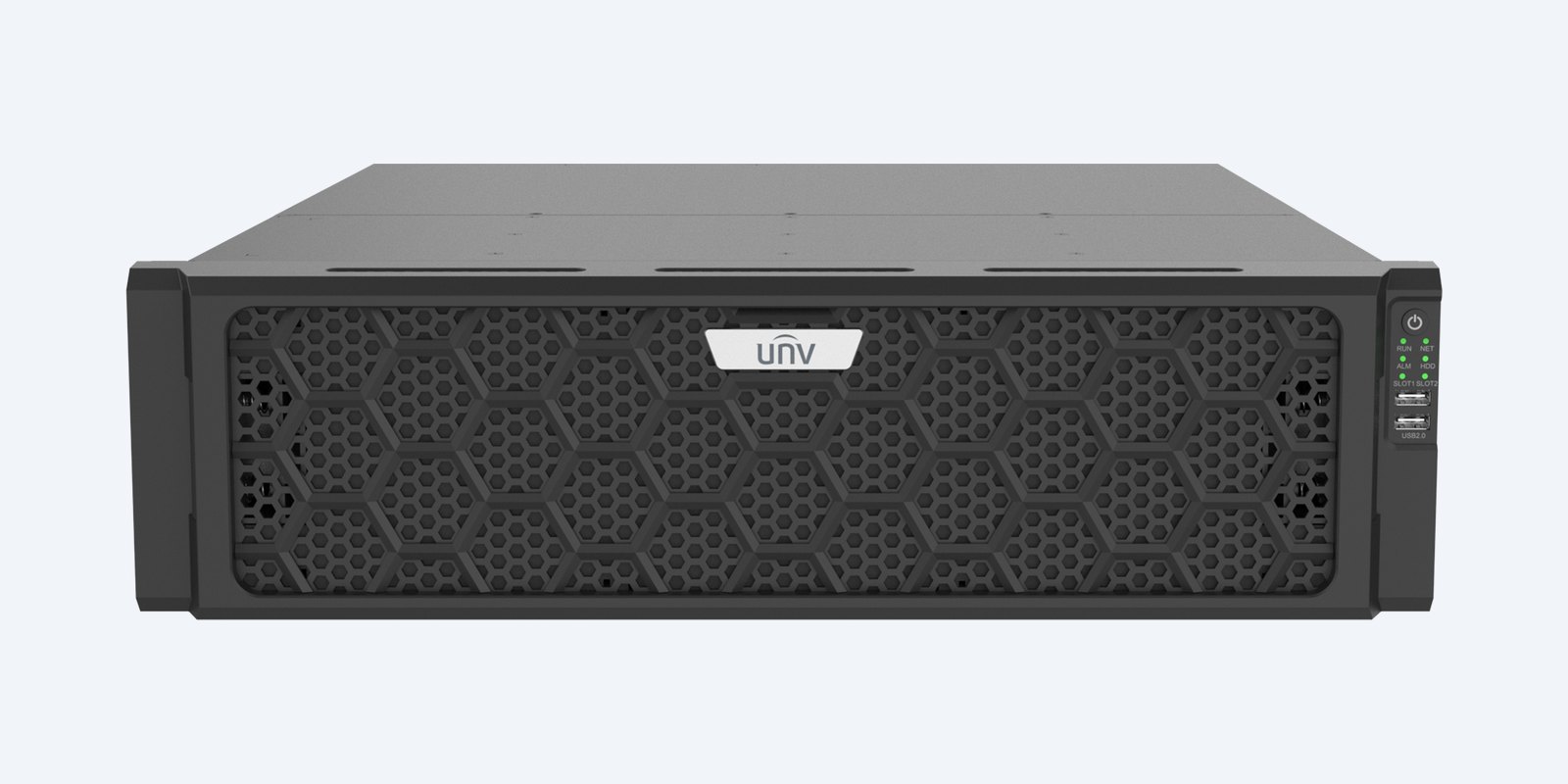

Front panel
Sixteen front-loading bays.
All sixteen drive trays load from the front of the 3U case. The back carries two Gigabit LAN, HDMI (8K and 4K) and two VGA, two USB 3.0, RS485, RS232, alarm terminals (16 in, 10 out), a 12 V output and the power supply.

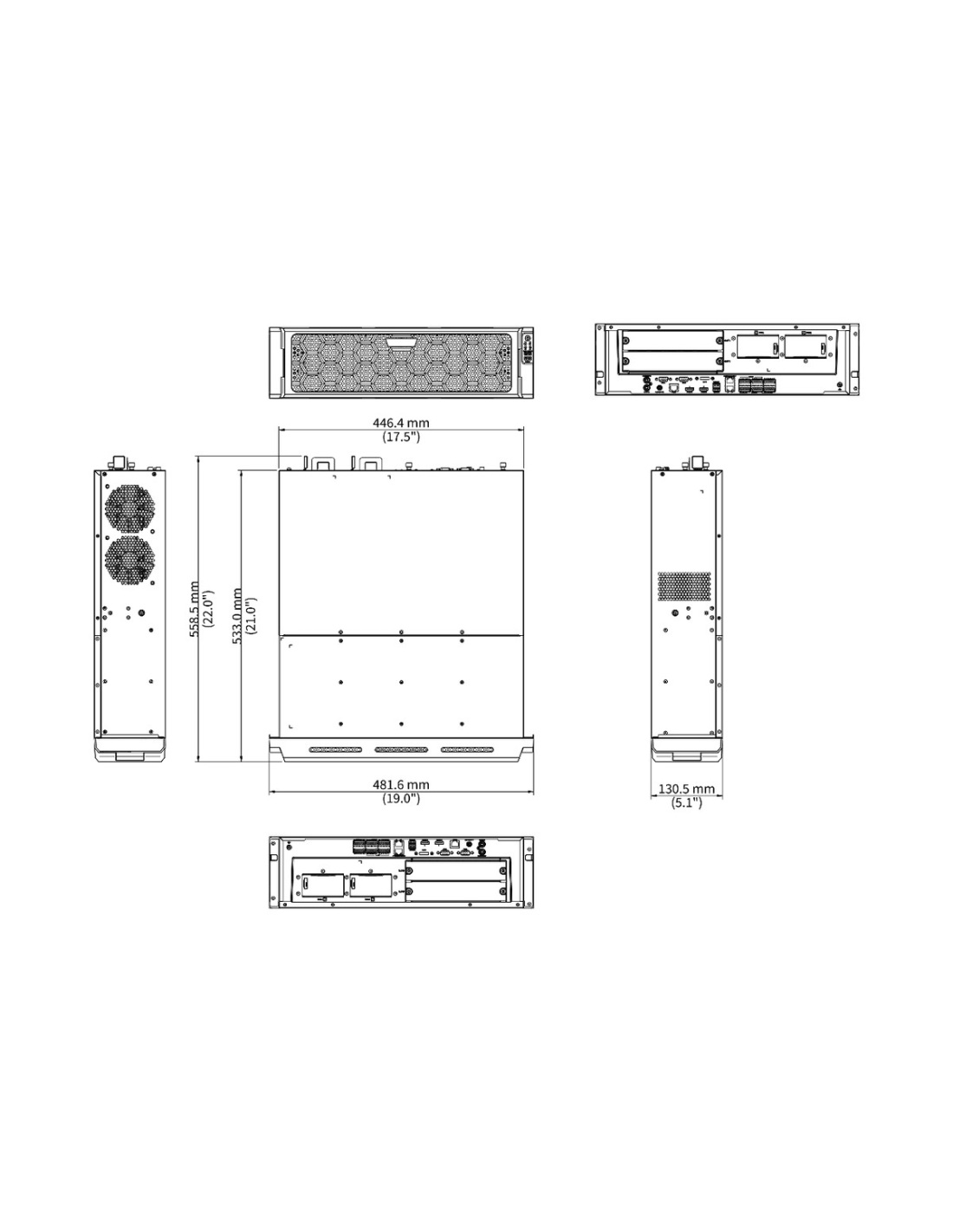

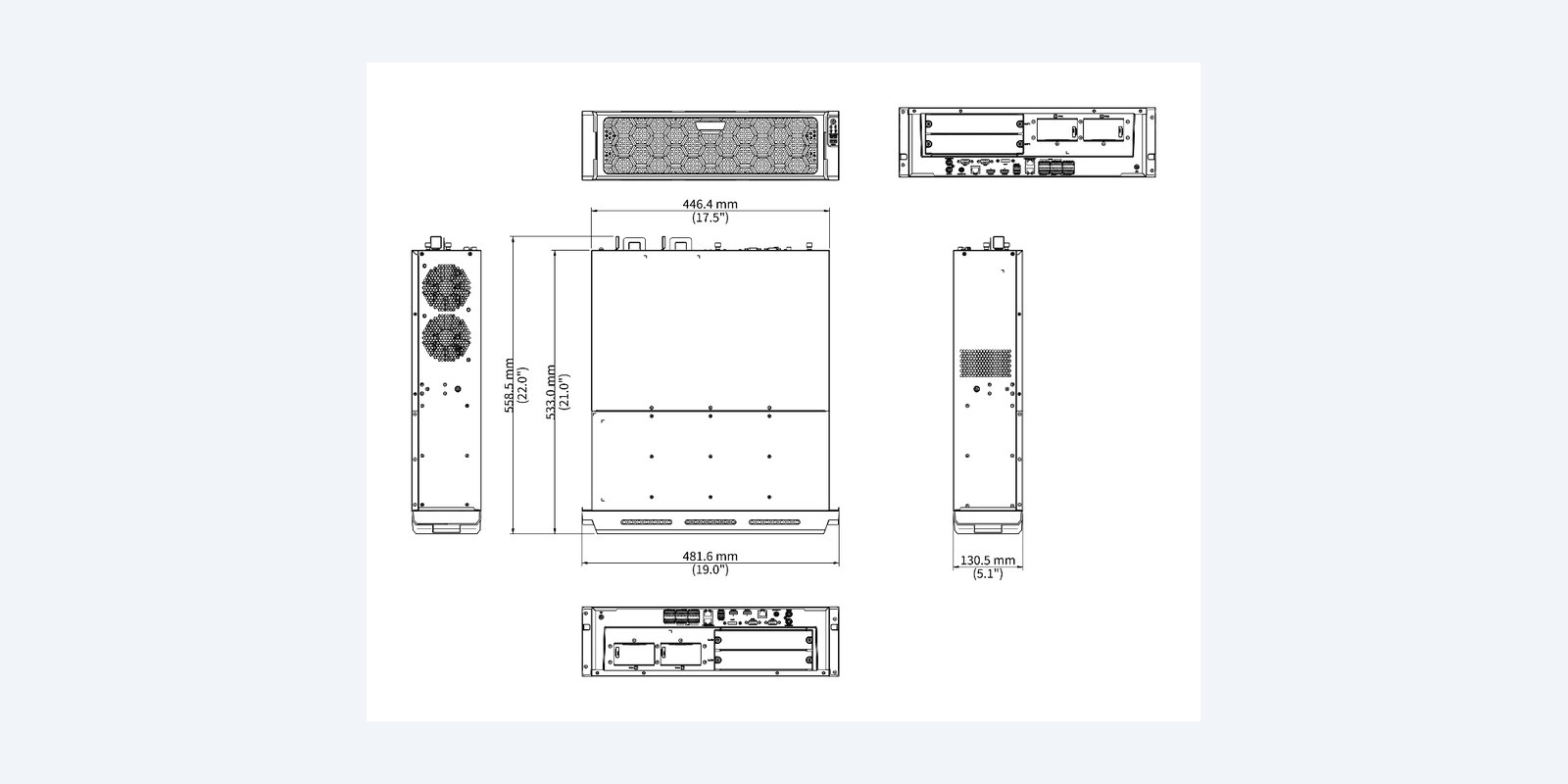

Size
482 × 533 × 131 mm.
A 3U, 19-inch case weighing 6.5 kg or less without drives, drawing 50 W or less before drives. Uniview’s SL-A slide rails are available.
How it goes in
From the box to recording.
01
Fit the hard drives
If you did not order one fitted: with the power off, fit surveillance drives in the bays you are using, then format them or build the RAID array from the setup wizard.
02
Connect the cameras
Plug the cameras into PoE switches on the same network as the recorder. It searches the network and adds Uniview cameras automatically.
03
Connect screens and network
HDMI or VGA to the monitors, a network port to your switch or router, then power on and follow the wizard.
04
Add it to the app
Scan the P2P QR code in the UNV-Link app, or add the recorder to Uniview’s EZStation software on a PC.
At a glance
NVR516-128E-R
Show specs
Channels
128 IP cameras
PoE
None — use PoE switches
Recording
Up to 32MP
Compression
Ultra 265, H.265, H.264
Bandwidth
640 Mbps in, 640 Mbps out
Decoding
3 × 32MP, 12 × 4K, 24 × 4MP, 48 × 1080p or 96 × 720p @30 (H.265)
Outputs
HDMI1 up to 8K/30, HDMI2 up to 4K/60, 2 × VGA
Storage
16 SATA hot swap, up to 16TB each; RAID 0, 1, 5, 6, 10, 50, 60; N+1 hot spare
Network
2 × RJ45 Gigabit
USB
2 × USB 2.0 front, 2 × USB 3.0 rear
Alarm
16 in, 10 out; RS485, RS232, 12 V out
Audio
1 in, 2 out (RCA), two-way audio
Power
100–240 V AC, ≤50 W without HDD; redundant PSU optional
Size and weight
482 × 533 × 131 mm, ≤6.5 kg
Operating
−10 °C to 55 °C
Pair it with
What goes with it
Storage
Seagate SkyHawk drive
Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. Uniview rates each bay for drives of up to 16TB.
Cameras
Uniview IP cameras
Uniview turrets, bullets and domes add the smart events and fast searches this recorder is built around.
Network
PoE switch
This recorder has no PoE ports, so a PoE switch powers the cameras and links them to it.
Power
Redundant power supply
Add Uniview’s PWR-DC12-350A-IN module so the recorder keeps running if one supply fails.
Where it is used
Where a 128-channel recorder fits
Control rooms
Feed an 8K video wall from one recorder.
Large campuses
Universities, hospitals and council sites.
Mining and industry
Plants, yards and perimeters with long retention.
Logistics hubs
Warehouses, docks and vehicle yards at scale.
Uniview high-channel recorders side by side
| NVR502-16E-IM-G | NVR502-32E-IM-G | NVR508-64E-IQ | NVR516-128E-R | |
|---|---|---|---|---|
| Camera channels | 16 | 32 | 64 | 128 |
| Max recording | 32MP | 32MP | 32MP | 32MP |
| Incoming bandwidth | 192 Mbps | 192 Mbps | 512 Mbps | 640 Mbps |
| Screen outputs | HDMI 4K + VGA | HDMI 4K + VGA | 2 × HDMI 4K/60 + 2 × VGA | HDMI 8K + HDMI 4K/60 + 2 × VGA |
| Hard drive bays | 2 × up to 24TB | 2 × up to 24TB | 8 × up to 24TB | 16 × up to 16TB, hot swap |
| RAID | RAID 1 | RAID 1 | RAID 0, 1, 5, 6, 10 | RAID 0, 1, 5, 6, 10, 50, 60 |
| Network ports | 2 × Gigabit | 2 × Gigabit | 2 × Gigabit | 2 × Gigabit |
| Alarm in / out | 4 / 1 | 4 / 1 | 16 / 10 | 16 / 10 |
| Power | 12 V DC, ≤25 W | 12 V DC, ≤25 W | 100–240 V AC, ≤35 W | 100–240 V AC, ≤50 W |
| Case | 1U | 1U | 2U | 3U |
None of these has PoE ports: cameras connect through a PoE switch on the same network. Power figures without hard drives; incoming bandwidth with smart functions off. Figures from the Uniview datasheets.
Common questions
Is the power supply redundant?
It ships with one supply. Redundant power is an option: fit Uniview’s PWR-DC12-350A-IN module and the recorder keeps running if one supply fails. Ask us to quote it with the recorder.
What does the 8K output do?
HDMI1 runs up to 8K (7680 × 4320) at 30 Hz, so one output can drive a large video wall or 8K screen with many cameras at once. HDMI2 runs up to 4K at 60 Hz for a second, independent layout.
Can I add decoding cards?
Uniview lists the FB-HD04-B-NB and FB-HD07-B-NB decoding cards for this series to add more display outputs. Ask us about availability.
Is a hard drive included?
Not as standard. The NVR516-128E-R is sold without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted — choose the option above. It has sixteen hot-swap SATA bays of up to 16TB each. A fitted drive fills one bay; add more at any time for space or RAID.
Will it work with cameras that are not Uniview?
Uniview’s datasheet describes its smart features with Uniview cameras. For cameras from another brand, send us the model and we will confirm compatibility before you order.
Can I watch the cameras on my phone?
Yes. P2P is built in: connect the network port to your router and add the recorder to Uniview’s UNV-Link app by scanning its QR code. Live view, playback and alerts then work on iPhone and Android, and up to 128 remote users can connect.
What screen can I plug in?
Monitors or a video wall with HDMI or VGA. HDMI1 runs up to 8K (7680 × 4320) at 30 Hz and HDMI2 up to 4K at 60 Hz; each pairs with a VGA output, and the two pairs show independent layouts.
What is Ultra 265?
Uniview’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.
What does ANR do?
If the network drops, compatible Uniview cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.
How far can the cameras be from the recorder?
It has no PoE ports, so the cameras plug into a PoE switch and the switch connects to the recorder. Each Cat6 run from the switch can be up to 100 m, and switches can be placed around the site.
Can I mount it in a rack?
Yes. It is a 3U, 19-inch case; Uniview SL-A slide rails are available for deep racks.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.
Installation and safety
Power. Runs from 100–240 V AC. Earth the case, and hot-swap drives only from the front trays as the quick guide shows.
Placement. Use indoors between −10 °C and 55 °C, under 90% humidity, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.
Figures. From the Uniview NVR516-E-R series datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 482 × 533 × 131 mm (3U)
- Power Supply
- 100–240 V AC; redundant PSU optional
- Audio
- 1 in, 2 out (RCA)
- Operating Environment
- −10 °C and 55 °C, ≤90% RH
- Weight
- ≤6.5 kg without HDD
- Power Consumption
- ≤50 W without HDD
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 128 Channels
- Brand
- Uniview
- USB
- 2 × USB 2.0, 2 × USB 3.0
- Incoming Bandwidth
- 640 Mbps
- Recording Resolution
- Up to 32MP
- Display Output
- HDMI1 up to 8K/30 Hz, HDMI2 up to 4K/60 Hz, 2 × VGA
- Network Interface
- 2 × RJ45 Gigabit
- Smart Search
- Face, vehicle, human body and general search; people counting report, heat map
- Warranty
- 3 years
- Product Type
- Network Video Recorder
- Model
- NVR516-128E-R
- HDD Bays
- 16 SATA, hot swap
- RAID
- RAID 0, 1, 5, 6, 10, 50, 60; N+1 hot spare
- Outgoing Bandwidth
- 640 Mbps
- Max HDD Capacity
- 16TB per drive
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Playback Decoding
- 3 × 32MP, 6 × 16MP, 12 × 4K, 24 × 4MP, 48 × 1080p, 96 × 720p or 128 × D1 @30 (H.265)
