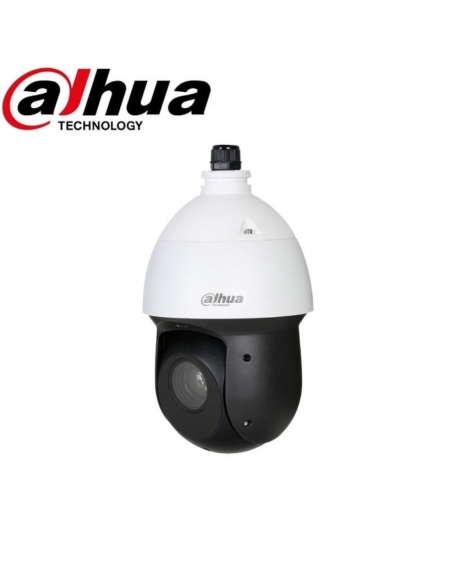

Dahua 2MP PTZ Motorized 25x Optical Zoom IR 100m
DH-SD49225-HC-LA1
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the SD49 series PTZ camera can provide a large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 25x optical zoom, and has very excellent low light performance due to adopting the latest starlight technology. SD49 series PTZ is equipped with smooth control, high-quality image and good protection, which make it can meet the small and medium size of video surveillance applications.
Simplicity
HDCVI technology inherits the born feature of simplicity from the traditional analog surveillance system, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug-and-play approach enables full HD video surveillance without the hassle of configuring a network.
Starlight Technology
Thanks to our experience and expertise in hardware and software development, the camera is equipped with the latest image processing algorithm, high-performance hardware and high-quality optical components, which make the camera have very excellent low light performance. In most conditions, this camera can deliver clear, bright and low-noise color images.
Wide Dynamic Range
Embedded with industry-leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, true WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.
Tech Specs:
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8" STARVIS™ CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
2MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920 (H) x 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
16 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
Color: 0.005 [email protected] |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
100 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
4.8 mm–120 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6–F3.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
25x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Auto/Semi-Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.1 m–1.5 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
1655.2 m |
656.8 m |
331.0 m |
165.5 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range |
Pan: 0°–360°Tilt: -15°–+90°; auto flip 180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed |
Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed |
Pan: 240°/s; Tilt: 200°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Presets |
300 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour |
8 (up to 32 presets per tour) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Adjustment |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion |
Preset/Tour/Pattern/Scanning |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
DH-SD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
1080P (25/30 fps), 720P (25/30/50/60 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Streetlamp |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D/3D |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Electronic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip |
0°/180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Up to 24 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CVI Product Output Mode |
CVI; TVI; AHD; CVBS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
G.711a; G.711Mu |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: EN55032/EN55024/EN50130-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 (LINE IN; bare wire) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC 12V/3A ± 10% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
9.6 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40°C to +70°C (–40°F to +158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤ 95%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP66; TVS 6000V lightning protection; surge protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
295.4 mm × Φ160.0 mm (11.63" × Φ6.30") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
3 kg (6.61 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
4.2 kg (9.26 lb) |
