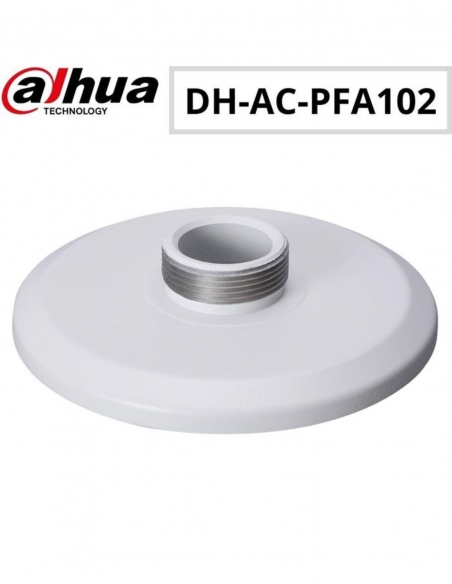

    Dahua PFA102 round aluminium mount adapter with its G1 1/2 threaded collar

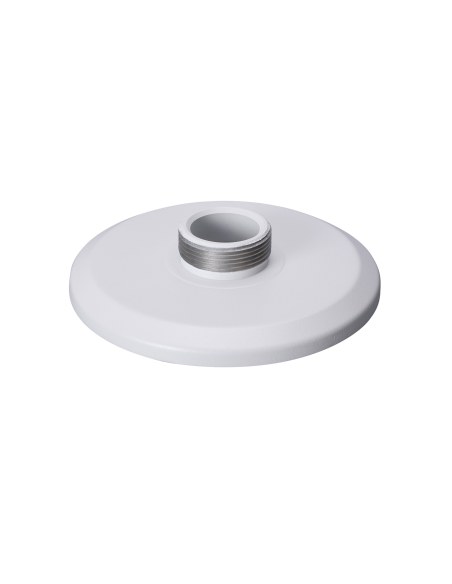

    Close-up of the G1 1/2 threaded collar on the Dahua PFA102

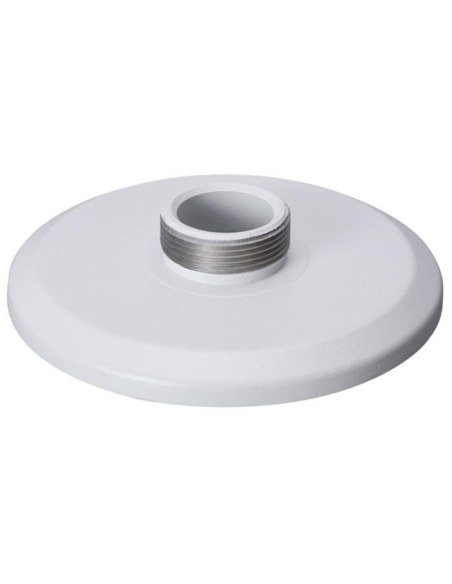

    Close-up of the rim of the Dahua PFA102 mount adapter
    1 / 3

    Dahua Mount Adapter - DH-AC-PFA102

    SKU DH-AC-PFA102 In Stock - Ready to Ship
    $10.90 inc GST

    Dahua PFA102: a round white aluminium mount adapter that joins a Dahua camera to a G1 1/2 wall arm or pendant, such as the PFB302S.

    • ✓Φ169.0 × 37.0 mm, 0.26 kg, carries 3.0 kg
    • ✓G1 1/2 threaded collar
    • ✓4 × M4 camera holes on a 101.8 mm square
    • ✓Aluminium alloy, white
    • ✓Recommended by Dahua for the SD42216DB-HC on the PFB302S
    • ✓Dahua 3-year camera mount warranty



    Description

    Dahua PFA102 white round aluminium mount adapter with its G1 1/2 threaded collar
    Dahua · Camera mounts · Mount adapter

    The plate between a Dahua mini PTZ and its mount.
    Φ169 mm aluminium adapter with a G1 1/2 thread.

    The Dahua PFA102 is a round white aluminium mount adapter, Φ169.0 × 37.0 mm. The camera fixes to its underside with four M4 screws, and its G1 1/2 threaded collar screws into the arm of a Dahua wall mount or a ceiling pendant.

    In one sentence: the Dahua DH-AC-PFA102 is a white aluminium alloy mount adapter, Φ169.0 × 37.0 mm and 0.26 kg, rated to carry 3.0 kg, with a G1 1/2 thread and four M4 camera holes on a 101.8 mm square, listed by Dahua for its SD42216DB-HC PTZ on the PFB302S wall mount.

    Adapter only. The camera and mount are sold separately.

    This listing is the PFA102 adapter with its four M4×10 screws. Dahua's guides list it for the SD42216DB-HC HDCVI PTZ camera. The SD29 mini PTZs use the PFA103 instead. Check your camera against Dahua's list below, or ask us before you order.

    In the box
    • PFA102 mount adapter
    • 4 × M4×10 screws
    You also need
    • A compatible Dahua camera
    • A Dahua mount with a G1 1/2 thread, such as the PFB302S wall mount
    • Network or coax cable to the camera

    Turns a flat camera base into a threaded fitting.

    Dahua's wall arms and pendants end in a G1 1/2 thread, while many cameras have a flat base with screw holes. The PFA102 bridges the two: four M4 holes on a 101.8 mm square take the camera, and the 21.5 mm threaded collar screws into the mount. Dahua's Camera Accessories Selection guides recommend it with the PFB302S wall mount for the SD42216DB-HC.

    Close-up of the G1 1/2 threaded collar on the Dahua PFA102 mount adapter

    Threaded collar

    G1 1/2 thread, hollow for the cable.

    The collar screws into the mount, and the cable runs down through its centre to the camera. Dahua's drawing gives the thread as G1-1/2 and the overall height as 37.0 mm. Close-up from Dahua's product photo.

    Dahua drawing of a PTZ camera hanging from a ceiling pendant on the PFA102 adapter

    Ceiling mount

    Dahua's installation drawing.

    Dahua's drawing shows the adapter on the end of a ceiling pendant with the camera below. Dahua's selection guide pairs it with the PFB302S wall mount; ask us which pendant suits your site.

    How it goes in

    From mount to camera in four steps.

    01

    Fit the mount

    Install the wall mount or pendant first, with the cable fed through it.

    02

    Screw on the adapter

    Pass the cable through the collar and screw the PFA102 onto the mount's G1 1/2 thread, then lock it with the mount's locking screw.

    03

    Connect the camera

    Connect the cable to the camera as its manual describes.

    04

    Fix the camera

    Fix the camera to the adapter with the four M4×10 screws, then aim it.

    Pair it with

    What goes with it

    Wall mount

    DH-AC-PFB302S wall mount

    The wall arm with an IP66 junction box that Dahua recommends with the PFA102.

    Pole

    DH-AC-PFA150 pole mount

    Dahua's guide routes the PFB302S on to its PFA150 pole mount.

    Corner

    DH-AC-PFA151 corner mount

    For an outside building corner, on the same route in Dahua's guide.

    Where it is used

    Where the adapter does its job.

    Wall arms

    Hang a compact PTZ from the PFB302S wall mount.

    Ceiling pendants

    Dahua's own drawing shows it on the end of a pendant.

    Shopfronts

    A mini PTZ out from the wall, covering a frontage.

    Foyers and halls

    A neat white disc between the camera and the mount.

    Poles and corners

    With the PFB302S on a Dahua pole or corner mount.

    Replacements

    A new adapter when a camera is moved to a new mount.

    PFA102 or PFA101

    PFA102 (this adapter)PFA101
    SizeΦ169.0 × 37.0 mmΦ159.0 × 34.6 mm
    Weight0.26 kg0.23 kg
    Load bearing3.0 kg3.0 kg
    ThreadG1 1/2G1 1/2
    Dahua lists it forSD42216DB-HC PTZLarger dome cameras and the SD4A PTZ series

    Figures from Dahua's PFA102 and PFA101 datasheets (Rev 002.000, 2025). The camera hole patterns differ, so use the adapter Dahua lists for your camera.

    Common questions

    What is the PFA102 for?

    It goes between a Dahua camera's flat base and a mount with a G1 1/2 thread, such as the PFB302S wall mount.

    Which cameras fit it?

    Dahua's selection guides list it for the SD42216DB-HC HDCVI PTZ camera, recommended with the PFB302S wall mount. For other models, confirm fit with us.

    Does it fit the SD29 mini PTZs?

    Dahua lists the PFA103 adapter for the SD29204DB-GNY and SD29404DB-GNY, not the PFA102.

    Is a mount included?

    No. This listing is the adapter and four M4×10 screws.

    How big is it?

    Φ169.0 × 37.0 mm and 0.26 kg, according to Dahua's 2025 datasheet. Older listings quoted 0.25 kg from a 2018 sheet.

    How much weight will it hold?

    3.0 kg, according to Dahua's datasheet.

    What thread is it?

    G1 1/2, the thread used on the ends of Dahua's wall arms and pendants such as the PFB302S.

    What hole pattern takes the camera?

    Four M4 holes on a 101.8 × 101.8 mm square (a Φ144.0 mm circle), from Dahua's drawing.

    Can it be used outdoors?

    Dahua rates it −40 °C to +60 °C with basic anti-corrosion protection, and gives no IP rating for the adapter itself.

    What is the difference from the PFA101?

    The PFA101 is a little smaller at Φ159.0 × 34.6 mm with a different camera hole pattern, and Dahua lists it for larger dome cameras and the SD4A PTZs.

    What warranty does it have?

    Dahua Australia's warranty policy (August 2026) gives camera mounts 36 months. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].

    Who can install the cabling?

    Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

    Supported by InFront Technologies.

    Not sure which adapter your camera needs? Call 1300 736 970 or email [email protected]. The Dahua datasheet is on the Attachments tab.

    Installation and safety

    Mechanical part only. The PFA102 holds the camera on the mount. It carries no power or data itself.

    Load. Rated for 3.0 kg. Check the camera's weight on its own datasheet.

    Locking. Tighten the mount's locking screw once the adapter is screwed on, so the camera cannot unwind.

    Height. Work from a suitable platform and follow working-at-heights rules.

    Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

    Figures. From Dahua's PFA102 datasheet (Rev 002.000, 2025), manual and drawing, its Camera Accessories Selection guides (December 2025 and May 2026) and Dahua Australia's warranty policy (5 August 2026).
