    Dahua 8MP TiOC 4K Kit — 6× HDW3849H-AS-PV-ANZ-S2 + 8CH NVR4108HS-8P-AI/ANZ

    SKU DH-K8086TIOC-0T In Stock - Ready to Ship
    $1,999.00 inc GST

    Dahua DH-K8086TIOC kit: six 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC turrets with warm light, siren, strobe and two-way talk, and an 8-channel DHI-NVR4108HS-8P-AI/ANZ PoE recorder. Choose the drive size in the options.

    • ✓6 × 8MP TiOC turrets, F1.0 lens
    • ✓30 m IR and 30 m warm light, colour at night
    • ✓Siren, voice warnings and red-blue strobe
    • ✓Two-way talk on every camera
    • ✓8-port PoE recorder, 2 ports free
    • ✓No HDD or 2–10TB fitted, 4K HDMI, DMSS app
    Hard Disk Options



    Description

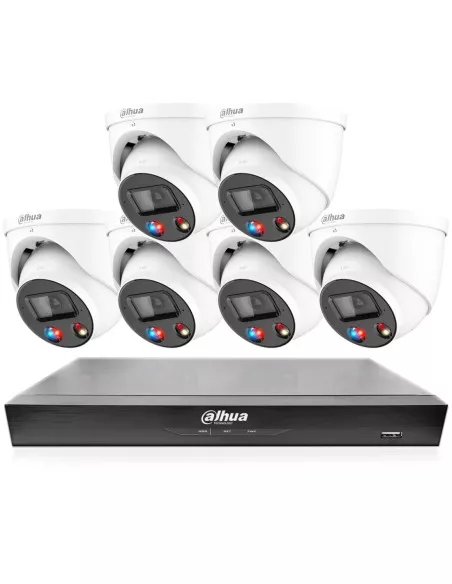

    Dahua DH-K8086TIOC kit: six white HDW3849H-AS-PV-ANZ-S2 TiOC turret cameras and the NVR4108HS-8P-AI/ANZ recorder, shown at true relative size
    Dahua · WizSense · TiOC kit · 6 cameras · 8 channels

    Six 8MP cameras that light up and speak up.
    One cable to each, from an 8-port PoE recorder.

    This is the Dahua DH-K8086TIOC: six white DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC turrets and a DHI-NVR4108HS-8P-AI/ANZ recorder. Each camera records 8MP, has IR and warm light to 30 m, a siren, a red and blue strobe and two-way talk, and takes its power from the recorder over one Cat6 cable.

    In one sentence: the DH-K8086TIOC is a Dahua kit of six DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP (3840 × 2160) TiOC turret cameras with F1.0 lenses, 30 m IR and warm light, siren and strobe deterrence and two-way audio, plus a DHI-NVR4108HS-8P-AI/ANZ 8-channel recorder with 8 PoE ports, one SATA bay and 4K HDMI.

    Six cameras and the recorder. Choose the drive size in the options.

    The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder powers all six cameras from its own PoE ports and leaves 2 ports free for more cameras later. Dahua makes this camera with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock.

    In the box
    • 6 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC turret cameras (white)
    • 1 × DHI-NVR4108HS-8P-AI/ANZ 8-channel PoE recorder
    • The recorder's 53 V DC power adapter
    • A hard drive, only if you chose one in the options
    You also need
    • Cat5e or Cat6 cable from each camera to the recorder
    • A monitor or TV with HDMI or VGA for setting up
    • Your router, for the DMSS phone app
    • A SATA surveillance drive, if you chose No HDD

    It does more than record.

    When someone crosses a line or walks into a zone you drew, each camera can switch on its warm light for colour video, flash red and blue, and sound its siren or a recorded warning. SMD 4.0 sorts people and vehicles from animals and moving leaves, so those responses are kept for real targets, and one tap in the DMSS app turns them off while you are home.

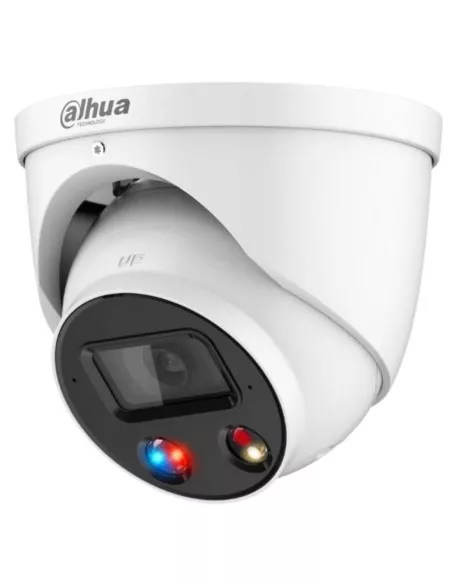

    Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC turret camera, three-quarter view showing the lens, warm light and red-blue strobe

    The cameras

    8MP through an F1.0 lens.

    A 1/2.7" sensor records 3840 × 2160 at up to 25/30 fps, in colour down to 0.004 lux at F1.0. One IR LED and one warm light each reach 30 m, and Smart Dual Light keeps the IR on until a person or vehicle appears, then switches to warm light for colour. Metal housing, IP67, −40 °C to +60 °C.

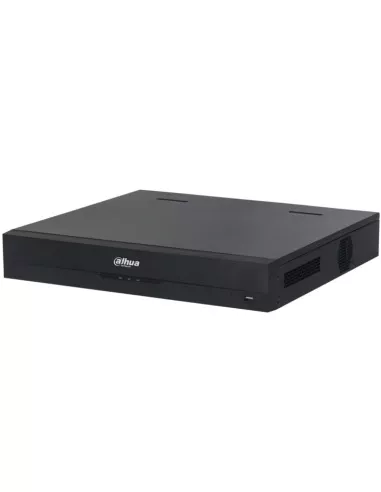

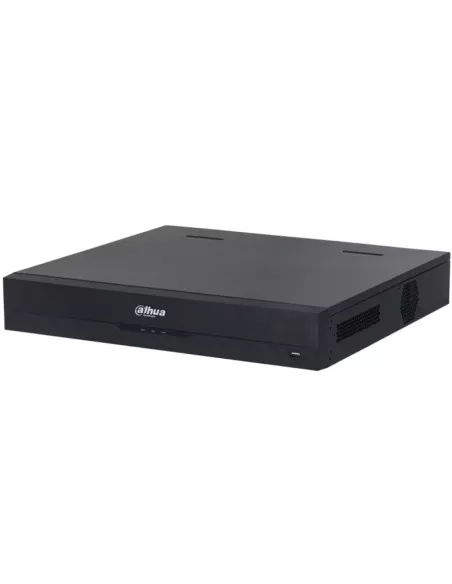

    Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense PoE recorder, front three-quarter view

    The recorder

    Eight PoE ports in a 260 mm case.

    The DHI-NVR4108HS-8P-AI/ANZ records cameras up to 16MP, takes 256 Mbps of incoming video and shows 4K on HDMI. It holds one SATA drive of up to 20TB, has a Gigabit network port, and runs face recognition, perimeter protection and SMD Plus itself.

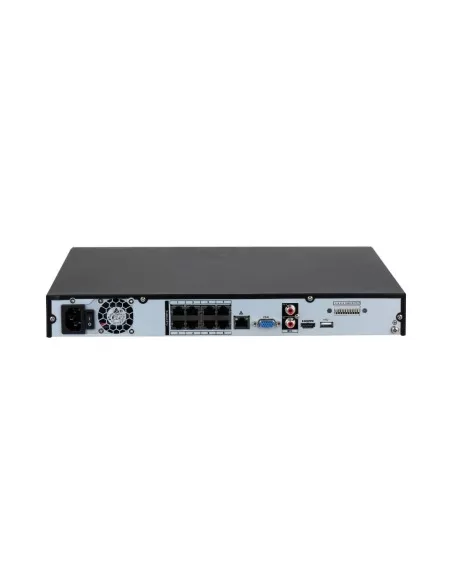

    Dahua DHI-NVR4108HS-8P-AI/ANZ rear panel with eight PoE ports, network, VGA, HDMI, audio and USB

    One cable per camera

    Power and video on the same cable.

    Each PoE port gives up to 25.5 W, with 78 W shared across all eight. Six cameras at Dahua's maximum of 10.1 W each come to about 61 W, so the lights and sirens can all run at once. The other two ports are free for more cameras.

    How it goes in

    From the box to the first alert.

    01

    Fit the drive

    If you chose No HDD, power off, open the recorder and fit a SATA surveillance drive, then format it from the startup wizard.

    02

    Mount the cameras

    Fix each turret to a wall or eave with three screws on its 84 mm circle, then pan, tilt and rotate the ball to frame the view.

    03

    Run one cable to each

    Cat5e or Cat6 from each camera to a PoE port on the recorder, up to 100 m. The port powers the camera.

    04

    Set the rules

    Connect HDMI and your router, add the recorder to DMSS, then draw tripwire or intrusion zones and choose what the light, strobe and siren do.

    Pair it with

    What goes with it

    Security

    Datatek 24SECCAB cabinet

    Locks the recorder and a monitor up to 24″ in a steel wall cabinet, so an intruder can't walk off with the footage.

    Cabling

    Cat6 cable

    One run from each camera to the recorder, up to the usual 100 m Ethernet limit.

    Long runs

    Dahua PFT1300 PoE extender

    For a camera further than 100 m from the recorder, such as a shed or a front gate.

    Power backup

    ION 650VA UPS

    Keeps the recorder and cameras recording through short power cuts and protects them from surges.

    Where it is used

    Where six talking cameras earn their keep.

    Homes with a yard

    Driveway, front door, side gates, back yard and garage, with a siren for anyone at the car.

    Shops and cafés

    Entry, counter and back lane, with a voice warning at the roller door after hours.

    Small offices

    Reception, car park and the bin area, with people and vehicle alerts to your phone.

    Workshops and yards

    Gates and loading areas in colour at night, 30 m of light from each camera.

    Farm sheds

    Machinery sheds and fuel tanks, with two-way talk to speak to visitors.

    Rental and holiday homes

    Outside areas only, watched from the DMSS app while you are away.

    2.8 mm or 3.6 mm camera lens

    2.8 mm lens3.6 mm lens
    Horizontal view106°85°
    Diagonal view125°102°
    Detect (DORI)66 m78 m
    Recognise (DORI)13.2 m15.6 m
    Identify (DORI)6.6 m7.8 m
    Close focus1.5 m2.2 m

    Both lenses are columns of the same Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 datasheet; everything else is the same. Confirm with us which lens is in stock. For 4 or 8 cameras on the same recorder, see the DH-K8084TIOC and DH-K8088TIOC kits.

    Common questions

    Is this a complete system?

    It has six cameras and the recorder that powers and records them. Add Cat6 cable to each camera, a monitor for setting up, and a hard drive if you chose No HDD in the options.

    Is a hard drive included?

    Only if you choose one. The kit is sold without a drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder's single SATA bay takes up to 20TB.

    Which lens do the cameras have?

    Dahua makes the DH-IPC-HDW3849H-AS-PV-ANZ-S2 with a 2.8 mm lens (106° across) or a 3.6 mm lens (85° across, sees detail a little further). Confirm with us which is in stock when you order.

    How far do the cameras see at night?

    Up to 30 m with IR and up to 30 m with warm light. In colour they work down to 0.004 lux at F1.0, and with the lights on they record at 0 lux.

    What sets off the siren and strobe?

    A tripwire crossing or an intrusion into a zone you draw, filtered for people, vehicles or both. You choose the light, strobe and sound for each rule, and can disarm them with one tap in DMSS.

    Can I talk through the cameras?

    Yes. Each camera has a built-in dual microphone and a speaker, so you can listen and talk back from the DMSS app.

    Can the recorder power all six cameras?

    Yes. Each camera draws up to 10.1 W on PoE with everything running, about 61 W for six, and the recorder supplies up to 78 W across its eight ports.

    Can I add more cameras later?

    Yes, two more. The recorder has eight channels and eight PoE ports, and this kit uses six. It also takes ONVIF cameras from other brands.

    Does it support AcuPick search?

    The cameras support AcuPick with a Dahua back-end that offers it. This recorder gives Quick Pick, which picks out people and vehicles from the cameras' SMD events so you can find them quickly. Ask us if you want AcuPick across the system.

    Can I watch it on my phone?

    Yes. Connect the recorder to your router, turn on P2P and scan its QR code with Dahua's DMSS app on iPhone or Android for live view, playback and alerts.

    Where should the recorder go?

    Indoors, somewhere ventilated and out of sight. Dahua rates it for −10 °C to +55 °C. A locked steel cabinet such as the Datatek 24SECCAB stops a thief taking the footage with the recorder.

    Who can install the cable?

    Concealed data cabling to the cameras is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. The recorder plugs into a normal power point.

    Supported by InFront Technologies.

    Help planning camera positions, the lens or the drive size: call 1300 736 970 or email [email protected]. The camera datasheet is on the Attachments tab.

    Installation and safety

    Low-voltage cameras. The cameras run on PoE from the recorder (up to 10.1 W each) and have no mains connection. The recorder uses its 53 V DC adapter from a normal power point.

    Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

    Audio and siren. Recording conversations is covered by state and territory surveillance laws, and a siren near homes should respect local noise rules. Check them, and use signage, before you switch the microphones or sirens on.

    Placement. Cameras are IP67 for outdoors. The recorder is for indoor use, with space around its vents.

    Figures. From Dahua's DH-IPC-HDW3849H-AS-PV-ANZ-S2 and DHI-NVR4108HS-8P-AI/ANZ datasheets on the Dahua Australia site.

    Audio
    Two-way talk (built-in mic + speaker)
    Resolution
    8MP (3840 × 2160)
    Brand
    Dahua
    Lens
    2.8 or 3.6 mm fixed (confirm with us), F1.0
    HDD
    1× SATA (up to 20 TB) (optional fitted drive at checkout)
    AI
    SMD 4.0, tripwire, intrusion, AI SSA; AcuPick-capable (needs NVR5+)
    Sensor
    1/2.7″ CMOS
    Camera Model
    6× DH-IPC-HDW3849H-AS-PV-ANZ-S2
    Field of View
    106° H / 55° V / 125° D (2.8 mm)
    Channels
    8 IP / 8 PoE
    Active Deterrence
    Siren + red/blue strobe (TiOC)
    How many Camera Cables are included?
    This Kit does NOT include Camera Cables
    Warranty
    Dahua 3-year manufacturer warranty, handled in Australia through InFront
    Camera Count
    6
    Kit Type
    IP CCTV kit (cameras + PoE NVR)
    Night Vision
    30 m IR + 30 m warm light
    Camera Protection
    IP67
    Camera Power
    PoE or 12 VDC
    NVR
    NVR4108HS-8P-AI/ANZ
    Local Display
    HDMI 4K + VGA
    App
    DMSS
    Operating Temperature (camera)
    −40 °C to +60 °C
    NVR Search
    Quick Pick (NVR4 WizSense); AcuPick on NVR5+
