- New
Dahua DH-K8082T2TIOC-67 kit: two 8MP DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual Light eyeballs, two 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeballs with siren, strobe and two-way talk, and an 8-channel DHI-NVR4108HS-8P-AI/ANZ PoE recorder. Choose the drive size in the options.
- ✓4 × 8MP eyeballs: 2 Smart Dual Light, 2 TiOC
- ✓30 m IR and 30 m warm light on every camera
- ✓Siren, voice warnings, strobe and two-way talk on the TiOC pair
- ✓8-port PoE recorder, 4 ports free
- ✓No HDD or 2–10TB fitted, 4K HDMI, DMSS app
Description

Four 8MP cameras, two that speak up.
One cable to each, from an 8-port PoE recorder.
This is the Dahua DH-K8082T2TIOC-67: two white DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual Light eyeballs, two white DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeballs with siren, strobe and two-way talk, and a DHI-NVR4108HS-8P-AI/ANZ recorder. All four record 8MP (3840 × 2160) and take their power from the recorder over one Cat6 cable each.
In one sentence: the DH-K8082T2TIOC-67 is a Dahua kit of two DH-IPC-HDW3867EM-S-IL-ANZ 8MP Smart Dual Light eyeballs and two DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC eyeballs with siren, strobe and two-way audio, plus a DHI-NVR4108HS-8P-AI/ANZ 8-channel recorder with 8 PoE ports and 4K HDMI.

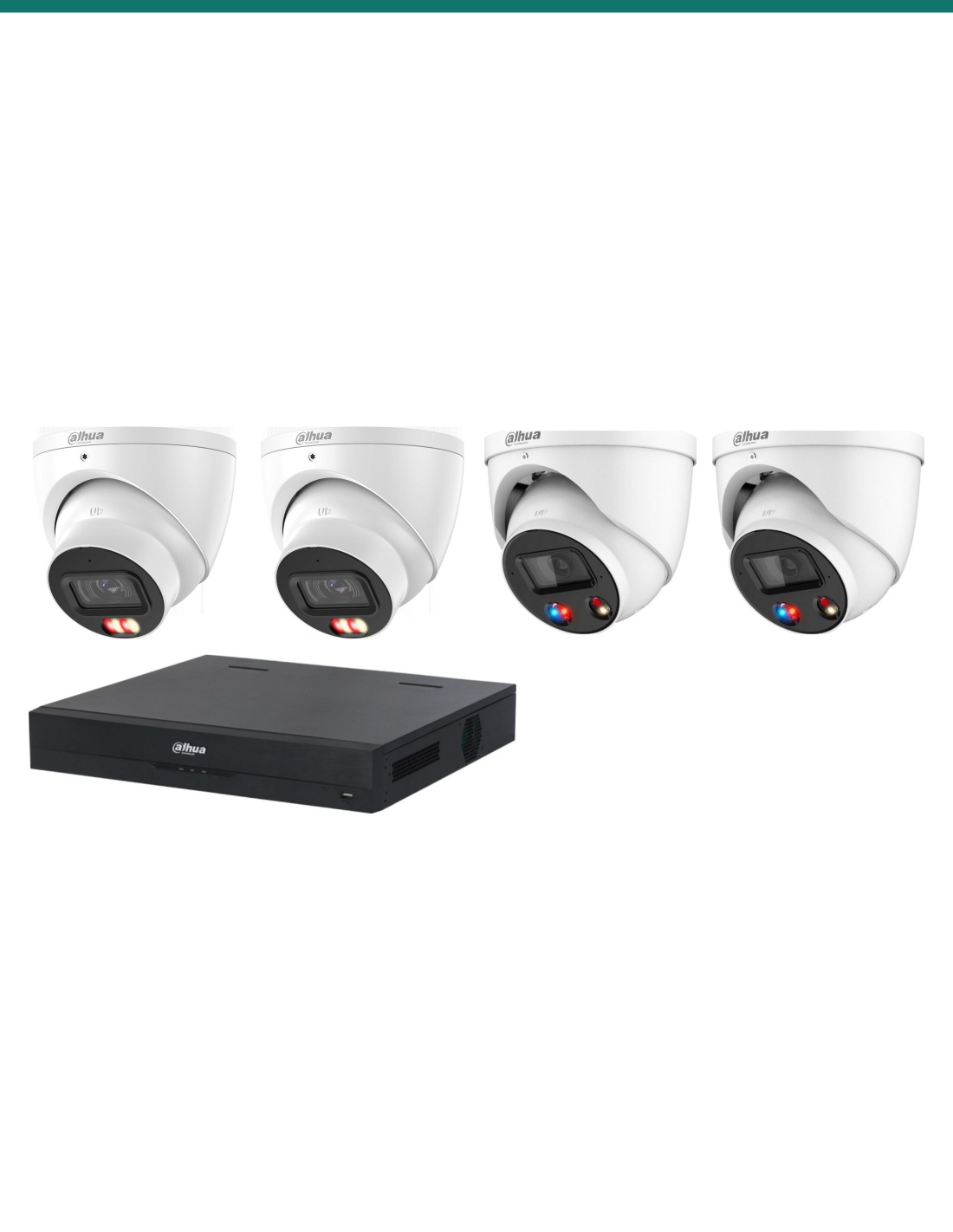

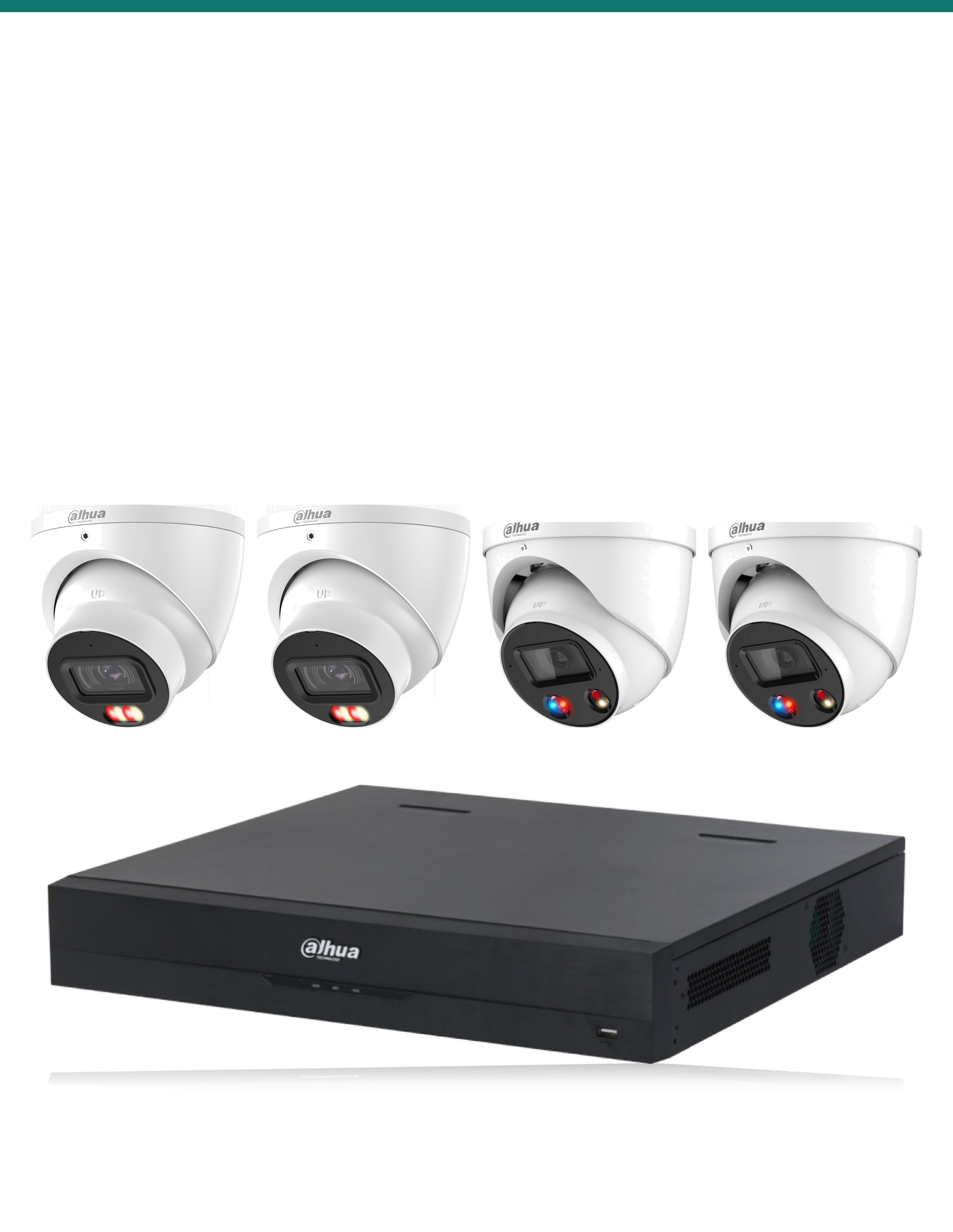

Four cameras and the recorder. Choose the drive size in the options.
The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder powers all four cameras and leaves four ports free for more cameras later. Dahua makes both cameras with a 2.8 mm or a 3.6 mm lens: confirm with us which lenses are in stock.
- 2 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual Light eyeball cameras (white)
- 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC active deterrence eyeball cameras (white)
- 1 × DHI-NVR4108HS-8P-AI/ANZ 8-channel PoE recorder
- The recorder's 53 V DC adapter
- A hard drive, only if you chose one in the options
- Cat5e or Cat6 cable from each camera to the recorder
- A monitor or TV with HDMI or VGA for setting up
- Your router, for the DMSS phone app
- A SATA surveillance drive, if you chose No HDD
Two cameras that warn, two that watch.
Put the two TiOC cameras where you want to turn people away: when someone crosses a line or walks into a zone you drew, they switch on the warm light, flash red and blue, sound a siren or recorded warning, and let you talk back. The two dual-light cameras cover the quieter angles, on infrared until a person or vehicle appears, then in colour.

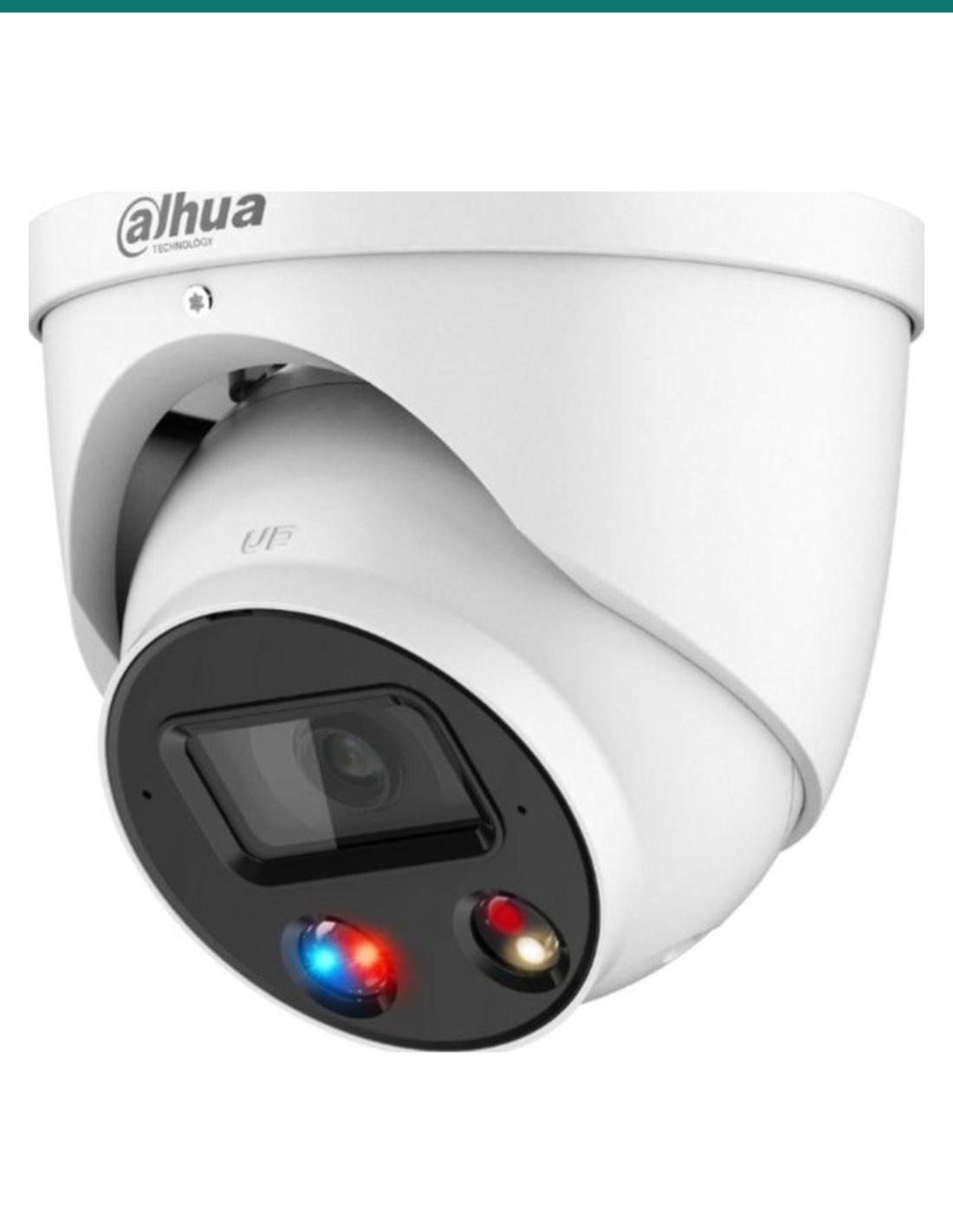

Two TiOC cameras
Light, siren and a voice.
Each DH-IPC-HDW3849H-AS-PV-ANZ-S2 records 8MP through an F1.0 lens, in colour down to 0.004 lux. One IR LED and one warm light each reach 30 m. A siren with built-in or imported voice messages, a red and blue strobe, a dual mic and a speaker for two-way talk. Metal housing, IP67.

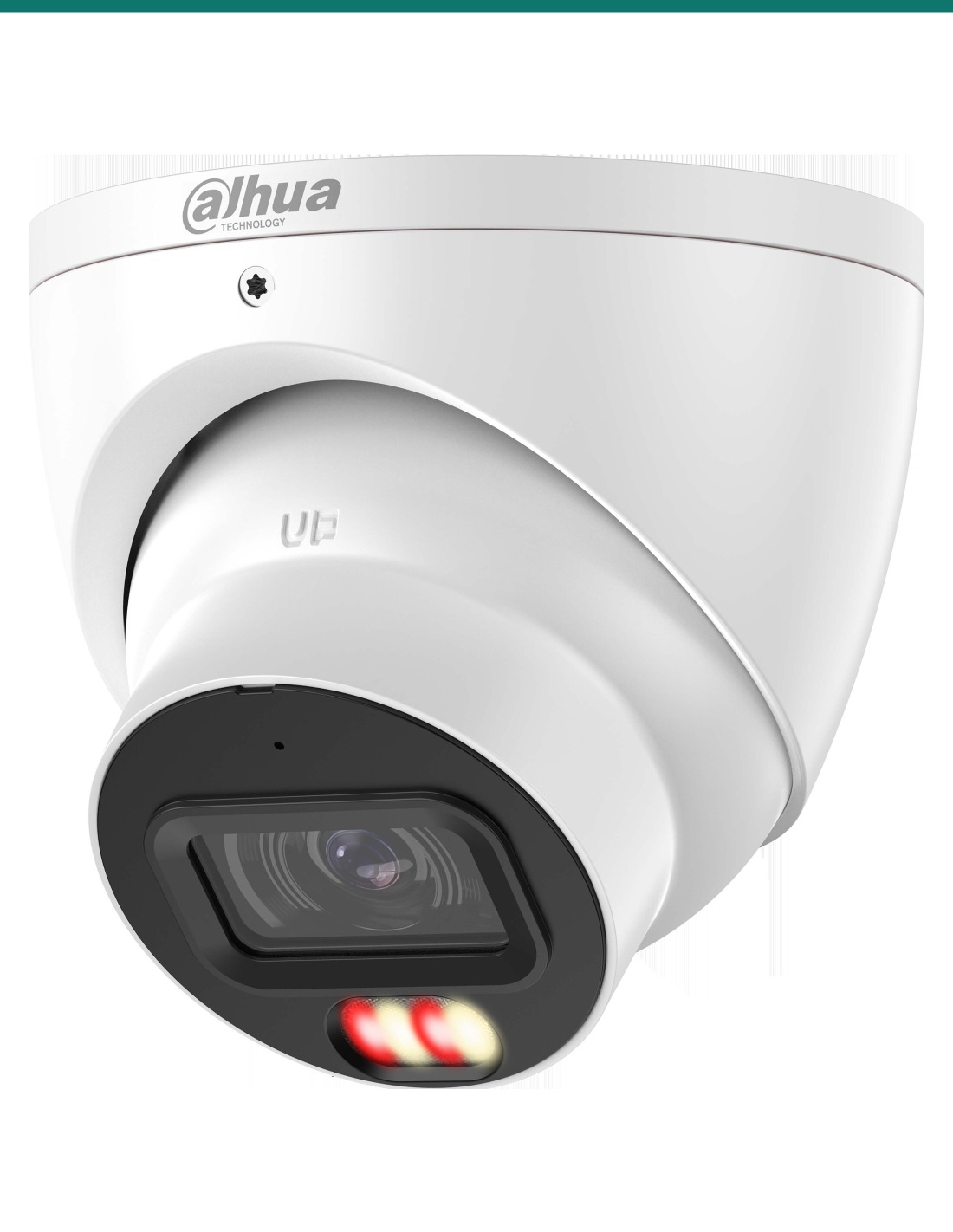

Two dual-light cameras
8MP through an F1.4 lens.
Each DH-IPC-HDW3867EM-S-IL-ANZ records 3840 × 2160 at up to 25/30 fps, in colour down to 0.007 lux. Two multi-core lights give IR or warm light out to 30 m, and a built-in microphone records sound with the video. No speaker or siren. Metal housing, IP67, −40 °C to +60 °C.

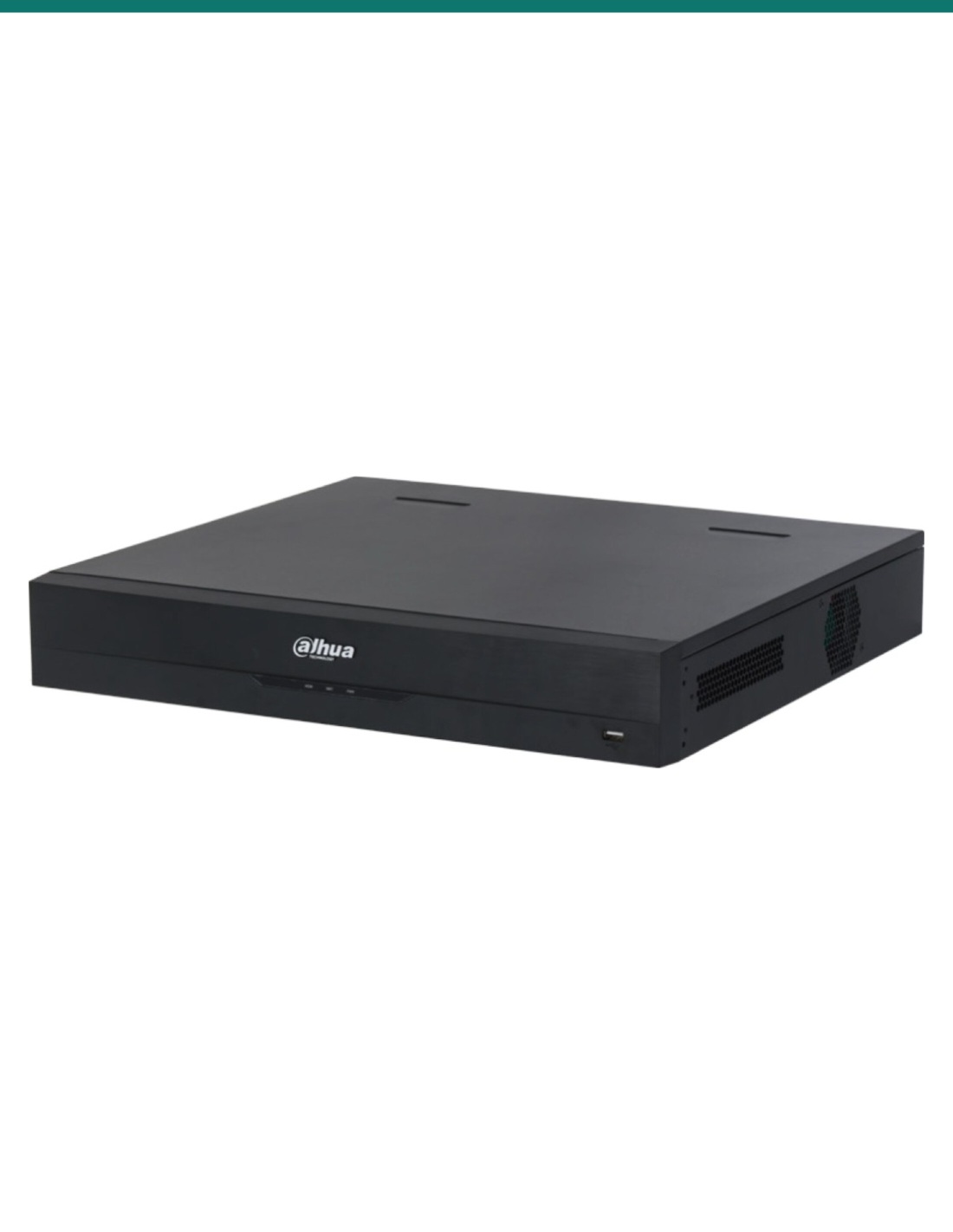

The recorder
8 PoE ports in a 260 mm case.
The DHI-NVR4108HS-8P-AI/ANZ records 8 IP cameras up to 16MP, takes 256 Mbps of incoming video (180 Mbps with AI on) and shows 4K on HDMI. It holds one SATA drive of up to 20TB and runs face recognition (1 channel), perimeter protection (2 channels) and SMD Plus (4 channels) itself.

One cable per camera
Power and video on the same cable.
Each PoE port gives up to 25.5 W, with 78 W shared across all eight. Dahua's maximum draw is 10.1 W for a TiOC camera and 9.5 W for a dual-light camera, about 39.2 W for all four, so lights, strobes and sirens can all run at once. Four ports are free for more cameras.
How it goes in
From the box to the first alert.
01
Fit the drive
If you chose No HDD, power off, open the recorder and fit a SATA surveillance drive, then format it from the startup wizard.
02
Mount the cameras
Fix each eyeball to a wall or eave: the dual-light cameras through four Ø 4.5 mm holes on a 69 mm circle, the TiOC cameras through three on an 84 mm circle. Then pan, tilt and rotate the ball to frame the view.
03
Run one cable to each
Cat5e or Cat6 from each camera to a PoE port on the recorder, up to 100 m. The port powers the camera.
04
Set the rules
Connect HDMI and your router, add the recorder to DMSS, then draw tripwire or intrusion zones and choose what the lights, strobe and siren do.
At a glance
DH-K8082T2TIOC-67
Show specs
In the kit
2 × DH-IPC-HDW3867EM-S-IL-ANZ, 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2, 1 × DHI-NVR4108HS-8P-AI/ANZ recorder
Hard drive
No HDD, or 2, 4, 8 or 10TB fitted (choose in the options); 1 SATA bay, up to 20TB
Camera resolution
All four: 8MP, 3840 × 2160 at up to 25/30 fps, 1/2.7" CMOS
Camera lenses
Dual light: fixed F1.4; TiOC: fixed F1.0; each 2.8 mm or 3.6 mm (confirm with us)
Field of view
Dual light: 110° (2.8 mm) or 86° (3.6 mm); TiOC: 106° (2.8 mm) or 85° (3.6 mm) horizontal
Low light
Colour 0.007 lux (dual light), 0.004 lux (TiOC); 0 lux with the lights on
Lights
Dual light: 2 multi-core lights, IR and warm light to 30 m; TiOC: 1 IR LED and 1 warm light to 30 m; Smart Dual Light on both
Deterrence
TiOC cameras: siren with built-in or imported voice messages, red and blue strobe, one-tap arming and disarming
Audio
Dual light: built-in mic, no speaker; TiOC: dual mic and speaker, two-way talk, 1 audio in and 1 out
Camera AI
SMD 4.0; tripwire and intrusion with human and vehicle sorting; AI SSA
Search
Quick Pick on this recorder; the cameras also support AcuPick with a Dahua recorder that offers it (NVR5 AI series)
Camera storage
microSD up to 512 GB (dual light) or 256 GB (TiOC)
Camera power
PoE or 12 VDC; up to 9.5 W (dual light) or 10.1 W (TiOC) on PoE
PoE budget
8 ports, up to 25.5 W each, 78 W total; 4 cameras draw up to 39.2 W
Camera housings
Metal, IP67, −40 °C to +60 °C; dual light 93.6 × Φ106 mm, 0.53 kg; TiOC Φ122 × 110.9 mm, 0.75 kg
Recorder channels
8 IP cameras up to 16MP; 4 left free in this kit
Recorder bandwidth
256 Mbps in, recording and out (180 Mbps with AI on)
Recorder AI
Face recognition (1 ch), perimeter protection (2 ch), SMD Plus (4 ch); AI search and Quick Pick
Outputs
HDMI up to 3840 × 2160, VGA up to 1920 × 1080
Network
Recorder: 1 × RJ45 Gigabit; cameras: 10/100, ONVIF Profile S, G and T
Recorder size
260 × 232.7 × 47.6 mm, 0.92 kg, 53 V DC adapter
Recorder placement
Indoors, −10 °C to +55 °C, 10–93% humidity
App and software
DMSS (iOS, Android), Smart PSS Lite, DSS
Warranty
Dahua 3-year manufacturer warranty, handled in Australia through InFront

Each dual-light camera: 93.6 × Φ106.0 mm. Four Ø 4.5 mm mounting holes on an Ø 69 mm circle. Units mm [inch]. The TiOC cameras are Φ122.0 × 110.9 mm.
Pair it with
What goes with it
Security
Datatek 24SECCAB cabinet
Locks the recorder and a monitor up to 24″ in a steel wall cabinet, so an intruder can't walk off with the footage.
Room to grow
DH-K8084T2TIOC-67 kit
Four dual-light cameras and two TiOC cameras on the same recorder, if you need more coverage.
Power backup
ION 650VA UPS
Keeps the recorder and cameras recording through short power cuts and protects them from surges.
Cabling
Cat6 cable
One run from each camera to the recorder, up to the usual 100 m Ethernet limit.
Where it is used
Where a mixed kit makes sense.
Homes

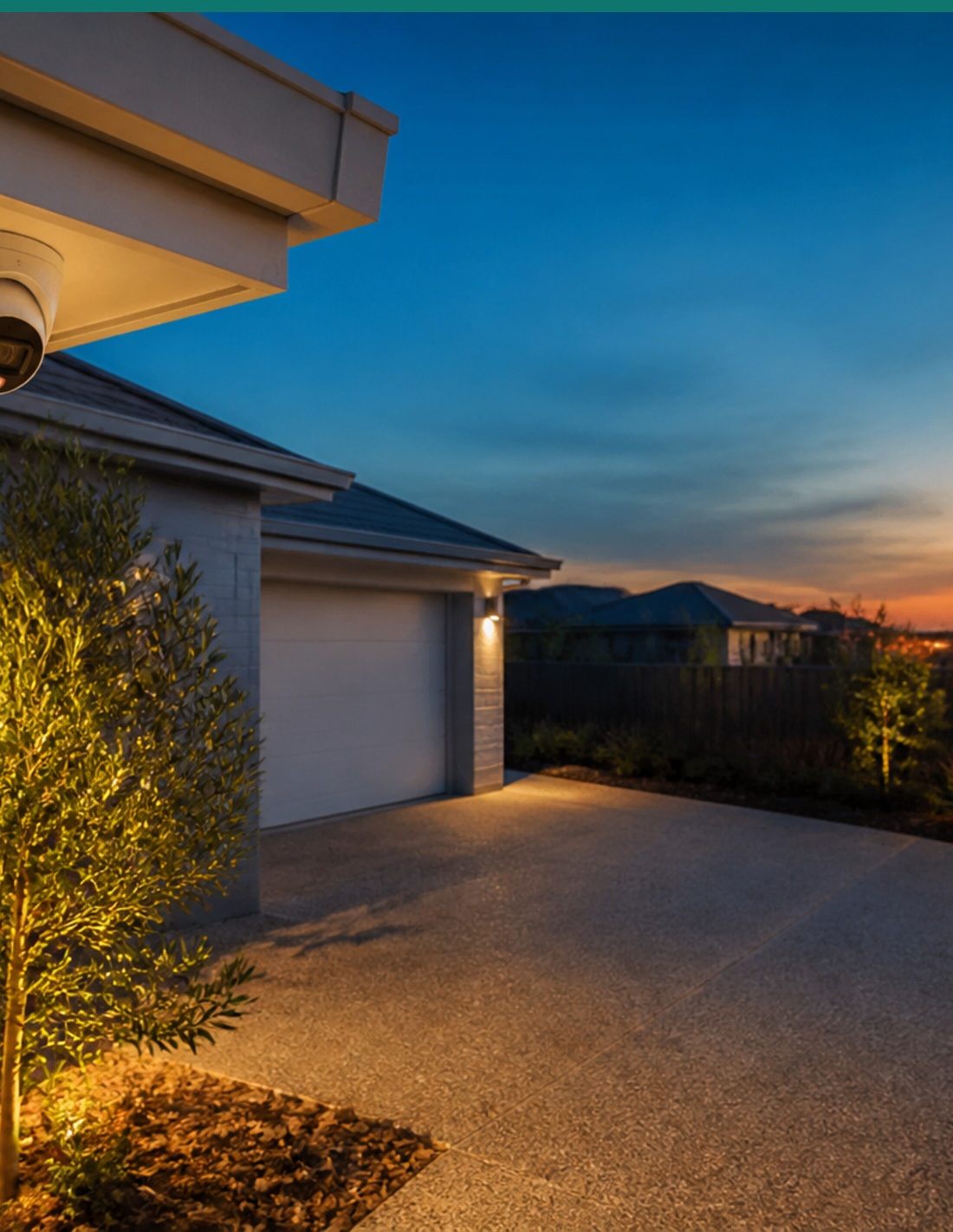

TiOC at the driveway and front door, dual light on the side paths and back yard.
Shops and cafés
A voice warning at the rear door after hours, quiet colour coverage at the counter.
Small offices
TiOC on the car park, dual light at reception and the side door.
Workshops and yards
Siren and strobe at the gate, 30 m of light on the loading area.
Farm sheds
Talk to visitors at the shed door; colour video of the fuel tanks at night.
Rental and holiday homes
Outside areas only, watched and spoken through from the DMSS app while you are away.
The two cameras in this kit
| HDW3867EM-S-IL-ANZ (×2) | HDW3849H-AS-PV-ANZ-S2 (×2) | |
|---|---|---|
| Resolution | 8MP, 3840 × 2160 | 8MP, 3840 × 2160 |
| Aperture | F1.4 | F1.0 |
| Colour low light | 0.007 lux | 0.004 lux |
| Lights | IR and warm light to 30 m | IR and warm light to 30 m |
| Siren and strobe | No | Yes, with voice messages |
| Audio | Built-in mic only | Dual mic and speaker, two-way talk |
| View (2.8 mm / 3.6 mm) | 110° / 86° | 106° / 85° |
| microSD | Up to 512 GB | Up to 256 GB |
| Max PoE draw | 9.5 W | 10.1 W |
| Size and weight | 93.6 × Φ106 mm, 0.53 kg | Φ122 × 110.9 mm, 0.75 kg |
Figures from each camera's own Dahua datasheet. Both come with a 2.8 mm or 3.6 mm lens: confirm with us which lenses are in stock. For four dual-light and two TiOC cameras, see the DH-K8084T2TIOC-67; with black TiOC cameras, the DH-K8082T2TIOCB-67.
Common questions
Is this a complete system?
It has four cameras and the recorder that powers and records them. Add Cat6 cable to each camera, a monitor for setting up, and a hard drive if you chose No HDD in the options.
Is a hard drive included?
Only if you choose one. The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder's single SATA bay takes up to 20TB.
Which lenses do the cameras have?
Both models come with a 2.8 mm lens (110° across on the dual-light camera, 106° on the TiOC) or a 3.6 mm lens (86° and 85°, sees detail a little further). Confirm with us which lenses are in stock when you order.
How far do the cameras see at night?
Up to 30 m with IR and up to 30 m with warm light, on all four. In colour the TiOC cameras work down to 0.004 lux at F1.0 and the dual-light cameras to 0.007 lux at F1.4.
What sets off the siren and strobe?
On the two TiOC cameras, a tripwire crossing or an intrusion into a zone you draw, filtered for people, vehicles or both. You choose the light, strobe and sound for each rule, and can disarm them with one tap in DMSS.
Can I talk through the cameras?
Through the two TiOC cameras, yes: each has a dual microphone and a speaker. The two dual-light cameras have a microphone only, so they record sound but cannot talk back.
Can the recorder power all four cameras?
Yes. Dahua's maximum is 10.1 W for each TiOC camera and 9.5 W for each dual-light camera, about 39.2 W for all four, and the recorder supplies up to 78 W across its 8 ports.
Can I add more cameras later?
Yes, four more. The recorder has 8 channels and 8 PoE ports, and this kit uses 4. It also takes ONVIF cameras from other brands.
Can the recorder take every camera at full resolution?
Yes. Dahua rates each camera's stream at up to 16384 kbps (about 16 Mbps), so four cameras need up to about 66 Mbps, inside the recorder's 180 Mbps with AI on. It records cameras up to 16MP.
Does this kit do AcuPick search?
No, not with this recorder. The cameras support AcuPick with a Dahua recorder that offers it, and Dahua lists AcuPick on its NVR5 AI recorders, not on the NVR4108HS-8P-AI/ANZ. This recorder gives Quick Pick, which picks people and vehicles out of the cameras' SMD events so you can find them quickly.
Can I watch it on my phone?
Yes. Connect the recorder to your router, turn on P2P and scan its QR code with Dahua's DMSS app on iPhone or Android for live view, playback, alerts and talk-back.
What warranty does it have?
Dahua gives these 3 Series network cameras and NVR4 recorders a 3-year manufacturer warranty. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].
Supported by InFront Technologies.
Help planning camera positions, the lenses or the drive size: call 1300 736 970 or email [email protected]. The camera and recorder datasheets are on the Attachments tab.
Installation and safety
Low-voltage cameras. The cameras run on PoE from the recorder (up to 10.1 W each) and have no mains connection. The recorder uses its 53 V DC adapter from a normal power point.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Audio and siren. Recording conversations is covered by state and territory surveillance laws, and a siren near homes should respect local noise rules. Check them, and use signage, before you switch the microphones or sirens on.
What it does not do. The dual-light cameras have no speaker or siren; no camera has optical zoom or Wi-Fi; the recorder holds one drive, so there is no RAID mirror.
Placement. Cameras are IP67 for outdoors. The recorder is for indoor use, with space around its vents.
Figures. From Dahua's DH-IPC-HDW3867EM-S-IL-ANZ (Rev 002), DH-IPC-HDW3849H-AS-PV-ANZ-S2 (Rev 002) and DHI-NVR4108HS-8P-AI/ANZ datasheets on the Dahua Australia site.
