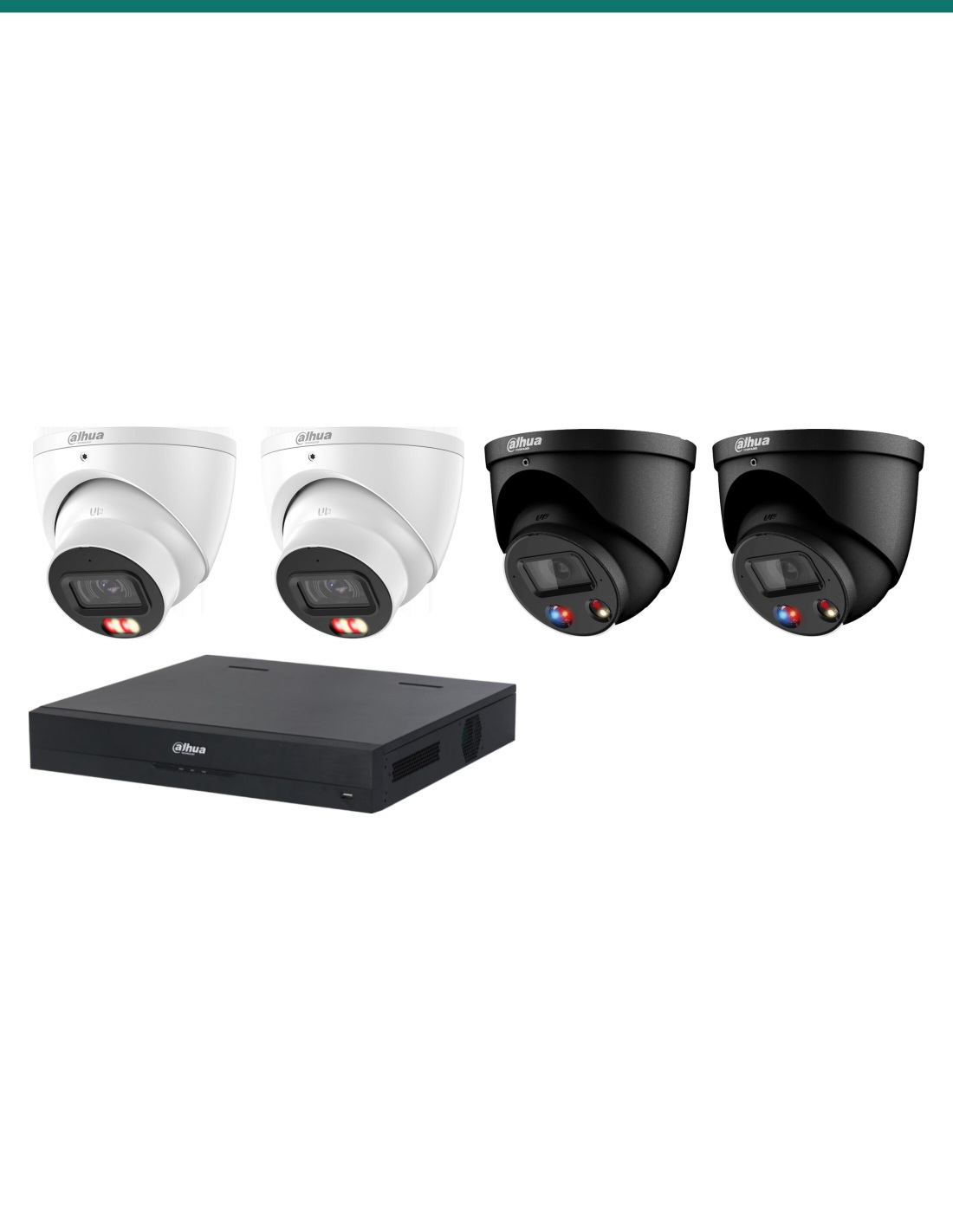

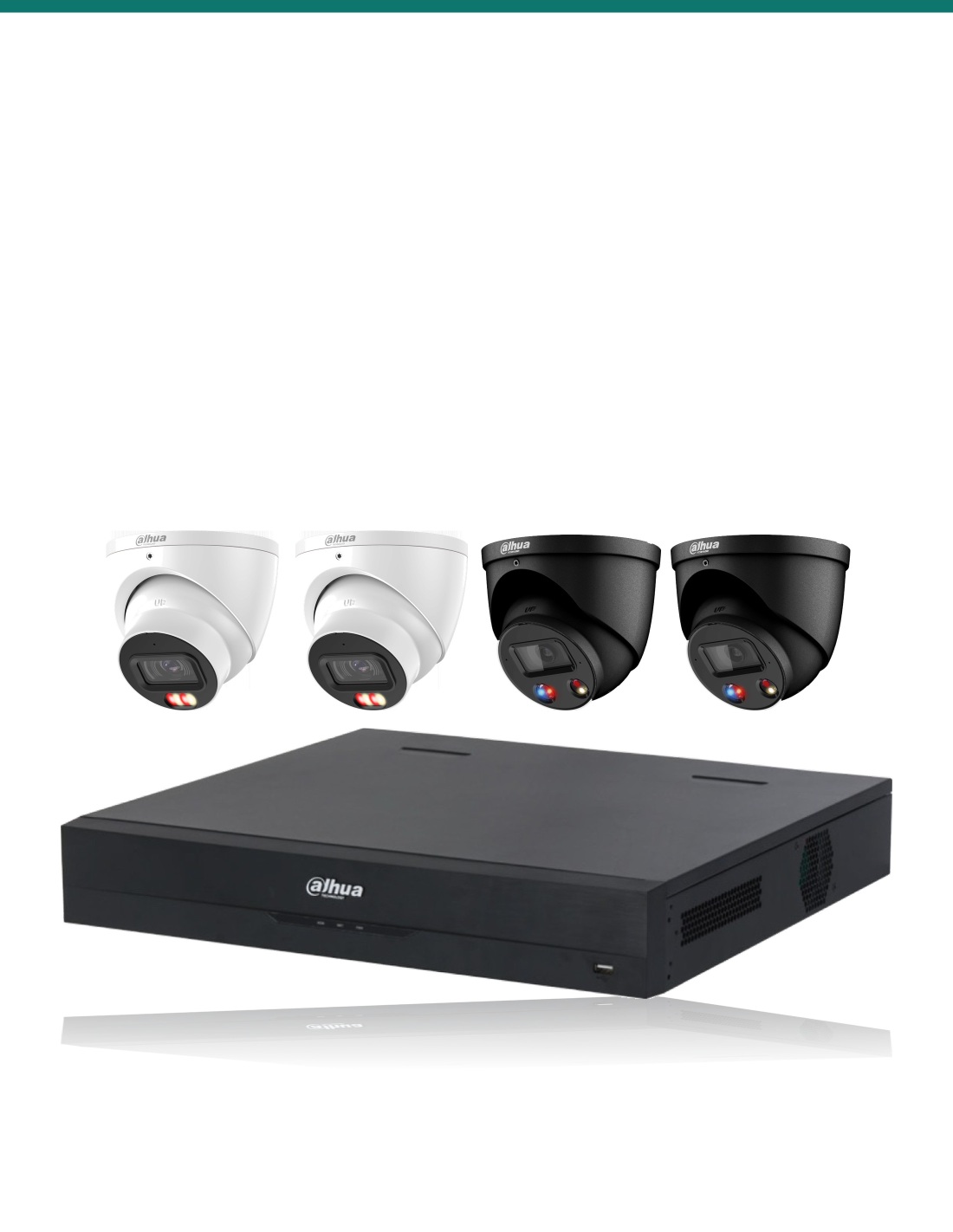

Dahua 8MP Dual Light + Black TiOC 4K Kit — 2× HDW3867EM + 2× HDW3849H-BLK + 8CH NVR — kit layout. Product shot may differ from t

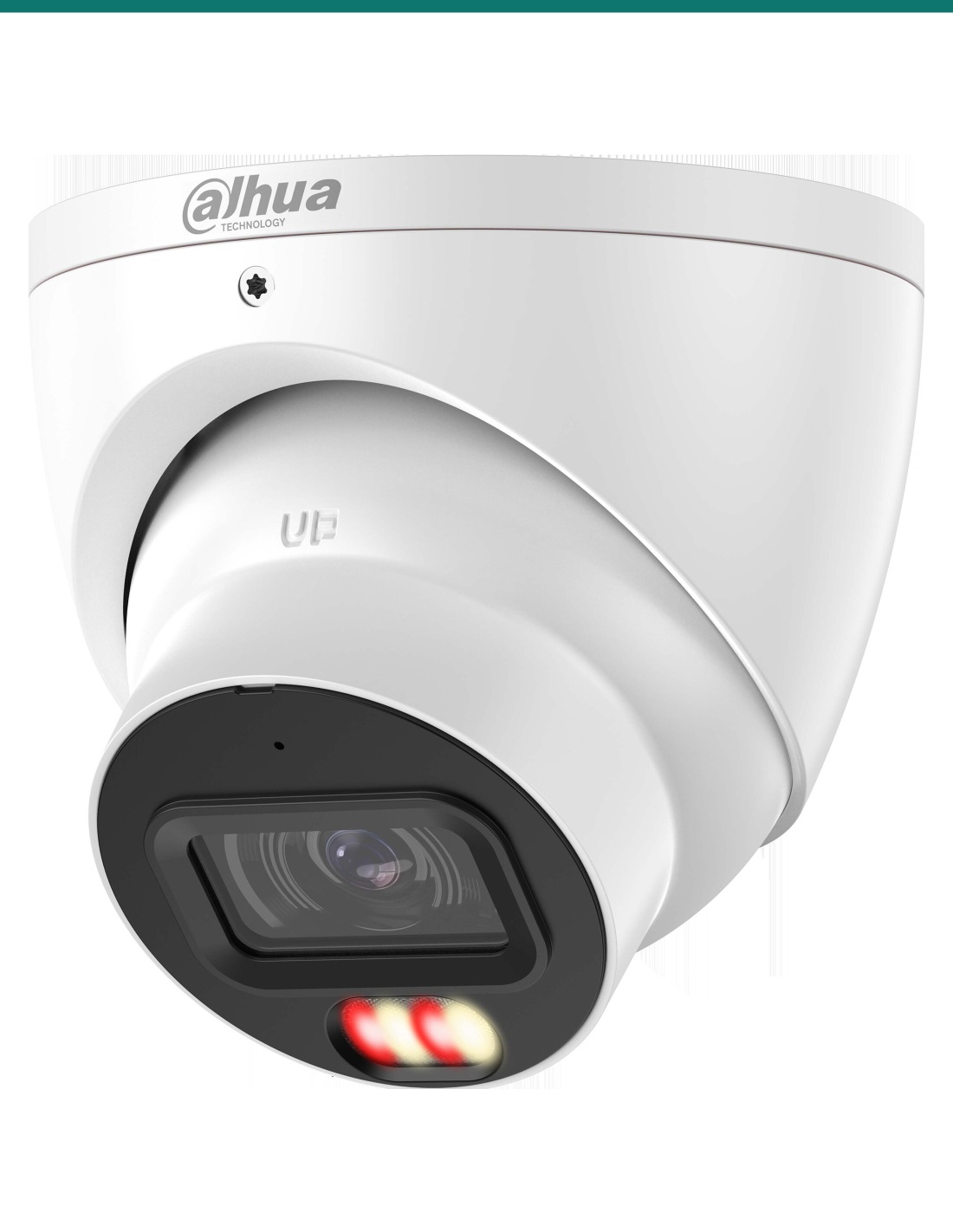

DH-IPC-HDW3867EM-S-IL-ANZ 8MP Smart Dual Light turret. Product shot may differ from the actual product.

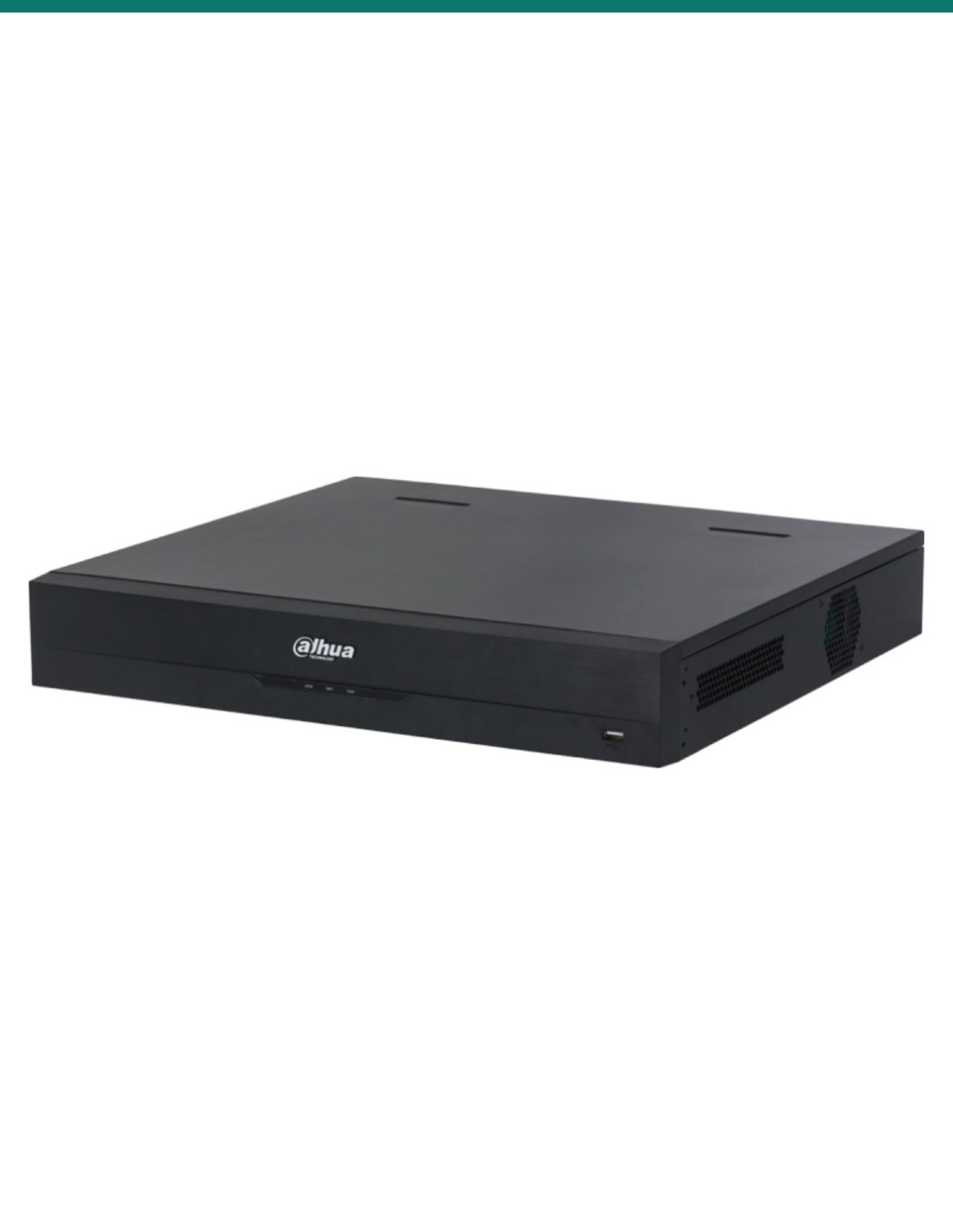

NVR4108HS-8P-AI/ANZ PoE NVR. Product shot may differ from the actual product.

HDW3867EM-S-IL-ANZ under a contemporary eave. Product shot may differ from the actual product.

Dual-light turret watching a driveway at dusk. Product shot may differ from the actual product.

Warm dual light on a garden path at night. Product shot may differ from the actual product.

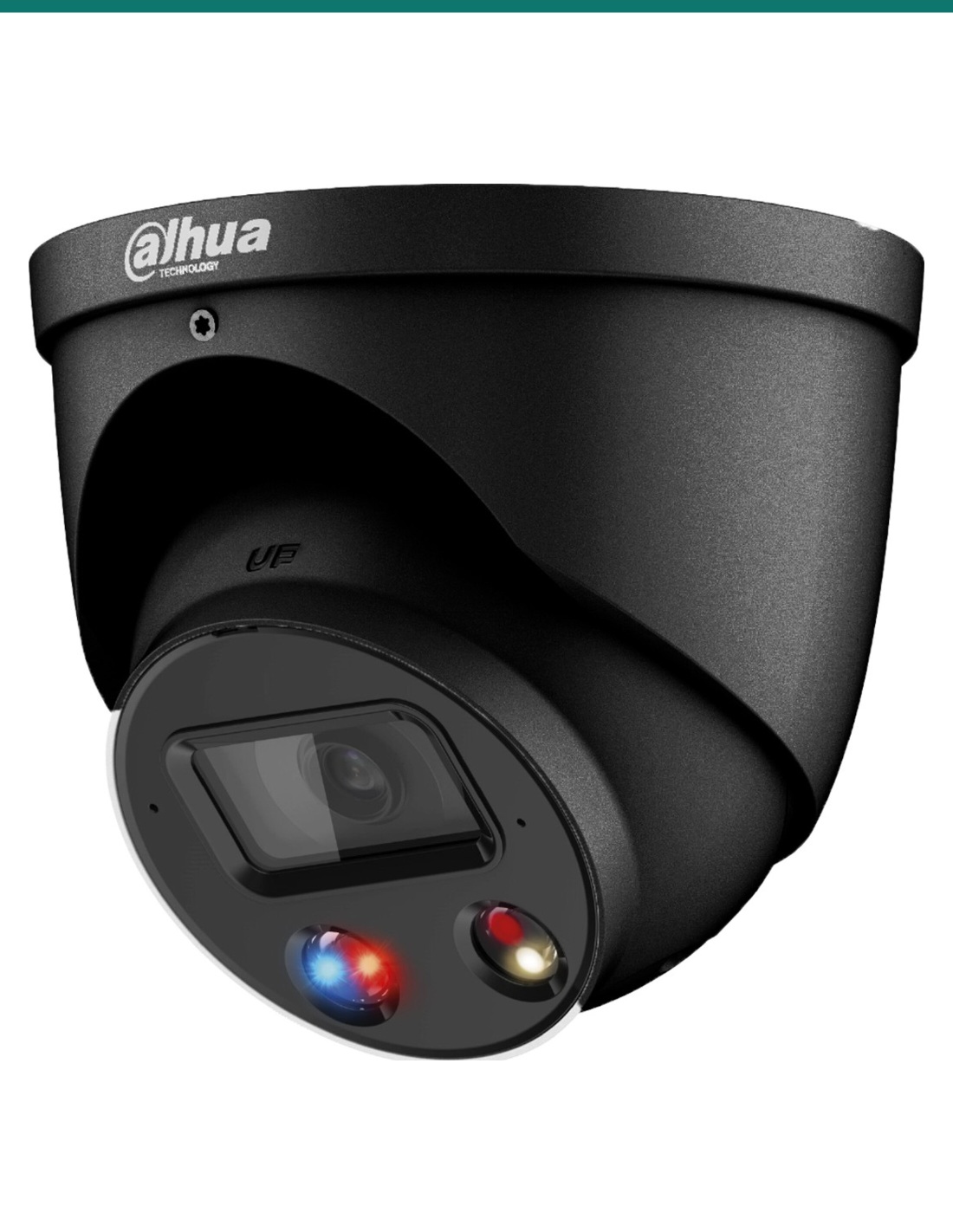

TiOC turret included in this kit. Product shot may differ from the actual product.

Dahua 8MP Dual Light + Black TiOC 4K Kit — 2× HDW3867EM + 2× HDW3849H-BLK + 8CH NVR

Name: Dahua 8MP Dual Light + Black TiOC 4K Kit — 2× HDW3867EM + 2× HDW3849H-BLK + 8CH NVR
Brand: Dahua Australia
SKU: DH-K8082T2TIOCB-67
Price: 1397 AUD
Availability: InStock

Reference: DH-8M8C2T2TIOC-KIT-0T

In Stock - Ready to Ship

$ 1,397.00

inc-GST

A complete 8-channel Dahua 4K kit with 2× HDW3867EM-S-IL-ANZ Smart Dual Light turrets plus 2× TiOC active-deterrence turrets and a PoE WizSense NVR. Infrared until a person or vehicle is confirmed, then warm light for colour evidence.

✓2× 8MP 4K turrets, 2.8 mm, 110° view
✓2× TiOC siren/strobe cameras plus dual-light turrets
✓SMD 4.0 human and vehicle detection
✓8-channel PoE NVR, 4K HDMI, optional HDD

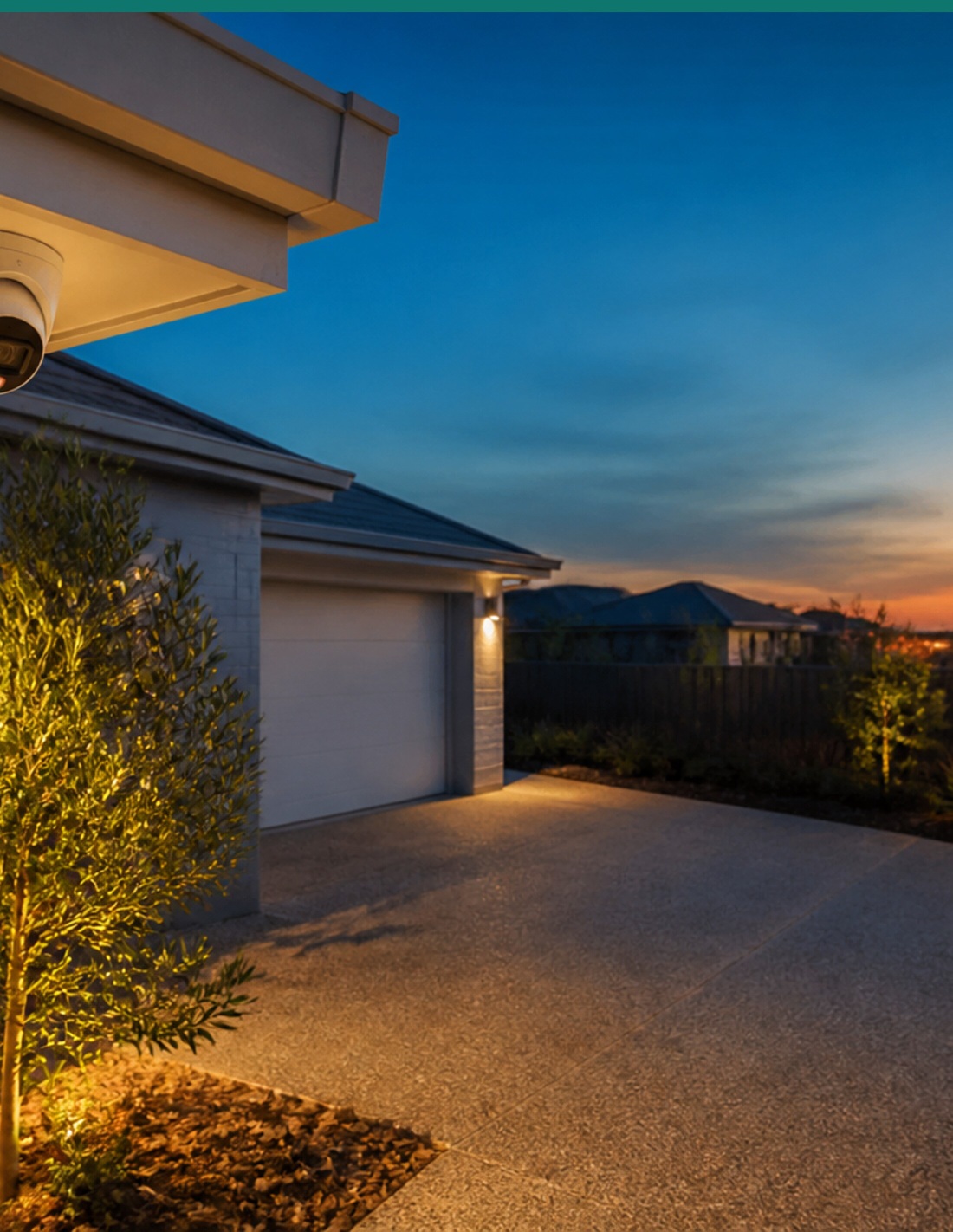

Dahua HDW3867EM-S-IL-ANZ turret on a contemporary Australian home at dusk — DH-K8082T2TIOCB-67

Dahua · WizSense · Smart Dual Light

8 channels. 4 cameras.
Colour when it counts.

2× DH-IPC-HDW3867EM-S-IL-ANZ 8MP turrets and a NVR4108HS-8P-AI/ANZ — the current dual-light replacement for discontinued HDW3866EMP kits.

THIS IS A COMPLETE CAMERA + NVR KIT — HDD IS AN OPTIONAL UPGRADE.

Cameras power from the recorder’s PoE ports. Recording needs a SATA drive: pick a fitted HDD at checkout, or supply your own if you choose No HDD. Cabling and a monitor are not in the carton.

In the box

2× DH-IPC-HDW3867EM-S-IL-ANZ turret cameras (white)
2× DH-IPC-HDW3849H-AS-PV-ANZ-BLK black TiOC turrets
1× NVR4108HS-8P-AI/ANZ PoE NVR (no HDD unless selected)
NVR power lead

What you also need (sold separately)

Cat 5e / Cat 6 cable to each camera
A spare SATA HDD if you keep the No HDD option
A HDMI/VGA monitor for local setup (optional)
ACMA-registered cabler for any concealed runs

Unsure on HDD size or camera count? Contact us before ordering — we will confirm the mix so nothing is missing on install day.

The quiet turret that turns the lights on for evidence.

HDW3866EMP kits used IR-only 8MP turrets. This listing ships the official successor, DH-IPC-HDW3867EM-S-IL-ANZ: 8MP 4K, 2.8 mm F1.4, Smart Dual Light, SMD 4.0 and a built-in mic, in an IP67 metal eyeball.

The recorder still has 4 spare PoE channels if you add cameras later. Two of the cameras in this kit are TiOC turrets with red/blue strobe, siren and two-way talk for the door or driveway; the others are the quieter dual-light 3867 for general coverage.

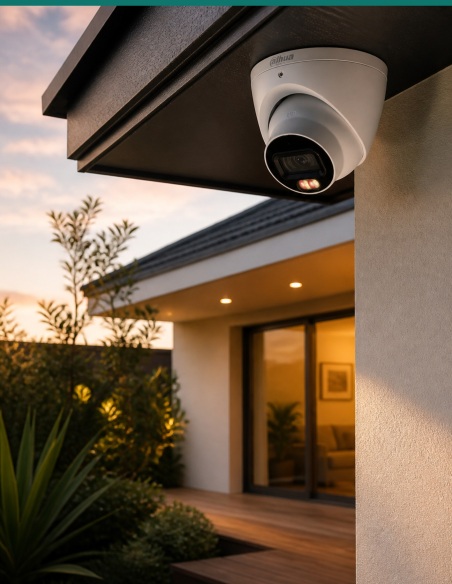

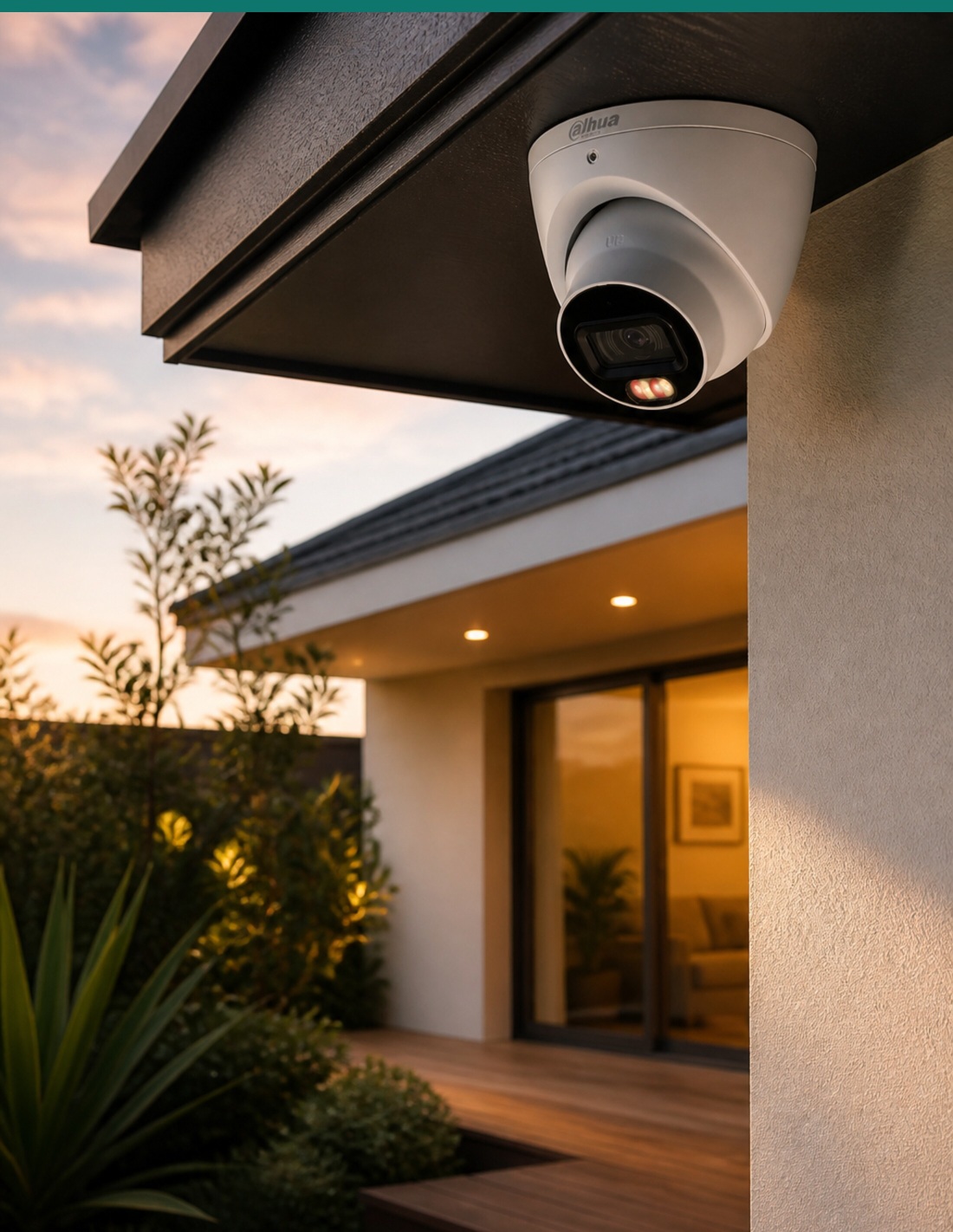

HDW3867EM-S-IL-ANZ mounted under a modern eave — Product shot may differ from the actual product.

Clarity · 01

8MP 4K from a 1/2.7″ sensor, not a guess.

Dahua’s datasheet rates 3840×2160 at 25/30 fps, 0.007 lux colour @ F1.4, and 120 dB WDR. The 2.8 mm lens is 110° horizontal — a wide eave view without a varifocal.

DORI on 2.8 mm: detect 84.8 m, observe 33.9 m, recognise 17.0 m, identify 8.5 m (EN-62676-4 table on the datasheet — not an intelligent-function distance).

Night · 02

IR until a target is real. Warm light for colour.

Smart Dual Light uses a multi-core IR + warm module: 30 m each. The scene stays infrared until SMD 4.0 classifies a person or vehicle, then warm light so clothing and vehicles are in colour.

You can also set SMD areas that coincide with the warm-light zone so nuisance motion in the dark does not dump white light across the yard.

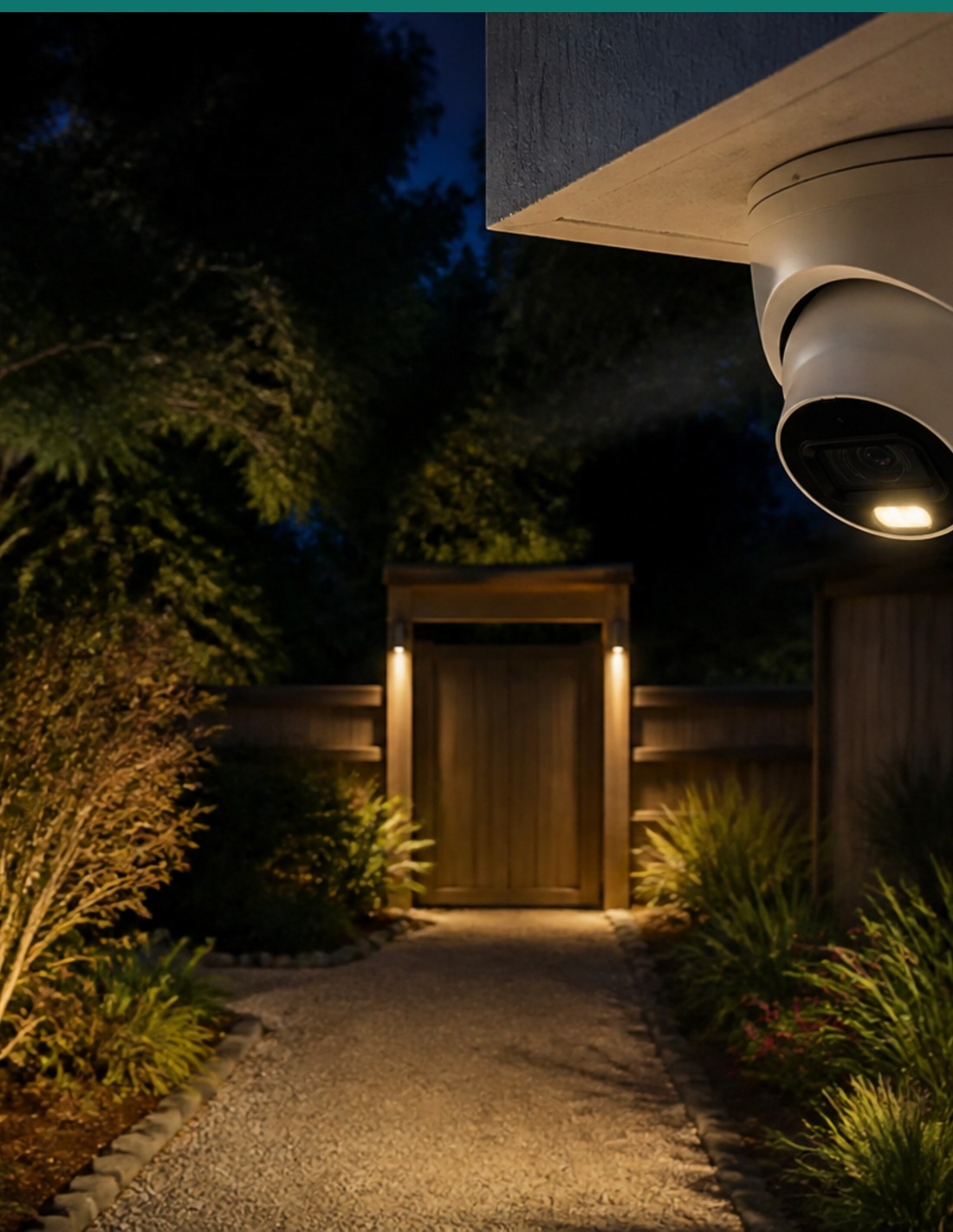

Warm dual-light illumination on a garden path at night — Product shot may differ from the actual product.

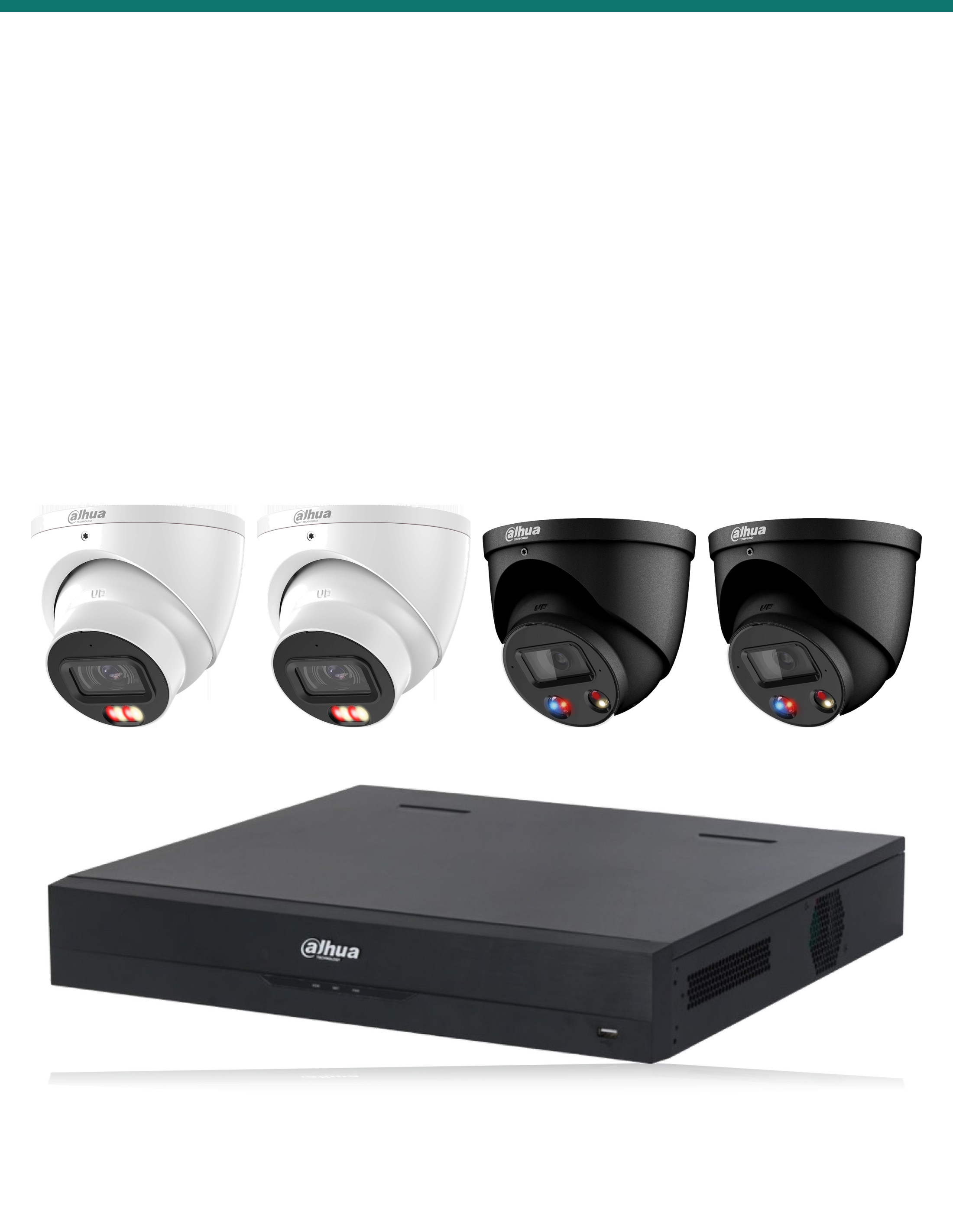

DH-K8082T2TIOCB-67 kit layout — 2 dual-light turrets and NVR4108HS-8P-AI/ANZ — Product shot may differ from the actual product.

Recorder · 03

PoE in the recorder. 4K on the HDMI.

This kit is built around the NVR4108HS-8P-AI/ANZ — 8 IP channels, 8 PoE ports, 4K HDMI, WizSense AI. Cameras land on the back-panel PoE ports; no separate midspan for the included turrets.

View on a local monitor or in DMSS. H.265 on the cameras keeps 8MP streams lighter on the disk you choose at checkout.

How it works

Four steps from carton to live view.

Mount the turrets

Fix each IP67 turret under an eave or to a wall. 3-axis adjustment; “UP” mark on the housing.

One cable per camera

Run Cat 5e/6 into a PoE port on the NVR. The recorder powers the camera (802.3af).

Fit a drive if needed

If you did not buy a fitted HDD, install a surveillance SATA disk in the NVR before first recording.

View on DMSS or HDMI

Add the NVR in DMSS, or connect HDMI for a local 4K monitor. SMD events classify people and vehicles.

At a glance

Verified kit facts

Kit reference: DH-K8082T2TIOCB-67
Cameras: 2× DH-IPC-HDW3867EM-S-IL-ANZ (2.8 mm turret)
Camera sensor: 8MP 1/2.7″ CMOS, 3840×2160 @ 25/30 fps
Lens / FOV: 2.8 mm F1.4 · 110° H / 58° V / 132° D
Illumination: Smart Dual Light · 30 m IR + 30 m warm light
AI (camera): SMD 4.0, tripwire & intrusion with human/vehicle class, AI SSA, AcuPick-ready
Audio: Built-in microphone (one-way). No speaker on the 3867 turret.
Camera power: PoE 802.3af or 12 VDC · max 9.5 W PoE
Camera rating: IP67 metal · −40 °C to +60 °C
Camera size / weight: 105.5 mm × Φ122 mm · 0.53 kg net
NVR: NVR4108HS-8P-AI/ANZ
PoE ports: 8 PoE · 8 IP channels
Local view: HDMI 4K + VGA
HDD: 1× SATA · choose capacity at checkout (or No HDD)
App: DMSS (iOS / Android) · Smart PSS Lite
Warranty: Australian warranty via Infront Technologies
TiOC cameras: 2× HDW3849H-AS-PV-ANZ-BLK (siren, strobe, two-way talk)

Camera figures from Dahua IPC-HDW3867EM-S-IL-ANZ datasheet. NVR class from the matching DHI-NVR4108HS-8P-AI/ANZ listing. Product shot may differ from the actual product.

Pair it with

Same family, extra coverage

Cameras

DH-IPC-HDW3867EM-S-IL-ANZ

Add a spare dual-light turret on an unused PoE port — same 8MP, 2.8 mm, IP67 family.

Recorder

NVR4108HS-8P-AI/ANZ

8 IP channels, onboard PoE, 4K HDMI. This kit already includes one.

App

DMSS

Live view, playback and push events on iOS and Android — no extra licence from Infront.

Mounts

PFA139 / PFB204W / PFA152-E

Optional junction, wall and pole mounts listed on the Dahua camera datasheet. Sold separately.

Common questions

Before you order

Is this a complete working system?

You receive the cameras and the PoE NVR. Plug cameras into the NVR PoE ports, add a SATA HDD if you did not select one at checkout, and view on a monitor or the DMSS app. Cabling, a spare drive and a monitor are sold separately.

What replaced the HDW3866EMP-S-AUS?

Dahua superseded that IR turret with the DH-IPC-HDW3867EM-S-IL-ANZ — same 8MP 2.8 mm turret class, plus Smart Dual Light (IR + warm light to 30 m), SMD 4.0, AI SSA and AcuPick-ready search on a compatible NVR.

Does the 3867 turret have a speaker?

No. It has a built-in microphone only. Two-way talk and a siren/strobe sit on the TiOC cameras in mixed kits, not on the 3867.

Do I need a special NVR for AcuPick?

SMD 4.0, tripwire and intrusion run on the camera. AcuPick target search needs a compatible Dahua AI NVR in the chain — this kit’s WizSense AI recorder is the matching recorder we ship with it. Confirm current firmware compatibility on the latest Dahua datasheet if you already own a different NVR.

What HDD should I choose?

Use a surveillance-rated SATA drive. Capacity depends on how many 8MP streams you keep and for how many days. The No HDD option ships the recorder empty so you can fit your own drive; 2 TB / 4 TB / 8 TB / 10 TB are offered as fitted upgrades on this listing.

Can I mix black and white cameras later?

Yes on the same NVR. This listing ships the colours shown in the kit contents. Extra HDW3867EM-S-IL-ANZ turrets are sold separately if you use a spare PoE port.

Is it rated for Australian weather?

The turret is IP67 metal, −40 °C to +60 °C, with 30 m IR and warm light. The NVR is an indoor desktop/rack appliance — keep it in a dry, ventilated cupboard or rack, not in the weather.

Do the cameras need a 240 V electrician?

The cameras are PoE SELV from the NVR. The NVR itself plugs into a standard 10 A GPO. Concealed Cat 6 is customer cabling (AS/CA S009) and needs an ACMA-registered cabler.

Genuine Dahua, specified for this site.

Shipped Australia-wide by Infront Technologies. Local support from a team that designs, installs and maintains professional CCTV every day.

Installation & safety notice

Mixed-voltage kit. The HDW3867EM-S-IL-ANZ cameras are low-voltage (SELV) PoE 802.3af / 12 VDC devices — no 240 V inside the turret. The NVR is a mains-powered desktop/rack appliance that plugs into a standard 10 A GPO via its IEC lead. No electrician is required to power the NVR from an existing outlet.

When a licensed tradesperson is required. Concealed Cat-6 is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. A new GPO, rack-side mains work or a lock power supply is the licensed electrician’s job.

Specifications in good faith. Specs, images, firmware and bundled accessories may change without notice; verify against the latest manufacturer datasheet. Product appearance and packaging may differ from marketing imagery.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling or third-party integration will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer’s specifications.
