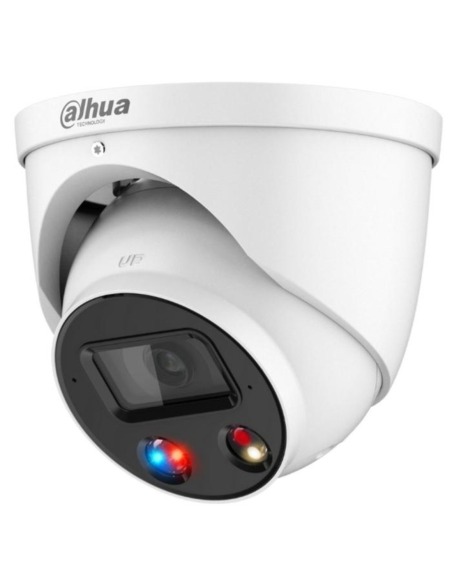

Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC turret, front. Product shot may differ from the actual product.

Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC turret, three-quarter view. Product shot may differ from the actual product.

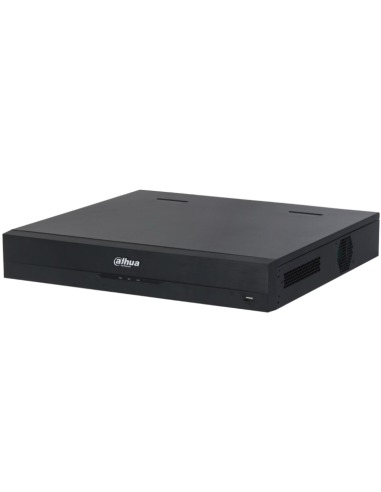

Dahua NVR4216-16P-AI/ANZ PoE NVR, front. Product shot may differ from the actual product.

1 / 4

Dahua 6MP TiOC Kit — 10× HDW3649H-AS-PV-ANZ-S2 + 16CH NVR4216-16P-AI/ANZ

Name: Dahua 6MP TiOC Kit — 10× HDW3649H-AS-PV-ANZ-S2 + 16CH NVR4216-16P-AI/ANZ
Brand: Dahua Australia
SKU: DH-K61610TIOC
Price: 3299 AUD
Availability: InStock

SKU DH-K61610TIOC-0T In Stock - Ready to Ship

$3,299.00 inc GST

A complete 16-channel Dahua kit with 10× HDW3649H-AS-PV-ANZ-S2 6MP TiOC turrets and a PoE WizSense NVR. Colour at night, and a siren and red/blue strobe that tell intruders they have been seen.

✓10× 6MP TiOC turrets, 2.8 mm F1.0 lens
✓30 m IR + 30 m warm light, siren and red/blue strobe
✓Two-way talk, SMD 4.0 human and vehicle detection
✓16-channel PoE NVR, 4K HDMI, optional HDD

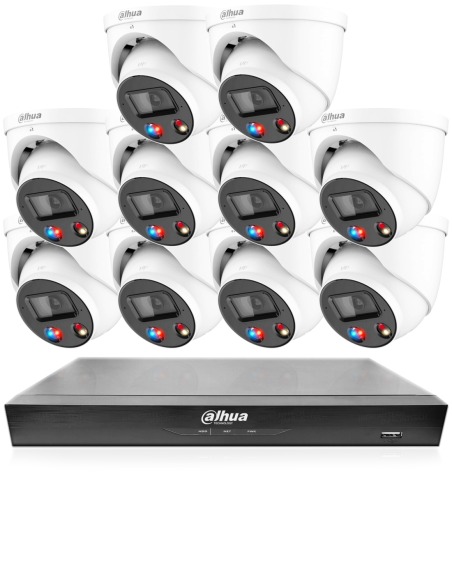

DH-K61610TIOC kit contents — 10× HDW3649H-AS-PV-ANZ-S2 and NVR4216-16P-AI/ANZ, shown at true relative size. Product shot may differ from the actual product.

Dahua · WizSense · TiOC

16 channels. 10 cameras.
Seen, heard and recorded in colour.

10× DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP TiOC turrets and an NVR4216-16P-AI/ANZ — the current -S2 version of Dahua’s TiOC turret.

THIS IS A COMPLETE CAMERA + NVR KIT — HDD IS AN OPTIONAL UPGRADE.

Cameras power from the recorder’s PoE ports. Recording needs a SATA drive: pick a fitted HDD at checkout, or supply your own if you choose No HDD. Cabling and a monitor are not in the carton.

In the box

10× DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC turrets (white)
1× DHI-NVR4216-16P-AI/ANZ PoE NVR (no HDD unless selected)
NVR power lead

What you also need (sold separately)

Cat 5e / Cat 6 cable to each camera
A SATA surveillance HDD if you keep the No HDD option
A HDMI/VGA monitor for local setup (optional)
ACMA-registered cabler for any concealed runs

Unsure on HDD size or camera count? Contact us before ordering — we will confirm the mix so nothing is missing on install day.

The current TiOC turret, not last year’s.

Dahua has moved the HDW3649H-AS-PV-ANZ to its discontinued list. This kit ships the DH-IPC-HDW3649H-AS-PV-ANZ-S2: 6MP (3072 × 2048), a brighter F1.0 lens, IR and warm light (30 m each), a siren and red/blue strobe, and two-way talk through the built-in dual mic and speaker.

The recorder still has 6 spare PoE channels if you add cameras later.

Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 turret — Product shot may differ from the actual product.

TiOC · 6MP

Colour at night. A siren when it matters.

DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP 3072 × 2048 from a 1/2.7″ CMOS sensor behind a 2.8 mm F1.0 lens (97° H / 70° V / 128° D). Dahua rates it at 0.003 lux colour @ F1.0.

Smart Dual Illumination: IR and warm light, 30 m each. When SMD 4.0 confirms a person or vehicle, the camera can switch to warm light for colour, sound its siren and flash red and blue — or let you talk to the visitor through the built-in speaker. Arm and disarm the deterrence with one tap in DMSS.

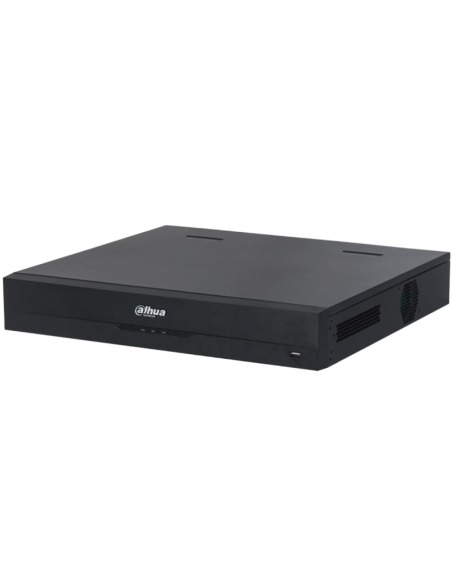

Dahua NVR4216-16P-AI/ANZ PoE NVR — Product shot may differ from the actual product.

Recorder

PoE in the recorder. 4K on the HDMI.

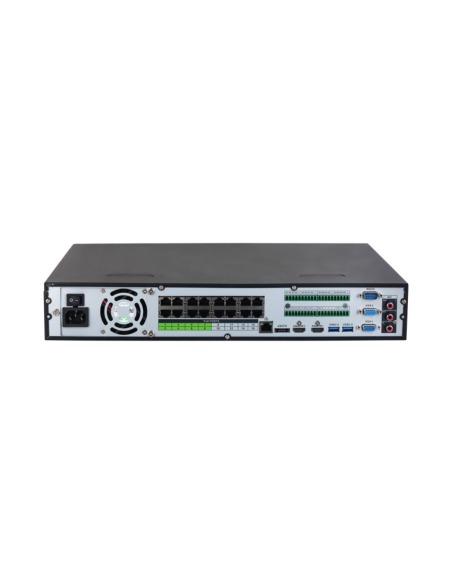

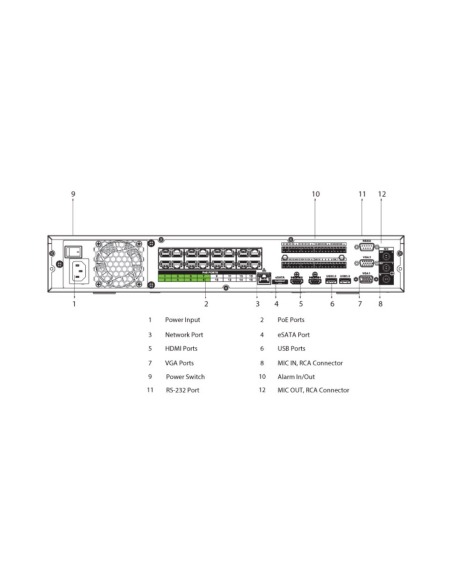

This kit is built around the DHI-NVR4216-16P-AI/ANZ — 16 IP channels, 16 PoE ports, 4K HDMI and VGA, 2× SATA (up to 20 TB), WizSense AI with Quick Pick people/vehicle search. Cameras plug straight into the back-panel PoE ports.

View on a local monitor or in DMSS on iOS and Android. H.265 keeps the camera streams light on the drive you choose at checkout. AcuPick attribute search needs a Dahua NVR5-series recorder — the cameras support it if you upgrade later.

How it works

Four steps from carton to live view.

Mount the turrets

Fix each IP67 turret under an eave or to a wall. 3-axis adjustment; “UP” mark on the housing.

One cable per camera

Run Cat 5e/6 into a PoE port on the NVR. The recorder powers the camera.

Fit a drive if needed

If you did not buy a fitted HDD, install a surveillance SATA disk in the NVR before first recording.

View on DMSS or HDMI

Add the NVR in DMSS, or connect HDMI for a local 4K monitor. SMD events classify people and vehicles.

At a glance

Verified kit facts

Kit reference: DH-K61610TIOC
Cameras: 10× DH-IPC-HDW3649H-AS-PV-ANZ-S2 (2.8 mm turret)
Camera sensor: 6MP 1/2.7″ CMOS, 3072×2048 @ 25/30 fps
Lens / FOV: 2.8 mm F1.0 · 97° H / 70° V / 128° D
Illumination: Smart Dual Illumination, 30 m IR + 30 m warm light
Active deterrence: Siren + red/blue strobe, one-tap arm/disarm
Audio: Built-in dual mic + speaker, two-way talk
Camera power: PoE or 12 VDC, max 8.8 W on PoE
Camera size / weight: Φ122 × 110.9 mm, 0.75 kg
AI (camera): SMD 4.0, tripwire & intrusion (human/vehicle), AI SSA; AcuPick-capable with NVR5+
Camera rating: IP67 metal · −40 °C to +60 °C
NVR: DHI-NVR4216-16P-AI/ANZ
PoE ports: 16 PoE · 10 used / 6 spare
Local view: HDMI 4K + VGA
HDD: 2× SATA (up to 20 TB) · choose a fitted drive at checkout (or No HDD)
App: DMSS (iOS / Android) · Smart PSS Lite
Warranty: Australian warranty via Infront Technologies

Camera figures from the Dahua HDW3649H-AS-PV-ANZ-S2 datasheet; recorder figures from the Dahua NVR4216-16P-AI/ANZ datasheet. Product shot may differ from the actual product.

Common questions

Before you order

Is this a complete working system?

You receive the cameras and the PoE NVR. Plug the cameras into the NVR’s PoE ports, add a SATA drive if you did not select one at checkout, and view on a monitor or the DMSS app. Cabling, a spare drive and a monitor are sold separately.

What changed from the earlier version of this kit?

Dahua replaced the HDW3649H-AS-PV-ANZ with the DH-IPC-HDW3649H-AS-PV-ANZ-S2. Same TiOC turret family and 2.8 mm view, now with IR as well as warm light, an F1.0 lens and dual microphones. The kit reference stays the same.

How does the siren and strobe work?

When SMD 4.0 confirms a person or vehicle in the zone you draw, the TiOC camera can sound its siren, flash red and blue, switch on its warm light, and send a push alert to DMSS. You can talk to the visitor through the camera speaker, and switch the deterrence on or off for set times (or with one tap) so it doesn’t fire while you are home.

Does this kit support AcuPick search?

Not AcuPick out of the box. The cameras are AcuPick-capable, but AcuPick attribute search needs a Dahua NVR5-series recorder. This kit ships a WizSense NVR4-class recorder with Quick Pick, which still jumps straight to people and vehicle events.

What HDD should I choose?

A hard drive is required for recording — the No HDD option ships the recorder empty. Use a surveillance-rated SATA drive. As a rough guide for 10× continuous 6MP streams: 4 TB ≈ about 1 week, 8 TB ≈ about 2.1 weeks, 10 TB ≈ about 2.7 weeks (bitrate and scene activity vary — treat it as an estimate, not a guarantee). Motion-only recording stretches any drive several times further.

Can I add more cameras later?

Yes — this kit leaves 6 spare PoE ports on the NVR4216-16P-AI/ANZ. Extra cameras are sold separately and plug into those ports.

Is it rated for Australian weather?

The turrets are IP67 metal, −40 °C to +60 °C. The NVR is an indoor appliance — keep it in a dry, ventilated cupboard or rack.

Do the cameras need a 240 V electrician?

The cameras are PoE SELV devices powered by the NVR. The NVR plugs into a standard 10 A GPO. Concealed Cat 6 is customer cabling (AS/CA S009) and needs an ACMA-registered cabler.

Genuine Dahua, specified for this site.

Shipped Australia-wide by Infront Technologies. Local support from a team that designs, installs and maintains professional CCTV every day.

Installation & safety notice

Mixed-voltage kit. The cameras are low-voltage (SELV) PoE / 12 VDC devices — no 240 V inside the turret. The NVR is a mains-powered desktop/rack appliance that plugs into a standard 10 A GPO. No electrician is required to power the NVR from an existing outlet.

When a licensed tradesperson is required. Concealed Cat-6 is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. A new GPO or rack-side mains work is the licensed electrician’s job.

Specifications in good faith. Specs, images, firmware and bundled accessories may change without notice; verify against the latest manufacturer datasheet. Product appearance and packaging may differ from marketing imagery.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer’s specifications.

Audio: Two-way talk (built-in mic + speaker)
Resolution: 6MP (3072 × 2048)
Brand: Dahua
Lens: 2.8 mm fixed, F1.0
HDD: 2× SATA (up to 20 TB) (optional fitted drive at checkout)
AI: SMD 4.0, tripwire, intrusion, AI SSA; AcuPick-capable (needs NVR5+)
Sensor: 1/2.7″ CMOS
Camera Model: 10× DH-IPC-HDW3649H-AS-PV-ANZ-S2
Field of View: 97° H / 70° V / 128° D (2.8 mm)
Channels: 16 IP / 16 PoE
Active Deterrence: Siren + red/blue strobe (TiOC)
How many Camera Cables are included?: This Kit does NOT include Camera Cables
Warranty: Australian Warranty via Infront Technologies
Camera Count: 10
Kit Type: IP CCTV kit (cameras + PoE NVR)
Night Vision: 30 m IR + 30 m warm light
Camera Protection: IP67
Camera Power: PoE or 12 VDC
NVR: NVR4216-16P-AI/ANZ
Local Display: HDMI 4K + VGA
App: DMSS
Operating Temperature (camera): −40 °C to +60 °C
NVR Search: Quick Pick (NVR4 WizSense); AcuPick on NVR5+
