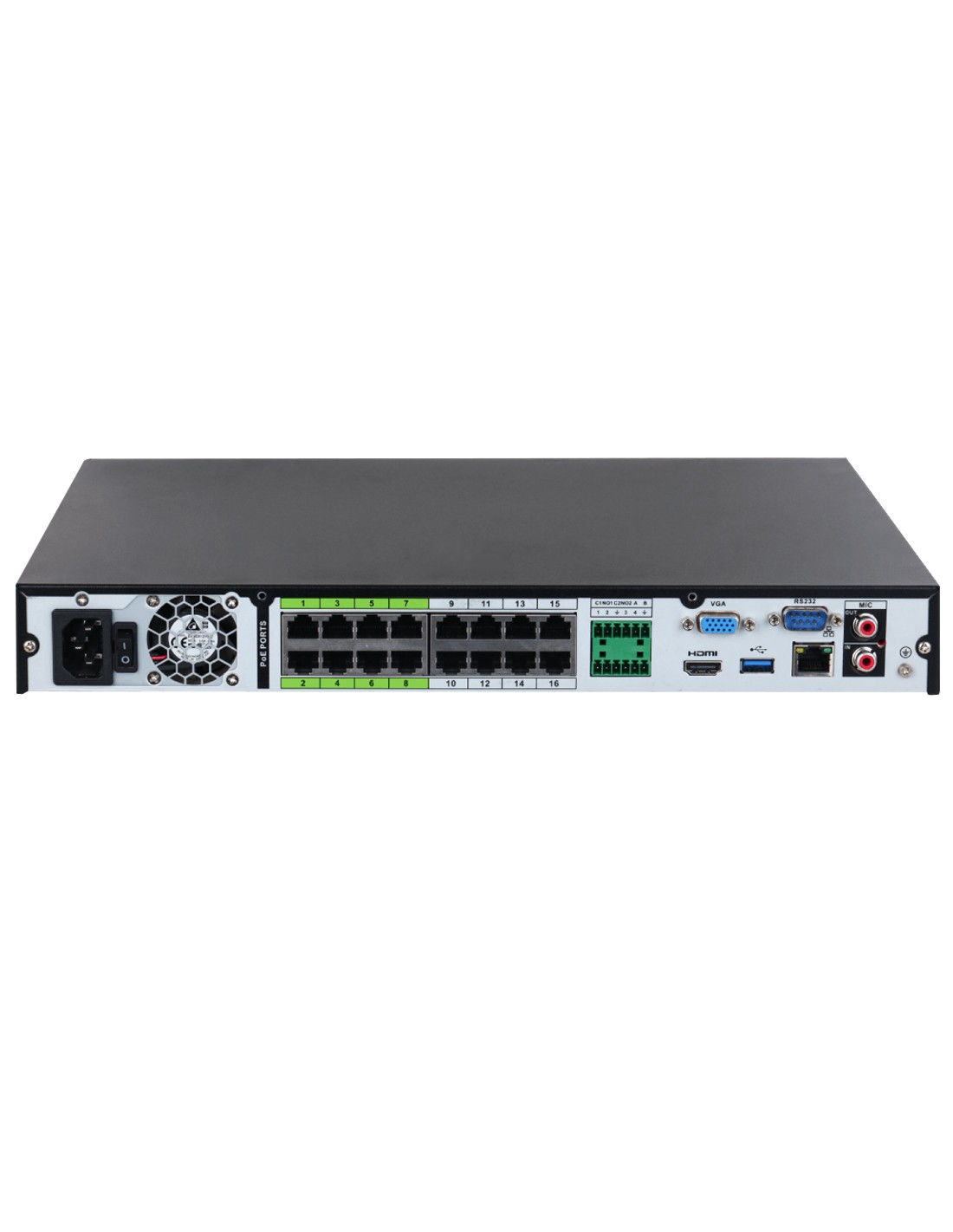

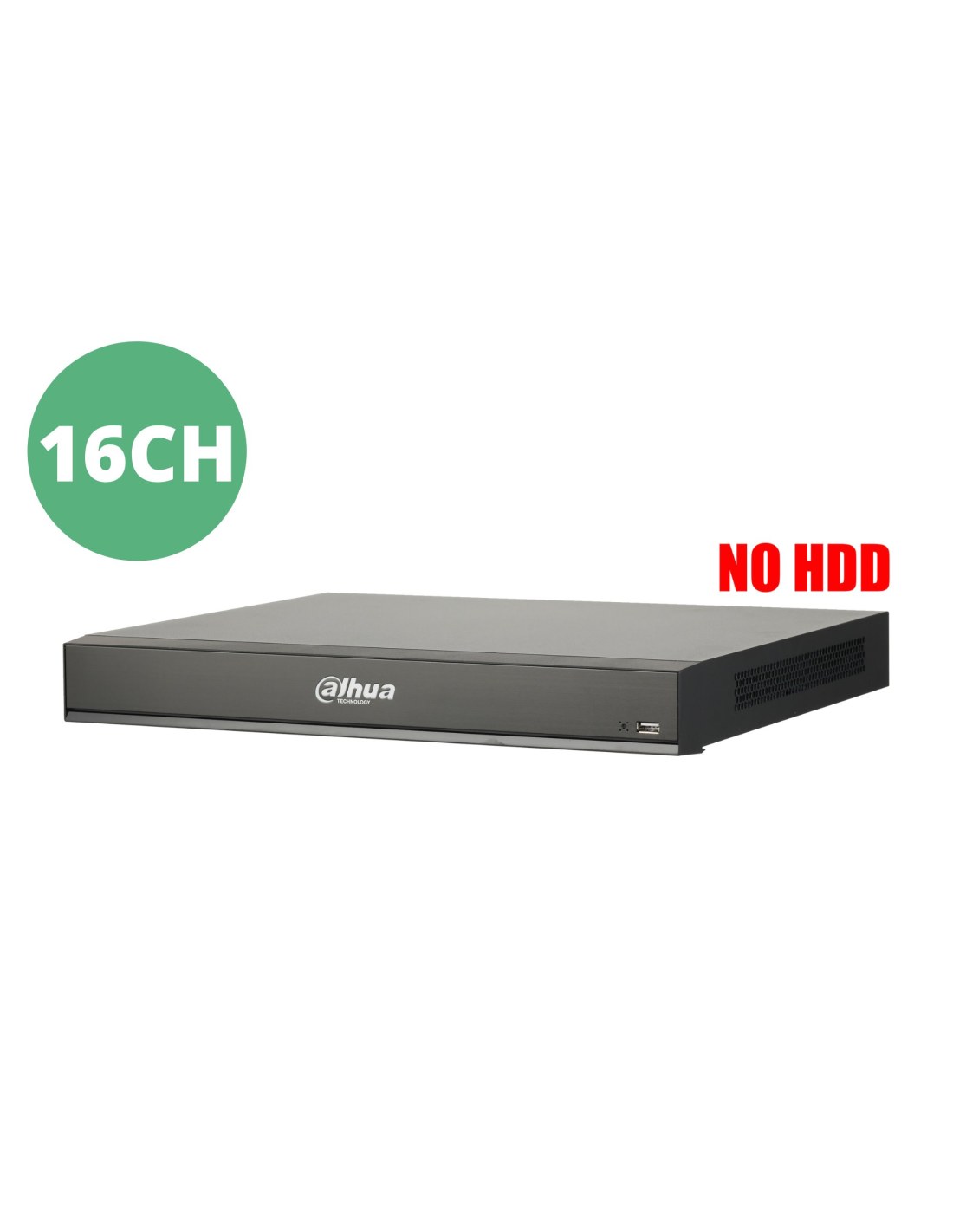

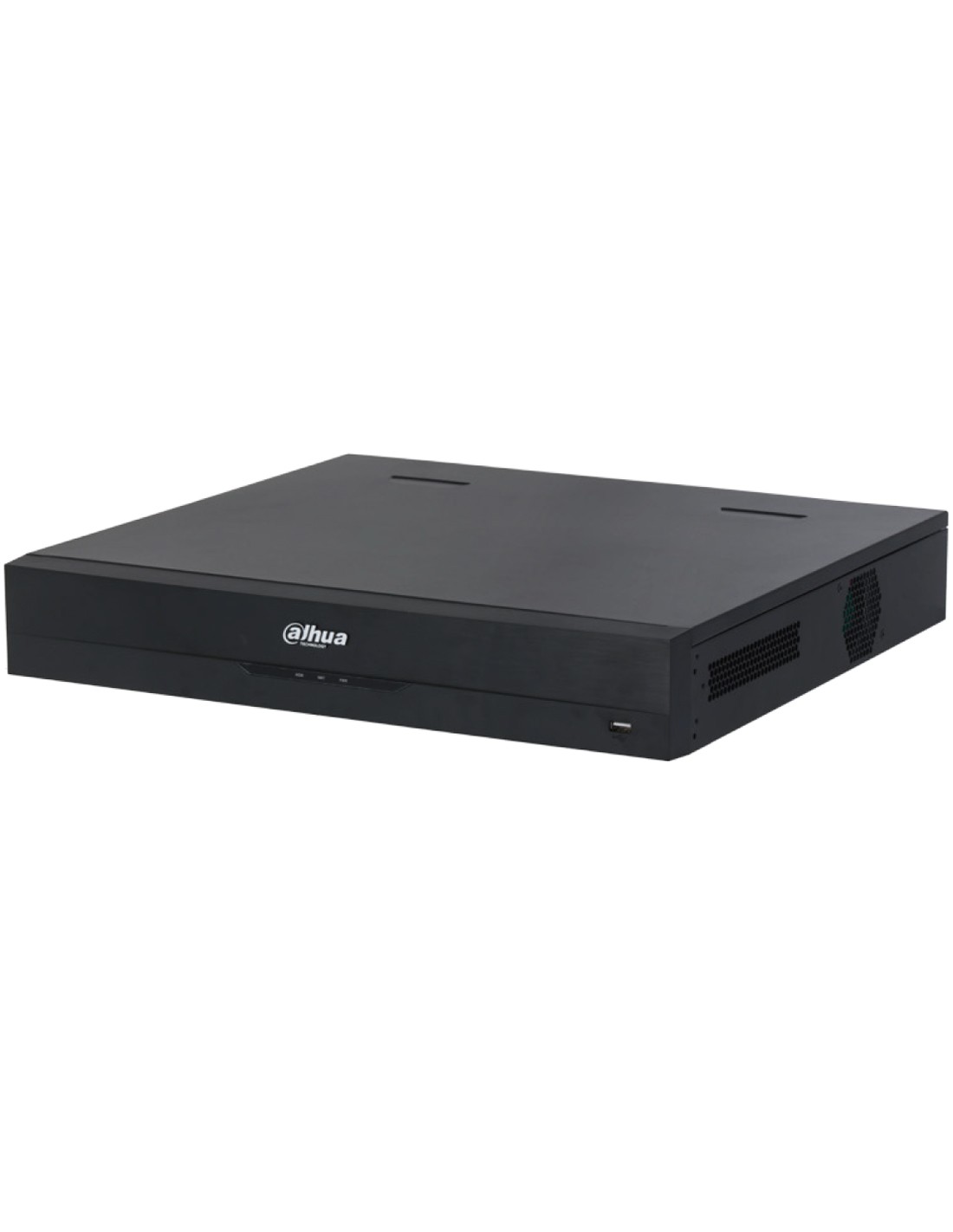

Dahua 16 Channel AI Wizsense Network Video Recorder
DHI-NVR5216-16P-AI/ANZ
The Dahua DHI-NVR5216-16P-AI/ANZ is the most advanced AI technology that provides higher flexibility and accuracy for end-users. As well AI-series offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.
Dahua AI includes network (PTZ) cameras to complete the network video recorders, servers, and platform management products. The power of AI allows devices to perceive the environment and understand the world in a better way.
Features:
Up to 8 Megapixel (4K Ultra HD) Resolution for Preview and Playback
Plug and Play setup with 8 independent PoE network Interfaces
Quad-core embedded processor
HDMI / VGA simultaneous video output
Max 320Mbps Incoming Bandwidth
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Recording, Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
2 SATA III Ports, Up to 8 TB capacity for each HDD
Smart Search
Supports PoE & EoC
16 Channel IP video access
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Up to 16 Channel perimeter protection
Up to 4 Channel video stream face recognition
Up to 24 face pictures /sec processing
Up to 20 face databases with 100,000 face images in total
1-8 PoE Ports support ePoE & EoC
3 years back-to-base manufacturer warranty
Functions:
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables the system to act as secondary recognition for the targets. Improving alarm accuracy.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with those in the face database to recognize the person's identity.
SMD Plus
With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.
Video Metadata
With a deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicles, non-motor vehicles and people, and select the best images, and extract attributes.
ANPR by Camera
With a deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support block/allowlist mode, searching target vehicles from recorded video.
Fisheye Dewarping
Fisheye dewarping solves the problem of distortion in the circular panoramic view. The device offers various dewarping modes for different installations and configurations that enhance the video, in both live or playback modes. Each dewarping mode offers options to adjust each scene.
People Counting by Camera
With a deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of entering No., leaving No., and In Area No. Working with the management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.
Stereo Analysis by Camara
With a deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of entering No., leaving No., and In Area No. Working with the management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.
Technical Specification:
|
System
|
|
Main Processor
|
Multi-core embedded processor
|
|
Operating System
|
Embedded LINUX
|
|
Perimeter Protection
|
|
Performance
|
12 channel, 10 IVS rules for each channel
|
|
Object classification
|
Human/Vehicle secondary recognition for tripwire and intrusion
|
|
AI Search
|
Search by target classification (Human, Vehicle)
|
|
Face Recognition
|
|
Performance
|
Max 16 face pictures/sec processing (modeling and comparing)
|
|
4-channel video stream face recognition/16-channel picture stream face recognition (with FD camera)
|
|
Stranger Mode
|
Detect strangers' faces (not in the device's face database). The similarity threshold can be set manually.
|
|
AI Search
|
Up to 8 target face images search at the same time, similarity threshold can be set for each target face image.
|
|
Database Management
|
Up to 20 face databases with 200,000 face images in total. Name, gender, birthday, nationality, address, and ID information can be added to each face picture.
|
|
Database Application
|
Each database can be applied to video channels independently.
|
|
Trigger Events
|
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
|
|
Metadata
|
|
Face
|
Gender, age, glasses, beard, mouth mask, expression.
|
|
Vehicle
|
Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region.
|
|
Human Body
|
Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella.
|
|
Non-motor Vehicle
|
Type, color, number of passengers, helmet.
|
|
AI Search
|
Support search target video by metadata.
|
|
Audio and Video
|
|
IP Camera Input
|
16 Channel
|
|
Two-way Talk
|
1 Channel Input, 1 Channel Output, RCA
|
|
Display
|
|
Interface
|
1 HDMI, 1 VGA
|
|
Resolution
|
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
|
Decoding Capability
|
4-ch@8MP (30fps), 16-ch@1080P (30fps)
|
|
Multi-screen Display
|
1/4/8/9/16
|
|
Recording
|
|
Bandwidth
|
320 Mbps (160 Mbps when AI function is enabled)
|
|
Compression
|
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
|
|
Resolution
|
24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
|
|
Record Mode
|
Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)
|
|
Record Interval
|
1–120 min (default: 60 min), Pre-record: 1–30 sec, Post-record: 10–300 sec
|
|
Video Detection and Alarm
|
|
Trigger Events
|
Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips
|
|
Video Detection
|
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change
|
|
Alarm input
|
4 Channel
|
|
Relay Output
|
2 Channel
|
|
Playback and Backup
|
|
Sync Playback
|
1/4/9/16
|
|
Search Mode
|
Time/Date, Alarm, MD and Exact Search (accurate to second)
|
|
Backup Mode
|
USB Device/Network
|
|
Third-party Support
|
|
Third-party Support
|
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more
|
|
Network
|
|
Interface
|
1 RJ-45 Port (10/100/1000 Mbps)
|
|
PoE
|
16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
|
|
Network Protocol
|
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
|
|
Max. User Access
|
128 users
|
|
Mobile App
|
iPhone, iPad, Android
|
|
Interoperability
|
ONVIF 2.4, SDK, CGI
|
|
Storage
|
|
Internal HDD
|
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environmental temperature
|
|
eSATA
|
N/A
|
|
Auxiliary Interface
|
|
USB
|
2 USB Ports (1 Rear USB 3.0, 1 Front USB 2.0)
|
|
RS232
|
1 Port, for PC Communication and Keyboard
|
|
RS485
|
1 Port, for PTZ Control
|
|
Electrical
|
|
Power Supply
|
Single, AC100V–240V, 50–60 Hz
|
|
Power Consumption
|
NVR: <15.6W (Without HDD)
|
|
PoE: Max 25.5W for single port
130W total rated power, 80% control for protection
|
|
Fan
|
Smart fan, automatically adjust running speed
|
|
Environmental
|
|
Operating Conditions
|
-10°C to +55°C (+14°F to +131°F), 86–106kpa
|
|
Storage Conditions
|
0°C to +40°C (+32°F to +104°F), 30–85% RH
|
|
Construction
|
|
Dimensions
|
1U, 375.0 mm × 327.4 mm × 53.0 mm (14.76" × 12.89" × 2.09")
|
|
Net Weight
|
2.70 kg (6.0 lb) (without HDD)
|
|
Gross Weight
|
4.00 kg (8.8 lb) (without HDD)
|
|
Certifications
|
|
CE
|
EN55032, EN55024, EN50130-4, EN62368-1
|
|
FCC
|
Part 15 Subpart B, ANSI C63.4-2014
|
