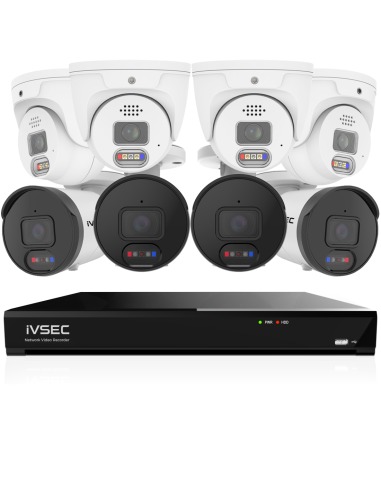

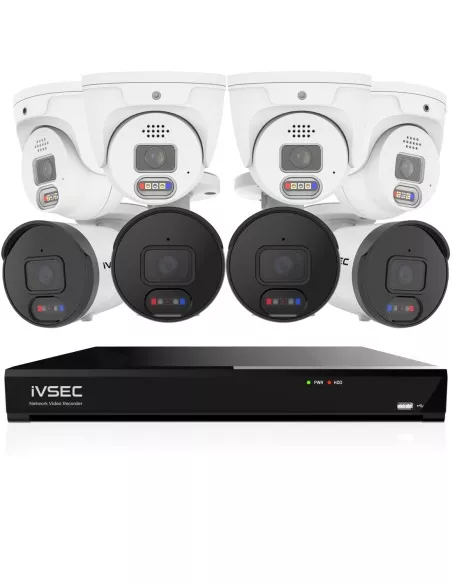

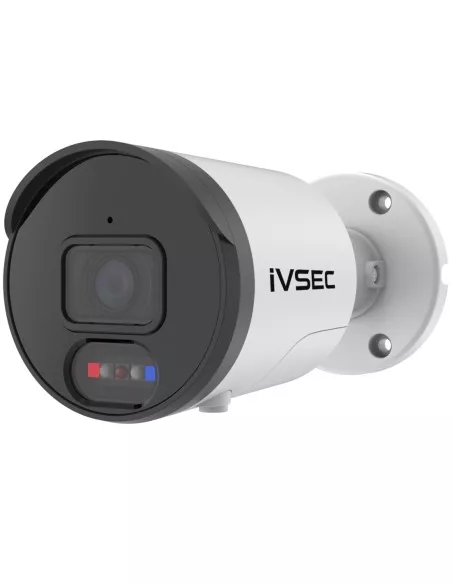

• 4 × IVSEC 1250B 12MP bullet cameras

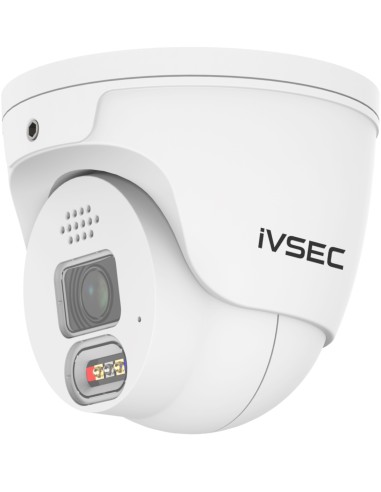

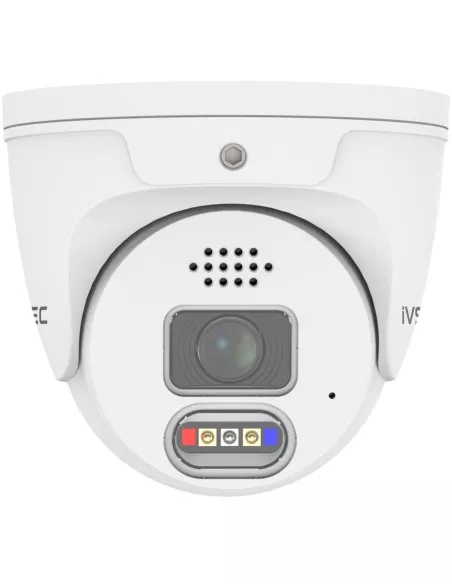

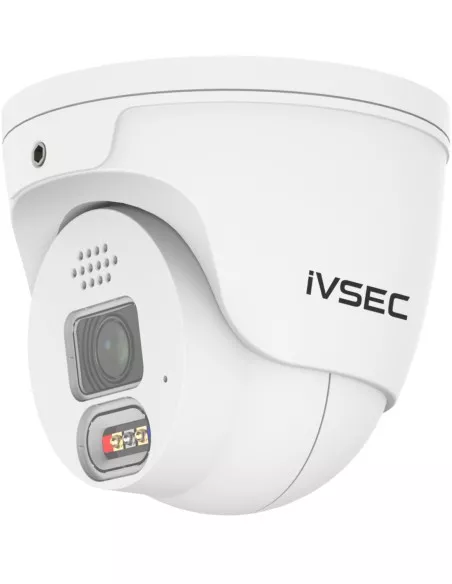

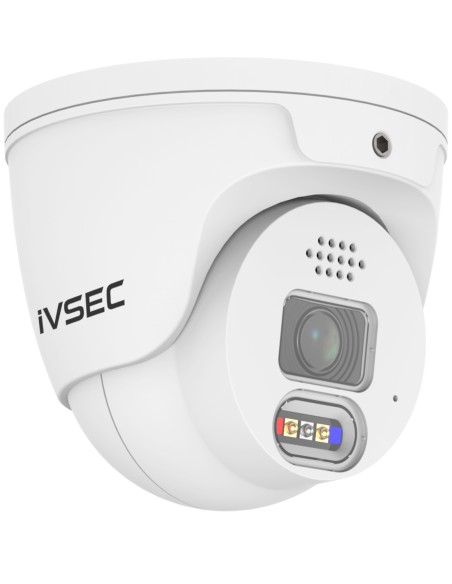

• 4 × IVSEC 1250D 12MP turret dome cameras

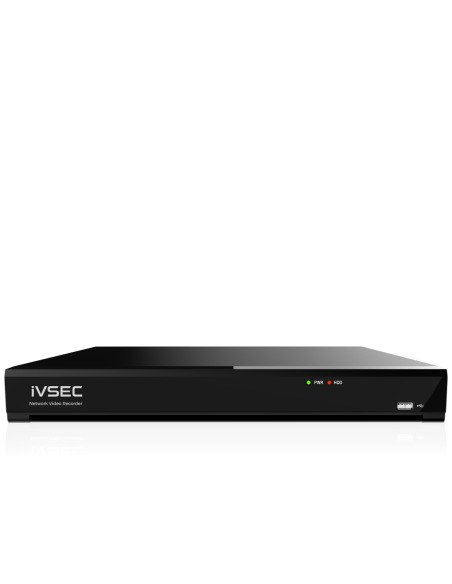

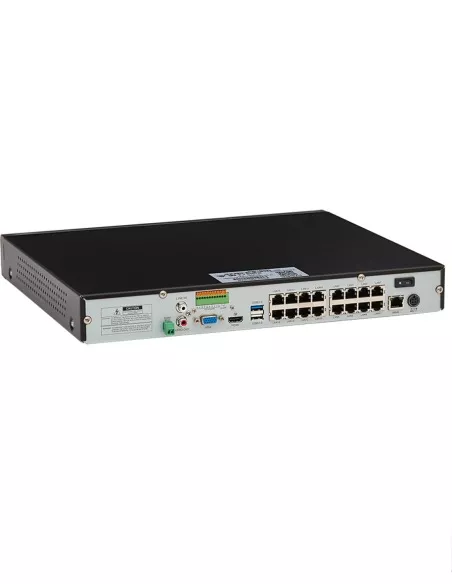

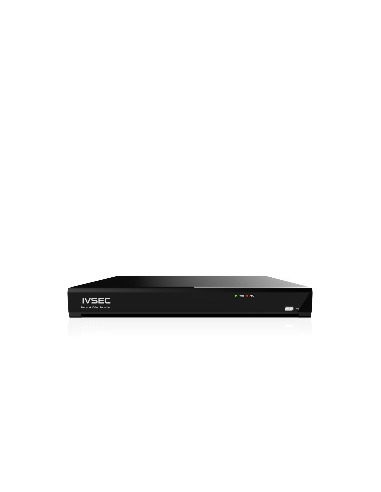

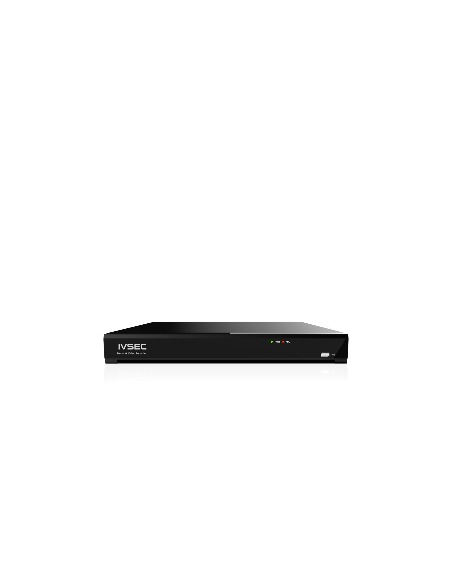

• IVSEC NVR 9000 16-channel PoE+ recorder
• 4TB surveillance drive, installed in the recorder
• 4 × 20 m and 4 × 30 m Cat5e cables
• 48 V recorder power supply and USB mouse
• Camera mounting screws

• A TV or monitor with HDMI or VGA, for setup at the recorder
• A network cable from the recorder to your router, for the phone app
• Longer or extra cable if a camera is more than 30 m away

01

Set up the recorder

Plug the NVR into a TV with an HDMI cable, into your router with a network cable, and power it up. The 4TB drive is already fitted.

02

Run one cable per camera

Cat5e from each camera back to a PoE+ port on the recorder. The kit includes four 20 m and four 30 m Cat5e cables; runs can go up to 100 m.

03

Mount and aim the cameras

Fix each camera with the supplied screws and angle it on its bracket or swivel. The cameras are found automatically when they are plugged in.

04

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then set AI detection and the deterrent schedule.

Storage

A bigger drive

Choose a 6TB to 14TB drive option above instead of the 4TB, for longer recording before the oldest footage is overwritten.

More cameras

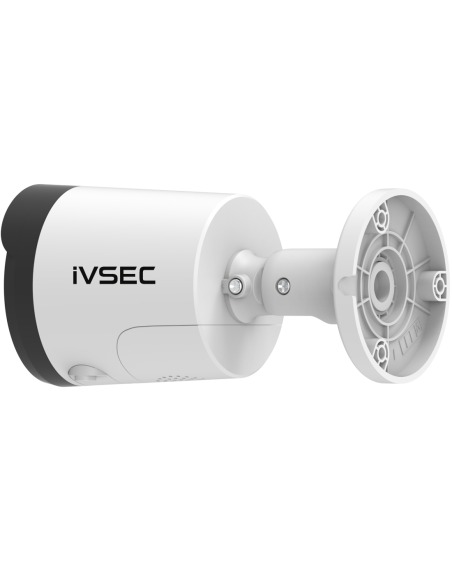

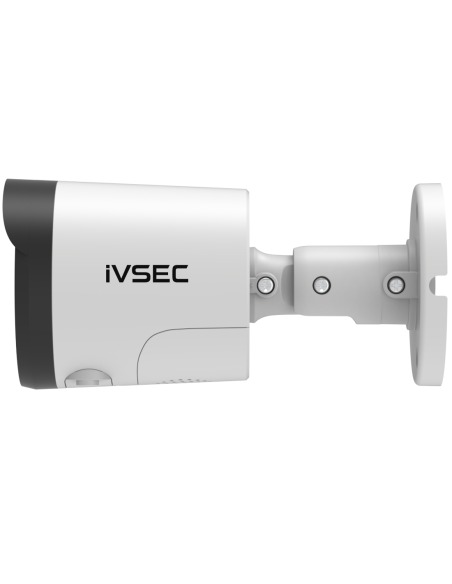

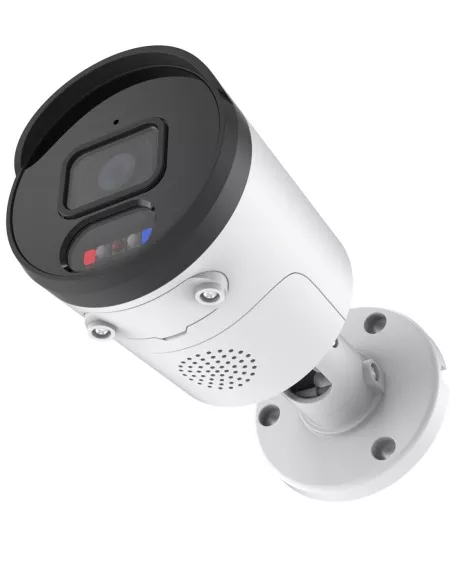

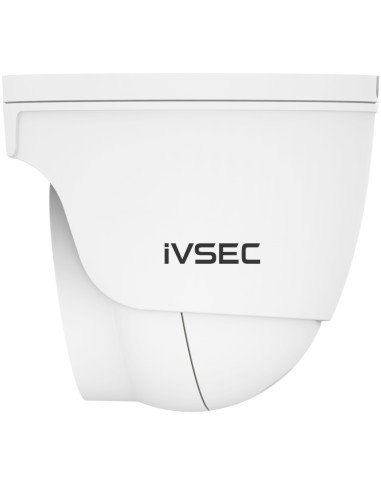

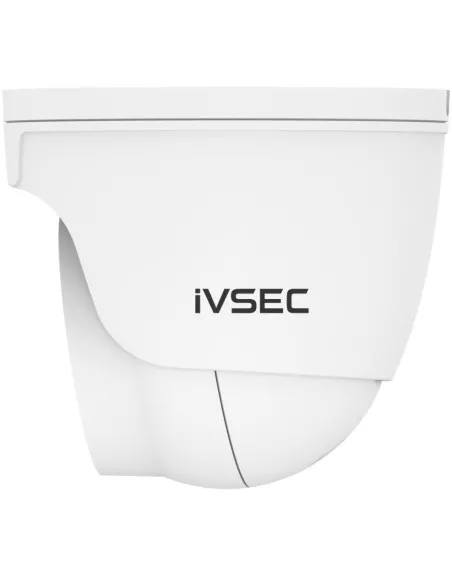

IVSEC 1250B or 1250D

Eight PoE+ ports are free. Add more 1250B bullets or 1250D turret domes and they appear on the recorder when plugged in.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Power

A UPS

Keeps the recorder and cameras running through short power cuts and protects the drive from sudden shutdowns.

Larger homes

Every side of the house, the driveway, the pool gate and the back fence, all on one recorder.

Shops and cafés

Doors, counters, stockroom and the rear lane, with alerts only for people after hours.

Offices

Entries, reception, car park and the server room, viewed from a PC, a Mac or the phone app.

Workshops and factories

Roller doors, yards and the gate, with colour night vision to see vehicles clearly.

Farms and acreage

House, sheds, machinery and gates within cable reach, up to 100 m per run.

Strata and small blocks

Car park, bin room, letterboxes and the front entry on one system.

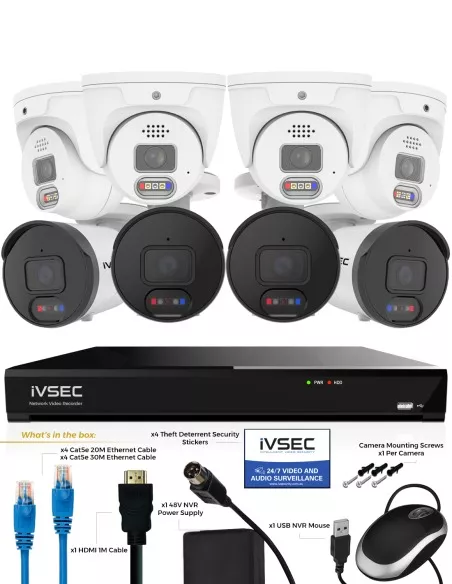

What is in the IVK16L-12504B4D kit?

In the box: 4 × IVSEC 1250B 12MP bullet cameras; 4 × IVSEC 1250D 12MP turret dome cameras; IVSEC NVR 9000 16-channel PoE+ recorder; 4TB surveillance drive, installed in the recorder; 4 × 20 m and 4 × 30 m Cat5e cables; 48 V recorder power supply and USB mouse; camera mounting screws.

Can I add more cameras later?

Yes. The recorder has sixteen PoE+ ports and this kit uses eight, so you can add eight more IVSEC cameras such as the 1250B or 1250D. ONVIF cameras from other brands also connect, though some features may not work on every model.

How long will the 4TB drive record?

It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. Choose a 6TB to 14TB drive option for longer recording; the recorder also has a second bay, and takes up to 16TB in each.

Do the cameras need a power point each?

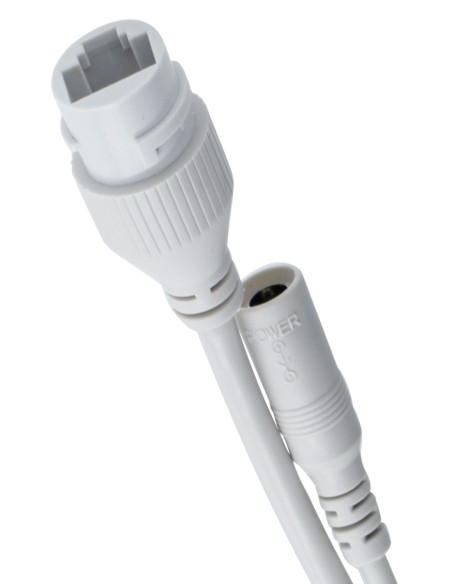

No. Each camera is powered by the recorder through its network cable (PoE), so one Cat5e run per camera is all it needs.

Can I see colour at night?

Yes. With the white light on, the 1250B and 1250D records in colour at night. You can instead use infrared, which records in black and white up to 25 m without a visible light.

What does the deterrence do?

When a camera detects a person or vehicle it can switch on the white light, flash red and blue, sound a siren, or any mix of these, on a schedule you choose, for example only between 9 pm and 5 am.

Can I talk through the cameras?

Yes. Each camera has a built-in microphone and speaker for two-way audio from the IVSEC X app, so you can warn someone off or speak to a delivery driver.

Do I have to register an account to use the app?

No. The free IVSEC X app connects by scanning the recorder's QR code and does not need you to register an email address, and you can add as many users as you need.

Which AI detections does it have?

Human and vehicle detection, face detection, perimeter intrusion, line crossing, stationary object, crossing count, heat map, crowd density, queue length and rare sound. Each camera runs one AI mode at a time, alongside standard motion detection.

Can the cameras record without the recorder?

Yes. Each camera takes a microSD card up to 256 GB, so it can record on its own or keep a backup copy if the recorder is stolen.

Are the cameras weatherproof?

Yes. The 1250B bullets and 1250D turret domes all have metal alloy housings rated IP67, so they can go outdoors under eaves or on walls. The recorder is for indoor use.

What warranty does the kit have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.
