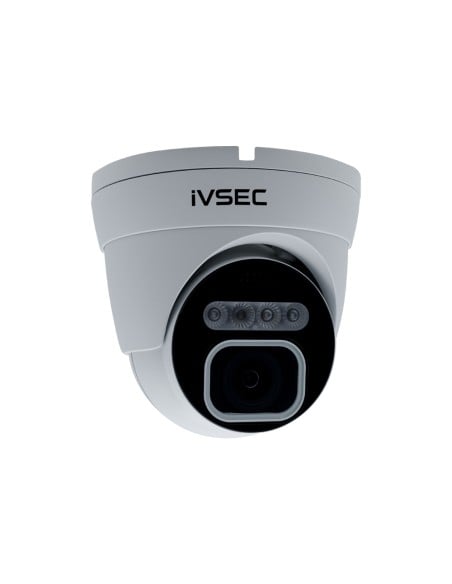

IVSEC IVNC312ADX 5MP motorised zoom turret camera with white light ring and red and blue LEDs

IVSEC NC312ADX with the ball turned so the lens sits below the LED strip

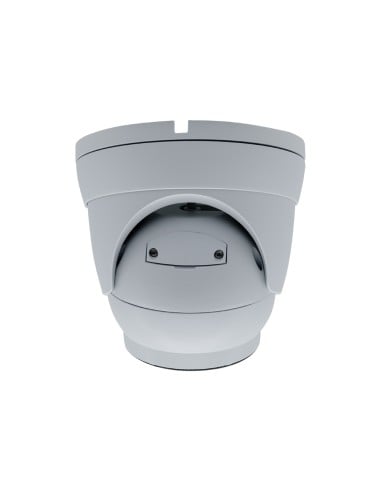

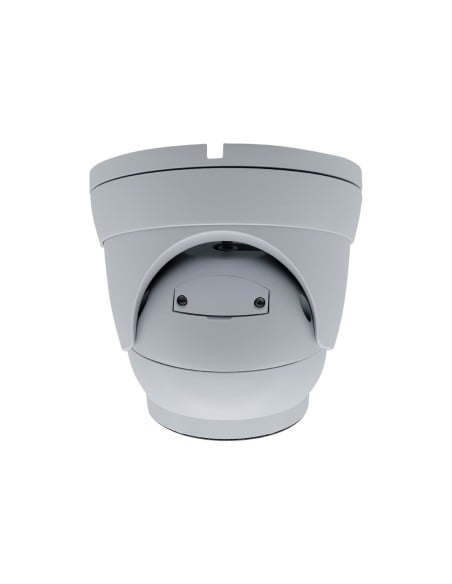

IVSEC NC312ADX turret camera seen from behind

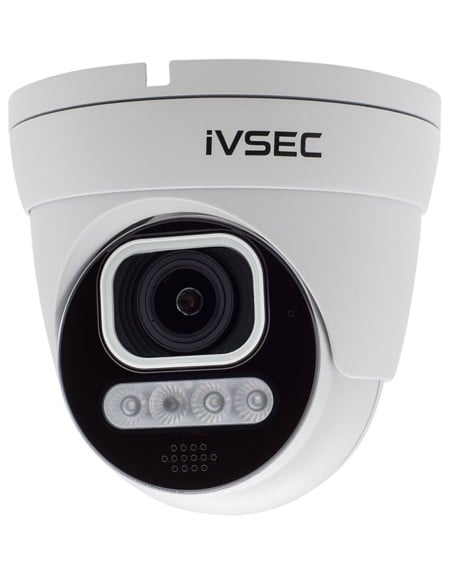

IVSEC NC312ADX close-up of the zoom lens, white light ring, LED strip and speaker

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 5

IVSEC 5MP AI Motorized Zoom 25fps Full Colour Dome Security Camera - IVNC312ADX

Name: IVSEC 5MP AI Motorized Zoom 25fps Full Colour Dome Security Camera - IVNC312ADX
Brand: IVSEC
SKU: IVNC312ADX
Price: 287.5 AUD
Availability: InStock

SKU IVNC312ADX In Stock - Ready to Ship

$287.50 inc GST

IVSEC IVNC312ADX: a 5MP turret camera with a 2.8–12 mm motorised zoom, full colour night vision, red and blue strobes, a siren and two-way audio, powered over one network cable.

✓5MP 2880 × 1620 at 30 fps
✓2.8–12 mm motorised zoom, 113° to 34°
✓Full colour night vision, IR to 25 m
✓Red and blue strobes, white light, siren and two-way talk
✓AI human and vehicle detection, line crossing, intrusion
✓PoE or 12 V DC, IP67 and IK10 metal housing, 3-year warranty

IVSEC NC312ADX 5MP motorised zoom turret camera with the white light ring around the lens and the LED strip below

IVSEC · 5MP · Motorised zoom · Advanced Deterrent

Zoom in, light it up, warn them off.
5MP motorised zoom turret with strobes and siren.

The IVSEC NC312ADX is a wired 5MP turret camera with a 2.8 to 12 mm motorised zoom, colour night vision, red and blue strobing lights, a siren and two-way audio, powered over one network cable.

In one sentence: the IVSEC IVNC312ADX is a wired 5MP PoE turret camera with a 2.8–12 mm motorised zoom (113° to 34°), 30 fps, full colour night vision, red and blue strobes, a siren, two-way audio and an IP67, IK10 metal housing.

Camera only. The network cable and recorder are separate.

The camera needs one Cat5e or Cat6 cable back to a PoE recorder or PoE switch. It takes its power and video through that one cable, or from a 12 V DC supply.

In the box

IVSEC NC312ADX turret camera
Printed quick user guide
Installation template
Mounting screws and plugs

You also need

An IVSEC NVR or another ONVIF Profile S, G or T recorder
Cat5e or Cat6 cable to the camera
A PoE switch or injector (IEEE 802.3af) if the recorder has no free PoE port
A microSD card if you want recording in the camera

Frame the shot after it's on the wall.

A fixed wide lens wastes pixels on sky and walls. The motorised zoom lets you set the view from the app or recorder, from a 113° wide shot down to 34° for a gate or driveway further away. When someone crosses a line, it can flash red and blue, switch on its white light, sound the siren or let you talk to them.

Close-up of the IVSEC NC312ADX zoom lens inside its white light ring, with the LED strip and speaker below

Lens and lights

2.8–12 mm zoom, colour at night.

A 1/2.7" sensor records 2880 × 1620 at 30 fps. The ring around the lens is the white light for colour night footage; the strip below carries the IR, red and blue LEDs, with IR rated to 25 m. The grille under the strip is the speaker.

Adjustable ball

Turn the ball to suit the wall.

The ball rotates in the housing, so the camera can be aimed from a ceiling, an eave or a wall. IVSEC's photo shows it turned with the lens below the lights.

Housing

Metal, IP67 and IK10.

0.90 kg, rated IP67 for weather and IK10 for impact, and it runs from −35 °C to 60 °C.

How it goes in

From box to phone alerts.

Run the cable

Run Cat5e or Cat6 from the camera position back to a PoE port on the recorder or a PoE switch.

Mount the camera

Mark the holes with the installation template and fix the camera with the supplied screws and plugs, or use the IV2422X conduit box.

Add it to the recorder

Find it with the IVSEC Device Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF recorder.

Zoom, then set the rules

Set the zoom from the app or recorder, then draw line crossing or intrusion zones and choose which alarms flash the strobes, switch on the light or sound the siren.

At a glance

IVNC312ADX

Show specs

Resolution

5MP, 2880 × 1620, 30 fps

Image sensor

1/2.7" progressive CMOS

Lens

2.8–12 mm motorised zoom, 113° to 34° horizontal

Night vision

Full colour (auto), IR up to 25 m

Lights

IR, red and blue strobes, white light

Audio

Built-in microphone and speaker, siren

Video analytics

Face detection, human and vehicle detection, perimeter intrusion, line crossing, cross counting, stationary object, heat map, crowd density, queue length, licence plate detection, rare sound detection

Compression

H.265+, H.265, H.264+, H.264, MJPEG; 3 streams

Image settings

Back light, white balance, shutter, defog, 3D noise reduction, mirror and flip

Storage

microSD / SDHC card slot; Dropbox cloud option

Network

RJ45 10/100 Mbps; ONVIF Profile S/G/T

Connectors

RJ45, DC power input, reset button

Power

PoE (IEEE 802.3af) or 12 V DC; under 7.2 W

Protection

IP67 weatherproof, IK10 vandal resistant

Size and weight

Listed as 84 × 84 × 240 mm (H × W × L), 0.90 kg

Operating range

−35 °C to 60 °C, humidity under 95%

Mounting accessories

IV2422X, IV2433X

Software

IVSEC Device Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app

Warranty

3 years

Pair it with

What this camera does not include

Recorder

An IVSEC PoE NVR

Powers the camera over the network cable, records around the clock and controls the zoom. Any ONVIF Profile S, G or T recorder can also be used.

Cable

Cat5e or Cat6

One run per camera back to the recorder or PoE switch.

Mounting

IV2422X conduit box or IV2433X adaptor box

IVSEC's listed accessories for this camera: a large conduit box to hide the cable tail, and an adaptor box for pendant or wall mounts.

Storage

A microSD card

Optional, for recording in the camera or as a backup if the network drops.

Where it is used

Where the NC312ADX earns its keep.

Long driveways

Zoom in on the gate or the street end, with colour footage at night.

Car parks

Frame the entry lane, with licence plate detection and line crossing.

Shopfronts

Strobes and a spoken warning after hours.

Warehouses and yards

Roller doors and fence lines at the distance you choose.

Farms and sheds

Machinery and fuel tanks with lights that show the camera is watching.

Upgrading a fixed camera

Swap a wide fixed lens for a view you can tune from the app.

NC312ADX or NC110ADX

	NC312ADX (this camera)	NC110ADX
Lens	2.8–12 mm motorised zoom, 113° to 34°	2.8 mm fixed, 110°
Resolution	2880 × 1620, 30 fps	2880 × 1620, 25 fps
Night vision	Full colour, IR to 25 m	Full colour, IR to 25 m
Deterrence	Red and blue strobes, white light, siren	Red and blue strobes, white light, siren
Power draw	Under 7.2 W	Under 4.2 W
Weight	0.90 kg	0.43 kg

Same deterrent features; the NC312ADX adds the motorised zoom. Figures from IVSEC's NC312ADX and NC110ADX datasheets (updated 21 October 2026).

Common questions

How does the zoom work?

It is a motorised 2.8–12 mm lens. You set the zoom and focus from the IVSEC app or the recorder, from a 113° wide view down to 34°.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G or T recorder, or a microSD card in the camera.

How is it powered?

Over the network cable from a PoE (IEEE 802.3af) port on the recorder or a PoE switch, or from a 12 V DC supply, which is not included. It draws under 7.2 W.

What is in the box?

The camera, a printed quick user guide, an installation template, and mounting screws and plugs. The software is a free download.

What frame rate is it?

IVSEC's current datasheet and product page list 30 fps at 2880 × 1620. Earlier listings said 25 fps.

Can I see colour at night?

Yes. The day and night mode is full colour (auto): the white light ring switches on so footage stays in colour. IR night vision is rated to 25 m.

What does the deterrence do?

When an alarm rule triggers, the camera can flash its red and blue strobes, switch on the white light and sound a siren. You can also speak through it from the IVSEC app.

Does it record sound?

Yes. A built-in microphone records audio, and the speaker lets you talk back. Check your state's surveillance laws before recording audio.

How big is it?

IVSEC lists 84 × 84 × 240 mm and 0.90 kg. That size reads oddly for a turret, so if mounting space is tight, ask us and we'll measure one.

Is it weatherproof?

Yes. The metal housing is rated IP67 for weather and IK10 for impact, and it runs from −35 °C to 60 °C.

Should I choose the NC312ADX or the NC110ADX?

The NC110ADX has a fixed 110° lens for wide, close coverage. The NC312ADX adds a 2.8–12 mm motorised zoom for longer or narrower views, with the same deterrent features.

What warranty does it have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help matching cameras to your recorder, choosing cable or a mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. Runs on PoE or 12 V DC, under 7.2 W. There is no mains wiring; a new power point for a supply needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording conversations and filming beyond your boundary are covered by state and territory surveillance laws. Check them, point the camera at your own property and use signage.

What it does not do. A wired camera: no Wi-Fi, no battery and no 4G. The network port is 10/100 Mbps.

Figures. From IVSEC's NC312ADX datasheet, updated 21 October 2026.

NC312ADX DatasheetOfficial IVSEC NC312ADX datasheet, supplied by InFront Technologies. Download 311.69KB
