- New

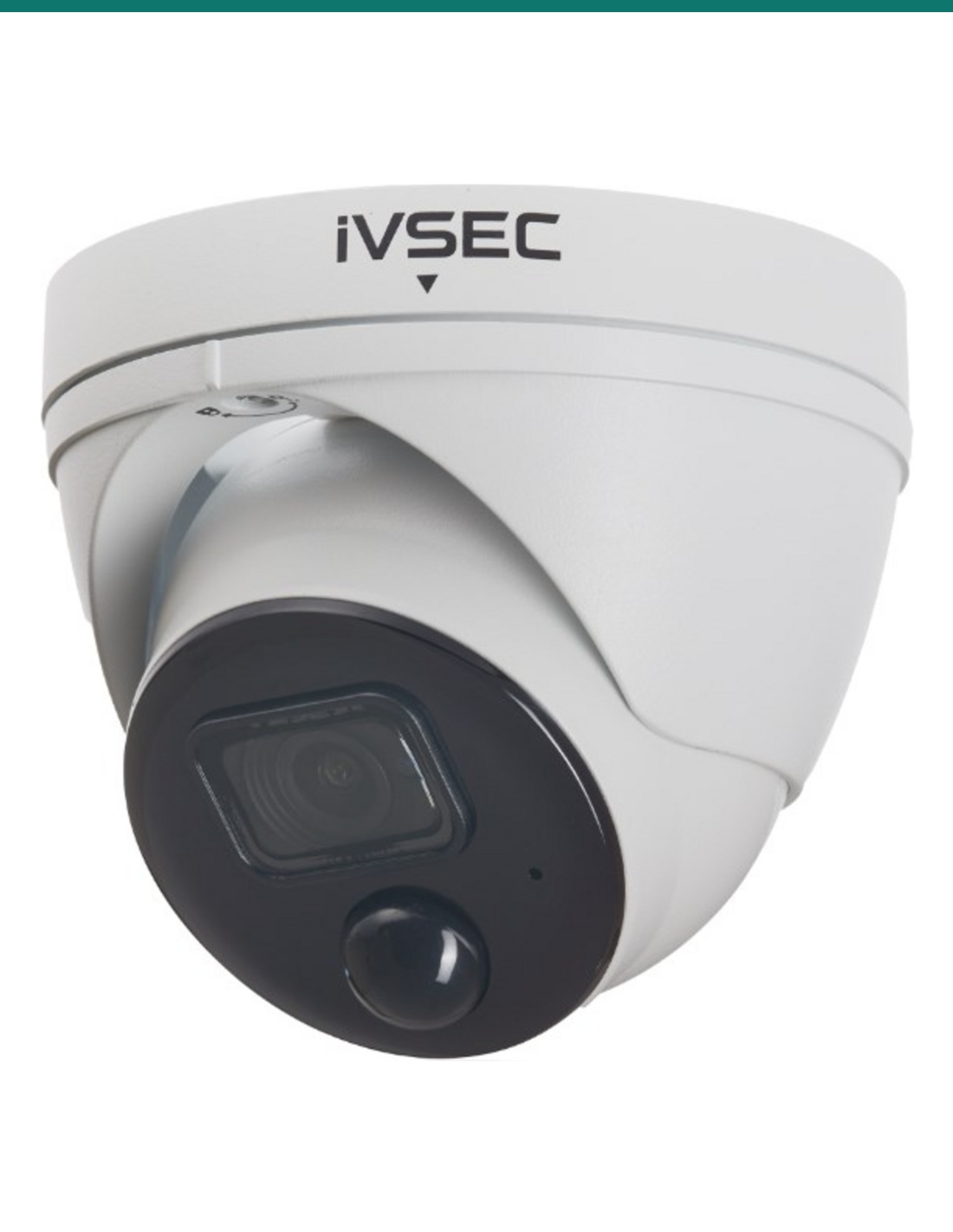

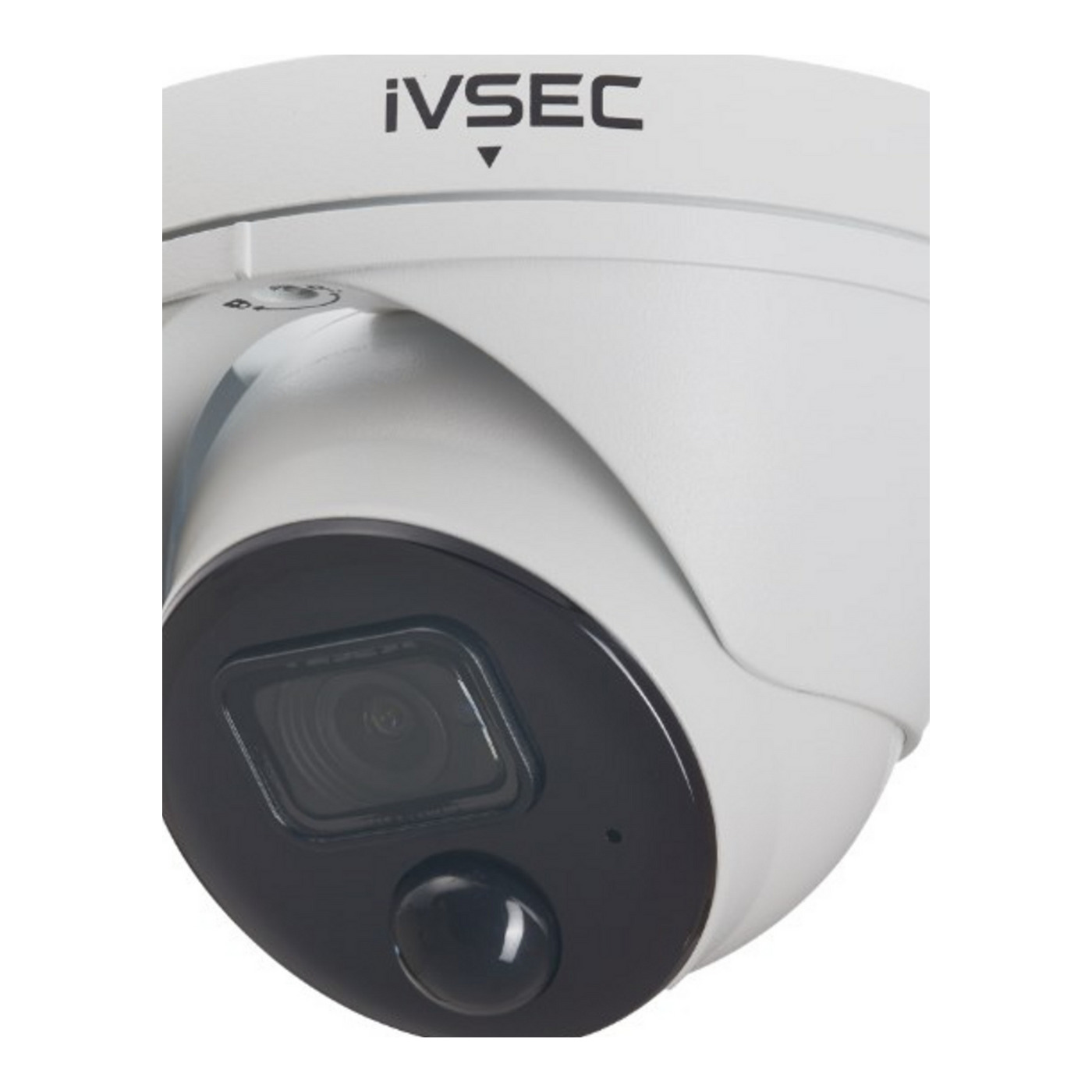

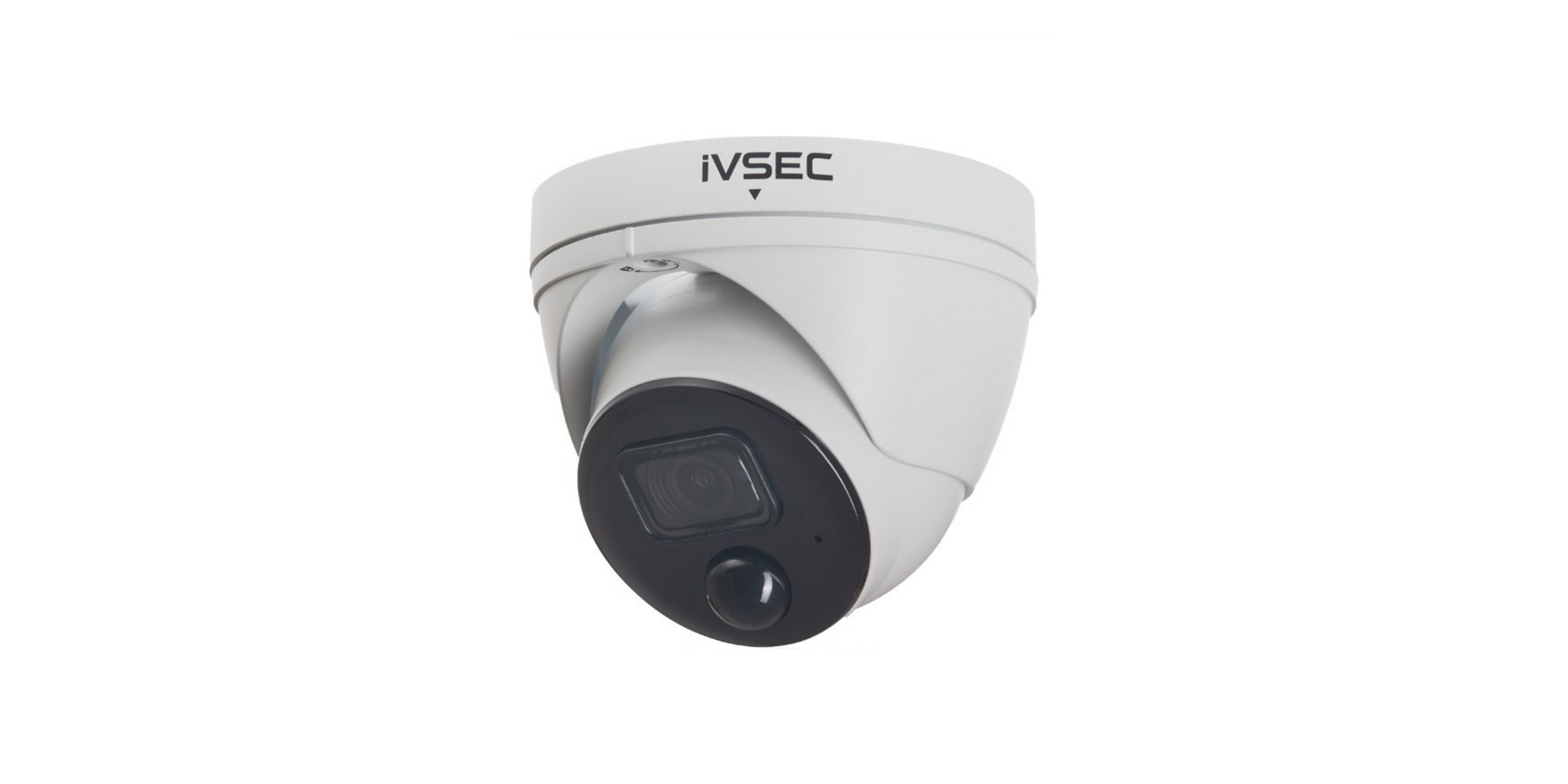

IVSEC IVNC110XD: a 5MP turret camera with a 99° view, a PIR sensor, motion and sound detection, a microphone and IR night vision to 30 m, powered over one network cable.
- ✓5MP 2592 × 1944, 2.8 mm 99° lens
- ✓PIR sensor with motion and sound detection
- ✓IR night vision to 30 m
- ✓Built-in microphone, microSD slot
- ✓PoE or 12 V DC, under 7 W
- ✓IP66 and IK10 metal housing, 3-year warranty
Description

A 5MP turret with a PIR sensor.
Motion, body heat and sound, at a simple price.
The IVSEC NC110XD is a wired 5MP turret camera with a 99° view, a PIR sensor, a built-in microphone and infrared night vision to 30 m, powered over one network cable.
In one sentence: the IVSEC IVNC110XD is a wired 5MP PoE turret camera with a 2.8 mm 99° lens, a PIR sensor, motion and sound detection, a microphone and IR night vision to 30 m, in an IP66, IK10 metal housing.
Camera only. The network cable and recorder are separate.
The camera needs one Cat5e or Cat6 cable back to a PoE recorder or PoE switch. It takes its power and video through that one cable, or from a 12 V DC supply.
- IVSEC NC110XD turret camera
- Printed quick user guide
- Installation template
- Mounting screws and plugs
- An IVSEC NVR or another ONVIF Profile S, G or T recorder
- Cat5e or Cat6 cable to the camera
- A PoE switch or injector (IEEE 802.3af) if the recorder has no free PoE port
- A microSD card if you want recording in the camera
Motion alerts with a second opinion.
The PIR sensor reacts to body heat, so pairing it with motion detection cuts out a lot of the alerts that moving shadows and swaying plants cause. Sound detection and a built-in microphone add audio to the picture.

Lens and PIR
99° view, PIR under the lens.

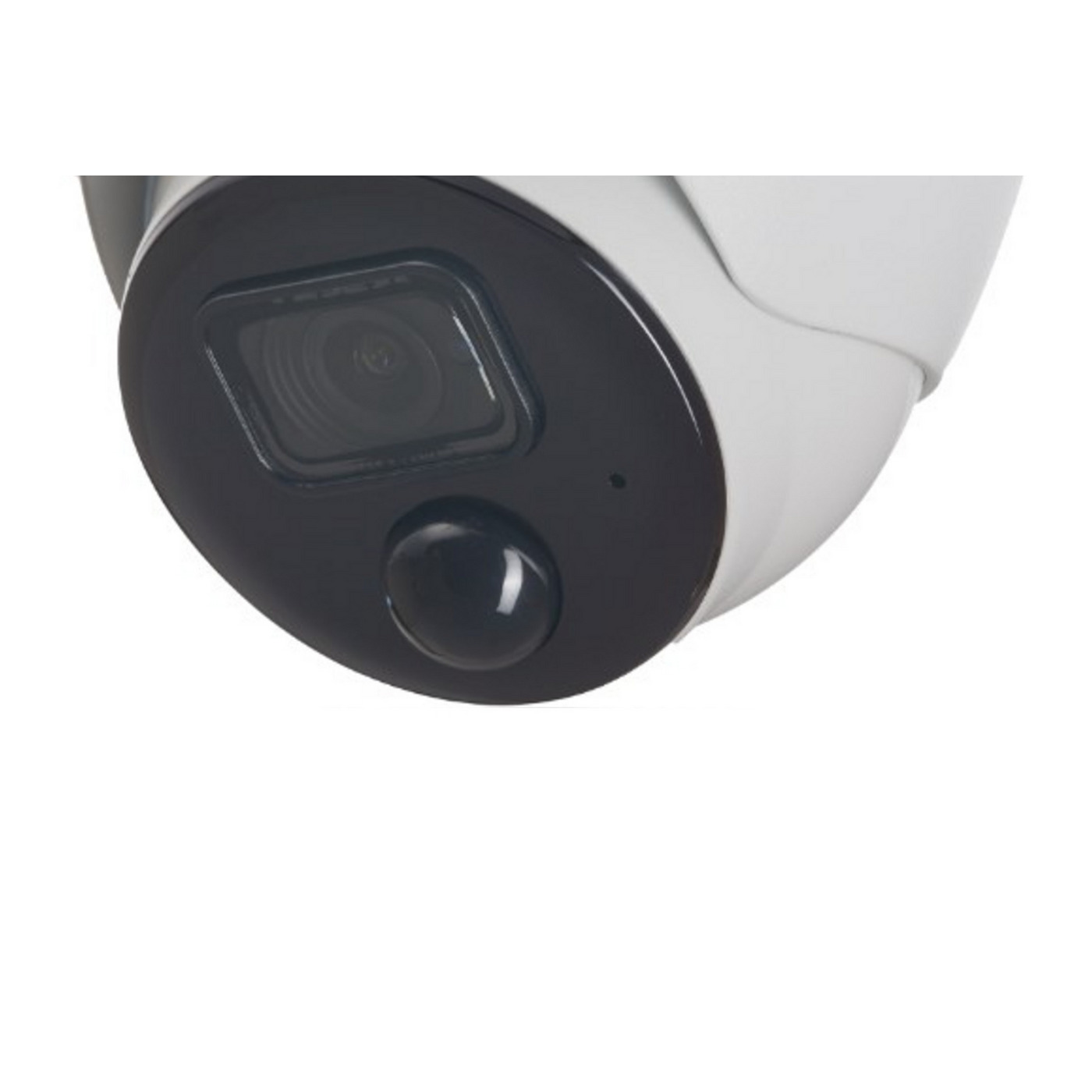

A 1/2.7" sensor records 2592 × 1944 at 20 fps through a fixed 2.8 mm lens with a 99° horizontal view. The round window below the lens is the PIR sensor. Infrared night vision reaches 30 m.

Housing
Metal, IP66 and IK10.
100 × 100 × 100 mm and 0.40 kg, with a locking mechanism on the housing. Rated IP66 for weather and IK10 for impact, from −30 °C to 55 °C.
How it goes in
From box to phone alerts.
01
Run the cable
Run Cat5e or Cat6 from the camera position back to a PoE port on the recorder or a PoE switch.
02
Mount the camera
Mark the holes with the installation template and fix the camera with the supplied screws and plugs, or use an IVSEC conduit box or wall mount.
03
Add it to the recorder
Find it with the IVSEC Device Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF recorder.
04
Aim and set detection
Angle the camera at the area people walk through, lock the housing, then switch on motion, PIR and sound detection.
At a glance
IVNC110XD
Show specs
Resolution
5MP, 2592 × 1944, 20 fps
Image sensor
1/2.7" progressive CMOS
Lens
2.8 mm fixed, 99° horizontal view
Night vision
IR up to 30 m, auto day/night
Detection
Motion detection, PIR, sound detection
Audio
Built-in microphone
Compression
H.265+, H.265, H.264+, H.264, MJPEG; 3 streams
Image settings
Back light, white balance, shutter, defog, 3D noise reduction, mirror and flip
Storage
microSD / SDHC card slot; Dropbox cloud option
Network
RJ45 10/100 Mbps; ONVIF Profile S/G/T (firmware 21.12 or later), HTTP API
Connectors
RJ45, DC power input, reset button
Power
PoE (IEEE 802.3af) or 12 V DC; under 7 W
Protection
IP66 weatherproof, IK10 vandal resistant
Size and weight
100 × 100 × 100 mm, 0.40 kg
Operating range
−30 °C to 55 °C, humidity 95% or less
Mounting accessories
IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X, IV2480X
Software
IVSEC Device Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app
Warranty
3 years
Pair it with
What this camera does not include
Recorder
An IVSEC PoE NVR
Powers the camera over the network cable and records around the clock. Any ONVIF Profile S, G or T recorder can also be used.
Cable
Cat5e or Cat6
One run per camera back to the recorder or PoE switch.
Mounting
IV2422X conduit box or IV2455X wall mount
IVSEC's listed accessories hide the cable tail in a conduit box, or hold the camera out from a wall.
Smarter detection
The IVSEC NC110XC
Same housing and lens with AI pedestrian and vehicle detection, line crossing and intrusion zones.
Where it is used
Where the NC110XD fits.
Front doors and porches
PIR and motion together for people arriving, with sound recorded.
Hallways and entries
Indoor or outdoor walk-through areas where body heat is the best trigger.
Garages and sheds
Alerts when someone walks in, IR to 30 m in the dark.
Side paths
A 99° view along the side of the house.
Small shops
Doors and counters on a simple, low-cost camera.
Adding to a system
An extra camera for an IVSEC NVR you already have.
NC110XD or NC110XC
| NC110XD (this camera) | NC110XC | |
|---|---|---|
| Detection | Motion, PIR, sound | AI pedestrian and vehicle, line crossing, intrusion, region entry and exit, and more |
| PIR sensor | Listed in the spec table | Shown in the photo, not in the spec table |
| Protection | IP66, IK10 | IP67, IK10 |
| Resolution and lens | 5MP, 2.8 mm, 99° | 5MP, 2.8 mm, 99° |
| Night vision | IR to 30 m | IR to 30 m |
Same housing, sensor and lens. Choose the NC110XD for simple PIR and motion alerts, or the NC110XC for AI detection. Figures from IVSEC's NC110XD datasheet (15 July 2026) and NC110XC datasheet (30 October 2026).
Common questions
What does the PIR sensor do?
It detects body heat. Combined with motion detection it helps cut out alerts caused by moving shadows, rain and plants.
Is a recorder included?
No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G or T recorder, or a microSD card in the camera.
How is it powered?
Over the network cable from a PoE (IEEE 802.3af) port on the recorder or a PoE switch, or from a 12 V DC supply, which is not included. It draws under 7 W.
What is in the box?
The camera, a printed quick user guide, an installation template, and mounting screws and plugs. The software is a free download.
What resolution is it?
5MP, recording 2592 × 1944 at 20 frames per second from a 1/2.7" progressive CMOS sensor.
How wide is the view?
99° horizontally from the fixed 2.8 mm lens.
How far does it see at night?
Infrared night vision is rated to 30 m, in black and white, with automatic day and night switching.
Does it record sound?
Yes. A built-in microphone records audio and it can alert on sound. There is no speaker. Check your state's surveillance laws before recording audio.
Does it have AI human and vehicle detection?
Not in IVSEC's NC110XD datasheet, which lists motion, PIR and sound detection. IVSEC's web page shows a longer list copied from the NC110XC; we go by the datasheet. For AI detection choose the NC110XC.
Is it weatherproof?
Yes. The datasheet rates it IP66 for weather and IK10 for impact, from −30 °C to 55 °C.
Should I choose the NC110XD or the NC110XC?
The NC110XD suits simple PIR and motion alerts. The NC110XC uses the same housing and lens with AI pedestrian and vehicle detection and an IP67 rating.
What warranty does it have?
Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.
Supported by InFront Technologies.
Help matching cameras to your recorder, choosing cable or a mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. Runs on PoE or 12 V DC, under 7 W. There is no mains wiring; a new power point for a supply needs a licensed electrician.
Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio and privacy. Recording conversations and filming beyond your boundary are covered by state and territory surveillance laws. Check them, point the camera at your own property and use signage.
What it does not do. A wired camera: no Wi-Fi, no battery, no 4G, no speaker, siren or deterrent lights, and no zoom lens. The network port is 10/100 Mbps.
Figures. From IVSEC's NC110XD datasheet, updated 15 July 2026. Where IVSEC's web page differs (IP rating, detection list), the datasheet is used.
- Camera Frame Rate (fps)
- 20fps
- Camera Infrared (IR) Distance
- 30m
- Camera Resolution
- 5MP
- Built-in Microphone
- Yes
- PoE
- Yes
- IP Rating
- IP66
- Lens — Model
- 2.8mm fixed lens
