• 2 × IVSEC NC119XA turret cameras
• A printed quick user guide with each camera
• An installation template with each camera
• Mounting screws and plugs for each camera

• An IVSEC NVR or ONVIF recorder with two free channels
• Two Cat5e or Cat6 cable runs
• Two PoE ports (IEEE 802.3af) or 12 V DC supplies
• microSD cards if you want them to record on their own

01

Run two cables

Run Cat5e or Cat6 from each camera position to a PoE port on the recorder or a PoE switch. A 12 V DC supply per camera also works.

02

Mount the camera

Mark the holes with the installation template, fix the base with the screws and plugs in the box, or fit an IVSEC junction box or wall mount first.

03

Add them to the recorder

Find both with the IVSEC Device Search/Config Tool, set passwords, then add them to an IVSEC NVR, the mobile app (QR code) or any ONVIF recorder.

04

Set detection and deterrence

Turn the eyeball to frame the view, draw line crossing or intrusion zones, and choose whether an alarm flashes red and blue or sounds the siren.

Recorder

An IVSEC NVR

Records around the clock and powers the camera from its PoE ports. Any ONVIF Profile S, G or T recorder can also be used.

Cable and power

Cat5e or Cat6, and PoE

One cable per camera to a PoE port (IEEE 802.3af). A PoE switch or a 12 V DC supply if the recorder has no free port.

Mounting

IV2457X or IV2477X

IVSEC's small 90° wall mount and small conduit junction box are on its accessory list for this camera.

Storage

A microSD card

Optional, for recording in the camera or as a backup when the network drops.

Front doors and porches

A 95° view of the door, with two-way talk to greet a courier or warn off a stranger.

Driveways

Full colour at night and human and vehicle detection to cut false alerts from headlights and trees.

Shopfronts

Red and blue strobe and a siren after hours, plus a clear picture of the door and counter.

Side paths and yards

Line crossing and perimeter intrusion zones along fences and gates.

Garages and sheds

A compact turret under the eave covering roller doors and side doors.

Adding to a system

An extra 4MP camera for an IVSEC NVR or any ONVIF recorder.

How many cameras are in the pack?

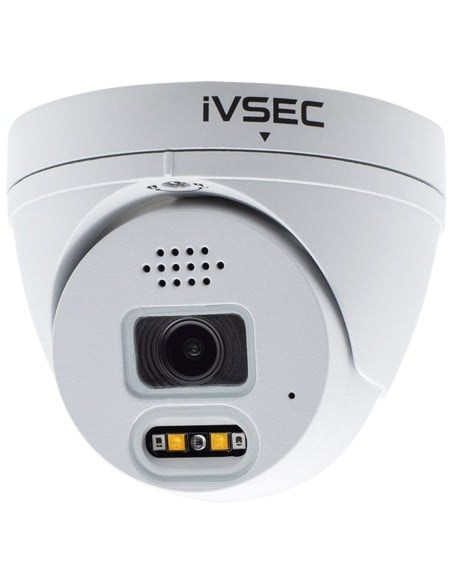

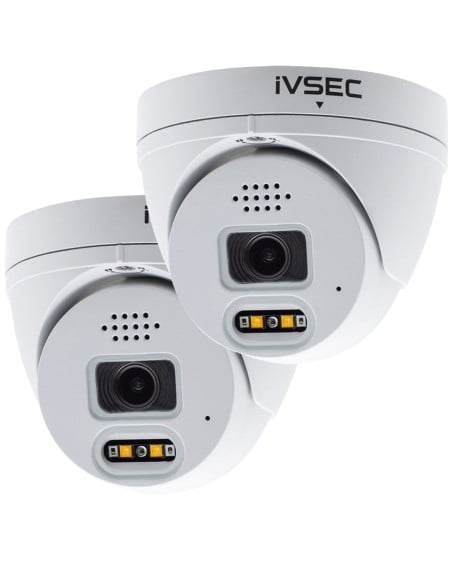

Two. Both are the IVSEC NC119XA 4MP turret dome, the same camera sold singly as IVNC119XA.

What resolution is it?

4MP, 2560 × 1440, at up to 25 frames per second from a 1/3" progressive CMOS sensor.

How wide is the view?

95° across, from a fixed 2.8 mm lens. That suits a front door, porch, driveway or small yard.

Does it see in colour at night?

Yes. Day and night mode is full colour (auto) using the white LEDs, and the IR reaches up to 25 m.

What does the red and blue light do?

It strobes red and blue as a deterrent when the camera detects someone. You can also set off the siren or talk through the camera from the mobile app.

Does it have two-way audio?

Yes. A microphone and speaker are built in, so you can listen and talk through the camera. Check your state's surveillance laws before recording sound.

How is it powered?

From PoE (IEEE 802.3af) over the network cable, or from a 12 V DC supply. It draws under 5 W.

Will it work with my recorder?

It adds to IVSEC NVRs and to recorders that support ONVIF Profile S, G or T (firmware 21.12 or later). Smart detection settings may only be available on an IVSEC recorder.

What smart detection does it have?

Smart motion detection that picks out people and vehicles, plus perimeter intrusion and line crossing detection.

Is it weatherproof?

Yes. It is rated IP67 against dust and water and IK08 against impact, and runs from −30 °C to 55 °C.

What is in the box?

Two NC119XA cameras, each with a printed quick user guide, an installation template, and mounting screws and plugs. Cables and recorder are separate.

What warranty does it have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.
