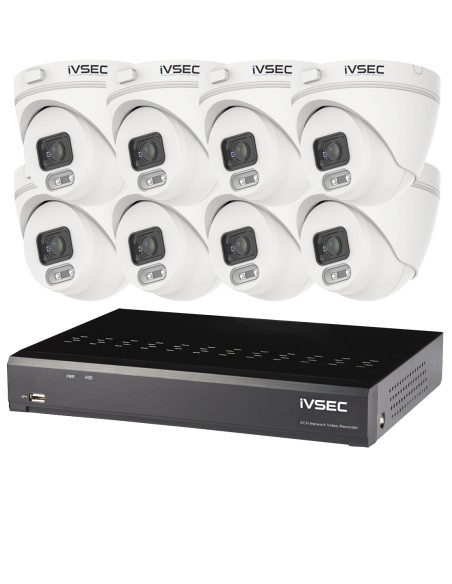

IVSEC LVK-11988 kit: eight NC119XA 4MP turret dome cameras and the NR008XB 8-channel PoE recorder

IVSEC LVK-11988 kit with the red and blue strobes lit on all eight cameras

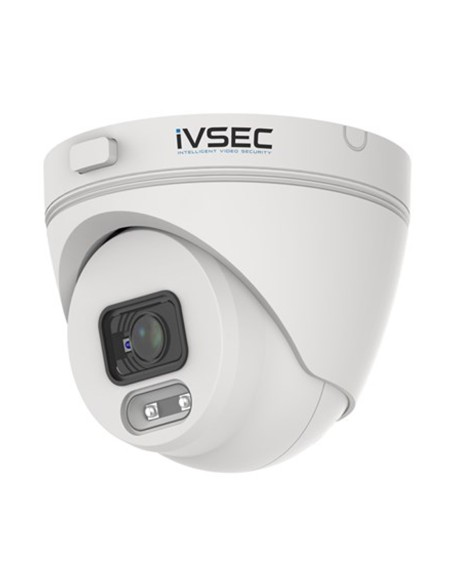

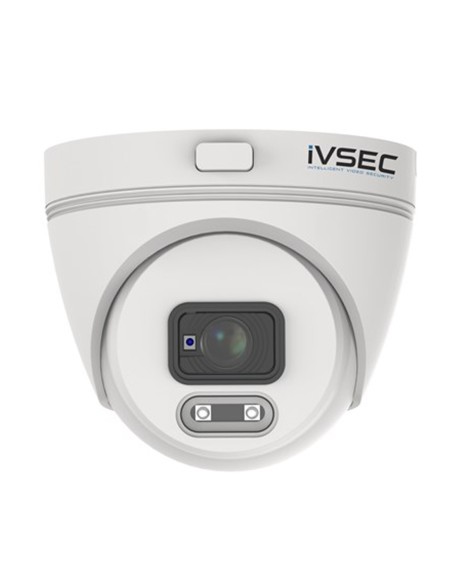

IVSEC NC119XA 4MP turret dome camera, front

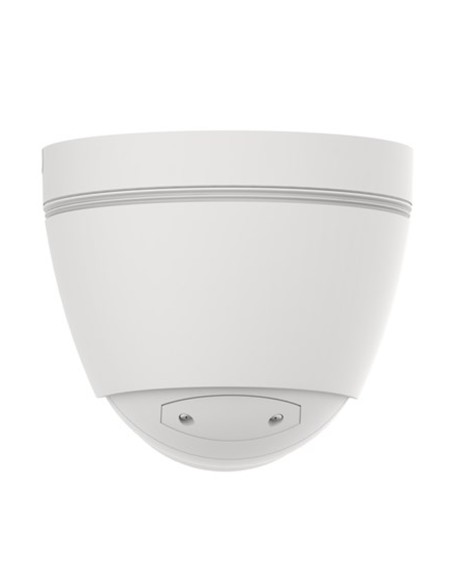

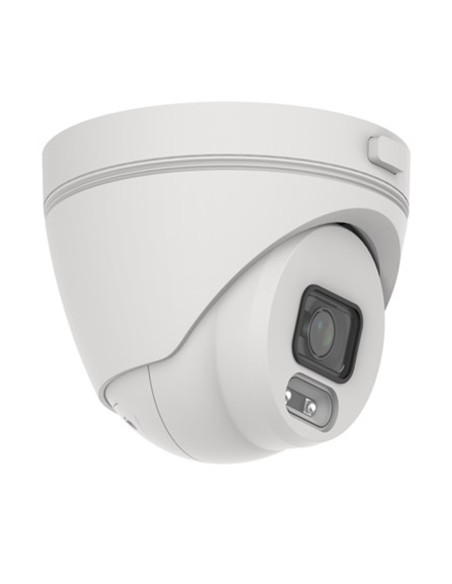

IVSEC NC119XA turret dome camera, side angle

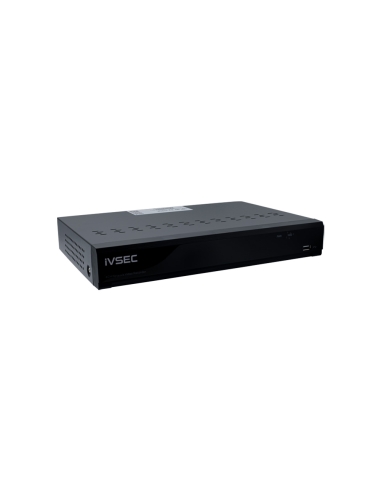

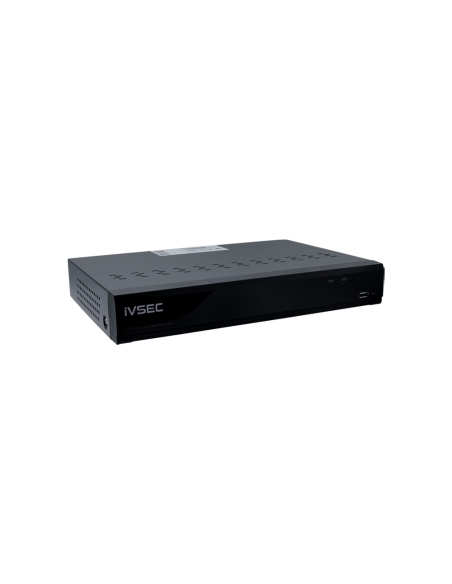

IVSEC NR008XB 8-channel PoE recorder, front angle

IVSEC NR008XB recorder, rear with eight PoE+ camera ports

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 7

iVSEC 4MP Advanced Deterrent LX-Series 8Ch 2TB NVR 8 IP Camera CCTV Security Kit - LVK-11988

Name: iVSEC 4MP Advanced Deterrent LX-Series 8Ch 2TB NVR 8 IP Camera CCTV Security Kit - LVK-11988
Brand: IVSEC
SKU: LVK-11988
Price: 1398 AUD
Availability: InStock

SKU LVK-11988 In Stock - Ready to Ship

$1,398.00 inc GST

IVSEC LVK-11988: eight NC119XA 4MP turret dome cameras with strobes, siren and colour night vision, plus an NR008XB 8-channel PoE recorder with a 2TB drive.

✓8 × NC119XA turret dome, 4MP, 95° view
✓Red and blue strobes, siren, two-way talk
✓Colour night vision with white light, IR to 25 m
✓Smart motion detection for people and vehicles
✓NR008XB 8-channel PoE recorder, 2TB drive (up to 16TB)
✓Free IVSEC X app, IP67 and IK08 cameras

IVSEC LVK-11988 kit: eight NC119XA cameras with the red and blue strobes on, above the NR008XB recorder

IVSEC · LX Series · Active deterrent

Eight 4MP cameras with strobes and siren.
One 8-channel PoE recorder with 2TB.

A wired IVSEC LX Series kit: eight NC119XA turret dome cameras with red and blue strobes, a siren, two-way talk and colour night vision, plus an NR008XB 8-channel PoE recorder with a 2TB drive.

In one sentence: the IVSEC LVK-11988 is a wired PoE CCTV kit with eight NC119XA 4MP turret dome cameras (2560 × 1440, 95° view, colour night vision) and an NR008XB 8-channel recorder with a 2TB drive.

Eight cameras, recorder and drive in the box.

Each camera runs on one network cable back to the recorder, which powers it. All eight PoE ports are used by the kit cameras. Network cables are not included.

In the box

8 × IVSEC NC119XA 4MP turret dome cameras
IVSEC NR008XB 8-channel PoE recorder
2TB Seagate SkyHawk surveillance hard drive for the recorder
Recorder power supply, USB mouse, drive screws and quick guide
Camera mounting screws, plugs and drilling templates

You also need

Cat5e or Cat6 network cable for each camera, cut to your runs (not included)
An HDMI or VGA cable and a TV or monitor, for setup at the recorder
A network cable from the recorder to your router, for the phone app

Lights, siren and a voice to move people on.

Each camera has red and blue strobe lights, a speaker and a microphone, so from the IVSEC X app you can set off the siren or talk to someone as well as record them. Smart motion detection picks out people and vehicles to cut false alerts, and at night the white light keeps the picture in colour.

The cameras

4MP turret domes with a 95° view.

The NC119XA has a 1/3-inch 4MP sensor recording 2560 × 1440 at 25 fps through a 2.8 mm lens. Infrared reaches 25 m at night, and the white light switches the picture to full colour.

Deterrence

Strobes, siren and two-way talk.

Set off the siren or speak through the camera from the IVSEC X app, while the red and blue lights strobe. The housing is IP67 weatherproof and IK08 vandal rated, for walls and eaves outdoors.

The recorder

Eight PoE+ ports, one drive bay.

The NR008XB powers and records up to eight cameras at up to 12MP each, with 76 Mbps of incoming bandwidth. HDMI and VGA show it on a TV up to 4K, and its single SATA bay takes drives up to 16TB.

How it goes in

From box to phone alerts.

Set up the recorder

Fit the 2TB drive in the recorder's bay with the supplied screws if it is not already installed, then connect a TV over HDMI or VGA and your router with a network cable, and power it up.

Run one cable per camera

Run Cat5e or Cat6 from each camera position back to a PoE port on the recorder. The cable powers the camera and carries its video; cables are not included, so buy them to length.

Mount and aim the cameras

Use the drilling template, screws and plugs that come with each camera, then aim it. IVSEC cameras are picked up by the recorder when they are plugged in.

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then set up smart motion detection and the strobe, siren and white light.

At a glance

LVK-11988

Show specs

Cameras

8 × NC119XA turret dome, white

Recorder

IVSEC NR008XB, 8 channels, 8 × PoE+ ports

Storage

2TB drive supplied, 1 SATA bay, up to 16TB

Resolution

4MP (2560 × 1440) at up to 25 fps

Lens and view

2.8 mm fixed, 95° horizontal

Night vision

Full colour with the white light, or infrared, up to 25 m

Deterrence

Red and blue strobe lights, siren and talk-back from the app

Smart detection

Smart motion detection (people and vehicles), perimeter intrusion, line crossing

Audio

Microphone and speaker in each camera (two-way talk)

Camera storage

microSD card slot in each camera

Camera power

PoE (IEEE 802.3af) from the recorder, or 12 V DC, under 5 W

Camera housing

IP67 weatherproof, IK08 vandal rated, -30 to +55 °C

Camera size

90 × 100 × 100 mm, 0.22 kg

Recording

Up to 12MP per channel, 76 Mbps incoming

Compression

H.265+, H.265, H.264+, H.264

Display

HDMI and VGA, up to 4K

Recorder ports

Gigabit network port, 2 × USB 2.0, audio in and out

Recorder power

48 V DC 1.2 A plug-in supply, 5 W without drive

Recorder size

53 × 300 × 227 mm, 1.30 kg, indoor 5 to 40 °C

Interoperability

ONVIF Profile S, G, T

Software

IVSEC X app (QR code setup), PC client, device search tool

Warranty

Cameras 3 years, recorder 2 years (parts)

Pair it with

Good to add

Cabling

Cat5e or Cat6 cable

One run per camera back to the recorder. Outdoor-rated cable for exposed runs; ask us for lengths and connectors.

Room to grow

An 8-channel kit

All eight ports are used here. Need more cameras later? Add a PoE switch, or ask us about a larger recorder.

Storage

A bigger drive

The recorder bay takes a drive up to 16TB for longer recording before the oldest footage is overwritten. Ask us about swapping or upgrading the drive.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Where it is used

Where a 8-camera kit fits.

Homes

Front door, driveway, side gate and back yard, with alerts for people and cars on your phone.

Shops

Counter, entry, stockroom and rear lane, viewed on a PC or the phone app.

Workshops and sheds

Roller doors and yards, with strobes and a siren to warn off anyone who shouldn't be there.

Small offices

Entry, reception and car park on one recorder.

Rental and holiday properties

Check the place from the app between visits.

Farms and rural blocks

Sheds, gates and machinery near the house, cabled back to one recorder.

LVK-11988 or LVK-11986

	LVK-11988 (this kit)	LVK-11986
Cameras	8 × NC119XA	6 × NC119XA
Resolution and view	4MP, 95°	4MP, 95°
Recorder and drive	NR008XB, 2TB	NR008XB, 2TB
PoE ports free	0 of 8	2 of 8

The same NC119XA cameras and NR008XB recorder; the difference is how many cameras come in the box.

Common questions

What is in the LVK-11988 kit?

In the box: 8 × IVSEC NC119XA 4MP turret dome cameras; IVSEC NR008XB 8-channel PoE recorder; 2TB Seagate SkyHawk surveillance hard drive for the recorder; recorder power supply, USB mouse, drive screws and quick guide; camera mounting screws, plugs and drilling templates.

Are network cables included?

No. Each camera needs one Cat5e or Cat6 cable back to the recorder, so buy cable to suit your runs. We can help work out lengths.

Can I add more cameras later?

Not on the recorder's own ports: all 8 PoE ports are used by the kit cameras and the recorder records 8 channels. For more than eight cameras you need a larger recorder; ask us.

How long will the 2TB drive record?

It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. The bay takes a drive up to 16TB for longer recording.

Do the cameras need a power point each?

No. The recorder powers each camera through its network cable (PoE), so one cable per camera is all it needs. They can also run from a 12 V DC supply if needed.

Can I see colour at night?

Yes. The white light lets the cameras record in full colour at night, or you can use infrared, which reaches up to 25 m in black and white.

Do the cameras have a siren and strobe lights?

Yes. Each camera has red and blue strobe lights and a speaker for the siren, and you can speak through it from the IVSEC X app.

Do the cameras record sound?

Yes. Each camera has a microphone and a speaker, so it records audio and supports two-way talk through the app.

What smart detection does it have?

Smart motion detection that picks out people and vehicles, to cut false alarms from leaves and shadows, plus perimeter intrusion and line crossing.

Are the cameras weatherproof?

Yes. The cameras are IP67 weatherproof and IK08 vandal rated, for walls and eaves outdoors. The recorder is for indoor use, between 5 and 40 °C.

Can I watch it on my phone?

Yes. Scan the recorder's QR code with the free IVSEC X app to watch live and play back from anywhere. There is also a PC client. The recorder must stay connected to your router.

What warranty does the kit have?

IVSEC rates the NC119XA cameras at 3 years and the NR008XB recorder at 2 years (parts). InFront Technologies handles warranty and support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help choosing cable, a bigger drive or more cameras: call 1300 736 970 or email [email protected].

Installation and safety

Power. The recorder runs from its 48 V plug-in supply and powers the cameras over PoE. There is no mains wiring in the kit. A new power point needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property, put up signage, and check the rules before you switch on audio.

What it does not do. These are wired cameras: no Wi-Fi, no battery and no 4G. The recorder must stay connected to your router for the app to work away from home.

Figures. From IVSEC's datasheets for the NC119XA camera and NR008XB recorder.
