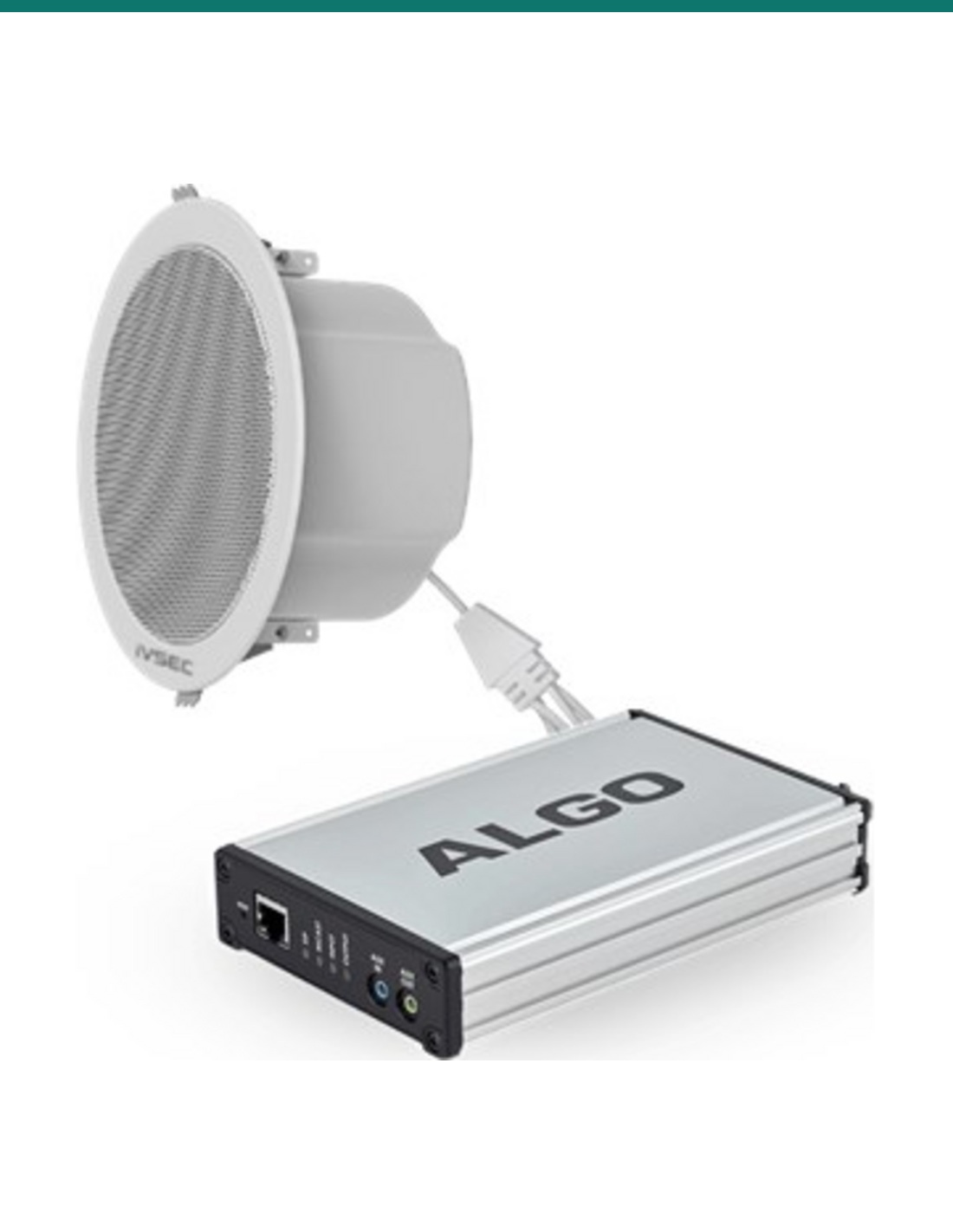

IVSEC IV-IPAUDIO-C bundle: NS300YA ceiling speaker and Algo 8301 paging adapter, five speakers supplied
IVSEC NS300YA white SIP ceiling speaker with built-in microphone, five in the bundle
Algo 8301 IP paging adapter and scheduler, one in the bundle
Algo 8301 front panel with network port, status lights, aux in and aux out
1 / 4

IVSEC IP Audio Solution for Cafés & Restaurants — IV-IPAUDIO-C

SKU IV-IPAUDIO-C In Stock - Ready to Ship
$2,310.00 inc GST

IVSEC IV-IPAUDIO-C: five NS300YA SIP ceiling speakers and an Algo 8301 paging adapter and scheduler, for music, bells and announcements over your network.

  • ✓5 × IVSEC NS300YA 10 W SIP ceiling speakers
  • ✓1 × Algo 8301 IP paging adapter and scheduler
  • ✓Built-in speaker microphones, two-way talk
  • ✓Multicast zones and timed bells or messages
  • ✓All PoE powered, one cable per device
  • ✓No PBX included



Description

IVSEC IV-IPAUDIO-C bundle parts: an IVSEC NS300YA white SIP ceiling speaker and the Algo 8301 IP paging adapter (five speakers supplied)
IVSEC · IP Audio · Café and restaurant bundle

Five ceiling speakers on your network.
Music, bells and announcements, scheduled.

IV-IPAUDIO-C is an IP audio set for cafés and restaurants: five IVSEC NS300YA SIP ceiling speakers and one Algo 8301 IP paging adapter and scheduler, all on network cable and PoE.

In one sentence:IV-IPAUDIO-C is an IVSEC IP audio bundle of five NS300YA 10 W SIP ceiling speakers with built-in microphones and one Algo 8301 SIP paging adapter and scheduler, for background music, timed messages and paging over PoE.

Six devices in the box. Switch, cabling and phone system are separate.

Every device runs on network cable. The speakers reach their full 10 W on PoE+ (6 W on standard PoE), and the 8301 needs an 802.3af PoE port. There is no PBX in this bundle; for live paging from phones, use your own SIP phone system or choose IV-IPAUDIO-G.

In the box
  • 5 × IVSEC NS300YA SIP ceiling speaker (white), each with a quick guide
  • 1 × Algo 8301 IP paging adapter and scheduler
You also need
  • A PoE switch: PoE+ ports for full speaker volume, 802.3af for the 8301
  • Cat5e or Cat6 cable to each speaker
  • A SIP phone system or IP phones, if staff will page live from a phone
  • A music source for the 8301's 3.5 mm input, if you want background music

One network, every zone.

Put the speakers over the dining room, counter, pick-up area and kitchen, each on one network cable. The 8301 plays bells and recorded messages on a schedule, sends music from its audio input, and multicasts to up to 50 zones, while each speaker joins up to 20 multicast groups.

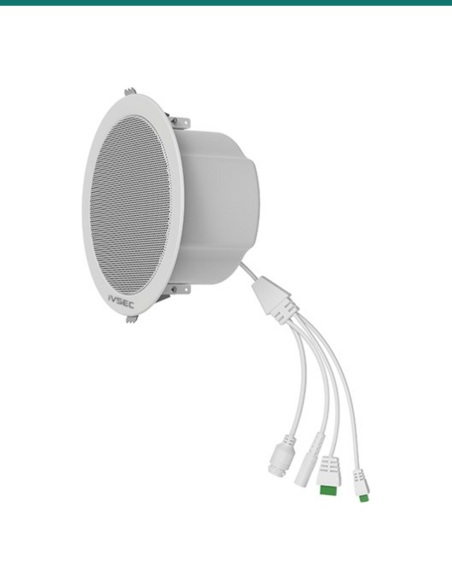

IVSEC NS300YA white SIP ceiling speaker with its network and relay cable tail, five supplied in IV-IPAUDIO-C

Five speakers

IVSEC NS300YA ceiling speaker.

10 W, up to 100 dB, 25 Hz to 20 kHz, with a built-in microphone for two-way talk. Each one is a SIP device with two SIP accounts, 20 multicast groups, G.722 and Opus audio and 500 MB of storage for MP3 or WAV files. 200 mm across and 90 mm deep, for indoor ceilings.

Algo 8301 IP paging adapter and scheduler, silver aluminium case, supplied in IV-IPAUDIO-C

Scheduler

Algo 8301 paging adapter.

A SIP endpoint and scheduler: bells, tones and announcements on timers synced to network time, 1 GB of storage for WAV or MP3 files, and multicast to up to 50 zones. It also has an isolated balanced line output for an existing amplifier.

Algo 8301 front panel with network port, SIP, multicast, input and output lights, and AUX IN and AUX OUT jacks

Connections

Network, aux in, aux out.

One PoE network port powers it (4 W maximum). The 3.5 mm AUX IN takes music from a phone or player, the AUX OUT feeds powered speakers, and the rear has a line output, a relay input and a relay output.

How it goes in

From ceiling to first announcement.

01

Plan the zones

Mark where each of the five ceiling speakers goes (dining, counter, pick-up, kitchen, outdoor cover) and where the 8301 and PoE switch will sit.

02

Cable and power

Run Cat5e or Cat6 to each speaker and connect everything to a PoE switch: PoE+ for full speaker volume, 802.3af for the 8301.

03

Set up the 8301

Open its web page, upload your messages and bells, set the schedule and choose which multicast zones each event plays to.

04

Set up the speakers

In each speaker's web page, join the multicast groups for its area, set the volume, and test every zone during opening hours.

Pair it with

Pair it with

Network

A PoE+ switch

Six PoE ports at least: PoE+ for each speaker to reach 10 W, and one for the 8301.

Live paging

A SIP phone system

To page from a phone, register the speakers to your VoIP system. IV-IPAUDIO-G adds a Grandstream UCM6301 PBX.

More zones

Extra IVSEC SIP speakers

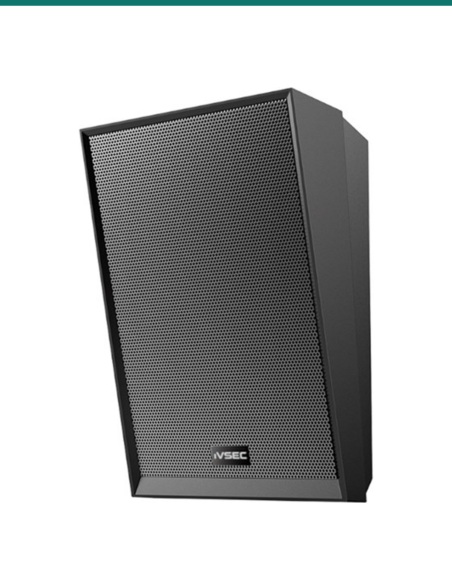

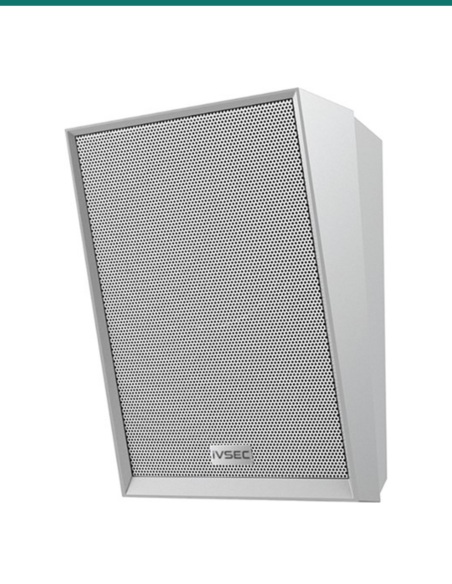

More NS300YA ceiling speakers, NS200YA wall speakers or the NS100YA horn for an outdoor area.

Backup power

A UPS

Keeps the switch, and so every speaker, running through short power cuts.

Where it is used

Where IV-IPAUDIO-C fits.

Cafés

Background music in the dining area and order-ready calls at the counter.

Restaurants

Separate dining, bar and kitchen zones with their own volume.

Takeaway and pick-up

Scheduled messages and pick-up announcements near the collection point.

Bakeries and delis

Opening and closing announcements on a timer.

Food courts

Each tenancy's speakers on the centre's network, in their own multicast group.

Small retail

Music and timed messages across a shop floor and stockroom.

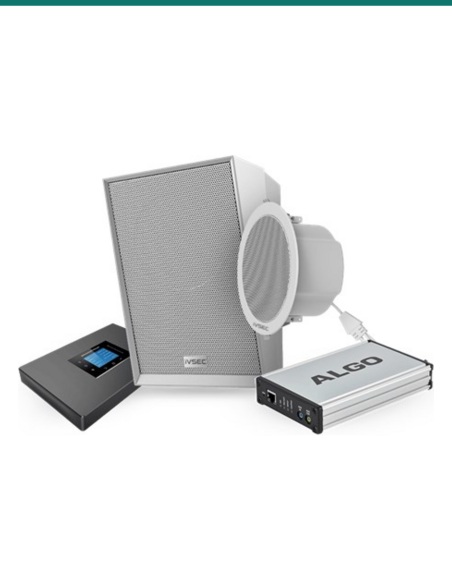

IV-IPAUDIO-C or IV-IPAUDIO-G

IV-IPAUDIO-C (this bundle)IV-IPAUDIO-G
Speakers5 × NS300YA ceiling8 × NS300YA ceiling
Algo 8301 paging adapterYesYes
PBX (phone system)NoneGrandstream UCM6301
Live paging from phonesNeeds your own SIP phone systemThrough the included UCM6301
Devices in the box610

Already have a VoIP phone system, or only need music and scheduled messages? IV-IPAUDIO-C. Want phone paging out of the box and more speakers? IV-IPAUDIO-G.

Common questions

What is in the bundle?

Five IVSEC NS300YA SIP ceiling speakers and one Algo 8301 IP paging adapter and scheduler: six devices.

Is a phone system included?

No. There is no PBX in IV-IPAUDIO-C. Register the speakers to your own SIP phone system for live paging, or choose IV-IPAUDIO-G, which includes a Grandstream UCM6301.

How are the speakers powered?

By PoE from a network switch, or 12–24 V DC. They give 10 W on PoE+ or DC and 6 W on standard PoE.

How loud are they?

IVSEC's spec table rates the NS300YA at 100 dB maximum (its overview text says 105 dB), with 25 Hz to 20 kHz response.

Can it play background music?

Yes. Plug a music source into the 8301's 3.5 mm audio input and send it to the speakers by multicast. The speakers can also play MP3 and WAV files themselves.

Can it play bells or messages on a timer?

Yes. The 8301 is a scheduler: it plays bells, tones and recorded announcements on timers synced to network time, from 1 GB of storage.

Can different areas get different audio?

Yes. The 8301 multicasts to up to 50 zones and each speaker can join up to 20 multicast groups, so the kitchen and dining room can be set up separately.

Do the speakers have microphones?

Yes, each NS300YA has a built-in microphone for two-way talk. Check your state's surveillance and listening device laws before using it to listen in.

Can the speakers go outside?

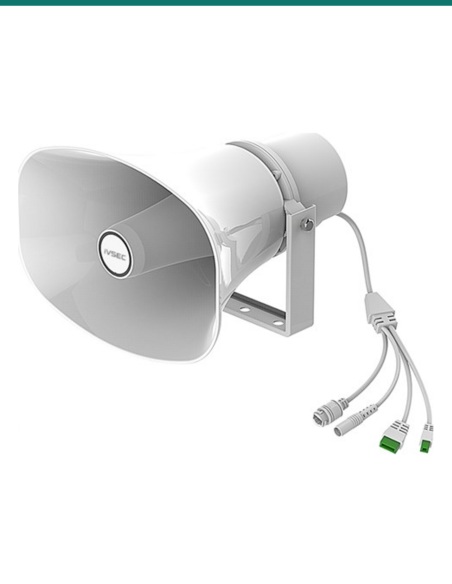

No. The NS300YA is an indoor ceiling speaker. For an outdoor area add the IVSEC NS100YA horn speaker.

Can I use my existing amplifier?

Yes. The 8301 has an isolated balanced line output to feed an existing analog amplifier as well as the IP speakers.

Does it work with my CCTV?

The NS300YA lists ONVIF support plus relay inputs and outputs and HTTP webhooks for linking to other systems. Ask us about your recorder before relying on it.

What warranty does it have?

The IVSEC speakers carry 2 years parts. Confirm the Algo 8301 warranty with us. InFront Technologies supports the bundle in Australia on 1300 736 970.

Supported by InFront Technologies.

Help planning zones, the PoE switch or phone paging: call 1300 736 970 or email [email protected]. The component datasheets are on the Attachments tab.

Installation and safety

Low voltage. Every device runs on PoE (speakers also on 12–24 V DC). A new power point for the switch needs a licensed electrician.

Ceiling work. Fitting ceiling speakers means working at height and near ceiling services. Use safe access equipment.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Microphones and privacy. The speakers have built-in microphones. Listening to or recording conversations is covered by state and territory laws.

What it does not do. It is not a certified emergency warning and intercommunication system, the speakers are indoor only, and there is no phone system in the box.

Figures. From IVSEC's NS300YA datasheet (6 November 2026) and Algo's 8301 datasheet.
