The Algo 8301 is a PoE SIP paging adapter that bridges a VoIP phone system to a traditional analog PA amplifier, with an NTP-synced scheduler for bells and announcements.

✓Isolated balanced line out for 600 Ohm–10 kOhm amplifiers
✓PoE IEEE 802.3af · G.711 / G.722 wideband
✓50 page + 10 emergency + 10 ring SIP extensions
✓Multicast send/receive · up to 50 zones · 1 GB WAV/MP3 storage
✓3.5 mm music input · indoor 0–40 °C · wall bracket included

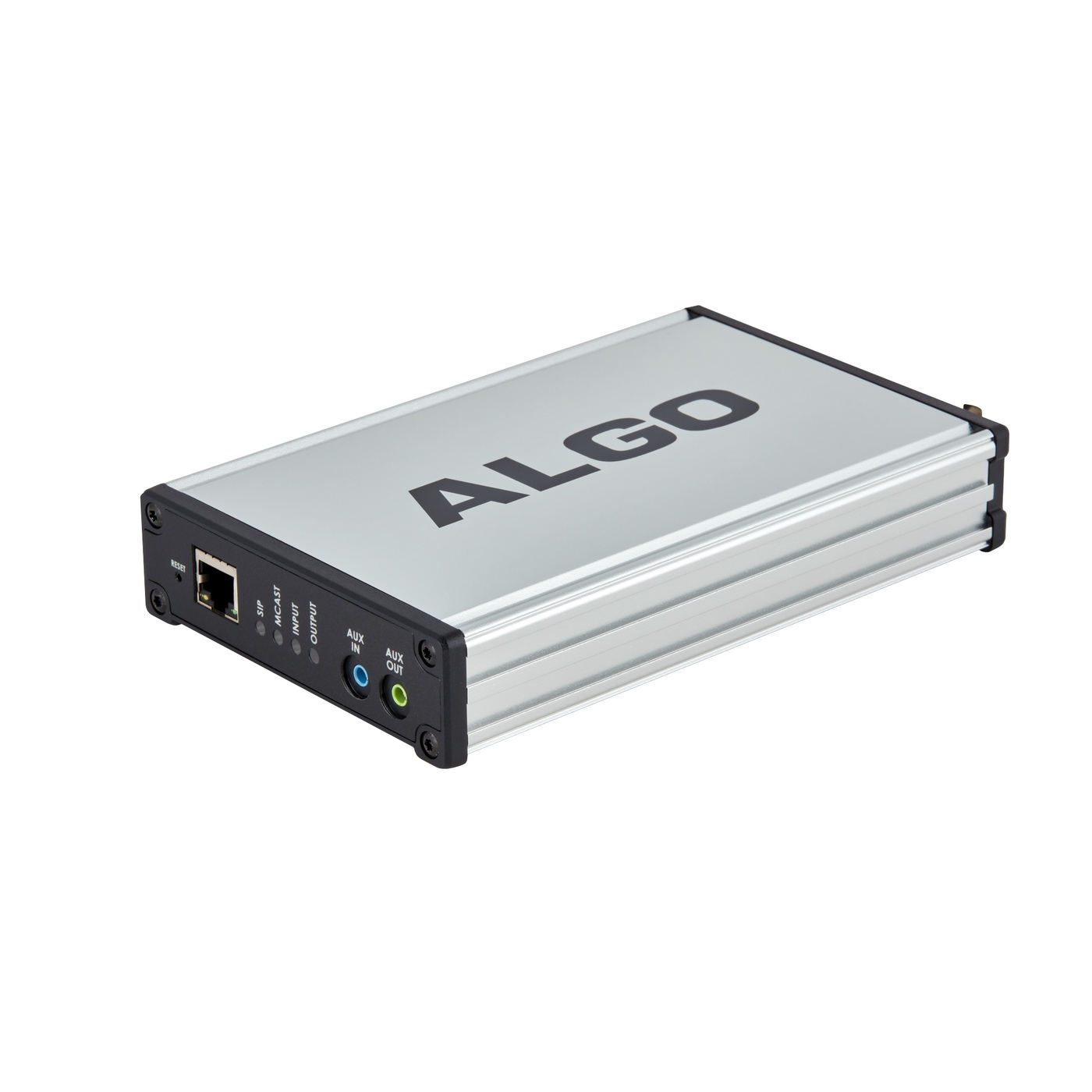

Algo 8301

SIP paging adapter and bell scheduler for analog PA

The 8301 is a SIP endpoint that emulates a legacy page port. Connect its isolated, balanced line output to a traditional amplifier and register it on a hosted or on-premises VoIP system for voice paging, loud ringing and emergency tones — without an FXS port or ATA.

ADD-ON — AMPLIFIER AND POE REQUIRED

The 8301 is a paging adapter, not a speaker. It needs a PoE switch (IEEE 802.3af) and a traditional analog amplifier with 600 Ohm–10 kOhm line input. Algo recommends one 8301 per amplifier.

In the box

8301 paging adapter and scheduler
Wall-mount bracket and screws
Network cable
Two pluggable terminal blocks
Flat-head screwdriver and getting-started sheet

What you also need (sold separately)

IEEE 802.3af PoE switch or injector
Analog paging amplifier and speakers
Optional XLR cables (Algo 2504 / 2505)
Optional 1202 / 1203 / 1204 / 1205 accessories

Unsure what’s compatible? See Compatible hardware below or contact us before ordering.

Use it to IP-enable an existing PA, multicast to SIP speakers, or run scheduled bells from 1 GB of on-device WAV/MP3 storage. Wideband G.722 keeps speech intelligible on the analog side.

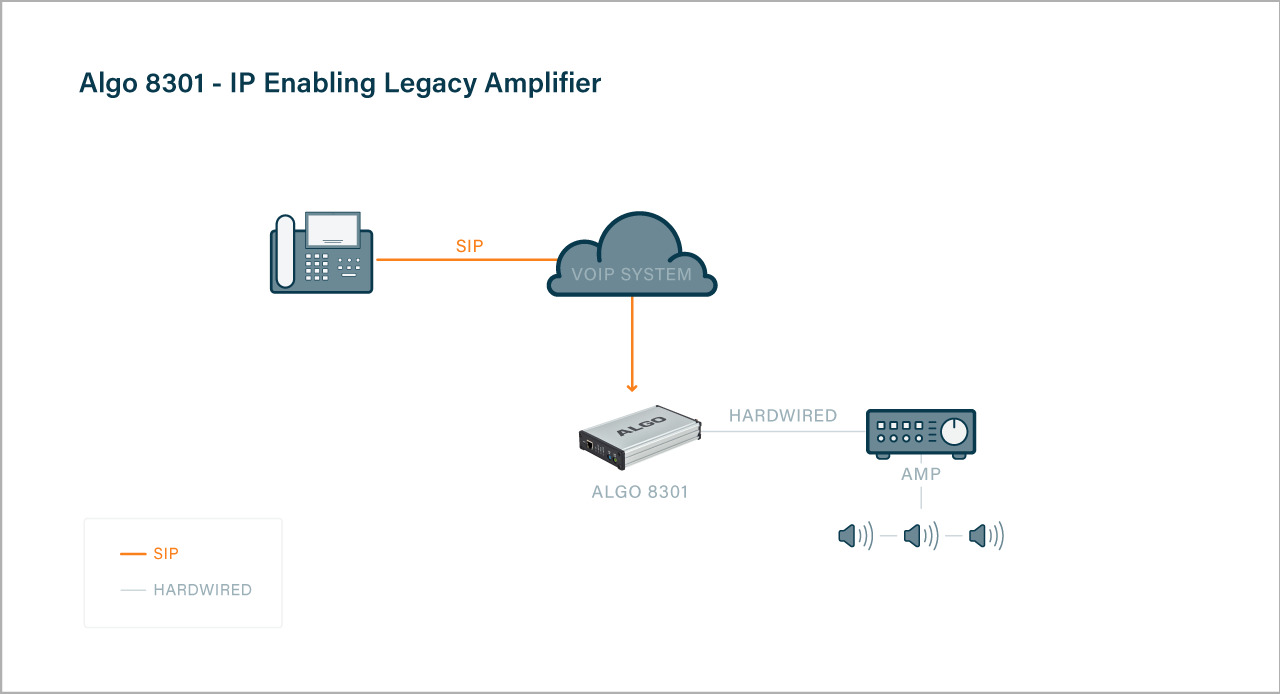

Algo 8301 bridging a VoIP system to a legacy amplifier

Bridge analog PA to SIP

Balanced, isolated line out (mini-XLR or terminal block) matches amplifier inputs from 600 Ohm to 10 kOhm and includes a dry contact to key the amp. No FXS port or telephone answering device.

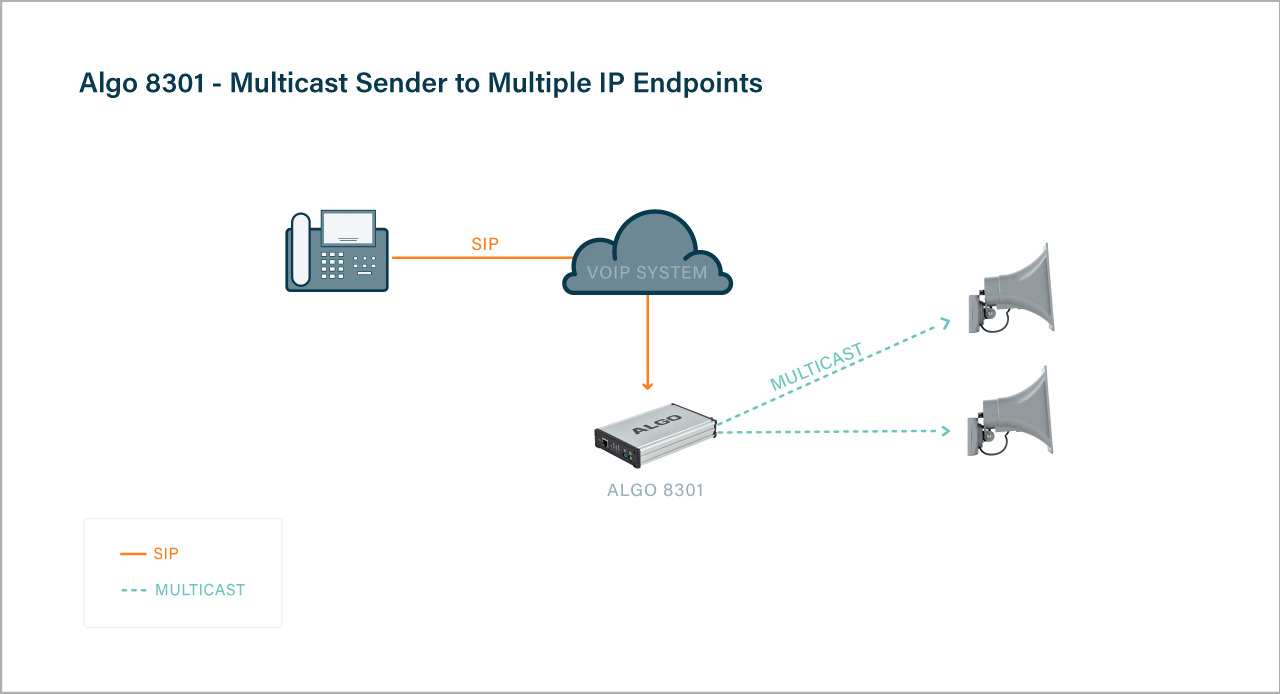

Algo 8301 multicast sender to IP endpoints

Multicast across a site

Send or receive RTP multicast for up to 50 zones. One registered 8301 can drive other Algo IP speakers, strobes and paging adapters — receivers do not need their own SIP registration.

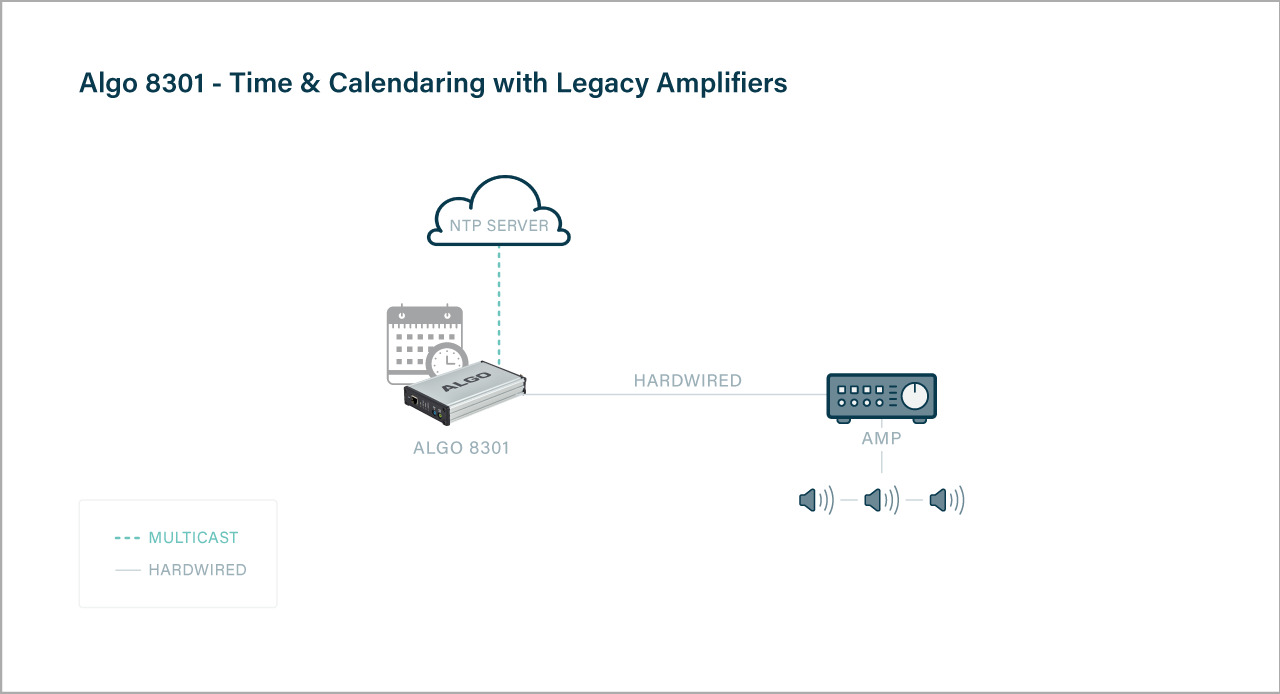

Algo 8301 NTP scheduler for bells and announcements

NTP-synced scheduler

Play bells, tones and recorded announcements on a calendar without a PC. Audio goes out on the analog line and/or multicast. A separate scheduler login keeps day-to-day changes off the admin GUI.

How it works

1Connect the 8301 to an IEEE 802.3af PoE switch. Blue front LEDs stay on until boot finishes (about 60 seconds).
2Wire the isolated line output to the amplifier (mini-XLR or terminal block) and, if needed, the relay output to the amp’s page-enable input.
3Register page, ring and emergency-alert extensions in the web GUI, or leave SIP blank and use multicast / scheduler only.
4Upload WAV/MP3 files (1 GB storage), set NTP, and schedule bells or announcements. A page or alert interrupts music on the 3.5 mm aux input.

At a glance

Power: PoE IEEE 802.3af Class 0 · max 4 W · idle 2 W
SIP: 50 page · 10 emergency · 10 ring · TLS / SRTP
Codecs: G.711 µ/A · G.722 · multicast also Opus
Audio memory: 1 GB WAV or MP3
Line out: Balanced / isolated · 600 Ohm–10 kOhm
Environment: 0–40 °C · indoor dry locations

Compatible hardware

Pairs with analog amplifiers and with SIP speakers on the same multicast. The IVSEC IV-IPAUDIO café, grocery, school and warehouse kits use this adapter as the paging controller alongside IVNS horn, wall and ceiling speakers.

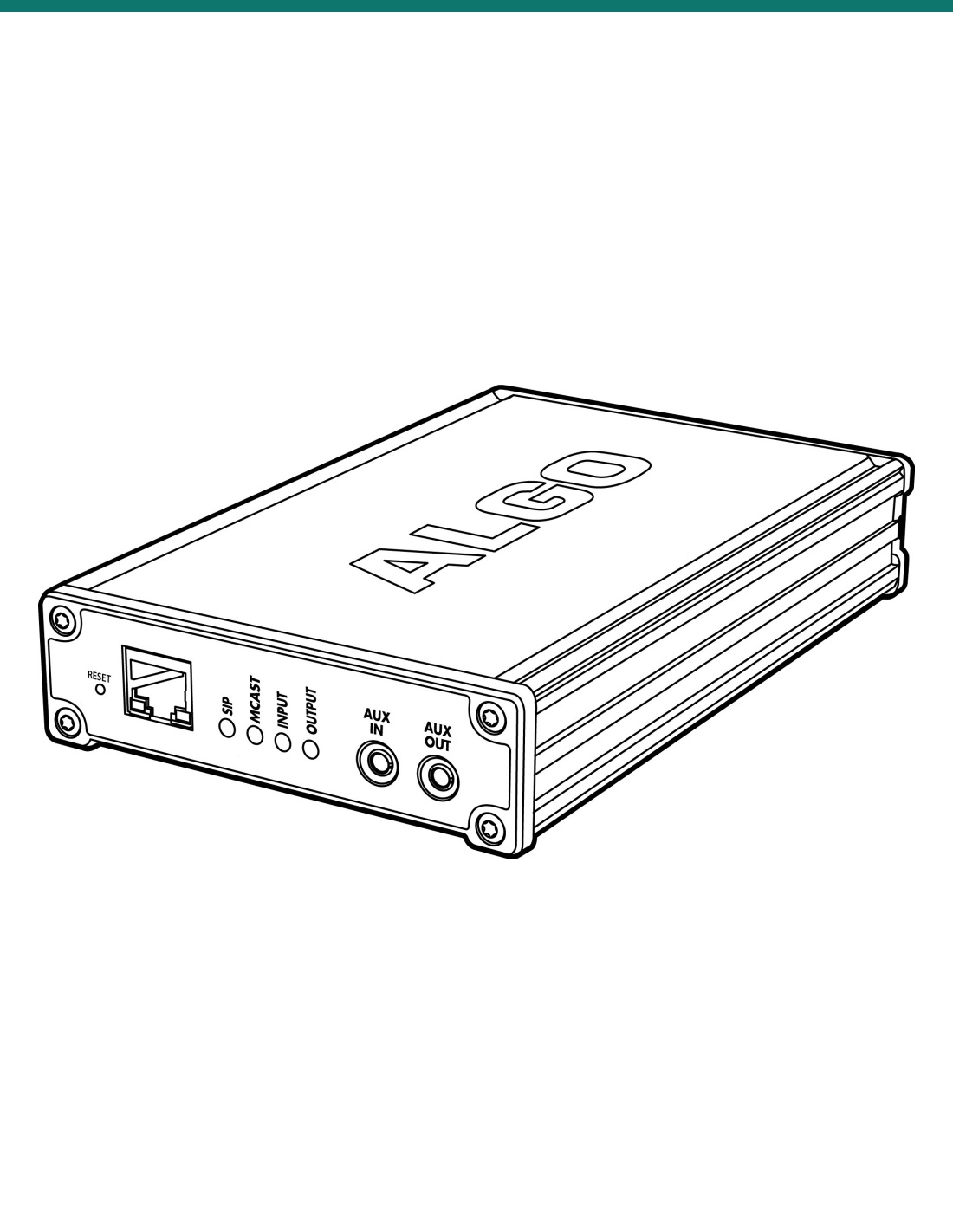

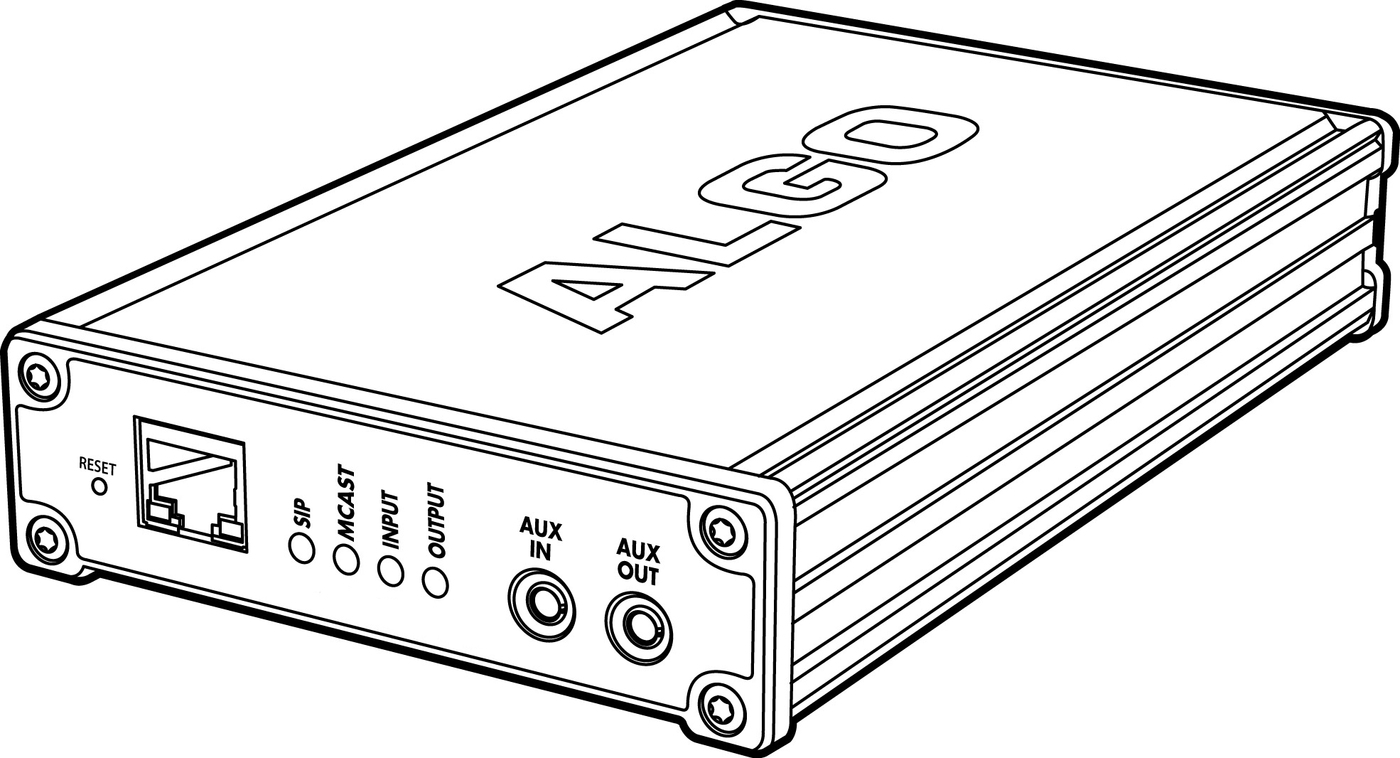

Algo 8301 mechanical outline — Product outline 17.2 × 10.9 × 3.0 cm. Technical drawing courtesy of Algo.

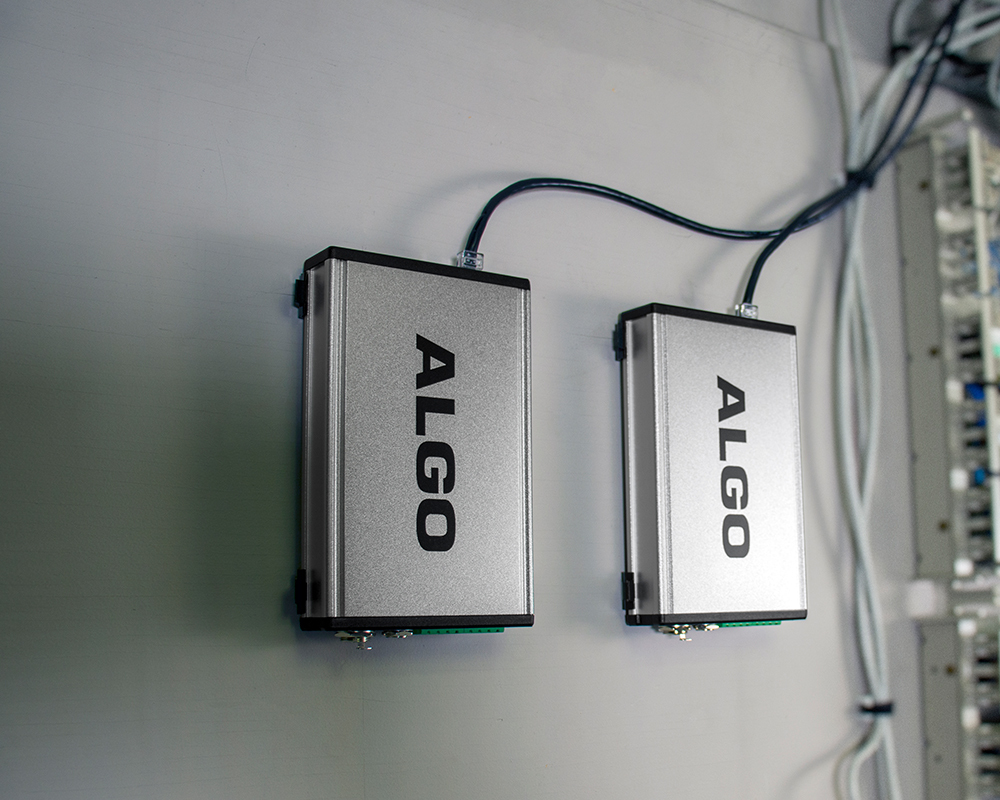

Algo 8301 installed with a paging amplifier

Typical closet install with an analog amplifier — product shot may differ from the actual product.

FAQ

Does the 8301 include a speaker?

No. It is a paging adapter. Speakers sit on the analog amplifier, or you multicast to SIP speakers such as the IVSEC IVNS range.

Can one 8301 drive several amplifiers?

Algo recommends one adapter per amplifier. Use multicast so each 8301 (or SIP speaker) receives the same page.

Is InformaCast included?

This listing is the standard 8301. The 8301-IC InformaCast variant is a separate SKU and needs an InformaCast licence.

Australian stock of the Algo 8301 is held by Infront Technologies for trade and project work — pair it with IVSEC SIP speakers or an existing analog PA.

Installation & safety notice

The 8301 is a PoE indoor network appliance. Install it in a dry location (0–40 °C). CAT5/CAT6 to the PoE switch must stay inside the building unless surge protection is fitted. Amplifier and 70/100 V speaker wiring should be completed by a qualified installer. This product does not replace a building fire-alarm or emergency-warning system unless the project specification says otherwise.

Always confirm SIP compatibility, multicast addressing and amplifier input level on site before go-live.
