IVSEC IV-IPAUDIO-W: four NS200YA-BLK black SIP wall speakers, an Algo 8301 paging adapter and scheduler, and a Grandstream UCM6301 IP PBX for warehouse paging and shift bells.
- ✓4 × IVSEC NS200YA-BLK 15 W SIP wall speakers, black
- ✓1 × Algo 8301 IP paging adapter and scheduler
- ✓1 × Grandstream UCM6301 IP PBX, up to 500 users
- ✓Page from SIP phones or the Wave app
- ✓Multicast zones and timed bells
- ✓Speakers and 8301 powered by PoE
Description

Four black wall speakers for the floor.
Page the warehouse from any phone.

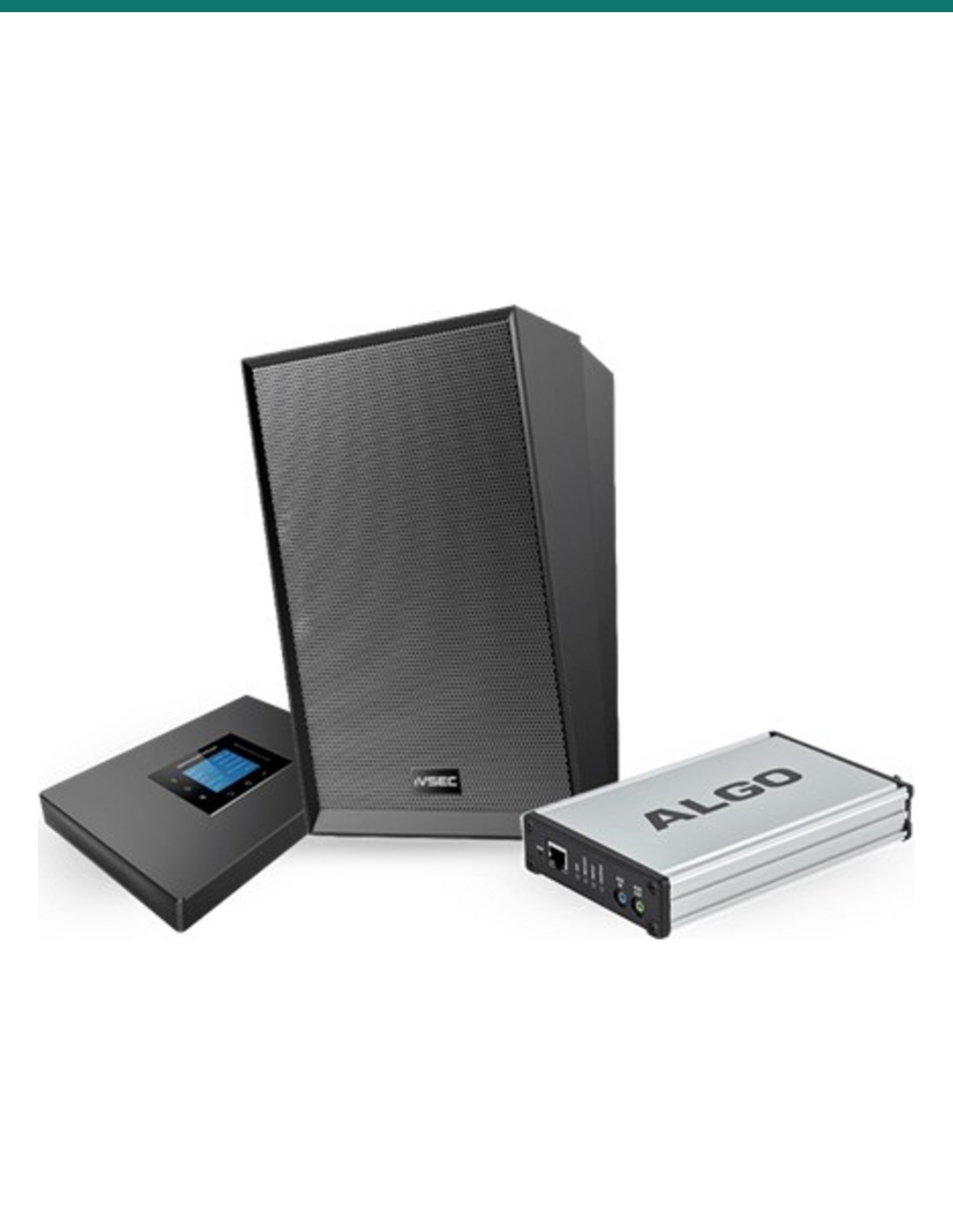

IV-IPAUDIO-W is an IP audio set for warehouses: four IVSEC NS200YA-BLK black SIP wall speakers, an Algo 8301 IP paging adapter and scheduler, and a Grandstream UCM6301 IP PBX.
In one sentence:IV-IPAUDIO-W is an IVSEC IP audio bundle of four NS200YA-BLK 15 W black SIP wall speakers with built-in microphones, an Algo 8301 paging adapter and scheduler, and a Grandstream UCM6301 IP PBX for warehouse paging.
Six devices in the box. Switch, cabling and phones are separate.
The speakers reach their full 15 W on PoE+ or 24 V DC (8 W on standard PoE), the 8301 needs an 802.3af PoE port, and the UCM6301 runs from its own 12 V supply. Staff page from SIP phones or the Grandstream Wave app; no handsets are included.
- 4 × IVSEC NS200YA-BLK SIP wall speaker (black), each with a quick guide
- 1 × Algo 8301 IP paging adapter and scheduler
- 1 × Grandstream UCM6301 IP PBX
- A PoE switch: four PoE+ ports for the speakers, one 802.3af port for the 8301
- Cat5e or Cat6 cable to each speaker, and wall fixings
- SIP desk phones, or the Grandstream Wave app, for staff to page from
- A music source for the 8301 aux input, if you want background music
Paging that reaches the floor.
Put the speakers over the racking, packing benches and dispatch doors, each on one network cable. Staff page from a phone through the UCM6301, the 8301 plays shift bells and messages on a schedule to up to 50 multicast zones, and each speaker joins up to 20 multicast groups.

Four speakers
IVSEC NS200YA-BLK wall speaker.
15 W, up to 105 dB, 100 Hz to 20 kHz, with a built-in microphone for two-way intercom. Each one is a SIP device with eight SIP accounts, 20 multicast groups and MP3 or WAV playback. 276 × 185 × 125 mm, black, for indoor walls.

Phone system
Grandstream UCM6301 IP PBX.
The phone system that ties it together: up to 500 users and 75 concurrent calls, with paging and intercom, ring groups, an auto attendant, voicemail and time schedules. Staff page from SIP desk phones or the Grandstream Wave app, and its FXO port can take a phone line.

Scheduler
Algo 8301 paging adapter.
A SIP endpoint and scheduler: bells, tones and announcements on timers synced to network time, 1 GB of storage for WAV or MP3 files, and multicast to up to 50 zones. Its 3.5 mm aux input takes background music, and an isolated balanced line output can feed an existing amplifier.
How it goes in
From warehouse wall to first page.
01
Plan the zones
Mark where the four speakers go (storage, packing, dispatch, office) and where the PoE switch, 8301 and UCM6301 will sit.
02
Cable and power
Run Cat5e or Cat6 to each speaker and connect them and the 8301 to a PoE switch; plug the UCM6301 into the same network and its 12 V supply.
03
Set up the UCM6301
Create extensions for staff phones, register the speakers and the 8301, and set up paging groups for each area and an all-call group.
04
Schedule and test
Upload shift bells and messages to the 8301, set its schedule and multicast zones, then test every zone with forklifts and machines running.
At a glance
IV-IPAUDIO-W
Show specs
In the bundle
4 × IVSEC NS200YA-BLK SIP wall speaker (black), 1 × Algo 8301 paging adapter, 1 × Grandstream UCM6301 IP PBX
Speaker output
NS200YA-BLK: 15 W on PoE+ or 24 V DC 2 A, 8 W on PoE; max 105 dB
Speaker frequency response
100 Hz to 20 kHz, 88 ± 3 dB sensitivity, 8 Ω
Speaker microphone
Built in, for two-way intercom
Speaker SIP and multicast
8 SIP accounts, 20 multicast groups, auto answer, DTMF, HTTP/webhook, ONVIF
Speaker audio
G.711, G.722, G.729 and Opus among others; MP3 and WAV playback, 500 MB storage
Speaker connectors
RJ45 10/100, 2-pin DC input, 1 × 8 Ω output for one extra 15 W speaker (on 24 V DC)
Speaker size and use
276 × 185 × 125 mm, black, wall mount, indoor only, −20 °C to 55 °C
Paging adapter
Algo 8301: 50 page, 10 emergency alert and 10 ring SIP extensions; TLS and SRTP
Adapter multicast
Send and receive, 50 zones; G.711, G.722, Opus
Adapter scheduler
Bells, tones and announcements on timers, NTP synced; 1 GB WAV or MP3 storage
Adapter audio I/O
Isolated balanced line out, 3.5 mm aux in and out, relay in and out
Adapter power and size
PoE 802.3af, 4 W maximum; 180 × 109 × 32 mm, 0.4 kg, 0 °C to 40 °C, dry indoor locations
Phone system
Grandstream UCM6301 IP PBX: up to 500 users, 75 concurrent calls (G.711)
PBX call features
Paging and intercom, ring groups, IVR auto attendant, voicemail, call recording, time schedules
PBX ports
3 × Gigabit network, 1 × FXS (analog phone), 1 × FXO (phone line)
PBX apps
Grandstream Wave app for web and mobile; touch-screen colour LCD
PBX power and size
12 V DC 1.5 A supply; 270 × 175 × 36 mm, 715 g; wall or desk mount; 0 °C to 45 °C
PoE ports needed
5: four PoE+ for full speaker power, one 802.3af for the 8301 (UCM6301 on its own supply)
Warranty
IVSEC speakers 2 years parts; Algo 8301 and UCM6301: confirm with us
Pair it with
Pair it with
Network
A PoE+ switch
Five PoE ports at least: PoE+ for each speaker to reach 15 W, one for the 8301, plus a port for the UCM6301.
Paging
SIP desk or cordless phones
Staff page from phones registered to the UCM6301, or from the Grandstream Wave app on a mobile.
Yards and docks
IVSEC NS100YA horn speakers
Rated IP66 for loading bays and yards, where an indoor wall speaker cannot go.
More zones
Extra NS200YA-BLK speakers
More of the same black wall speaker as the warehouse grows.
Where it is used
Where IV-IPAUDIO-W fits.
Warehouses
Paging pickers and forklift drivers across the racking from any phone.
Distribution centres
Shift bells and break announcements on a schedule.
Packing and dispatch
Order and courier calls to the packing benches and dispatch doors.
Workshops
Paging staff to the phone or the front counter.
Trade counters
Calls from the counter to the stock area behind it.
Factory floors
Indoor production areas that need announcements and timed messages.
IV-IPAUDIO-W or IV-IPAUDIO-S
| IV-IPAUDIO-W (this bundle) | IV-IPAUDIO-S | |
|---|---|---|
| Speakers | 4 × NS200YA-BLK wall, black | 20 × NS200YA wall, white |
| Algo 8301 paging adapter | Yes | Yes |
| PBX (phone system) | Grandstream UCM6301 | Grandstream UCM6301 |
| PoE ports needed | 5 | 21 |
| Devices in the box | 6 | 22 |
The same 15 W wall speaker, PBX and paging adapter. IV-IPAUDIO-W is four black speakers for a warehouse floor; IV-IPAUDIO-S is twenty white speakers for a school campus.
Common questions
What is in the bundle?
Four IVSEC NS200YA-BLK black SIP wall speakers, one Algo 8301 IP paging adapter and scheduler, and one Grandstream UCM6301 IP PBX: six devices.
Are phones included?
No. The UCM6301 is the phone system; add SIP desk or cordless phones, or use the Grandstream Wave app on a mobile, to page from.
How are the speakers powered?
By PoE from a network switch, or a 24 V DC 2 A supply. They give 15 W on PoE+ or DC and 8 W on standard PoE.
How loud are they?
Up to 105 dB maximum sound pressure, with 100 Hz to 20 kHz response. In a noisy warehouse, plan speakers close to where people work.
Can the speakers go in a loading bay or yard?
No. The NS200YA-BLK is an indoor wall speaker. For yards and loading bays add the IVSEC NS100YA horn speaker, rated IP66.
Can it play shift bells?
Yes. The 8301 plays bells, tones and recorded announcements on timers synced to network time, from 1 GB of storage.
Can I page one area only?
Yes. Set up paging groups on the UCM6301 and multicast zones on the 8301 (up to 50); each speaker can join up to 20 multicast groups.
Can I add a speaker to each one?
Yes. Powered from 24 V DC, each NS200YA-BLK can drive one extra 8 Ω 15 W passive speaker from its speaker output.
Do the speakers have microphones?
Yes, each NS200YA-BLK has a built-in microphone for two-way intercom. Check your state's surveillance and listening device laws before using it to listen in.
How many phones can the UCM6301 take?
Grandstream rates the UCM6301 at up to 500 users and 75 concurrent calls (G.711).
Is there a white version?
The speakers come in white as the IVNS200YA. IV-IPAUDIO-S uses twenty white ones with the same PBX and paging adapter.
What warranty does it have?
The IVSEC speakers carry 2 years. Confirm the Algo 8301 and Grandstream UCM6301 warranty with us. InFront Technologies supports the bundle in Australia on 1300 736 970.
Supported by InFront Technologies.
Help planning zones, the PoE switch, phones or paging groups: call 1300 736 970 or email [email protected]. The component datasheets are on the Attachments tab.
Installation and safety
Low voltage. The speakers and the 8301 run on PoE (speakers also on DC); the UCM6301 uses its 12 V plug-in supply. A new power point for the switch or PBX needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Connecting the UCM6301 to a phone line is also cabling work.
Microphones and privacy. The speakers have built-in microphones. Listening to or recording conversations is covered by state and territory laws.
Wall mounting. Fixings are not listed in the box; use fixings rated for the wall or steel and the 276 × 185 × 125 mm cabinet, and keep speakers clear of forklift paths.
What it does not do. It is not a certified emergency warning and intercommunication system, the speakers are indoor only (−20 °C to 55 °C), and no phones or handsets are in the box.
Figures. From IVSEC's NS200YA-BLK datasheet (6 November 2026), Algo's 8301 datasheet and Grandstream's UCM6300 series datasheet (UCM6301 column).
- Brand
- IVSEC
- Application
- Warehouse paging
- Protocol
- SIP
- Included speakers
- 4 × IVNS200YA-BLK
- Included PBX
- Grandstream UCM6301
- Audio controller
- AL-8301
