- New

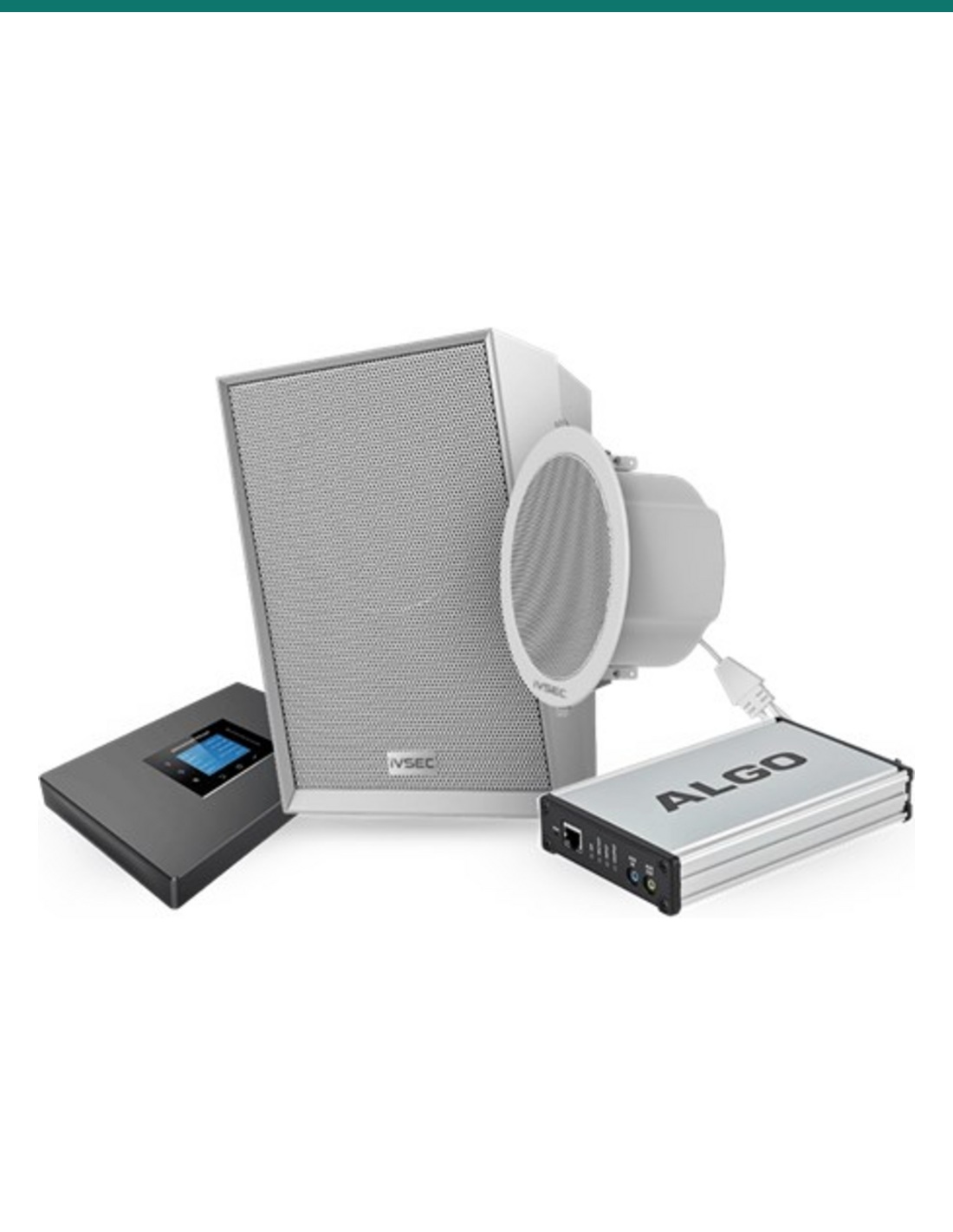

IVSEC IV-IPAUDIO-G: eight NS300YA SIP ceiling speakers, an Algo 8301 paging adapter and scheduler, and a Grandstream UCM6301 IP PBX for store-wide paging, music and timed messages.
- ✓8 × IVSEC NS300YA 10 W SIP ceiling speakers
- ✓1 × Algo 8301 IP paging adapter and scheduler
- ✓1 × Grandstream UCM6301 IP PBX, up to 500 users
- ✓Page from SIP phones or the Wave app
- ✓Multicast zones and timed bells or messages
- ✓Speakers and 8301 powered by PoE
Description

Eight ceiling speakers and a phone system.
Page any aisle from a phone.
IV-IPAUDIO-G is an IP audio set for grocery stores: eight IVSEC NS300YA SIP ceiling speakers, an Algo 8301 IP paging adapter and scheduler, and a Grandstream UCM6301 IP PBX, all on your network.
In one sentence:IV-IPAUDIO-G is an IVSEC IP audio bundle of eight NS300YA 10 W SIP ceiling speakers with built-in microphones, an Algo 8301 paging adapter and scheduler, and a Grandstream UCM6301 IP PBX for paging from phones.
Ten devices in the box. Switch, cabling and phones are separate.
The speakers reach their full 10 W on PoE+ (6 W on standard PoE), the 8301 needs an 802.3af PoE port, and the UCM6301 runs from its own 12 V supply. Staff page from SIP phones or the Grandstream Wave app; no handsets are included.
- 8 × IVSEC NS300YA SIP ceiling speaker (white), each with a quick guide
- 1 × Algo 8301 IP paging adapter and scheduler
- 1 × Grandstream UCM6301 IP PBX
- A PoE switch: eight PoE+ ports for the speakers, one 802.3af port for the 8301
- Cat5e or Cat6 cable to each speaker
- SIP desk phones, or the Grandstream Wave app, for staff to page from
- A music source for the 8301 aux input, if you want background music
Paging, music and timed messages on one network.
Put the speakers over the aisles, checkouts, deli and back dock, each on one network cable. The UCM6301 lets staff page from a phone, the 8301 plays bells, store announcements and music on a schedule to up to 50 multicast zones, and each speaker joins up to 20 multicast groups.

Eight speakers
IVSEC NS300YA ceiling speaker.
10 W, up to 100 dB, 25 Hz to 20 kHz, with a built-in microphone for two-way talk. Each one is a SIP device with two SIP accounts, 20 multicast groups, G.722 and Opus audio and 500 MB of storage for MP3 or WAV files. 200 mm across and 90 mm deep, for indoor ceilings.

Phone system
Grandstream UCM6301 IP PBX.
The phone system that ties it together: up to 500 users and 75 concurrent calls, with paging and intercom, ring groups, an auto attendant, voicemail and time schedules. Staff page from SIP desk phones or the Grandstream Wave app, and its FXO port can take a phone line.

Scheduler
Algo 8301 paging adapter.
A SIP endpoint and scheduler: bells, tones and announcements on timers synced to network time, 1 GB of storage for WAV or MP3 files, and multicast to up to 50 zones. Its 3.5 mm aux input takes background music, and an isolated balanced line output can feed an existing amplifier.
How it goes in
From ceiling to first page.
01
Plan the zones
Mark where the eight ceiling speakers go (aisles, checkouts, deli, back dock) and where the PoE switch, 8301 and UCM6301 will sit.
02
Cable and power
Run Cat5e or Cat6 to each speaker and connect them and the 8301 to a PoE switch; plug the UCM6301 into the same network and its 12 V supply.
03
Set up the UCM6301
Create extensions for staff phones, register the speakers and the 8301, and set up paging groups for each area of the store.
04
Schedule and test
Upload bells and messages to the 8301, set its schedule and multicast zones, then test every zone and volume during trading hours.
At a glance
IV-IPAUDIO-G
Show specs
In the bundle
8 × IVSEC NS300YA SIP ceiling speaker, 1 × Algo 8301 paging adapter, 1 × Grandstream UCM6301 IP PBX
Speaker output
NS300YA: 10 W on PoE+ or 12–24 V DC, 6 W on PoE; max 100 dB
Speaker frequency response
25 Hz to 20 kHz, 8 Ω
Speaker microphone
Built in, for two-way talk
Speaker SIP and multicast
2 SIP accounts, 20 multicast groups, auto answer, DTMF, HTTP/webhook, ONVIF
Speaker audio
G.722, Opus; 500 MB storage for MP3 or WAV
Speaker connectors
RJ45 10/100, 2.1 mm DC input, relay in, relay out
Speaker size and use
90 × 200 × 200 mm, white, ceiling mount, indoor only, −25 °C to 55 °C
Paging adapter
Algo 8301: 50 page, 10 emergency alert and 10 ring SIP extensions; TLS and SRTP
Adapter multicast
Send and receive, 50 zones; G.711, G.722, Opus
Adapter scheduler
Bells, tones and announcements on timers, NTP synced; 1 GB WAV or MP3 storage
Adapter audio I/O
Isolated balanced line out, 3.5 mm aux in and out, relay in and out
Adapter power and size
PoE 802.3af, 4 W maximum; 180 × 109 × 32 mm, 0.4 kg, 0 °C to 40 °C, dry indoor locations
Phone system
Grandstream UCM6301 IP PBX: up to 500 users, 75 concurrent calls (G.711)
PBX call features
Paging and intercom, ring groups, IVR auto attendant, voicemail, call recording, time schedules
PBX ports
3 × Gigabit network, 1 × FXS (analog phone), 1 × FXO (phone line)
PBX apps
Grandstream Wave app for web and mobile; touch-screen colour LCD
PBX power and size
12 V DC 1.5 A supply; 270 × 175 × 36 mm, 715 g; wall or desk mount; 0 °C to 45 °C
PoE ports needed
9: eight PoE+ for full speaker power, one 802.3af for the 8301 (UCM6301 on its own supply)
Warranty
IVSEC speakers 2 years parts; Algo 8301 and UCM6301: confirm with us
Pair it with
Pair it with
Network
A PoE+ switch
Nine PoE ports at least: PoE+ for each speaker to reach 10 W, one for the 8301, plus a port for the UCM6301.
Paging
SIP desk phones
Staff page from phones registered to the UCM6301, or from the Grandstream Wave app on a mobile or computer.
More zones
Extra IVSEC SIP speakers
More NS300YA ceiling speakers, NS200YA wall speakers for the stockroom, or the NS100YA horn for a loading dock.
Backup power
A UPS
Keeps the switch and PBX, and so every speaker, running through short power cuts.
Where it is used
Where IV-IPAUDIO-G fits.
Supermarkets
Checkout assistance calls, store announcements and background music on the shop floor.
Convenience stores
Music and timed messages, with paging to the back room.
Delis and butchers
Order-ready calls at the counter and a separate zone for the prep area.
Liquor stores
Store-wide paging and closing-time announcements on a schedule.
Pharmacies
Dispensary calls from a phone and background music in the shop.
Hardware and garden
Paging staff to an aisle or the trade counter from any phone.

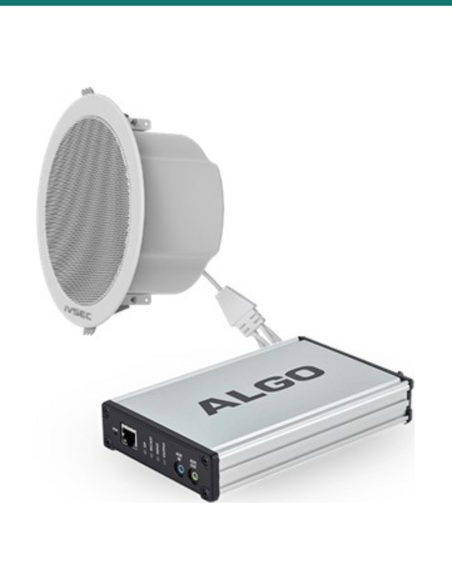

IV-IPAUDIO-G or IV-IPAUDIO-C
| IV-IPAUDIO-G (this bundle) | IV-IPAUDIO-C | |
|---|---|---|
| Speakers | 8 × NS300YA ceiling | 5 × NS300YA ceiling |
| Algo 8301 paging adapter | Yes | Yes |
| PBX (phone system) | Grandstream UCM6301 | None |
| Live paging from phones | Through the included UCM6301 | Needs your own SIP phone system |
| Devices in the box | 10 | 6 |
Need phone paging out of the box and more speakers? IV-IPAUDIO-G. Already have a VoIP phone system, or only need music and scheduled messages? IV-IPAUDIO-C.
Common questions
What is in the bundle?
Eight IVSEC NS300YA SIP ceiling speakers, one Algo 8301 IP paging adapter and scheduler, and one Grandstream UCM6301 IP PBX: ten devices.
Are phones included?
No. The UCM6301 is the phone system; add SIP desk phones, or use the Grandstream Wave app on a mobile or computer, to page from.
How are the speakers powered?
By PoE from a network switch, or 12–24 V DC. They give 10 W on PoE+ or DC and 6 W on standard PoE.
How loud are they?
IVSEC's spec table rates the NS300YA at 100 dB maximum (its overview text says 105 dB), with 25 Hz to 20 kHz response.
Can it play background music?
Yes. Plug a music source into the 8301's 3.5 mm aux input and send it to the speakers by multicast. The speakers can also play MP3 and WAV files themselves.
Can it play messages on a timer?
Yes. The 8301 plays bells, tones and recorded announcements on timers synced to network time, from 1 GB of storage.
Can I page just one area?
Yes. Set up paging groups on the UCM6301 and multicast zones on the 8301 (up to 50); each speaker can join up to 20 multicast groups.
How many phones can the UCM6301 take?
Grandstream rates the UCM6301 at up to 500 users and 75 concurrent calls (G.711).
Can the speakers go outside?
No. The NS300YA is an indoor ceiling speaker. For a loading dock or car park add the IVSEC NS100YA horn speaker.
Do the speakers have microphones?
Yes, each NS300YA has a built-in microphone for two-way talk. Check your state's surveillance and listening device laws before using it to listen in.
Can it take our phone line?
The UCM6301 has one FXO port for a phone line and one FXS port for an analog phone. Ask us about connecting your phone service.
What warranty does it have?
The IVSEC speakers carry 2 years. Confirm the Algo 8301 and Grandstream UCM6301 warranty with us. InFront Technologies supports the bundle in Australia on 1300 736 970.
Supported by InFront Technologies.
Help planning zones, the PoE switch, phones or paging groups: call 1300 736 970 or email [email protected]. The component datasheets are on the Attachments tab.
Installation and safety
Low voltage. The speakers and the 8301 run on PoE (speakers also on DC); the UCM6301 uses its 12 V plug-in supply. A new power point for the switch or PBX needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Connecting the UCM6301 to a phone line is also cabling work.
Microphones and privacy. The speakers have built-in microphones. Listening to or recording conversations is covered by state and territory laws.
Ceiling work. Fitting ceiling speakers means working at height and near ceiling services. Use safe access equipment.
What it does not do. It is not a certified emergency warning and intercommunication system, the speakers are indoor only, and no phones or handsets are in the box.
Figures. From IVSEC's NS300YA datasheet (6 November 2026), Algo's 8301 datasheet and Grandstream's UCM6300 series datasheet (UCM6301 column).
- Included Components
- 1 x AL-8301; 1 x GR-UCM6301; 8 x IVNS300YA
- Speakers
- 8
- Package
- 10 total devices
