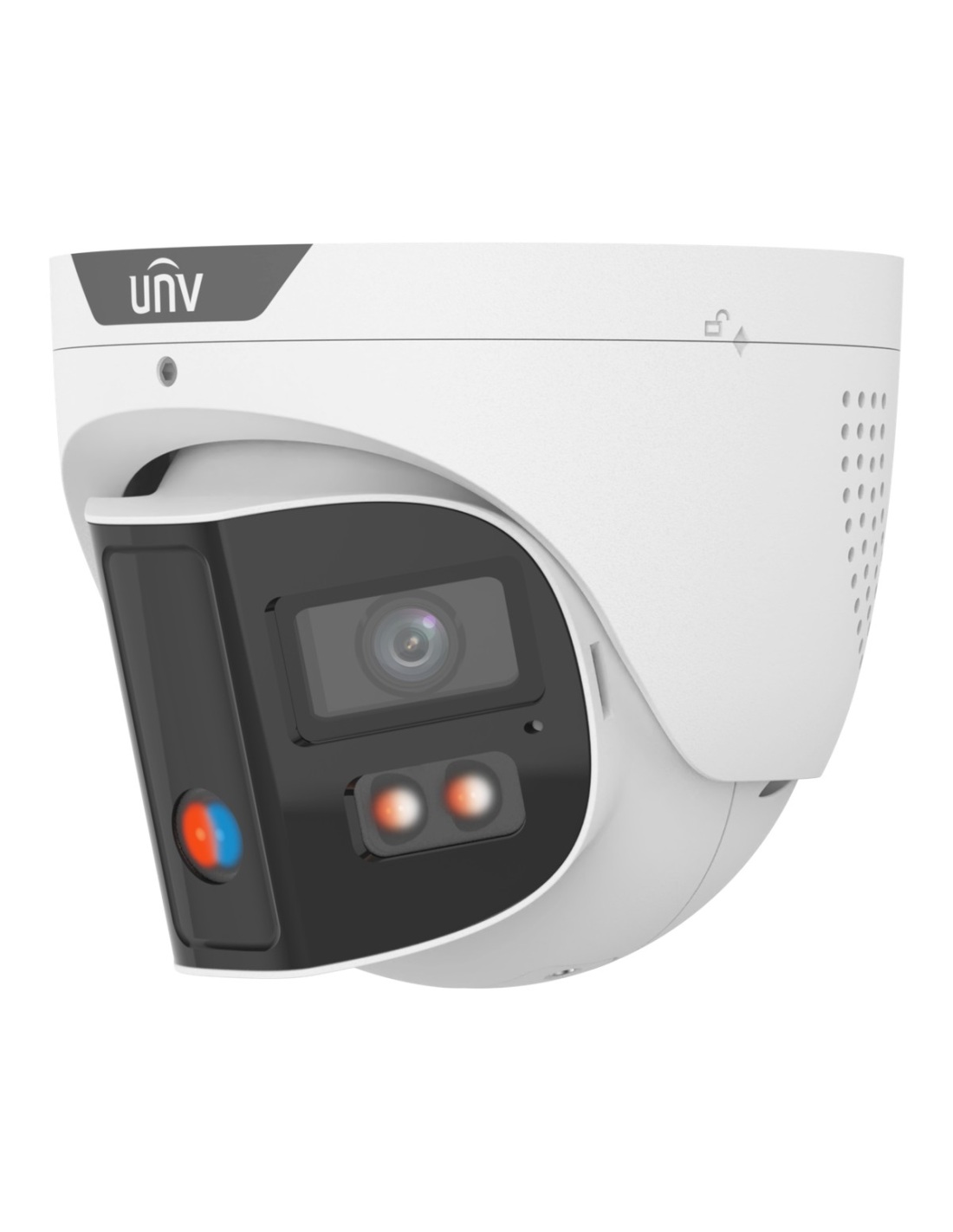

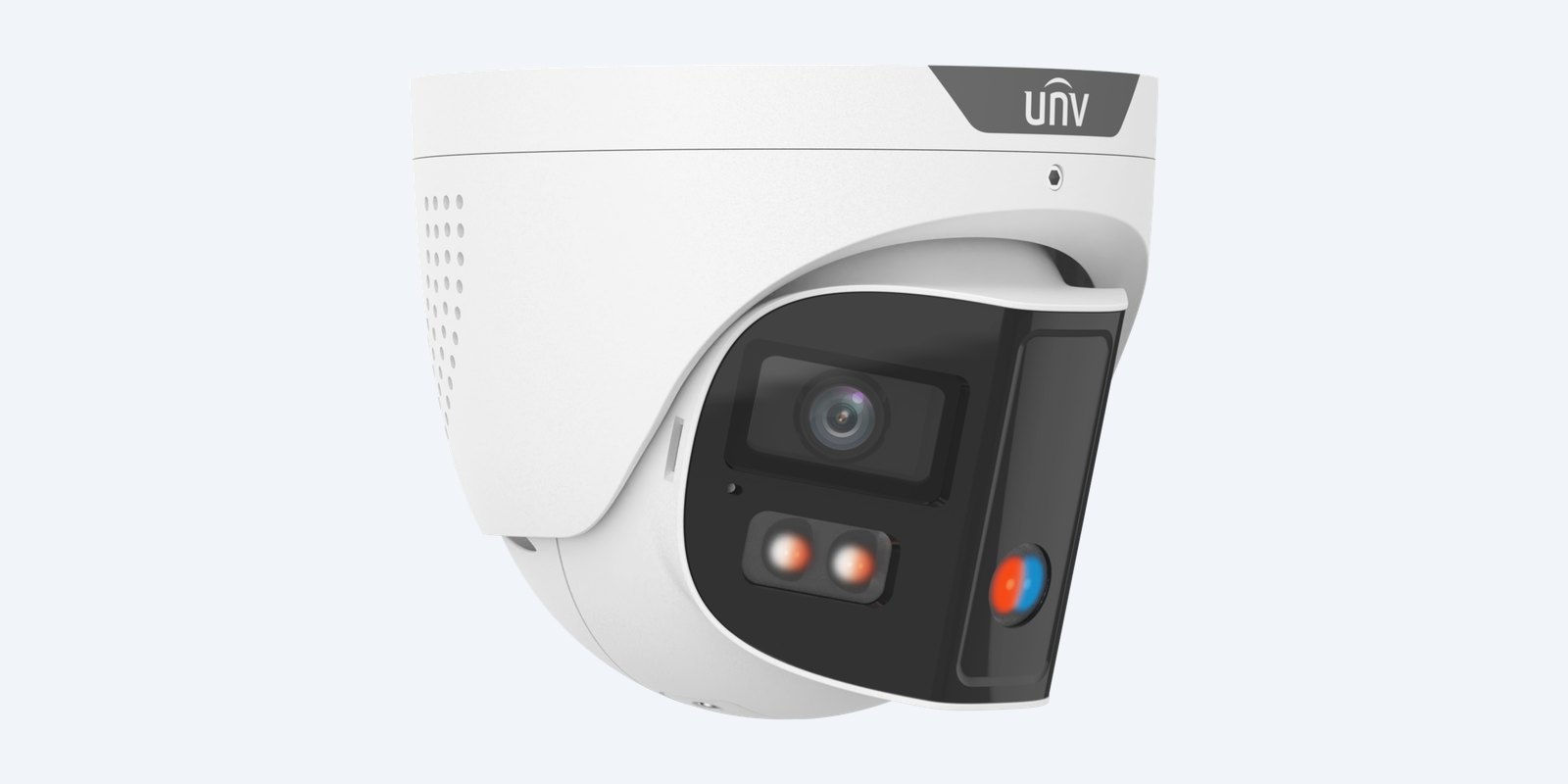

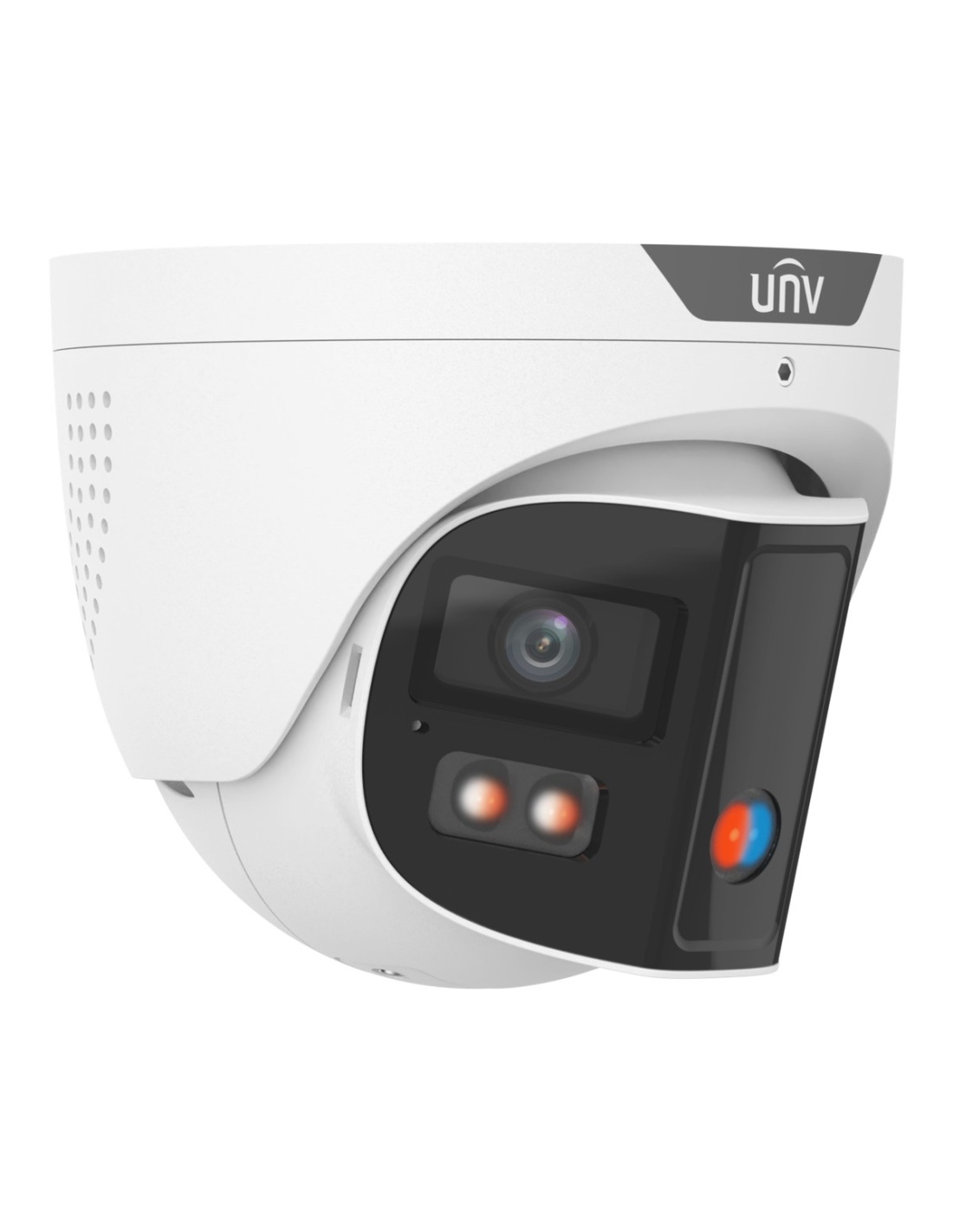

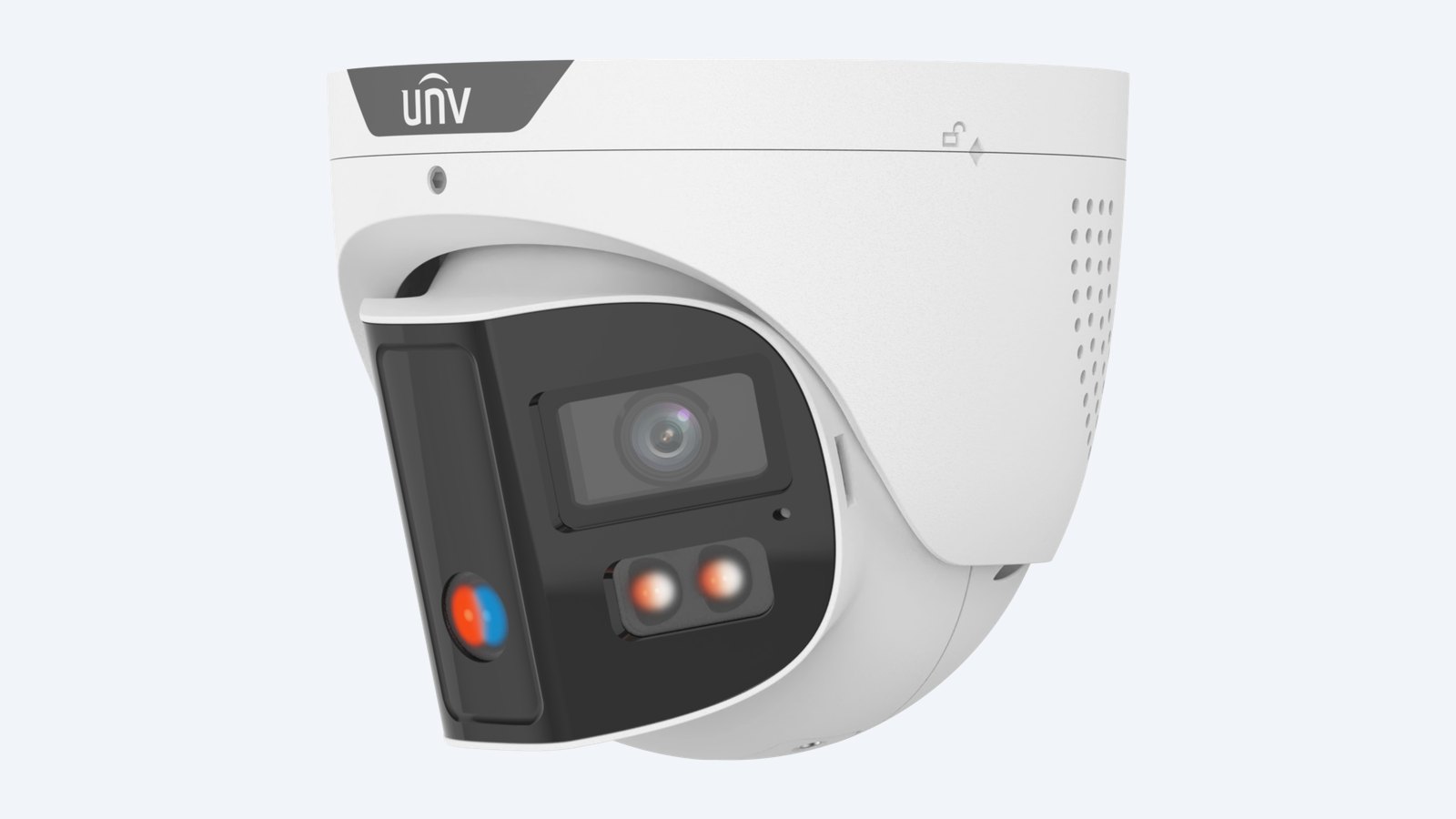

• IPC3K28SE-ADF28KMC-DL-I0 camera
• Mounting screws and accessories
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 512GB, to record on the camera
• TR-JB03-H-IN junction box or TR-WM03-B-IN wall mount, if needed

01

Pick the spot

The middle of the wall facing the yard or car park, 2.5–3.5 m up. Looking straight out keeps the stitch line in the centre of the scene.

02

Fix the camera

Screw the base to the wall or eave, or onto a TR-JB03-H-IN junction box so the cable joint is enclosed.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Tilt the camera to frame the area, add it to the NVR or the EZView app, then draw the lines and zones that should set off the light and sound.

Recorder

Uniview PoE NVR

Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.

Mounting

TR-JB03-H-IN junction box

Listed by Uniview for this camera. Encloses the cable joint where there is no cavity behind.

Walls

TR-WM03-B-IN wall mount

Listed by Uniview for this camera, to hold it out from the wall.

Cabling

Cat6 cable

Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.

Frontages and yards

The whole width of a house, shop or depot in one picture.

Car parks

Colour footage of cars and people across every bay.

Building sites

Warn people off with light and sound after hours.

Rear lanes and loading areas

One camera for both ends of the lane.

What does the warning light and speaker do?

When someone crosses a line or walks into a zone you have drawn, the camera can flash its red and blue light and play a warning through its speaker. Uniview calls this light and audible warning. You choose which events set it off, and when.

Is the 180° picture stitched?

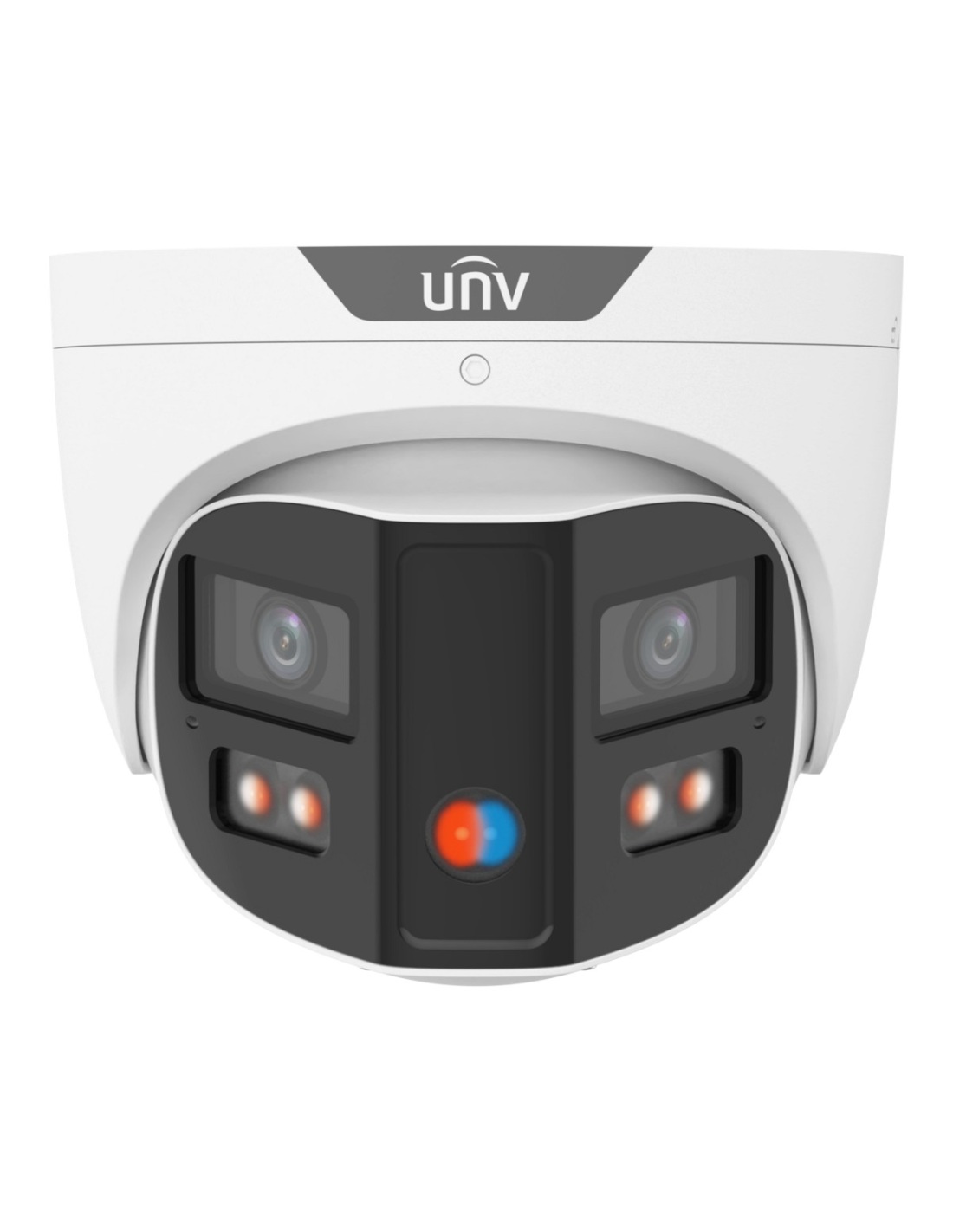

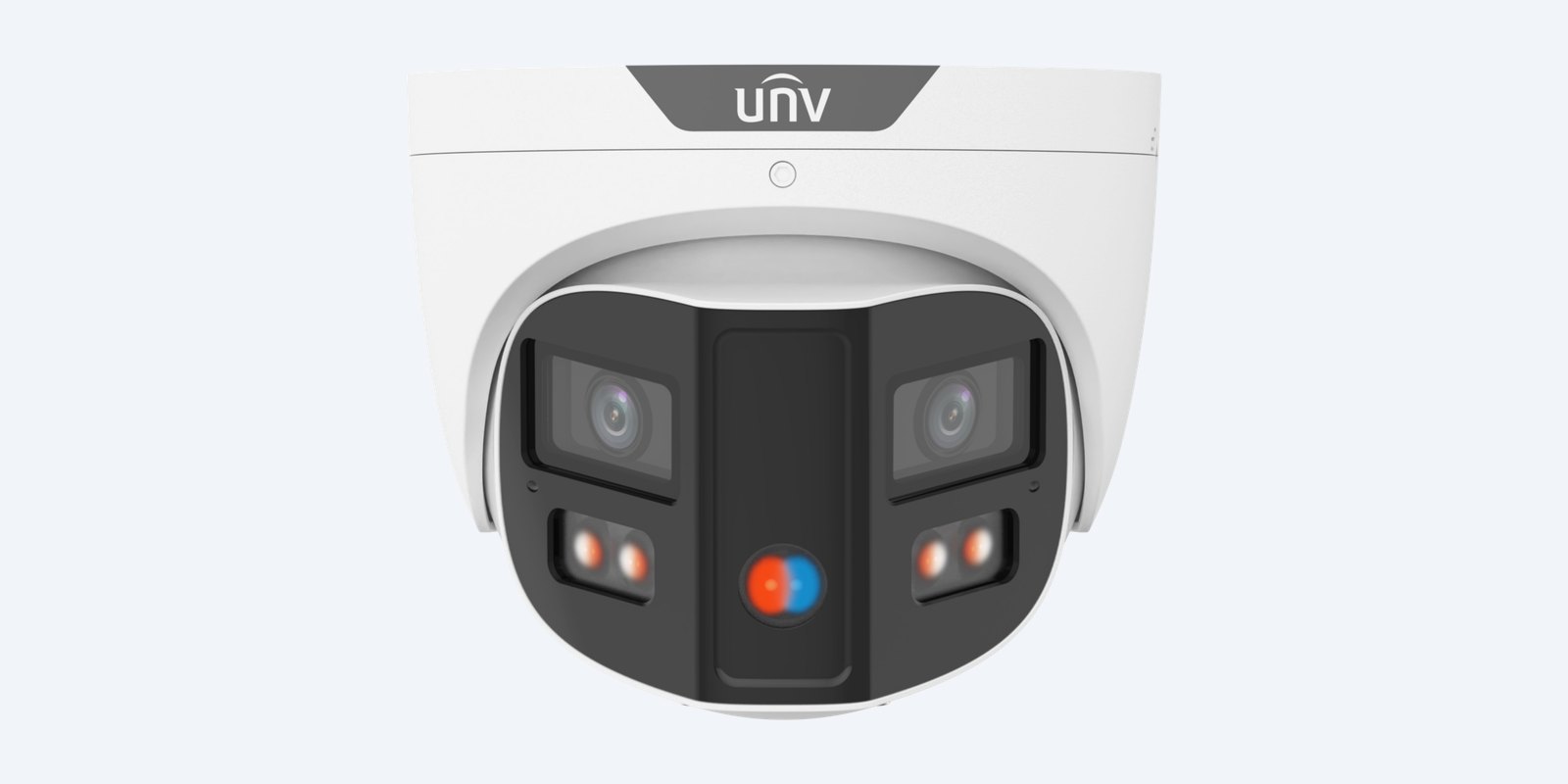

Yes. The two lenses each see half the scene and the camera joins them into one 4096 × 1860 picture, so the recorder sees a single camera on one channel.

Colour or black and white at night?

Your choice. With the warm light on it records in colour (ColorHunter), up to 30 m. With IR it records in black and white, also to 30 m, without a visible light.

Can I talk through it?

Yes. Dual microphones and a speaker give two-way audio from the app or the NVR. There is also one audio input and output for an external mic or speaker.

Is there a black version?

Yes, the IPC3K28SE-ADF28KMC-DL-I0-BK is the same camera in black.

Will one 180° camera replace two normal cameras?

Often, yes. Mounted in the middle of a wall it covers from one side of the area to the other, where a standard 2.8 mm camera sees about 100°. That means one cable, one licence on the recorder and no blind spot between two cameras. For faces at a distance, a second camera aimed at the door is still worth adding.

Will it work with my recorder?

Uniview NVRs find it on their PoE ports and add it automatically, along with its smart events. Other recorders that support ONVIF (Profile S, G, T, M) can add it too, although smart events and the special views may only come through fully on Uniview.

Can I watch it on my phone?

Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. Live view also works in a web browser.

Can it record without an NVR?

Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 12.6 W at most with the lights on, which an 802.3af port supplies.

What is Ultra 265?

Uniview’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
