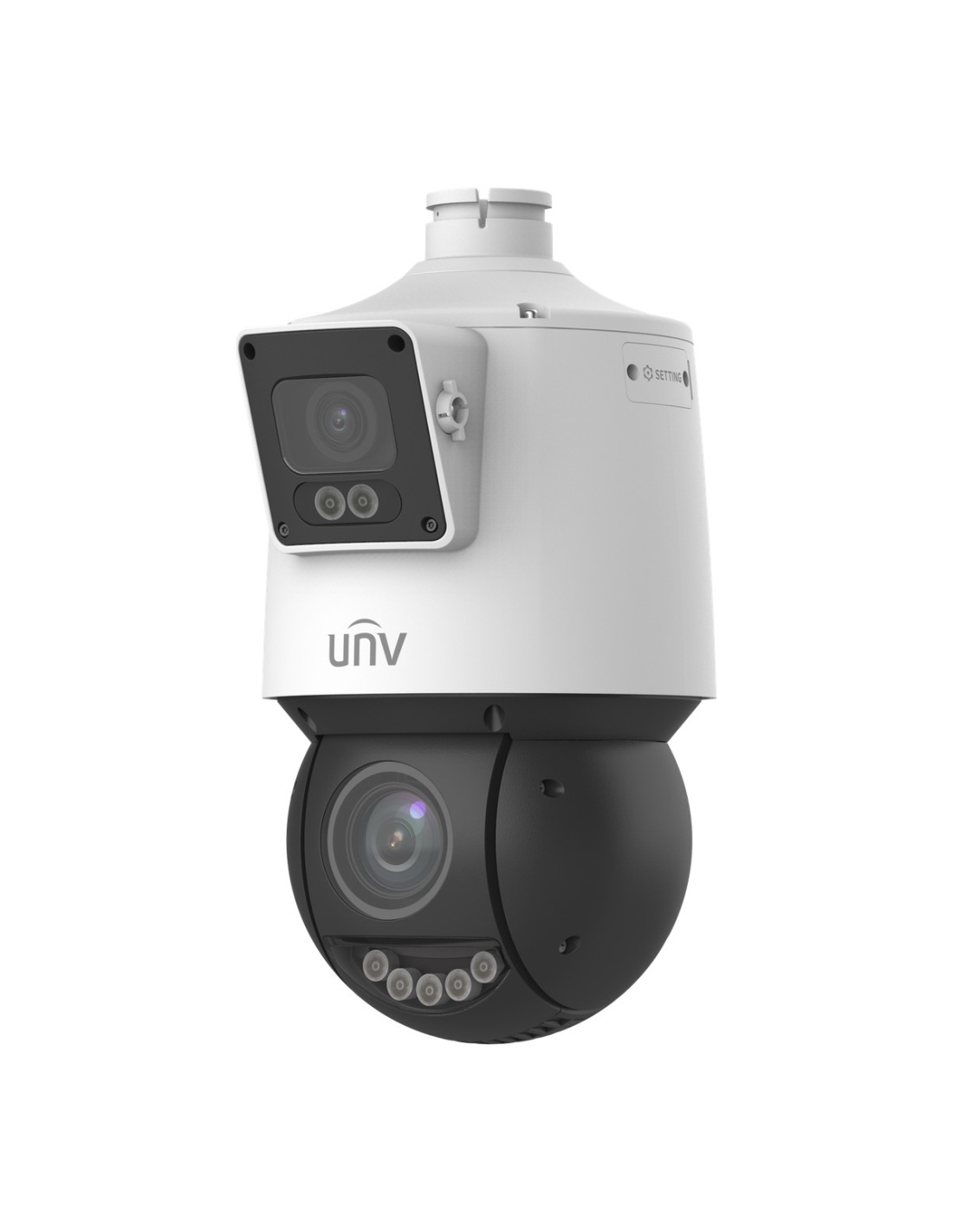

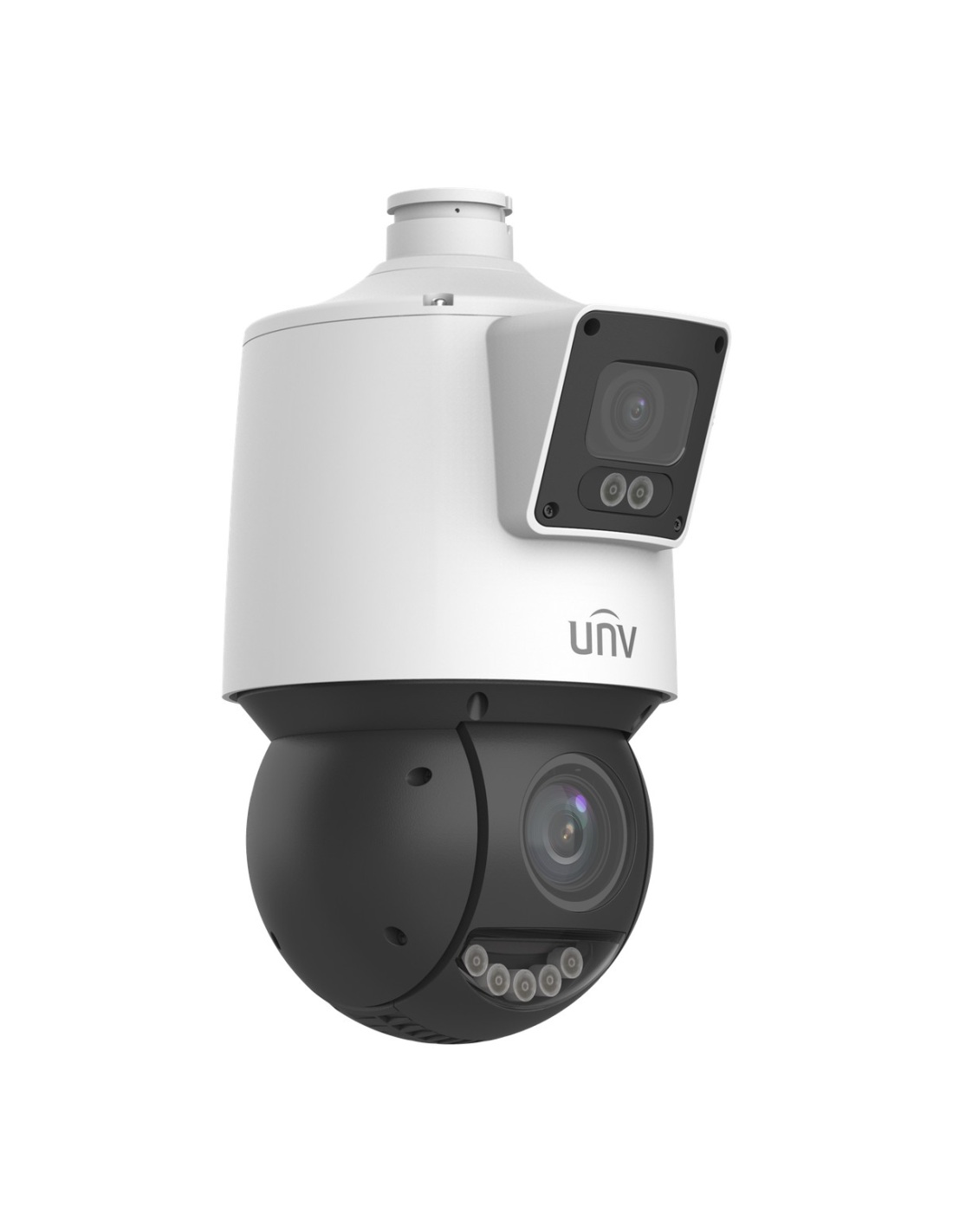

Uniview MultiView 4MP + 4MP PTZ Camera, 25x Zoom, Fixed Panoramic Lens, Auto Tracking, Light & Sound - IPC94144SFW-X25-F40C
IPC94144SFW-X25-F40C
In stock $ 920.00
inc-GST
or 4 interest-free payments of $230.00 with
A MultiView PTZ that pairs a fixed 4MP F1.0 colour camera with a 4MP 25× PTZ that follows what the fixed lens detects, with 100 m IR, sound and light warning and 1024 presets on one PoE+ cable.
- ✓Fixed 4MP + 4MP PTZ
- ✓25× optical zoom, 4.8–120 mm
- ✓Fixed lens steers the PTZ
- ✓30 m warm light, 100 m IR
- ✓Sound and light warning
- ✓PoE+ (802.3at), max 24 W
Uniview · MultiView · 4MP + 25× PTZ
Watch the whole scene
and zoom in at the same time.
This is the Uniview IPC94144SFW-X25-F40C. A fixed 4MP F1.0 colour camera and a 4MP 25× PTZ in one housing. The fixed lens keeps the whole scene in view while the PTZ follows the person or vehicle it detected, so you never lose the wide picture when you zoom.
In one sentence: the IPC94144SFW-X25-F40C is a two-channel MultiView PTZ with a fixed 4MP 4.0 mm F1.0 panoramic camera (94.9°, 30 m warm light) and a 4MP 25× PTZ (4.8–120 mm, 100 m IR), linked tracking, sound and light warning, 1024 presets, IP66, powered by PoE+ or 12 V DC.
Needs a bracket and a PoE+ port.
One Cat6 cable carries both channels and power from a PoE+ switch or NVR. Uniview lists the TR-WE45-IN and TR-WE45-A-IN wall mounts and the TR-UC08-A-IN corner mount for it.
In the box
- IPC94144SFW-X25-F40C camera
- Waterproof cable parts
- Quick guide
You also need
- A PoE+ (802.3at) port, or a 12 V DC supply
- Cat6 cable to the camera
- A wall or corner bracket (TR-WE45-IN, TR-WE45-A-IN or TR-UC08-A-IN)
- A microSD card up to 512GB, to record on the camera
The fixed lens spots it, the PTZ follows it.
The fixed channel sees 94.9° across in colour down to 0.0005 lux. When it detects someone crossing a line or entering a zone, the PTZ turns and zooms to follow them, out to an identify range of 270 m at full zoom, while the fixed picture keeps recording the whole area.
Design

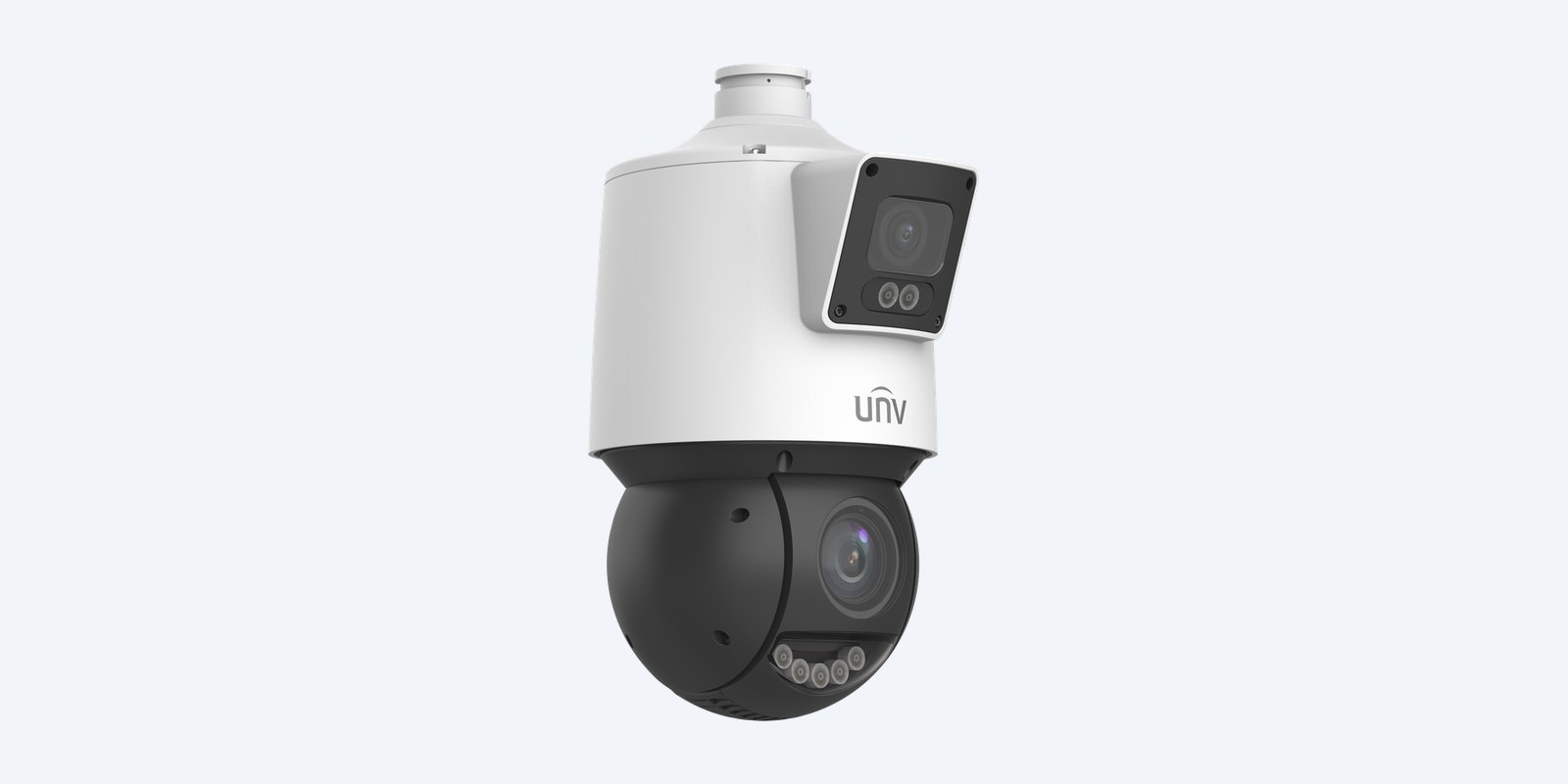

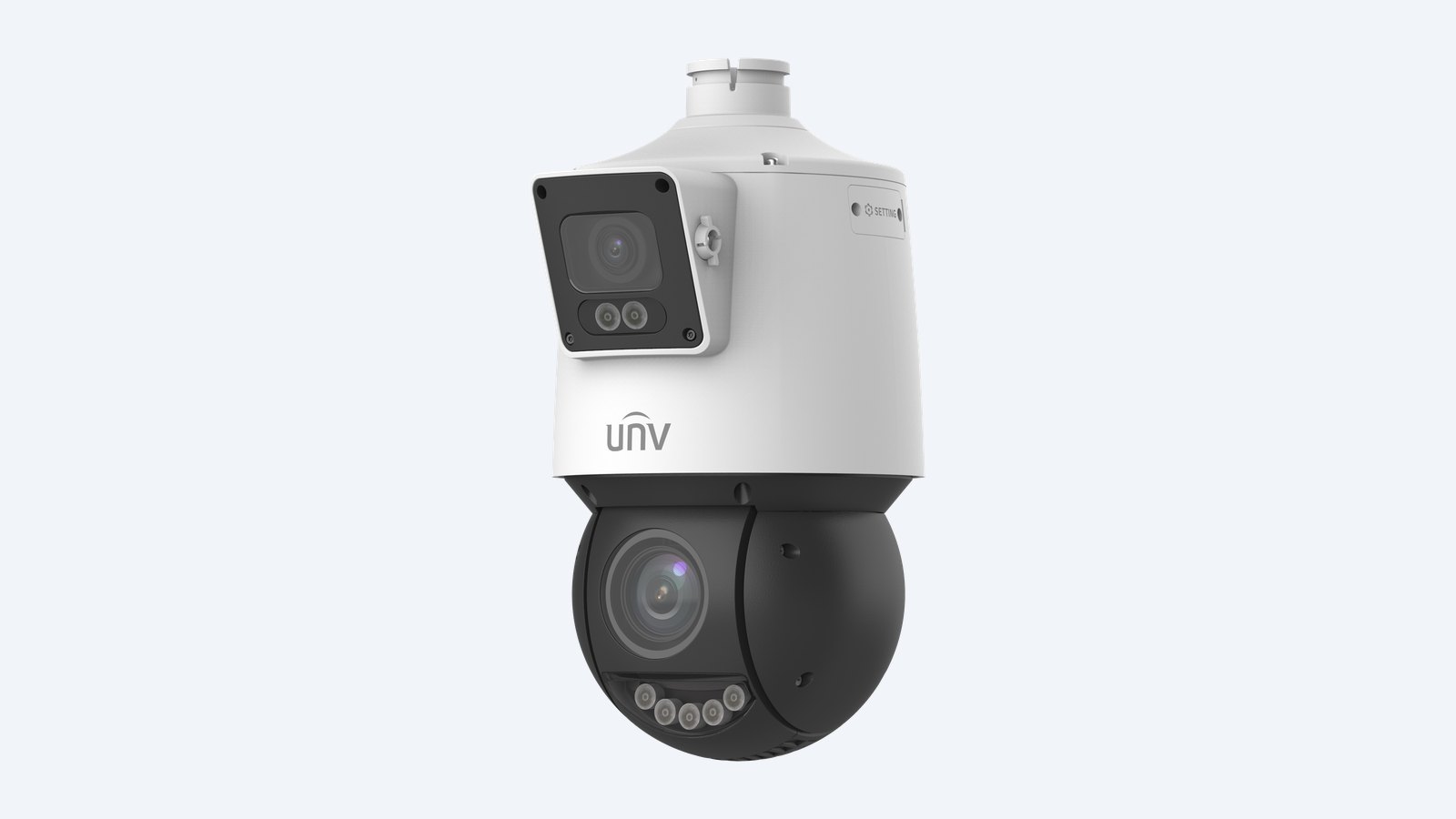

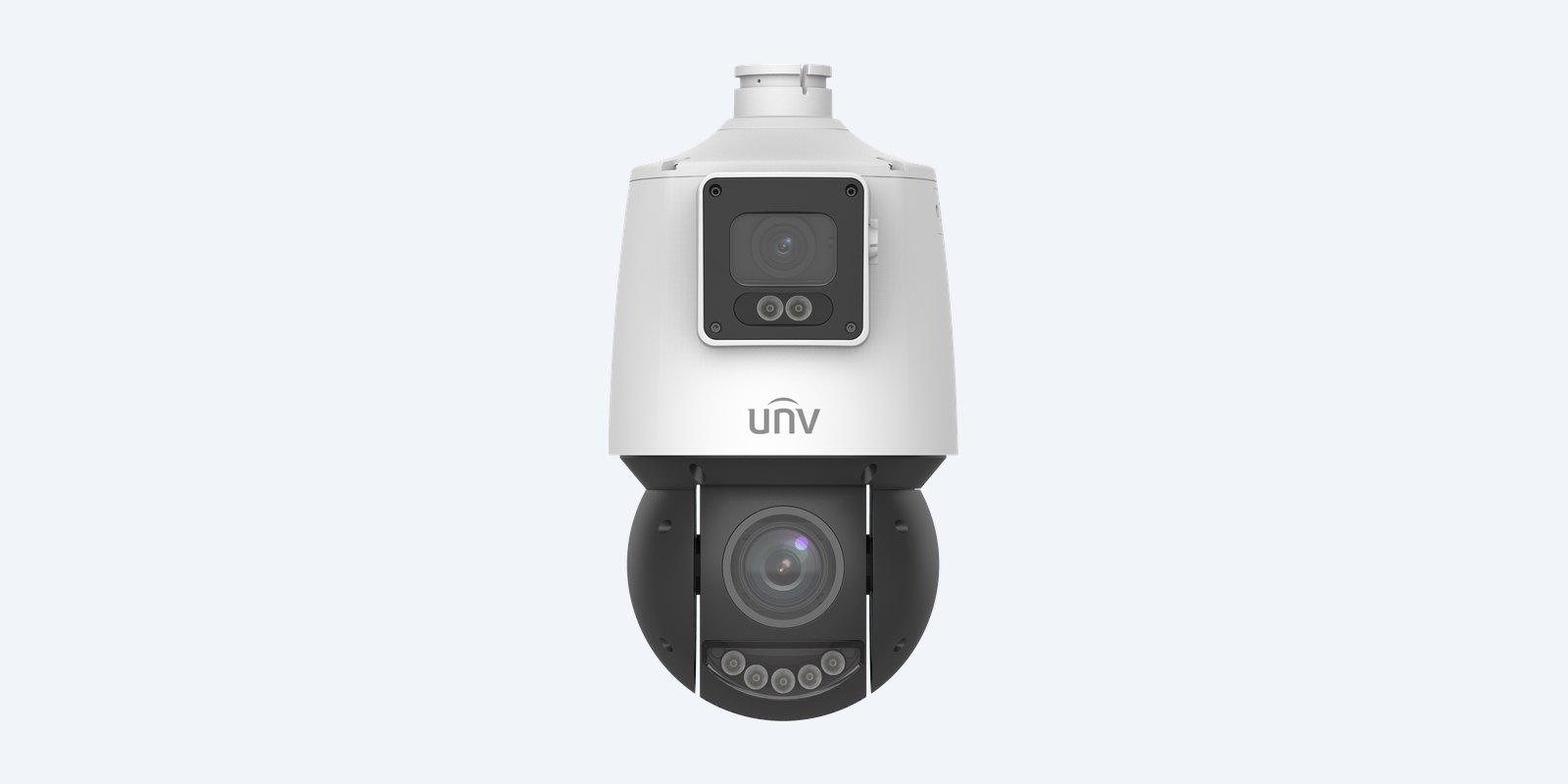

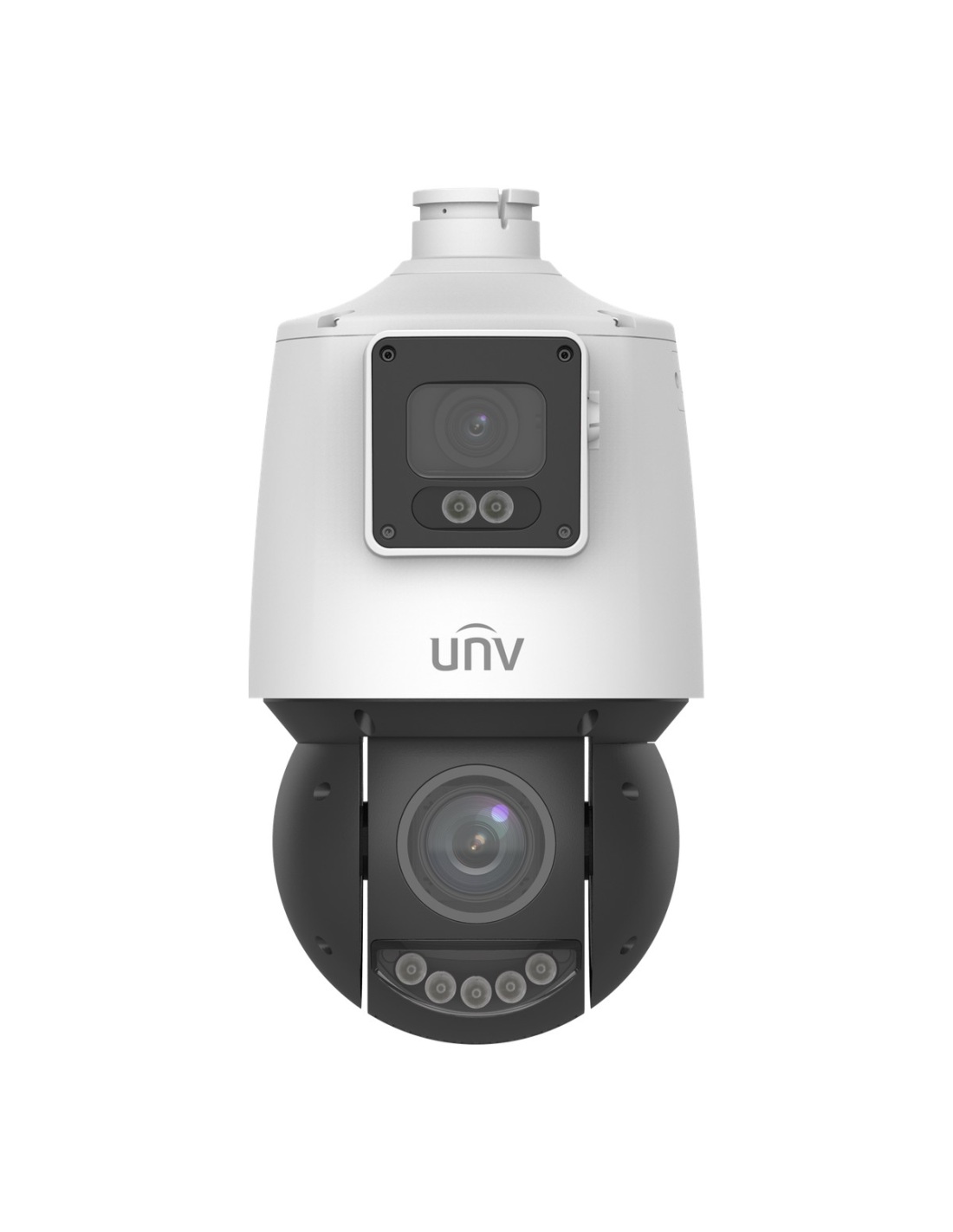

Fixed camera above, PTZ below.
The fixed panoramic lens sits in the upper housing with its warm light. The PTZ dome below pans 360° and tilts −15° to 90°.
Zoom
4.8–120 mm, 25× optical.
The PTZ view narrows from 55.46° to 3.09° across, with IR to 100 m. Up to 1024 presets.

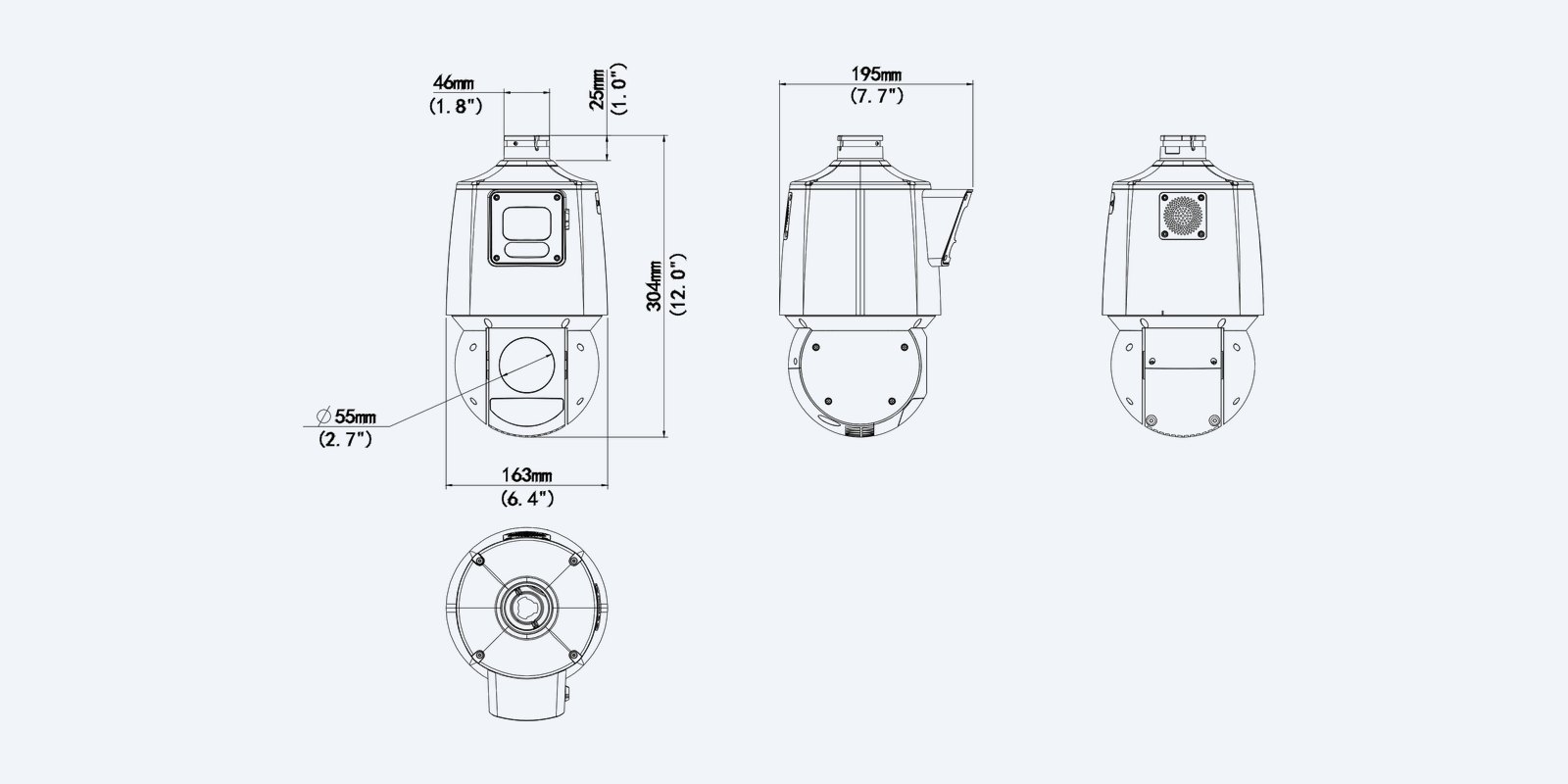

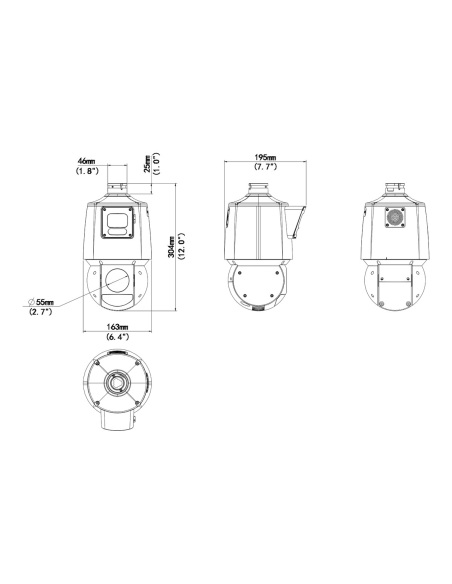

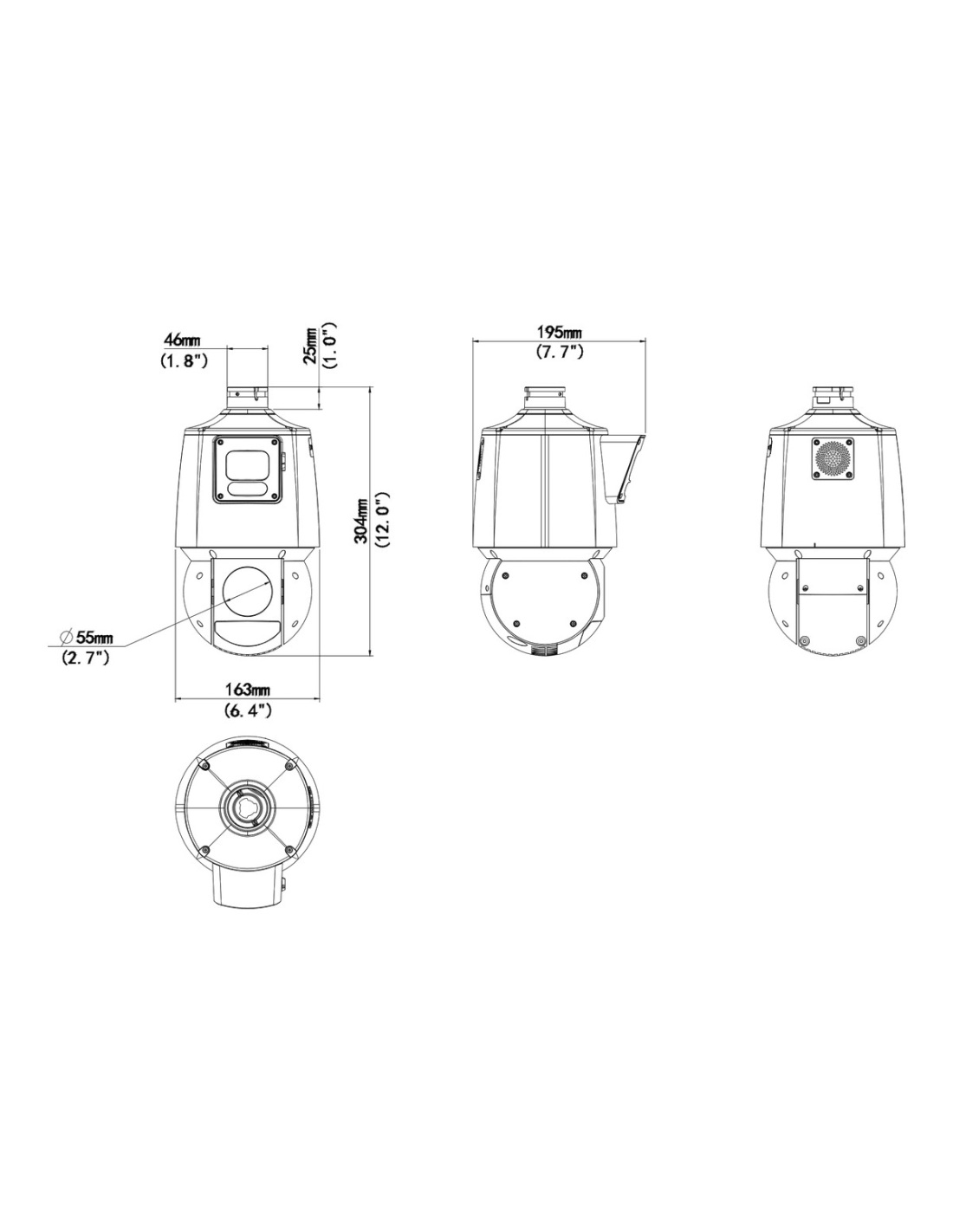

Dimensions
304 × 195 × 163 mm, 2.27 kg.
IP66, working from −40 °C to 65 °C.
How it goes in
From the box to patrolling.
01
Plan power and mount
Pick a high point that sees the whole area. Check you have a PoE+ (802.3at) port and the right wall or corner bracket.
02
Fix the bracket
Mount the bracket on a solid wall, corner or pole, run the cable through it and hang the camera. Seal the cable joint with the supplied waterproof parts.
03
Power it up
Run Cat6 to a PoE+ port on the switch or NVR. The recorder needs two free channels.
04
Set presets and rules
Draw the lines and zones on the fixed channel, turn on linked tracking, save presets and set the sound and light warning.
At a glance
IPC94144SFW-X25-F40C
Show specs
Resolution
2 × 4MP: fixed panoramic channel and PTZ channel
Sensor
Fixed 1/1.8" CMOS; PTZ 1/2.7" CMOS
Lens
Fixed 4.0 mm F1.0; PTZ 4.8–120 mm F1.5–3.8
Zoom
25× optical (PTZ)
View
Fixed 94.9°; PTZ 55.46° to 3.09° across
Identify / recognise / detect
Fixed: identify at 9 m; PTZ: identify at 10.8–270 m
Low light
0.0005 lux colour (fixed channel)
WDR
120 dB
Night vision
Fixed: warm light up to 30 m; PTZ: IR up to 100 m
Deterrence
Sound and light warning, built-in speaker
Frame rate
30 fps at 4MP
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing and intrusion on the fixed channel with the PTZ tracking the target; people counting; best face snapshot
Audio
Built-in speaker; 1 audio in, 1 out
Pan and tilt
Pan 360° at 0.1–80°/s; tilt −15° to 90°
Presets and patrols
1024 presets
Other connections
Alarm 2 in, 1 out; RS485
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T, M
Network
1 × RJ45 10/100
Power
PoE+ (802.3at) or 12 V DC, max 24 W
Weather and impact
IP66
Operating
−40 °C to 65 °C
Size and weight
304 × 195 × 163 mm, 2.27 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.
Walls
TR-WE45-IN / TR-WE45-A-IN wall mount
Listed by Uniview for this camera.
Corners
TR-UC08-A-IN corner mount
Listed by Uniview for this camera, used with a wall mount on a building corner.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.
Where it is used
Where it fits
Car parks
Whole-area colour view with zoom on any car.
Industrial yards
Follow people across the yard after hours.
Building sites
Sound and light warnings with a close-up record.
Public spaces
Plazas and forecourts without losing the big picture.
Uniview PTZ cameras side by side
| IPC6324LWH | IPC6434LR | IPC6424SR-B | IPC94144SFW | IPC6624SFW | IPC6828EL | |
|---|---|---|---|---|---|---|
| Resolution | 4MP | 4MP | 4MP | 4MP PTZ + 4MP fixed | 4MP, up to 60 fps | 8MP 4K |
| Optical zoom | 5× | 16× | 25× | 25× | 25× | 42× |
| Identify at full zoom | 20.9 m | 204.8 m | 247.5 m | 270 m | 240.8 m | 482.9 m |
| Night vision | 40 m warm light | 100 m IR | 100 m IR | 100 m IR, 30 m warm light | 250 m IR, 100 m warm light | 500 m laser IR |
| Auto tracking | People | People and vehicles | People and vehicles | From the fixed lens | Yes | Yes |
| Warning light and sound | Speaker | — | — | Light and speaker | Red and blue light, speaker | — |
| Power | PoE+ or 12 V, 25.4 W | PoE+ or 12 V, 23 W | PoE+ or 12 V, 21 W | PoE+ or 12 V, 24 W | PoE+ or 24 V, 21.7 W | Hi-PoE or 24 V, 67 W |
| Protection | IP66 | IP66, IK10 | IP67, IK10 | IP66 | IP67, IK10 | IP67 |
| Weight | 1.33 kg | 2.3 kg | 3.05 kg | 2.27 kg | 5.2 kg | 6.9 kg |
Model codes shortened. PoE+ is 802.3at; Hi-PoE is 802.3bt. All record to microSD up to 512GB and take 1024 presets. — means not fitted. Figures from the Uniview datasheets.
Common questions
How does the tracking work?
The fixed panoramic channel runs line crossing and intrusion detection. When it is triggered, it steers the PTZ to the target and the PTZ zooms in and follows it, while the fixed channel keeps recording the whole scene.
Is it one camera or two on the recorder?
One IP address with two channels: the fixed view and the PTZ view. Your recorder needs two free channels.
What does the sound and light warning do?
When a rule you set is triggered, the camera can flash its light and play a warning through its built-in speaker to tell the person they have been seen.
Colour at night?
The fixed channel has an F1.0 lens and warm light for colour to 30 m. The PTZ uses IR to 100 m.
Does it count people?
Yes, people counting is built in, and it can save the best face snapshot of each person.
What is a preset and a patrol?
A preset is a saved position with its own pan, tilt and zoom, such as the gate, the loading dock or the car park entry. A patrol moves the camera through a list of presets on a timer, so one camera keeps watch over several spots.
Does it need a bracket?
Yes. A PTZ camera is heavier than a fixed camera and needs a solid wall, corner, ceiling or pole mount. The Uniview mounts listed for it are shown under What goes with it; call us if you are not sure which one suits the site.
Will it work with my recorder?
Uniview NVRs add it and give you pan, tilt and zoom control from the recorder. Other ONVIF (Profile S, G, T, M) recorders can add it too; smart events and PTZ control depend on that recorder.
Can I control it from my phone?
Yes. In the Uniview EZView app you can watch live, pan, tilt and zoom, jump to presets and play back recordings.
Can it record on its own?
Yes, to a microSD card of up to 512GB. With an NVR, ANR fills any gap from the card when a network drop-out ends.
How is it powered?
By PoE+ (IEEE 802.3at) over one Cat6 cable, or a 12 V DC supply. It draws up to 24 W, so a standard 802.3af PoE port is not enough.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning a site with panoramic, PTZ or plate cameras? Call 1300 736 970 or email [email protected] with a floor plan or photos and we will suggest the models, mounts and recorder.
Installation and safety
Power. Use a PoE+ (802.3at) port or a regulated 12 V DC supply. The alarm and RS485 connections are low voltage only.
Weather. IP66, rated from −40 °C to 65 °C. Fix the bracket to solid masonry, steel or a pole.
Figures. From the Uniview IPC94144SFW-X25-F40C datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 304 × 195 × 163 mm
- Audio
- Built-in speaker; 1 audio in, 1 out
- Weight
- 2.27 kg
- Operating temperature
- −40 °C to 65 °C
- Power
- PoE+ (802.3at) or 12 V DC, max 24 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 2 × 4MP: fixed panoramic channel and PTZ channel
- Brand
- Uniview
- Frame Rate
- 30 fps at 4MP
- Interoperability
- Profile S, G, T, M
- Image Sensor
- Fixed 1/1.8" CMOS; PTZ 1/2.7" CMOS
- Lens
- Fixed 4.0 mm F1.0; PTZ 4.8–120 mm F1.5–3.8
- Minimum Illumination
- 0.0005 lux colour (fixed channel)
- Field of View
- Fixed 94.9°; PTZ 55.46° to 3.09° across
- Protection
- IP66
- WDR
- 120 dB
- Optical Zoom
- 25× optical (PTZ)
- Warranty
- 3 years
- Product Type
- MultiView PTZ IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC94144SFW-X25-F40C
- Smart detection
- Line crossing and intrusion on the fixed channel with the PTZ tracking the target; people counting; best face snapshot
- Night Vision
- Fixed: warm light up to 30 m; PTZ: IR up to 100 m
- Pan / Tilt
- Pan 360° at 0.1–80°/s; tilt −15° to 90°
