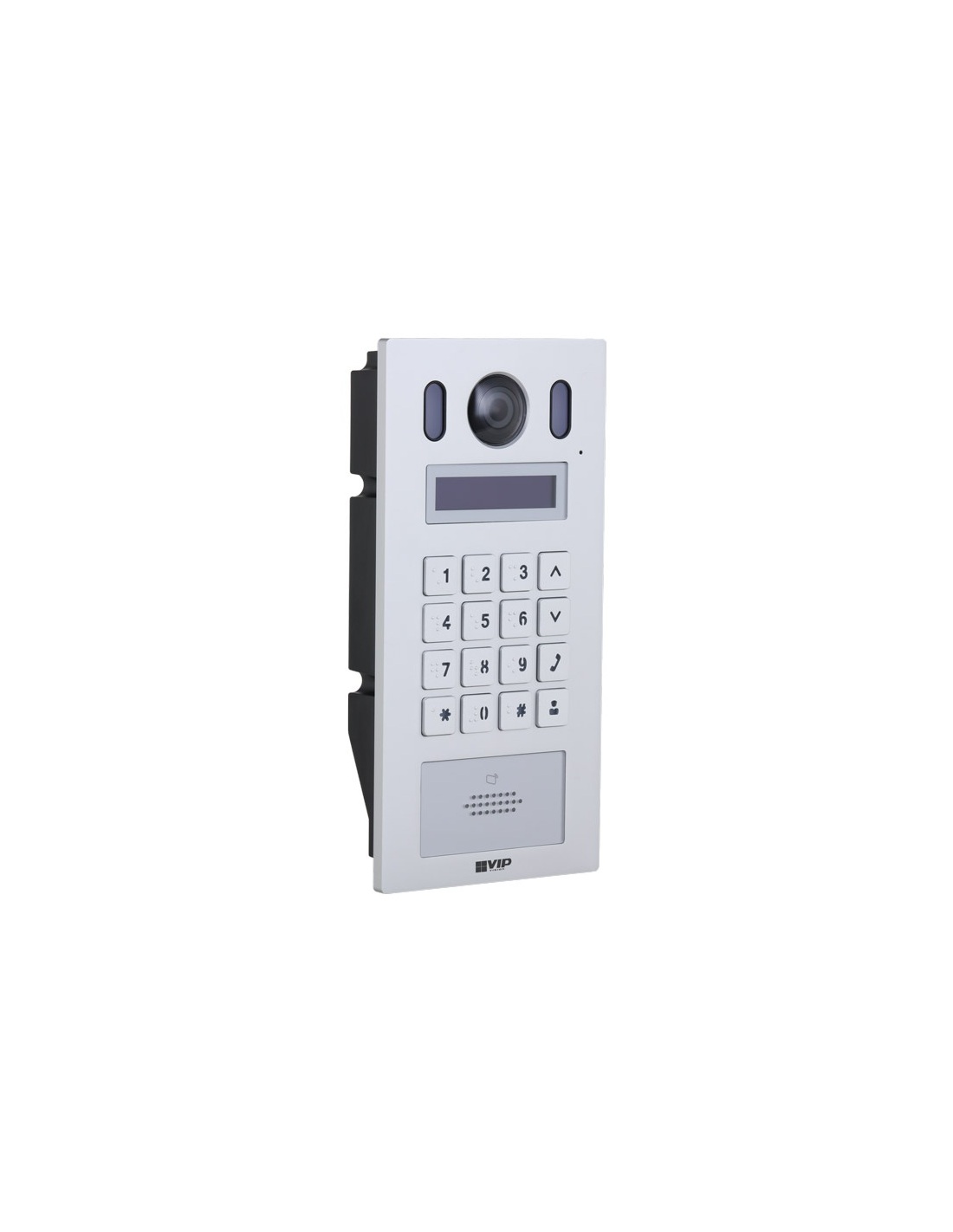

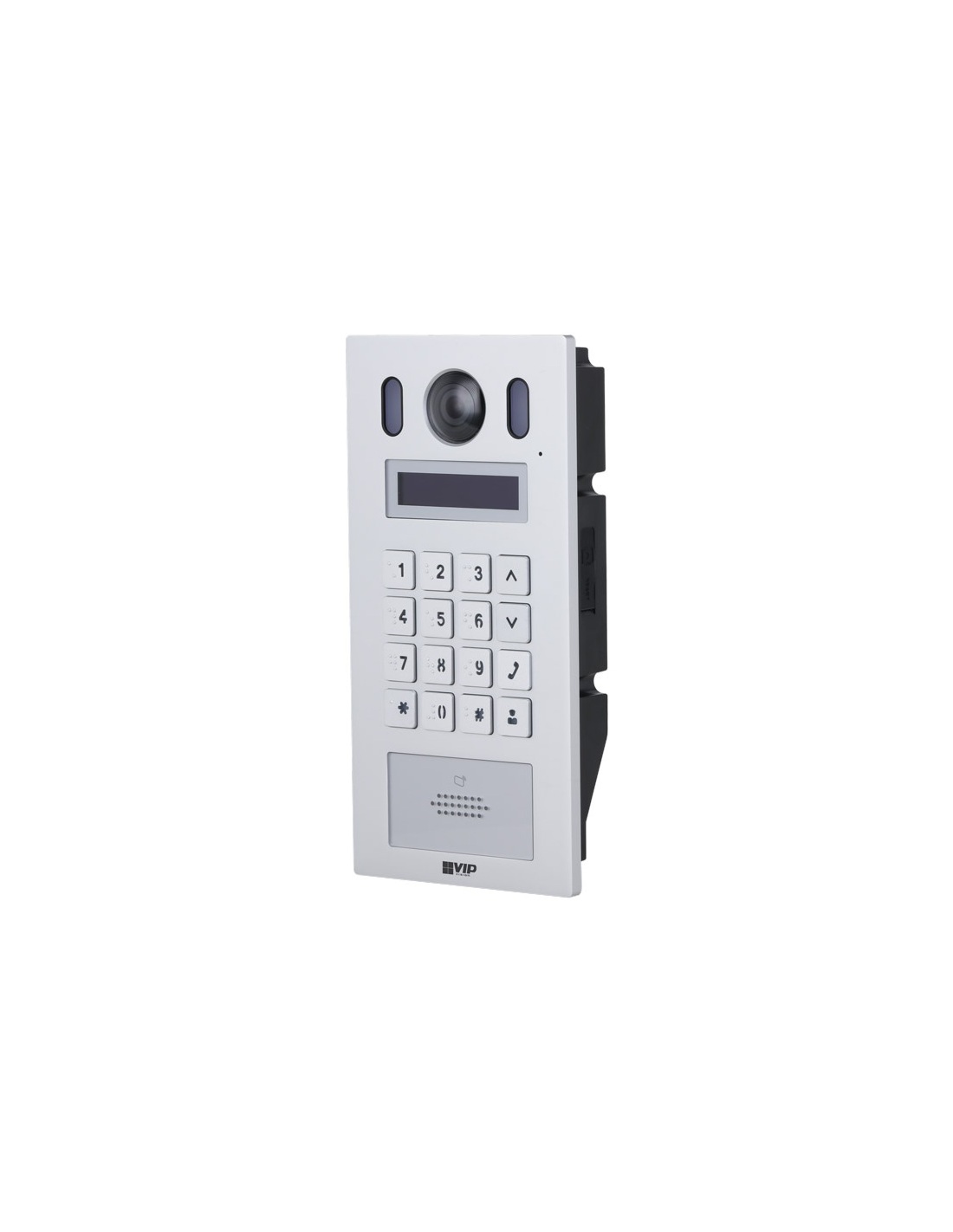

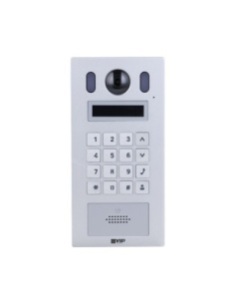

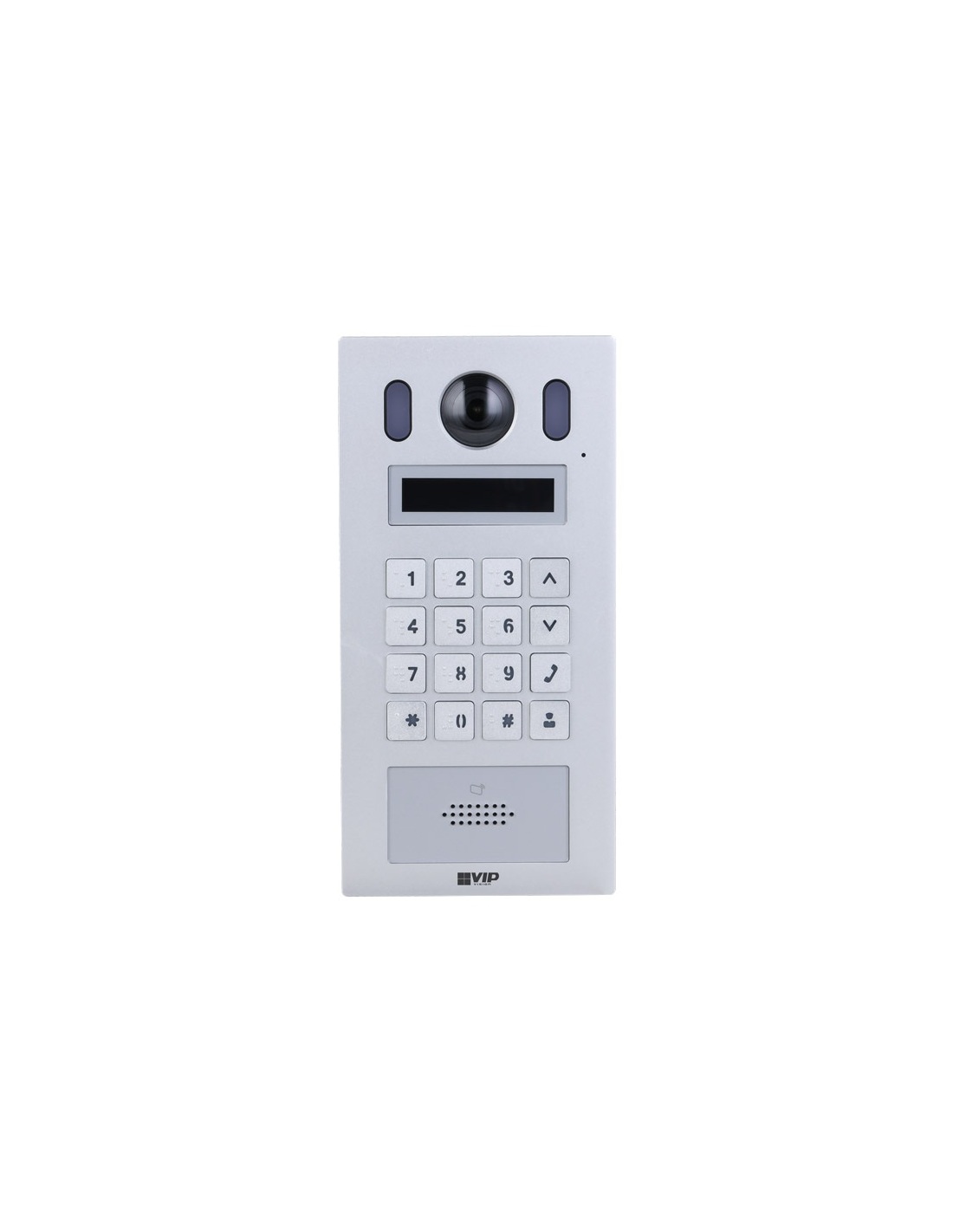

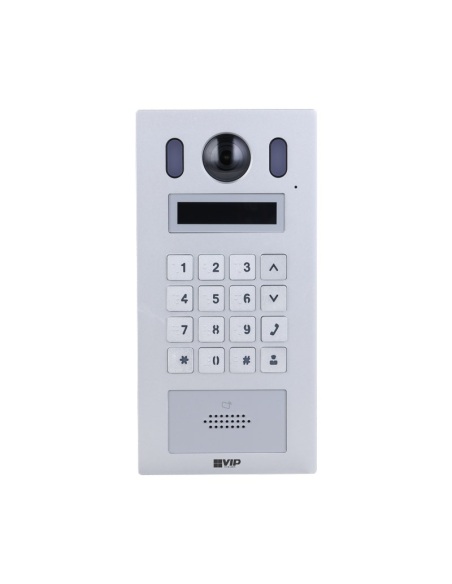

Apartment D2 Series IP Door Station

INTIPADSD2
In Stock - Ready to Ship
$ 564.85
inc-GST

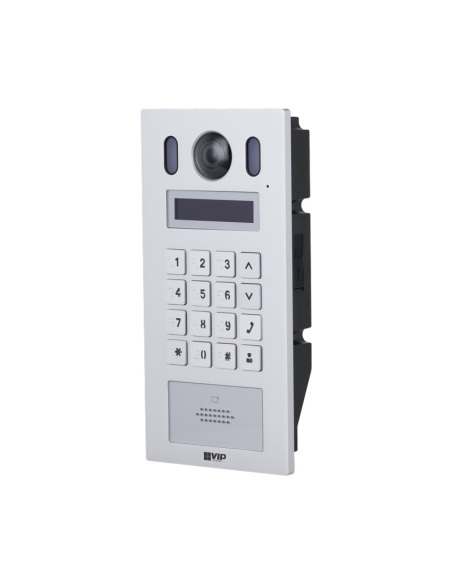

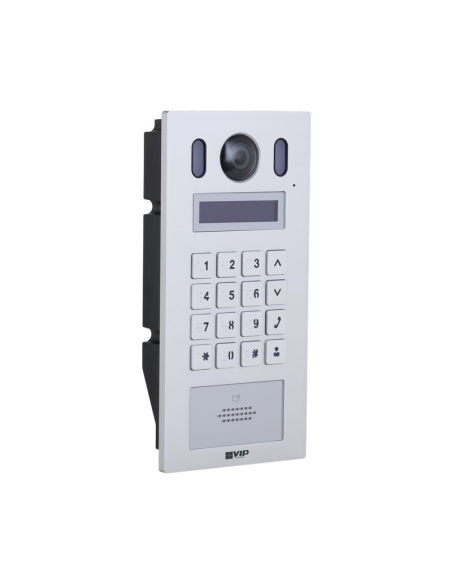

This INTIPADSD2 is an intercom door station from the VIP Vision Apartment Series which can improve access and communication in multi-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.

Product features:
• 1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
• Wide angle lens with 140° horizontal field of view
• Keypad for code unlock & NFC reader for card access
• Connect up to 200 intercom monitor(s) via Ethernet
• Intuitive, easy-to-use mechanical button interface
• 48VDC / PoE (802.3af/at) power input support
• IP65/IK08 weather & vandal resistant front plate
• Backlit OLED interface & supplemental white light

* We recommended that Door Stations are


Dimensions
22(W) x 41(D) x 27(H) mm
Main Processor
32 Bit
Construction
Steel
Power input
12VDC at 400mA
Ingress Protection
IP66
Operating Environment
-20°C ~ 70°C / RH95% (max)
Weight
0.16kg
Power Consumption
Interface
SATA 6Gb/s
App Connection
N/A
Button Illumination
Backlit 2.3" OLED, Supplemental White Light (AGC)
Camera System
1/2.9" 2 Megapixel CMOS with 2mm lens (FoV: 138°(H), 78°(V), 158°(D))
Card Support
Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Max. Additional Door Stations
10
Max. Indoor Monitors
200
Tamper Detection
Yes
Vandal Resistant
IK08
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Input / Output
1 x relay for door control / 2 x channel alarm interface / 1 x RS485
Installation Options
N/A
Internal MicroSD Slot
N/A
Low-Light Application
Day/Night ICR
