TENDA Two-Pack Outdoor Wireless Access Point – TN-O6V2.0-2-PACK

TENDA Two-Pack Outdoor Wireless Access Point – TN-O6V2.0 (2-PACK)

Name: TENDA Two-Pack Outdoor Wireless Access Point – TN-O6V2.0 (2-PACK)
Brand: InFront Technologies
SKU: TN-O6V2.0-2-PACK
Price: 258 AUD
Availability: InStock

Reference TN-O6V2.0-2-PACK

In Stock - Ready to Ship

$ 258.00

inc-GST

High-Speed Connectivity – 5GHz 11AC delivers up to 867Mbps for a stable connection.
Long-Range Transmission – 16dBi directional antenna ensures reliable 10km+ signal.
P2P Performance – 450+Mbps throughput via 11AC wave2 and gigabit Ethernet.
Outdoor-Ready – IP65 waterproof casing with 6000V lightning protection.
Flexible Power – Supports 802.3af/at PoE, 24V 0.5A Passive PoE, and 12V 1A DC.
TDMA Technology – Reduces interference and enhances network performance.
Easy Management – Centralized CPE Assistant software for seamless control.

Description
Specifications

TENDA Two-Pack Outdoor Wireless Access Point – Tenda O6 V2

TN-O6V2.0

Ideal for CCTV & Networking Applications

✔ Perfect for ivsec Surveillance Systems – Ideal for transmitting high-definition video over long distances, great for remote CCTV setups.
✔ Compatible with Many Other Systems – Works seamlessly with various IP cameras and network devices.

Tenda O6 V2

Product Features

High-Speed Wireless Connectivity – 5GHz 11AC technology delivers wireless speeds up to 867Mbps for a fast and stable connection.
Long-Distance Transmission – 16dBi directional antenna ensures reliable signal transmission over 10km+.
P2P Connection Throughput up to 450+Mbps – Utilizes 11AC wave2 technology with a gigabit Ethernet LAN port for high-speed data transmission.
Outdoor-Ready Design – IP65-rated waterproof casing with 6000V lightning protection for durability in all weather conditions.
Flexible Power Options – Supports 802.3af/at PoE, 24V 0.5A Passive PoE, and 12V 1A DC for versatile deployment.
Advanced TDMA Technology – Reduces network interference and enhances performance in crowded environments.
Easy Setup & Management – Comes with centralized management software (CPE Assistant) for easy device control from a single PC.

Tenda O6 V2

What’s in the Box?

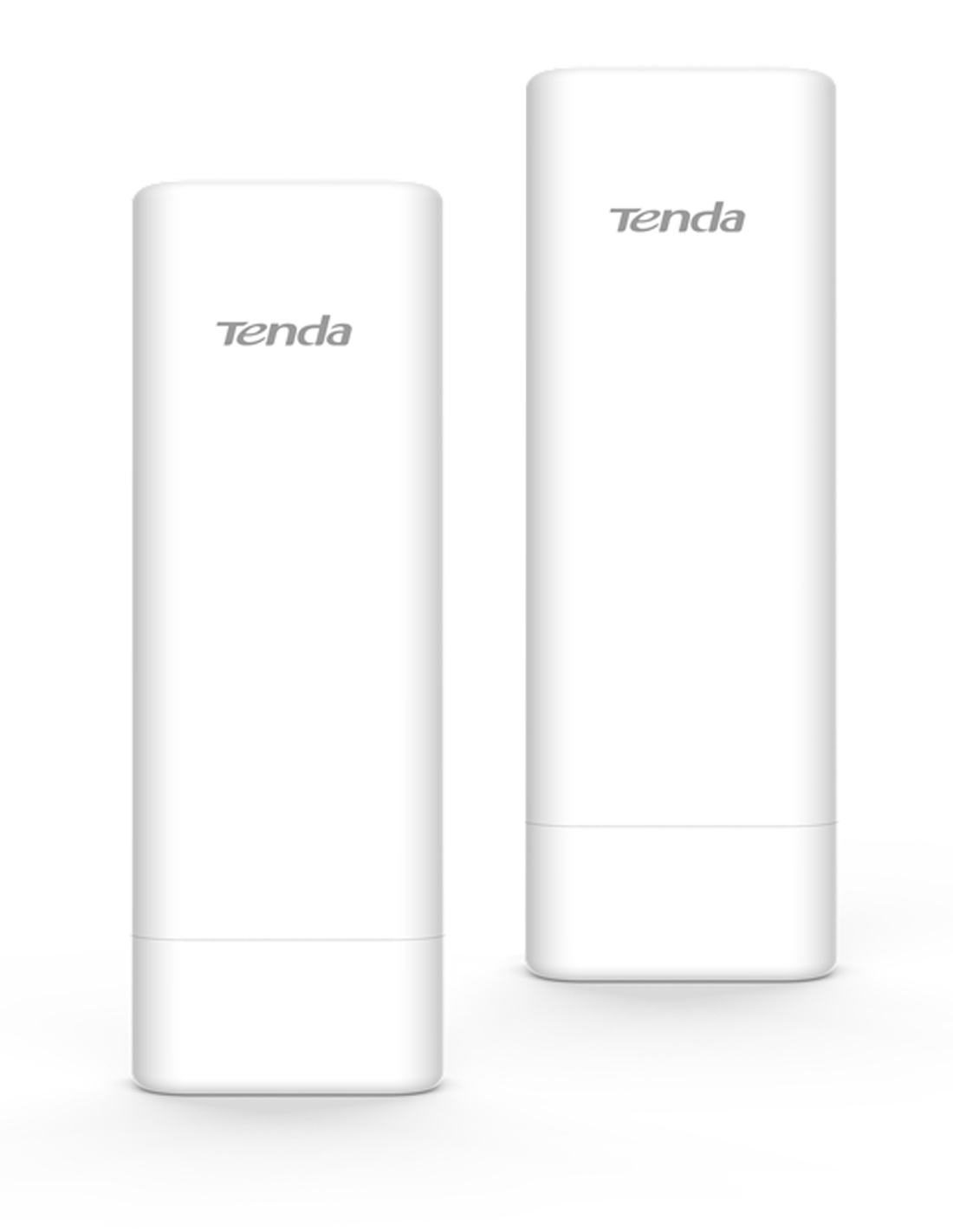

✔ 2 x Tenda O6-V2 Outdoor CPE Units
✔ 2 x PoE Power Adapters
✔ 2 x Mounting Kits
✔ Quick Installation Guide

Upgrade your outdoor wireless network with the reliable and high-performance Tenda O6-V2 2 Pack!

Category	Specification
Model	O6V2.0
Dimensions	27094.8667.5mm
Deployment	Pole Mount
Application Scenarios	PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Frequency Range	5GHz
Compliant Standards	IEEE 802.11a/n/ac
Private TDMA Protocol	TD-MAX
Maximum Wireless Rate	867Mbps
Interfaces	1 x 10/100/1000Mbps Ethernet Port
Antennas Gain	16dBi
Antenna Beamwidth	Horizontal: 30°; Vertical: 30°
Reset Button	1
Power Consumption	6.5W
Waterproof Level	IP65
LED Indicator	PoE/LAN, LED1, LED2, LED3
Power Method	PoE 802.3af/at; 24V 0.5A Passive PoE; 12V 1A DC
Lightning Protection	6000V
PoE (Distance)	Up to 100 meters (802.3af/at)
11a	6Mbps -95dBm ±1.5dBm
Receiver Sensitivity	11n MCS7 HT20 -72dBm ±1.5dBm; 11ac MCS9 HT80 -64dBm ±1.5dBm
Passive PoE	Via PoE/LAN (+4,5pins; -7,8pins) up to 60 meters
Voltage Range	21-25V DC
Hardware Features	Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client Isolation Support SSID Isolation Support Client Limitation for SSID Support Channel Bandwidth: 20/40/80MHz
Software Features	Wireless Access Control Support Transmission Power Adjustable by 1dBm WMM Capable APSD Capable Wireless Security: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK Transparent Bridge Support VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through (PPTP, L2TP) Remote Web Access Support Schedule Reboot Support Page Timeout Support Ping Watchdog Support Dyndns (noip, dyndns.org) Network Diagnoses: Ping, Traceroute, Signal Scan Time & Date Setting Support Firmware Upgrade Support Backup/Restore Configuration Support Username Management Support System Log Support Managed By Controller PC Software - CPE Assistant Weak Signal Client Limitation Support
Operating Temperature	-30℃ ~ 60℃
Storage Temperature	-40℃ ~ 70℃
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 90% non-condensing
Default Login IP	192.168.2.1
Default Login Username	admin
Default Login Password	admin
Certifications	FCC, CE, RoHS
