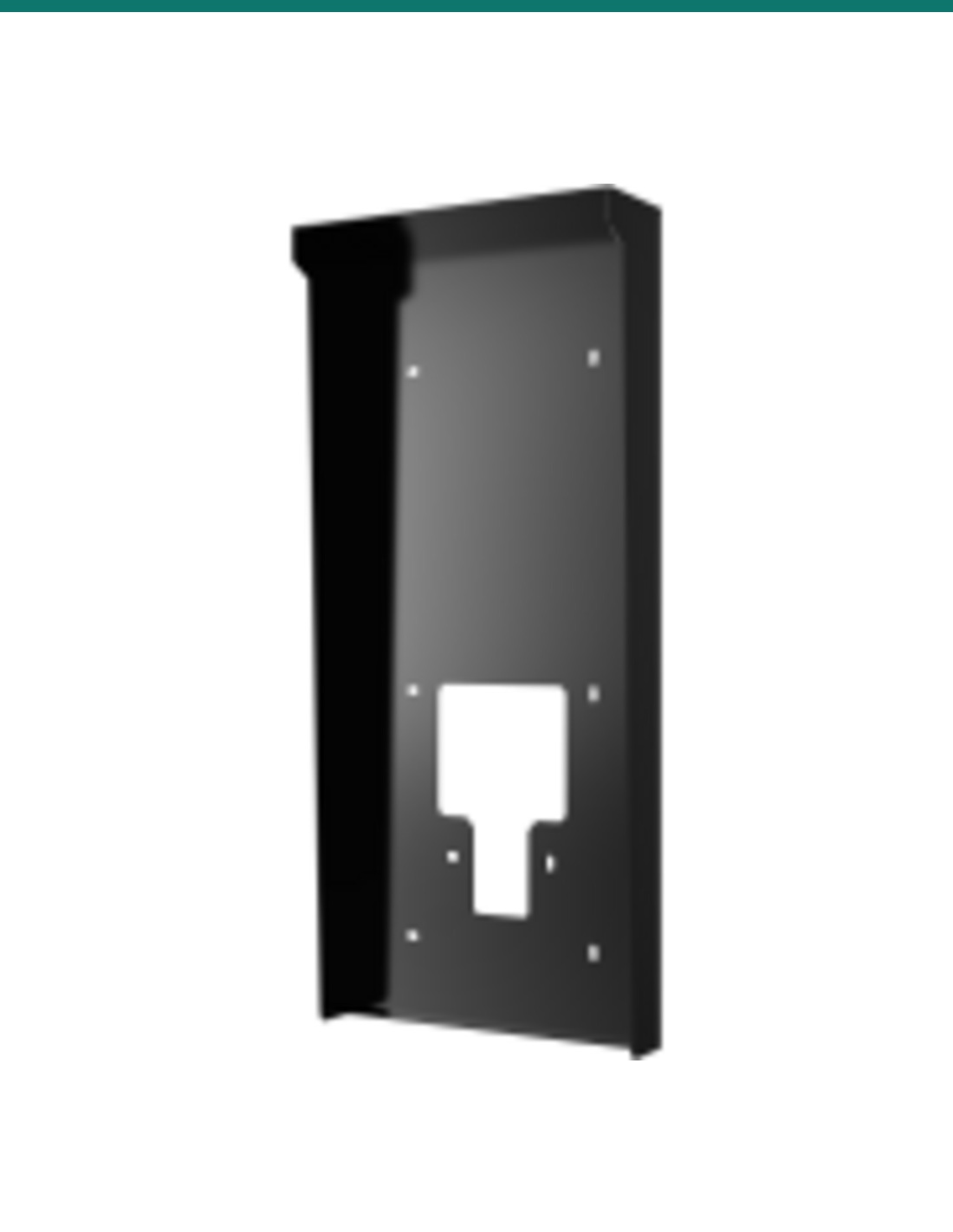

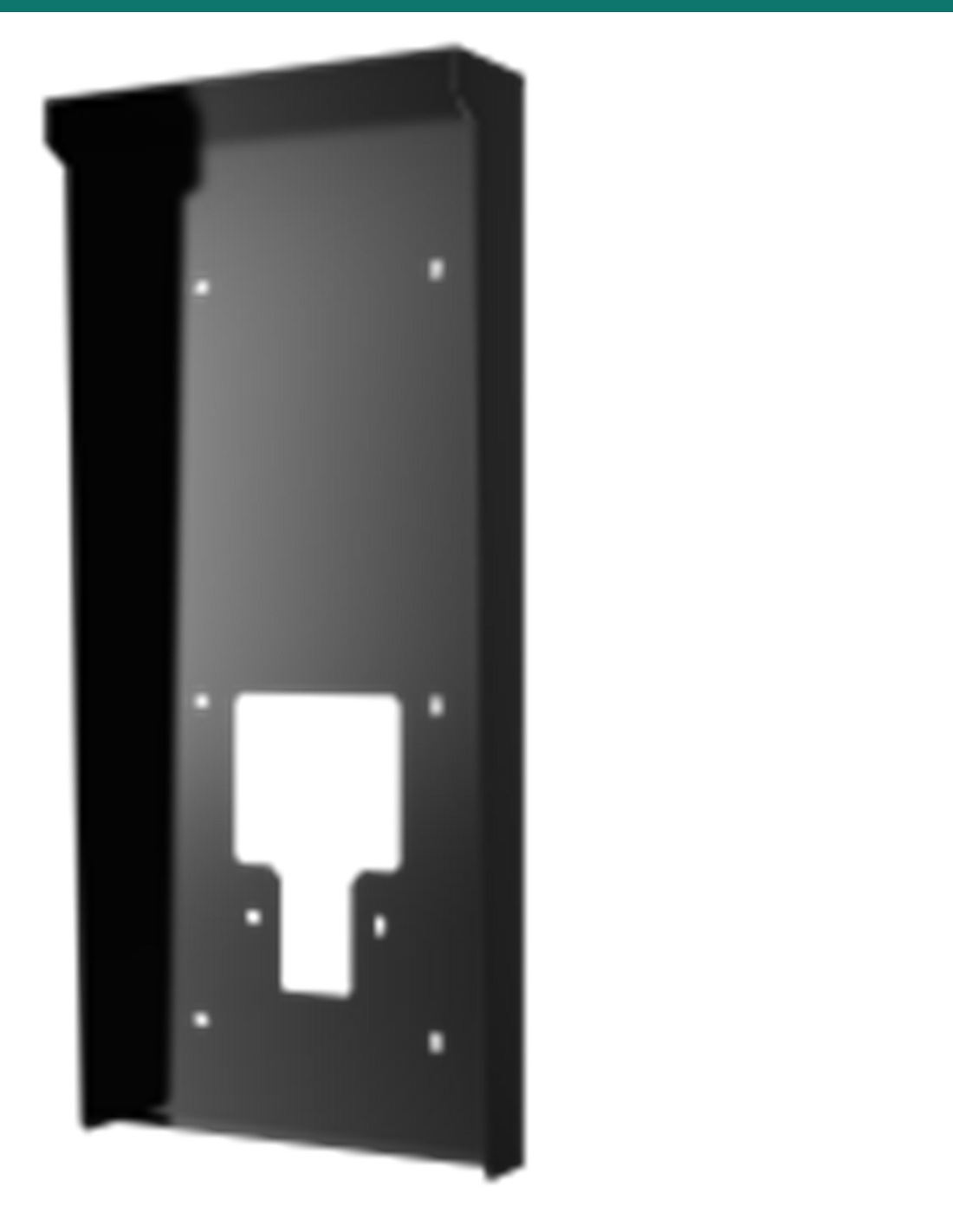

Akuvox S539 Black On-Wall Rain Hood for Surface-Mounted S539 — AK-S539ONWALLH

SKU AK-S539ONWALLH In Stock - Ready to Ship
$57.30 inc GST

Akuvox AK-S539ONWALLH is the black on-wall rain hood for a surface-mounted S539 10″ Android door phone. Its back plate fixes behind the S539 on-wall bracket, and the 60 mm-deep hood shelters the screen, cameras and card reader from rain and overhead sun.

  • ✓Rain hood for a surface-mounted Akuvox S539
  • ✓380.2 × 188.4 mm, projecting 60 mm at the top
  • ✓Back plate with cable cut-out and holes matching the S539 on-wall bracket
  • ✓Black finish


Akuvox · S539 · On-wall rain hood

Keep the S539 screen clear.
Hood for surface-mounted units.

The AK-S539ONWALLH is Akuvox’s on-wall rain cover for the S539. It keeps water off the 10″ glass and shades the cameras so faces and video stay clear on an exposed wall.

This SKU is the rain hood only.

You receive the black S539 on-wall rain hood. The S539 door phone and the S539 on-wall installation kit are sold separately.

In the box
  • Akuvox S539 on-wall rain hood (black)
What you also need (sold separately)
  • Akuvox S539 door phone
  • S539 on-wall installation kit

Faces recognised, rain or shine.

Water on the glass and harsh overhead light both make face recognition and video harder outdoors. The hood takes care of both.

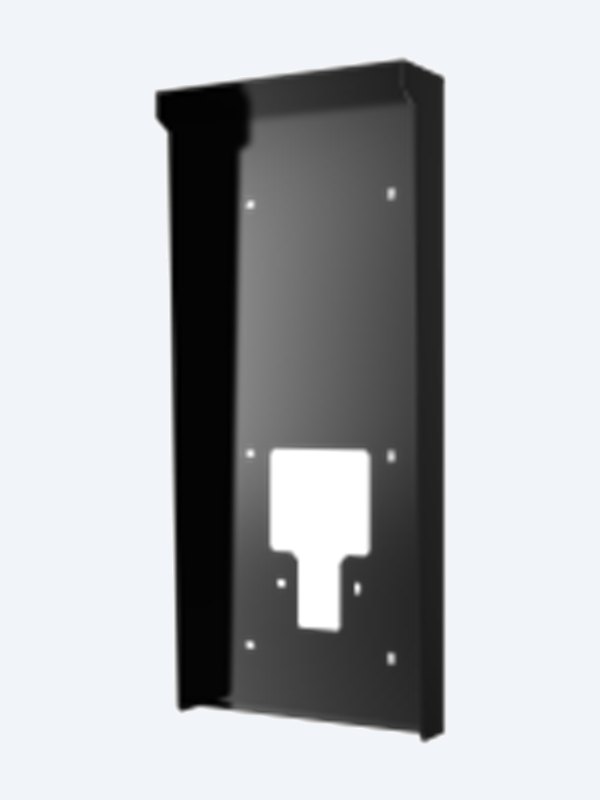

Akuvox S539 black on-wall rain hood

Design

Hood and back plate in one.

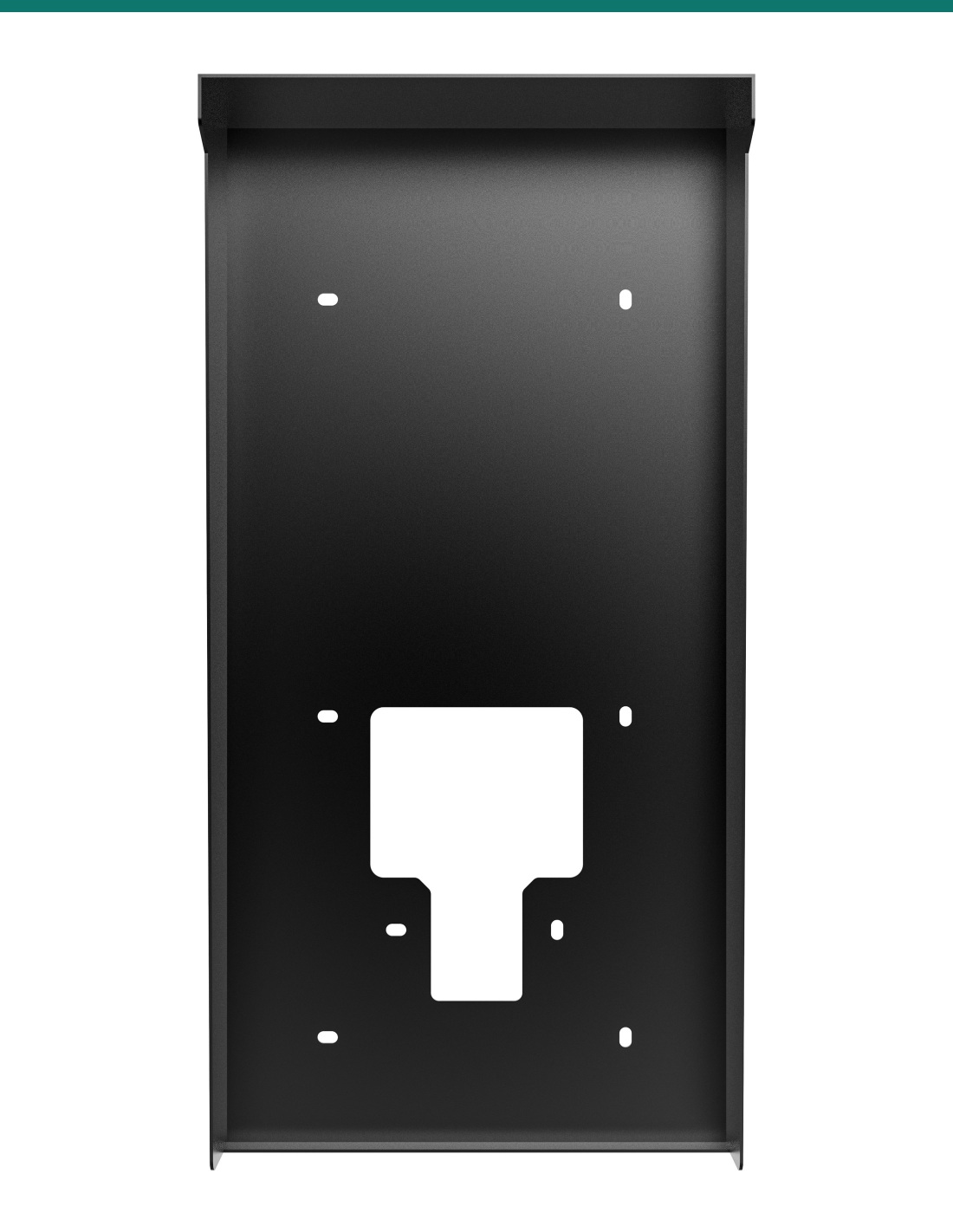

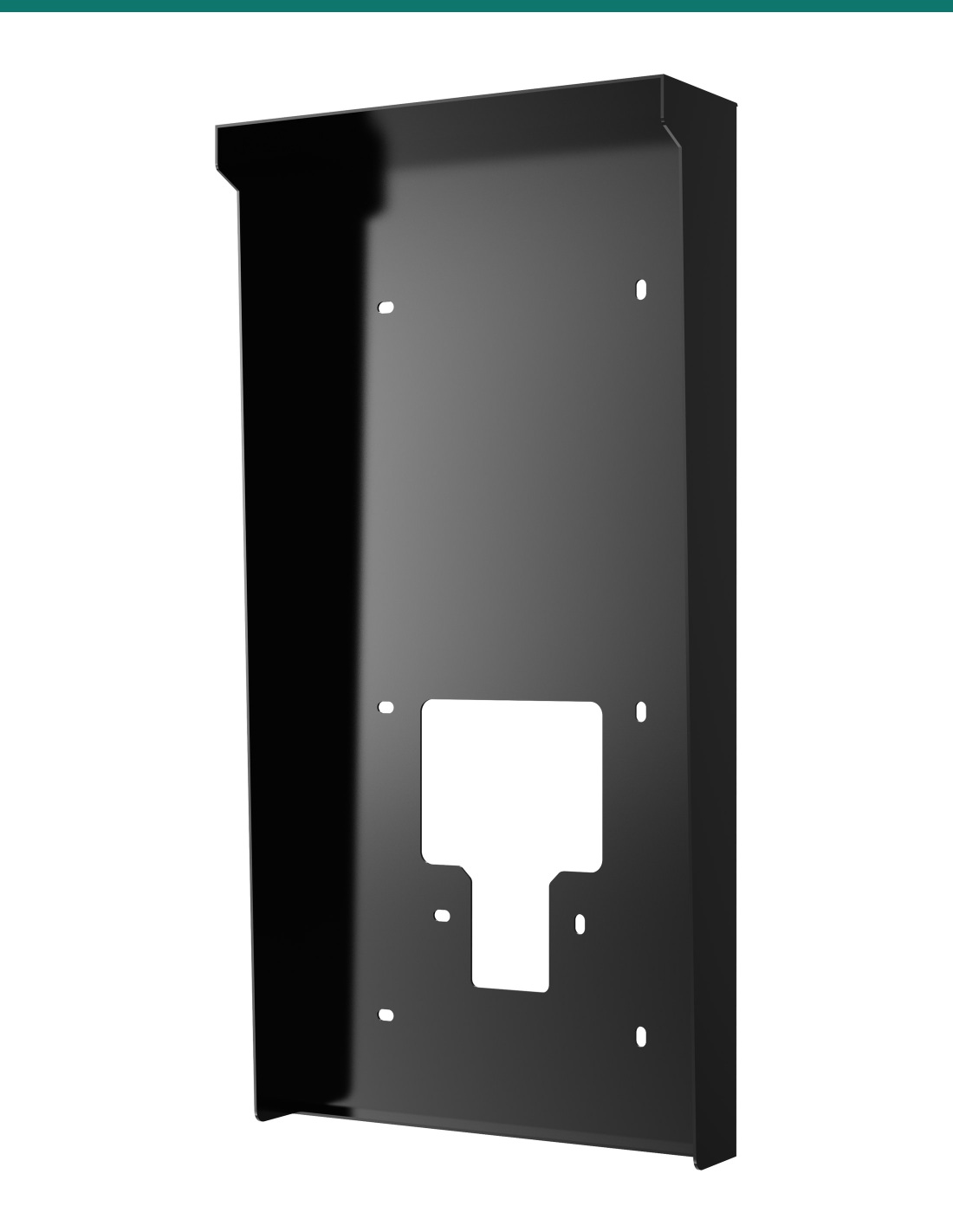

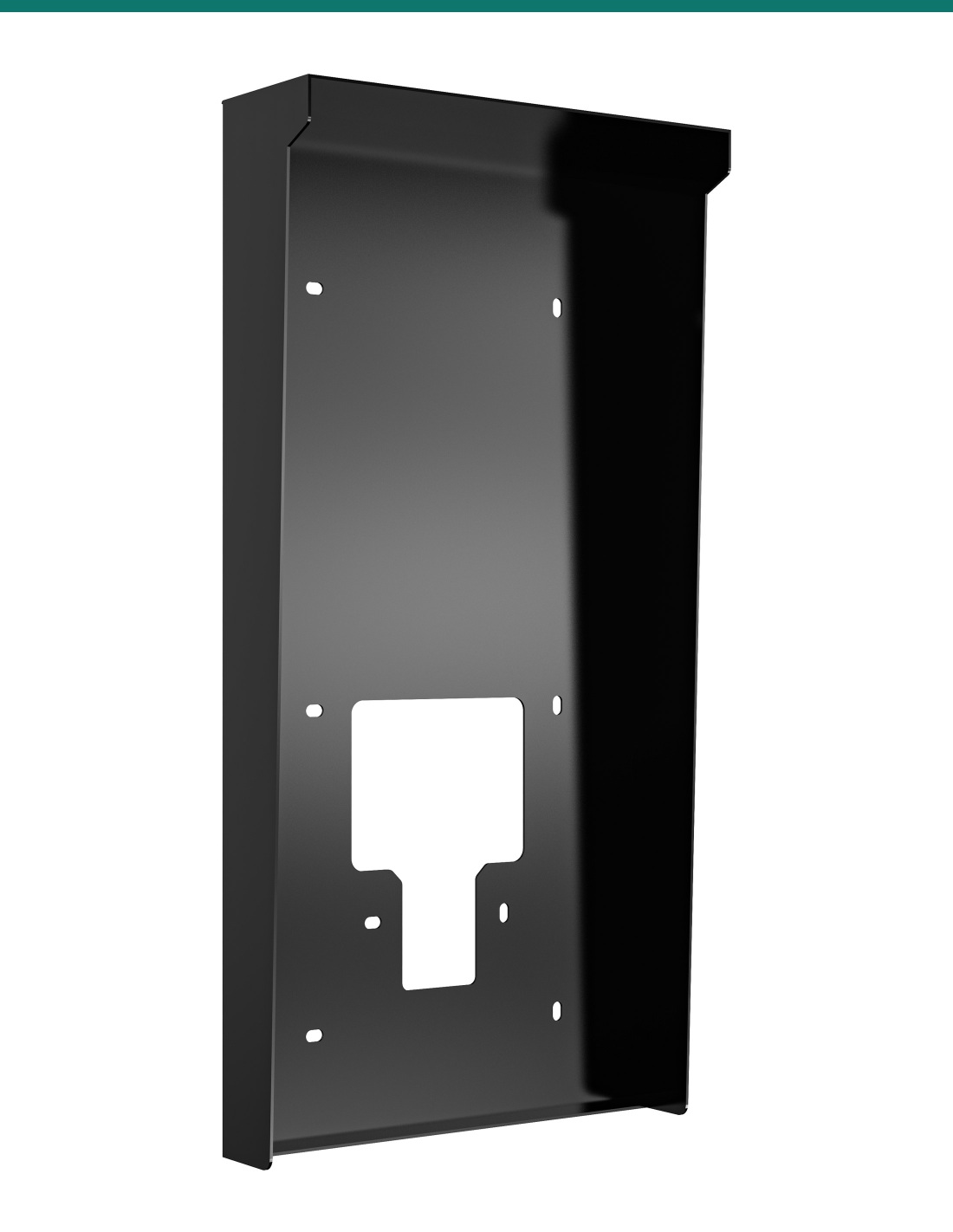

A single black piece: a back plate with a cable cut-out and fixing holes, and a hood that wraps the top and sides of the S539.

The back plate’s fixing holes sit 111 mm apart, matching the S539 on-wall bracket, with a cut-out for the cables.

Fit

For the S539 on the wall.

It measures 380.2 × 188.4 mm and projects 60 mm at the top, tapering to 34.2 mm at the bottom — enough to shelter the 30.8 mm-deep S539 on its 11.8 mm bracket.

It is not for flush installs — a recessed S539 uses the in-wall rain hood.

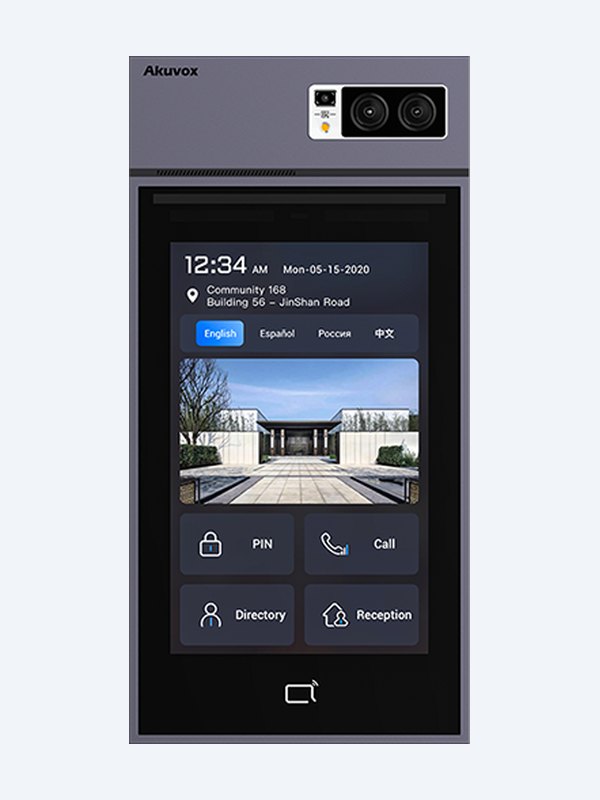

Akuvox S539 10-inch Android door phone

Pair it with

Fits the Akuvox S539

Door phone

Akuvox S539

10″ Android facial recognition door phone.

Mounting

S539 on-wall installation kit

The surface bracket the S539 mounts on.

Watch

See it in action

Akuvox S539 Android door phone overview
Akuvox S539 camera and picture quality

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Can I use it on a flush-mounted S539?

No. This is the on-wall hood. A recessed S539 uses the S539 in-wall rain hood.

Do I still need the on-wall kit?

Yes. The hood’s back plate goes against the wall and the S539 on-wall bracket fixes through it on the same holes.

How far does it stick out?

60 mm at the top, tapering to 34.2 mm at the bottom.

Can I still fix over an 86-type wall box?

Yes. The back plate has the same 60 mm box holes and cable cut-out as the on-wall bracket.

Will it fit the S538?

No. It is sized to the S539 and its bracket. The S538 has its own on-wall rain cover.

Is the door phone included?

No. This SKU is the rain hood only.

Protect exposed S539 installs.

Fit it wherever a surface-mounted S539 has no awning. Recessed S539 units use the S539 in-wall rain hood instead.

Colour
Black
Brand
Akuvox
Size
380.2 × 188.4 mm (H × W)
Warranty
Australian warranty
Product Type
Rain hood (on-wall)
Model
S539 on-wall rain hood
Use With
S539 on-wall installation kit
Compatible with
Akuvox S539 door phone (surface-mounted)
Projection
60.0 mm at the top, 34.2 mm at the bottom
Fixing Holes
111 mm apart, matching the S539 on-wall bracket
