Akuvox S539 Black In-Wall Rain Hood for Flush-Mounted S539 — AK-S539INWALLH

SKU AK-S539INWALLH In Stock - Ready to Ship
$57.30 inc GST

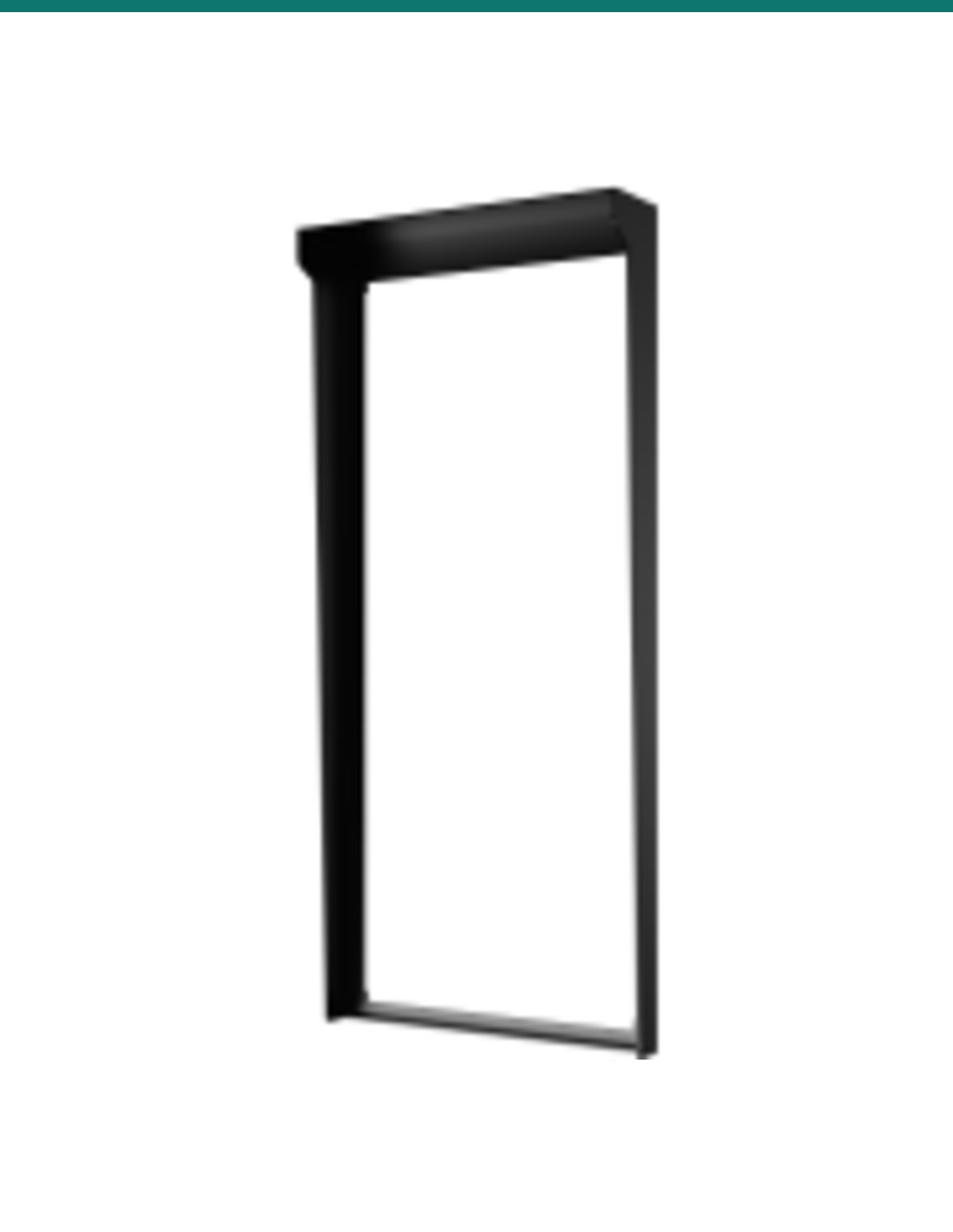

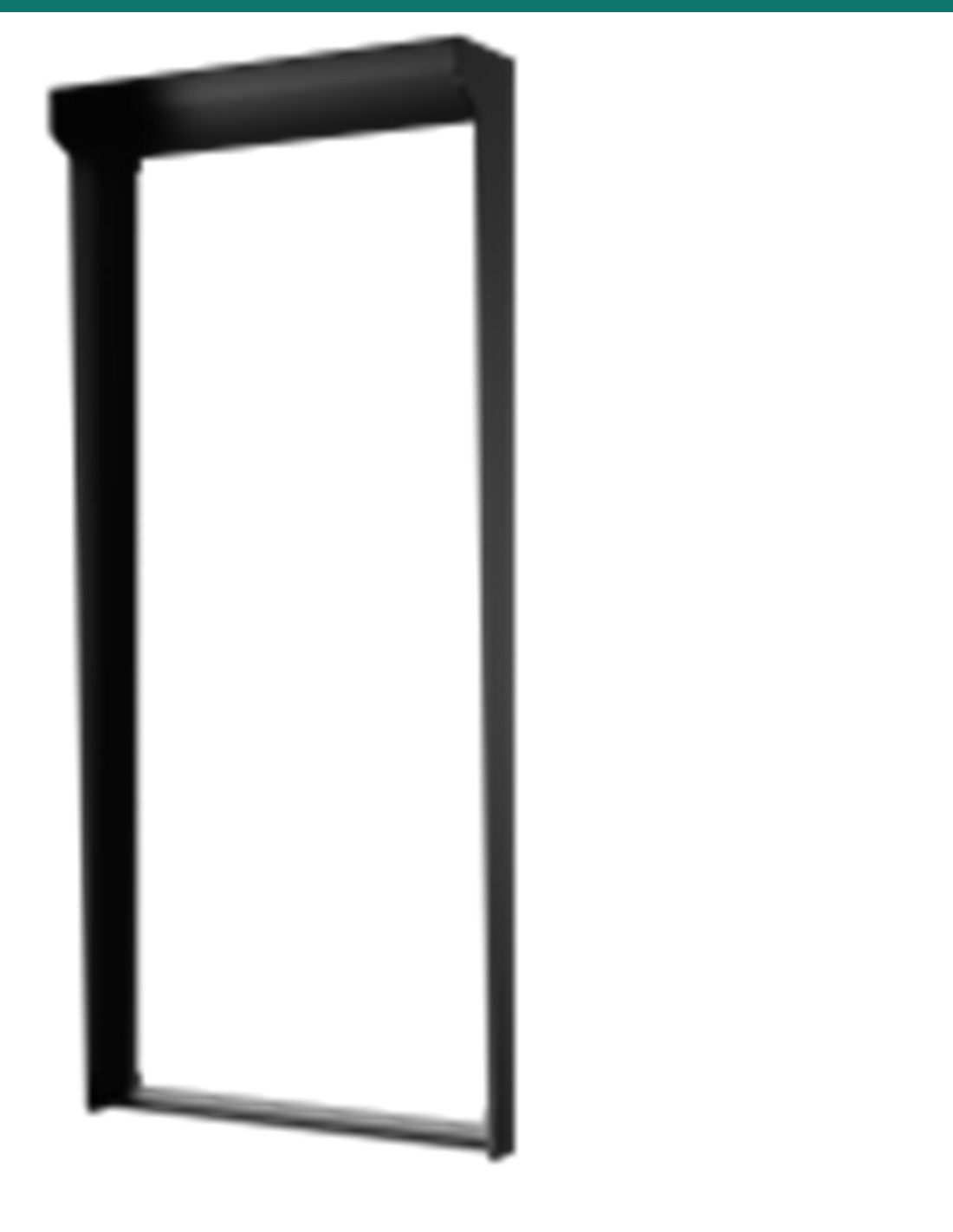

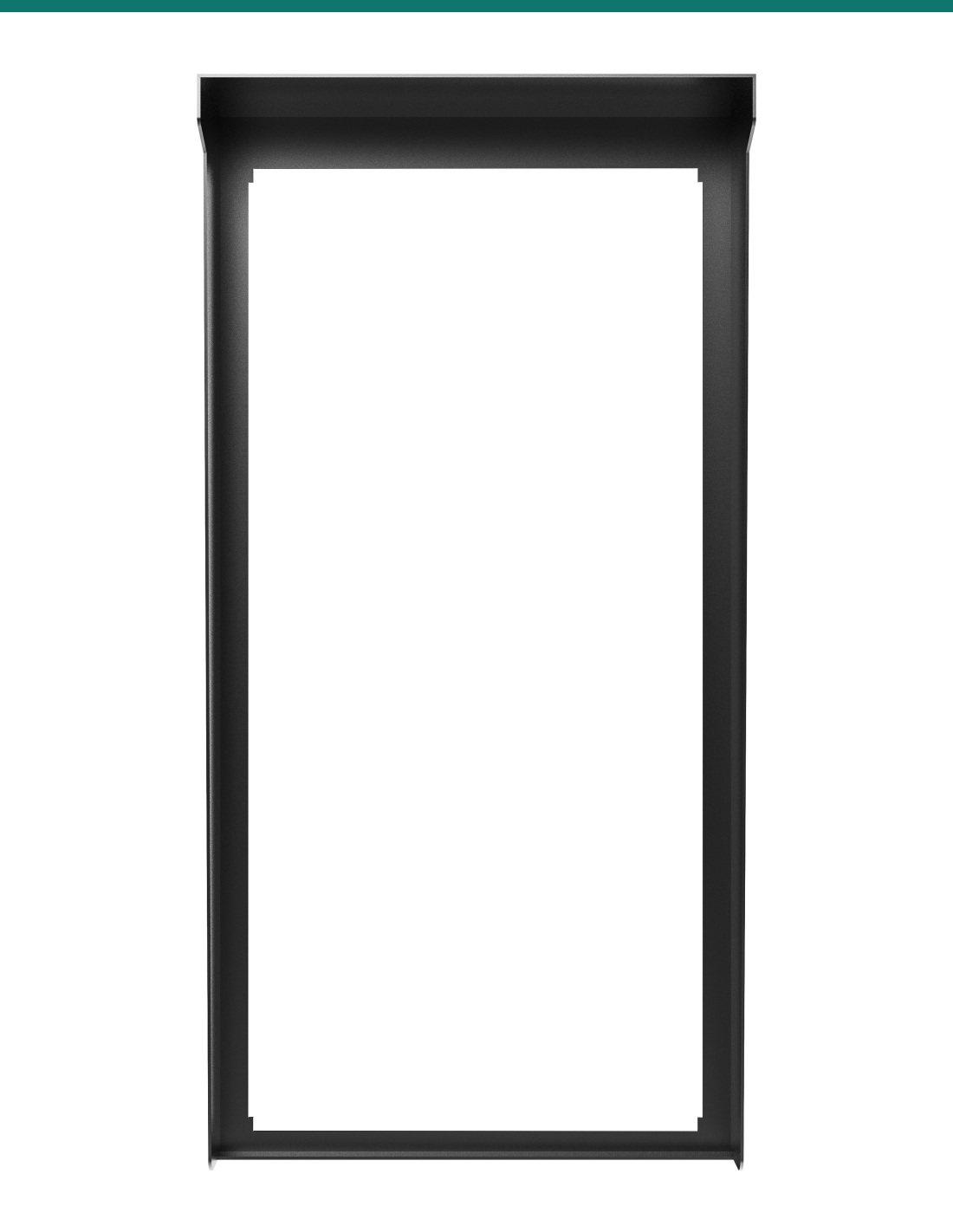

Akuvox AK-S539INWALLH is the black in-wall rain hood for a flush-mounted S539 10″ Android door phone. The 379 × 188.4 mm open frame sits around the recessed S539 at the wall face and projects 48.3 mm at the top to keep rain and overhead sun off the screen and cameras.

  • ✓Rain hood for a flush-mounted Akuvox S539
  • ✓Open frame, 379.0 × 188.4 mm, projecting 48.3 mm at the top
  • ✓Use with the S539 in-wall installation kit
  • ✓Black finish


Akuvox · S539 · In-wall rain hood

Shelter a recessed S539.
Hood frame for flush installs.

The AK-S539INWALLH is Akuvox’s in-wall rain cover for the S539. It has no back plate — it is a frame that surrounds the door phone once it is recessed with the in-wall kit.

This SKU is the rain hood only.

You receive the black S539 in-wall rain hood. The S539 door phone and the S539 in-wall installation kit are sold separately.

In the box
  • Akuvox S539 in-wall rain hood (black)
What you also need (sold separately)
  • Akuvox S539 door phone
  • S539 in-wall installation kit

A flush finish that still sheds rain.

Recessing the S539 gives a clean façade but leaves the 10″ glass facing the weather. The frame adds a lip over the top and sides without hiding the screen.

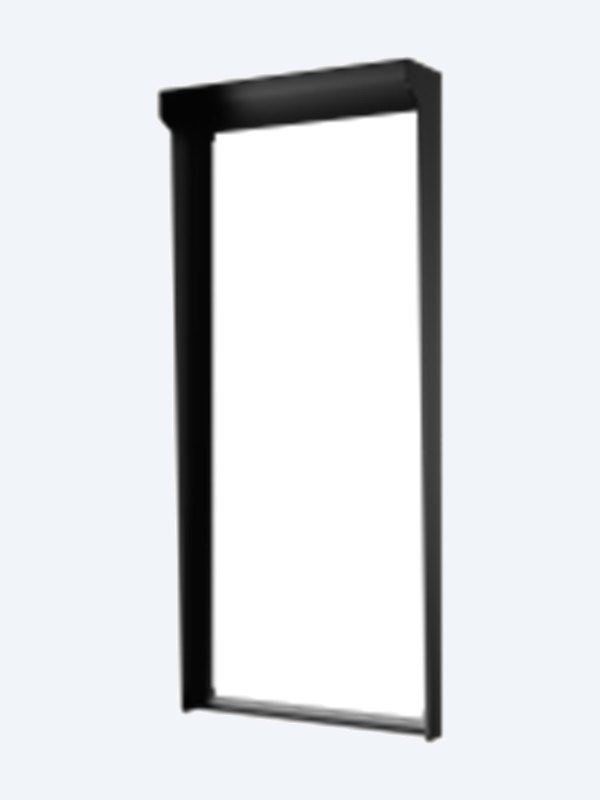

Akuvox S539 black in-wall rain hood

Design

An open frame with a hood.

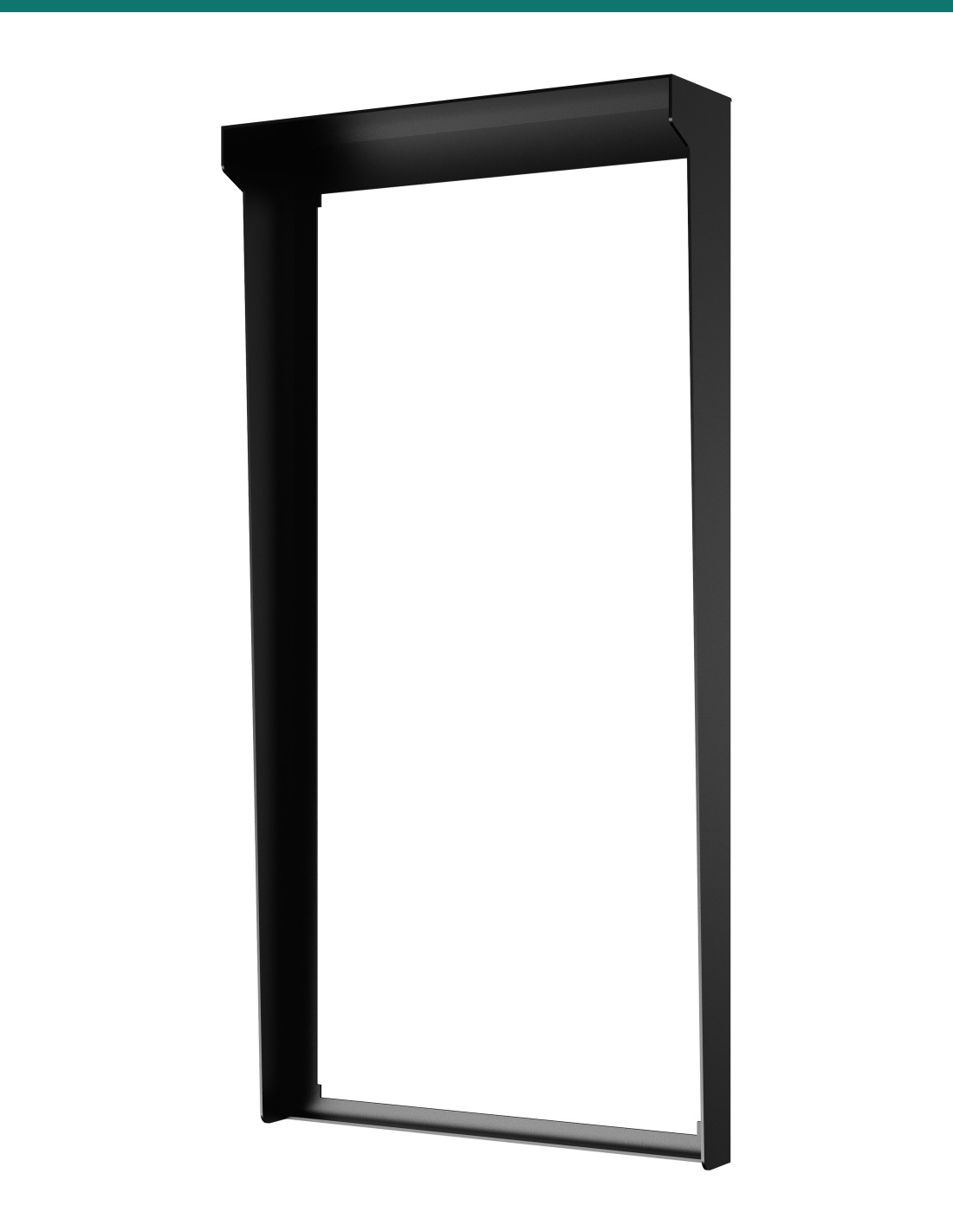

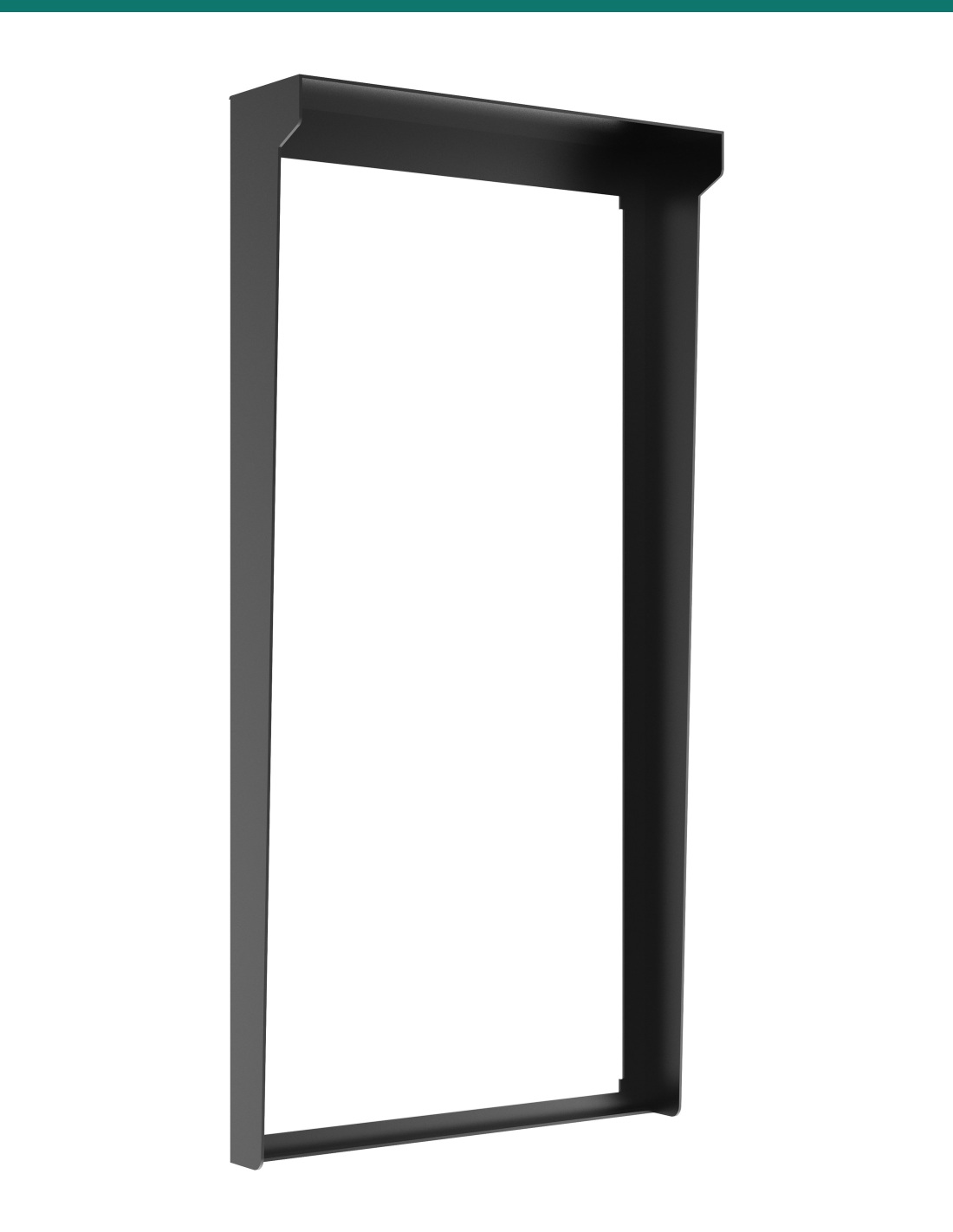

A black frame that sits at the wall face around the recessed S539, with a hood over the top and tapered sides.

It measures 379.0 × 188.4 mm and projects 48.3 mm at the top, tapering to 22.5 mm at the bottom.

Fit

For the S539 in the wall.

Designed for the 363.5 × 179.8 mm S539 when it is flush-mounted with the S539 in-wall installation kit.

It is not for surface installs — an S539 on the wall surface uses the on-wall rain hood with its own back plate.

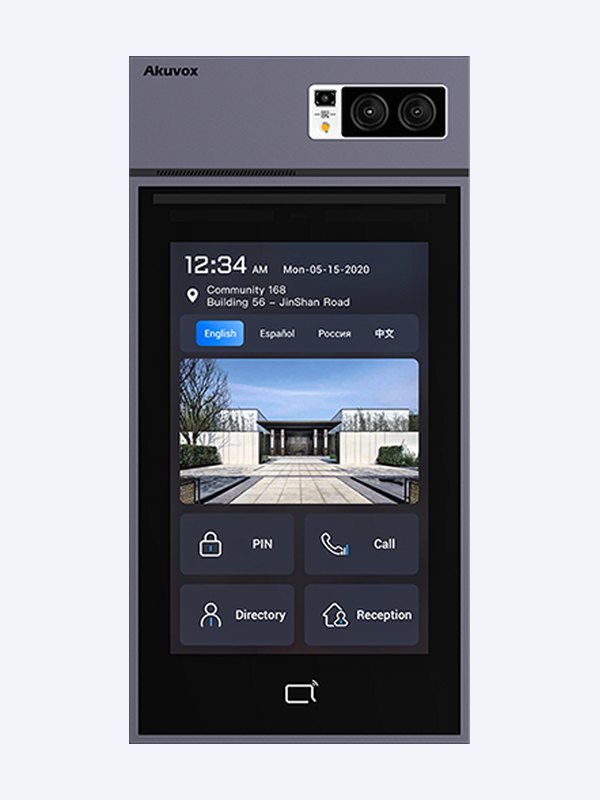

Akuvox S539 10-inch Android door phone

Pair it with

Fits the Akuvox S539

Door phone

Akuvox S539

10″ Android facial recognition door phone.

Mounting

S539 in-wall installation kit

Flush box and bracket that recess the S539 into the wall.

Watch

See it in action

Akuvox S539 Android door phone overview
Akuvox S539 camera and picture quality

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How is it different from the on-wall rain hood?

The in-wall hood is an open frame for a recessed S539. The on-wall hood has a back plate for an S539 on the wall surface.

Do I need the in-wall kit?

Yes. The S539 is recessed with the S539 in-wall installation kit and the hood frames it at the wall face.

How far does it stick out?

48.3 mm at the top, tapering to 22.5 mm at the bottom.

Does it cover the screen?

No. It is an open frame — the 10″ screen, cameras and card reader stay fully visible and usable.

Will it fit the S538?

No. It is sized to the 363.5 × 179.8 mm S539. The S538 has its own in-wall rain cover.

Is the door phone included?

No. This SKU is the rain hood only.

Protect exposed flush installs.

Fit it wherever a recessed S539 faces the weather. Surface-mounted S539 units use the S539 on-wall rain hood instead.

Construction
Open frame with top hood and tapered sides
Colour
Black
Brand
Akuvox
Size
379.0 × 188.4 mm (H × W)
Warranty
Australian warranty
Product Type
Rain hood (in-wall)
Model
S539 in-wall rain hood
Use With
S539 in-wall installation kit
Compatible with
Akuvox S539 door phone (flush-mounted)
Projection
48.3 mm at the top, 22.5 mm at the bottom
