Dahua DH-K61616T kit: sixteen 6MP DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual Light eyeballs that record in colour when a person or vehicle appears, and a 16-channel DHI-NVR4216-16P-AI/ANZ PoE recorder. Choose the drive size in the options.
- ✓16 × 6MP eyeballs, 3288 × 1850, F1.4 lens
- ✓Smart Dual Light: 30 m IR and 30 m warm light
- ✓SMD 4.0 people and vehicle detection, built-in mic
- ✓16-port PoE recorder, all ports used
- ✓No HDD or 2–10TB fitted, 4K HDMI, DMSS app
Description

Sixteen 6MP cameras, colour when it counts.
IR by default, warm light when someone walks in.

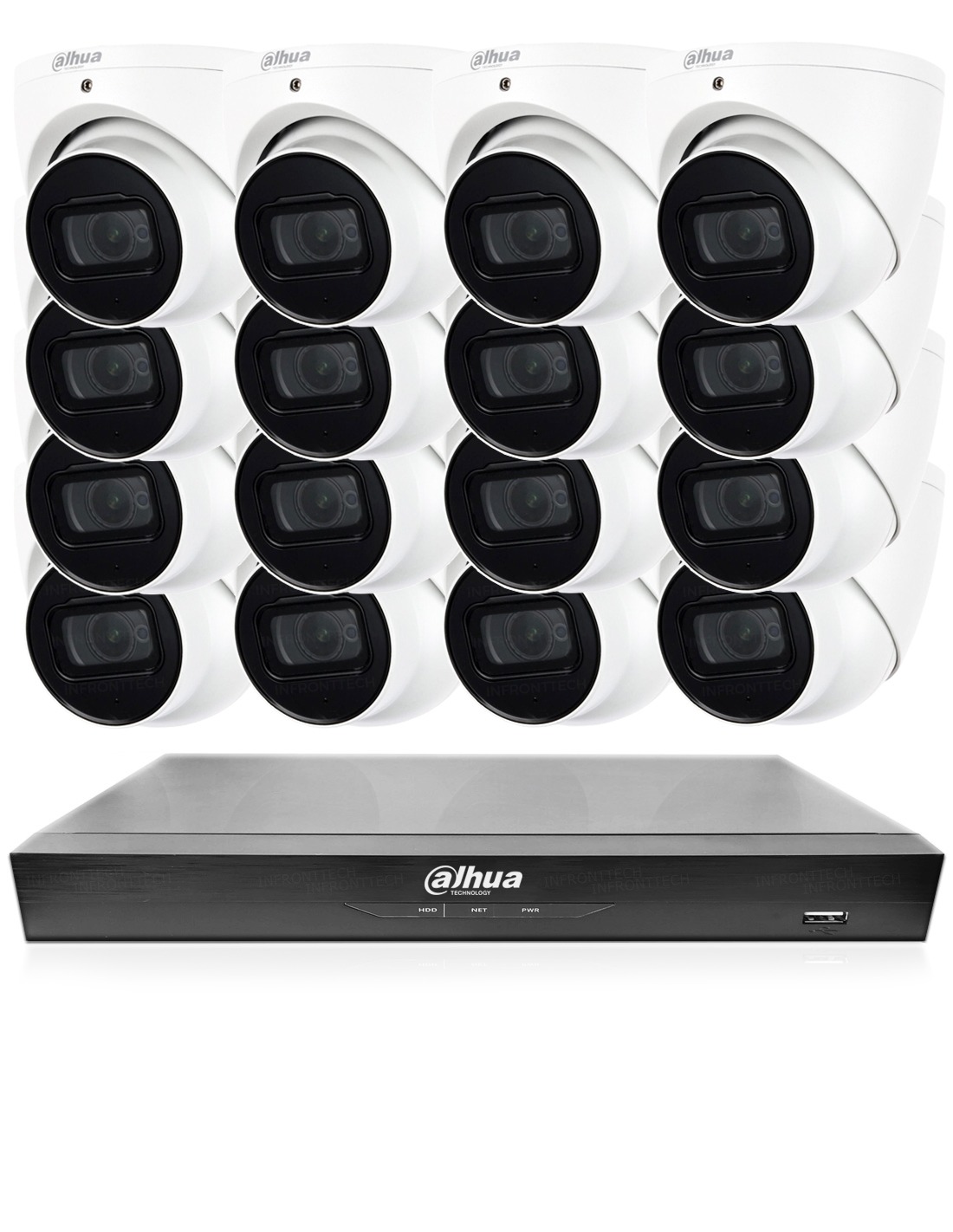

This is the Dahua DH-K61616T: sixteen white DH-IPC-HDW3667EM-S-IL-ANZ 6MP eyeballs and a DHI-NVR4216-16P-AI/ANZ recorder. Each camera records 6MP (3288 × 1850), watches in infrared at night and turns its warm light on when a person or vehicle appears, and takes its power from the recorder over one Cat6 cable.
In one sentence: the DH-K61616T is a Dahua kit of sixteen DH-IPC-HDW3667EM-S-IL-ANZ 6MP (3288 × 1850) Smart Dual Light eyeball cameras with F1.4 lenses, 30 m IR and 30 m warm light, SMD 4.0 and a built-in mic, plus a DHI-NVR4216-16P-AI/ANZ 16-channel recorder with 16 PoE ports, two SATA bays and 4K HDMI.
Sixteen cameras and the recorder. Choose the drive size in the options.
The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. This kit uses all 16 of the recorder's PoE ports. Dahua makes this camera with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock. Sixteen cameras at full load can draw more than the recorder's 130 W PoE total: see the PoE question below.
- 16 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual Light eyeball cameras (white)
- 1 × DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder
- A hard drive, only if you chose one in the options
- Cat5e or Cat6 cable from each camera to the recorder
- A monitor or TV with HDMI or VGA for setting up
- Your router, for the DMSS phone app
- A SATA surveillance drive, if you chose No HDD
Light only when it is needed.
Smart Dual Light keeps each camera on infrared at night and switches the warm light on when it detects a person or vehicle, then back to IR when they leave. You get the event in colour without lighting up the yard, or the neighbours, all night.

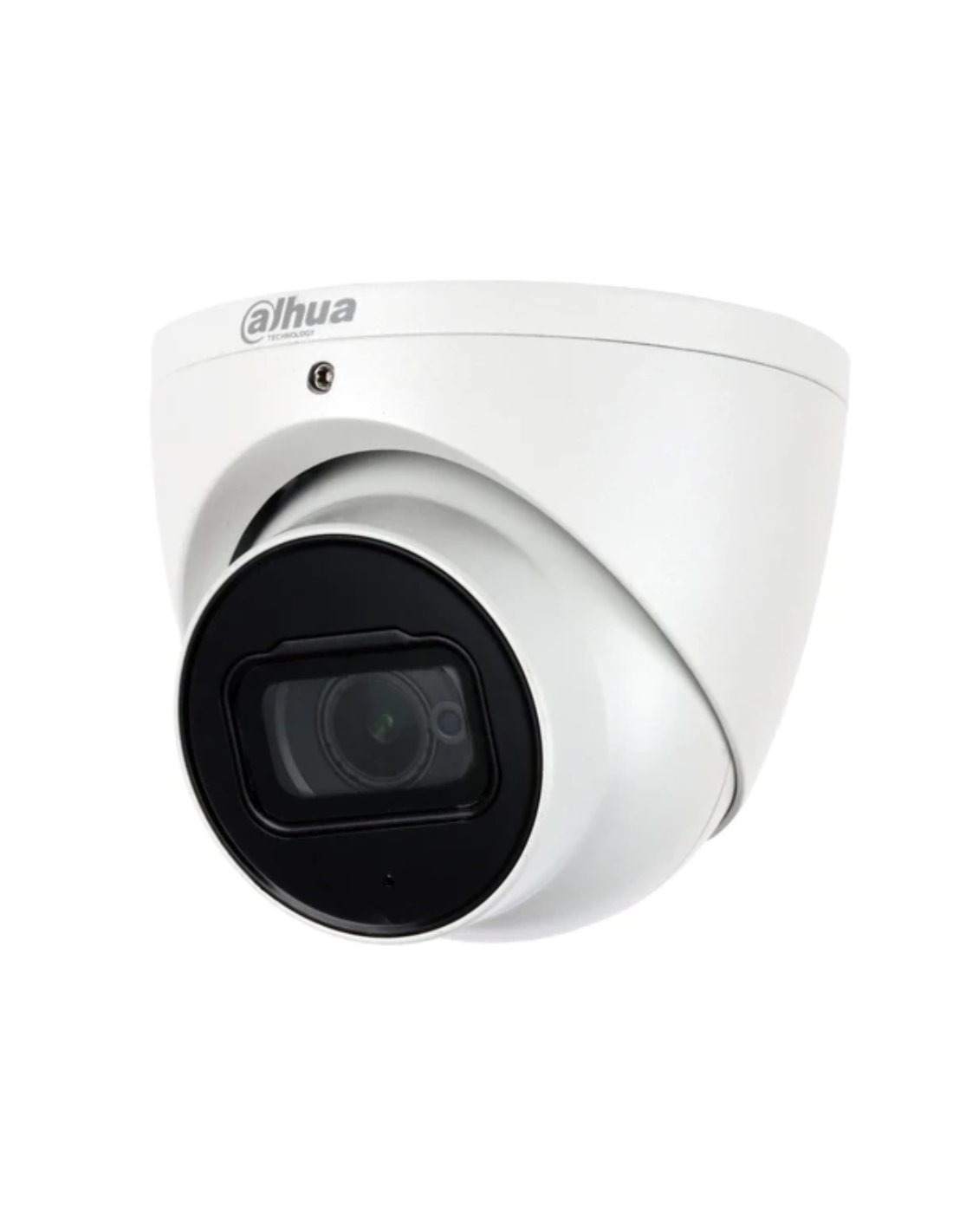

The cameras
6MP through an F1.4 lens.
A 1/2.7" sensor records 3288 × 1850 at up to 25/30 fps through an F1.4 lens, in colour down to 0.005 lux. Two multi-core lights give IR or warm light out to 30 m, and a built-in microphone records sound with the video. Metal housing, IP67, −40 °C to +60 °C.

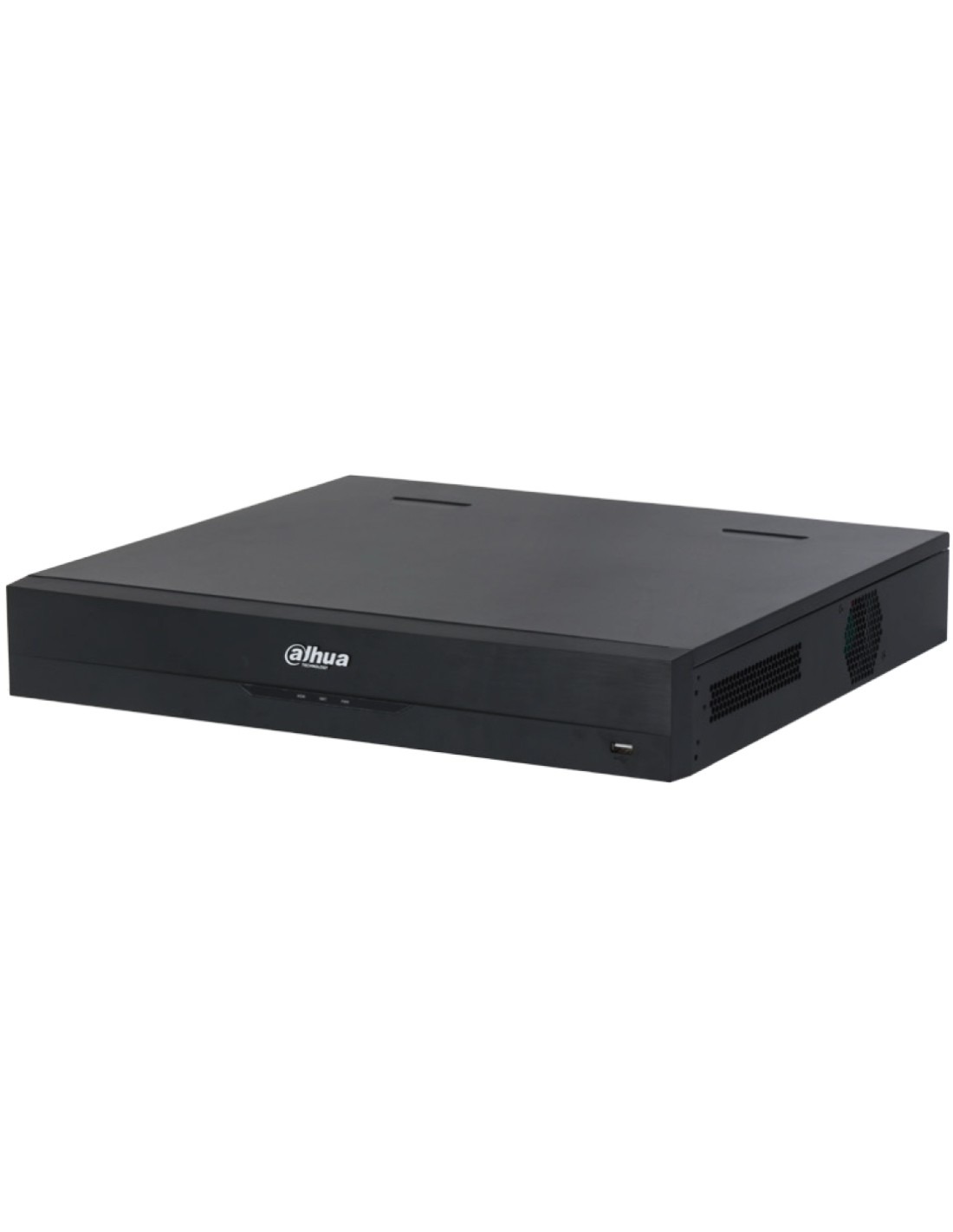

The recorder
16 PoE ports in a 1U, 375 mm case.
The DHI-NVR4216-16P-AI/ANZ records 16 IP cameras up to 16MP, takes 256 Mbps of incoming video (180 Mbps with AI on) and shows 4K on HDMI. It holds two SATA drives of up to 20TB each and runs face recognition (1 channel), perimeter protection (2 channels) and SMD Plus (4 channels) itself.

One cable per camera
Power and video on the same cable.
Each PoE port gives up to 25.5 W, with 130 W shared across all 16. Dahua rates each camera at 5.3 W basic and 9.5 W at most, with the warm light, WDR and analytics on: about 85 W for sixteen at basic, but 152 W at full load. If many cameras may light up at once, power a few from a 12 VDC supply or a separate PoE switch. Ask us to plan it.
How it goes in
From the box to the first alert.
01
Fit the drive
If you chose No HDD, power off, open the recorder and fit one or two SATA surveillance drives, then format them from the startup wizard.
02
Mount the cameras
Fix each eyeball to a wall or eave through the four Ø 4.5 mm holes on a 69 mm circle in its base, then pan, tilt and rotate the ball to frame the view.
03
Run one cable to each
Cat5e or Cat6 from each camera to a PoE port on the recorder, up to 100 m. The port powers the camera.
04
Set the rules
Connect HDMI and your router, add the recorder to DMSS, then draw tripwire or intrusion zones for people, vehicles or both, and choose when the warm light comes on.
At a glance
DH-K61616T
Show specs
In the kit
16 × DH-IPC-HDW3667EM-S-IL-ANZ cameras, 1 × DHI-NVR4216-16P-AI/ANZ recorder
Hard drive
No HDD, or 2, 4, 8 or 10TB fitted (choose in the options); 2 SATA bays, each up to 20TB
Camera resolution
6MP, 3288 × 1850 at up to 25/30 fps
Camera lens
Fixed F1.4, 2.8 mm or 3.6 mm (confirm with us)
Field of view
2.8 mm: 110° horizontal; 3.6 mm: 86° horizontal
Image sensor
1/2.7" CMOS progressive scan
Low light
Colour 0.005 lux; 0 lux with the lights on
Lights
2 multi-core lights: IR up to 30 m and warm light up to 30 m, Smart Dual Light
Audio
Built-in microphone; no speaker
Camera AI
SMD 4.0; tripwire and intrusion with human and vehicle sorting; AI SSA
Search
Quick Pick on this recorder; the cameras also support AcuPick with a Dahua recorder that offers it (NVR5 AI series)
Camera storage
microSD up to 512 GB each
Camera power
PoE (802.3af) or 12 VDC; 5.3 W basic, up to 9.5 W on PoE
PoE budget
16 ports, up to 25.5 W each, 130 W total; 16 cameras draw about 85 W basic, up to 152 W at full load
Camera housing
Metal, IP67, 93.6 × Φ106 mm, 0.53 kg, −40 °C to +60 °C
Recorder channels
16 IP cameras up to 16MP; all 16 used in this kit
Recorder bandwidth
256 Mbps in, recording and out (180 Mbps with AI on)
Recorder AI
Face recognition (1 ch), perimeter protection (2 ch), SMD Plus (4 ch); AI search and Quick Pick
Outputs
HDMI up to 3840 × 2160, VGA up to 1920 × 1080

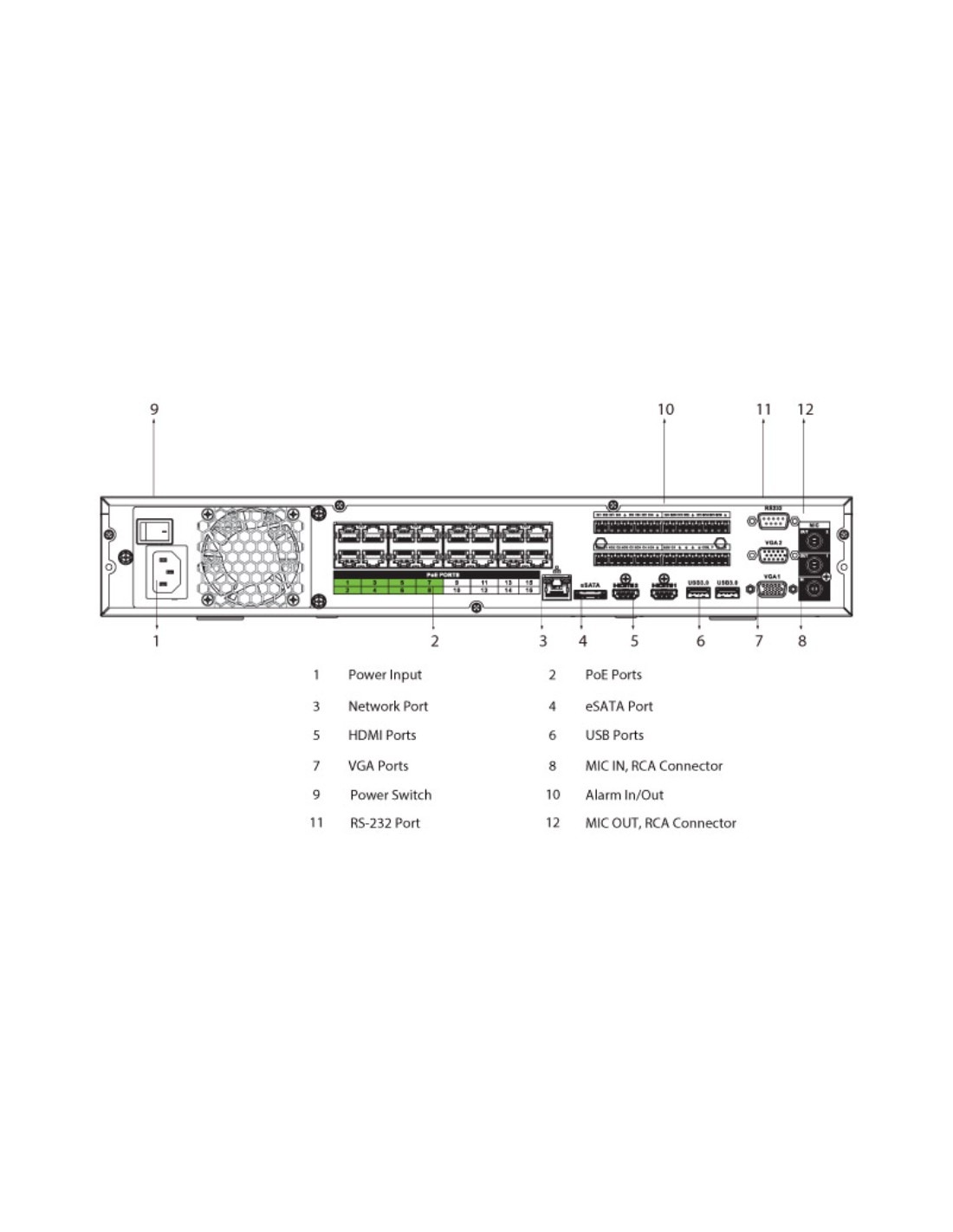

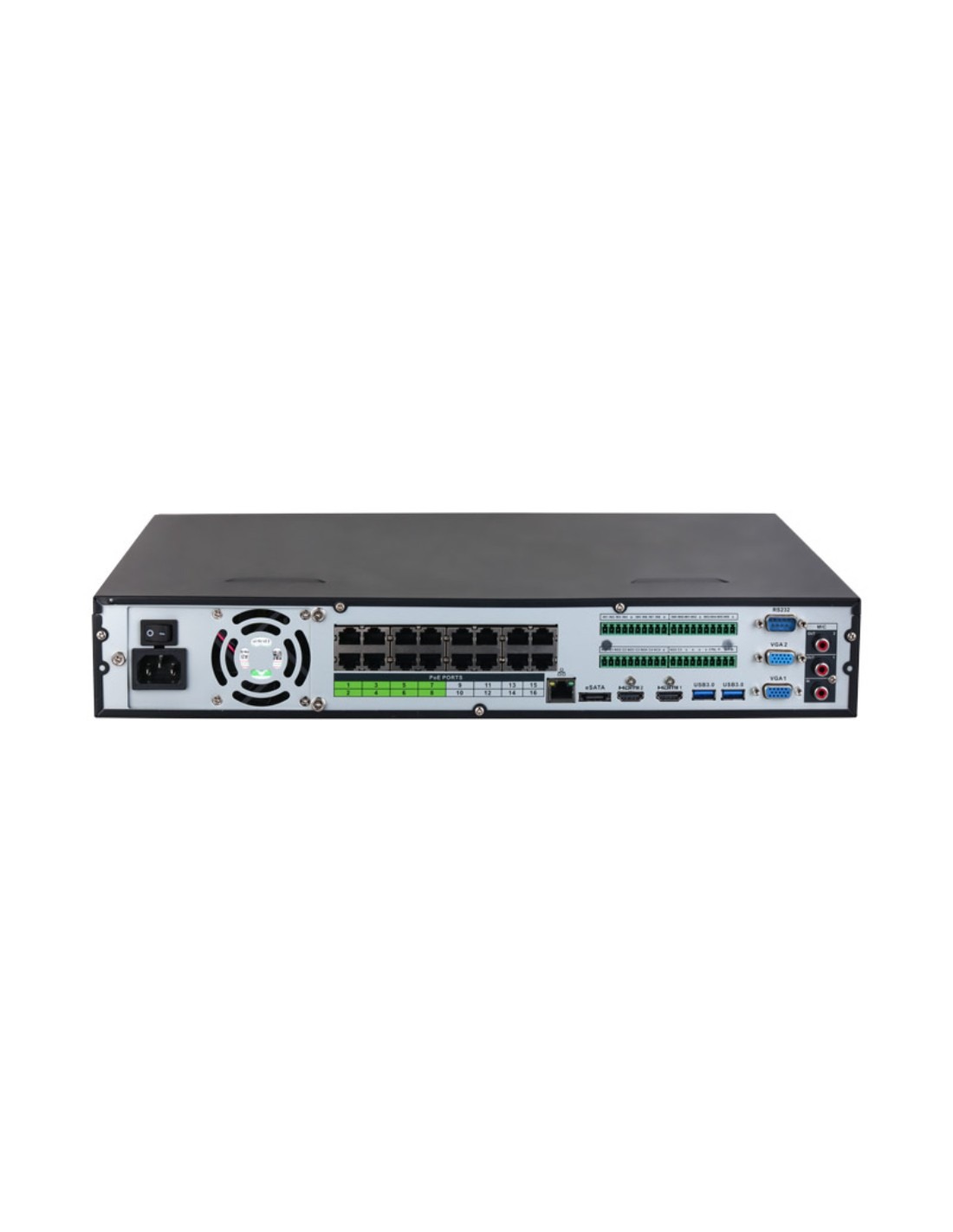

Recorder ports
Alarm 4 in and 2 out, audio in and out (RCA), RS-232, 2 × USB 2.0
Network
Recorder: 1 × RJ45 Gigabit; cameras: 10/100, ONVIF Profile S, G, T and M
Recorder size
375 × 329.3 × 53 mm, 2.60 kg, 100–240 VAC power supply built in
Recorder placement
Indoors, rack or desktop, −10 °C to +55 °C, 10–93% humidity
App and software
DMSS (iOS, Android), Smart PSS Lite, DSS, DoLynk Care
Warranty
Dahua 3-year manufacturer warranty, handled in Australia through InFront

Each camera: 93.6 × Φ106.0 mm. Four Ø 4.5 mm mounting holes on an Ø 69 mm circle. Units mm [inch].
Pair it with
What goes with it
Security
Datatek 24SECCAB cabinet
Locks the recorder and a monitor up to 24″ in a steel wall cabinet, so an intruder can't walk off with the footage.
Extra PoE power
12 VDC supply or PoE switch
For a few of the cameras, if many may run their warm lights at once: keeps the load inside the recorder's 130 W. Ask us which suits your site.
Power backup
ION 650VA UPS
Keeps the recorder and cameras recording through short power cuts and protects them from surges.
Cabling
Cat6 cable
One run from each camera to the recorder, up to the usual 100 m Ethernet limit.
Where it is used
Where a 16-camera dual-light kit fits.
Large homes and acreage
Every side of the house, the driveway, sheds and gates, in colour when someone walks up.
Shops and cafés
Entry, counter, stockroom and rear lane, with sound recorded too.
Offices and clinics
Reception, corridors, car park and side doors, with people and vehicle alerts to your phone.
Warehouses and yards
Gates, roller doors and loading bays, with people and vehicle sorting.
Strata common areas
Bin rooms, lift lobbies, car park ramps and mail areas.
Farms and workshops
Machinery sheds, fuel tanks and yards, with 30 m of light from each camera.
2.8 mm or 3.6 mm camera lens
| 2.8 mm lens | 3.6 mm lens | |
|---|---|---|
| Horizontal view | 110° | 86° |
| Diagonal view | 132° | 100° |
| Detect (DORI) | 84.8 m | 98.7 m |
| Observe (DORI) | 33.9 m | 39.5 m |
| Recognise (DORI) | 17.0 m | 19.7 m |
| Identify (DORI) | 8.5 m | 9.9 m |
| Close focus | 1.4 m | 1.9 m |
Both lenses are columns of the same Dahua DH-IPC-HDW3667EM-S-IL-ANZ datasheet; everything else is the same. Confirm with us which lens is in stock. For ten of these cameras on the same recorder, with six ports left free, see the DH-K61610T.
Common questions
Is this a complete system?
It has sixteen cameras and the recorder that powers and records them. Add Cat6 cable to each camera, a monitor for setting up, and a hard drive if you chose No HDD in the options.
Is a hard drive included?
Only if you choose one. The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder has two SATA bays, each taking a drive of up to 20TB, so there is room for a second drive.
Which lens do the cameras have?
Dahua makes the DH-IPC-HDW3667EM-S-IL-ANZ with a 2.8 mm lens (110° across) or a 3.6 mm lens (86° across, sees detail a little further). Confirm with us which is in stock when you order.
How far do the cameras see at night?
Up to 30 m with IR and up to 30 m with warm light. In colour they work down to 0.005 lux at F1.4, and with the lights on they record at 0 lux.
Will the warm light stay on all night?
No, not in Smart Dual Light mode. It comes on when a person or vehicle is detected and goes back to IR when they leave. You can also set the light to auto or manual in the camera settings.
Do the cameras have a speaker or siren?
No. Each has a built-in microphone only, so it records sound but cannot talk back. For a siren, strobe and two-way talk, look at the Dahua TiOC kits.
Can the recorder power all sixteen cameras?
At their basic draw, yes; at Dahua's maximum, not all at once. Each camera draws 5.3 W basic and up to 9.5 W with the warm light, WDR and analytics on. Sixteen at 5.3 W is about 85 W, inside the recorder's 130 W PoE total, but sixteen at 9.5 W is 152 W. If many cameras may light up at the same time, power a few from a 12 VDC supply or a separate PoE switch.
Can I add more cameras later?
Not on this recorder: all 16 channels and PoE ports are used. More cameras need a bigger recorder: ask us.
Can the recorder take every camera at full resolution?
Yes, with the bit rate set to suit. Dahua rates each camera's stream at up to 16384 kbps (about 16 Mbps); sixteen at that rate would be about 262 Mbps, more than the recorder's 180 Mbps with AI on (256 Mbps with it off). Set each main stream to about 11 Mbps or less and all sixteen record at full 6MP.
Does this kit do AcuPick search?
No, not with this recorder. The cameras support AcuPick with a Dahua recorder that offers it, and Dahua lists AcuPick on its NVR5 AI recorders, not on the NVR4216-16P-AI/ANZ. This recorder gives Quick Pick, which picks people and vehicles out of the cameras' SMD events so you can find them quickly.
Can I watch it on my phone?
Yes. Connect the recorder to your router, turn on P2P and scan its QR code with Dahua's DMSS app on iPhone or Android for live view, playback and alerts.
What warranty does it have?
Dahua gives these 3 Series network cameras and NVR4 recorders a 3-year manufacturer warranty. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].
Supported by InFront Technologies.
Help planning camera positions, the lens or the drive size: call 1300 736 970 or email [email protected]. The camera and recorder datasheets are on the Attachments tab.
Installation and safety
Low-voltage cameras. The cameras run on PoE from the recorder (up to 9.5 W each) and have no mains connection. The recorder has its own 100–240 VAC power supply and plugs into a normal power point.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Audio. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphones on.
What it does not do. No speaker, siren or alarm inputs and outputs on the cameras, no optical zoom and no Wi-Fi.
Placement. Cameras are IP67 for outdoors. The recorder is for indoor use, with space around its vents.
Figures. From Dahua's DH-IPC-HDW3667EM-S-IL-ANZ (Rev 002) and DHI-NVR4216-16P-AI/ANZ datasheets on the Dahua Australia site.
- Audio
- Built-in microphone (one-way)
- Resolution
- 6MP (3288 × 1850)
- Brand
- Dahua
- Lens
- 2.8 or 3.6 mm fixed (confirm with us), F1.4
- HDD
- 2× SATA (up to 20 TB) (optional fitted drive at checkout)
- AI
- SMD 4.0, tripwire, intrusion, AI SSA; AcuPick-capable (needs NVR5+)
- Sensor
- 1/2.7″ CMOS
- Camera Model
- 16× DH-IPC-HDW3667EM-S-IL-ANZ
- Field of View
- 110° H / 58° V / 132° D (2.8 mm)
- Channels
- 16 IP / 16 PoE
- How many Camera Cables are included?
- This Kit does NOT include Camera Cables
- Warranty
- Dahua 3-year manufacturer warranty, handled in Australia through InFront
- Camera Count
- 16
- Kit Type
- IP CCTV kit (cameras + PoE NVR)
- Night Vision
- 30 m IR + 30 m warm light
- Camera Protection
- IP67
- Camera Power
- PoE or 12 VDC
- NVR
- NVR4216-16P-AI/ANZ
- Local Display
- HDMI 4K + VGA
- App
- DMSS
- Operating Temperature (camera)
- −40 °C to +60 °C
- NVR Search
- Quick Pick (NVR4 WizSense); AcuPick on NVR5+
