Dahua DH-K81616TIOC kit: sixteen 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeballs with warm light, siren, strobe and two-way talk, and a 16-channel DHI-NVR4216-16P-AI/ANZ PoE recorder. Choose the drive size in the options.
- ✓16 × 8MP TiOC eyeballs, F1.0 lens
- ✓30 m IR and 30 m warm light, colour at night
- ✓Siren, voice warnings and red-blue strobe
- ✓Two-way talk on every camera
- ✓16-port PoE recorder, all ports used
- ✓No HDD or 2–10TB fitted, 4K HDMI, DMSS app
Description

Sixteen 8MP cameras that light up and speak up.
One cable to each, from a 16-port PoE recorder.

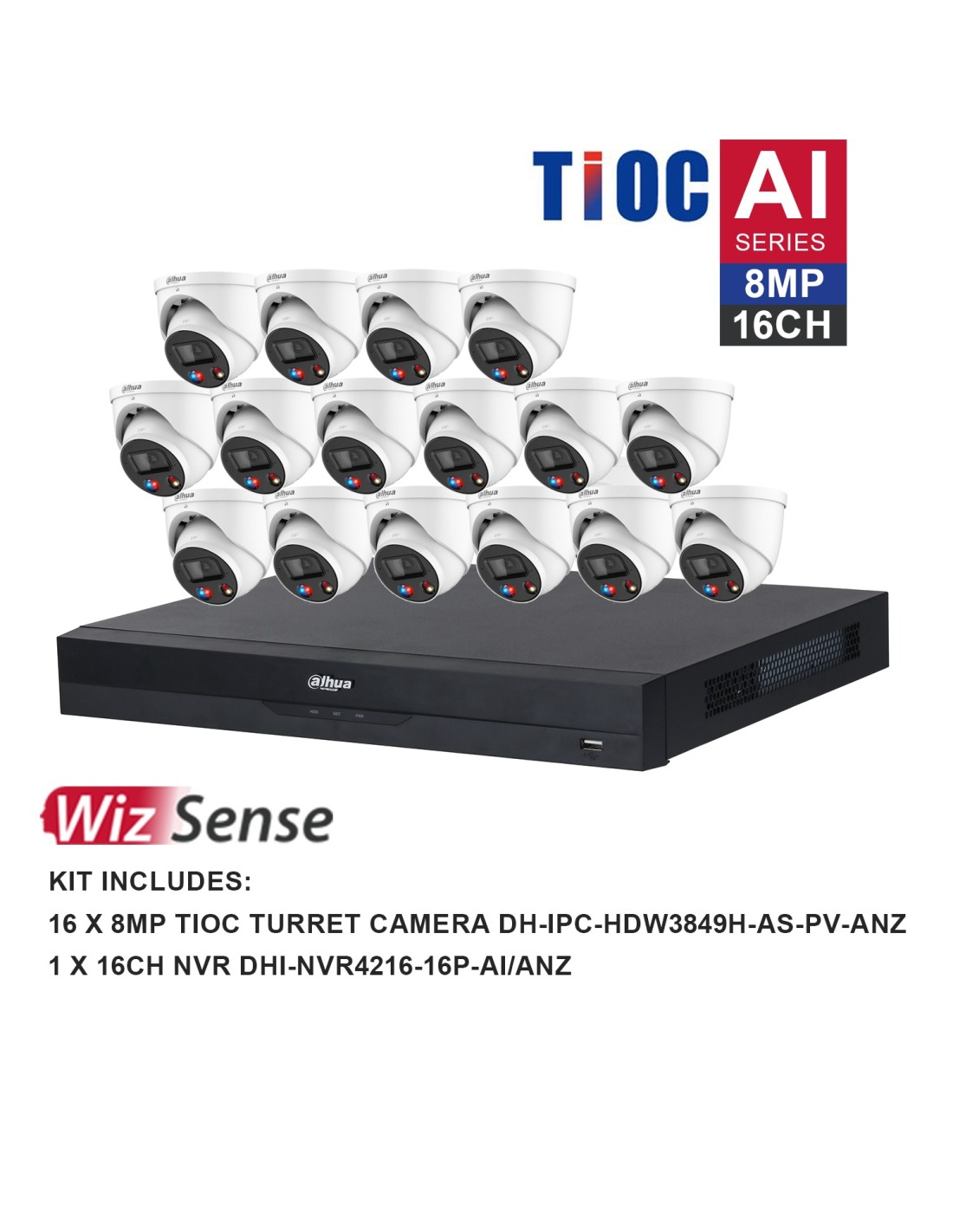

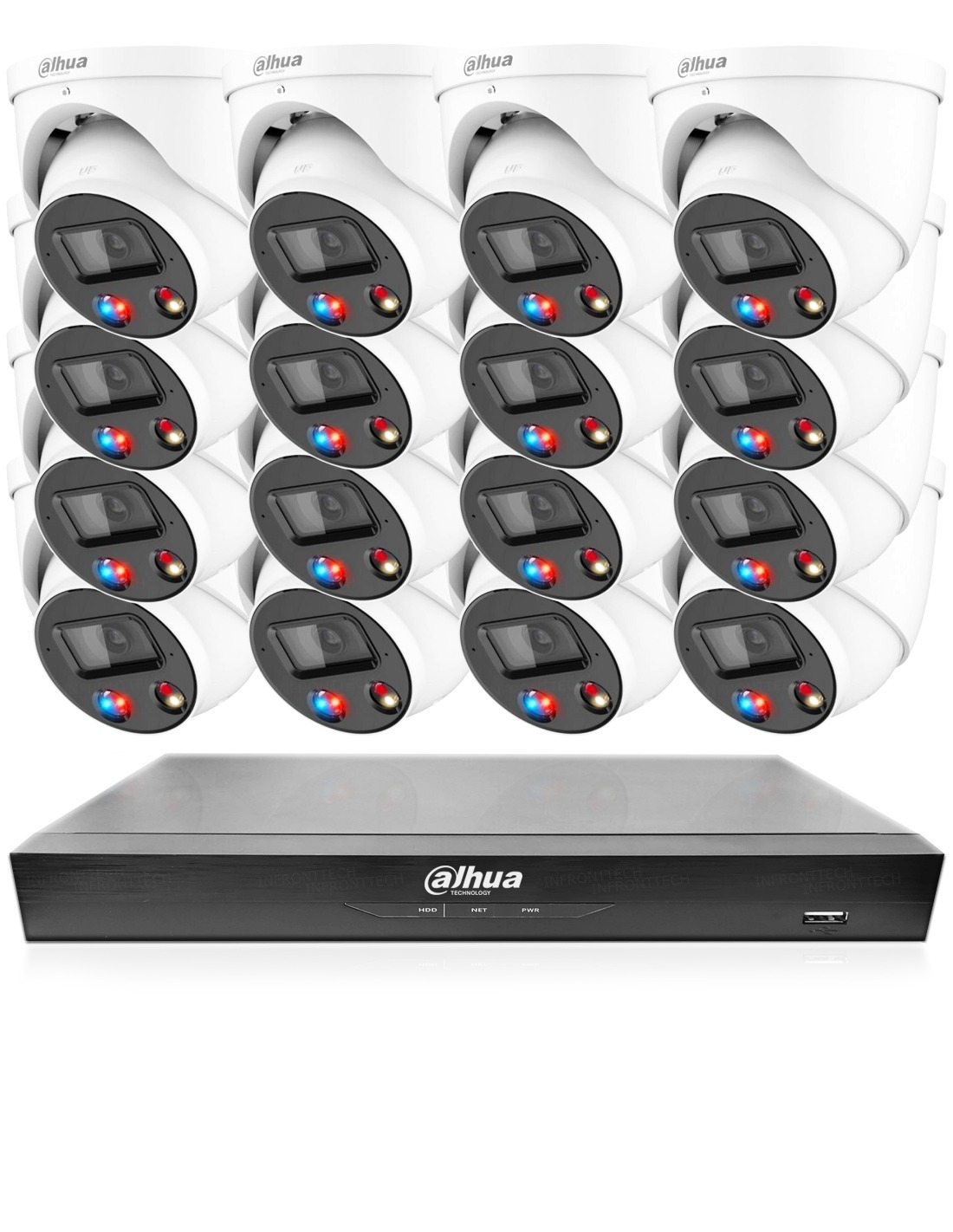

This is the Dahua DH-K81616TIOC: sixteen white DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeballs and a DHI-NVR4216-16P-AI/ANZ recorder. Each camera records 8MP, has IR and warm light to 30 m, a siren, a red and blue strobe and two-way talk, and takes its power from the recorder over one Cat6 cable.
In one sentence: the DH-K81616TIOC is a Dahua kit of sixteen DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP (3840 × 2160) TiOC eyeball cameras with F1.0 lenses, 30 m IR and warm light, siren and strobe deterrence and two-way audio, plus a DHI-NVR4216-16P-AI/ANZ 16-channel recorder with 16 PoE ports, two SATA bays and 4K HDMI.
Sixteen cameras and the recorder. Choose the drive size in the options.
The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. This kit uses all 16 of the recorder's PoE ports. Dahua makes this camera with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock. Sixteen cameras at full load can draw more than the recorder's 130 W PoE total: see the PoE question below.
- 16 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeball cameras (white)
- 1 × DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder
- A hard drive, only if you chose one in the options
- Cat5e or Cat6 cable from each camera to the recorder
- A monitor or TV with HDMI or VGA for setting up
- Your router, for the DMSS phone app
- A SATA surveillance drive, if you chose No HDD
It does more than record.
When someone crosses a line or walks into a zone you drew, each camera can switch on its warm light for colour video, flash red and blue, and sound its siren or a recorded warning. SMD 4.0 sorts people and vehicles from animals, so those responses are kept for real targets, and one tap in the DMSS app turns them off while you are home.

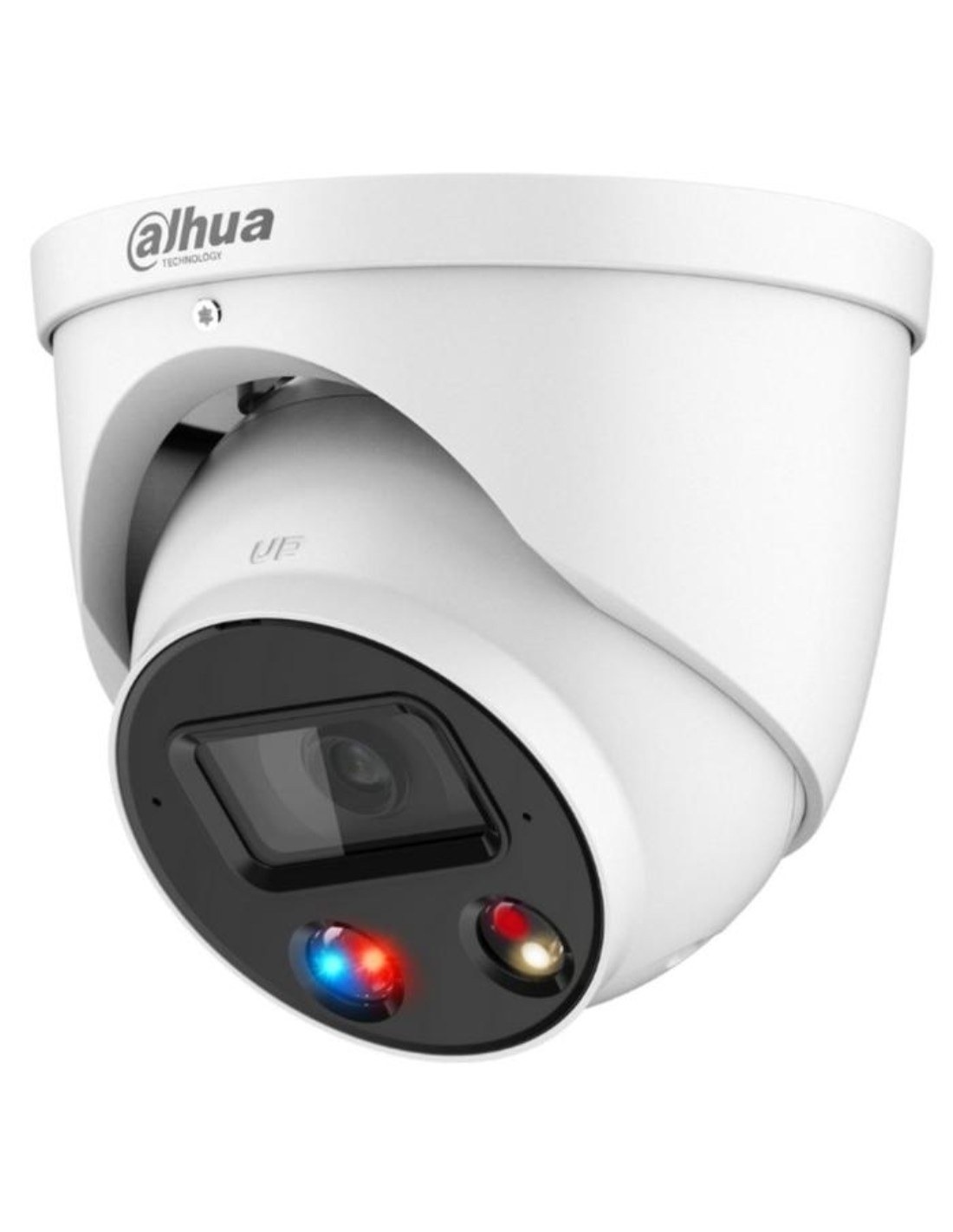

The cameras
8MP through an F1.0 lens.
A 1/2.7" sensor records 3840 × 2160 at up to 25/30 fps through an F1.0 lens, in colour down to 0.004 lux at F1.0. One IR LED and one warm light each reach 30 m, and Smart Dual Light keeps the IR on until a person or vehicle appears, then switches to warm light for colour. Siren, red and blue strobe, dual mic and speaker. Metal housing, IP67.

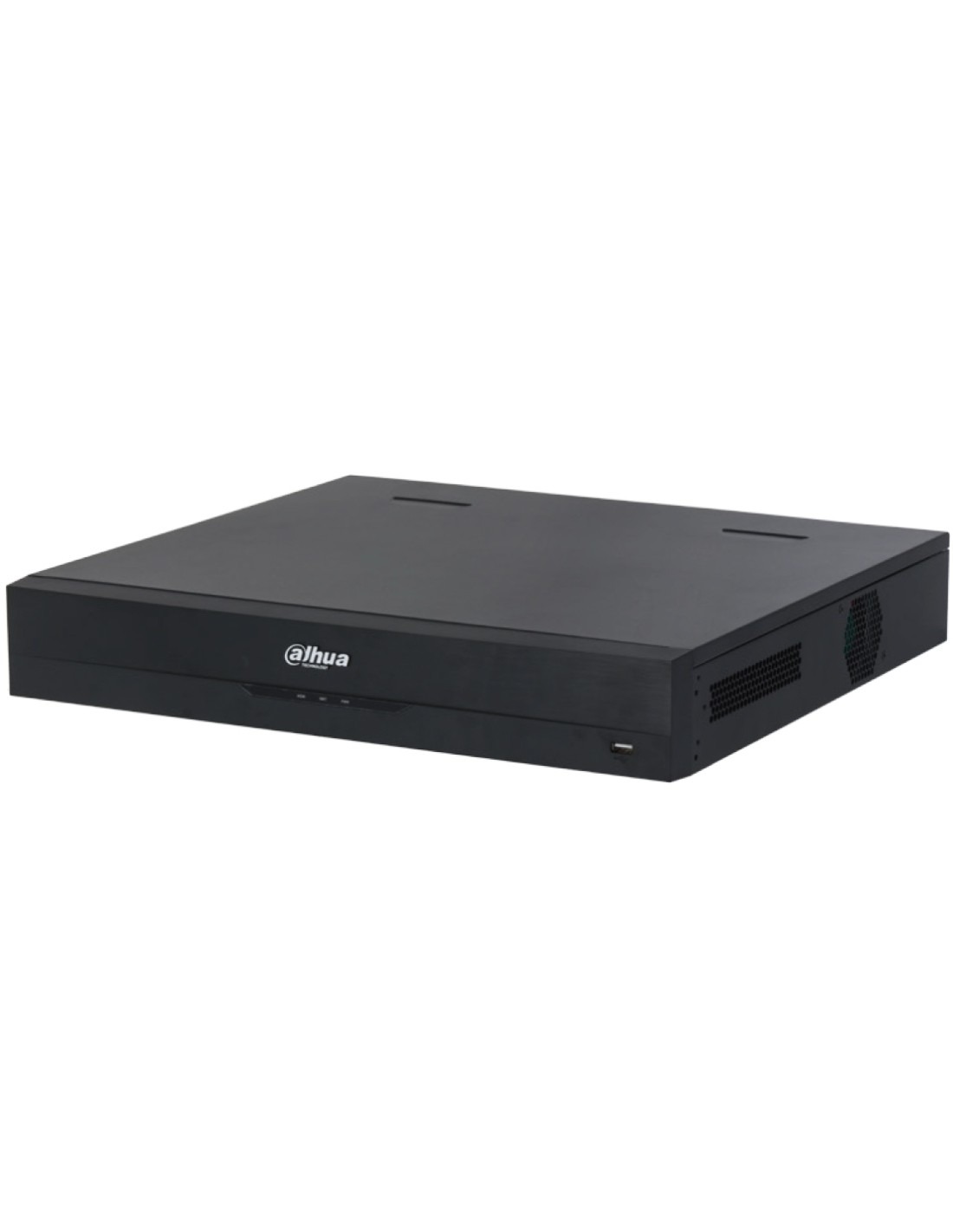

The recorder
16 PoE ports in a 1U, 375 mm case.

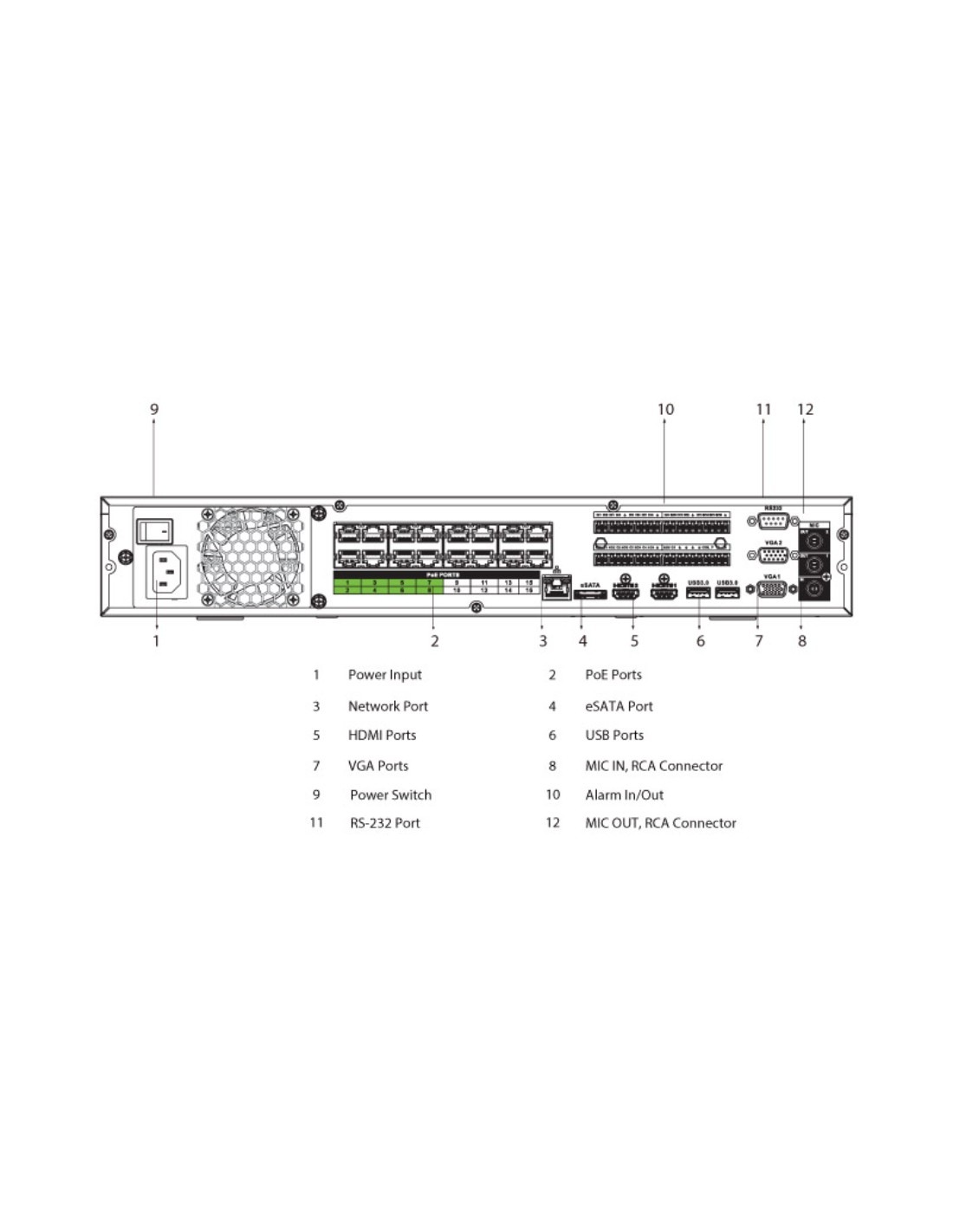

The DHI-NVR4216-16P-AI/ANZ records 16 IP cameras up to 16MP, takes 256 Mbps of incoming video (180 Mbps with AI on) and shows 4K on HDMI. It holds two SATA drives of up to 20TB each and runs face recognition (1 channel), perimeter protection (2 channels) and SMD Plus (4 channels) itself.

One cable per camera
Power and video on the same cable.
Each PoE port gives up to 25.5 W, with 130 W shared across all 16. Dahua rates each camera at 5.8 W basic and 10.1 W at most, with the warm light, siren, strobe and analytics on: about 93 W for sixteen at basic, but 161.6 W at full load. If many cameras may light up and sound at once, power a few from a 12 VDC supply or a separate PoE switch. Ask us to plan it.
How it goes in
From the box to the first alert.
01
Fit the drive
If you chose No HDD, power off, open the recorder and fit one or two SATA surveillance drives, then format them from the startup wizard.
02
Mount the cameras
Fix each eyeball to a wall or eave through the three Ø 4.5 mm holes on an 84 mm circle in its base, then pan, tilt and rotate the ball to frame the view.
03
Run one cable to each
Cat5e or Cat6 from each camera to a PoE port on the recorder, up to 100 m. The port powers the camera.
04
Set the rules
Connect HDMI and your router, add the recorder to DMSS, then draw tripwire or intrusion zones and choose what the light, strobe and siren do.
At a glance
DH-K81616TIOC
Show specs
In the kit
16 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 cameras, 1 × DHI-NVR4216-16P-AI/ANZ recorder
Hard drive
No HDD, or 2, 4, 8 or 10TB fitted (choose in the options); 2 SATA bays, each up to 20TB
Camera resolution
8MP, 3840 × 2160 at up to 25/30 fps
Camera lens
Fixed F1.0, 2.8 mm or 3.6 mm (confirm with us)
Field of view
2.8 mm: 106° horizontal; 3.6 mm: 85° horizontal
Image sensor
1/2.7" CMOS progressive scan
Low light
Colour 0.004 lux at F1.0; 0 lux with the lights on
Lights
1 IR LED and 1 warm light, each up to 30 m, Smart Dual Light
Deterrence
Siren with built-in or imported voice messages, red and blue strobe, one-tap arming and disarming
Audio
Built-in dual mic and speaker, two-way talk; 1 audio in, 1 audio out
Camera AI
SMD 4.0; tripwire and intrusion with human and vehicle sorting; AI SSA
Search
Quick Pick on this recorder; the cameras also support AcuPick with a Dahua recorder that offers it (NVR5 AI series)
Camera storage
microSD up to 256 GB each
Camera power
PoE or 12 VDC; 5.8 W basic, up to 10.1 W on PoE
PoE budget
16 ports, up to 25.5 W each, 130 W total; 16 cameras draw about 93 W basic, up to 161.6 W at full load
Camera housing
Metal, IP67, Φ122 × 110.9 mm, 0.75 kg, −40 °C to +60 °C
Recorder channels
16 IP cameras up to 16MP; all 16 used in this kit
Recorder bandwidth
256 Mbps in, recording and out (180 Mbps with AI on)
Recorder AI
Face recognition (1 ch), perimeter protection (2 ch), SMD Plus (4 ch); AI search and Quick Pick
Outputs
HDMI up to 3840 × 2160, VGA up to 1920 × 1080

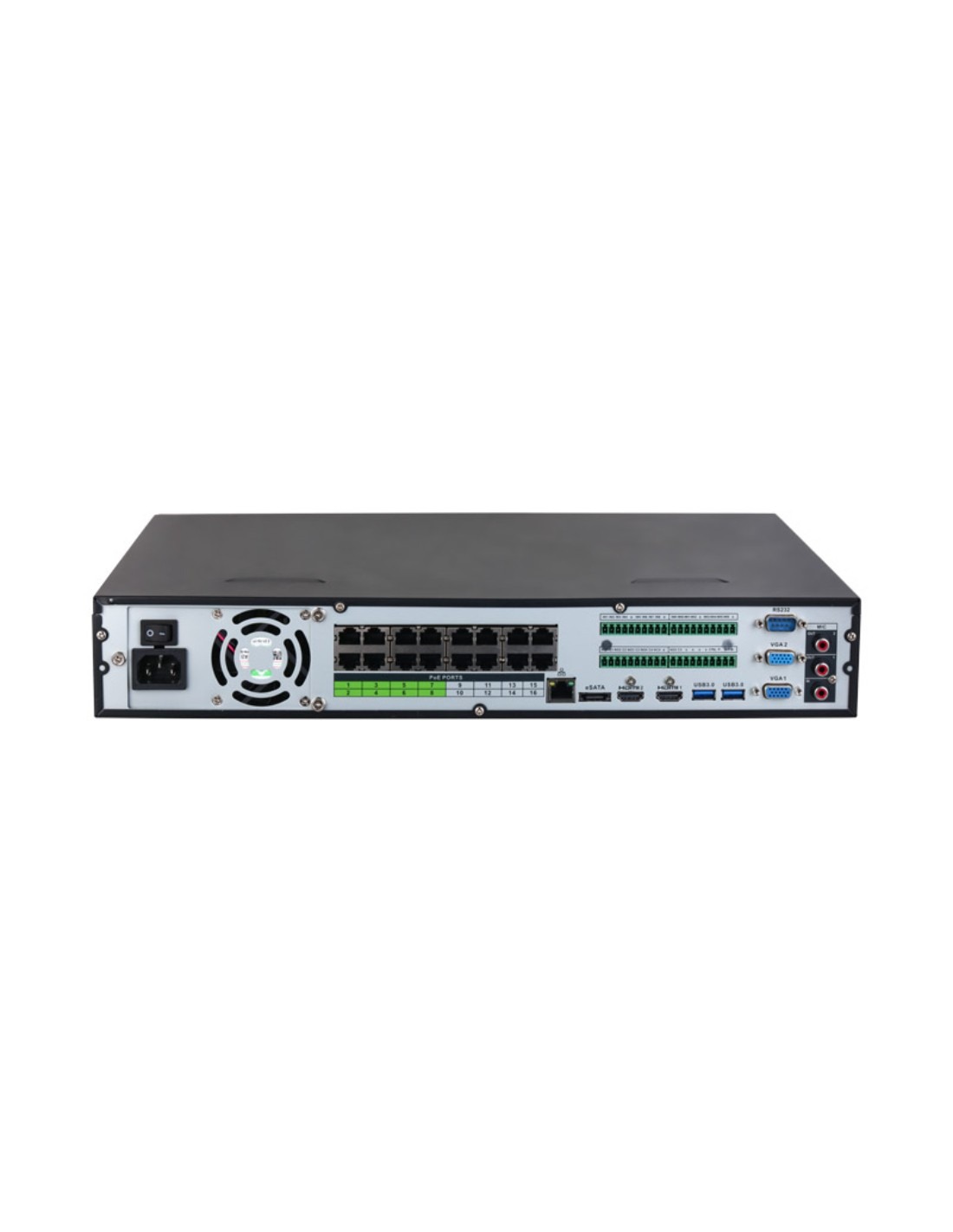

Recorder ports
Alarm 4 in and 2 out, audio in and out (RCA), RS-232, 2 × USB 2.0
Network
Recorder: 1 × RJ45 Gigabit; cameras: 10/100, ONVIF Profile S, G and T
Recorder size
375 × 329.3 × 53 mm, 2.60 kg, 100–240 VAC power supply built in
Recorder placement
Indoors, rack or desktop, −10 °C to +55 °C, 10–93% humidity
App and software
DMSS (iOS, Android), Smart PSS Lite, DSS
Warranty
Dahua 3-year manufacturer warranty, handled in Australia through InFront

Each camera: Φ122.0 × 110.9 mm. Three Ø 4.5 mm mounting holes on an Ø 84 mm circle. Units mm [inch].
Pair it with
What goes with it
Security
Datatek 24SECCAB cabinet
Locks the recorder and a monitor up to 24″ in a steel wall cabinet, so an intruder can't walk off with the footage.
Extra PoE power
12 VDC supply or PoE switch
For a few of the cameras, if many may run their lights, strobes and sirens at once: keeps the load inside the recorder's 130 W. Ask us which suits your site.
Power backup
ION 650VA UPS
Keeps the recorder and cameras recording through short power cuts and protects them from surges.
Cabling
Cat6 cable
One run from each camera to the recorder, up to the usual 100 m Ethernet limit.
Where it is used
Where a 16-camera TiOC kit fits.
Large homes and acreage
Every side of the house, the driveway, sheds and gates, with a siren for anyone at the car.
Shops and cafés
Entry, counter, stockroom and rear lane, with a voice warning at the roller door after hours.
Offices and clinics
Reception, car park and side doors, with people and vehicle alerts to your phone.
Warehouses and yards
Gates, roller doors and loading bays in colour at night, 30 m of light from each camera.
Strata common areas
Bin rooms, car park ramps and side gates, with a warning before anyone goes further.
Farms and workshops
Machinery sheds and fuel tanks, with two-way talk to speak to visitors.
2.8 mm or 3.6 mm camera lens
| 2.8 mm lens | 3.6 mm lens | |
|---|---|---|
| Horizontal view | 106° | 85° |
| Vertical view | 55° | 45° |
| Diagonal view | 125° | 102° |
| Close focus | 1.5 m | 2.2 m |
Both lenses are columns of the same Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 datasheet; everything else is the same. Confirm with us which lens is in stock. For ten of these cameras on the same recorder, with six ports left free, see the DH-K81610TIOC; for sixteen 6MP TiOC cameras, the DH-K61616TIOC.
Common questions
Is this a complete system?
It has sixteen cameras and the recorder that powers and records them. Add Cat6 cable to each camera, a monitor for setting up, and a hard drive if you chose No HDD in the options.
Is a hard drive included?
Only if you choose one. The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder has two SATA bays, each taking a drive of up to 20TB, so there is room for a second drive.
Which lens do the cameras have?
Dahua makes the DH-IPC-HDW3849H-AS-PV-ANZ-S2 with a 2.8 mm lens (106° across) or a 3.6 mm lens (85° across, sees detail a little further). Confirm with us which is in stock when you order.
How far do the cameras see at night?
Up to 30 m with IR and up to 30 m with warm light. Dahua rates them in colour down to 0.004 lux at F1.0, and with the lights on they record at 0 lux.
What sets off the siren and strobe?
A tripwire crossing or an intrusion into a zone you draw, filtered for people, vehicles or both. You choose the light, strobe and sound for each rule, and can disarm them with one tap in DMSS.
Can I talk through the cameras?
Yes. Each camera has a built-in dual microphone and a speaker, so you can listen and talk back from the DMSS app.
Can the recorder power all sixteen cameras?
At their basic draw, yes; at Dahua's maximum, not all at once. Each camera draws 5.8 W basic and up to 10.1 W with the warm light, siren, strobe and analytics on. Sixteen at 5.8 W is about 93 W, inside the recorder's 130 W PoE total, but sixteen at 10.1 W is 161.6 W. If many cameras may light up and sound at the same time, power a few from a 12 VDC supply or a separate PoE switch.
Can I add more cameras later?
Not on this recorder: all 16 channels and PoE ports are used. More cameras need a bigger recorder: ask us.
Can the recorder take every camera at full resolution?
Yes, with the bit rate set to suit. Dahua rates each camera's stream at up to 16384 kbps (about 16 Mbps); sixteen at that rate would be about 262 Mbps, more than the recorder's 180 Mbps with AI on (256 Mbps with it off). Set each main stream to about 11 Mbps or less and all sixteen record at full 8MP.
Does this kit do AcuPick search?
No, not with this recorder. The cameras support AcuPick with a Dahua recorder that offers it, and Dahua lists AcuPick on its NVR5 AI recorders, not on the NVR4216-16P-AI/ANZ. This recorder gives Quick Pick, which picks people and vehicles out of the cameras' SMD events so you can find them quickly.
Can I watch it on my phone?
Yes. Connect the recorder to your router, turn on P2P and scan its QR code with Dahua's DMSS app on iPhone or Android for live view, playback, alerts and talk-back.
What warranty does it have?
Dahua gives these 3 Series network cameras and NVR4 recorders a 3-year manufacturer warranty. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].
Supported by InFront Technologies.
Help planning camera positions, the lens or the drive size: call 1300 736 970 or email [email protected]. The camera and recorder datasheets are on the Attachments tab.
Installation and safety
Low-voltage cameras. The cameras run on PoE from the recorder (up to 10.1 W each) and have no mains connection. The recorder has its own 100–240 VAC power supply and plugs into a normal power point.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Audio and siren. Recording conversations is covered by state and territory surveillance laws, and a siren near homes should respect local noise rules. Check them, and use signage, before you switch the microphones or sirens on.
What it does not do. No optical zoom and no Wi-Fi on the cameras.
Placement. Cameras are IP67 for outdoors. The recorder is for indoor use, with space around its vents.
Figures. From Dahua's DH-IPC-HDW3849H-AS-PV-ANZ-S2 (Rev 002) and DHI-NVR4216-16P-AI/ANZ datasheets on the Dahua Australia site.
- Audio
- Two-way talk (built-in mic + speaker)
- Resolution
- 8MP (3840 × 2160)
- Brand
- Dahua
- Lens
- 2.8 or 3.6 mm fixed (confirm with us), F1.0
- HDD
- 2× SATA (up to 20 TB) (optional fitted drive at checkout)
- AI
- SMD 4.0, tripwire, intrusion, AI SSA; AcuPick-capable (needs NVR5+)
- Sensor
- 1/2.7″ CMOS
- Camera Model
- 16× DH-IPC-HDW3849H-AS-PV-ANZ-S2
- Field of View
- 106° H / 55° V / 125° D (2.8 mm)
- Channels
- 16 IP / 16 PoE
- Active Deterrence
- Siren + red/blue strobe (TiOC)
- How many Camera Cables are included?
- This Kit does NOT include Camera Cables
- Warranty
- Dahua 3-year manufacturer warranty, handled in Australia through InFront
- Camera Count
- 16
- Kit Type
- IP CCTV kit (cameras + PoE NVR)
- Night Vision
- 30 m IR + 30 m warm light
- Camera Protection
- IP67
- Camera Power
- PoE or 12 VDC
- NVR
- NVR4216-16P-AI/ANZ
- Local Display
- HDMI 4K + VGA
- App
- DMSS
- Operating Temperature (camera)
- −40 °C to +60 °C
- NVR Search
- Quick Pick (NVR4 WizSense); AcuPick on NVR5+
