• MT-22-V monitor
• Stand (pedestal)
• HDMI cable
• 12 V DC power adapter
• Quick guide

• A recorder, DVR or PC with HDMI or VGA
• A power point
• HB-4022-A wall bracket, if wall mounting

01

Fit the stand

Clip the pedestal on, or fit a VESA 100 bracket for the wall.

02

Connect the recorder

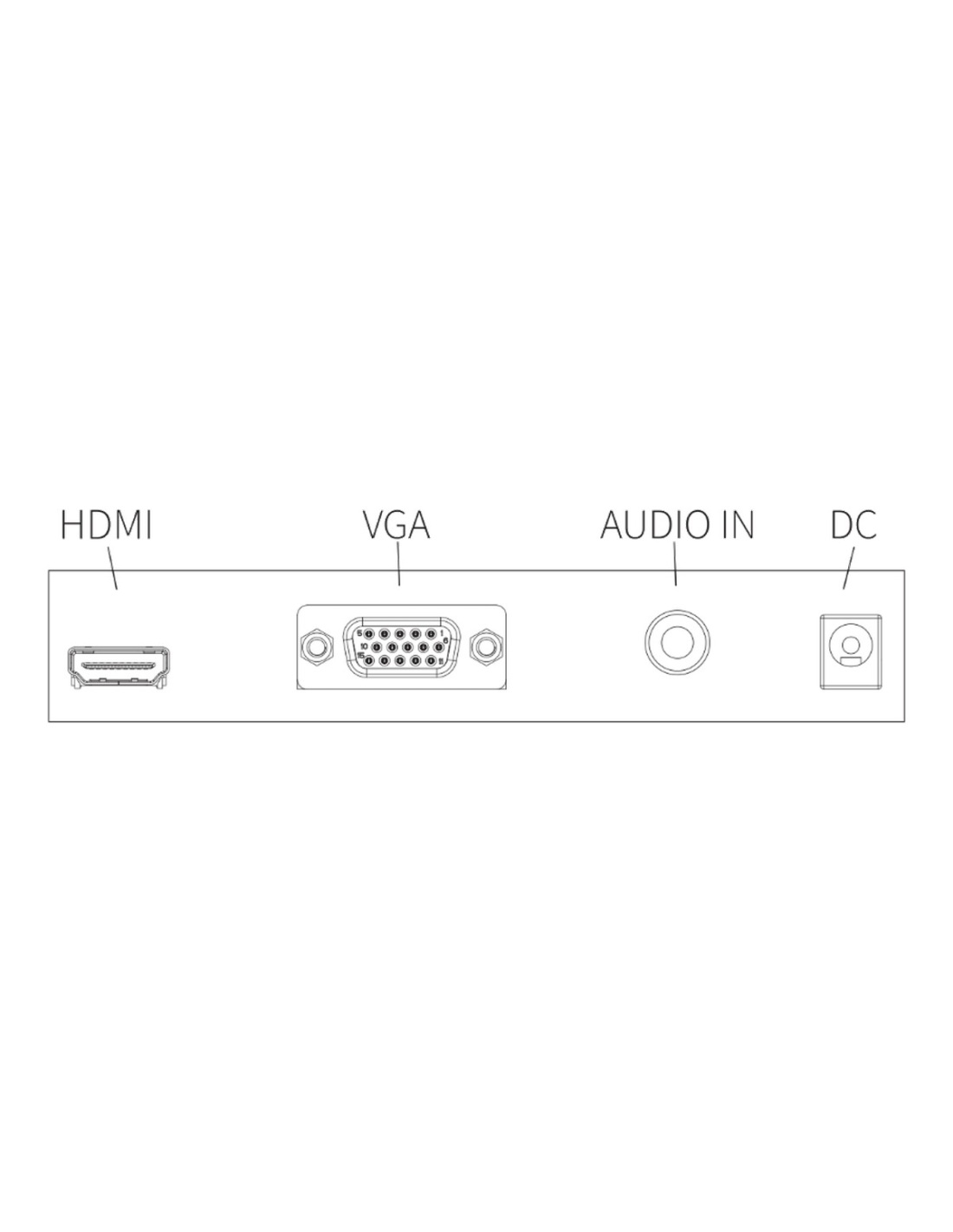

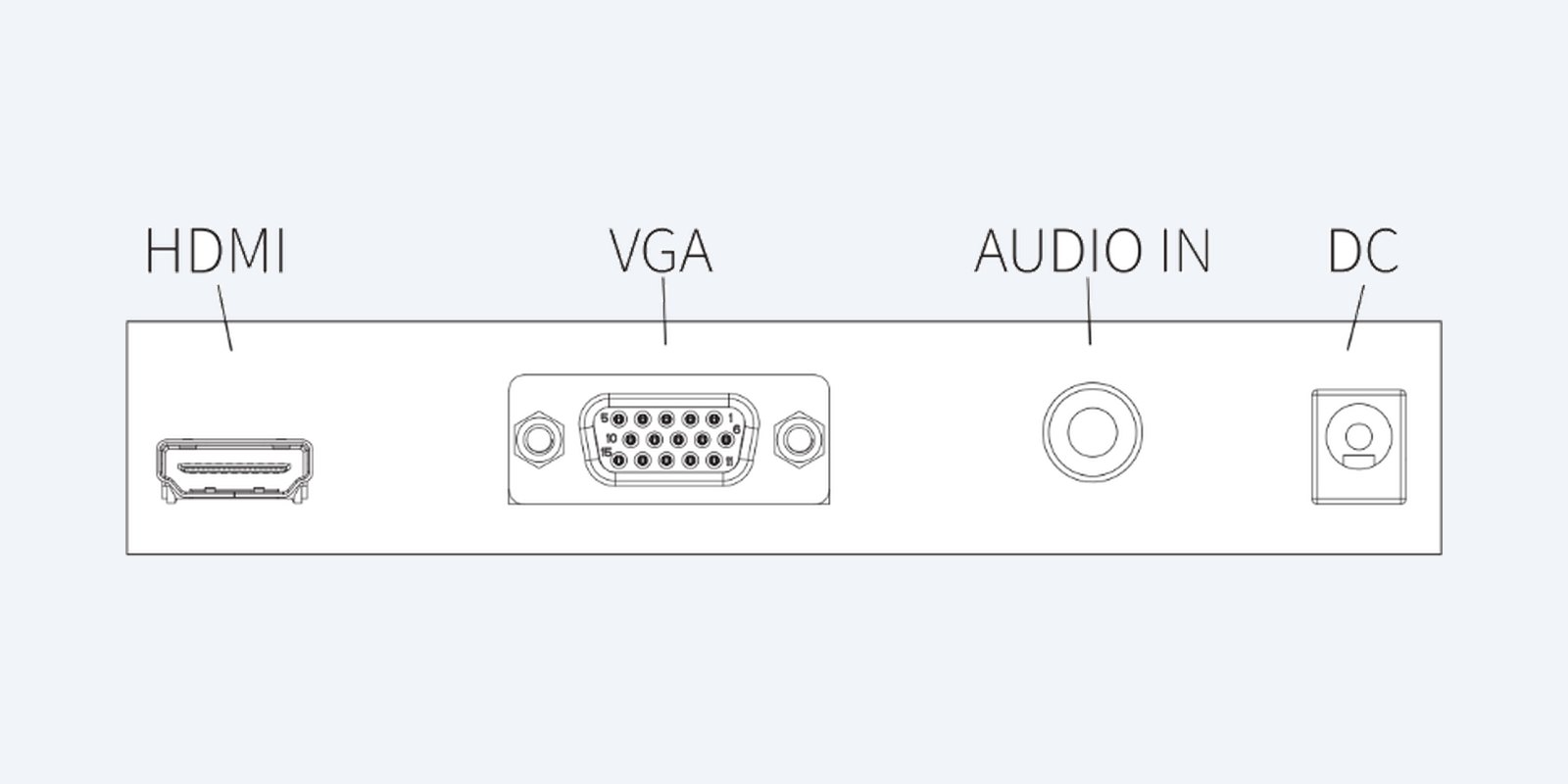

HDMI from the NVR or DVR, or VGA plus the audio lead.

03

Power on

Plug in the 12 V adapter. The input is detected automatically.

04

Set the picture

Use the buttons on the bezel to set brightness, volume and menu language.

Mounting

HB-4022-A wall bracket

Uniarch’s VESA wall bracket for its 22" and 24" monitors.

Recorder

Uniarch NVR

4, 8, 16 and 32-channel recorders with HDMI output.

Cameras

Uniarch IP cameras

6MP and 8MP turrets, bullets and domes.

Bigger screen

MT-24-V 24" monitor

The same inputs and speakers on a 24-inch panel.

Home offices

A permanent view of the cameras beside the desk.

Shop counters

Staff and customers can see the cameras are on.

Reception desks

Entries and car park at a glance.

Comms rooms

A local screen for the recorder.

Is the MT-22-V 22 or 21.5 inches?

The panel is 21.5 inches measured diagonally, sold as the 22-inch class. Resolution is 1920 × 1080 Full HD.

Can it run all day and night?

Yes. Uniarch designs it for 7 × 24 operation, and it draws 24 W or less when on.

Can I mount it on the wall?

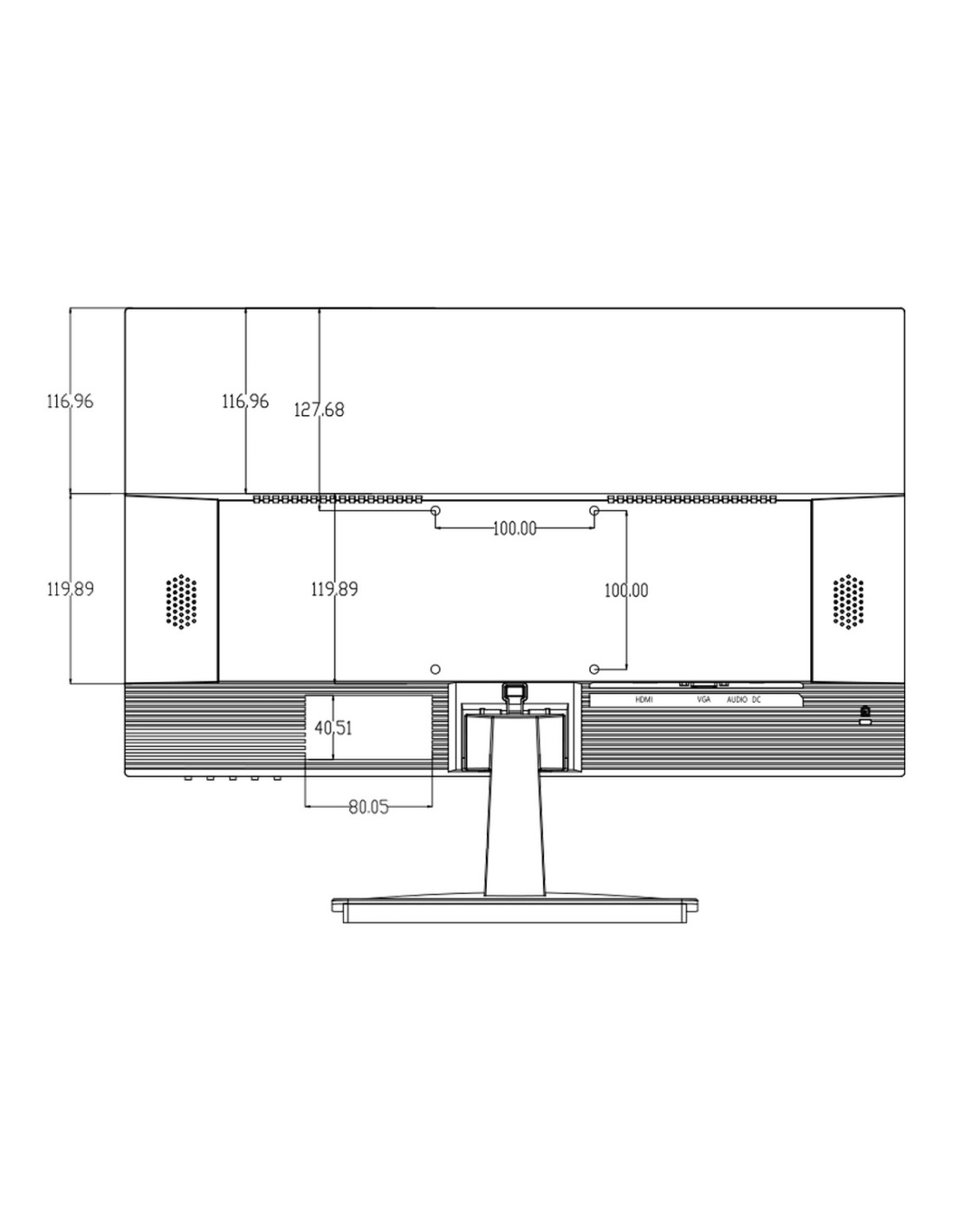

Yes. It has 100 × 100 mm VESA holes with M4 threads. The Uniarch HB-4022-A bracket suits it, or any VESA 100 bracket or arm.

How many cameras can I see at once?

That depends on the recorder’s split screen, not the monitor. A 16-channel NVR shows all sixteen on a 4 × 4 layout in Full HD.

Does it work with a 4K recorder?

Yes. Set the recorder’s HDMI output to 1920 × 1080, which is this screen’s native resolution.

What is the viewing angle?

178° horizontal and vertical, so the picture stays clear from the side or above.

What languages does the menu use?

Eight, including English.

How much power does it use?

24 W or less on, 0.5 W or less in standby, from the 12 V 2 A adapter.

Will it work with any NVR or DVR?

Yes. Any recorder, DVR or PC with HDMI or VGA output connects directly. Uniarch, Uniview, Hikvision and Dahua recorders all work.

Do I need separate speakers?

No. Two 1.5 W speakers are built in. Sound comes over HDMI, or from the 3.5 mm audio input when you use VGA.

Is an HDMI cable included?

Yes, with the power adapter, the stand and a quick guide.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
