A complete 8-channel Dahua kit with 8× HDW3649H-AS-PV-ANZ-S2 6MP TiOC turrets and a PoE WizSense NVR. Colour at night, and a siren and red/blue strobe that tell intruders they have been seen.

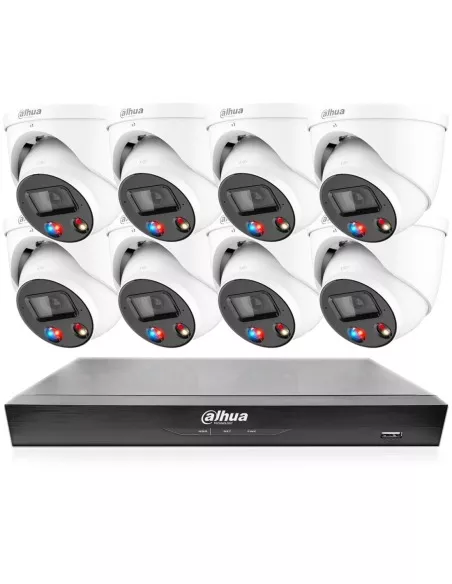

8× DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP TiOC turrets and an NVR4108HS-8P-AI/ANZ — the current -S2 version of Dahua’s TiOC turret.
THIS IS A COMPLETE CAMERA + NVR KIT — HDD IS AN OPTIONAL UPGRADE.
Cameras power from the recorder’s PoE ports. Recording needs a SATA drive: pick a fitted HDD at checkout, or supply your own if you choose No HDD. Cabling and a monitor are not in the carton.
8× DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC turrets (white)
1× DHI-NVR4108HS-8P-AI/ANZ PoE NVR (no HDD unless selected)
NVR power lead
Cat 5e / Cat 6 cable to each camera
A SATA surveillance HDD if you keep the No HDD option
A HDMI/VGA monitor for local setup (optional)
ACMA-registered cabler for any concealed runs
Unsure on HDD size or camera count? Contact us before ordering — we will confirm the mix so nothing is missing on install day.
Dahua has moved the HDW3649H-AS-PV-ANZ to its discontinued list. This kit ships the DH-IPC-HDW3649H-AS-PV-ANZ-S2: 6MP (3072 × 2048), a brighter F1.0 lens, IR and warm light (30 m each), a siren and red/blue strobe, and two-way talk through the built-in dual mic and speaker.
Every PoE port on this 8-channel recorder is in use. Planning to grow? Step up to a 16-channel kit, or add a PoE switch and a bigger recorder — the same cameras carry over.
TiOC · 6MP

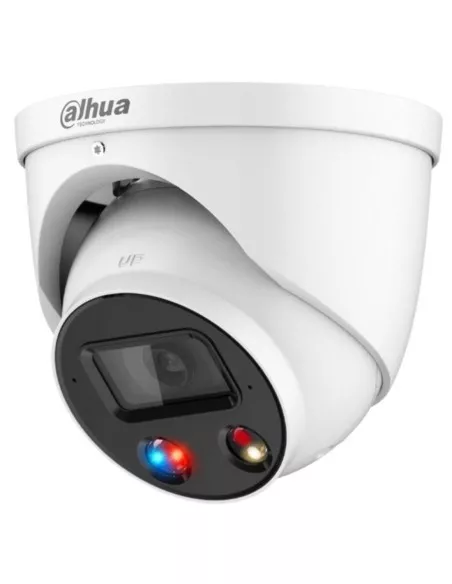

DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP 3072 × 2048 from a 1/2.7″ CMOS sensor behind a 2.8 mm F1.0 lens (97° H / 70° V / 128° D). Dahua rates it at 0.003 lux colour @ F1.0.
Smart Dual Illumination: IR and warm light, 30 m each. When SMD 4.0 confirms a person or vehicle, the camera can switch to warm light for colour, sound its siren and flash red and blue — or let you talk to the visitor through the built-in speaker. Arm and disarm the deterrence with one tap in DMSS.
Recorder

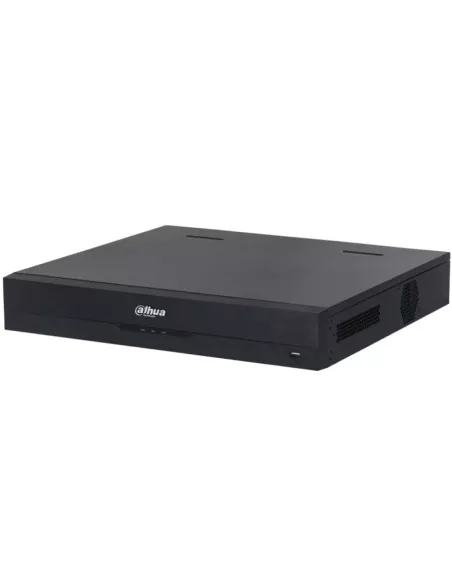

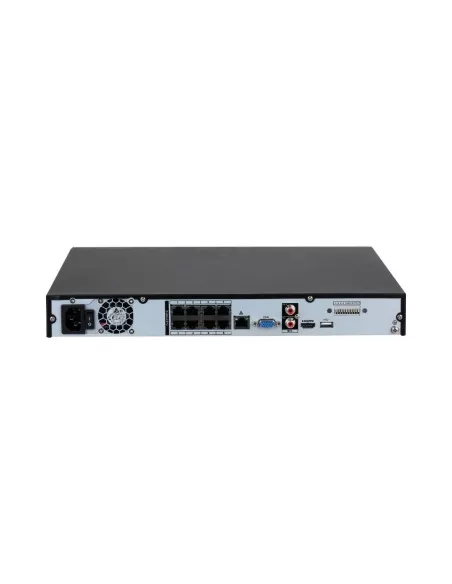

This kit is built around the DHI-NVR4108HS-8P-AI/ANZ — 8 IP channels, 8 PoE ports, 4K HDMI and VGA, 1× SATA (up to 20 TB), WizSense AI with Quick Pick people/vehicle search. Cameras plug straight into the back-panel PoE ports.
View on a local monitor or in DMSS on iOS and Android. H.265 keeps the camera streams light on the drive you choose at checkout. AcuPick attribute search needs a Dahua NVR5-series recorder — the cameras support it if you upgrade later.
How it works
Mount the turrets
Fix each IP67 turret under an eave or to a wall. 3-axis adjustment; “UP” mark on the housing.
One cable per camera
Run Cat 5e/6 into a PoE port on the NVR. The recorder powers the camera.
Fit a drive if needed
If you did not buy a fitted HDD, install a surveillance SATA disk in the NVR before first recording.
View on DMSS or HDMI
Add the NVR in DMSS, or connect HDMI for a local 4K monitor. SMD events classify people and vehicles.
At a glance
Camera figures from the Dahua HDW3649H-AS-PV-ANZ-S2 datasheet; recorder figures from the Dahua NVR4108HS-8P-AI/ANZ datasheet. Product shot may differ from the actual product.
Common questions
You receive the cameras and the PoE NVR. Plug the cameras into the NVR’s PoE ports, add a SATA drive if you did not select one at checkout, and view on a monitor or the DMSS app. Cabling, a spare drive and a monitor are sold separately.
Dahua replaced the HDW3649H-AS-PV-ANZ with the DH-IPC-HDW3649H-AS-PV-ANZ-S2. Same TiOC turret family and 2.8 mm view, now with IR as well as warm light, an F1.0 lens and dual microphones. The kit reference stays the same.
When SMD 4.0 confirms a person or vehicle in the zone you draw, the TiOC camera can sound its siren, flash red and blue, switch on its warm light, and send a push alert to DMSS. You can talk to the visitor through the camera speaker, and switch the deterrence on or off for set times (or with one tap) so it doesn’t fire while you are home.
Not AcuPick out of the box. The cameras are AcuPick-capable, but AcuPick attribute search needs a Dahua NVR5-series recorder. This kit ships a WizSense NVR4-class recorder with Quick Pick, which still jumps straight to people and vehicle events.
A hard drive is required for recording — the No HDD option ships the recorder empty. Use a surveillance-rated SATA drive. As a rough guide for 8× continuous 6MP streams: 4 TB ≈ about 1.3 weeks, 8 TB ≈ about 2.7 weeks, 10 TB ≈ about 3.3 weeks (bitrate and scene activity vary — treat it as an estimate, not a guarantee). Motion-only recording stretches any drive several times further.
Not on this recorder — all 8 PoE ports are used. To grow, move to a 16-channel kit or add a recorder. Cable already run to each camera can stay.
The turrets are IP67 metal, −40 °C to +60 °C. The NVR is an indoor appliance — keep it in a dry, ventilated cupboard or rack.
The cameras are PoE SELV devices powered by the NVR. The NVR plugs into a standard 10 A GPO. Concealed Cat 6 is customer cabling (AS/CA S009) and needs an ACMA-registered cabler.
Shipped Australia-wide by Infront Technologies. Local support from a team that designs, installs and maintains professional CCTV every day.
Mixed-voltage kit. The cameras are low-voltage (SELV) PoE / 12 VDC devices — no 240 V inside the turret. The NVR is a mains-powered desktop/rack appliance that plugs into a standard 10 A GPO. No electrician is required to power the NVR from an existing outlet.
When a licensed tradesperson is required. Concealed Cat-6 is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. A new GPO or rack-side mains work is the licensed electrician’s job.
Specifications in good faith. Specs, images, firmware and bundled accessories may change without notice; verify against the latest manufacturer datasheet. Product appearance and packaging may differ from marketing imagery.
By placing an order you confirm the product is fit for your intended use and that any concealed cabling will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer’s specifications.
