Uniview 6MP Dual-Light Varifocal Dome Camera, 2.7-13.5mm Motorised, 40m IR & Warm Light - IPC3236SB-ADZKM-DL-I1
IPC3236SB-ADZKM-DL-I1
In stock $ 355.00
inc-GST
or 4 interest-free payments of $88.75 with
Uniview IPC3236SB-ADZKM-DL-I1 6MP dual-light varifocal dome with a motorised 2.7–13.5 mm lens, 40 m IR and 40 m warm light, person and vehicle sorting, built-in mic and IK10 housing. Powered by PoE.
- ✓6MP, 1/2.5" sensor
- ✓2.7–13.5 mm motorised zoom
- ✓40 m IR and 40 m warm light
- ✓Person and vehicle sorting
- ✓Built-in mic, IK10, IP67
- ✓PoE, microSD up to 512GB
Uniview · 6MP · Dual light · Varifocal
Zoom in, at night,
in colour.

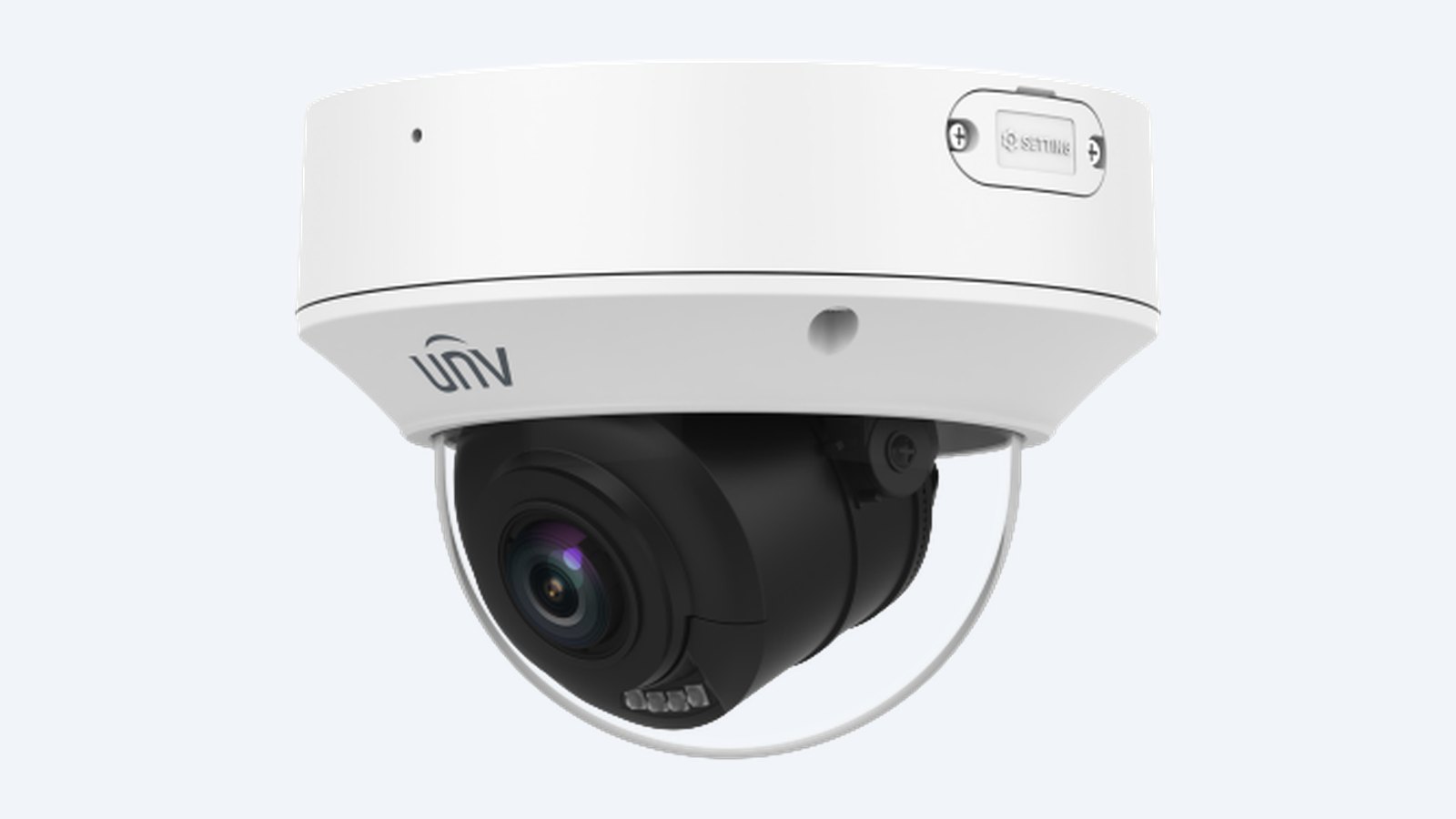

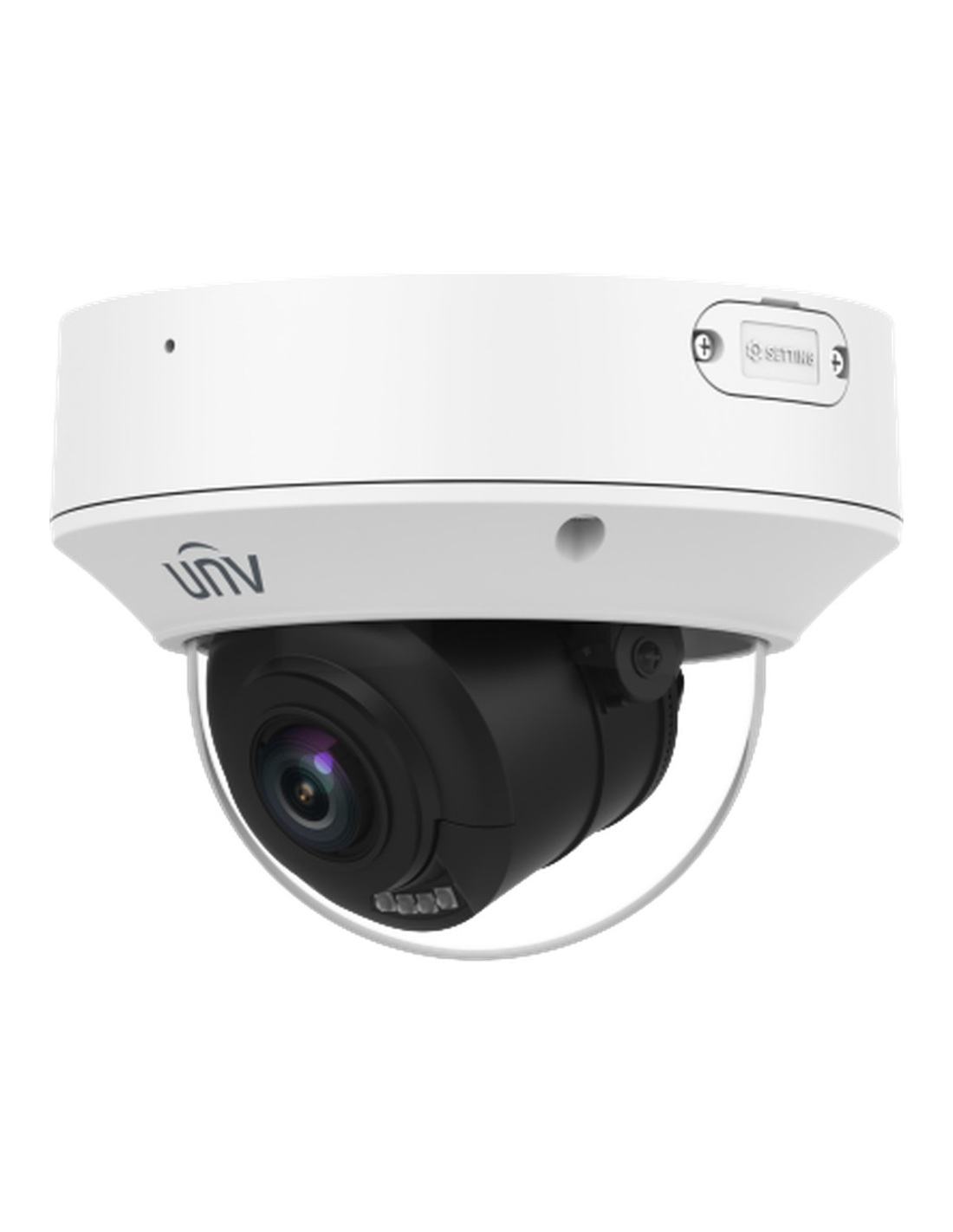

This is the Uniview IPC3236SB-ADZKM-DL-I1. A 6MP varifocal dome with a motorised 2.7–13.5 mm lens and two kinds of night light: infrared and warm light, each to 40 m. With the warm light on, it records in colour after dark.
In one sentence: the IPC3236SB-ADZKM-DL-I1 is a 6MP (3288 × 1860) dual-light varifocal dome with a motorised 2.7–13.5 mm F1.2 lens, 110° to 34.6° view, 40 m IR and 40 m warm light, 120 dB WDR, person and vehicle sorting, a built-in mic, IK10 and IP67, powered by PoE.
One camera, one Cat6 cable.
Video and power share a single Cat6 run from a PoE recorder or switch. Mounts and a memory card are optional.
In the box
- IPC3236SB-ADZKM-DL-I1 camera
- Fixing screws and drill template
- Quick guide
You also need
- A PoE NVR or switch (802.3af), or a 12 V DC supply
- Cat6 cable to the camera
- A microSD card up to 512GB, to record on the camera
- TR-JB07/WM04-B-IN-V2 wall mount with junction box, if needed
A larger 1/2.5" sensor for low light.
The 1/2.5" sensor and F1.2 lens see colour down to 0.001 lux. Zoom from 110° to 34.6° from the web page or NVR; Uniview rates it to identify a person from 6.1 m wide out to 30.4 m zoomed in.

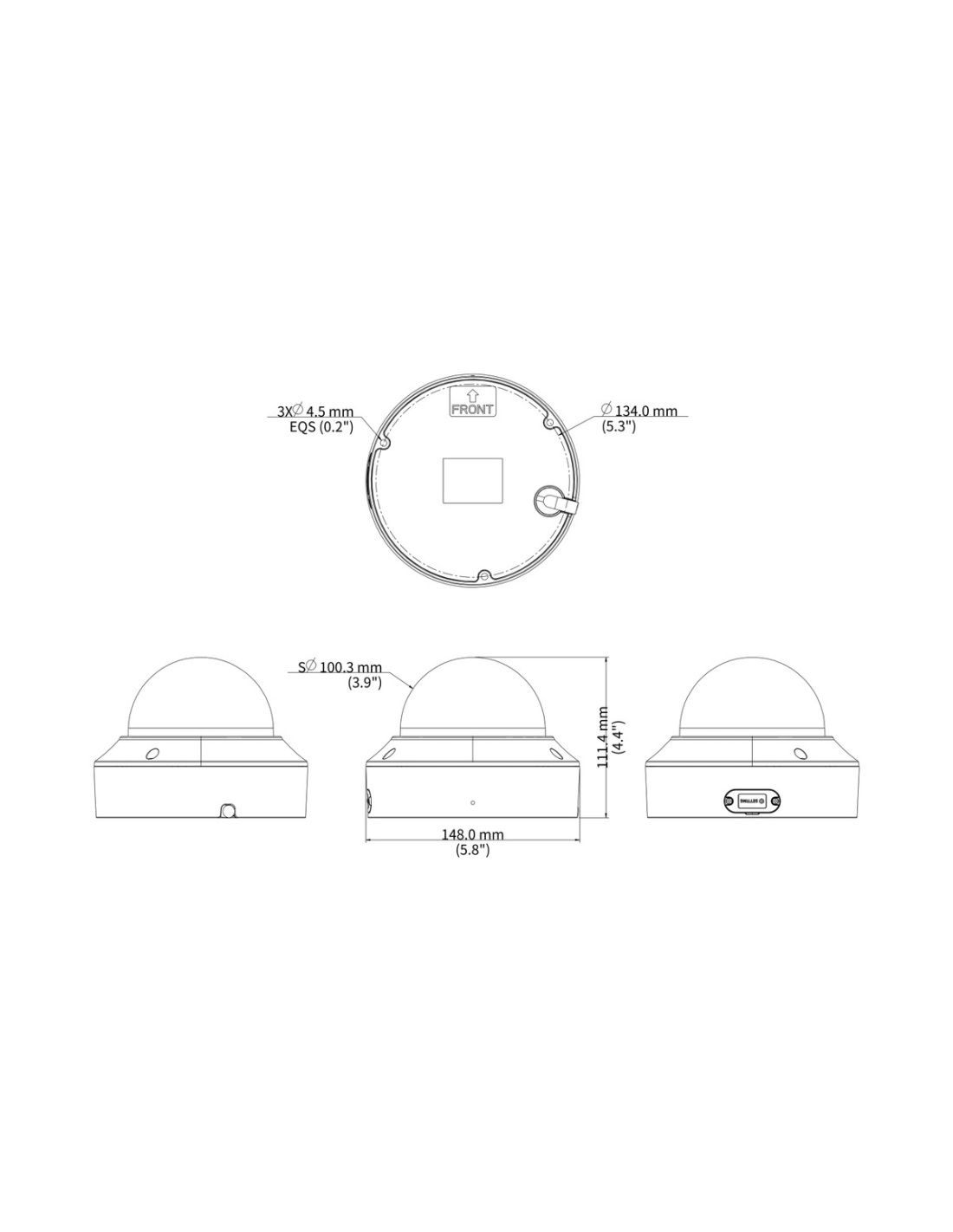

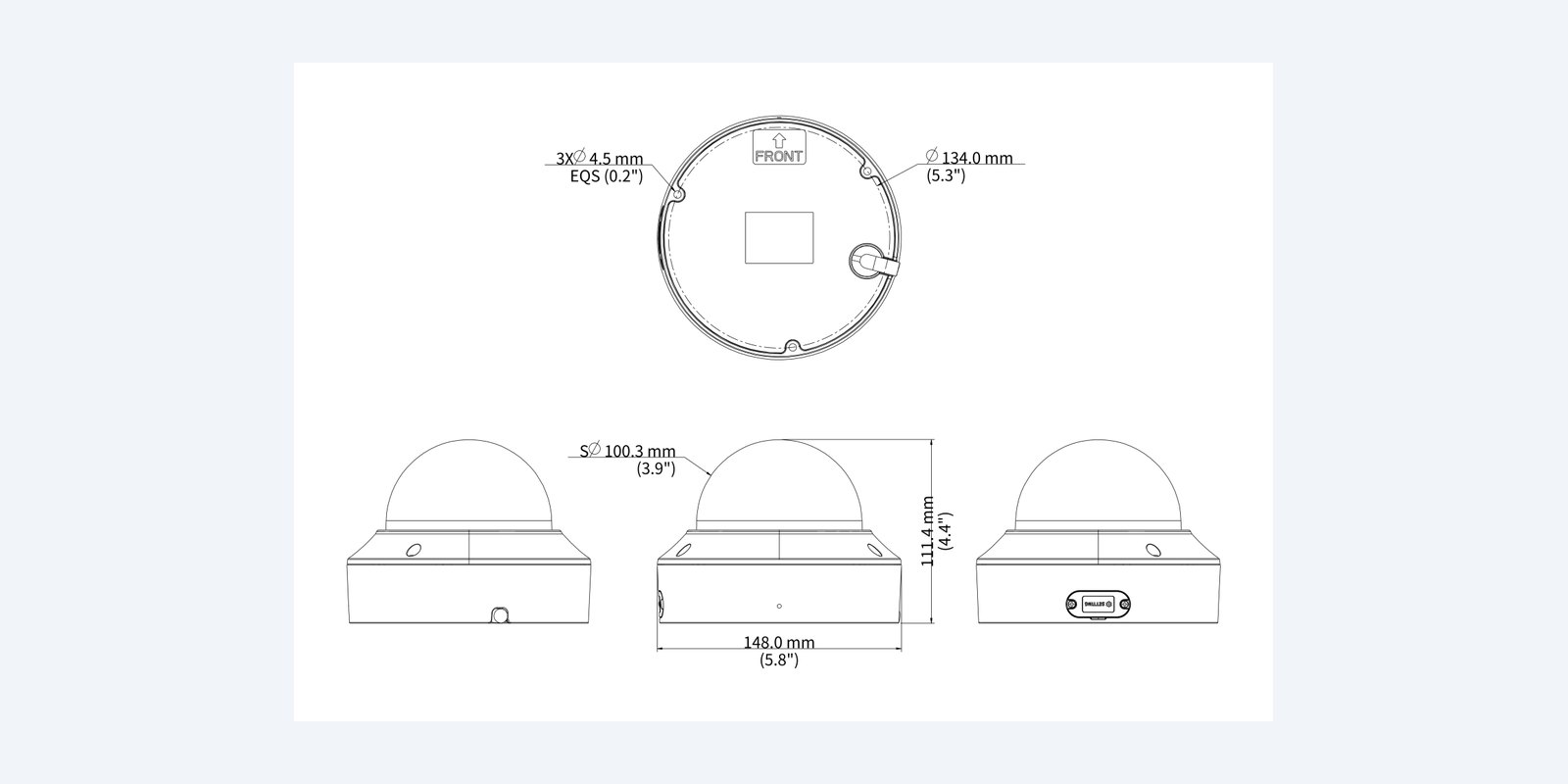

Size
Ø148 × 111 mm, 0.93 kg.
A metal dome 148 mm across, with the infrared and warm light around the motorised lens.
How it goes in
From the box to recording.
01
Pick the spot
High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.
02
Fix the dome
Screw it to the ceiling, or to a wall with the TR-JB07/WM04-B-IN-V2 mount, which has a junction box for the cable joint.
03
Plug it in
Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.
04
Aim and add
Open the cover, aim the lens on its three-axis gimbal and refit the cover, set the zoom from the camera’s web page or the NVR, then add it to the NVR or the Uniview EZView app.
At a glance
IPC3236SB-ADZKM-DL-I1
Show specs
Resolution
6MP (3288 × 1860)
Sensor
1/2.5" CMOS
Lens
2.7–13.5 mm motorised varifocal, F1.2
View
110° to 34.6° across
Identify / recognise / detect
Identify 6.1–30.4 m, recognise 12.2–60.8 m
Low light
0.001 lux colour, 0 lux with light on
WDR
120 dB true WDR, HLC, BLC
Night vision
Dual light: IR up to 40 m and warm light up to 40 m
Frame rate
25 fps at 6MP; 30 fps at 4MP
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Smart intrusion prevention (line crossing, intrusion, area entry and exit) with person, vehicle and bike sorting; people counting and crowd density; motion, tampering, audio
Audio
Built-in mic; 1 audio in, 1 audio out; two-way audio
Other connections
Alarm 1 in, 1 out
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T, M
Network
1 × RJ45 10/100
Power
PoE (802.3af) or 12 V DC, max 7.6 W
Weather and impact
IP67, IK10
Operating
−30 °C to 60 °C, ≤95% RH
Size and weight
Ø148 × 111 mm, 0.93 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Recorders that power the camera over one Cat6 cable and add it automatically.
Walls
TR-JB07/WM04-B-IN-V2 wall mount
Wall arm and junction box made for this size of Uniview varifocal dome.
Ceilings
TR-CM24-IN pendant mount
Hangs the dome from an indoor ceiling. Add the TR-SE24-A-IN 500 mm pole for high ceilings.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs of up to 100 m from the recorder or switch.
Where it is used
Where the dual-light varifocal dome fits
Car parks
Colour footage of cars after dark.
Building entries
Frame the door tightly for faces.
Loading docks
Zoom on the dock from across the yard.
Schools and sites
IK10 domes for reachable spots.
Uniview varifocal domes side by side
| IPC3235SB | IPC3236SB DL | IPC3238SB DL | IPC3735SS | |
|---|---|---|---|---|
| Resolution | 5MP | 6MP | 8MP 4K | 5MP |
| Frame rate at full resolution | 30 fps | 25 fps | 25 fps | 30 fps |
| Lens | 2.7–13.5 mm F1.2 | 2.7–13.5 mm F1.2 | 2.8–12 mm F1.4 | 2.7–13.5 mm F1.2 |
| View across | 106.3° to 32.5° | 110° to 34.6° | 111.5° to 34.4° | 106.3° to 32.5° |
| Identify a person | 6.1–30.4 m | 6.1–30.4 m | 8.1–40.5 m | 6.1–30.4 m |
| Night vision | 40 m IR | 40 m IR + 40 m warm light | 40 m IR + 40 m warm light | 40 m IR |
| WDR | 120 dB | 120 dB | 120 dB | 130 dB |
| Colour low light | 0.002 lux | 0.001 lux | 0.002 lux | 0.002 lux |
| Max power | 7.0 W | 7.6 W | 8.6 W | 8.0 W |
| Size and weight | Ø148 × 111.4 mm, 0.97 kg | Ø148 × 111 mm, 0.93 kg | Ø148 × 111 mm, 0.94 kg | Ø162 × 149 mm, 1.36 kg |
Model codes shortened: IPC3235SB-ADZK-I0, IPC3236SB-ADZKM-DL-I1, IPC3238SB-ADZKM-DL-I1, IPC3735SS-ADZK-I1. All four have a motorised varifocal lens, person and vehicle sorting, people counting, a built-in mic, alarm and audio in/out, microSD up to 512GB, IP67, IK10 and PoE (802.3af) or 12 V DC. Identify range is wide to full zoom. Figures from the Uniview datasheets.
Common questions
What does motorised varifocal mean?
The lens zoom is driven by a motor, so you set the view from the camera’s web page or the NVR after the dome is up, from wide to tight, without opening it or climbing a ladder again.
What resolution and frame rate does it record?
6MP (3288 × 1860) at up to 25 fps. For 30 fps, set 4MP. Corridor mode turns the picture to 9:16 for halls and walkways.
How far does it see at night?
Up to 40 m. It has both infrared and warm white light: infrared gives a discreet black-and-white picture, while the warm light lets it record in full colour at night, also out to 40 m.
Does it tell people from other movement?
Yes. Smart intrusion prevention covers line crossing, intrusion and entering or leaving an area, and sorts what it sees into people, vehicles and bikes. That filters out most false alarms from leaves, birds and changing light. It can also count people and watch crowd density.
Does it record sound?
Yes, through the built-in microphone. It also has an audio output, so an external speaker can be connected for two-way talk from the app or NVR.
Can I mount it on a wall?
Yes. It mounts on a ceiling, or on a wall with the TR-JB07/WM04-B-IN-V2 wall mount, which includes a junction box for the cable joint. Indoors, the TR-WM04-IN wall mount or the TR-CM24-IN pendant mount also fit, and the TR-UP06-C-IN adapter takes a wall mount onto a pole.
Will it work with my recorder?
Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G, T, M can add it too, although the smart events may only come through on a Uniview recorder.
Can I watch it on my phone?
Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. The camera also has its own web page for live view and settings.
Can it record without an NVR?
Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With a Uniview NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.
How is it powered?
By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 7.6 W at most.
What is Ultra 265?
Uniview’s own video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which camera suits each spot? Call 1300 736 970 or email [email protected] with a photo of the area and we will suggest the model and mount.
Installation and safety
Power. PoE (IEEE 802.3af) or 12 V DC ±25%, 7.6 W maximum. Use one or the other.
Weather. IP67, IK10. Works from −30 °C to 60 °C. Seal the cable entry, or use the matching junction box or mount where the joint would be exposed.
Figures. From the Uniview IPC3236SB-ADZKM-DL-I1 datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø148 × 111 mm
- Audio
- Built-in mic; 1 audio in, 1 audio out; two-way audio
- Weight
- 0.93 kg
- Operating temperature
- −30 °C to 60 °C, ≤95% RH
- Power
- PoE (802.3af) or 12 V DC, max 7.6 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 6MP (3288 × 1860)
- Brand
- Uniview
- Frame Rate
- 25 fps at 6MP; 30 fps at 4MP
- Interoperability
- Profile S, G, T, M
- Image Sensor
- 1/2.5" CMOS
- Lens
- 2.7–13.5 mm motorised varifocal, F1.2
- Minimum Illumination
- 0.001 lux colour, 0 lux with light on
- Field of View
- 110° to 34.6° across
- Protection
- IP67, IK10
- WDR
- 120 dB true WDR, HLC, BLC
- Warranty
- 3 years
- Product Type
- Dual-Light Varifocal Dome IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC3236SB-ADZKM-DL-I1
- Smart detection
- Smart intrusion prevention (line crossing, intrusion, area entry and exit) with person, vehicle and bike sorting; people counting and crowd density; motion, tampering, audio
- Night Vision
- Dual light: IR up to 40 m and warm light up to 40 m
