Uniview Panoramic & Fisheye Cameras

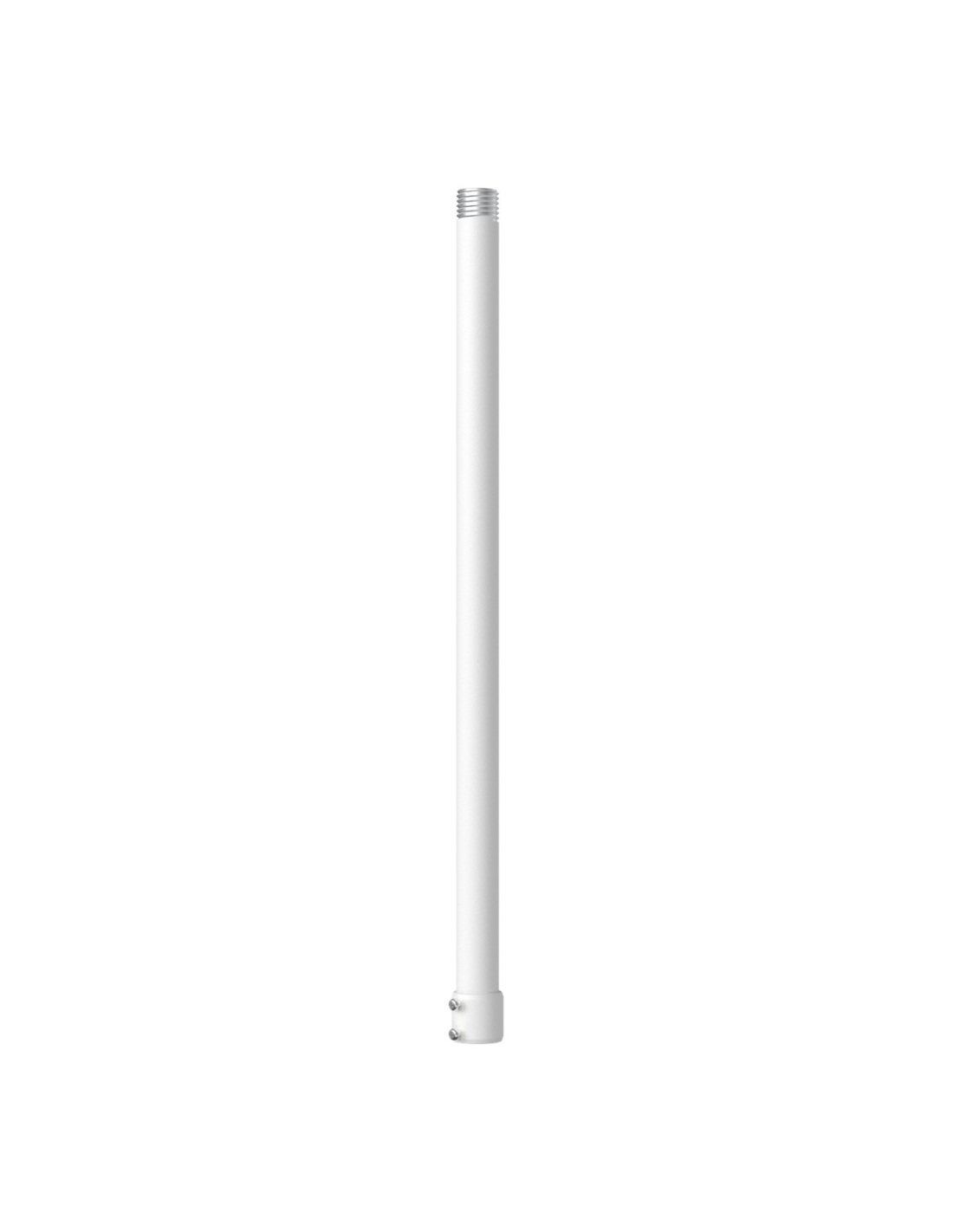

Uniview 500 mm Pendant Pole for Domes, Turrets and Fisheyes, 3/4" Thread, Aluminium - TR-SE24-A-IN
TR-SE24-A-IN
In stock $ 21.30
inc-GST
or 4 interest-free payments of $5.33 with

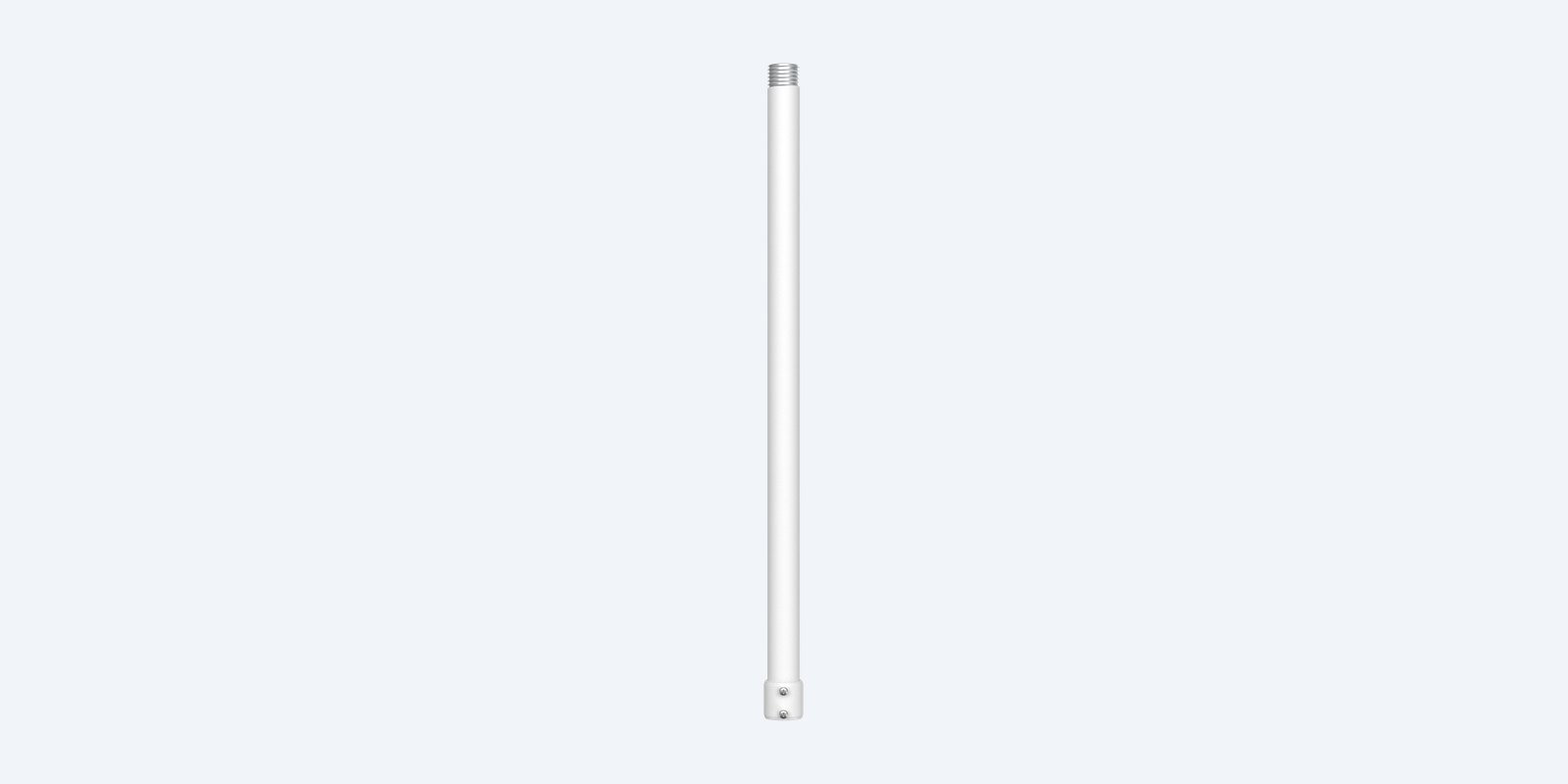

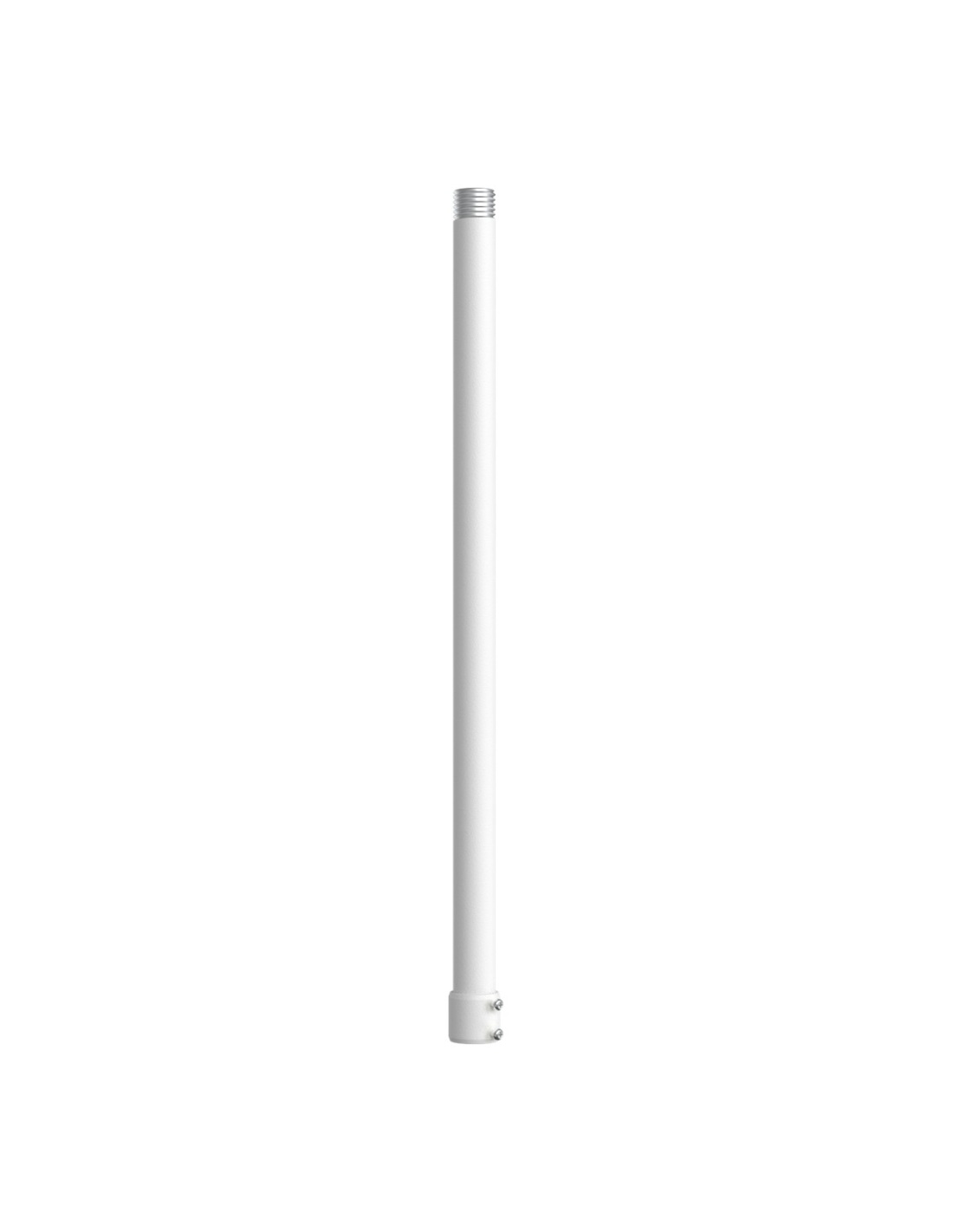

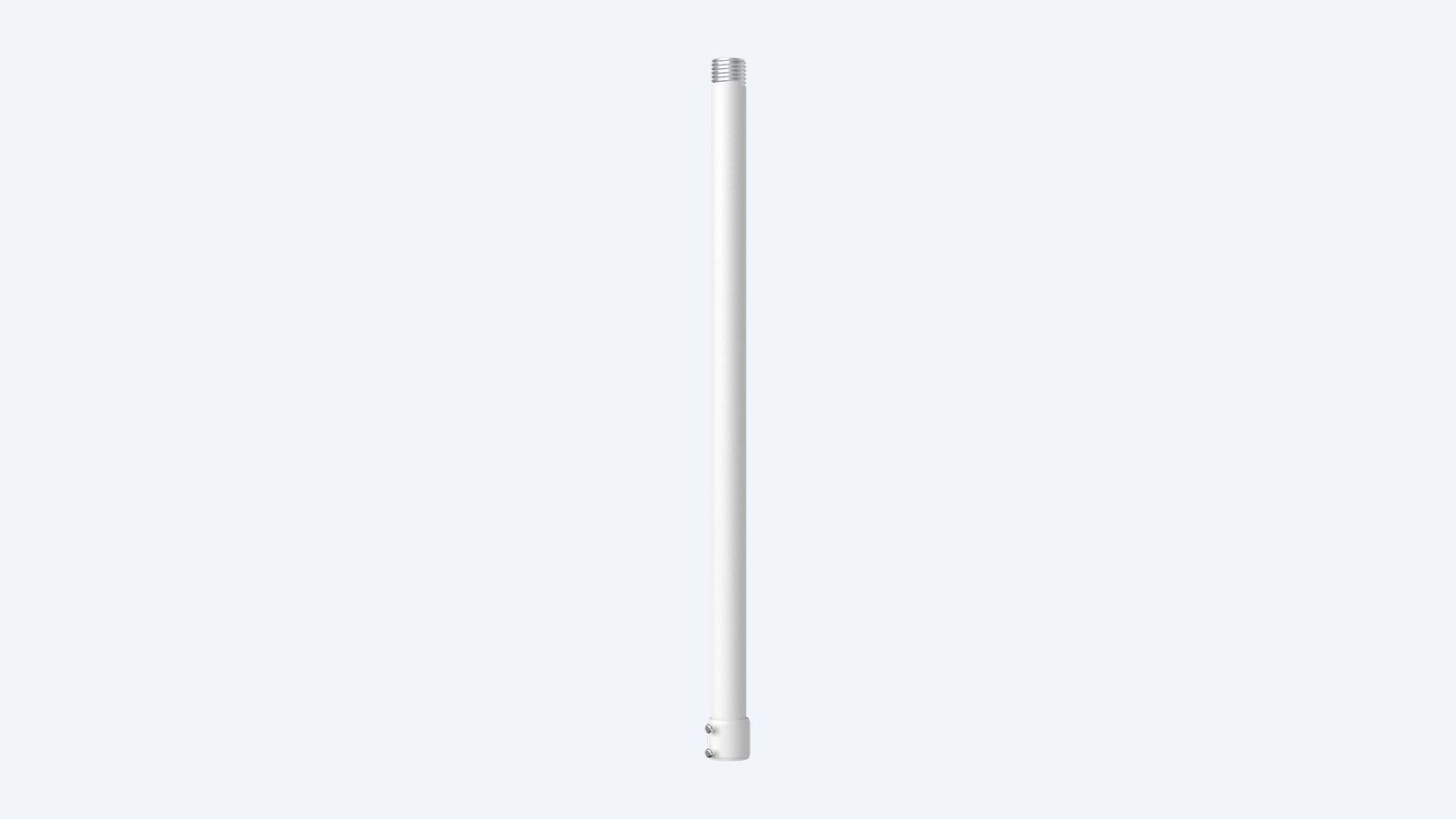

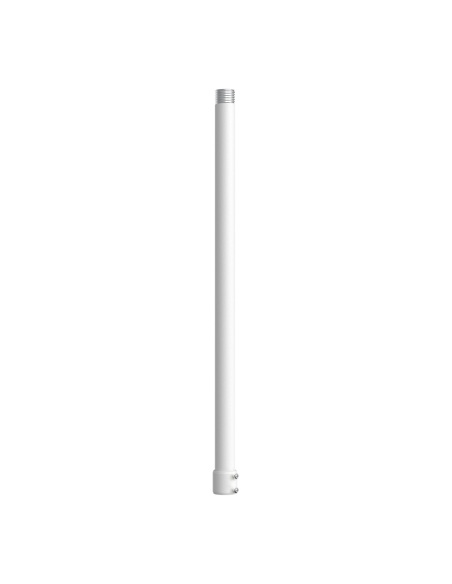

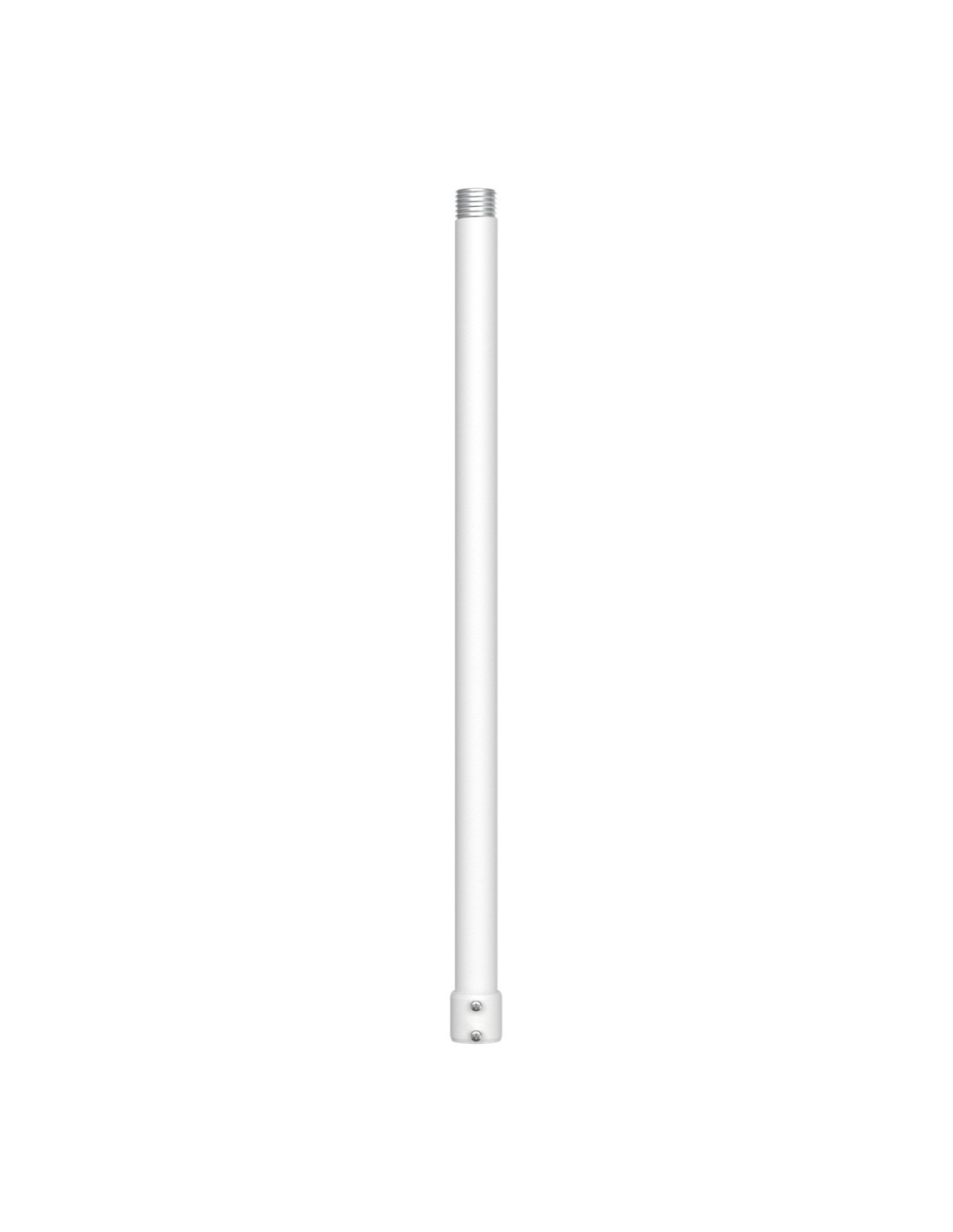

Uniview TR-SE24-A-IN 500 mm aluminium pendant pole with 3/4" threads at both ends, to hang Uniview domes, turrets and fisheyes lower from a high ceiling.
- ✓500 mm drop below the ceiling mount
- ✓3/4" NPS thread at both ends
- ✓Cable runs inside the pole
- ✓Indoor or outdoor
- ✓Aluminium alloy, 0.35 kg
- ✓Listed with the TR-CM24-IN pendant
Uniview · Pendant pole · 500 mm drop
A longer drop for the camera,
half a metre below the ceiling.
This is the Uniview TR-SE24-A-IN. A 500 mm aluminium pendant pole with a 3/4" thread at each end. Uniview lists it with its pendant mount and junction boxes to hang a dome, turret or fisheye lower than the standard 200 mm drop.
In one sentence: the TR-SE24-A-IN is a Ø32 × 520 mm aluminium alloy pendant pole with 3/4" NPS threads at both ends, weighing 0.35 kg, for indoor or outdoor use.
The pole only. The ceiling plate, junction box and camera are separate.
Uniview lists it as a lengthening pole for its pendant mount (TR-CM24-IN). The camera hangs from its junction box, which screws onto the bottom thread.
In the box
- TR-SE24-A-IN pendant pole
You also need
- A ceiling mount: Uniview lists the TR-CM24-IN
- The junction box for your camera
- A compatible dome, turret or fisheye
- Thread sealant for outdoor use
For high roofs and open spaces.
Under a high roof, a camera on the ceiling looks at the tops of the racking. Dropping it half a metre puts it below beams, lights and ducts, with the cable hidden inside the pole.
Threads
A 3/4" thread at each end.

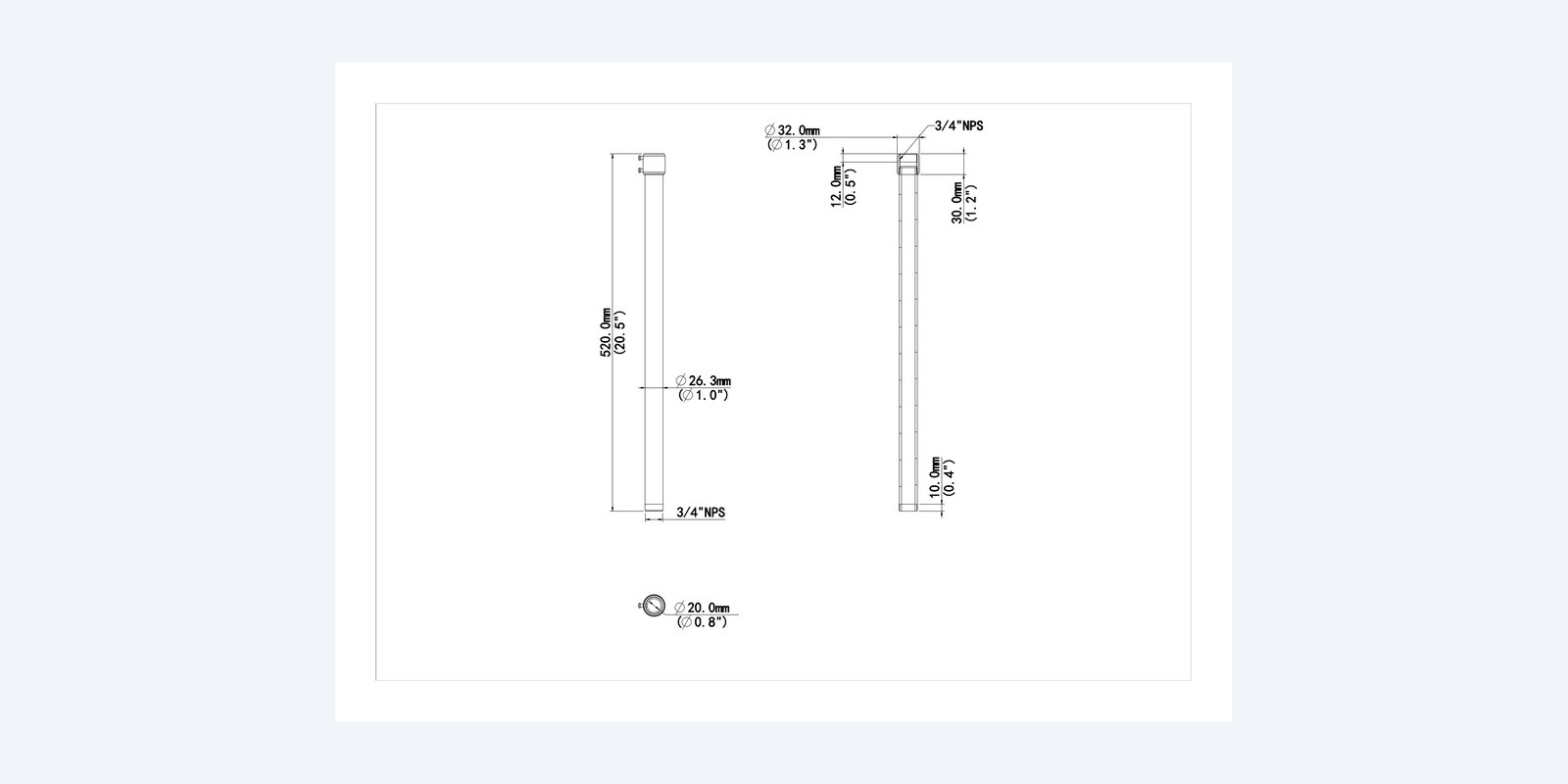

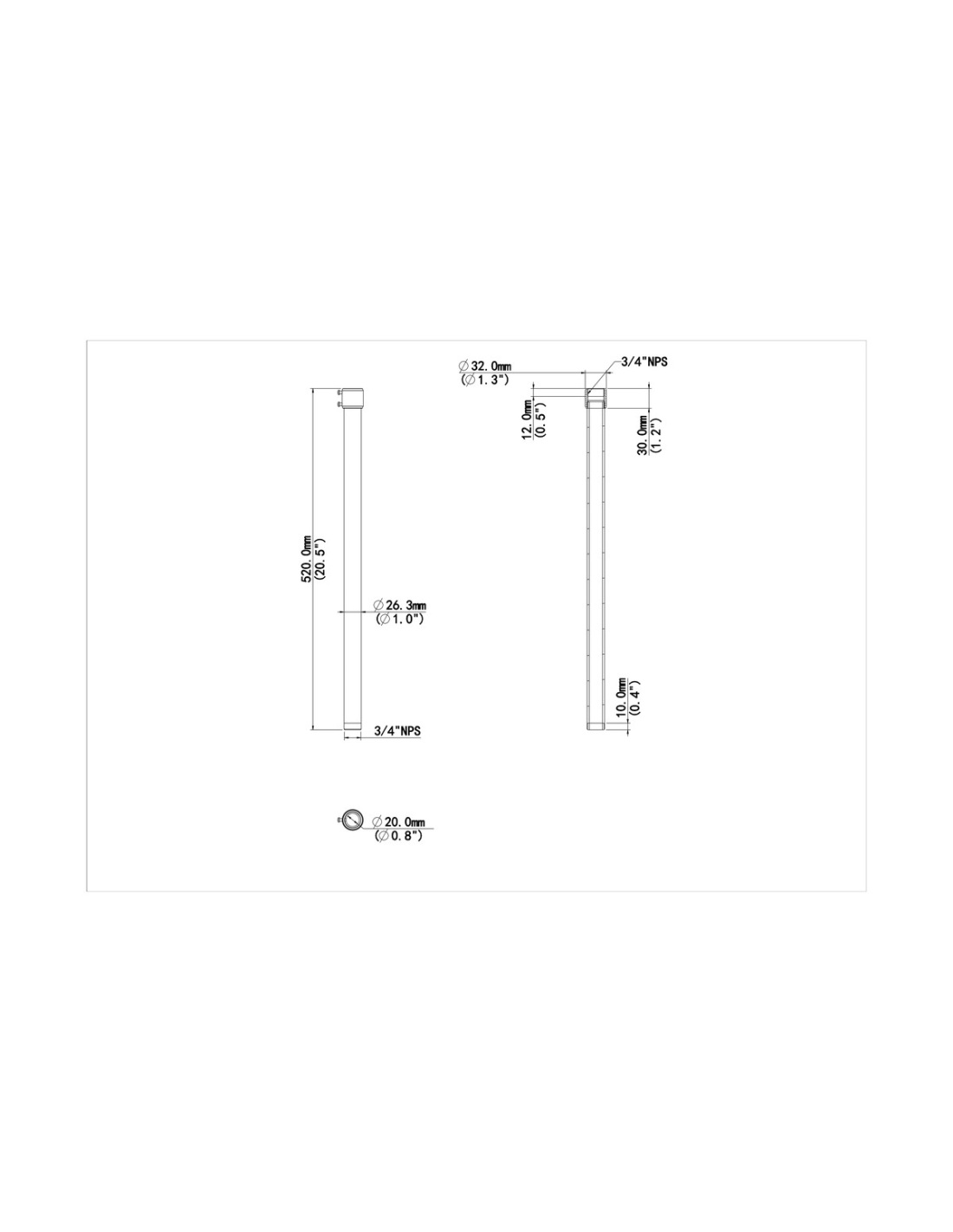

The top has a Ø32 mm collar with an internal 3/4" NPS thread and a locking screw; the bottom has an external 3/4" NPS thread for the junction box. The cable runs down inside the Ø26.3 mm tube.
Size
520 mm long, Ø26.3 mm tube.
The tube is Ø26.3 mm with a Ø32 mm collar at the top. Both threads are 3/4" NPS, the same size as the entries on Uniview’s junction boxes.
How it goes in
From the box to a mounted camera.
01
Fix the ceiling mount
Fit the ceiling plate or pendant mount to a joist or solid ceiling.
02
Add the pole
Feed the cable through the pole and screw the top thread on, then lock it with the set screw.
03
Fit the junction box
Screw the camera’s junction box onto the bottom thread.
04
Fit and aim
Connect the camera inside the box, fix it and aim it.
At a glance
TR-SE24-A-IN
Show specs
Type
Pendant pole
Length
520 mm (500 mm drop)
Tube
Ø26.3 mm, Ø32 mm collar
Threads
3/4" NPS both ends
Weight
0.35 kg
Material
Aluminium alloy
Use
Indoor or outdoor
Colour
White
Pair it with
What goes with it
Ceiling
TR-CM24-IN pendant mount
Uniview lists this pole with it.
Fisheye
TR-JB04-D-IN junction box
Uniview pairs it with this pole for the 8MP fisheye.
Turrets
TR-JB03-H-IN junction box
For IPC363X turrets and the IPC815 fisheye.
Domes
TR-JB03-G-IN junction box
For IPC32X and IPC31X domes.
Where it is used
Where it is used
Warehouses
Below the racking line on a high roof.
Shopping centres
Fisheyes over open floors and atriums.
Gyms and halls
Clear of lights and basketball rings.
Factories
Below cranes, ducts and cable trays.
Uniview pendant parts side by side
| TR-CM24-IN | TR-SE24-A-IN | |
|---|---|---|
| Type | Ceiling plate with 200 mm drop pole | 500 mm pendant pole |
| Size | Ø110 × 223.5 mm | Ø32 × 520 mm |
| Pole | Ø26.3 mm, 3/4" NPS end | Ø26.3 mm, 3/4" NPS both ends |
| Weight | 0.25 kg | 0.35 kg |
| Use | Indoor | Indoor or outdoor |
Both aluminium alloy. The camera hangs from a junction box screwed onto the pole’s 3/4" thread. Figures from the Uniview datasheets and drawings.
Common questions
Which cameras does it suit?
Uniview lists it in the accessory section of most of its dome, turret and fisheye datasheets, including the IPC3238SB, IPC3638SE, IPC328SS, IPC815SB, IPC816SB and IPC86CEB. The camera hangs from its junction box, so pick the box that suits the camera.
What fixes it to the ceiling?
The pole has no ceiling plate of its own. Uniview lists it as an accessory to the TR-CM24-IN pendant mount; the top of the pole has an internal 3/4" thread with a locking screw. Call us and we will confirm the parts for your ceiling.
Which junction box do I need?
TR-JB03-G-IN for IPC32X and IPC31X domes, TR-JB03-H-IN for IPC363X turrets and the IPC814/815 fisheyes, TR-JB03-I-IN for Easy turrets, TR-JB04-D-IN for the 8MP fisheye.
Can I use it outdoors?
Uniview lists the pole for indoor or outdoor use. Under a carport or awning, seal the threads so water cannot run down inside to the camera.
How long is it?
520 mm overall, giving about a 500 mm drop, with a Ø26.3 mm tube and Ø32 mm top collar.
What thread does it have?
3/4" NPS at both ends: internal at the top, external at the bottom.
Does the cable run inside?
Yes, down the inside of the tube, so nothing hangs on the outside.
How much does it weigh?
0.35 kg.
What is it made of?
Aluminium alloy, 0.35 kg.
Is it white or black?
White. It matches Uniview’s white cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. A longer pole puts more leverage on the ceiling fixing. Fix the ceiling mount into a joist or concrete and tighten the locking screw. Turn off power to the camera before connecting it.
Weather. Seal both threads with thread sealant outdoors so water cannot run inside the pole to the camera.
Figures. From the Uniview TR-SE24-A-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø32 × 520 mm
- Weight
- 0.35 kg
- Material
- Aluminium Alloy
- Colour
- White
- Length
- 520 mm
- Installation
- Ceiling pendant, indoor or outdoor
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- Camera Pendant Pole
- Model
- TR-SE24-A-IN
- Use
- Indoor or outdoor
- Mount type
- Pendant extension pole
- Compatible Cameras
- Uniview domes, turrets and fisheyes via their junction box (TR-JB03-G-IN, TR-JB03-H-IN, TR-JB03-I-IN, TR-JB04-D-IN); listed in IPC3238SB, IPC3638SE, IPC328SS, IPC815SB, IPC816SB, IPC86CEB datasheets
- Camera Series
- Uniview fixed domes, turrets and fisheyes
- Thread
- 3/4" NPS both ends
- Tube Diameter
- 26.3 mm (32 mm collar)
- New
In stock
Uniview Panoramic & Fisheye Cameras

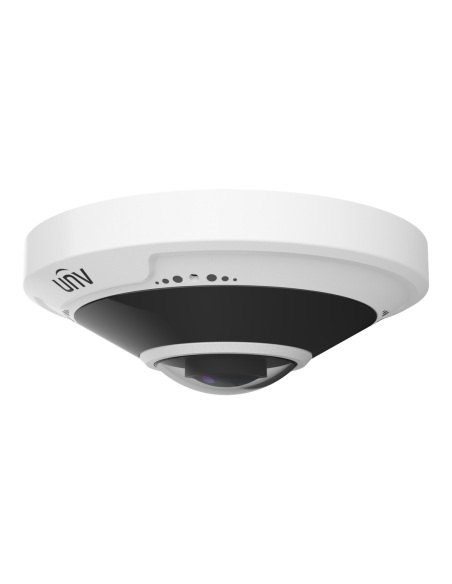

Uniview 5MP Fisheye Camera, 1.4mm 180° Lens, 10m IR, Dual Mic, IK10 - IPC815SB-ADF14K-I0
